Features:
IP Rating: Waterproof IP20
Beam Angle: 20°-70° degree
Volts DC:24V DC
LED Type: 3535 SMD
LED Amount: 5 LEDS
Length: 14.2"(360mm)
Max Power: 12W
Luminous(lm): 750lm
Color Temperature: WW/NW/CW
3 years warranty and with CE, Rohs Certification.
Description:
New high-power LED light bar is designed for more than 4cm thin light boxes, large boxes of new research and design side of the light source lighting products, using a unique perspective of the secondary light source design, high brightness, installation is simple, so you can save your lightbox more light cost, low-voltage constant current power supply DC24V, safe and reliable.

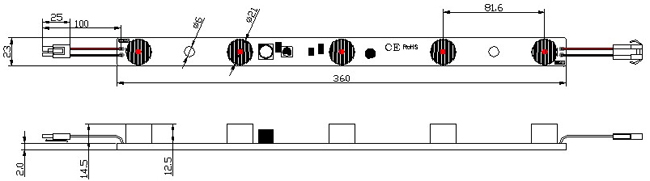

Product dimensions diagram(mm):

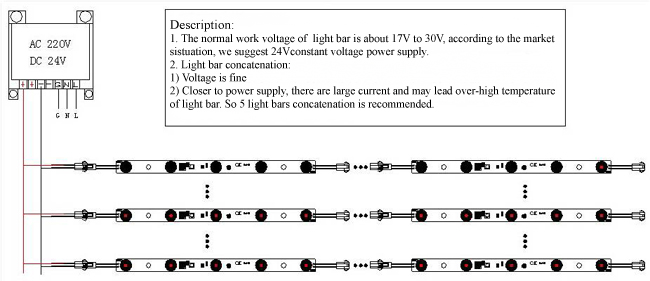

Installation diagram:

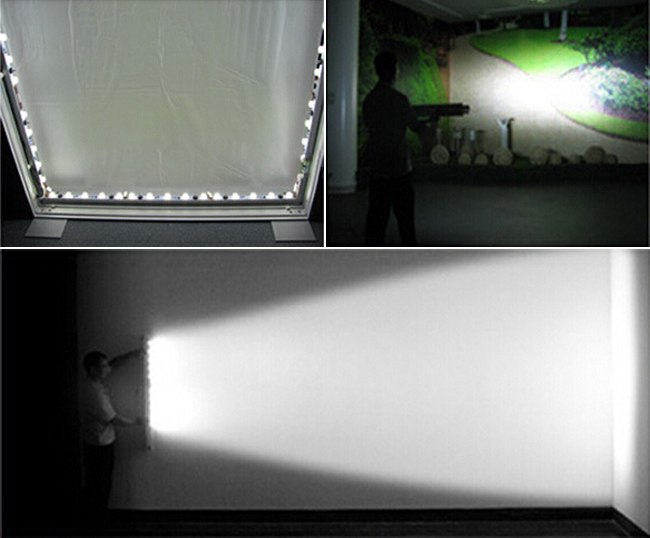

Application:
Free shipping on order over 288usd in 25 areas: Puerto Rico, Canada, France, England, America, Australia, Germany, Japan, Thailand, Belgium, Spain, Maldives, Philippines, Russia, South Korea, India, Malaysia, Singapore, Indonesia, Vietnam, Cambodia, Greek, Israel, Kuwait, Pakistan
We free ship only to the 48 contiguous states.
For Hawaii, Alaska, Guahan or Puerto Ricoa Customers, an extra freight is required.
Free shipping on orders over $79.
$6 shipping charge on orders under $79.
| Model | LEDM-GKL-LDW294D | ||
| Voltage | DC17-30V | Material | Aluminum+ optical lens |
| Current | 680 mA | PCB | Aluminum |
| Power | 12W | Cable | UL1007 22 AWG |
| Beam angle | 20°- 70° | Color of cable |
Positive: red line Negative: black line |
| Lumens | 850-900lm | Connection Qty | 5M |
| Dimension | 360*23*21mm | Fixing screw | ---- |
| LED Qty | 5 pcs | Back tape | 3M adhesive tape |
| Color | WW/NW/CW | Working Temp | -20~60°C |
| IP rate | IP20 | Storage Temp | -20~60°C |
| IP type | ---- | Warranty | 3 years |
| LED type | LG 3535 | ||
| Lifespan | >30000H | ||
| Color | WW /NW/CW | ||
| VF | W:3.0-3.3V | ||
| CCT/WL | WW | NW | CW |
| 2600-3700K | 3700-5500K | 6000-8300K | |
| 110-120 LM | 130-150 LM | 120-140 LM | |
