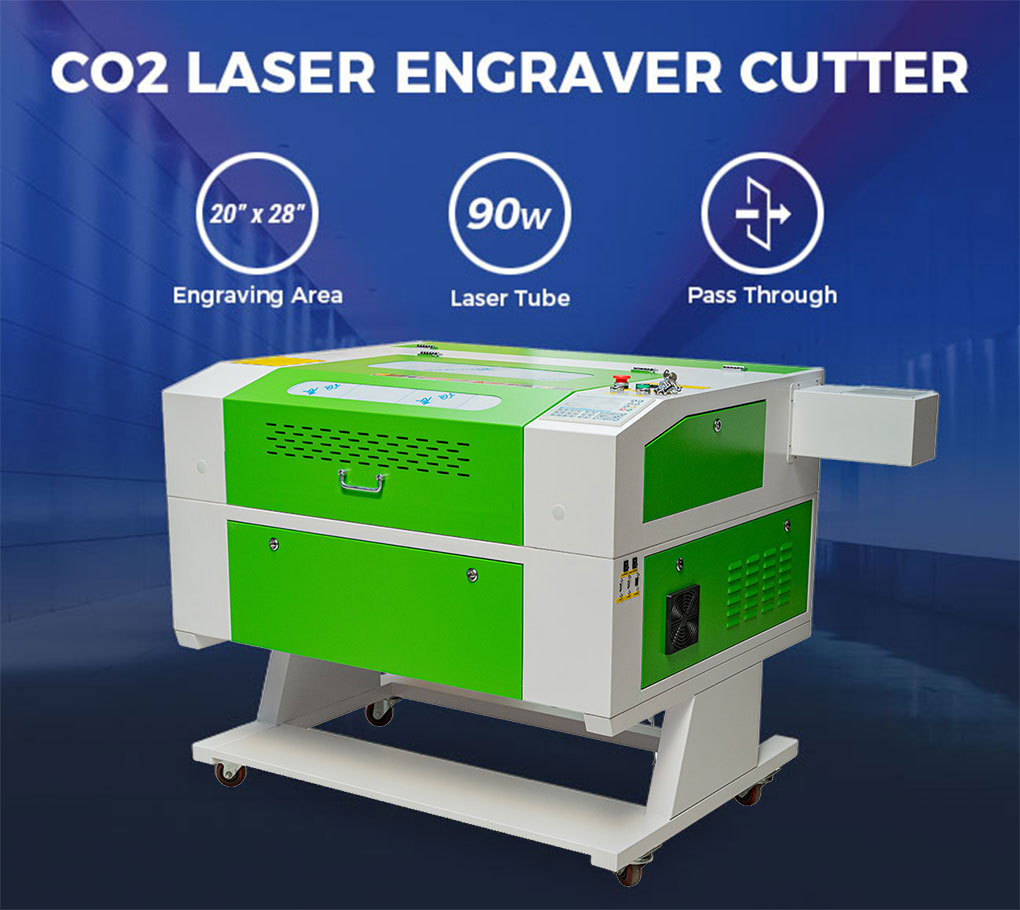

CALCA RECI 90W 20" x 28" CO2 Laser Engraver and Cutter, Electric Lift Bed, Industrial Water Chiller, Compatible with LightBurn Software

Arrival in 3-5 Days.

Item Code: LCM-RS-X700-US

Availability:

Unit Price: $3,093.00/set

Apply to See Distributor Price

Quantity:
set(s) Total Cost:  $3,093.00
Buy It Now Add to Cart Inquire Now PayPal Pay Later

Buyer Protection

Related products
CALCA RECI 90W 20" x 28" CO2 Laser Engraver and Cutter, Electric Lift Bed, Industrial Water Chiller, Compatible with LightBurn Software
Buy It Now

CALCA RECI 90W 20" x 28" CO2 Laser Engraver and Cutter, Electric Lift Bed, Industrial Water Chiller, Compatible with LightBurn Software

The machine is a laser engraver and cutter equipped with 90W CO2 Laser Tube. It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc.

Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver to a computer
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified

This machine is 220V voltage, equipped with 110V to 220V converter, 110V voltage available.

Product details:

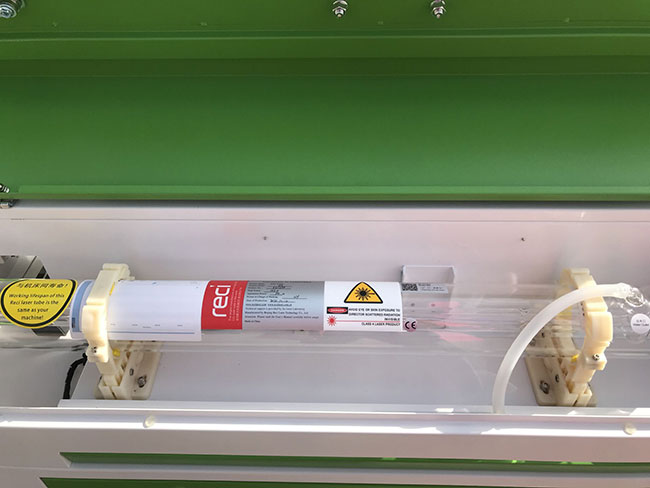

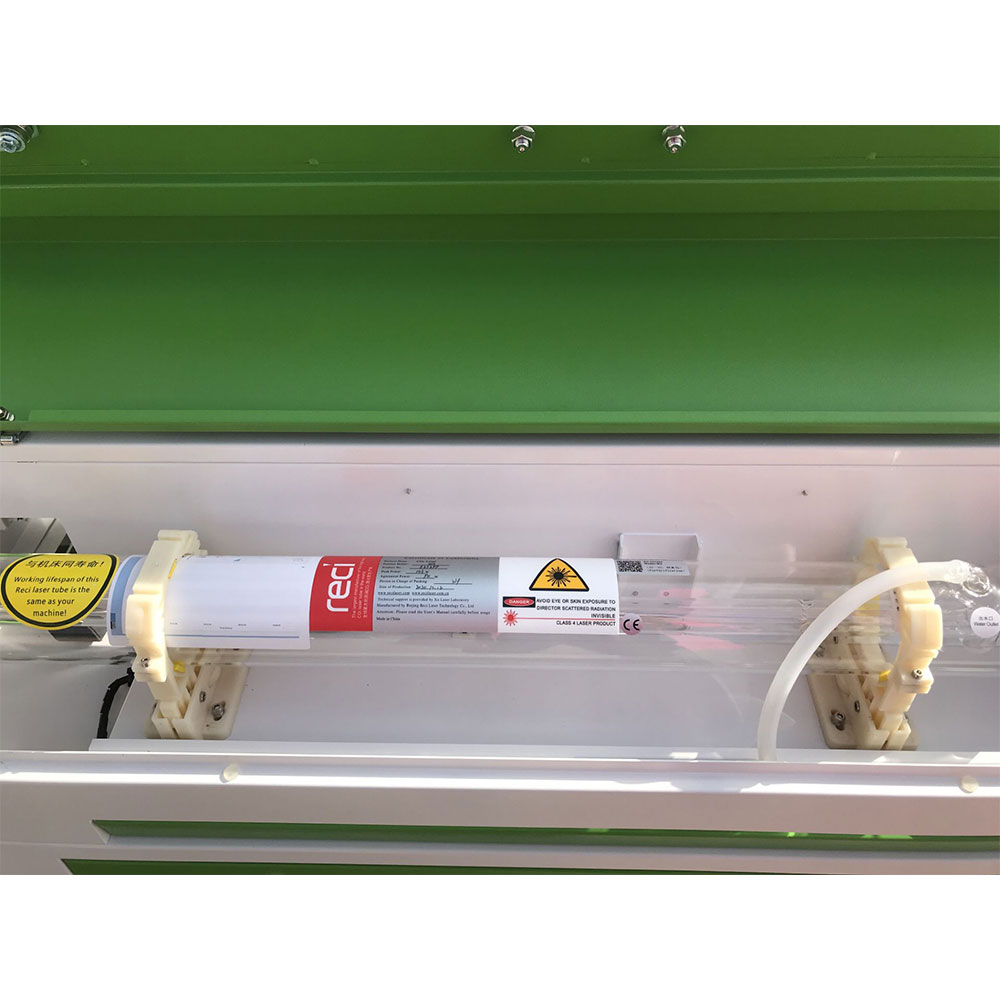

CO2 Laser Tube
We have catalyst plating in the inner wall of the laser tube. working life is up to 10000 hours. When compare to the same length tube, RECI W2 co2 laser tube is New firing technology is used to join metal parts and glass parts together directly. This new technology makes the high stability in W series laser tubes.

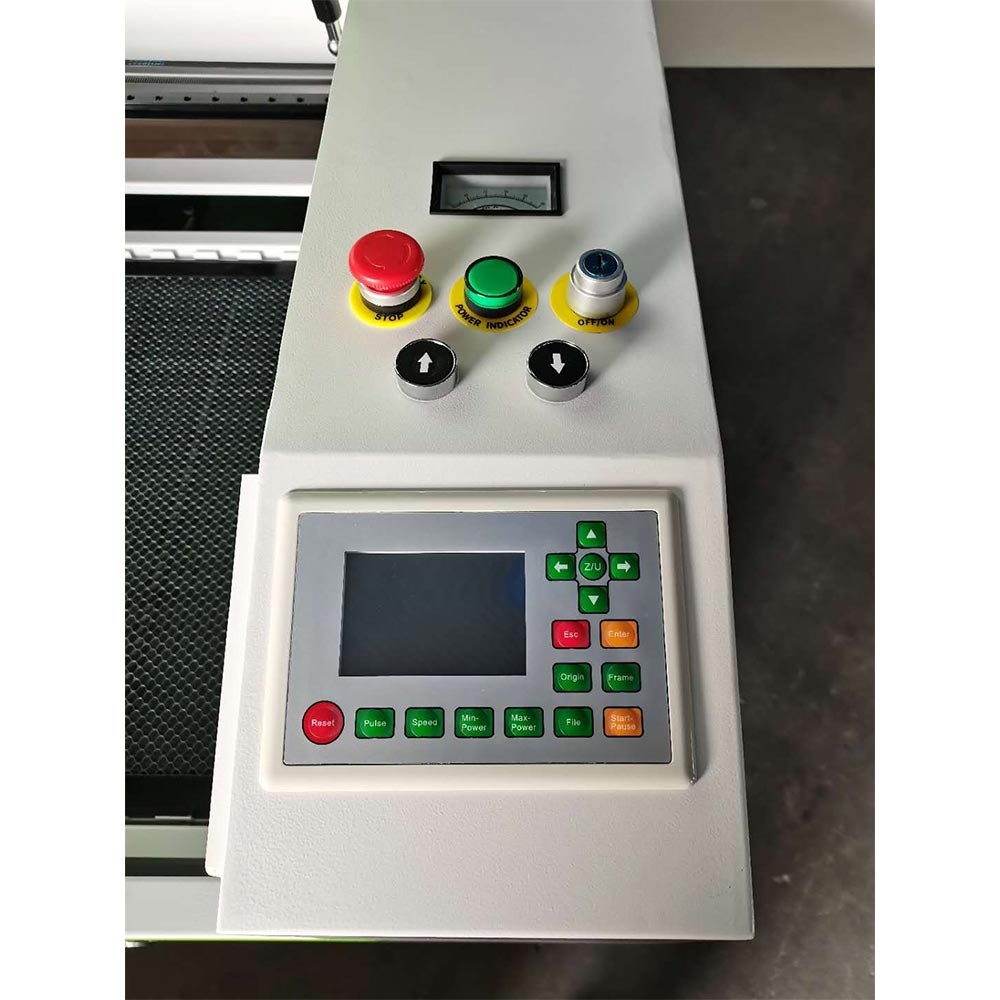

Digital Operation Panel

It features DSP Control System for RDdraw directly, with multi-language (English, French, German, Italian, Spanish, and more languages updating) available, which is more intuitive, simple and more convenient.
Support software: LightBURN,CorelDraw, AutoCAD, Photoshop, etc.

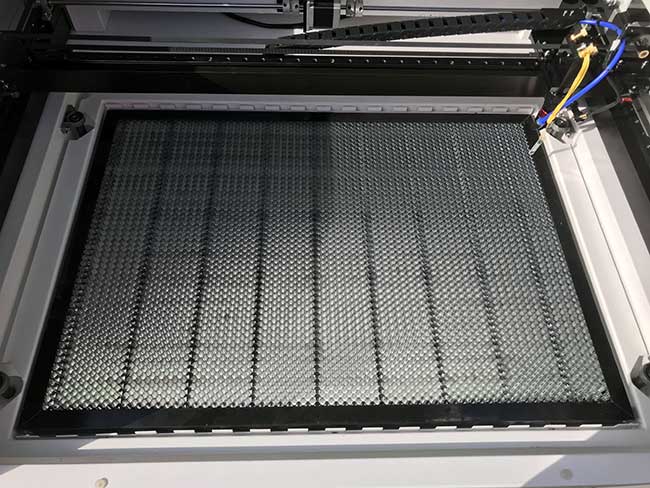

Large Working Area

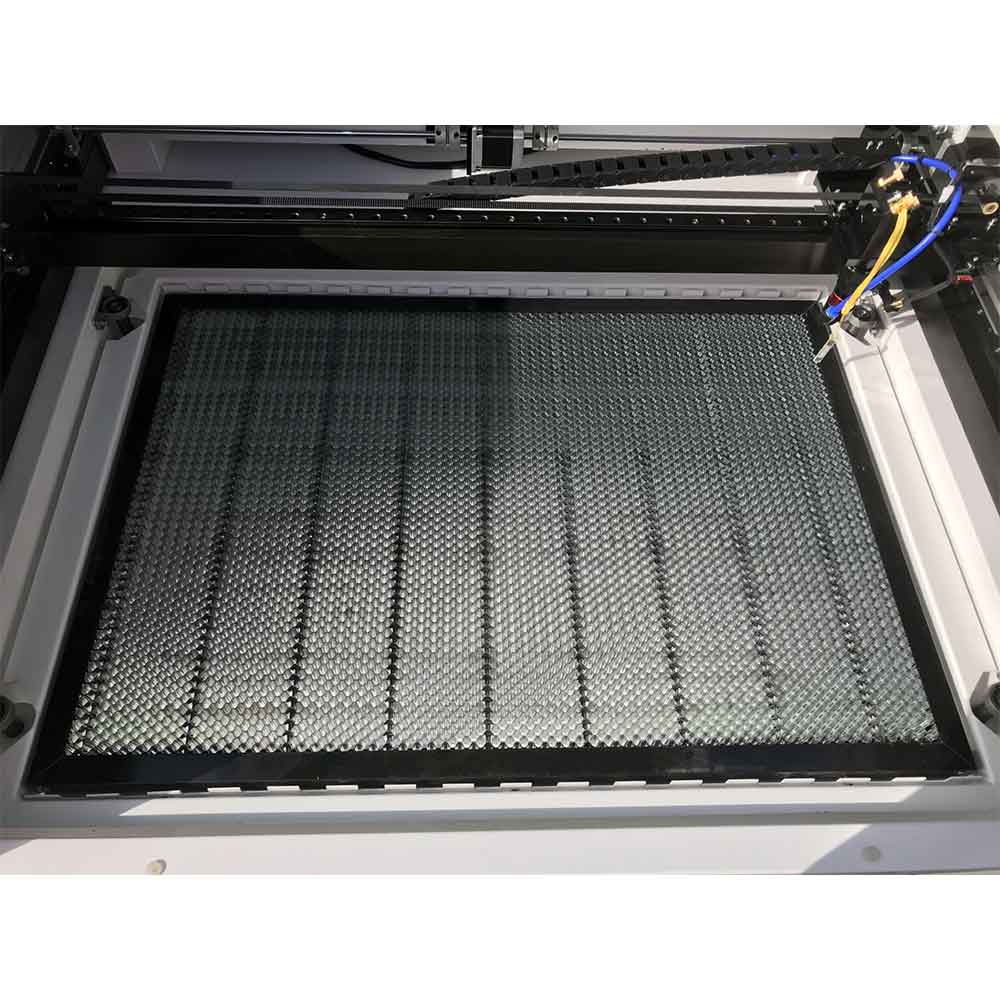

With large working area of 28"x20" (70x50cm), featuring bending table, which adopts honeycomb structure, with high strength, anti-deformation, sound absorption and heat insulation.

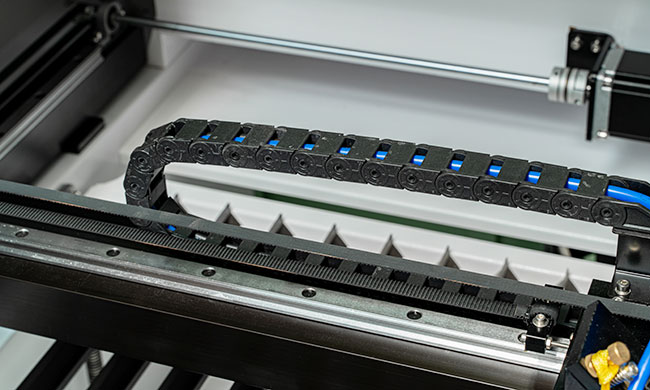

Belts and rails

The machine is of high quality Belts and rails, It is characterized with long service life with high speed, high accuracy and smooth linear motion.

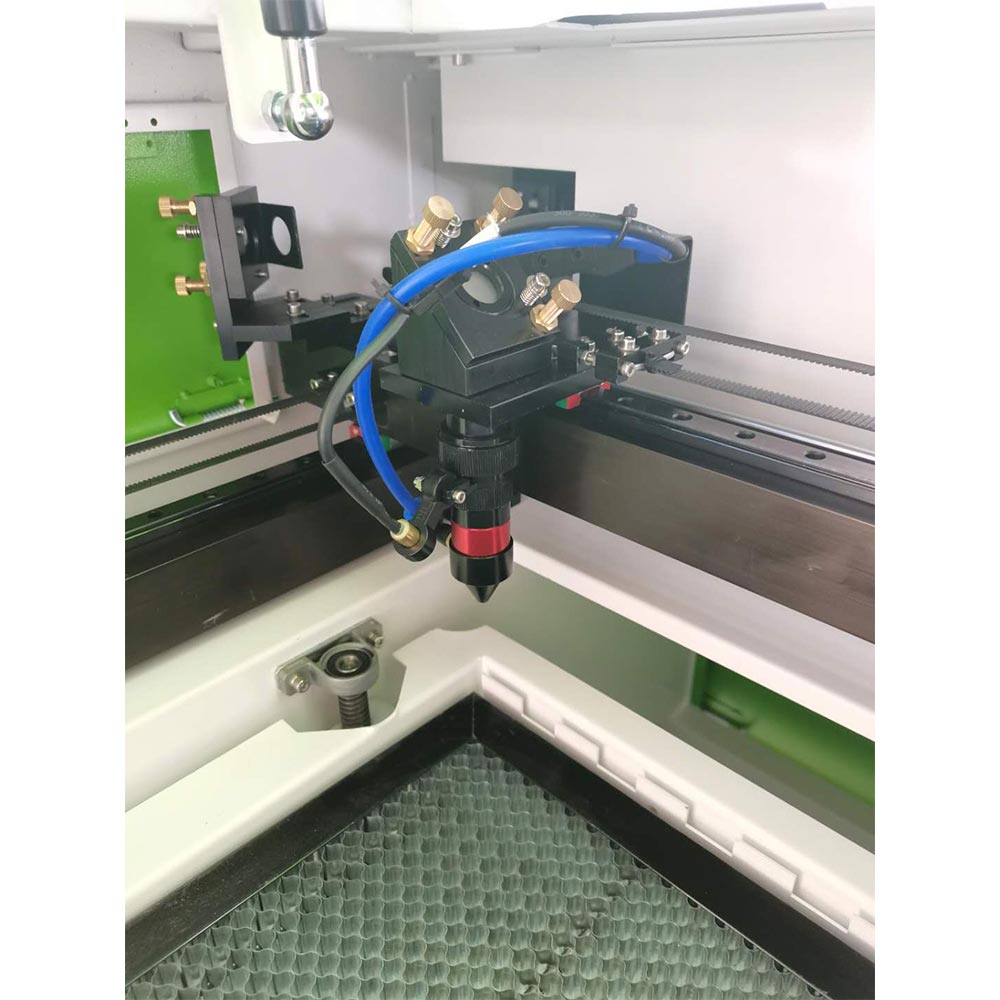

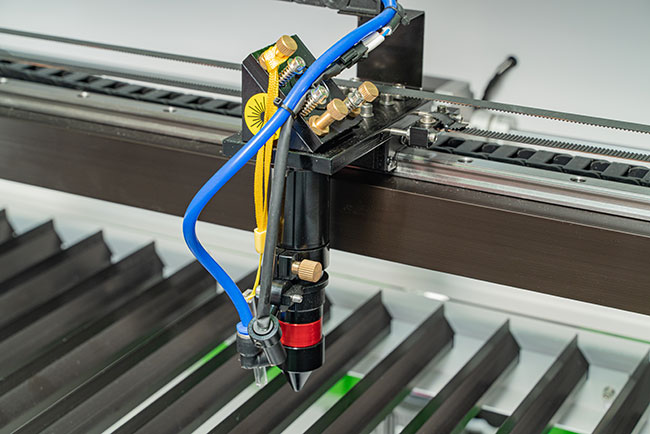

Premium Laser Head

Industrial grade 80W laser head, with high quality, reliable performance and durability, improves the engraving precision and performance.

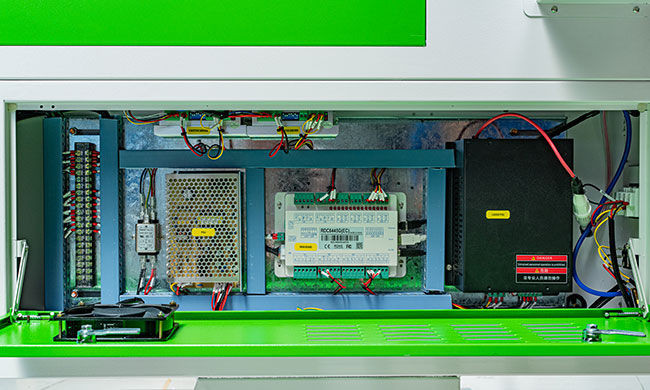

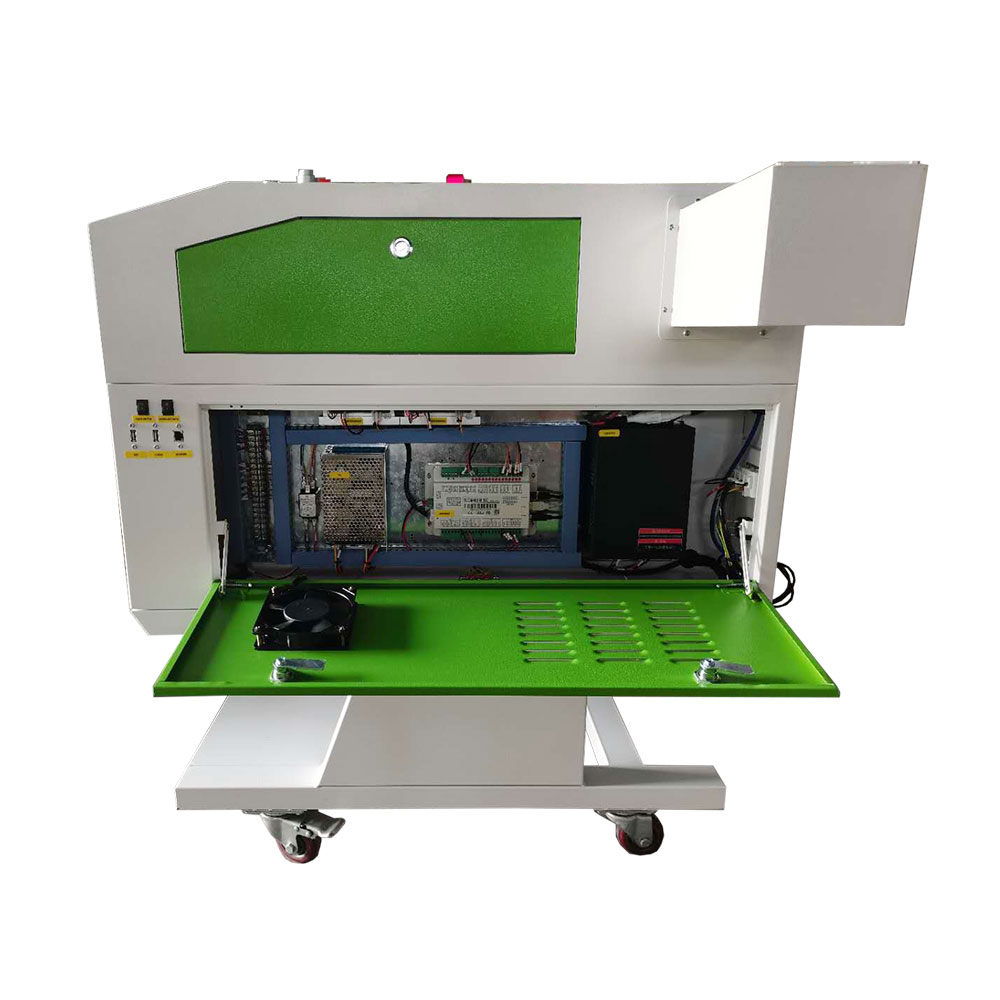

Accessories such as power supply and driver in the chassis are neatly connected and easy to maintain.

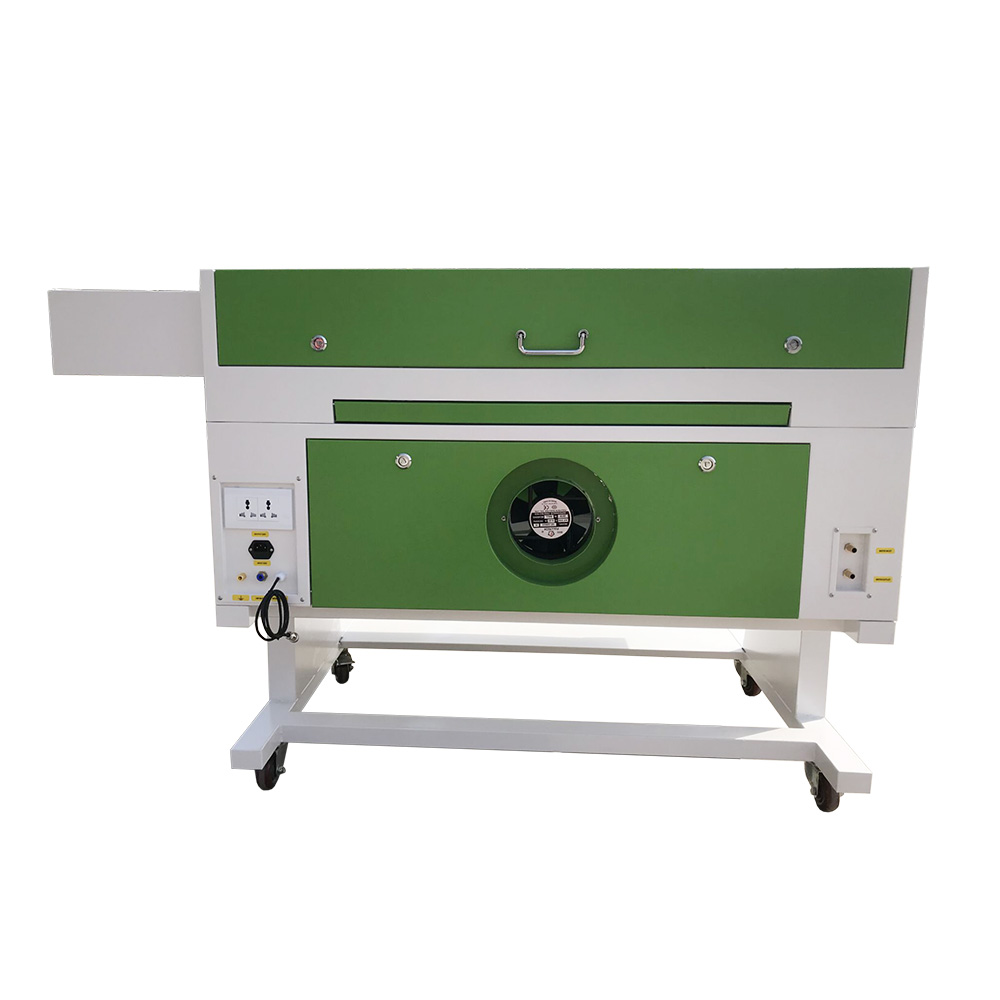

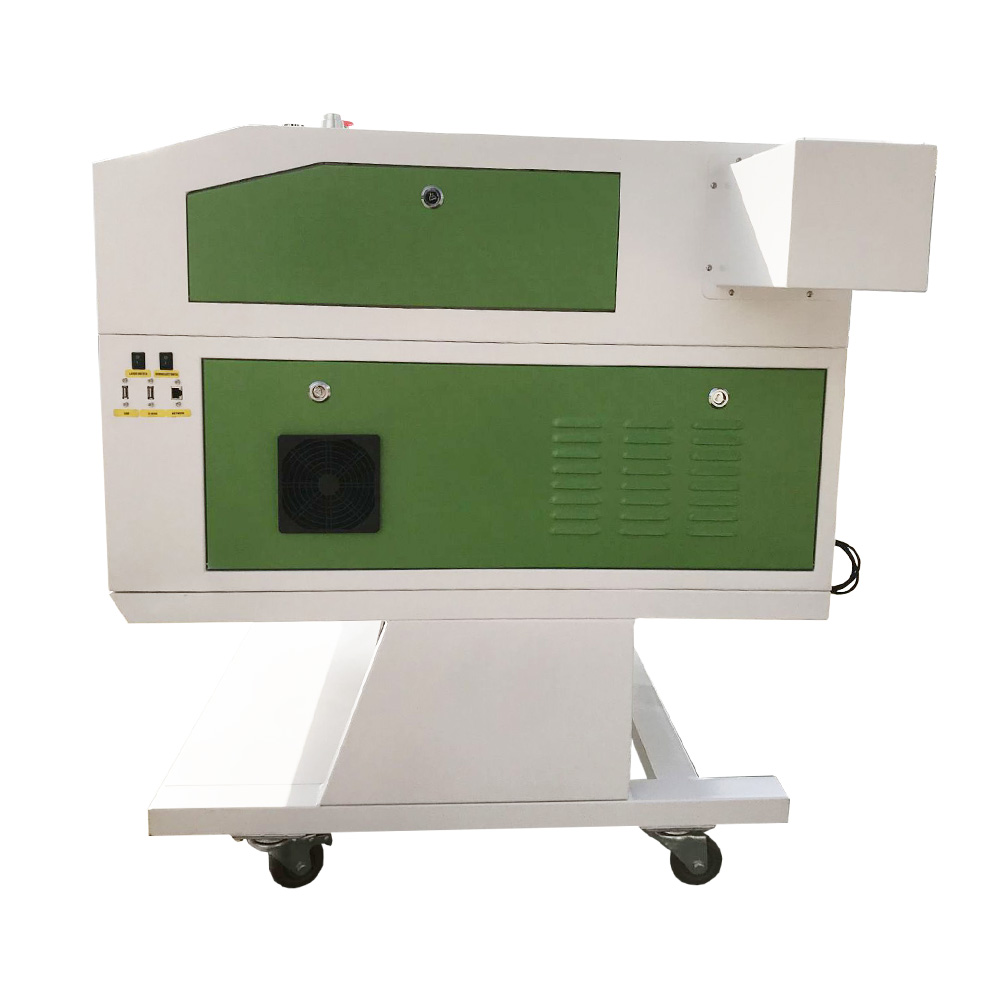

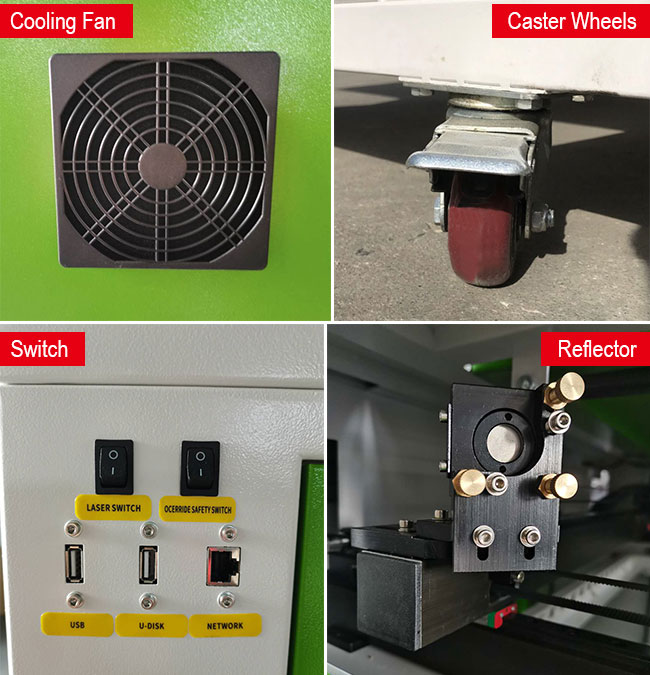

Well-Designed Details

With high precision stepping motor and high-quality reflector for strong performance. Switches and emergency button for better control. The built-in cooling fan reduces temperature of all components. With 4 casters, easy to move.

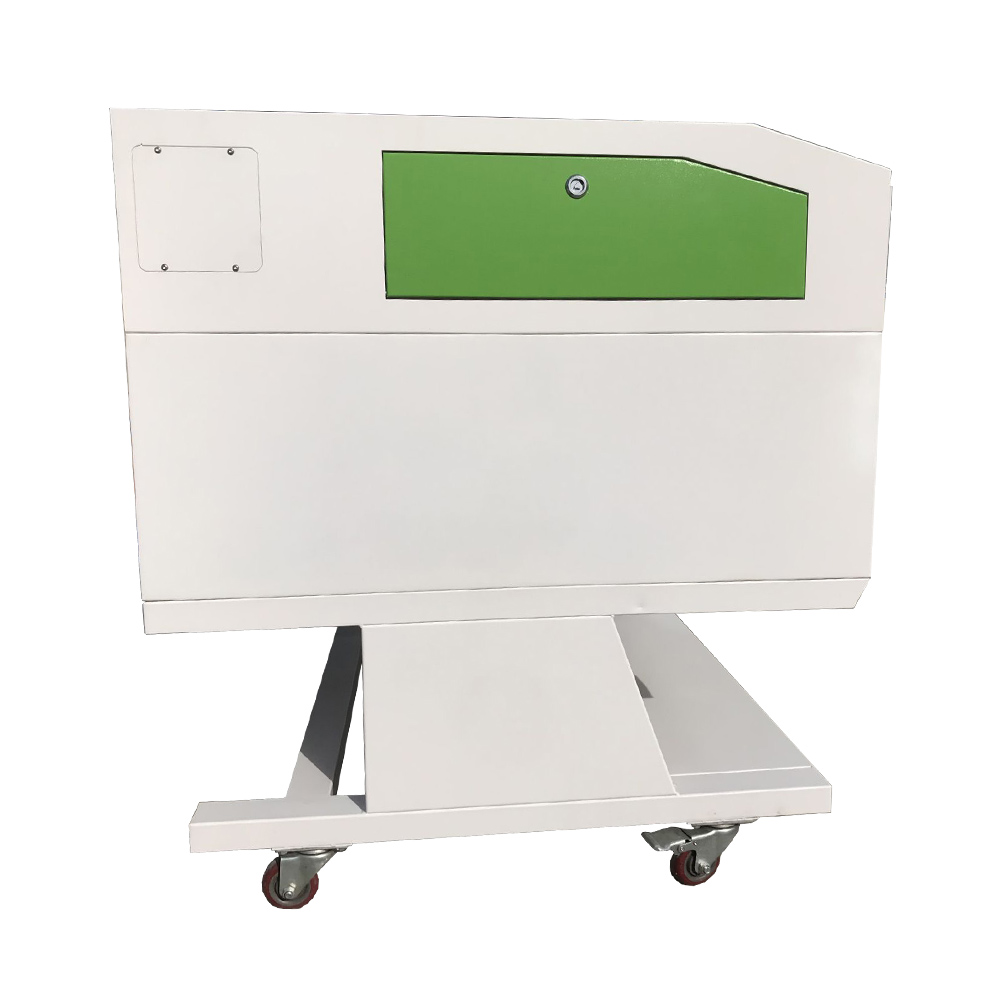

If your door is not large enough, the machine bracket can be removed to allow you to move the machine.

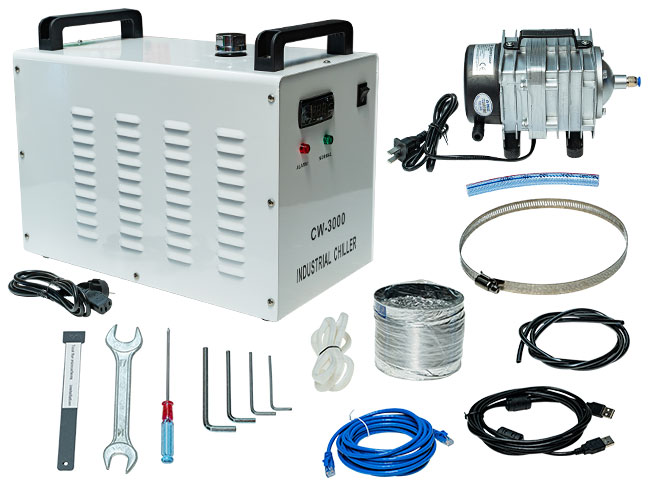

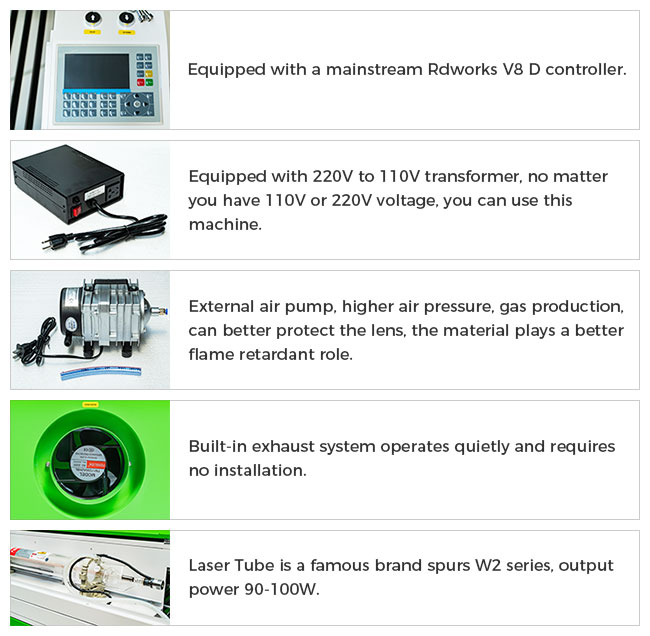

Accessories:


Features and advantages

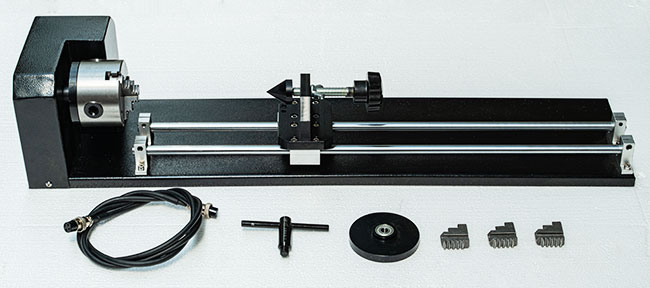

Rotary shaft is optional accessory, if you need, please contact customer service manager.

Application:

Used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc.
For example: Countertop Sneeze Guard, Mask Storage Box, clocks, plaques, crafts, toys so on.

Sample:

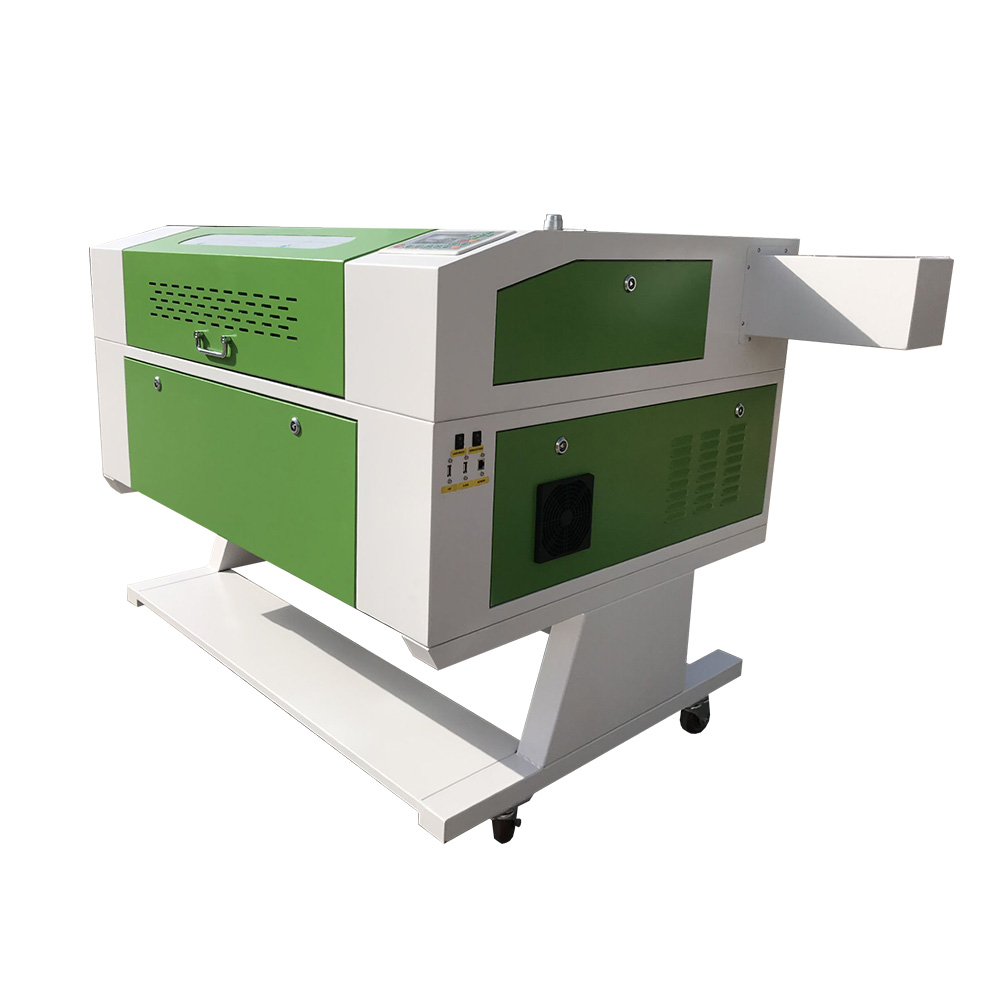

 20" x 28"(500mm x 700mm) 90W CO2 Laser Cutter, with Double Side Open Door, with USB Port and Electric Lifting Worktable

Specification
Control system RuiDa
Working size 20"x28"(500mm x 700mm) with double side open door
Z table Motorized Z (8" vertical adjust)
Laser tube type Reci 90W laser tube
Cooling Type 3000 Series
Transformer 110V to 220V
Laser power 110V - 220V / 60Hz, 1phase, 1000W, 10A
Driver type Micro Stepping Motor
Focus Lens Dia. 20mm FL2.5"
Max speed 1000mm/s
Resolution 1000 DPI
Location precision 0.01mm
PC Interface USB, Ethernet connection and USB Disk
Support Software LightBURN, CorelDraw, AutoCAD, Photoshop, etc.
Image form PLT,BMP,DST, DSB, DXF



Packing List

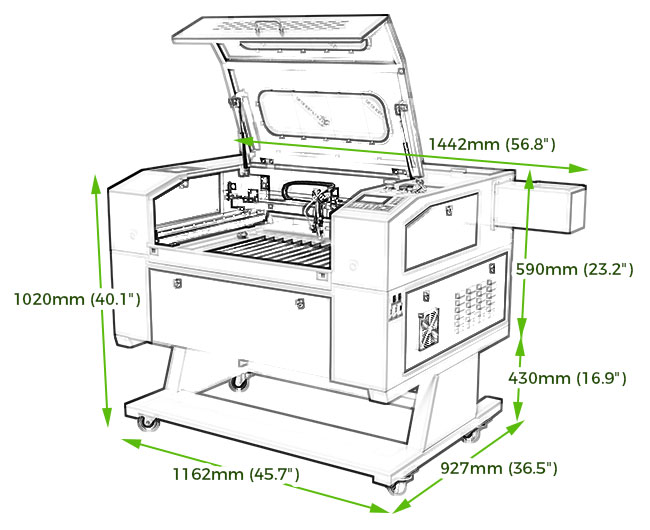

Machine Dimension 1150mm x 860mm x 970mm (45.3in x 33.9in x 38.2in)
Packing Size 1640mm x 990mm x 1170mm(64.6in x 39in x 46.1in)
Package Standard Wooden case for export
Machine Weight 125KG(275.6Ib)
Packing Weight 185KG(407.8Ib)




User's Manual for AutoLaser Software (New)

User's Manual for TL-403 Laser Engraving and Cutting Control System (New)

X700_User_Manual
