Upgraded 51in x 35in 130W CO2 Laser Cutter FDA Certificate, with Auto - focus Function

arrival in 4-6 Weeks.

Item Code: LCM-KH-1390-130WII-US

Availability:

  • ReCi Laser Tube
Unit Price: $6,599.00/set

Finance as low as $183 / mo

Apply to See Distributor Price

Get Coupon: $5Order ≥ $100 $15Order ≥ $300 $25Order ≥ $500 $50Order ≥ $1000

Quantity:
set(s) Total Cost:  $6,599.00
Buy It Now Add to Cart Inquire Now

Buyer Protection

Upgraded 51in x 35in 130W CO2 Laser Cutter FDA Certificate, with Auto - focus Function
Buy It Now

Upgraded 51in x 35in 130W CO2 Laser Cutter FDA Certificate, with Auto - focus Function

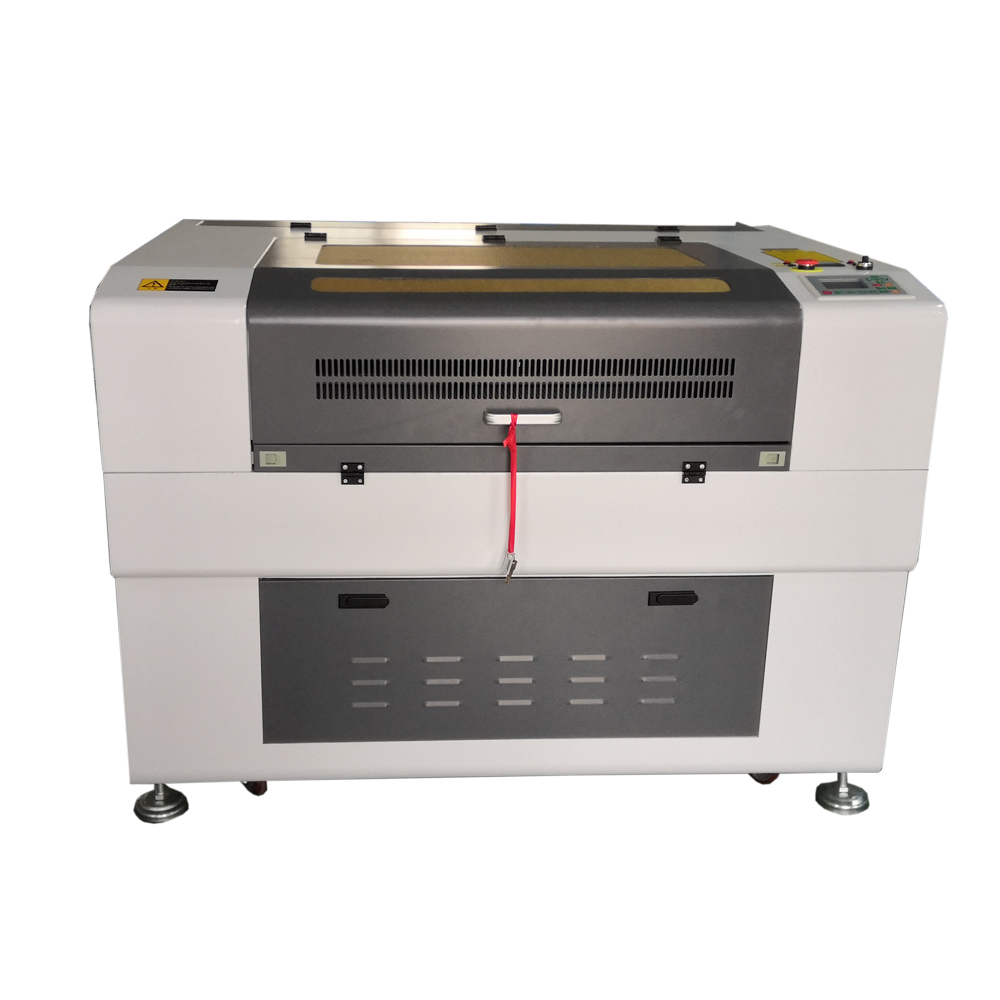

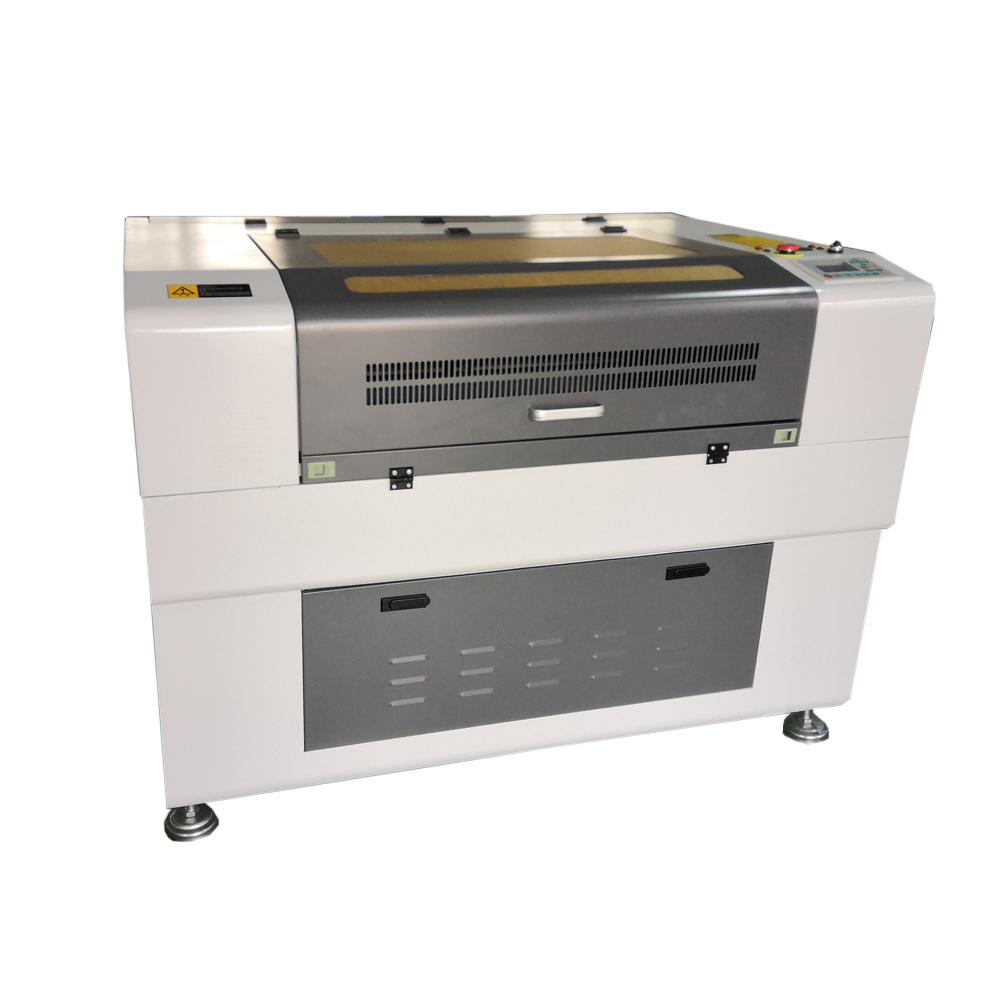

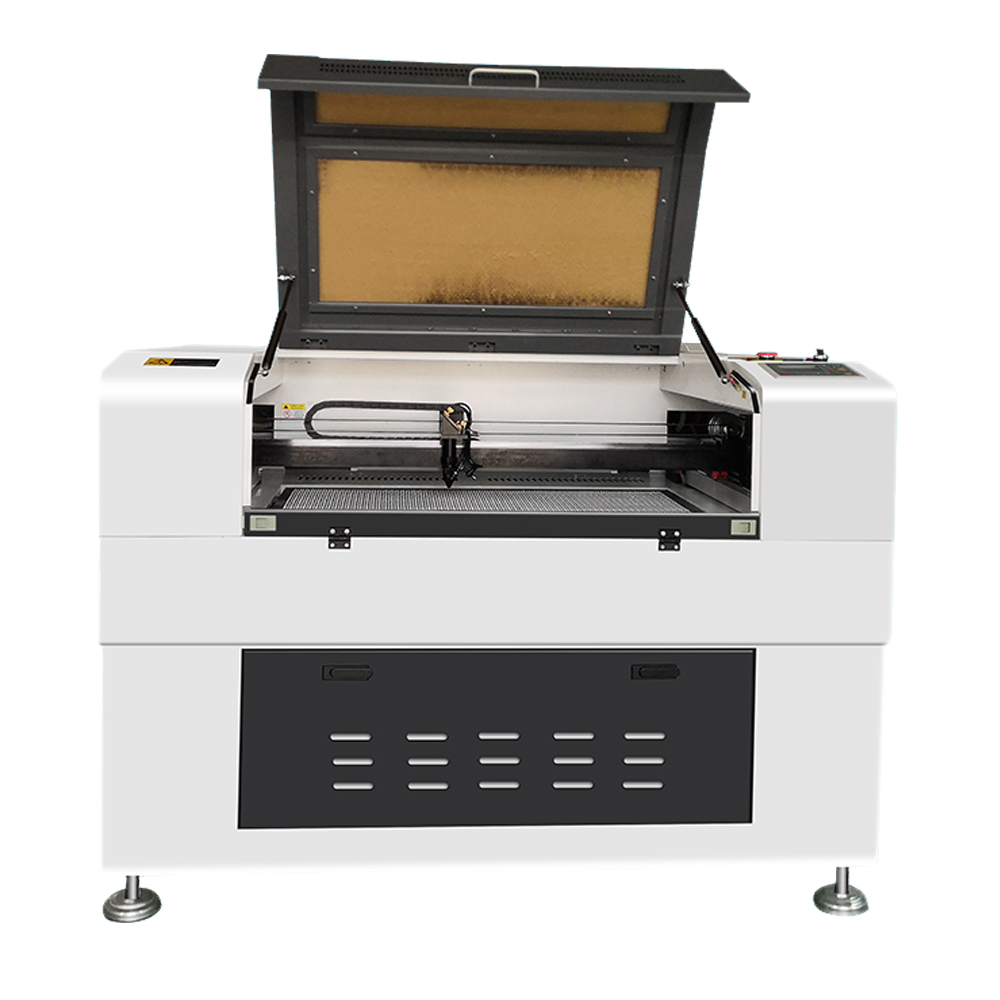

The machine is a laser engraver and cutter equipped with 130W CO2 Laser Tube. It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

This machine is equipped with DSP Control System for RD draw directly, also supports Core Draw and Auto CAD and other advance software.
This machine is widely applicable in many Industries, including advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

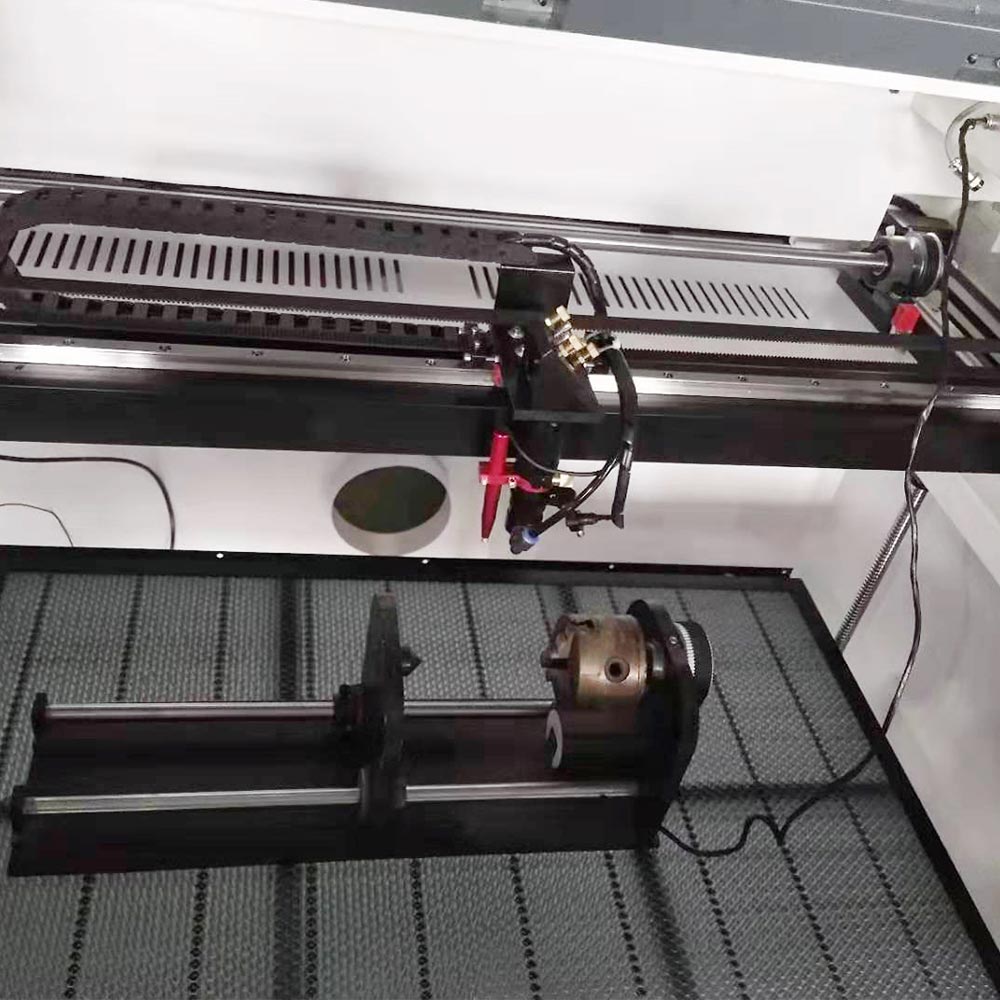

Our laser equipment is divided into RECI laser tube W6 130w and EFR laser tube F6 130w, and the machine is equipped with a Rotary Axis.  The machine with the RECI laser tube has two workstations, Honey Comb Table and Blade Table. The machine with the EFR laser tube has only one Honey Comb Table.

Specification
Laser Power 130W
Voltage AC110V ± 10%, 60HZ
Gross Power ≤1440W 13A
Laser Type CO2 Sealed Glass 10.64 um
Working Area 1300mm x 900 mm (54 - 1/4" x 35-1/2")
Z table Motorized Z (15.7" vertical adjust)
Focus Lens Dia. 20mm FL2.5"
Worktable Both knife blade and honeycomb Double platforms
Cooling Type S&A 5000 Series
Driver type Stepping Motor
PC Interface USB, Ethernet connection and USB Disk
Max. Engraving Speed 300mm/s (11-3/4"/s)
Max. Cutting Speed 400mm/s (15-3/4"/s)
Engraving Thickness 0 - 10 mm (0 - 3/8") depends on material
Cutting Thickness 0 - 10 mm (0 - 3/8") depends on material
Locating Precision ± 0.01mm
Resolution Ratio ≤ 1,000 dpi
Min. Character Size 1 mm x 1 mm
Min. Character Letter 2 mm x 2 mm
Operating Temperature 41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface USB 2.0
OS Compatibility Windows 10, 8, 7 (64/32 bit)
Support Software LightBURN,CorelDraw, AutoCAD, Photoshop, etc.
Laser / PC Connectivity USB, Ethernet connection
Graphic Format Supported  Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation Up To 256 Colors
Cooling Type Circulating Water Cooling and Protection System

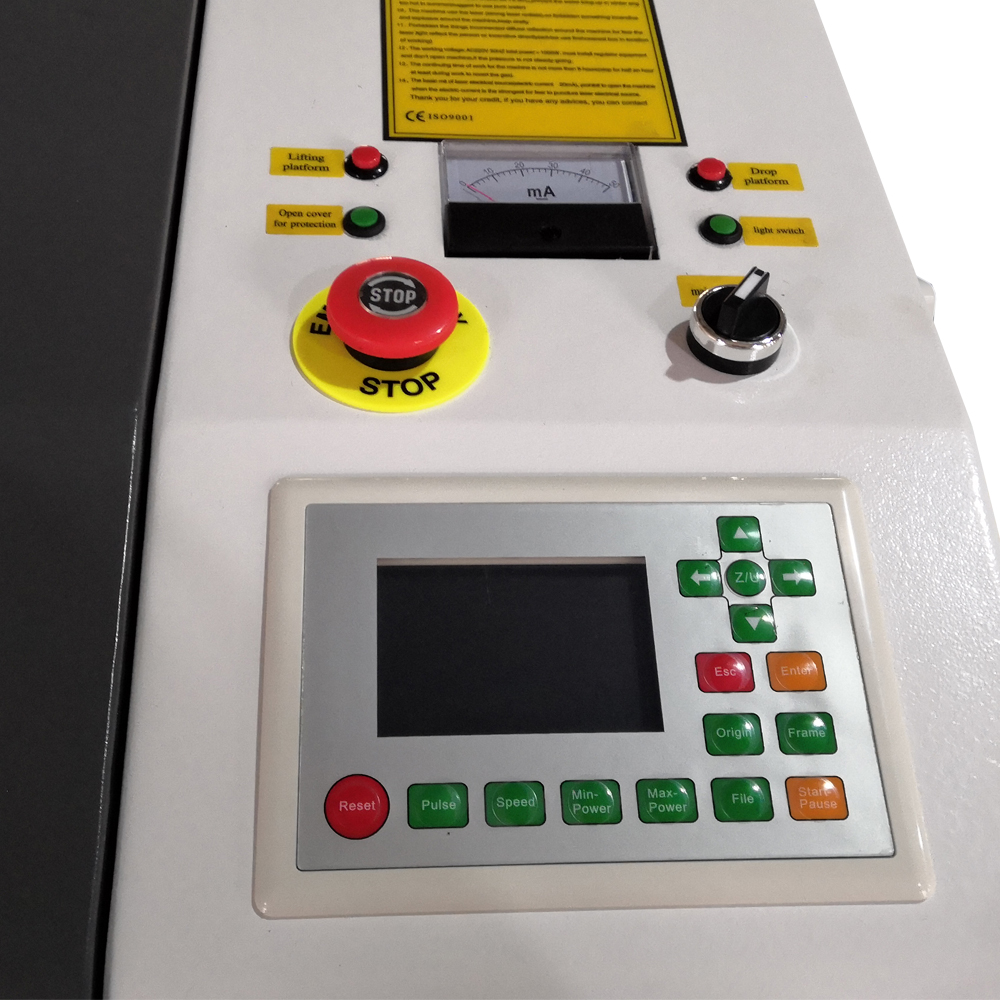

Control System RDC6445G controller
Rotary Device 80mm Chuck Rotating

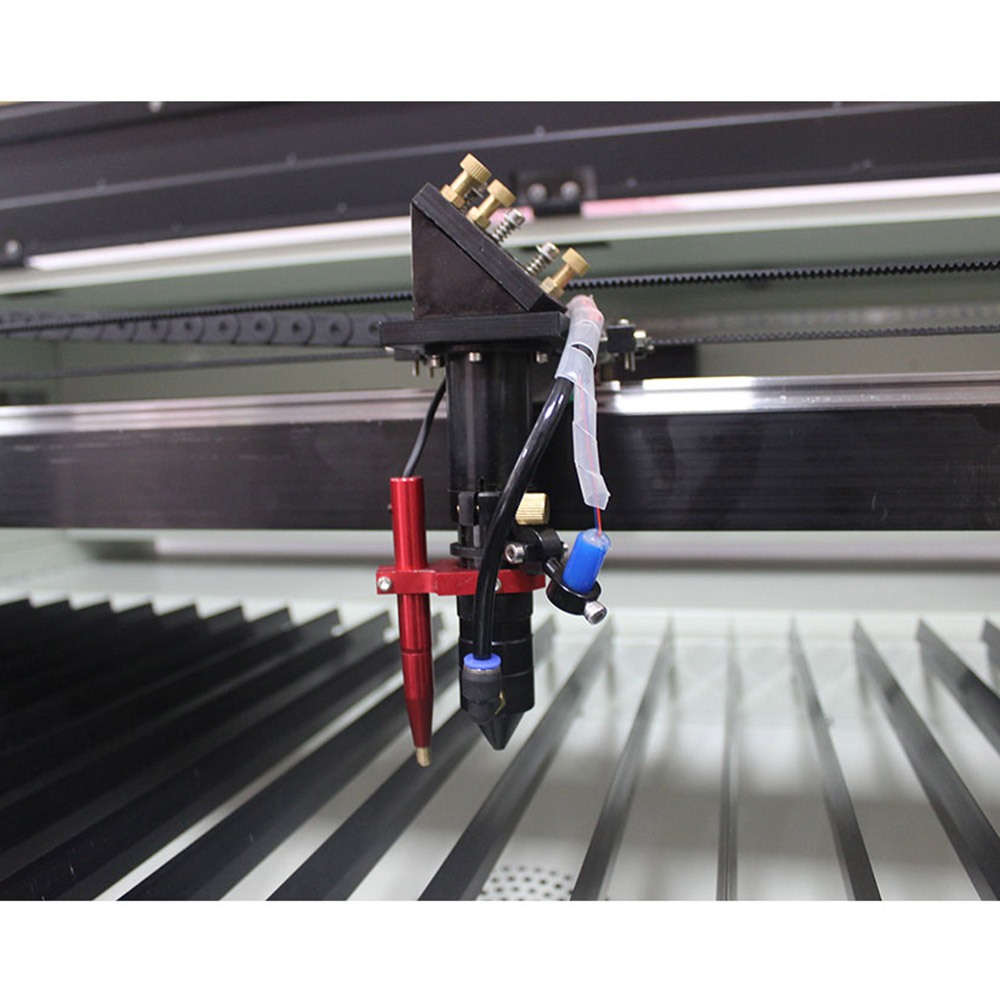

Auto-focus Yes

Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified

Details:



Application:
Used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc.
For example: Countertop Sneeze Guard, Mask Storage Box, clocks, plaques, crafts, toys so on.

Package Included:

1 x Air Pump                                     1 x Water Chiller
1 x Set of Inner Hexagon Spanner   2 x Venting Tube
1 x Water Tube                                 1 x Screwdriver
1 x Power Cord                                 3 x Clamp
1 x Operation Manual                       1 x USB Cable
1 x Ground Wire                               1 x Screwdriver
1 x Glue                                            1 x Adhesive Tape
1 x Network Line                               1 x Exhausting Fan
1 x Rotary Axis

Customer's Case:
After doing lots of research, we choose sign in China, because they can ship us within 24hours after payment, and they also accept paypal payment, which can guarantee our transaction is protected by paypal. We received the machine within 5 days after payment, they gave us professional and patient service, I really love their machine and their service, will recommend friend to buy from them.

I do not know how to express my great thanks to Sign-in-China.com, because they help me save lots of money and time during the last two years. I used to buy laser tube, lens, LED modules from this website. They always gave me reliable service. There are many kinds of promotion ways attracted me deeply.
Last year, I bought one 51" x 35" 1390 CO2 Laser Cutter from Sign-in-China.com. It works very perfectly. Look my fantastic jobs. I used three month for this month. This year, I plan to buy one automatic bending machine. Of course, I will choose Sign-in-China.com. It’s such a good website.

The laser arrived well packed and safe in its crate. We were able to uncrate and plug in and use without adjusting the mirrors at all. The cut was very precise and the autofocus worked very well. The software we use recognized the laser, added the drivers needed and began operation with no issues.

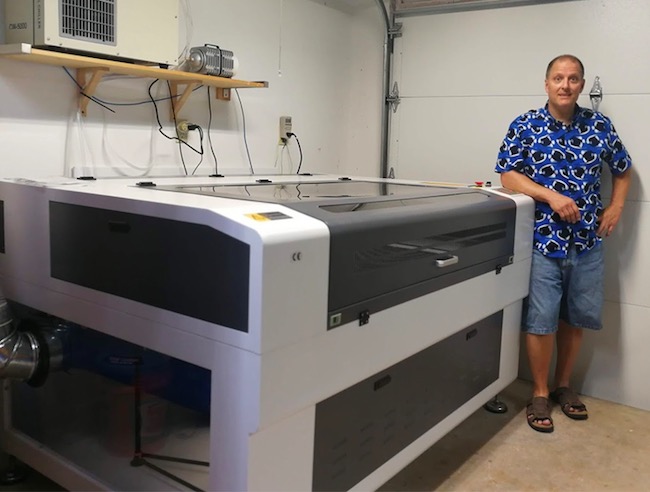

I am Ron and have bought C02 Laser from Sign in global. I live in Texas, they shipped the machine to me very fast, only three days, I got the machine.
I do not know how to install the exhaust fan, after viewing the manual, everything is clear. Overall, the machine is well built and a good value.

Sample:





Exhibition Gallery


Specification
Laser Power 130W
Voltage AC110V ± 10%, 60HZ
Gross Power ≤1440W 13A
Laser Type CO2 Sealed Glass 10.64 um
Working Area 1300mm x 900 mm (54 - 1/4" x 35-1/2")
Z table Motorized Z (15.7" vertical adjust)
Focus Lens Dia. 20mm FL2.5"
Worktable Both knife blade and honeycomb Double platforms
Cooling Type S&A 5000 Series
Driver type Stepping Motor
PC Interface USB, Ethernet connection and USB Disk
Max. Engraving Speed 300mm/s (11-3/4"/s)
Max. Cutting Speed 400mm/s (15-3/4"/s)
Engraving Thickness 0 - 10 mm (0 - 3/8") depends on material
Cutting Thickness 0 - 10 mm (0 - 3/8") depends on material
Locating Precision ± 0.01mm
Resolution Ratio ≤ 1,000 dpi
Min. Character Size 1 mm x 1 mm
Min. Character Letter 2 mm x 2 mm
Operating Temperature 41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface USB 2.0
OS Compatibility Windows 10, 8, 7 (64/32 bit)
Support Software LightBURN,CorelDraw, AutoCAD, Photoshop, etc.
Laser / PC Connectivity USB, Ethernet connection
Graphic Format Supported  Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation Up To 256 Colors
Cooling Type Circulating Water Cooling and Protection System
Control System RDC6445G controller
Rotary Device 80mm Chuck Rotating
Auto-focus Yes



Machine Dimension 1820x1325x1070mm(71.7x52.2x42.1in)
Package Wooden Crate
Shipping Dimensions 1940*1450*1300mm(76.4x57.1x51.2in)
Gross Weight 445Kg(981Ib)

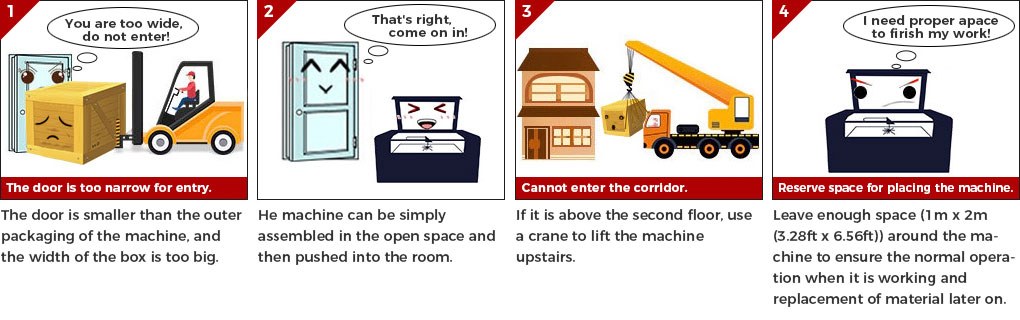

Installation of 1390 CO2 Laser Cutter


RDworks Ethernet and WIFI PC Connection
