CALCA PLUS 24in High Speed Automatic DTF Powder Shaker and Dryer with Vacuum Absorption Conveying Platform and Touch Screen
  • CALCA PLUS 24in High Speed Automatic DTF Powder Shaker and Dryer with Vacuum Absorption Conveying Platform and Touch Screen

See larger image and other views (with zoom)

CALCA PLUS 24in High Speed Automatic DTF Powder Shaker and Dryer with Vacuum Absorption Conveying Platform and Touch Screen

arrival in 4-6 weeks.



Item Code:DTF-PSM-H6501-US

  • Unit Price : $6,999.00/set   (Discount Notice)

  • Please choose
    LA Warehouse
  • Quantity: set(s) Total Cost: USD $6,999.00
  • freightFreight

  •   Free Shipping

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

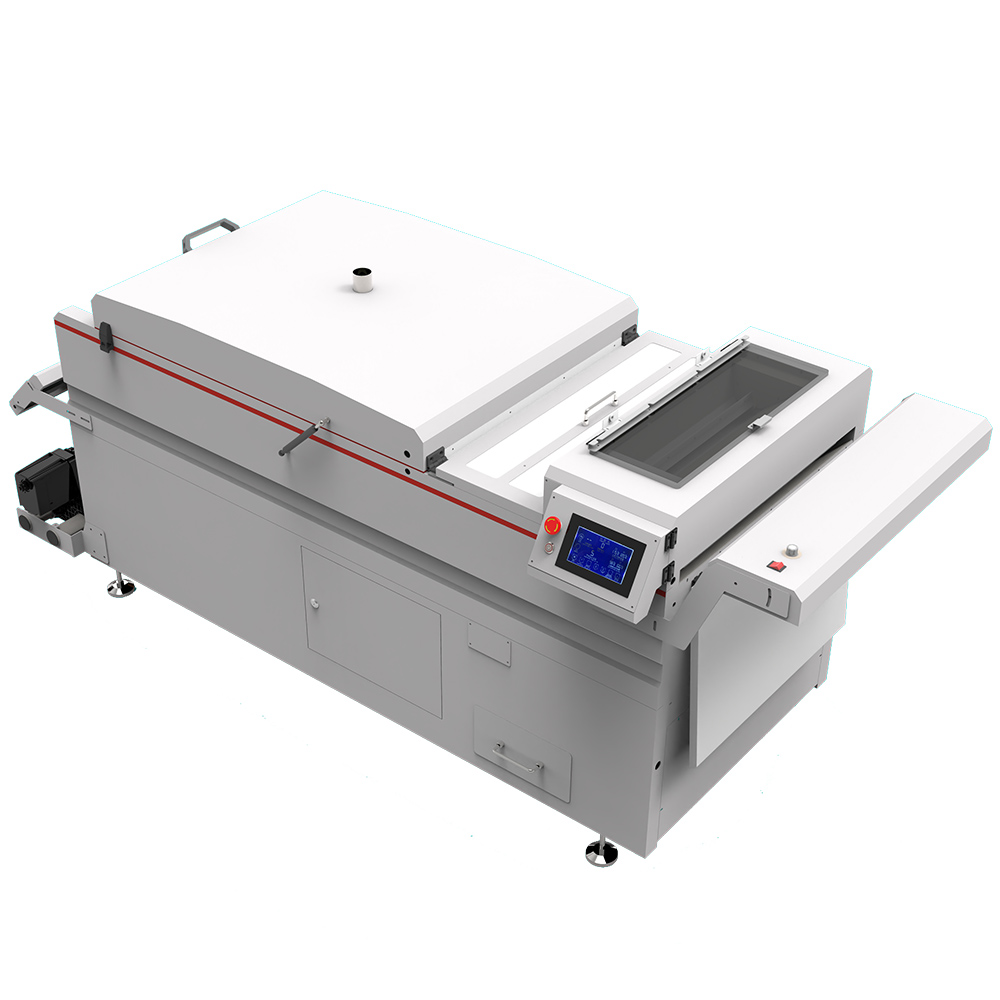

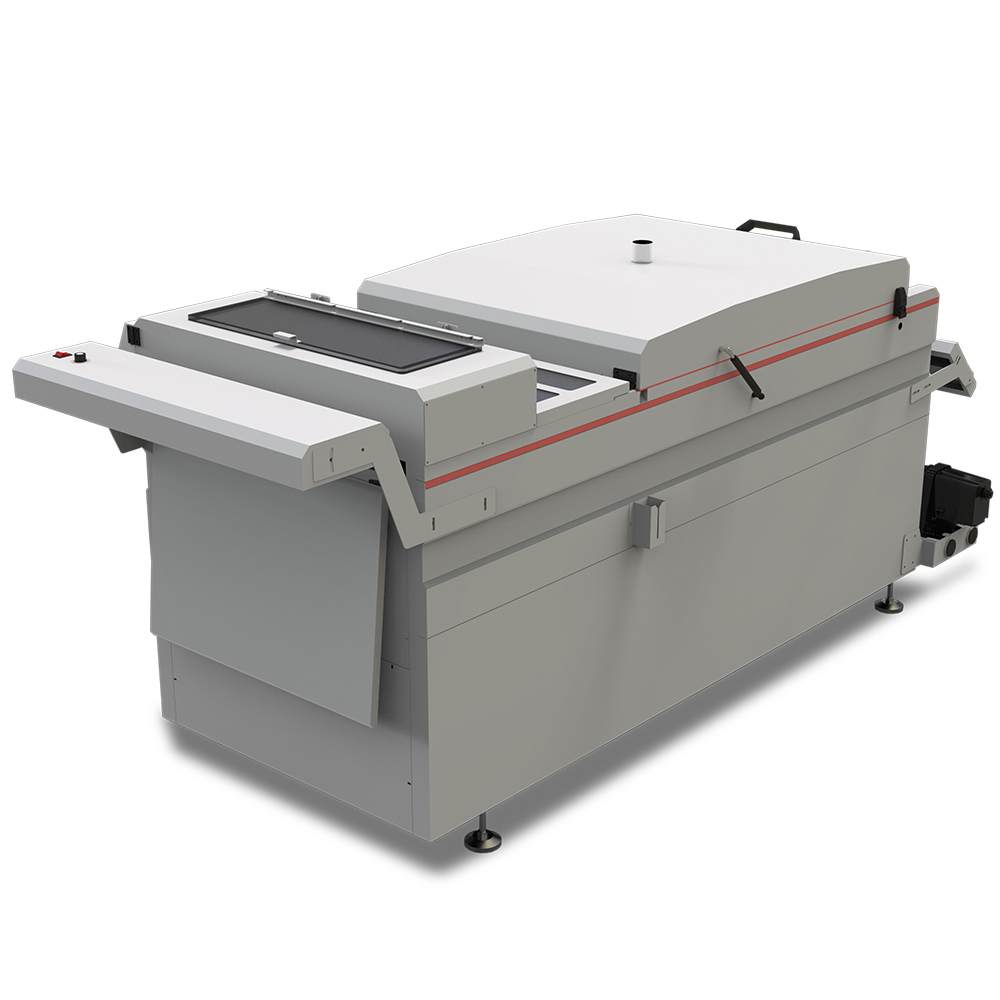

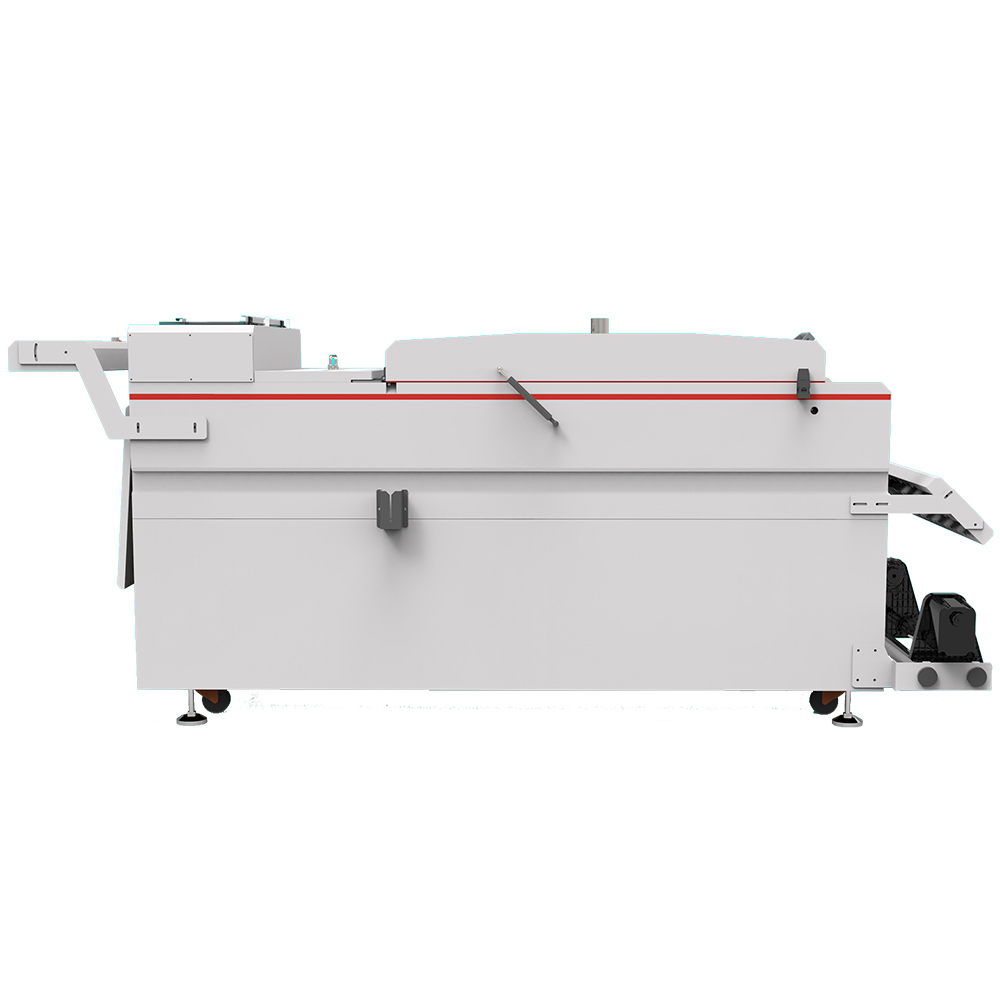

CALCA PLUS 24in automatic DTF powder shaker and dryer with vacuum absorption conveying platform and touch screen display, suitable for 4 heads high speed DTF printers.
With a touch screen display controller, simple to use.
Infrared drying and heating improves and protects color reproduction.
With a absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Specifications:
CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 9 fun air cooling (2 raw)
Machine Size: 101.9in x 39.5in x 42.6in (2589mm x 1002mm x 1081mm)
Powder Shaker and Dryer Weight: 595lbs (270kg)
Packaging Size: 86.6in x 44.5in x 45.1in (2200mm x 1130mm x 1145mm)
Gross Weight: 728lbs (330kg)
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Requirements:
Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
Current: 45.5A, 5000W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
Remarks:
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.


Features:
· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
· Infrared drying and heating improves and protects color reproduction.
· Customized powder recycling drawer, increases effectiveness.
· Shake powder control, dusting control, PID setting of curing temperature.
· Automatic powder feeding, evenly spreading powder.
· The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
