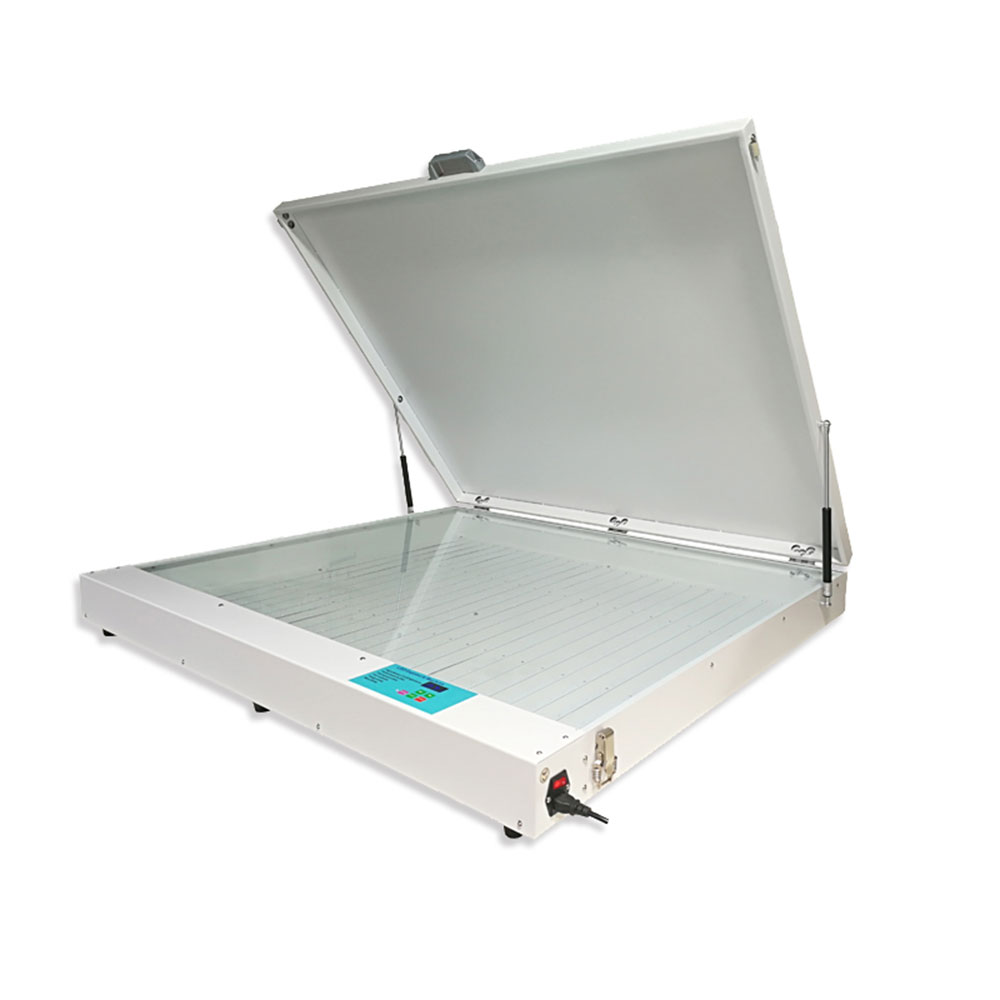

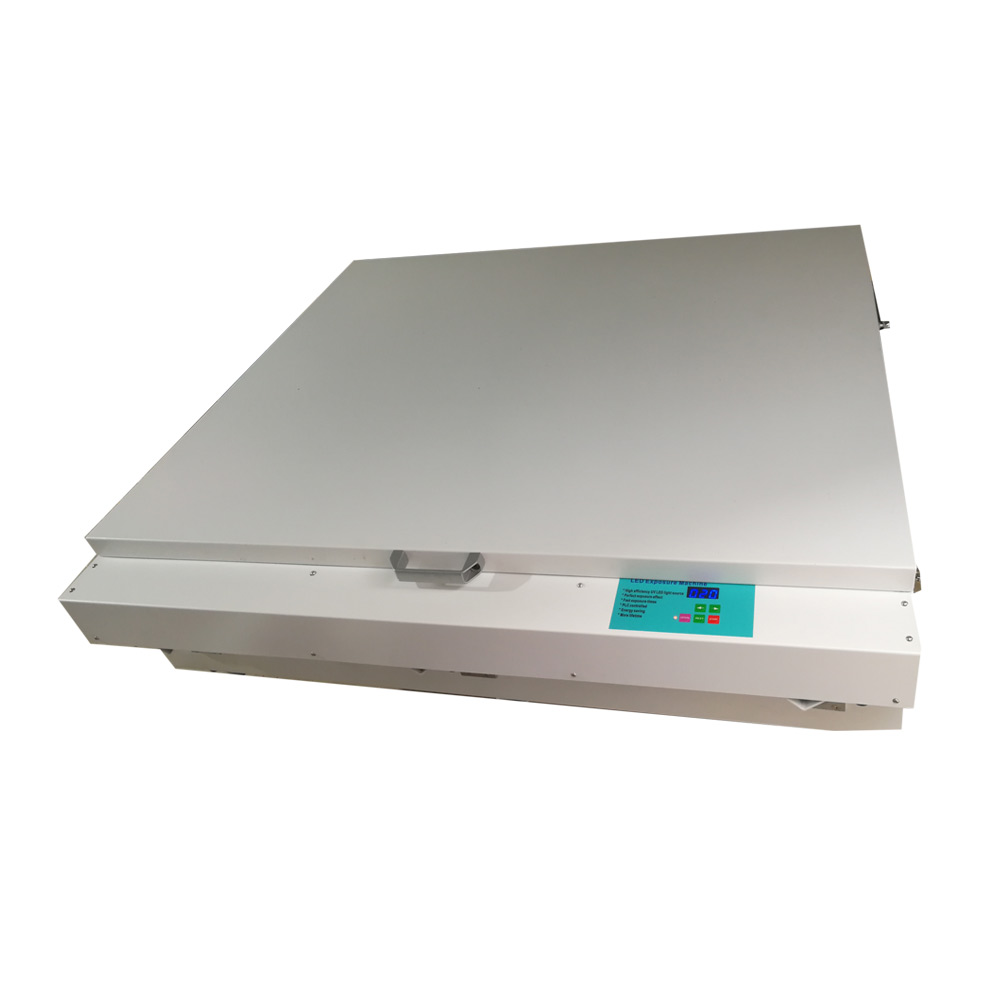

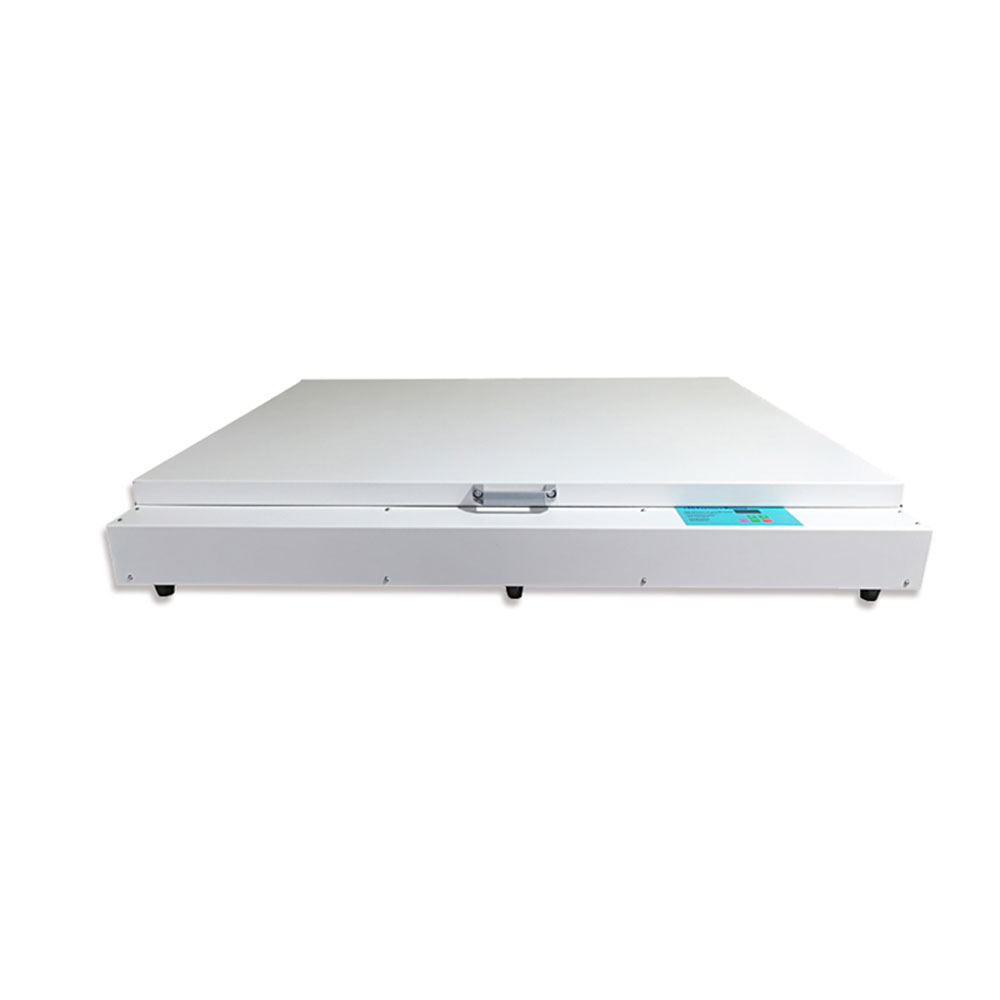

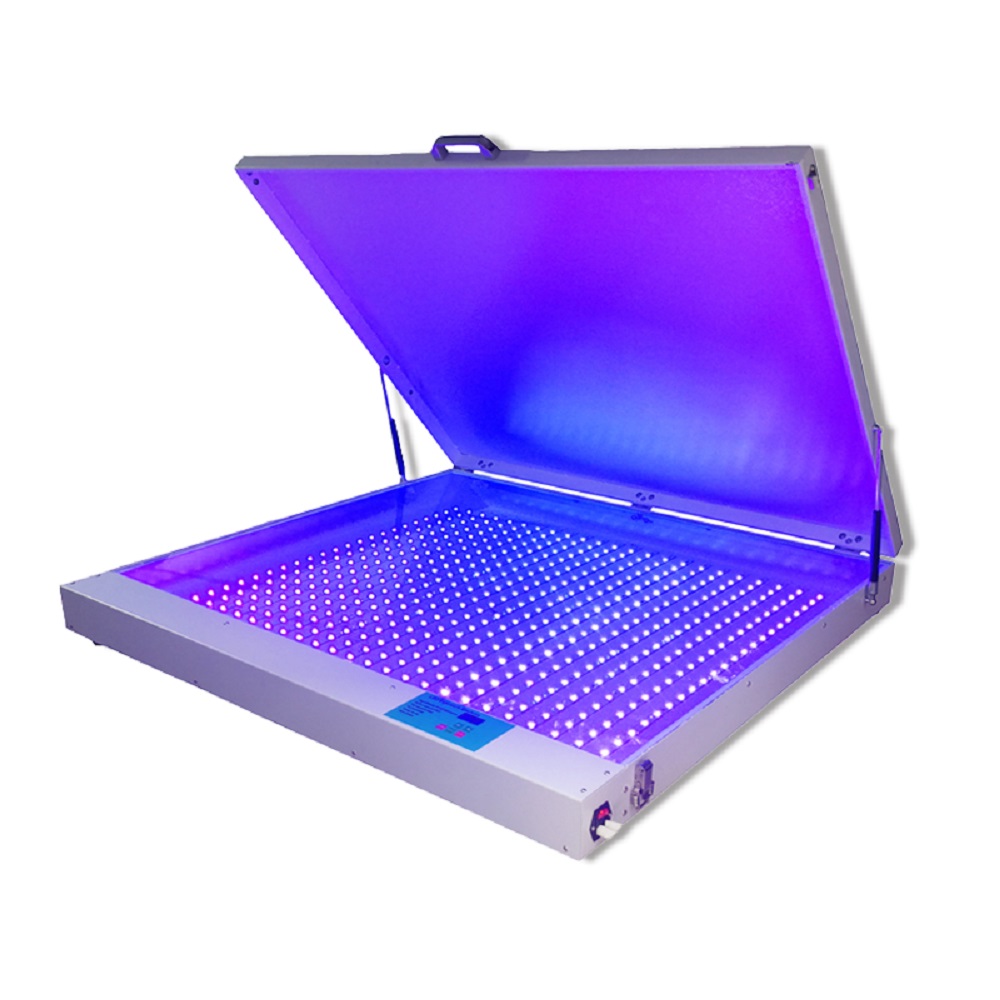

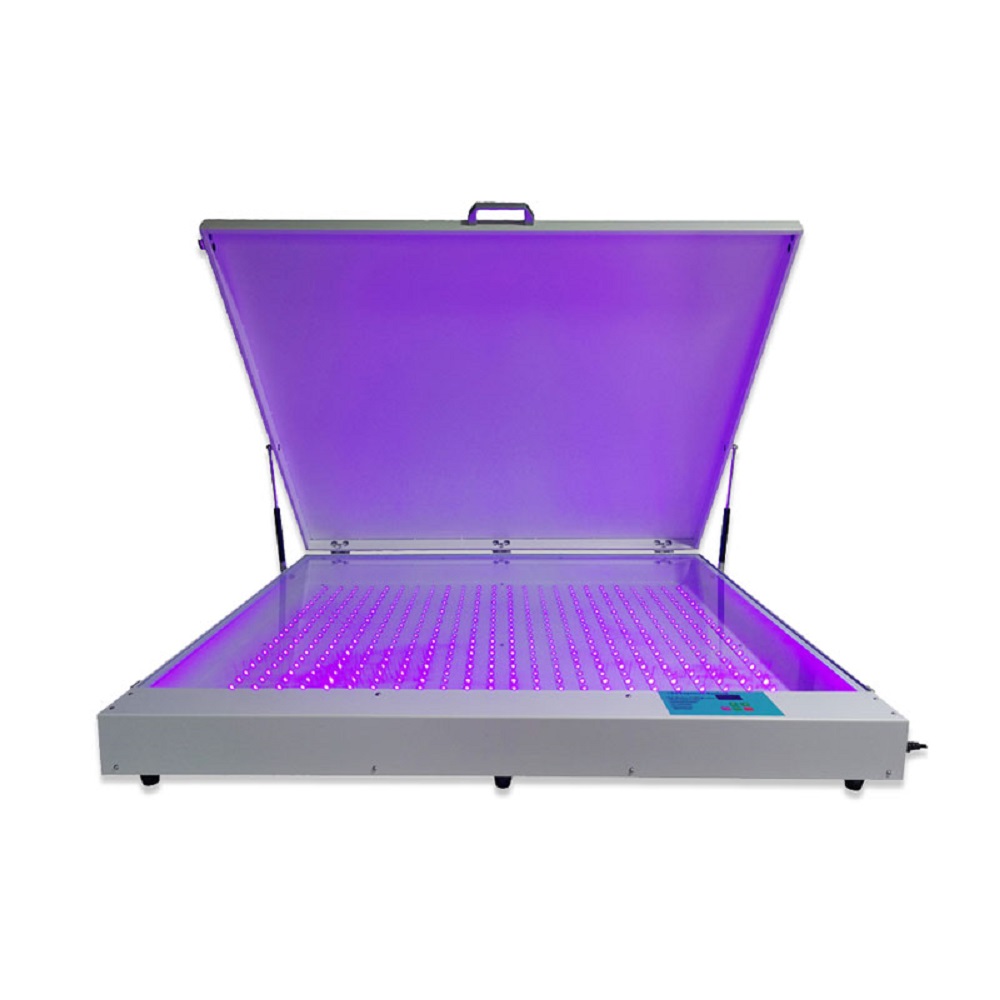

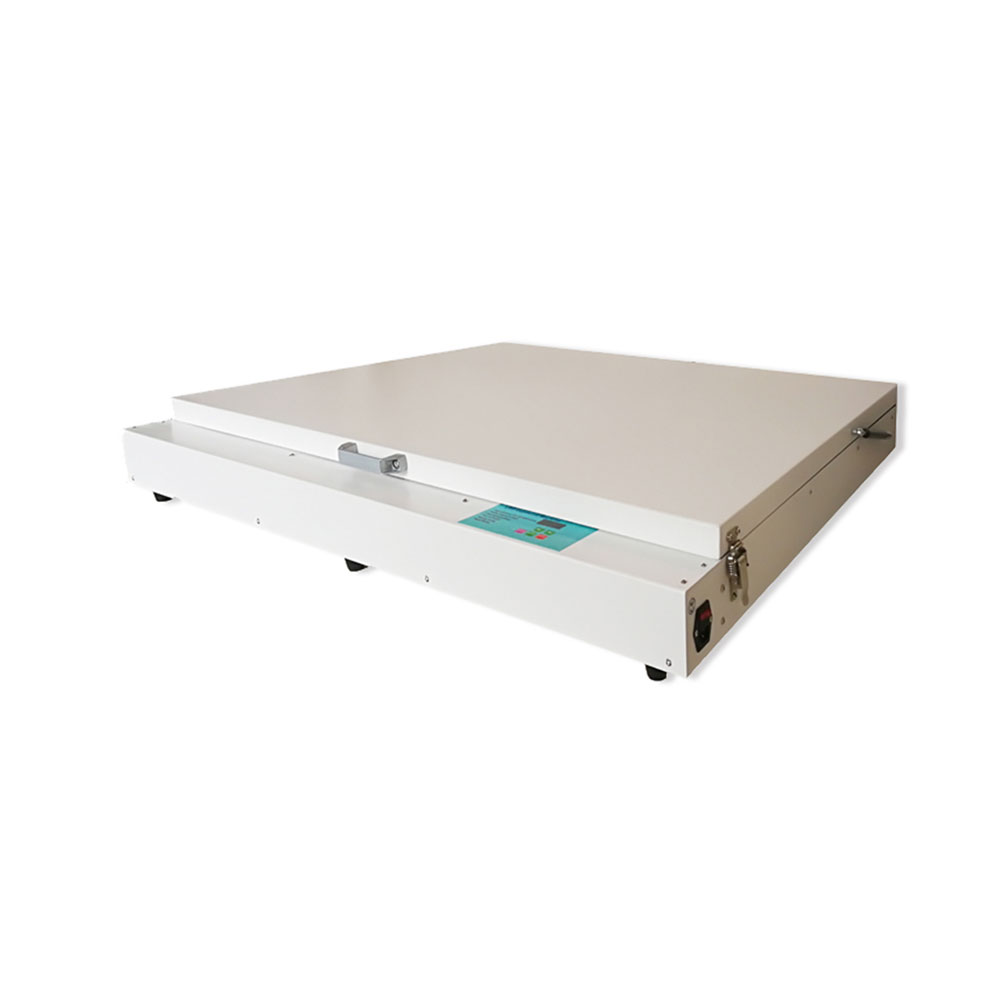

Big Desktop 41.3"x 49.2" 240W LED UV Exposure Unit Screen Printing Exposure Machine
The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. when you put the film onto the plate into UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology.

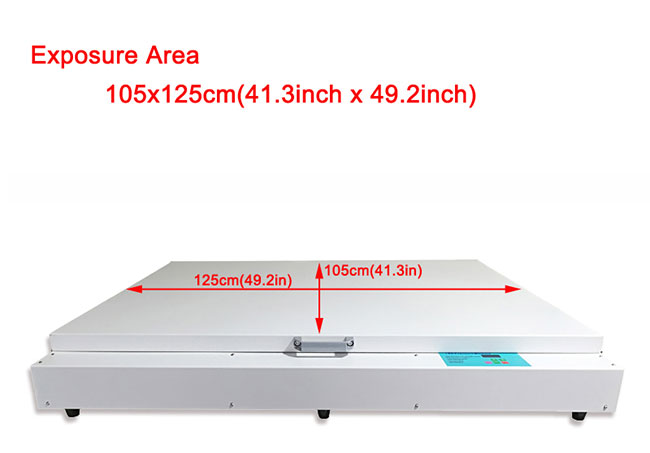

1.Max.exposing area: 41.3 x 49.2 inch (105 x 125 cm)
2.Voltage (single phase ): 220V or 110V
3.Time control: 0-999s

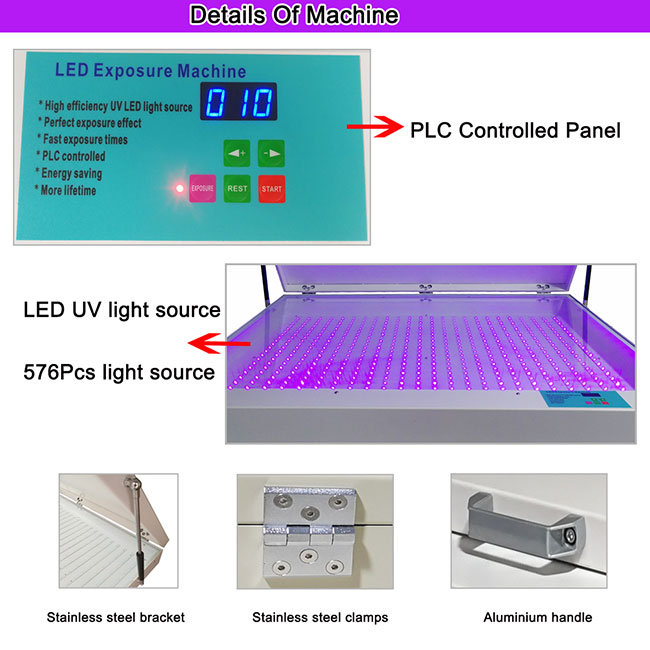

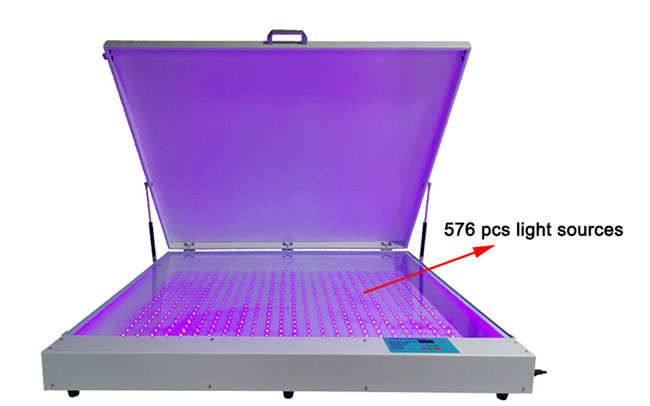

4.Power of lamps: 240W (24x10w UV LED-light)

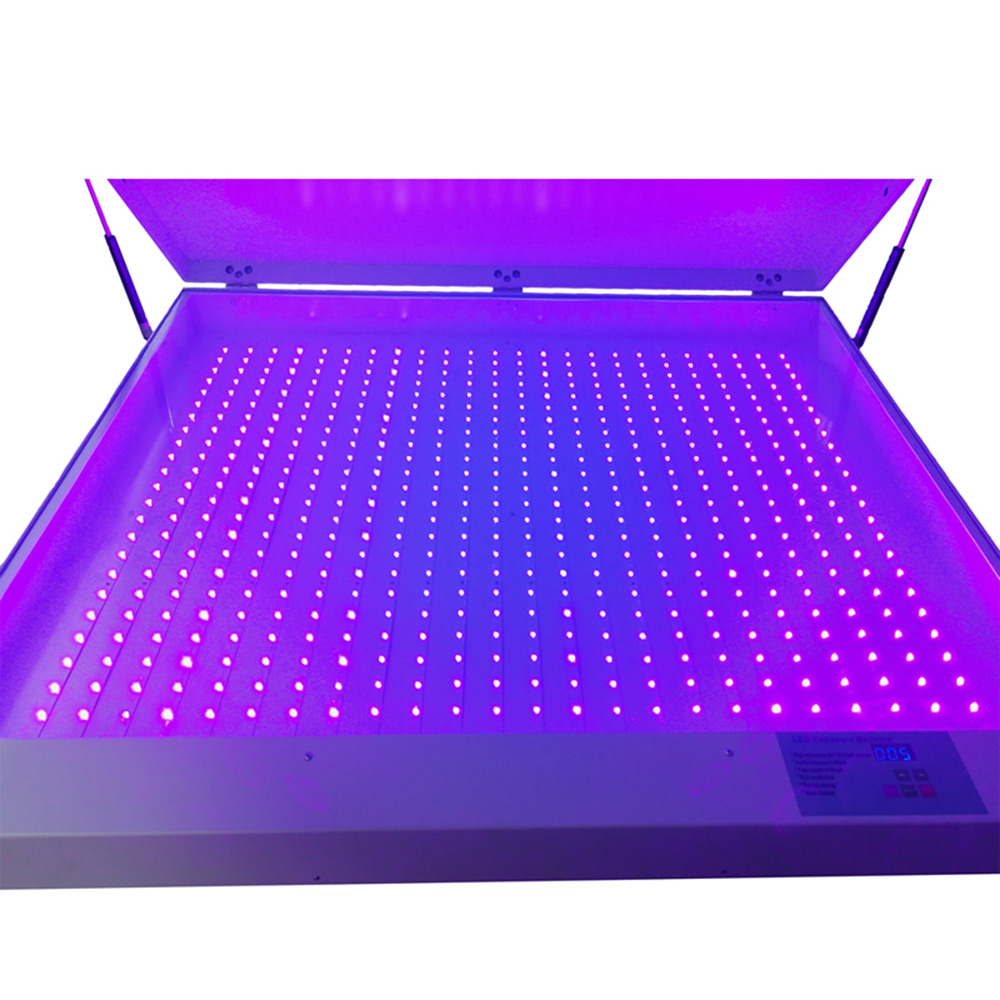

5.Light source: LED UV light source
1. Adopting high efficiency UV LED light source,which save 50% electricity than ordinary model.

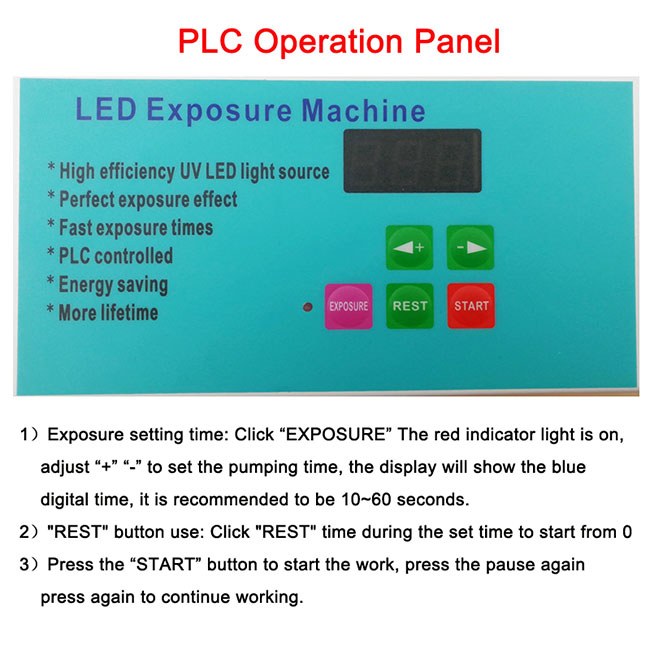

2. PLC controlled panel, very easy to operate.
3. Automatic memory function for working as original seting next time
4 Perfect exposure effect because of LED light.
5. Fast exposure time,about 40-70 seconds.
6. Energy saving and environment friendly.
7. Stable exposure quality,more lifetime.
8. Durable and beautiful with steel coat.

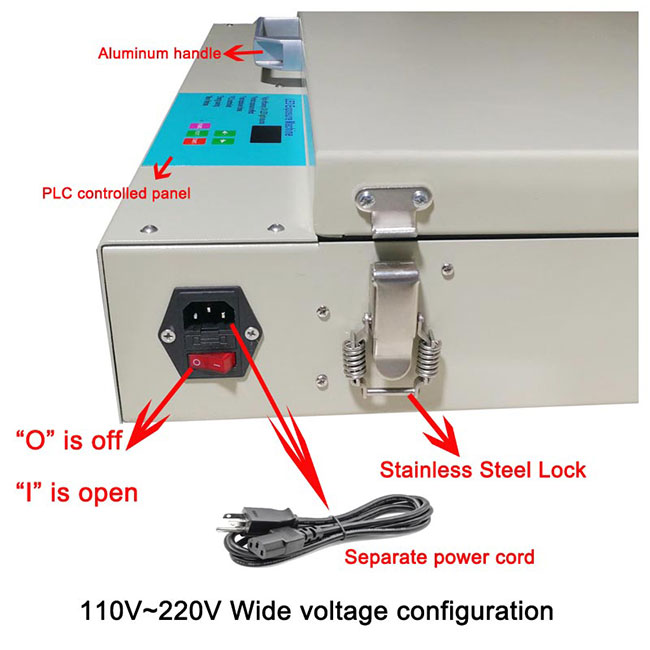

9. Outside connecting power plug, safety and convenience.
10. Easy to transport,LED light is not fragile in delivery.

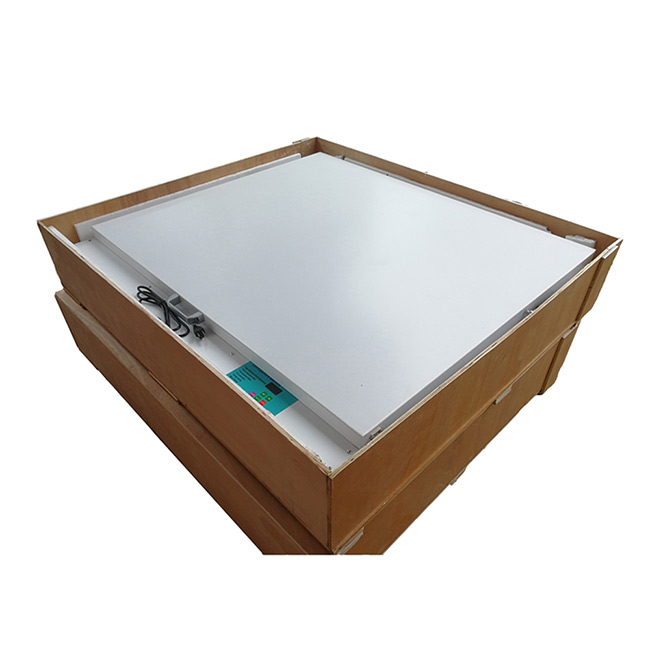

Packing size: in one wooden caton 55 x 48.8 x 12.6 inch/140 x 124 x 32 cm
Gross Weight: 242 lbs /110 kg
