Upgraded 48"(1200mm) Manual Acrylic Light Box Plastic PVC Bending Machine Heater, 0.04" – 0.24"(1mm - 6mm) Thickness

Arrival in 2-4 Business Day.

Item Code: ABM-BT-1200-PLUS-US


Unit Price: $119.00/set

Apply to See Distributor Price

Ship out within 24 hours(Working time: Monday to Friday)  Ship out within 24 hours(Working time: Monday to Friday).

set(s) Total Cost:  $119.00
Buy It Now Add to Cart Ask A Question

Buyer Protection

Upgraded 48"(1200mm) Manual Acrylic Light Box Plastic PVC Bending Machine Heater, 0.04" – 0.24"(1mm - 6mm) Thickness
Buy It Now

Upgraded 48"(1200mm) Manual Acrylic Light Box Plastic PVC Bending Machine Heater, 0.04" – 0.24"(1mm - 6mm) Thickness

The acrylic bending machine heater is the core part of bending machine. You can assemble various kinds of ideal practical acrylic bender with this heater.
Processing Material: Acrylic, Plastic, PVC, Plexiglass.

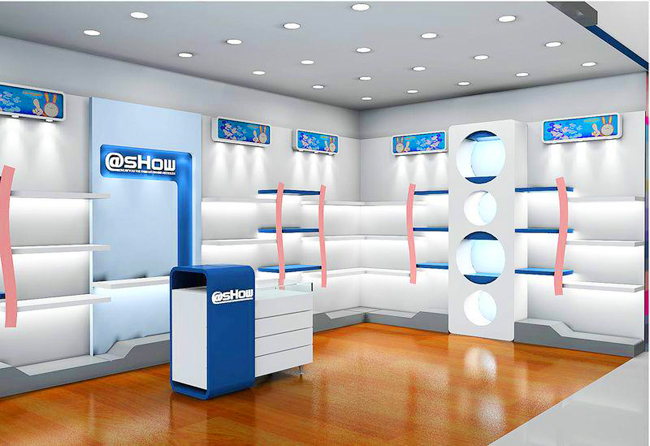

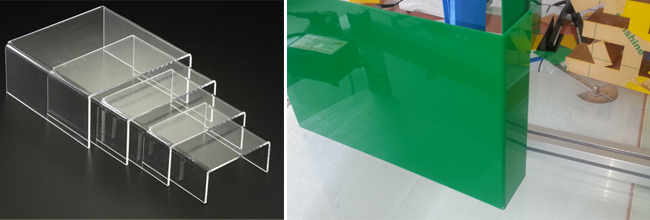

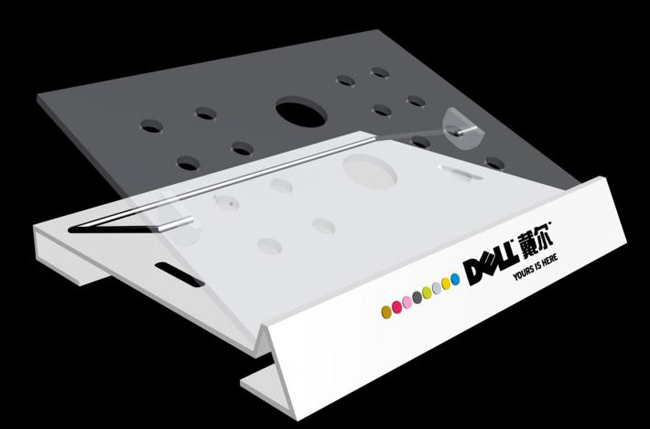

Used for: This acrylic bending machine heater can be widely used in decoration engineering, sign making, display cabinet, aquarium wrapping, lighting LED channel letter, bending the supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates.
The acrylic bending machine heater can bend all kinds of plastic sheet. If the thickness of acrylic sheet is beyond 6mm, you can use two heaters heat the top and bottom of the sheet at the same time, or you need to cut a slot on the sheet.
You can also use many acrylic bender heaters to heat more bents at the same time.

Acrylic bending machine upgrade introduction:

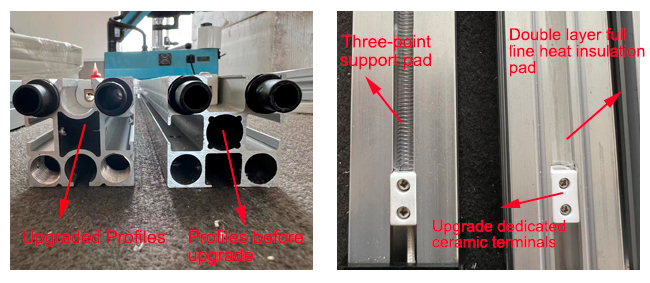

1. The main profile is upgraded to a high-strength special profile (Picture 1).
Advantages: The bending strength is twice that of the original profile, which effectively reduces the deformation probability and stone of the main profile during transportation and use.
British tube breakage rate.
2. The three-point heating tube support pad is upgraded to a "double-layer full-line heat insulation pad" (picture 2). Advantages: energy saving and high efficiency, improve the overall.
The consistency of the temperature of the strip heating tube (the temperature and color of the heating wire at the position of the original three-point support pad are slightly different from those at other positions).
The heat conduction from the heating pipe to the main profile is double-blocked, which effectively reduces the temperature rise rate of the cooling water, and the double-layer heat insulation pad prevents.
The vibration effect is better, and the damage rate of the heating pipe is greatly reduced.
3. M5 slider nuts (picture 3) are pre-installed on both sides of the main body of the heater to facilitate the connection of "fixed distance and fixed angle brackets".
Advantages: Customers can purchase and install single-sided or double-sided fixed-distance and fixed-angle brackets according to their needs.

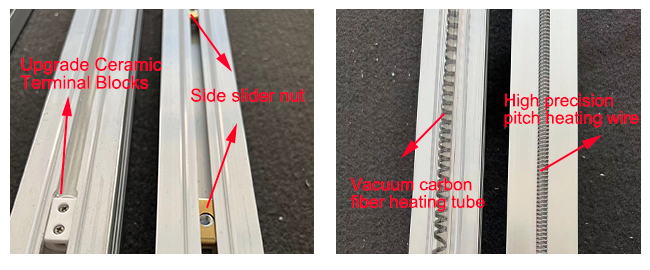

4. The heating wire is upgraded to a high-precision pitch heating wire (Picture 4).
Advantage: More consistent temperature at all locations along the entire heating bath.

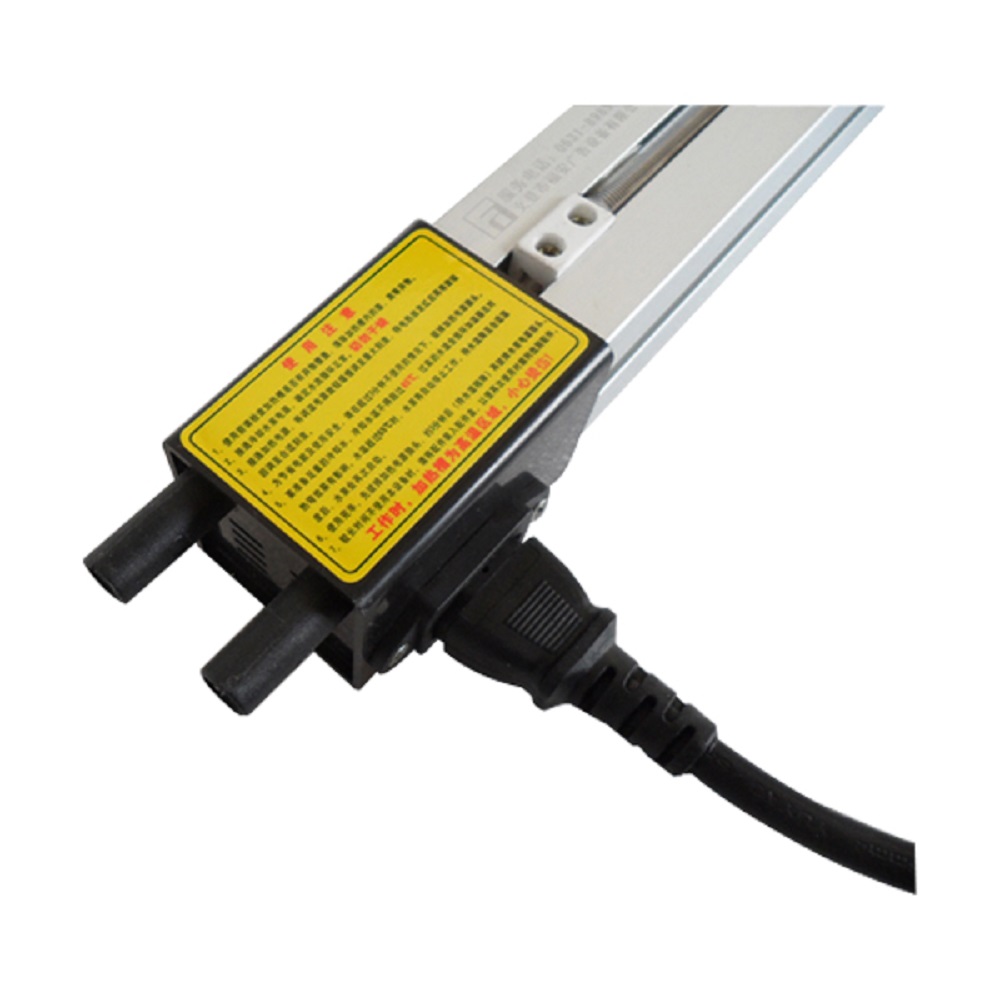

5. Special ceramic terminals (picture 2, picture 3).
Advantages: The terminal slides smoothly in the U-groove of the main profile, which can offset part of the expansion and contraction of the heating wire when heated, and the terminal and the top surface of the main profile.
Flat, exquisite and beautiful appearance, more stable conductive connection, better heat dissipation.

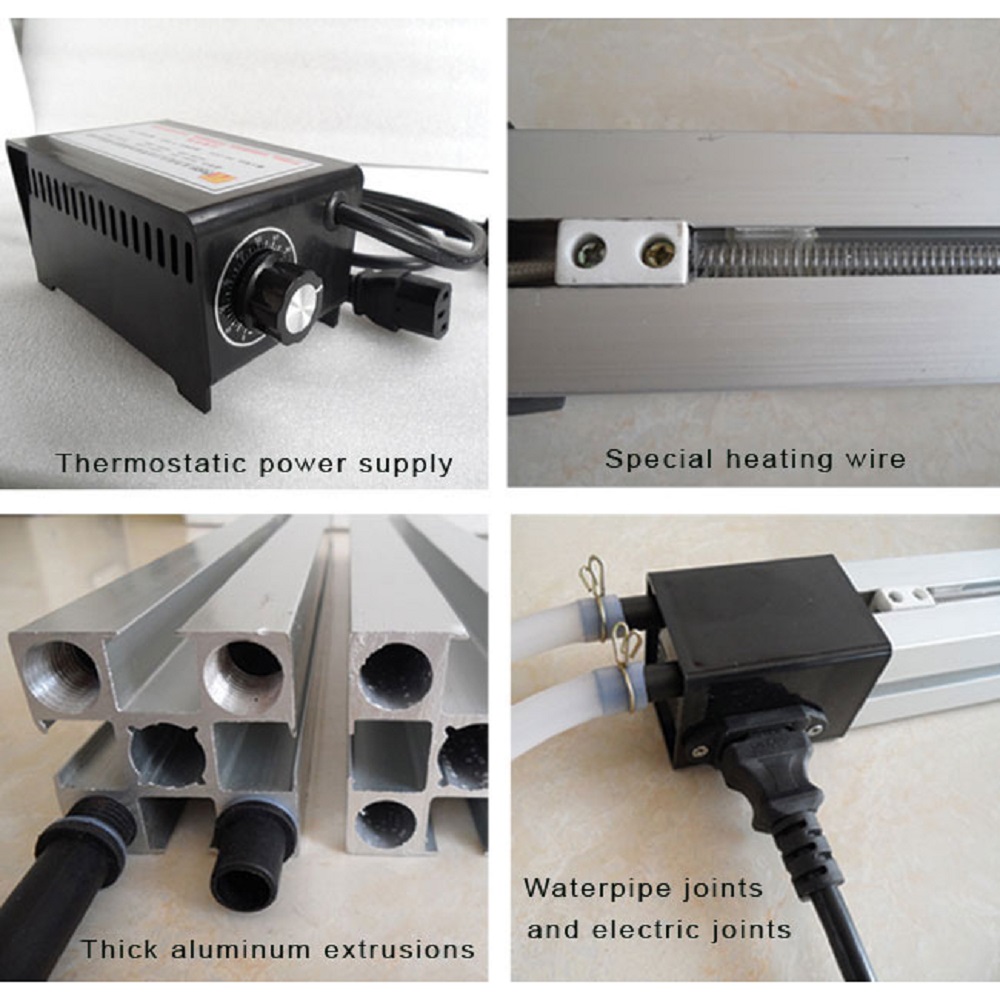

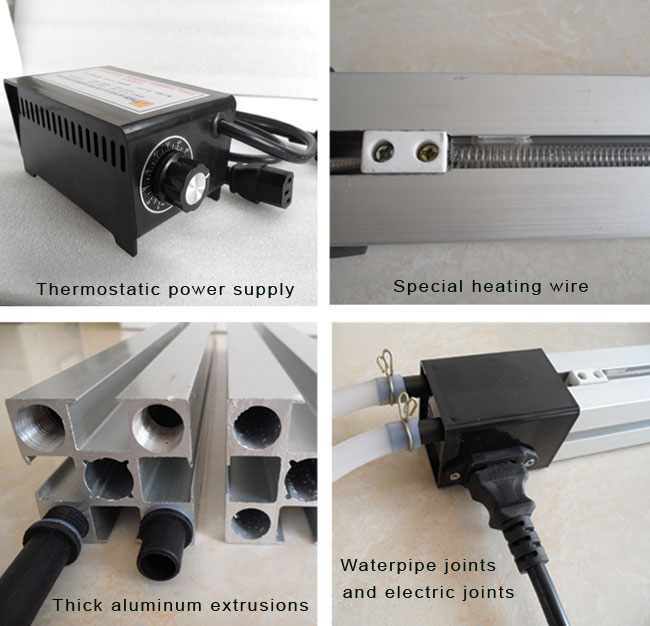

• Reasonable design, small size, compact structure and beautiful appearance;
• Heat even and temperature adjustable;
• With circulating cooling water system on both sides of heating pipe;

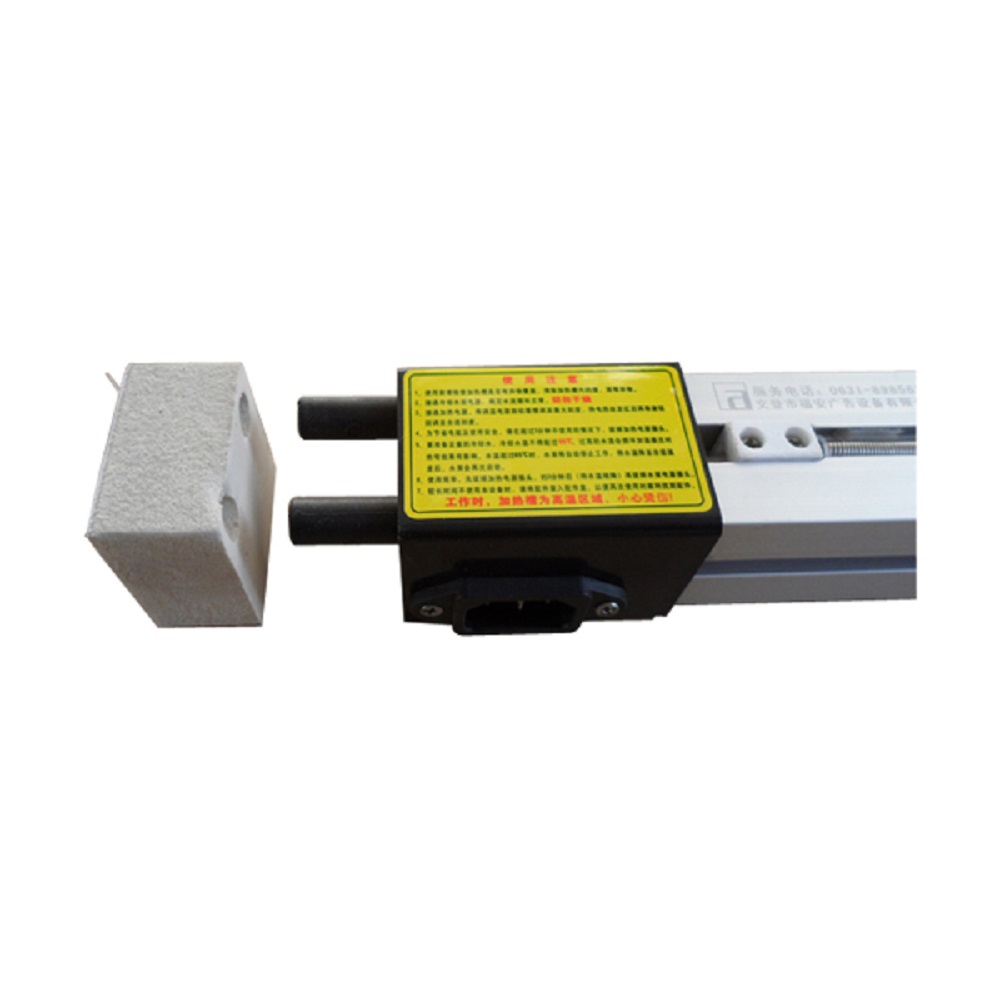

• Power supply joint and waterpipe joint are at the same end;
• The body is made of special aluminum extrusions.

• Portable, small occupation, low consumption and reliable operation;
• Light and practical with low cost, value-priced;
• Circulating cooling water system can make sure other parts (no heating is required) won’t get thermal deformation.
• Free plugging and unplugging, easy to storage and assembles to worktable very conveniently;
• Straight appearance, the effective heating length is 1220mm (48").

• Low consumption, low cost;
• Can be assembled to a hot bending machine or used alone;
• Save space, light and practical;
• Can bend all kinds of plastic sheet.


Model ABM-BT-1200-PLUS-US
Maximum Bending Width 48"(1200mm)
Power 1500W
Power Supply AC 100-120V/60Hz
Heating Slot Width 0.31" (8mm)
Heating Thickness 0.04" – 0.24"(1mm - 6mm)
Heater Size 1.8'' x 1.8'' x 58.3''(45 x 45 x 1480mm)
Box packing Size 61" x 8.27" x 5.1"(1550×210×130 mm)
Gross Weight 13.67lb(6.2kg)

Temperature tips:
• The temperature at the central of heating tube is the highest, which can be up to 500°, and greater the distance from the central the lower the temperature.
• Actually, the appropriate temperature for bending acrylic is about 240°.
• The heater can work 24 hours a day on the circumstance that the water temperature is not high.

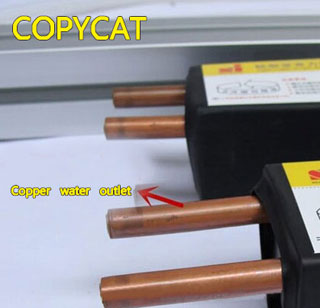

Water outlet material
The copycat are using the copper water outlet, the bronze looks really good and I think everyone think copper part will be better than others, but you should know the basic thing is the water will corrode copper and make it rusty and get holes, which will cause water leak.
Beside this copper part price is not higher than our nylon material part.

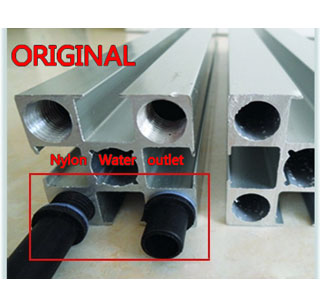

The water oulet of our acrylic bender is Nylon material, the reason we use this material is this material do not inflate during water current flow and it do not have water corrosion problems.

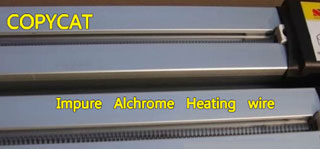

Alchrome Heating wire inside
The copycat heating wire width is not even and its material is not pure Alchrome, if the material is not pure, that will cause part of different temperature. It cause part of Acrylic is soft and other part is still hard. It will cause second time bending or part of Acrylic crack. The heating wire of our acrylic bender is made by screw pitch which will insure the width and have even temperature to bend acrylic sheet.

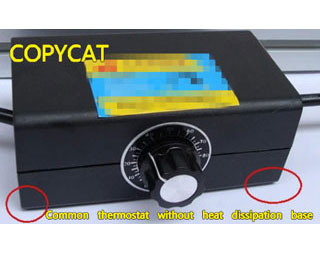

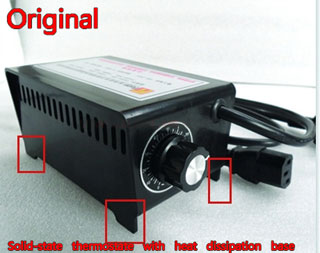

Copycat's thermostat is common thermostat without heat dissipation base. Thermolator of our acrylic bender is Solid-state thermostat, theirs are common thermostat We also design 4 stands below this thermostat to make sure has better heat dissipation.

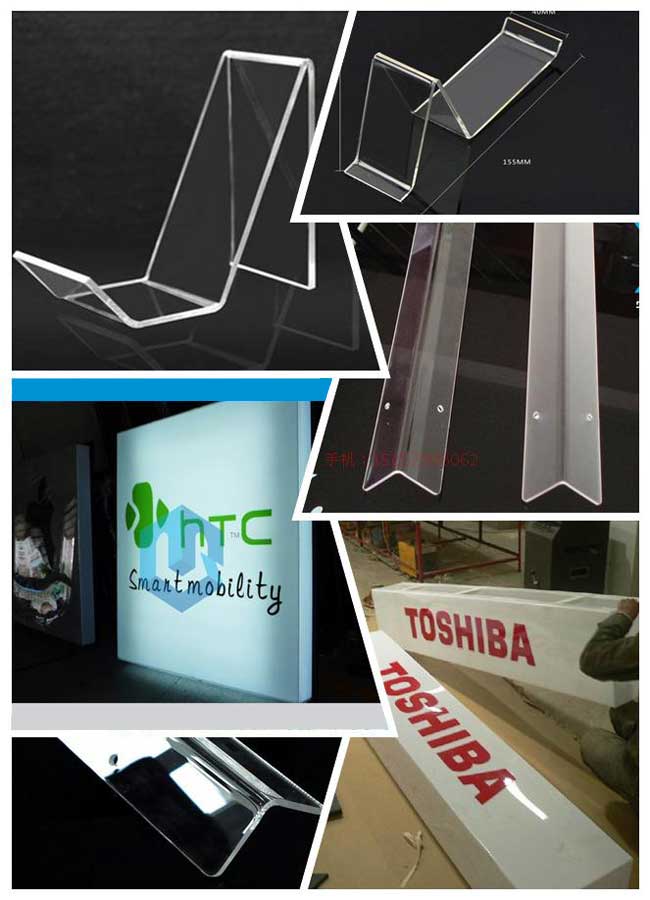

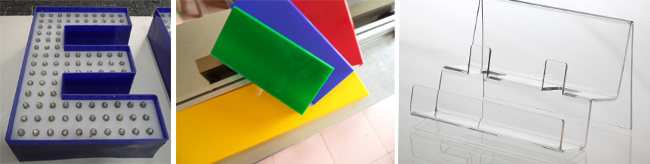

ABM-BT series acrylic bending machine heater has wide applications, such as lighting LED channel letter making, sign making, display cabinet, supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates making, etc.

CS-HD-BC06 Model Sign Letter Tool is mainly used for lighting luminous channel letters or characters.

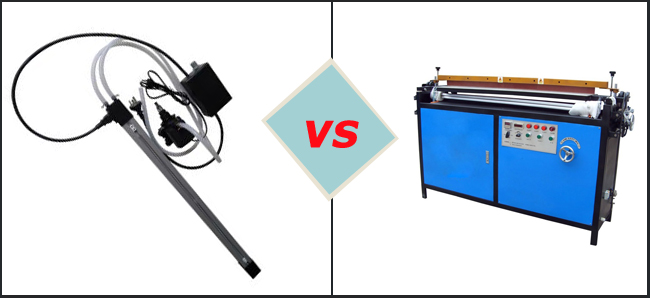

ABM-BT series acrylic bending machine heater is core part of bending machine, it soft the acrylic, you need to bend acrylic by hands. It is space saving, low cost. ABM-SB series acrylic bending machine bends acrylic by electric, with super high precision, but it is expensive relatively.

This product has no Specifications

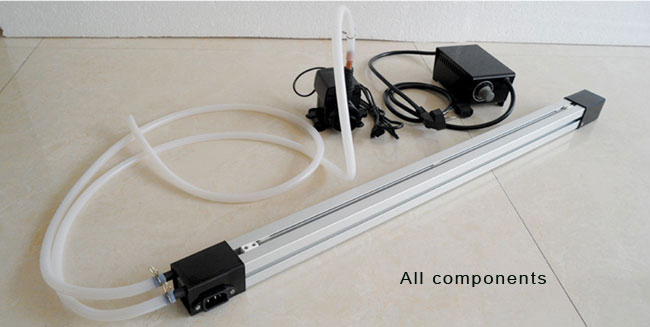

Packing list:

Bending Machine Heater
1 pc
Water pump
1 pc
Silicone hose
2 pcs

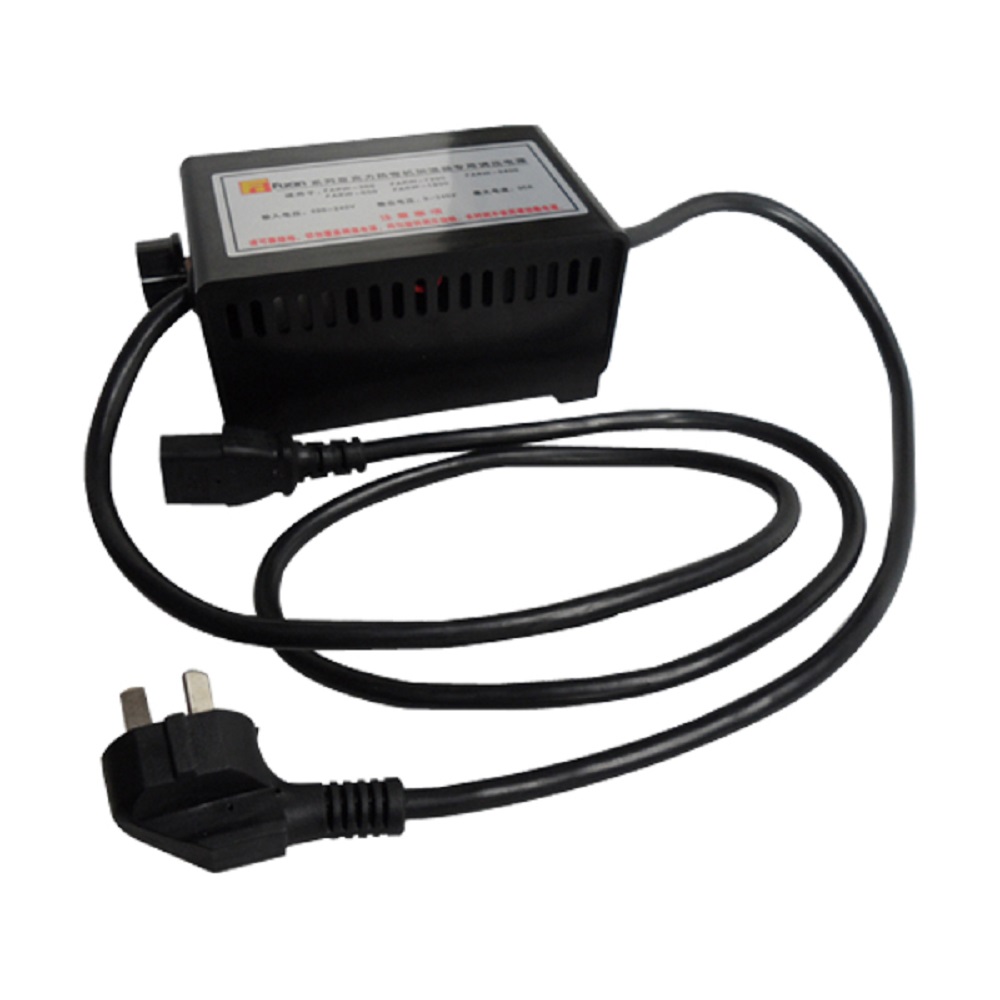

Temperature controller
1 pc


Comprehensive guarantee for 2 years except the wearing parts
24 - hour technical support by email or calling
User - friendly English manual for machine using and maintaining

Spare Parts Supports
We provide all replacement parts for all machines we sold, if you have a parts that break beyond warranty period, you could order it directly from us at reasonable prices. We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.
If you want to buy any parts from us, please tell us the names or pictures of the parts.

Satisfaction Guarantee
For the items other than consumable products sold via www.Sign-in-China.com, we provide 24 months warranty after delivery. All the extra parts for equipment can be purchased from www.Sign-in-China.com.
We offer 14 days 100% satisfaction guarantee on all our machines. If you are not satisfied after receiving an item, Sign-in-China.com promises that, within 14 days after actual delivery of such an item, you are allowed to return the item to us and get complete refund, provided the returned item does not affect its subsequent re - selling and you also undertake the charge of returning delivery.
