Product features
Support a variety of image signal input HDMI, VGA, etc.;
After the boot is completed, the default is to enter the main interface of the Android system, and there are shortcut menus on the left and right sides of the screen, which are Home, Back, Task Process, Signal Source Menu, Gadgets, WIFI, Hotspot, Bluetooth, Wired Network, and Brightness Progress Bar and Volume Progress Bar.;
Support each signal source display state, through touch control signal source, volume and other menu control;
4K whiteboard display, support image enlargement, zoom out, rotate;
Adopt zero bonding technology, no gap between glass and display screen, reduce diffuse reflection, effectively improve display effect ;
Physical tempered Mohs level 7 explosion-proof;
Support clicking any signal source on the main page of the system, after switching between each signal source, the touch function is available, and any signal source annotation function;
Support multi-screen projection, PC, iPad, mobile phone, etc. project source to big screen, achieve simultaneous interpretation of Quad-display;
Simple control panel, front USB support full channel following, front button one-key switch computer, whole machine, one-key lock screen, one-key energy saving and other functions;
Support whiteboard writing, intelligent text recognition and intelligent graphics recognition
Support wireless 2.4, 5G WIFI, wired LAN; Bluetooth 5.2 module, can be connected to external Bluetooth speaker;
Scan QR code for sharing content, easy-to-use;
Wireless screen transmission, multi-screen interaction, one-click screen projection, two-way control, realize content sharing between multiple devices;
| Product Series | Product Series | HB Series |
| Model number | LCD-HYP-TPLS-65IN | |
| Display | Size | 65" |
| Brand | CSOT/BOE | |
| Backlight Type | D-LED | |
| ResolutionPixels | 3840x2160 | |
| Brightness | 320cd/m² | |
| Contrast Ratio | 4000:1(typ.) | |
| Pixel Pitch | 0.315(H)x0.315(V)mm | |
| Refresh Rate | 60Hz | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Life Time | 50,000hrs (min.) | |
| Color GamutNTSC | 68%(typ.) | |
| View Area | 1429.4mm(H)×804.9mm(V) | |
| Color Depth | 8 Bit+ FRC,1.07G Colors | |
| Motherboard Spec | Chipset | MT9679 |
| CPU architecture | Quad core Cortex-A73 | |
| Frequency | 1.5Ghz | |
| CPU Core | Quad Core | |
| GPU | Mali G52MC1 | |
| RAM | 4GB DDR3 | |
| ROM | 32GB eMMC | |
| OS | Android 14.0 | |
| Electrical Spec | Power Requirements | AC 100 V ~ 240 V, 50/60 Hz |
| Power Consumption Without OPS | 120W | |
| Standby Frequency | ≤0.5W | |
| Audio Output Power | 8Ω/15W*2 | |
| OPS Power Supply | DC 18V/≤6A | |
| Dual Wi-Fi | Hot spot | IEEE802.11a/b/g/n/ac:2.4G+5G |
| WI-FI Standard | IEEE802.11a/b/g/n: 2.4G | |
| Bluetooth | 5 | |
| REAR I/O | HDMI IN *2 | Version: HDMI1.4/2.0 |
| 3840x2160@60Hz (MAX.) | ||
| USB#2 USB2.0 | Version: USB2.0 Interface: Type-A | |
| Public USB3.0 *1 | Version: USB3.0 Interface: Type-A | |
| OPTICAL 0UT*1 | PCM/RAW interface | |
| RS232 *1 | Interface: DB9 | |
| MiniLINE OUT *1 | 3.5mm standard earphone jack | |
| MiniMIC IN *1 | Jack: Φ3.5mm | |
| Touch USB *1 | Version: USB2.0 Interface: Type-B | |
| RJ45*1 | LAN IN*1; 10M/100M Base-T; | |
| Interface: RJ45 | ||
| Front I/O | USB3.0*2 | Version: USB3.0 Interface: Type-A |
| HDMI IN*1 | Version: HDMI 2.0 | |
| 3840x2160@60Hz (MAX. | ||
| TOUCH USB*1 | Version: USB2.0 Interface: Type-B | |
| Light Sensor | Brightness automatically adjusted by the light sensor according to the ambient light | |
| Type-c*1 | Version:Type-C, | |
| USB 2.0 capability | ||
| Front Button | Multi-function Power Button | One button for power on/off, standby |
| Touch Screen Spec | Sensing Type | Infrared Touch Frame |
| Surface Protection | 3mm tempered AG Glass | |
| Infrared Touch | Android OS: 40 Points, Windows OS: 40 Points | |
| 32768 x32768 | ||
| Interpolation Resolution | ||
| Touch Accuracy | 90% Central Area:±2mm | |
| Touch Height | 3mm | |
| Response Time | 4~11ms | |
| Output Mode | HID Standard | |
| Theory Clicks | Infinite | |
| Minimum Touch Object | 2 points ≥ 3mm / multi points ≥ 5mm | |
| Connect Type | USB2.0 Full Speed | |
| Voltage | DC 5V±5% | |
| Power Consumption | ≤1W | |

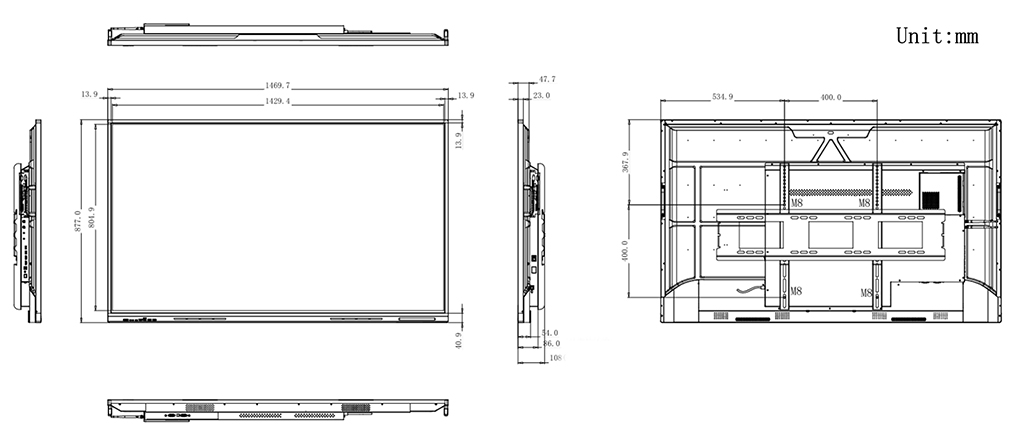

| Structure | L x Hx Wmm | L1469.7xH877xW86.5 |
| Product SizeL x Hx Wmm | ||
| Lx Hx Wmm | L1574xH1036xW154mm | |
| Package SizeL x Hx W | ||
| L1469.7 xH877 xW108 | ||
| Housing Material | Aluminum/Metal plate | |
| Housing Color | Iron gray | |
| VESA | (4-M8 Screw Hole300mmx320mm) | |
| N.W. | 30Kg±2KG | |
| G.W. | 41Kg±2KG | |
| Smooth writing | Smooth writing experience, touch delay <8MS | |
| Touch menu | Touch on the screen through gestures to achieve menu, signal source switch, sound, brightness and other functions control | |
| Intelligent signal switching | Connect and input the signal, the device will automatically identify and switch to the corresponding video signal source channel | |
| Gesture wipe function | Wipe text and patterns on the screen with gestures | |
| Two-way control function | Touch the screen to control the computer, convenient and fast | |
| Wireless screen transfer function | No need to plug in the cable, you can project the content on the computer to the screen optional | |
| Zoom in, zoom out, drag | Using multi-touch technology, picture zoom in/out arbitrarily, and move the picture freely | |
| Packing | External Carton | Corrugated Carton |
| Wall mount*1,Power Cord*1, Remote Control*1, Touch Pen*2, Qualified Certificate label*1, Warranty Card*1 | ||
| Packaging Process | Corrugated Carton + Foam |
