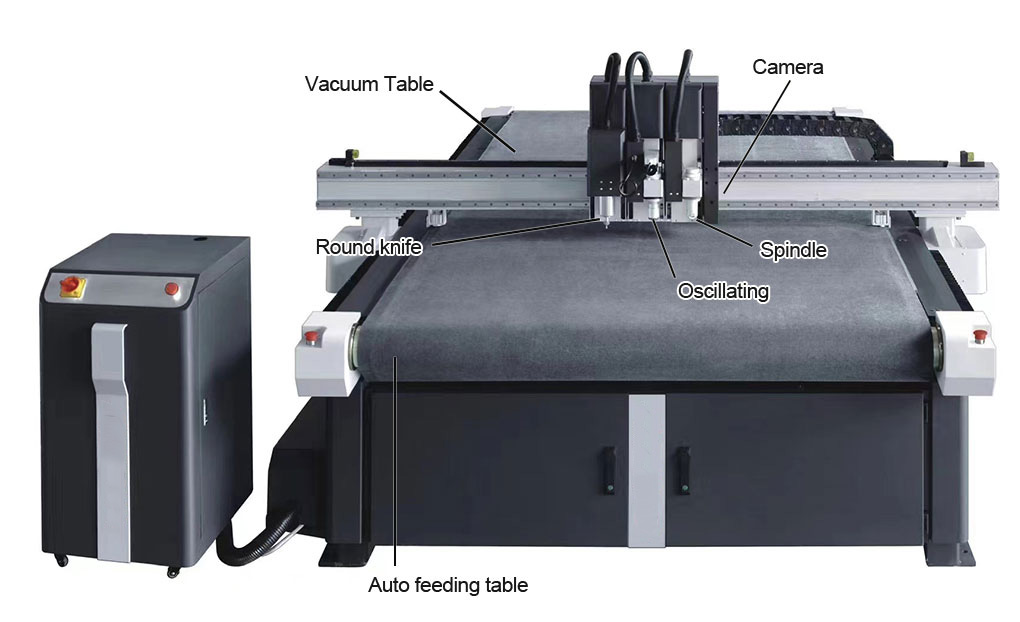

63" x 98" Multifunction CNC Router Oscillation Knife Cutting Machine with Conveyor Feeding Belt & CCD & Round Knife
The CNC Router 1625ODS is a multifunctional engraving machine. The cnc router completes the engraving and cutting of the plate. It can cut soft materials such as KT board, PVC(less than 7mm), cardboard, corrugated paper, leather and cloth, and can also cut hard materials such as acrylic, density board, woodworking, aluminum plate, copper plate, etc. One machine for multiple purposes not only improves work efficiency, but also saves the cost of adding other equipment.
1. Industrial steel pipe frame, integrated welding boby, stable operation, low noise and high precision.
2. High precision linear guide, helical rack pinion ensure the high precision cutting capability.
3. Independent Z-axis modular design, multiple combination of functional tools to meet diverse operations.
4. Rolling feeding table, automatic feeding and rolling cutting, the operation is more efficient.
5. Upgrade of table and enhanced vacuum suction.
6. 5-million-pixel industrial grade camera, which quickly scans the entire processing breadth before cutting, and then identifies the reference point, and locates the material to achieve the effect of precise cutting.
| Model | CNCR-S5-R1625ODS |
| X,Y,Z Working Area | 1600 x 2500 x 100mm (63" x 98" x 3.9") |
| Feed Height | 70mm (2.8") |
| Voltage | 380V, 50-60Hz |
| Spindle Power | 1.8KW / 220V |
| Tool | Oscillation Knife & Round Knife & Spindle |
| Oscillation Knife Frequency | 15000-20000rpm |
| Air Pressure Specification | 90Psi/16Cfm |
| Spindle Rotating Speed | 0-40000rpm |
| Tool Diameter | φ3.175, φ4, φ6 |
| Drive | AC Servo |
| Transmission | Z ball screw direct connect, XY belt & helical rack pinion |
| XYZ Rail | Imported linear rail |
| Reposition Accuracy | <0.03mm/300mm |
| Max. unload Speed | 45000/min |
| Worktable | Vacuum & roll feeding |
| Dust Collect | Powerful dust collector |
| Format | G Code or HPGL |
| Support file formats | PLT, DXF, etc. |
| Vacuum pump | 11KW air cooling |
| Dimension | 3850x2550x1600mm (151.6" x 100.4" x 63") |
| Weight | 1800 KGS (3968.3lb) |
| Packing Size | 4000x2250x1800mm (157.5" x 88.6" x71") |
| Gross Weight | 2000 KGS (4409lb) |
Suitable for a wide range of materials, including plastics (PVC, PP, PE, Polycarbonate), fabrics (leather, garment, non-woven), composites (fiberglass), rubbers, and various boards (acrylic, foam, cardboard).
