Features

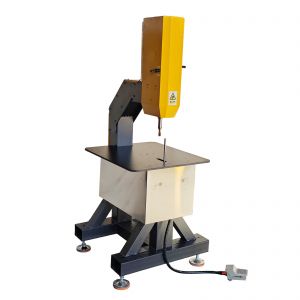

The MNM-CLINCHER-03 Clinching Machine is an advanced rivet-free fastening solution designed for joining aluminum, copper, mild steel, and stainless steel sheets. It is ideally suited for manufacturing advertising letters, specifically for clinching the base plates and frames of aluminum-housed signage.
Featuring pneumatic foot-pedal control, the machine significantly reduces manual handling and operator fatigue. Its adjustable clinching head can be easily positioned to accommodate various shell shapes, offering exceptional versatility and ease of use.
To handle different material thicknesses, both the worktable height and needle position can be quickly adjusted via manual valves. This flexibility allows for faster setup and processing of letter-shaped housings, greatly improving overall production efficiency.
Built with high-quality, well-known pneumatic components, the machine ensures reliable performance, consistent output, and extended service life.
Clear safety warnings are prominently displayed on the unit, reminding operators to follow correct procedures. This focus on safety helps prevent accidents and ensures a secure working environment.
Adjustable foot supports allow the operator to customize the machine’s height for optimal ergonomics. The option to work comfortably in a seated position further reduces physical strain and enhances productivity.
Hands-Free Precision and Flexibility
Foot-operated pneumatic control keeps your hands free, allowing flexible adjustment of the riveting position.
Tabletop Height Adjustment
Easily adapt the workstation to your preferred working height.
Moisture and Oil Isolation
Protects internal components from compressed air contaminants, extending service life.
Offset Adjustment Design
Enables easier and more convenient handling of workpieces.
Riveting Effect Demonstration
Ensures consistent, high-quality results every time.
| Technical Specifications | |
| Model | MNM-CLINCHER-03 |
| Process Type | Pneumatic-hydraulic clinching (fastener-free mechanical interlocking) |
| Application | Joining aluminum channel letter backs to return frames |
| Throat Depth | 600 mm (23.6 in) |
| Max Joining Thickness | 0.6 – 1.6 mm (0.024–0.063 in) total (two layers combined) |
| Working Stroke | 50 mm (2.0 in) non-cutting |
| 10 mm (0.39 in) pressure stroke | |
| Cycle Speed | Up to 40 cycles/min |
| Clinching Head Adjustment | Vertical: 0–100 mm (0–3.93 in) |
| Horizontal: 75 mm (3.0 in) | |
| Workpiece Depth Capacity | 10–200 mm (0.39–7.87 in) |
| Worktable Size | 860 x 860 mm (33.8 x 33.8 in) |
| Worktable Height | Pneumatically adjustable |
| Machine Dimensions (LxWxH) | 1050 x 1050 x 1850 mm (41.3 x 41.3 x 72.8 in) |
| Packing Dimensions (LxWxH) | 1180 x 1180 x 2080 mm (46.4 x 46.4 x 81.9 in) |
| Net Weight | 223 kg (492 lbs) |
| Gross Weight | 275 kg (606 lbs) |
| Air Supply Pressure | 0.6–0.8 MPa (87–116 psi) |
| Air Line Connection | 8 mm / 5/16 in tube fitting |
| Control | Foot pedal actuation with hydraulic-pneumatic intensifier |
| Frame Construction | Heavy-duty steel, powder-coated |
| Compatible Materials | Aluminum, mild steel, stainless steel, copper (0.3–1.0 mm per layer) |
| Standards Compliance | CE-compliant safety markings and controls |
| Key Specification Highlights | |
| Feature | Value |
| Throat Depth | 600 mm – accommodates large format signage |
| Adjustable Clinching Head | 100 mm vertical / 75 mm horizontal – tool-less positioning |
| Cycle Speed | 40 cycles/min – high-speed continuous operation |
| Material Range | Up to 1.6 mm total thickness (two sheets) |
| Worktable | 860 mm square, pneumatically lifting |
| Power Source | Compressed air only – no electrical power required |
