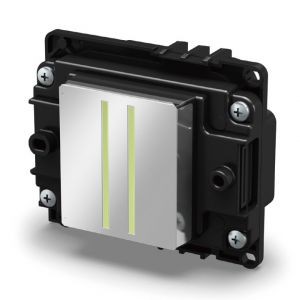

Epson I1600-A1 Water-based Printhead
①. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi /2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.
②. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.
2. Support for grey scale
Epson's unique Variable Sized Droplet Technology(VSDT) delivers smooth gradation by freely control toeject the droplet volume.
3. High resolution
Ink ejection of up to 4 colors realize with high resolution(600 dpi/color). In addition to the I1600
has also been added to the lineup in order to meet thevarious customer need.
4. High durability
PrecisionCore Print Head has proven high durability and extended service life by Epson's industrial printers.
Product name: I1600-A1
Ink type: Aqueous
Type: PrecisionCoreMicroTFP Printhead
Width × Depth × Height: 2.7×2.3× 1.4 inch (69.1x 59.4 x 35.6mm)
Number of nozzle: 1600
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 4 rows
Nozzle Resolution: 300 npi/row 600npi/2 rows
Max. number of color inks: 4 colors
Effective print width: 1.33 inches (33.8 mm)
Viscosity range: 3-4 mPa•s
Positioning Mechanism: Reference hole
