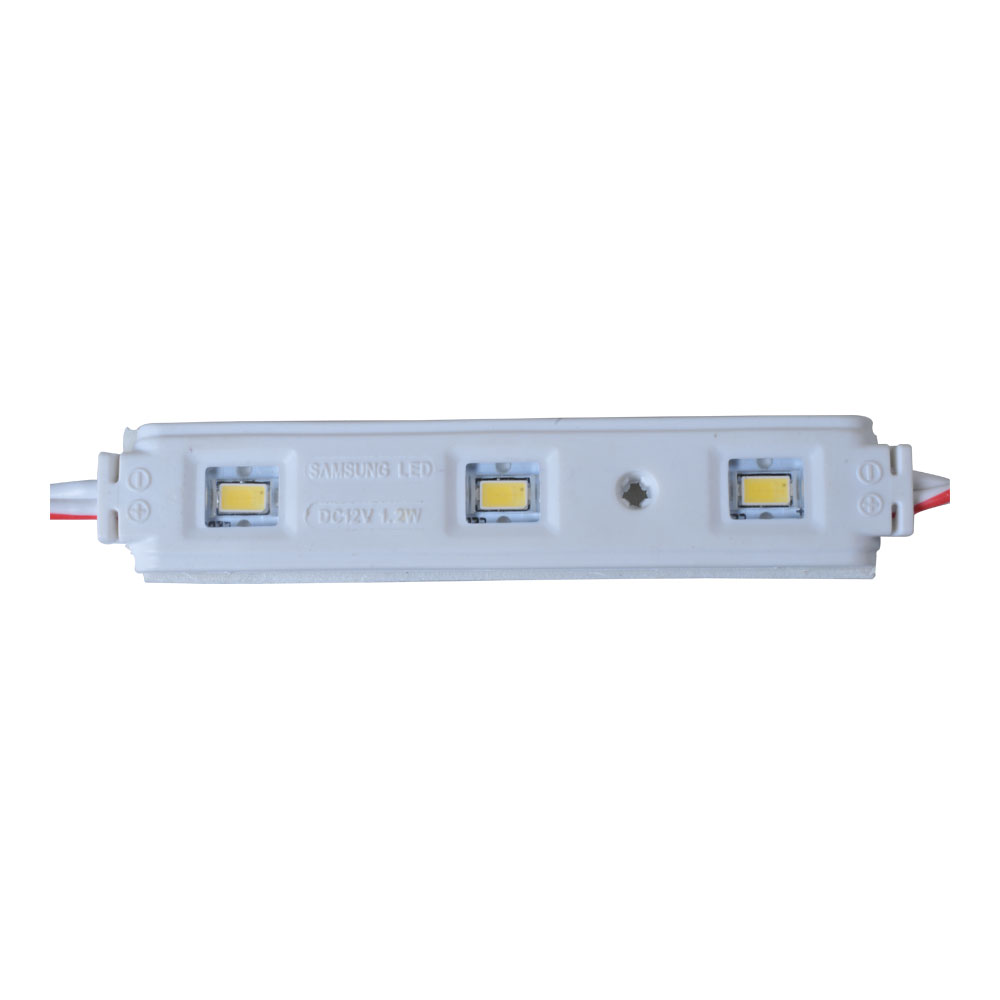

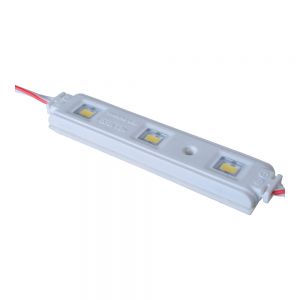

Target at the middle and end light sources used on identification;adopting the chips manufactured by famous big factories, high brightness,large emitting angle,low thermal resistance, and low light decay,high uniformity of the emitting color,using pure thick copper wire and designing by low thermal resistance to ensure the steady current and lower the heat; reasonable circuit design, convenient to install and wiring regulation, life span over 30000 hours, power supply at constant 12V DC; safety, energy saving and eco-friendly.
Dimension ( mm ):
Connection Diagram:
Remarks of installation and application:
(A). Don't stick the surface of the light by sharp tools.
(B). Don't fix this product by sour glass glue or other soured adhesion; don't operate or store this product in sour environment or the light will be vulcanized and the life span of the product will be reduced.
(C). Drive this product by 12V DC switch power supply, and the power should be suitable for the quantity of the led modules; do not connect this product to the utility directly, or the product will be burnt up.
(D). The total power of the led modules in series should be lower than 80% of the power of the driver, or the power supply will be burnt up probably, select the suitable thickness of the connecting cable according to the quantity of modules, and the connecting points should be wrapped by electrical tape.

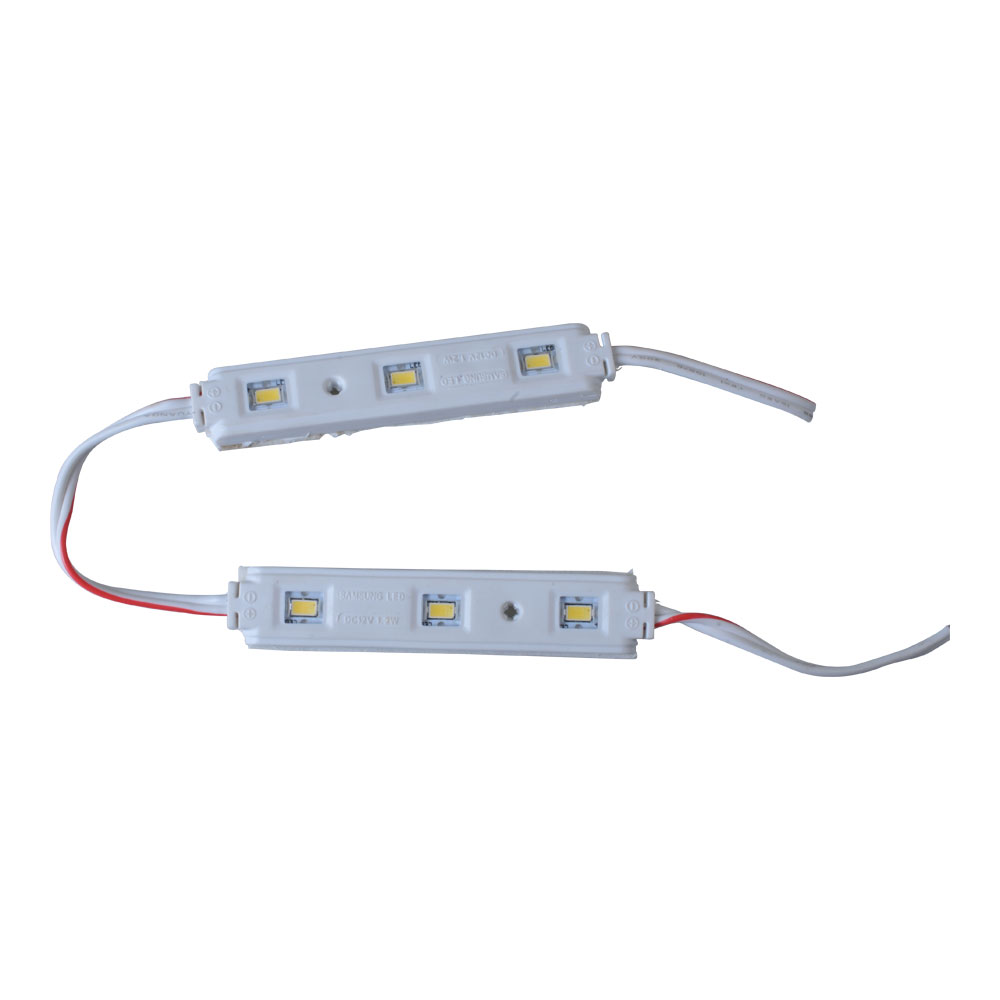

(E). The maximum cascade quantity of this product is 20 pieces for one strip, and the brightness of the two ends will be different because of the voltage loss when you increase the quantity of the module.
Quality Report:
We free ship only to the 48 contiguous states.
For Hawaii, Alaska, Guahan or Puerto Ricoa Customers, an extra freight is required.
Free shipping on orders over $79.
$6 shipping charge on orders under $79.
| Basic parameters | |||
| Color | White, Red, Blue, Green | LED type | 5630 |
| LED Qty | 3PCS | Dimension | 83x 15 x 6mm |
| Module interface | 2 x3.2" (2 x 80mm) RVleads | Interface definition | red anode, white cathode |
| Cluster Qty | 20pcs | Module space between | 80mm |
| Weight | 0.4oz (15g)±5% | Lifespan | MTBF>30000hours |
| Environment parameters | |||
| Working temperature | -40°C∼60°C | ||
| Defend grade | IP67 competely satisfies the outdoorlighting standard | ||
| Electronic specifications | |||
| Working input voltage | D12V±5% | Max power | 1.2 W |
| Driving mode | Invariable voltage! (Insure every LED working under the invariable voltage) |
||
| Lighting capability | |||
| Luminous flux | 130 lm | ||
| Beam angle | 120° | ||
Package:
Module RoHs:
Module CE:
