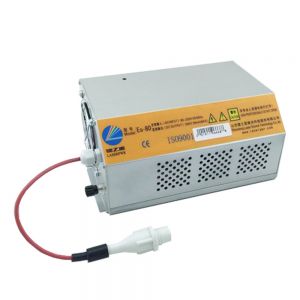

EFR F2, ZS1250 CO2 Laser Tubes Power Supply / Power Source with PFC Function, 90V-250V
Description:
EFR power supplies for CO2 laser tubes adopt zero-current half-bridge soft-switch circuit to ensure the equipment has advantages of high efficiency, rapid response speed and simple port control, and applicable to two signals – high and low level. TTL level is to control the laser on/off, in the meantime, the power supply has an anomalistical protective switch to check whether the outer water and air, etc.
Features:
1.Initiative PFC function, AC90-250V wide input voltage range, universal for all countries voltage.
2.Special design for outer shell, more beautiful appearance, better heat dissipation.
3.Improved current control mode, more stable laser, better compatibility, more adaptable for different kinds of laser tubes.
4.Simple power control, user can control laser with high or low level signal.
5.With test button, easy to test laser tube and power supply.
6.Small size outer shell, suitable for installing on the beam of cutting bed.

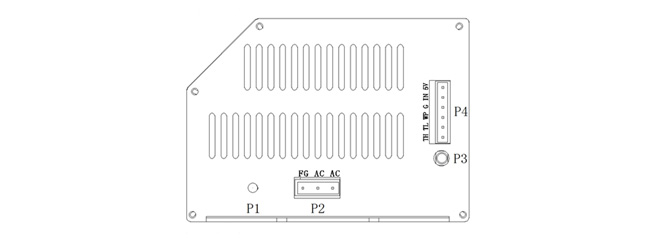

P1 High voltage indicator light
P2 FG: ground connection; AC: input
P3 Test button
P4 terminal definition
| TH | Input signal | Laser on/off control, laser on when high level(≥3V), laser off when low level(≤0.3V) |
| TL | Input signal | Laser on/off control, laser off when high level(≥3V), laser on when low level(≤0.3V) |
| WP | Input signal | Laser on/off control, laser off when high level(≥3V), laser on when low level(≤0.3V) |
| G | Signal ground | This terminal must be connected with outer shell and control board of machine properly |
| IN | Power signal | Laser power control terminal, control with 0-5V analog signal or 5V PWM signal |
| 5V | Output | 5V output, max output current is 20mA |
Advantages:
1. Easy Control: The start and stop of laser can be easily controlled by TTL level. Both 0-5V analog signal and 5V PWM signal can control the laser power.
2. The Laser Power Supply has output open circuit protection.
3. This Laser power supply has TTL signal indication, water through signal indication and laser output indication.
Application:
Es-80 Laser Power Supply is used for 60W,80W Cutting and Engraving Acrylic, Fabric, Double Color Sheet and Rubber,ect.
We free ship only to the 48 contiguous states.
For Hawaii, Alaska, Guahan or Puerto Ricoa Customers, an extra freight is required.
Free shipping on orders over $79.
$6 shipping charge on orders under $79.
| Item | CS-PS-ES80 | |
| Input | Input Voltage | AC90-250V |
| AC Frequency | 47 - 440Hz | |
| Max Input Power | 500W | |
| Max Input current(when 90V input) | 6A | |
| Output | Max output Voltage | 40KV |
| Max Output current | 28mA | |
| Efficiency | 90%(full load) min | |
| MTBF(mean time between failure) | 10000hours min | |
| Response speed |
≤1mS(the time from the signal is given to output current reaches 90% of set current ) |
|
| Withstand voltage | Input-output, input-shell:AC1500V 10mA 60s | |
| Working environment | Temperature(-10~40) , relative humidity:≤90% | |
| Cooling | Force air cooling | |
| Network cable | Length(M) | 1.5M/3M |

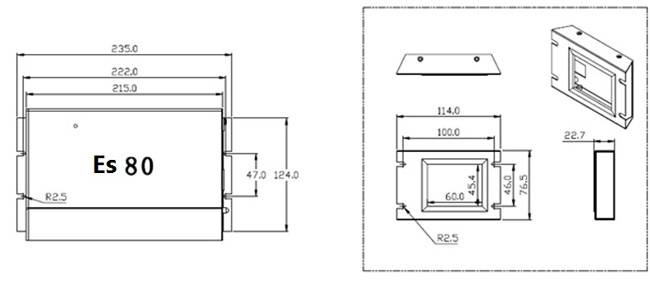

| Dimension | LxWxH(MM) | 235x144x104 |
| Packing size | LxWxH(MM) | 250x150x140 |
| Weight | Net weight(KG) | 2.15 |
| Gross weight(KG) | 3 | |
| Color | Silver grey | |
