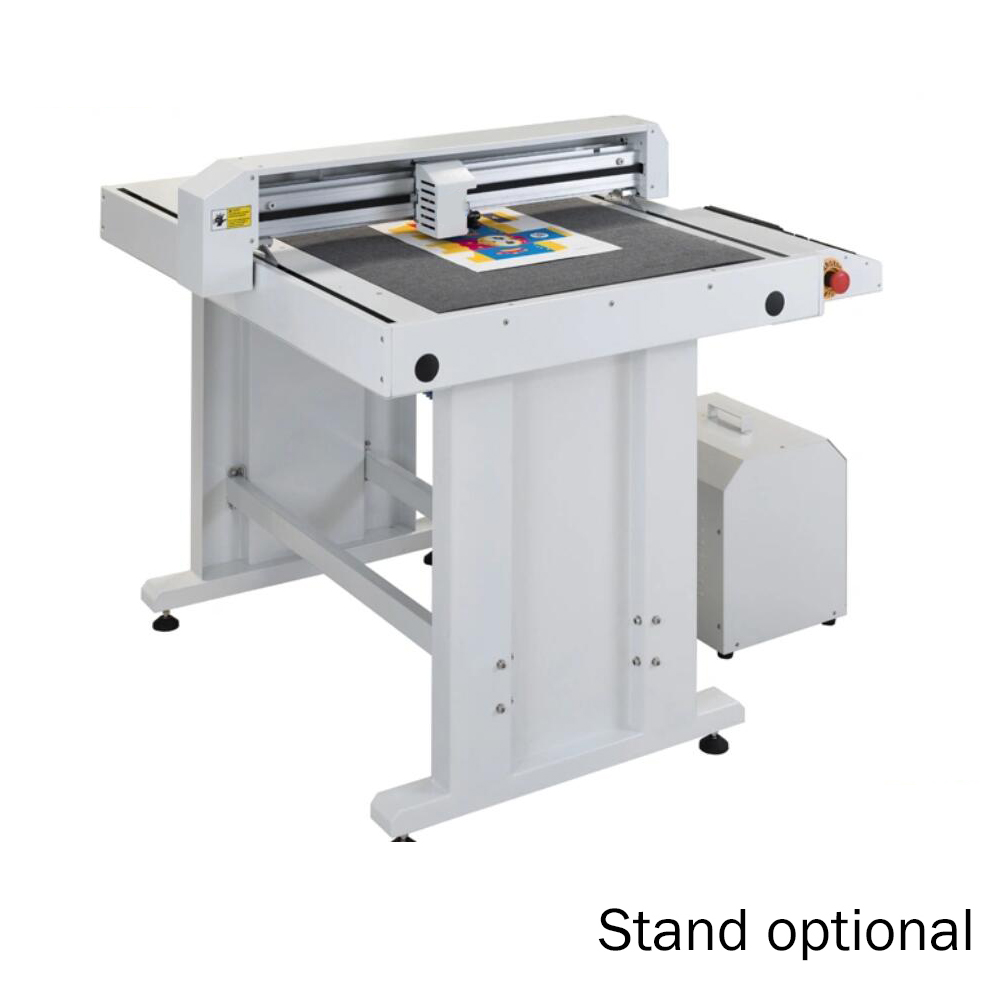

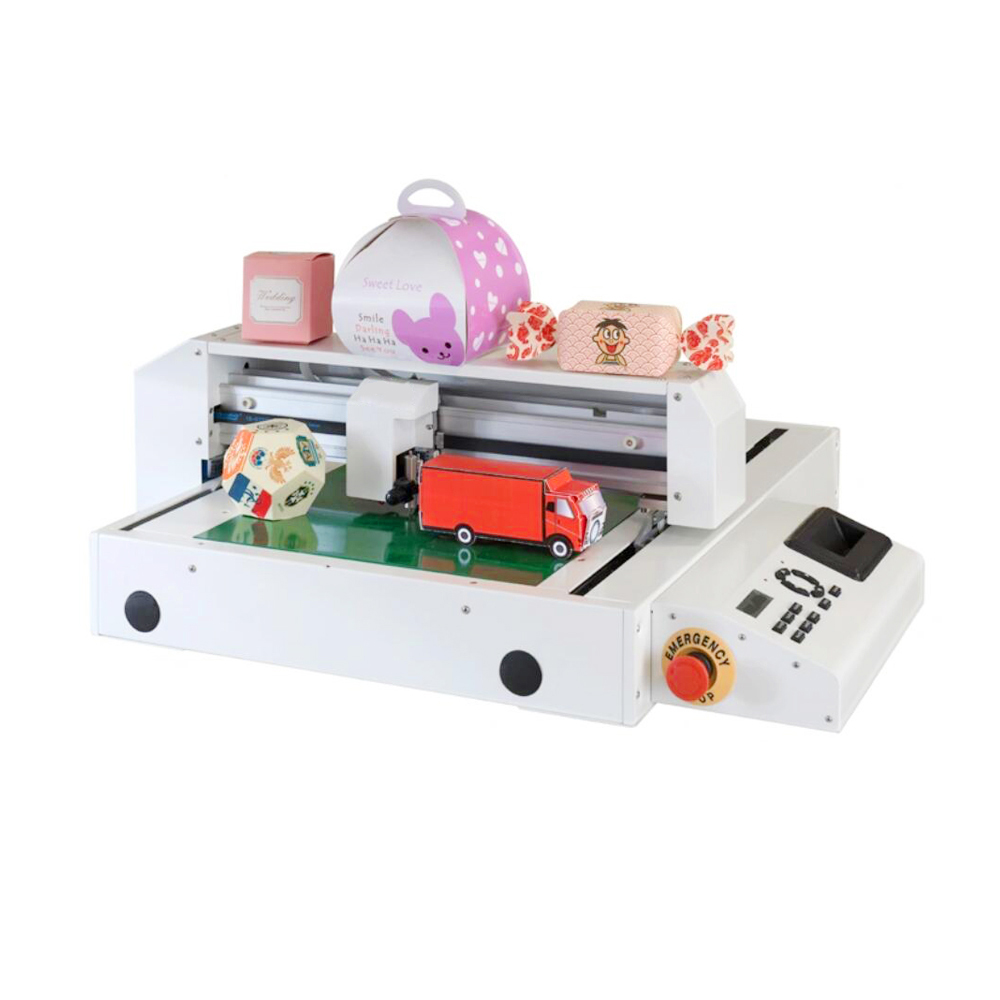

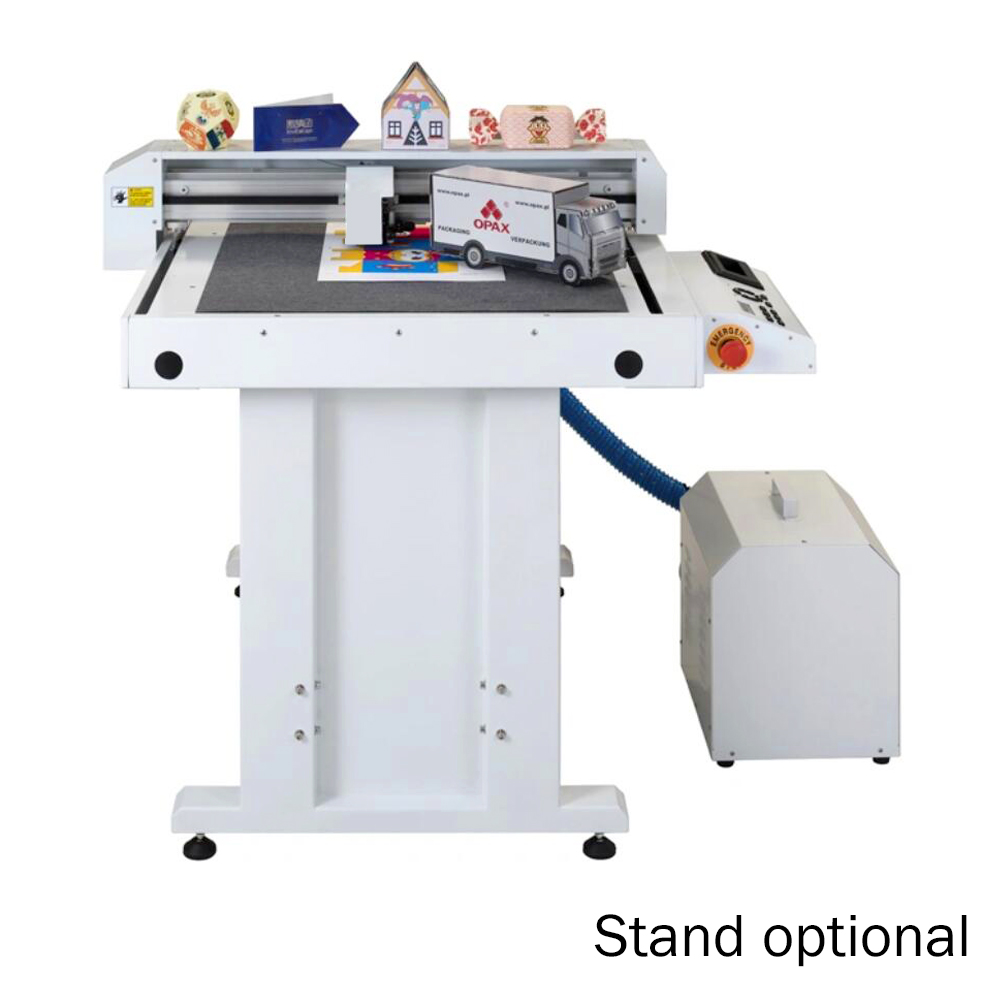

110V 17.7in x 24in Digital Flatbed Cutter and Plotter

Free Shipping, Arrival in 3-5 Business Days.



Item Code:LPC-LF-FC4060-US

  • Unit Price : $3,160.00/set   (Discount Notice)

  • Quantity: set(s) Total Cost: USD $3,160.00
  • Shipping Weight: 165.9lb (75.4kg) freightFreight

  •   Free Shipping Over $79

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

17.7in x 24in (400mm x 600mm) Digital Flatbed Cutter and Plotter
With this medium flatbed cutting plotters, you have the right tool for contour cutting without requiring a die.
Flatbed cutters are ideal for designers and prototyping in offset printing, digital printing, packaging industry, fashion industry, as well as road sign making, stone and glass sandblasting and etching, and more.

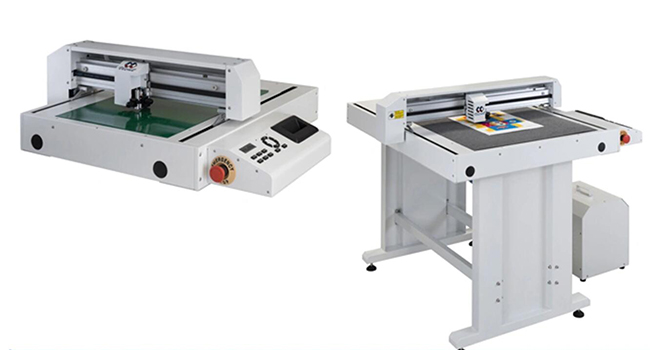

Digital Flatbed Cutter and Plotter
Application:
Cuts cardboard, Kraft paper, plastic board, fibrous cardboard, rubber sheet and marking film etc.
Application Field: Prototype and light production, on - demand packaging and sheet card cutting system - also suitable for sheet labels.
Process Material: cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.
PVC: Less than 0.4mm (0.0157in)
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm (0.0118in), vinyl, etc.

Features:

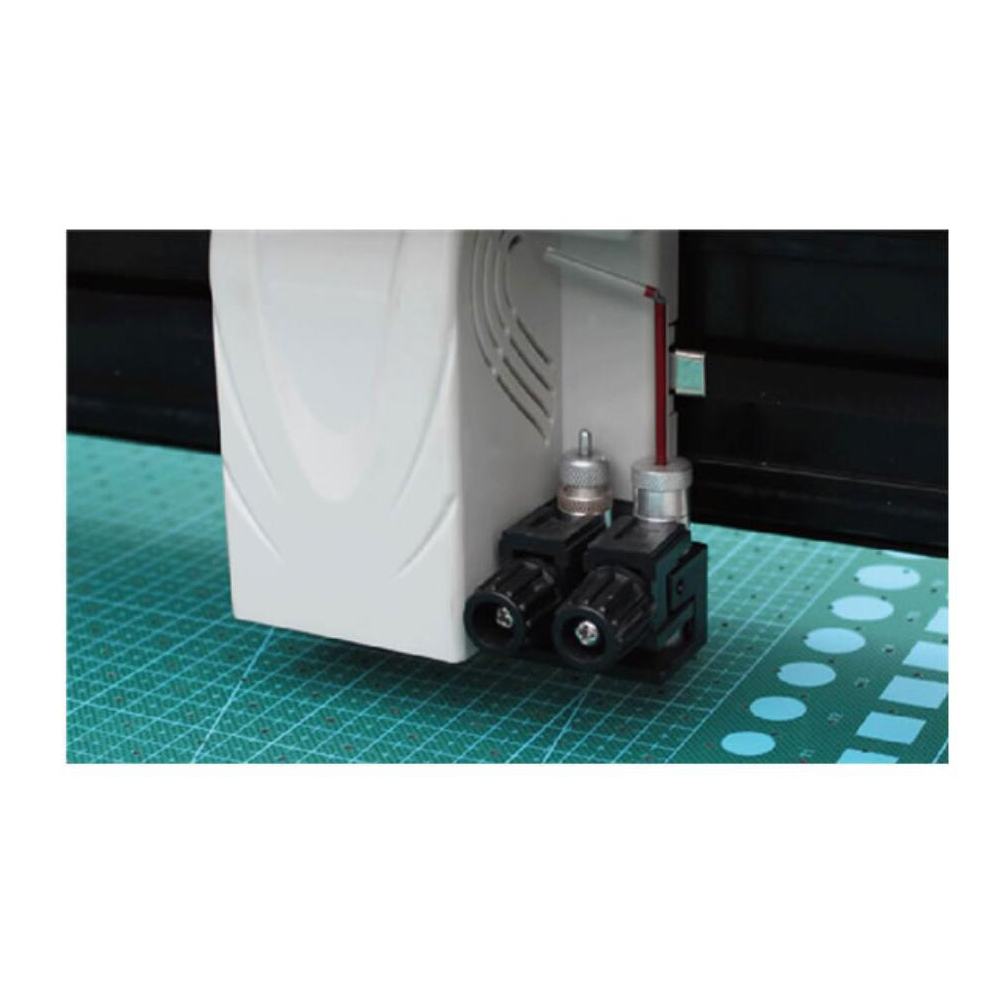

• Dual cutting head, perforated cutting, half cutting and creasing in one compact unit.
• Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
• No cutting dies required, it can avoid the customer's constant modifications in designs which cause cost in sampling or proofing.
• Red light positioning, automatic patrol edge, can automatically scan points in cutting different shapes of designs, high precision, the real effects cut out same as the bit molded products.
• Comes with DragonCut Software, which reduces media waste and processing time. Compatible with a variety of different software, different computer operating systems, supporting independent research and development of dragon cutting software, unique contour recognition technology for JPG, PNG, BMP and other image format files without contouring operation but can accurate extraction with one-click generation of contours.
Suitable for cardboard, PVC, spray film, and a variety of flexible materials

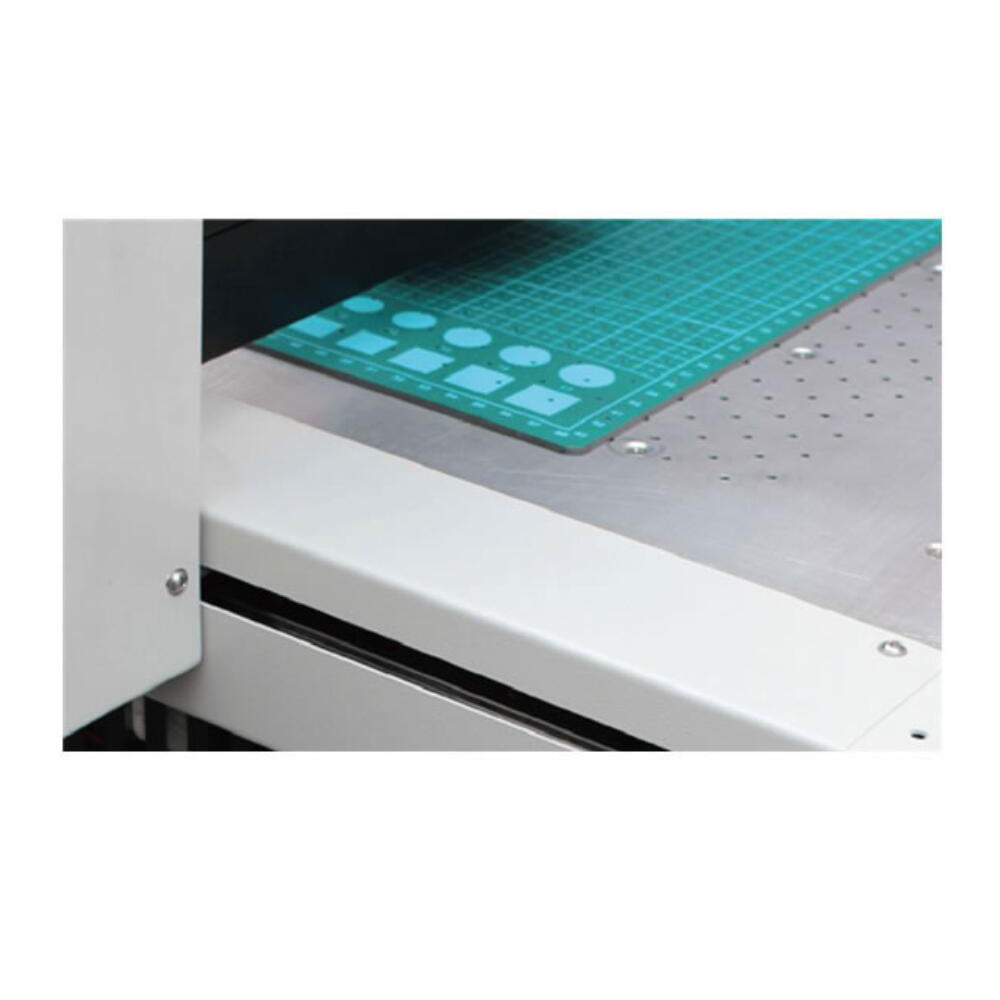

• Pneumatic vacuum suction of media. With usage of the vacuum adsorption technology to firmly hold the medium and cut it more stably, and the paper doesn’t run around.
• Direct USB makes the flat bed cutter reliable and convenient. Plug and play, simple installation, no additional drivers needed.
• The linear guide of the flat bed cutter ensures high speed and few errors.
• The flat bed cutter has an LCD touch screen in English.
• Contour cutter cuts thin films and card up to 500gsm / 600micron. Cutting speed pressure can be adjusted as needed.
• Cuts typical SRA3 sheet in 30-60 seconds.
• Maximum cutting thickness is 1.3mm (0.05in)
• Fast speed: 10 seconds automatic positioning, one image can be completed in a few minutes, the machine is workable in 24 hours operation, possible for small volume production and no need of cutting die.
Comparing with the laser cutting machine, it doesn’t make black edges on cutting material, no burnt on thin cutting material, during working time there is no glare light as well as no smells.

Why do we need this Flatbed Cutting Plotter?
A. Some customers like to cut hard or thick medias, like PVC, reflective film, abrasive paper, hard paper, magnetic paper, PET, etc.
B. As we know, vinyl cutting plotter can not cut off media, to avoid cutting the mat. However, when some media need to be cut off in some cases, a flatbed cutter is necessary.
C. To cut soft media, which can not be realized by a cutting plotter, a flatbed cutter is a good choice.

Specification:





Model LPC-LF-FC4060
Configuration Digital servo system, flatbed
Media Hold - down Method Vacuum suction with vacuum pump
Effective Contour Cutting Area 17.7 in x 23.6 in (450mm x 600mm)
Effective Cutting Area 470mm x 630mm (18.5in x 24.8in)
Resolution 0.01254
Cutting Tools Cutting blade, Pens (Water-based fiber-tip pen, oil-based ballpoint pen), and Creasing / scoring tool
Cutting Functions Contour full cutting & kiss cutting, creasing, Drawing
Registration System Advanced registration mark sensing system (ARMS)
Cutting Software DragonCut Pro
Interface USB and SD card
Working Mode PC Control, Windows 64bit supported
Programmable Resolution HPGL 0.025mm
Max. Cutting Speed 960mm (38in) / s
Edge Distance 5mm (0.2in)
Max. down Force 1000g
Max. Cutting Thickness 1.3mm (0.0511in)
Media Fixture Method Vacuum suction with Vacuum Pump
Repeat Precision ≤0.05mm (0.0019in)
Command Mode HP-GL compatible format
Working Voltage 110V, 60hz, 1P, 6.5A
Working Environment 5 to 35 Degrees, no dust, flat working platform
Power 700W
Machine Dimensions 1050mm x 820mm x 320mm (41in x 32in x 13in)
Net Weight 44kg (97lbs)
Packing Size 1230mm x 1000mm x 460mm (48.5in x 39in x 18in)
Gross Weight 72kg (159lbs)


Cutting Materials
1.1: Reflective material and insulation material: For special LED lighting, thermal conductive silicone sheet, double-sided 3M thermal film, heat sink; enamel film, single-hole enamel film, porous enamel film, etc.
1.2: PVC, PET, PET, PP, PS, PE protective film 3M PORON FPC flexible board; label folding box, membrane switch masking tape; double-sided tape, backlight diffuse reflection shading double-sided adhesive material, button membrane switch, brightness enhancement film reflective film flexible circuit, optoelectronic products, adhesive products, dust-proof net, foam, thermal conductive materials, insulating materials, PT, PET, adhesive film, protective film, films of copper platinum or aluminum platinum, etc. , which thickness at 1 millimeter precision in cutting accessories or materials for the products of mobiles, computers, TV and electrical appliances, as well as mobile phone protective film, protective covering film, packaging film
1.3PP: various original color films, colored films, transparent films, etc.;
1.4APET: various transparent sheets, printed sheets, antistatic sheets, window sheets, folding boxes and various color sheets.
Comparing to friction-driven drum-type cutting plotters, the flatbed cutters can use more kinds of materials, so the range of applications is broader, such as shop door, fluorescent signs, vehicle wrapping advertisement, awnings, making customized heat transfer imaged T-shirts, packaging design, garment proofing, masking film, sandblasted rubber stencils, etc.

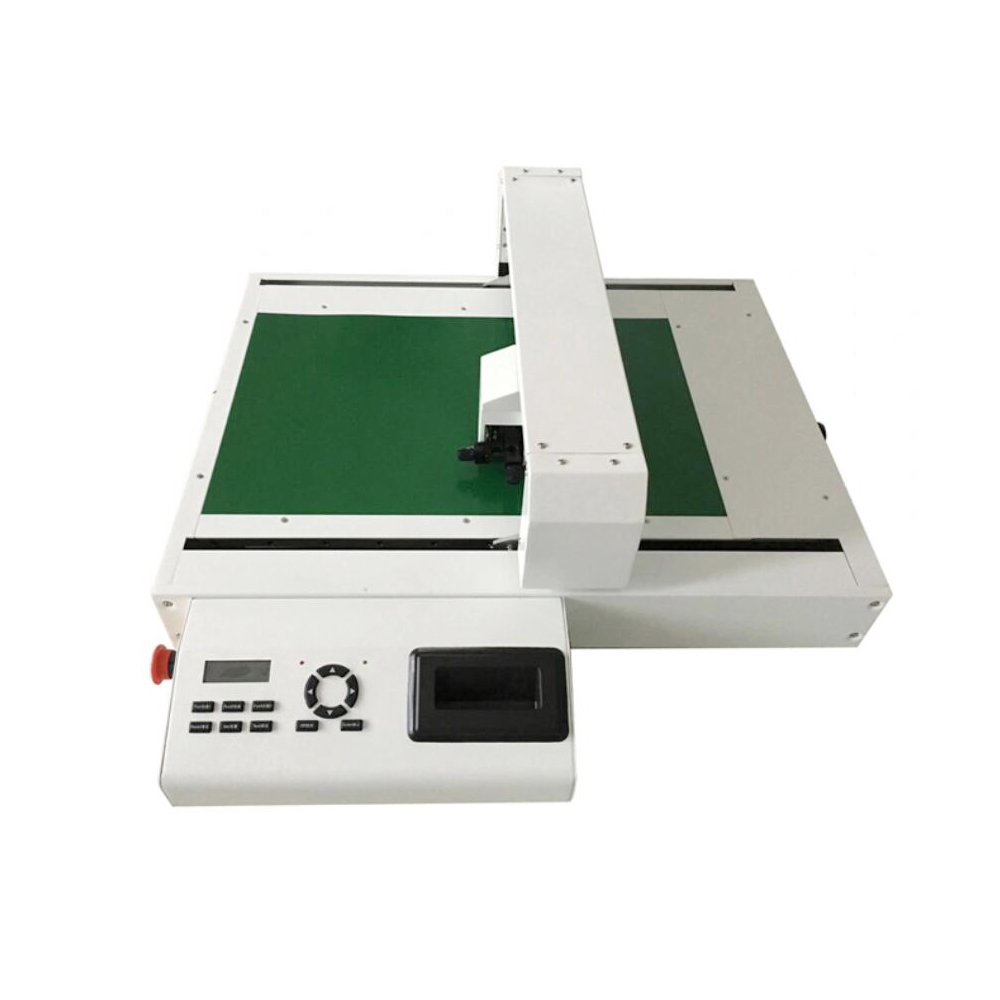

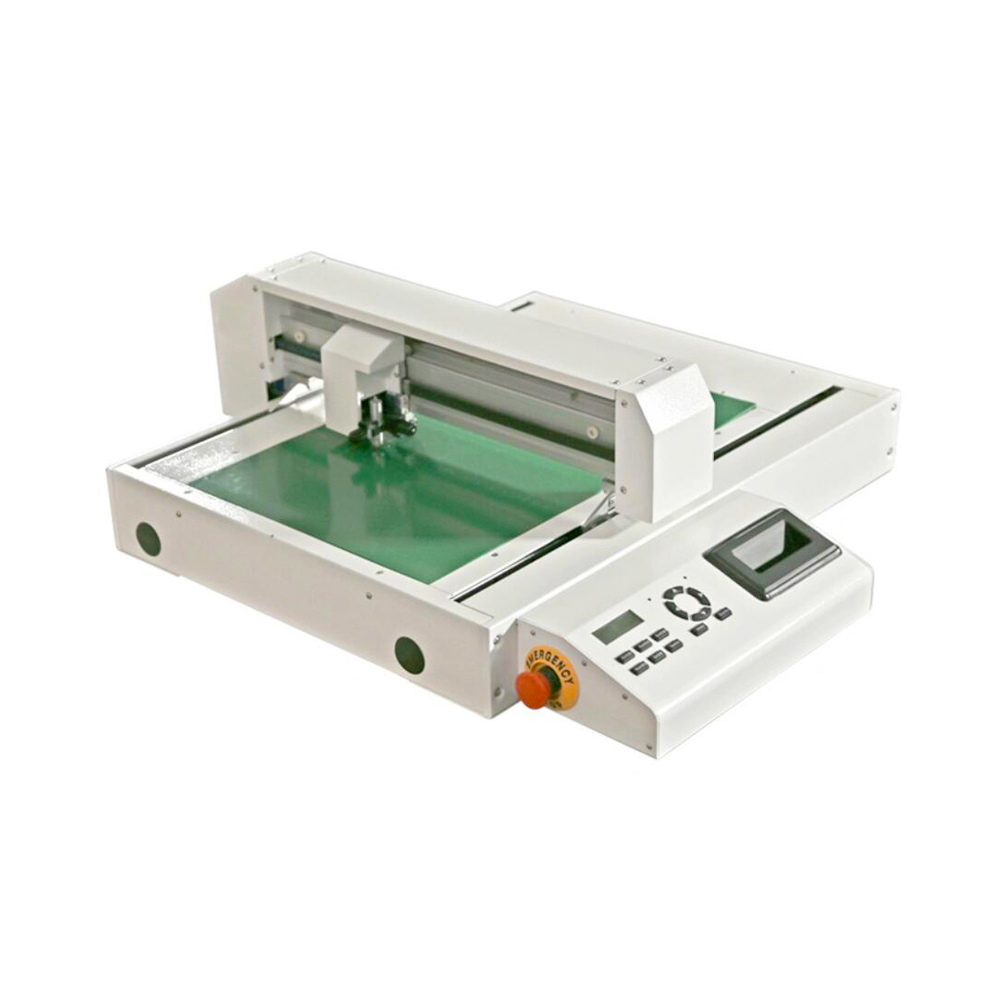

Details:

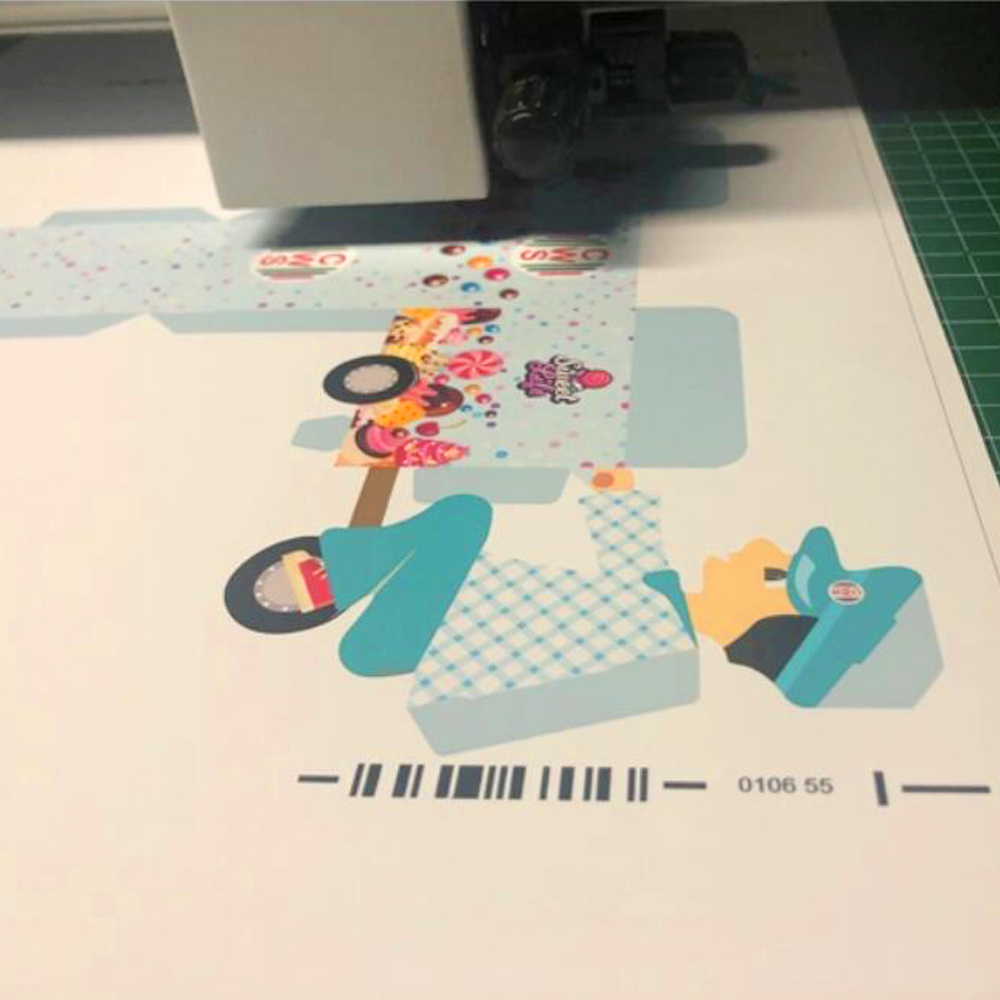

Working samples:






Process:

Certificate:
