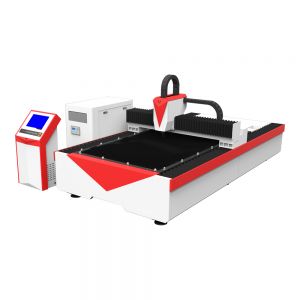

Laser Cutting Machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed, high accurate, high efficiently cutting. Its products have smooth edge, small kerfs width and little heat effect.
Open design series:
1) Fiber laser cutting is the fastest process for thin sheet metal.
2) "Clean cut" surface quality.
3) Reflective materials aluminum also can be cut with ease.
4) Parts process cost is very low.
Equipment Character and Technology advantage
• Using Imported Optical components, good beam quality, high efficiency electronic-optic conversion.
• High ratio between quality and price, good reliability, long-term stability
• High cutting precision, can meet all requirement of sheet metal processing technology.
• Focal length automatic follow with cutting head, even if the material surface roughness and also can ensure cutting quality.
• Kerfs smooth, perfect, no need clean.
• Low operation cost, all material can cut by air only (If need faster cutting speed, using Oxygen).
• Collecting trailer with wheel, light weight design, easy to clean material
• Powerful smoking device , solve question of metal processing dust and bad environment
• Using Smart mechanical mechanism, compact structure, no need take up large area.
• Imported Germany Rexroth liner guide, YASKAWA servo motor drive, High precision ABBA ball screw, let the machine work perfect.
• All screw and guide rail and other motor with auxiliary lubrication system together, use centralized supply lubrication way, effective ensure lifetime and working precision on each motor.
• Use USA PMAC CNC control software , which can realize 8 axis multi-control , compatible with the full closed loop design, which can position the correct real moving distance, then make compensation , even after long-term using , the machine can work with high precision.
700W N-light Fiber laser cutting parameter:
| Materials | Carbon steel | Stainless steel | Al | Brass | ||||
|
Gas |
Oxygen | Air | Air | Air | ||||
|
Thickness |
Speed | Speed | Speed | Speed | ||||
|
(mm) |
(mm/s) | (m/min) | (mm/s) | (m/min) | (mm/s) | (m/min) | (mm/s) | (m/min) |
|
1 |
260 | 15.6 | 188 | 9.3 | 90 | 5.4 | 80 | 4.8 |
| 2 | 160 | 9.6 | 80 | 4.8 | 40 | 2.4 | 38 | 2.3 |
|
3 |
80 | 4.8 | 20 | 1.2 | 12 | 0.72 | 13 | 0.78 |
|
4 |
30 | 1.8 | 10 | 0.6 | ||||
|
5 |
25 | 1.5 | 5 | 0.3 | ||||
|
6 |
20 | 1.2 | ||||||
|
8 |
15 | 0.9 | ||||||
|
10 |
10 | 0.6 | ||||||
Equipment Main Components:
 |
 |
|
Use USA N-Light Fiber laser generator, the first laser generator supplier in the world, famous for strong fiber laser power mode, stable optical fiber laser point. |
Use OEM Precitec Laser Cutting Head, full sealed design, ensure long lifetime of mirrors. |
 |
 |
| YASKAWA Servo Motor can correct the cutting path. Cooperate with full closed loop system to ensure the cutting accuracy. |
Double Germany Atlanta Rack and Pinion in Y axis moving system in Control. Germany ball screw and Germany Rexroth linger guide in X axis. Top brand mechanical laser parts, which realize high processing speed up to 72M/min. |
 |
 |
|
1. Full closed Loop system is our unique machine feature and advantage. |
1. The machine working table is weld by 12mm square mild sheet, which load capacity is 700KG when machine in working process. |
 |
 |
|
1. American PMAC control (Programmable Multi-Axis Controller) |
1. Smart nesting software with flexibility and maximum performance. 2. With powerful nesting functions like: copying, moving, rotating, adjoining, etc, automatic lead- in/lead-out line setup for different types of contours. 3. It can calculate the optimum movement track to make the shortest path, least time consuming and improve overall processing efficiency. |
 |
 |
|
Equip with Proportional Valves; ensure the equal gas flow, which realize the clean cutting performance on the metal sheet surface. |
Efficient and reliable centralized lubrication system can automatically add oil to machine table and mechanical parts at any time. |
 |
 |
| Smart cooling system, process cooling and heating two functions, keep constant temperature in different seasons and circumstance. With automatic cycle function, reduce water-changing frequency. |
Controller table, user friendly, easy to operate. |
 |
 |
| Wireless remote control handle, to realize the function of zero home, frame, start/pause, pre-adjust, X, Y, Z axis movement. It is more convenient for practical use. | It is optional for Y axis rotary device, which use for cutting round tube with diameter from 15mm~80mm standard. |
Equipment Configuration:
| Configuration Name | Details | Note |
| Pulse Laser Power Supply system | Use Professional High frequency pulse laser cutting Power supply | Power Invariability, stable performance |
| Fiber laser system | Use IPG/COHERENT Fiber laser source | Top quality laser source, more powerful and stable electronic -optical conversion up to 30% |
| Laser light path system | Use full sealed optical system | Sealed Optical system, ensure High laser energy and mirror lifetime |
| Positioning system | Using P-MAC control and full closed loop design indicating laser accuracy | Automatically cutting compensation, with long time cutting accuracy guarantee |
| Automatic Tracking system | Captive non-contact automatic tracking system | Automatic adjustment cutting focus length, ensure the cutting quality |
| Cutting Head System | Use Unique OEM Precitec Laser Cutting Head | Use Unique OEM Precitec Laser Cutting Head |
| Lubrication system | Centralized supply system | Supply lubrication oil to working table and guide rail |
| Driving and moving system | all us Japan YASKAWA servo motor drive and Use famous Taiwan ABBA brand ball screw and Germany Rexroth guide rail, Germany Atlanta Rack and Pinon | high speed, large torgue stable and reliable performance, high precision, convenient, maintenance, longer lifetime |
| CNC system | PC control, CNC laser cutting professional USA PMAC cutting software | Programmable Multi-Axis Controller, compatible with closed -loop magnetic rule system, which ensure the high precision |
| Support For Graphic format | Compatible CAD, CORELDRAW, and other mapping software, support DXF/DWG/PLT graphics format | Effective ensure lifetime and working precision on each motor unit |
Running Cost Analysis (for reference):
| Power Supply Consumption
|
Laser | 3.7 kw/h |
Total power: 3.7+4+6=13.7(kw/h) |
| Chiller | 4 kw/h | ||
| Machine tool | 6 kw/h | ||
|
Gases Consumption (for cutting different material with different thickness, the consumption is different.) |
Assistant Gases (Purity 99.5%O2) |
3 m3/h |
Cost: Oxygen cutting 2.5÷5.5×3= 1.36USD/Hour |
|
Consumable and spare parts consumption |
Focusing lens |
About 1piece/year |
Cost: 1600÷4000=0.4 USD/Hour |
| Protection lens | About 2piece/week |
Cost: 25÷30=0.83 USD/Hour |
|
| Nozzle | 400 hours (according to actual use) |
Cost: 8÷400=0.02 USD/h |
|
|
700W fiber running cost analysis
|
Total cost: |
||
|
1.This table takes N-light 700W laser as an example to make the running cost analysis of laser cutting machine; 3.This table is only for reference since the specific consumption will slightly differ with different users under different conditions; |
|||
Laser Metal cutting Sample:
Factory real photos:
International Certificate:
In metal cutting industry, the metal process group have developed small and medium size metal cutting machine, large area laser cutting machine and combine metal cutting and marking functions in one machine, these three serial 10 type of machine have widely used into Sign marking, electronic switch marking, sheet metal cutting, cabinet producing, spectacle frame cutting, metal craft, machine tools, car, mobile, watch, jewelry industries. Most of the product passed CE and FDA certification, and export to Europe, America and Asia countries.
| Specification | |
| Fiber laser source | N-light Fiber laser from USA |
| Laser wavelength | 1070nm |
| Laser power output rating | 700W |
| Cutting area | 1500mm x 3000mm |
| X-axis travel | 600mm |
| Y-axis travel | 400mm |
| Z-axis travel | 100mm |
| Working table | Fixed table with remote controller ,full cover design |
| Control system | Cypcut controller |
| Position accuracy | 0.05mm |
| Driving mode | Double rack and pinion driving, High Precision servo motor, a ball screw moving system and linear guide transmitting system |
| Cooling system | original water chiller |
| Other standard collocation | Golden Laser Metal nesting software, Dual-pressure gas route of 3 kinds of gas sources, dynamic focus, etc |
| Laser head | Raytools Laser Cutting Head |
| Idle/processing speed | 42m/min; 15m/min |
| Max cutting depth | 8mm carbon steel, 4mm stainless steel,3mm brass |
| Software | Laser Cutting Software(Patent by Golden Laser) Metal Material Nesting Software(Patent by Golden Laser) /optional PA and Lanteck CAD/CAM software |
| Format supported | PLT, DXF, AI etc |
| Power supply | 380V 50Hz/60Hz |
| Total Power consumption | 12KW |
| Floor space | 1600mmx 1400mm x 1900mm(63in x 55in x 74.8in) (machine dimension) |
Installation Service
Installation Services are available with all our LASER machines. We dispatch technician to customer's factory for installation and preparation of machines.
Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Machine warranty is 2 years.
