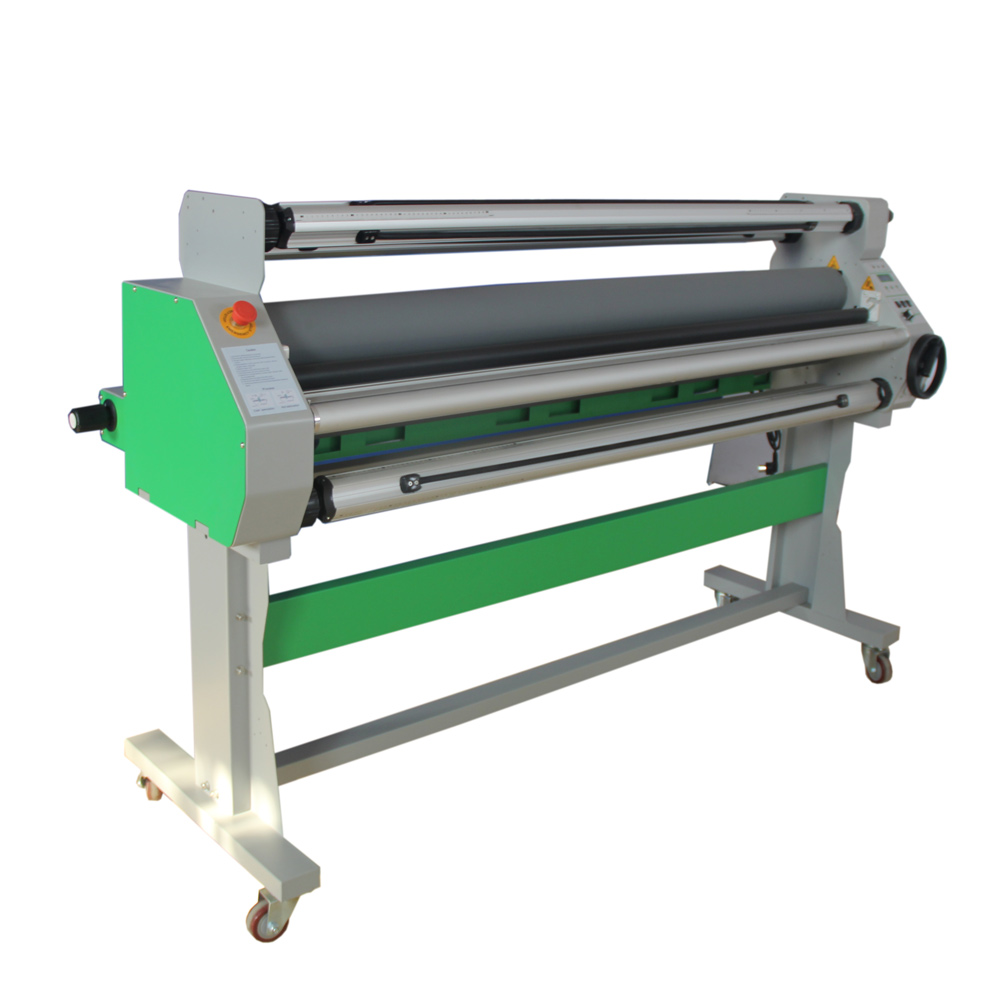

Description:

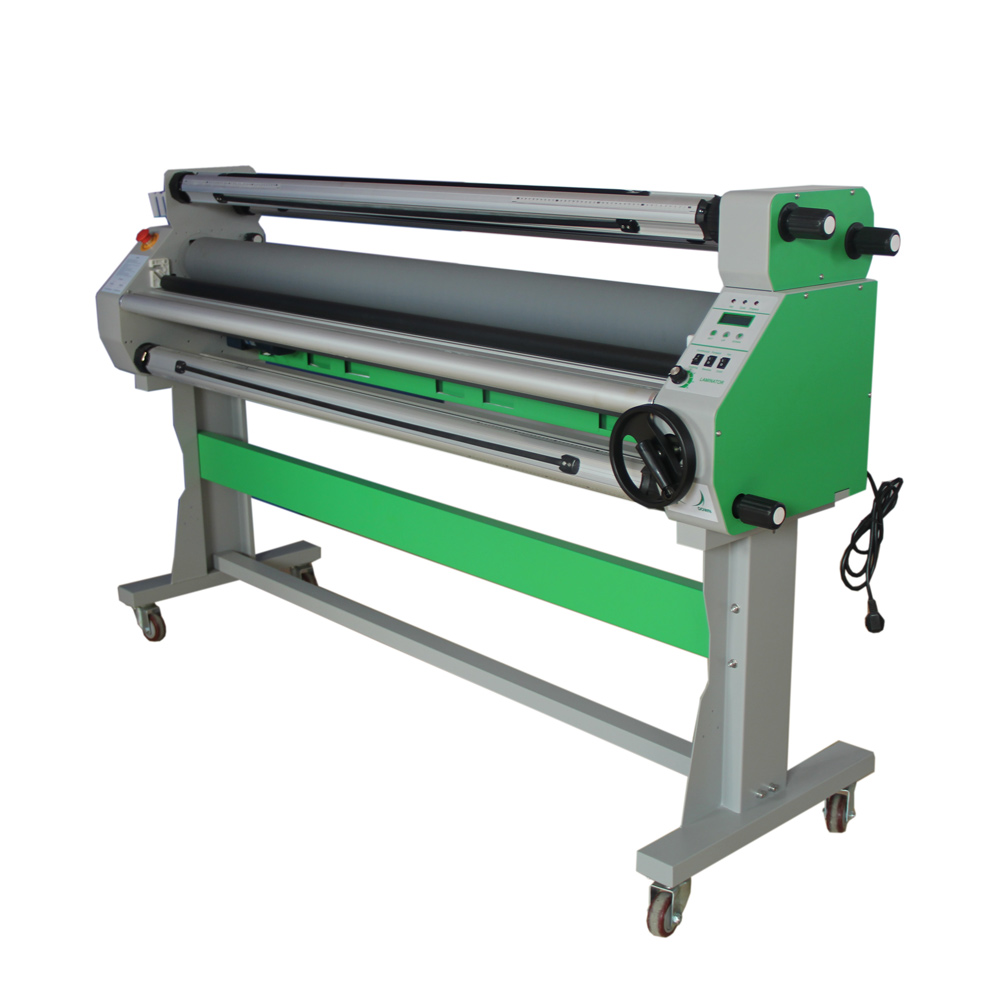

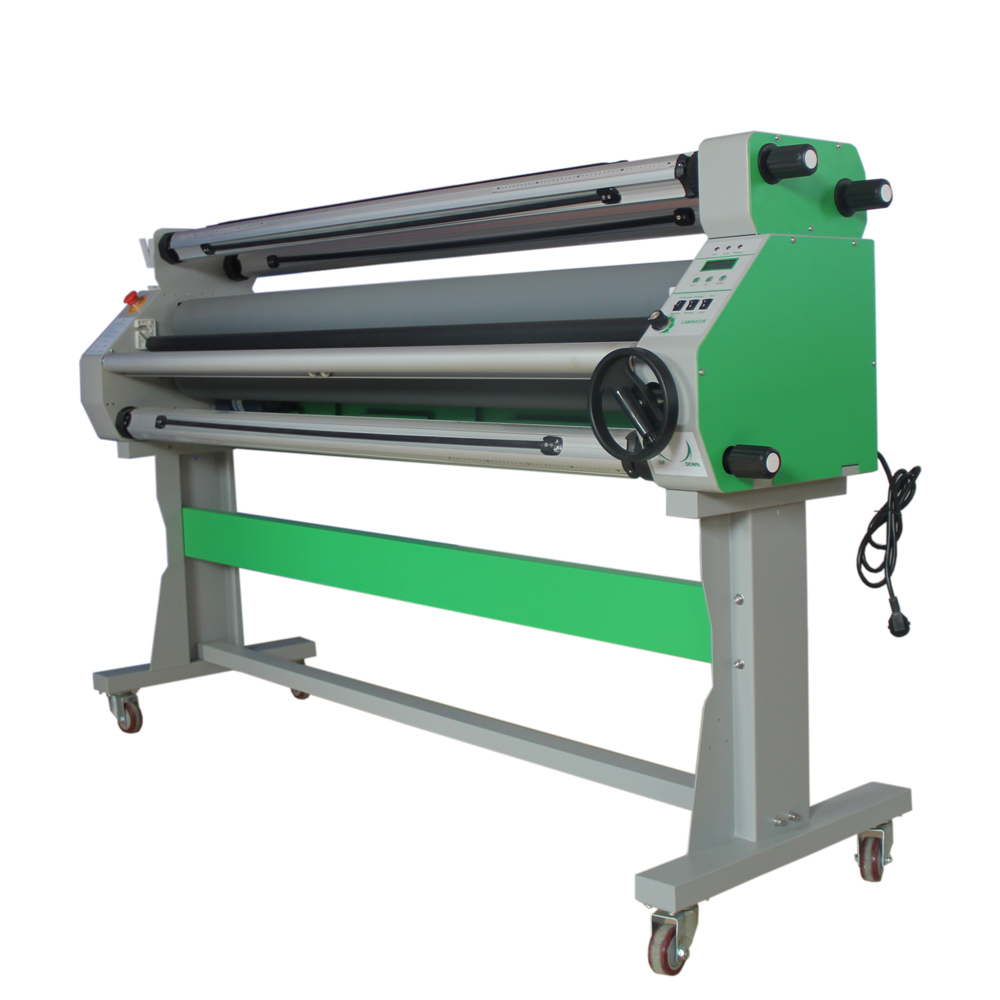

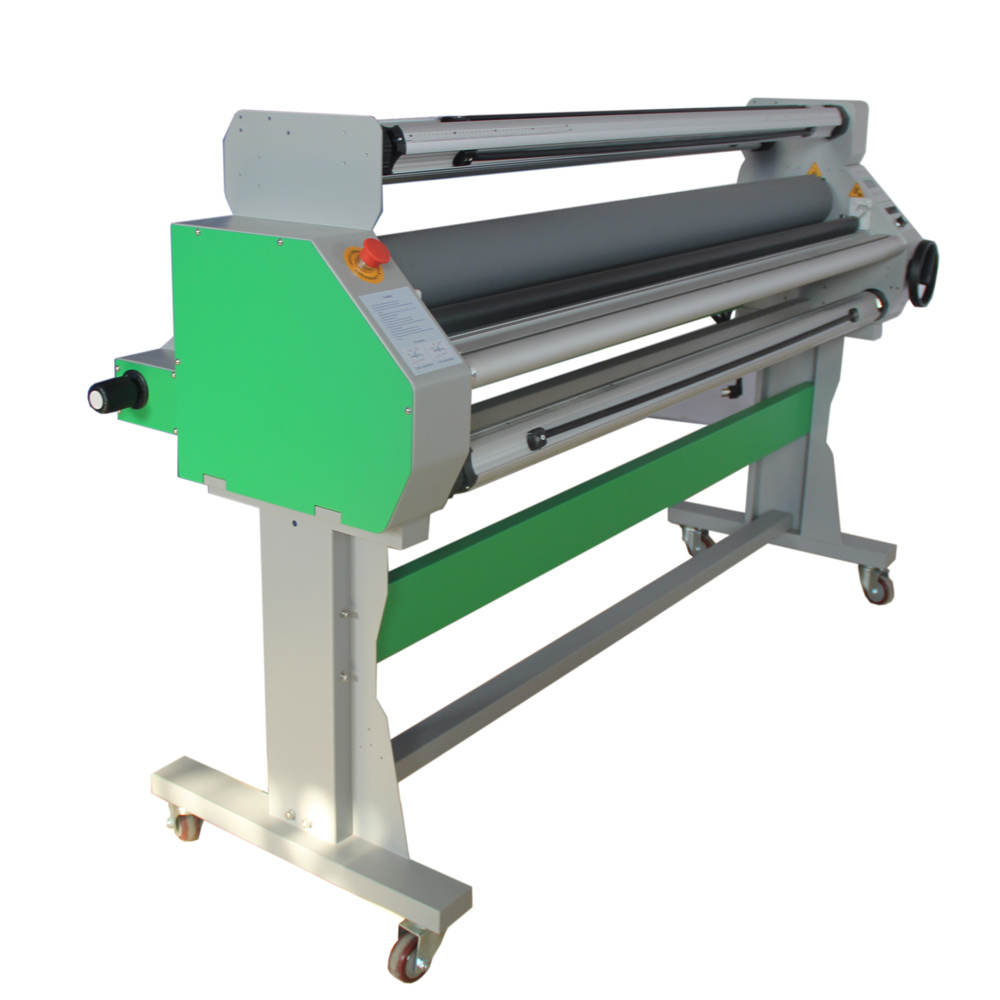

This 67" Economical Full - auto Low Temp Wide Format Cold laminator with Stand can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on. The cold laminator is used to after printing. Available for photographic, Ad. Shop and copy shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.
Full - auto cold laminator machine (Automatic take - up roll for both printed images and back paper by one person).
Economic full-auto cold laminator with low heating function, assembling stand, silicon roller, stable duration.

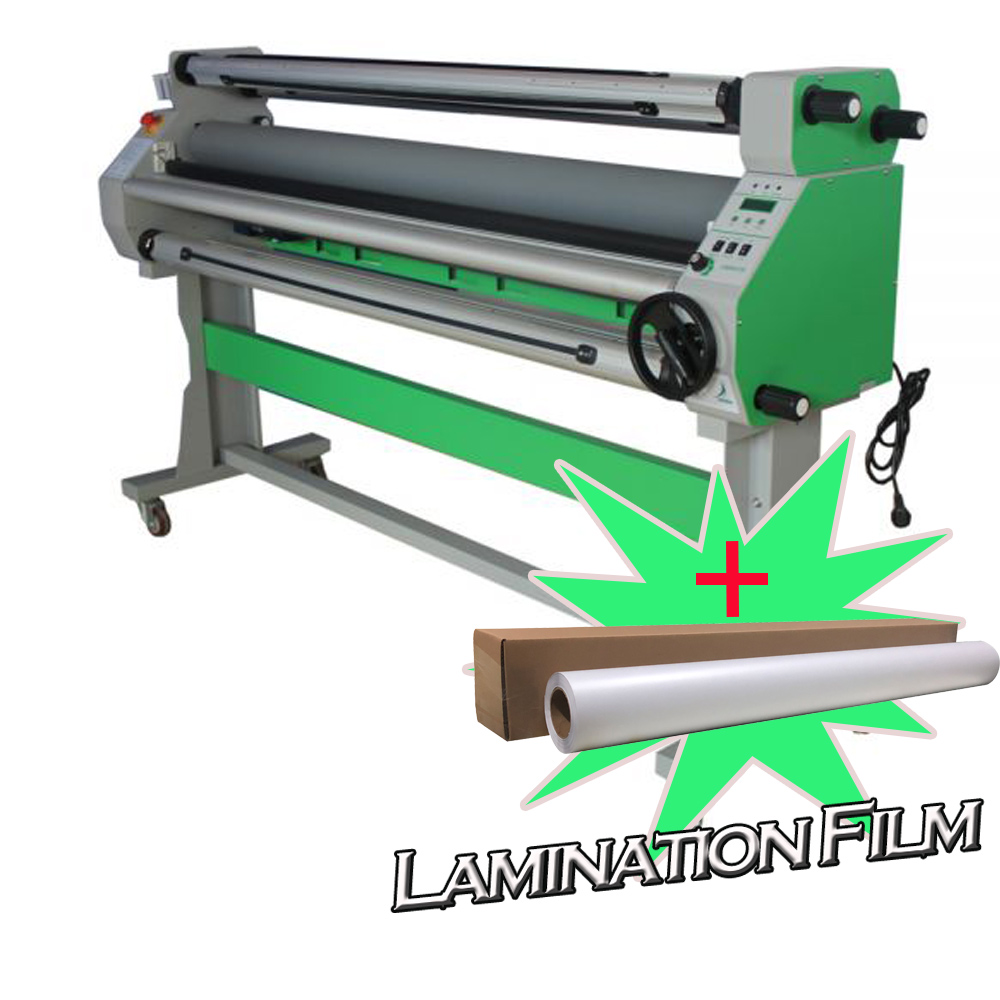

Purchasing this heat assisted cold laminator, it is recommended to buy the cold laminating film together.
Features:

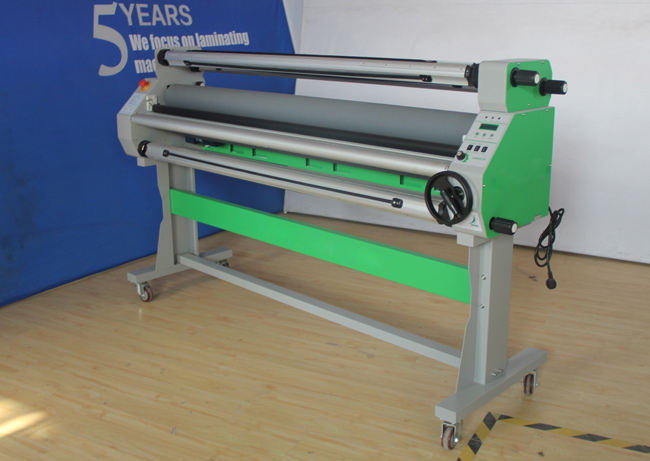

Adopts low temperature cold laminating, mainly used to solve the issue that cold laminated images are hazy. Driven by electric, including floor stand and foot pedal switch.
Adjust ISO quality 60W motor
Stainless steel feeding table.
With cutting system.

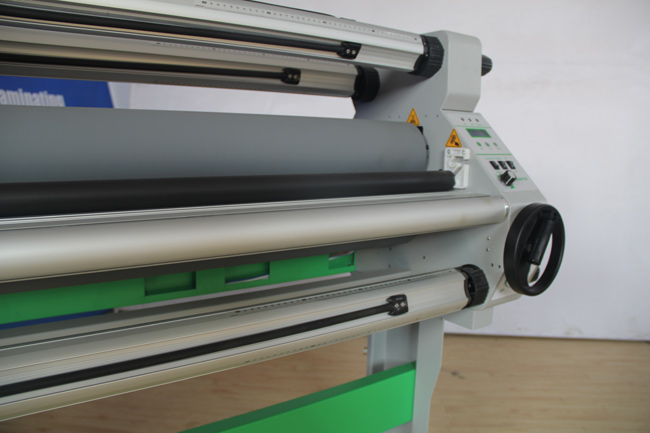

120mm Premium silicon rollers ensure heavy-duty and longer life.
Auto – take – up system.
Anti – tilt and anti – fold device (Origin).
Self-locked exchangeable rolls for easy loading material.

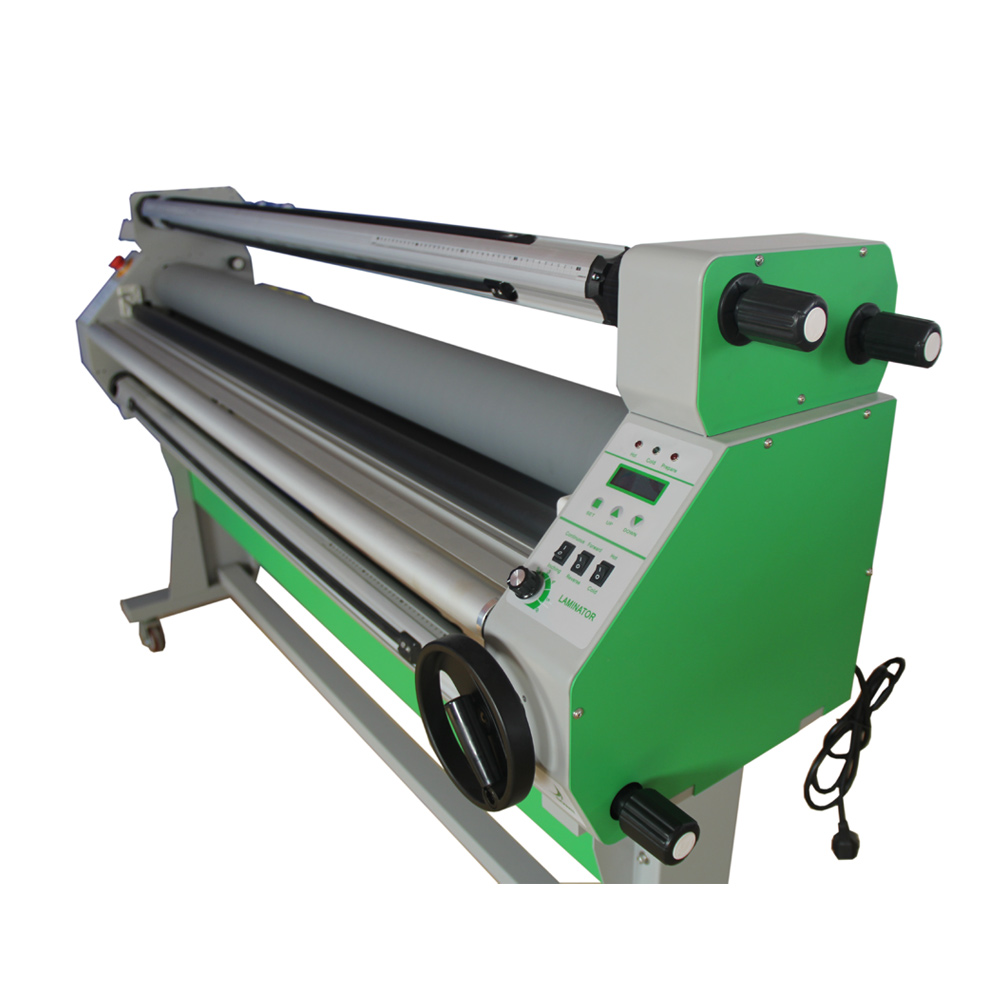

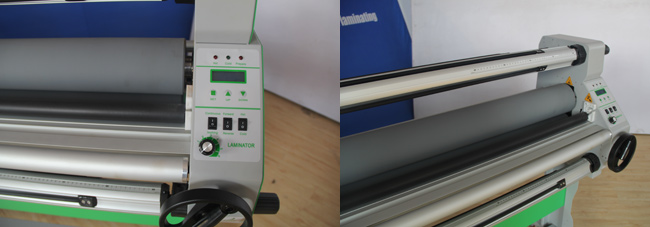

Pressure and height adjust hand wheel.

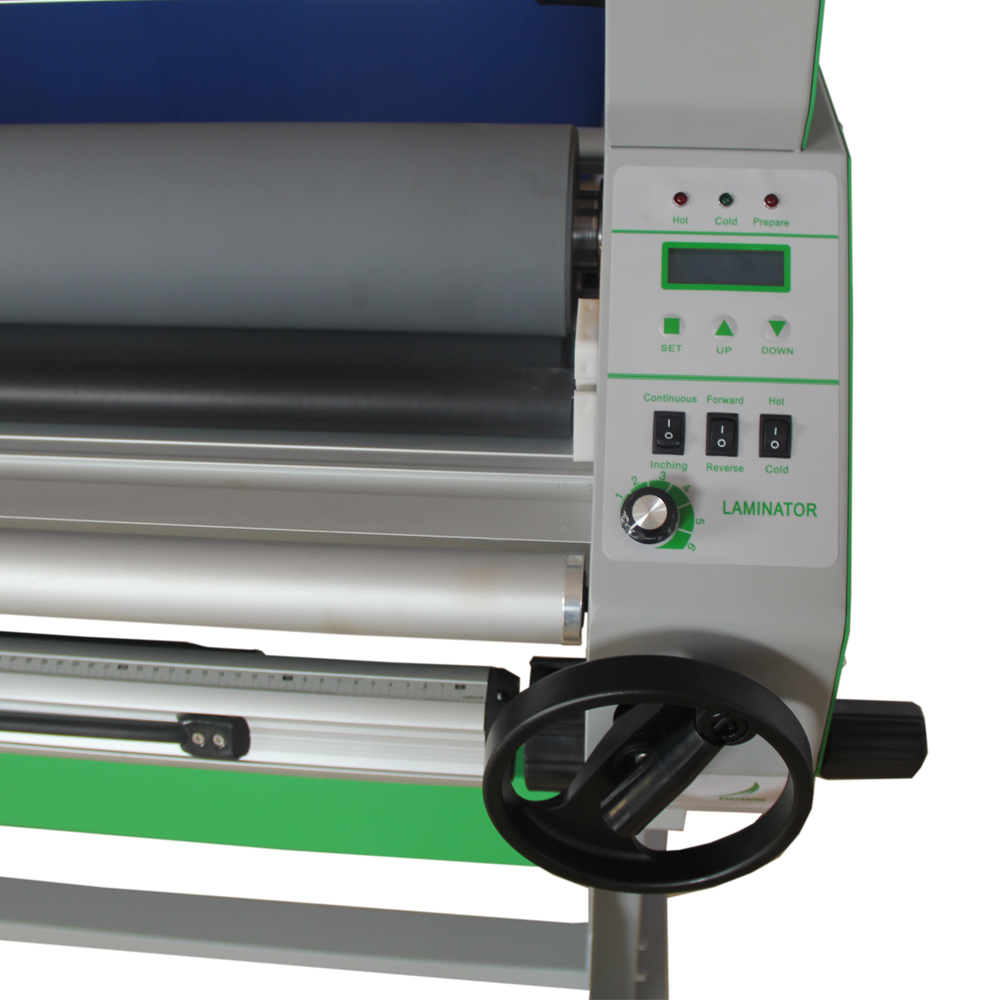

Infrared temperature control device.
Multi-function footswitch.
Details:

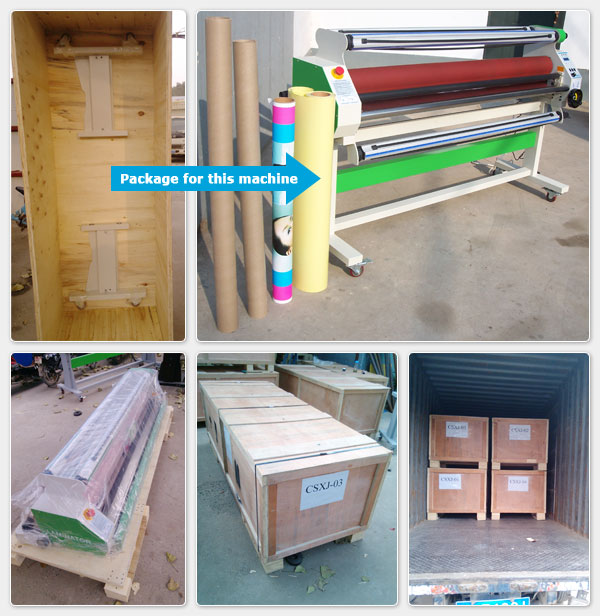

Wooden Box: There is total one wooden box.
Machine Dimension |
77" x 27" x 45" (1980mm x 680mm x 1140mm) |
Machine Weight |
330lb (150kg) |
Package |
Fumigation free package |
Packing Size |
86" x 28" x 28" (2200mm x 710mm x 720mm) |
Gross Weight |
441lb (200kg) |
The laminator comes with 3pcs of heating glass tube, 1pcs is on the machine, 2pcs are in another package. We send the spare 2pcs of it just in case of any damage during the shipping. If the one on the machine damaged, please use the spare 2pcs replace it. We will not accept any complaint if 1pcs or 2pcs of the tube damaged.
Table 1: Accessories
Term |
Quantity |
Notice |
FTable 1: Accessoriesoot switch |
1 |
|
Backing sheet reception roll |
1 |
|
Feeding roll |
1 |
|
Film roll |
1 |
|
Black rubber beam weight |
1 |
|
Finished products roll |
1 |
|
Hand wheel |
1 |
|
Rubber mat |
1 |
|
Left support of feeding roll |
1 |
|
Right support of feeding roll |
1 |
|
Fuse |
4 |
2A/7A |
Video |
1 |
|
Table 2: Steel stand packing list
Item |
Quantity |
Notice |
Steel beam |
2 |
|
Middle steel beam |
1 |
|
Left leg |
1 |
Foot wheels contained |
Right leg |
1 |
Foot wheels contained |
Hex screw M8 x 80 |
12 |
|
Flat mat φ8 |
12 |
|
Bounce mat φ8 |
12 |
|
User Manual for FMJ-DM Series Cold Laminator
