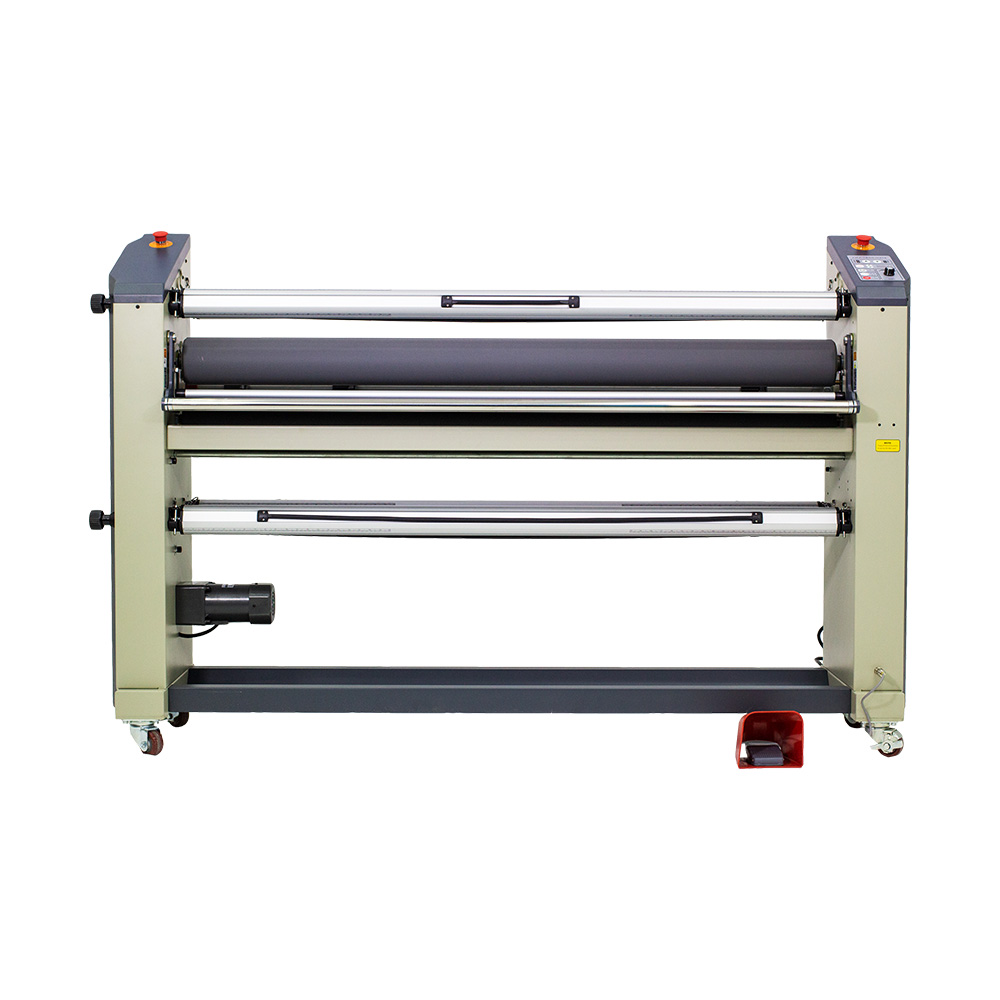

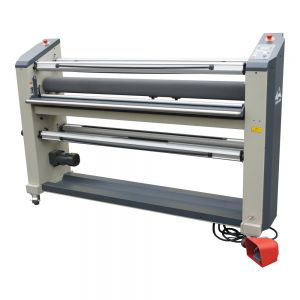

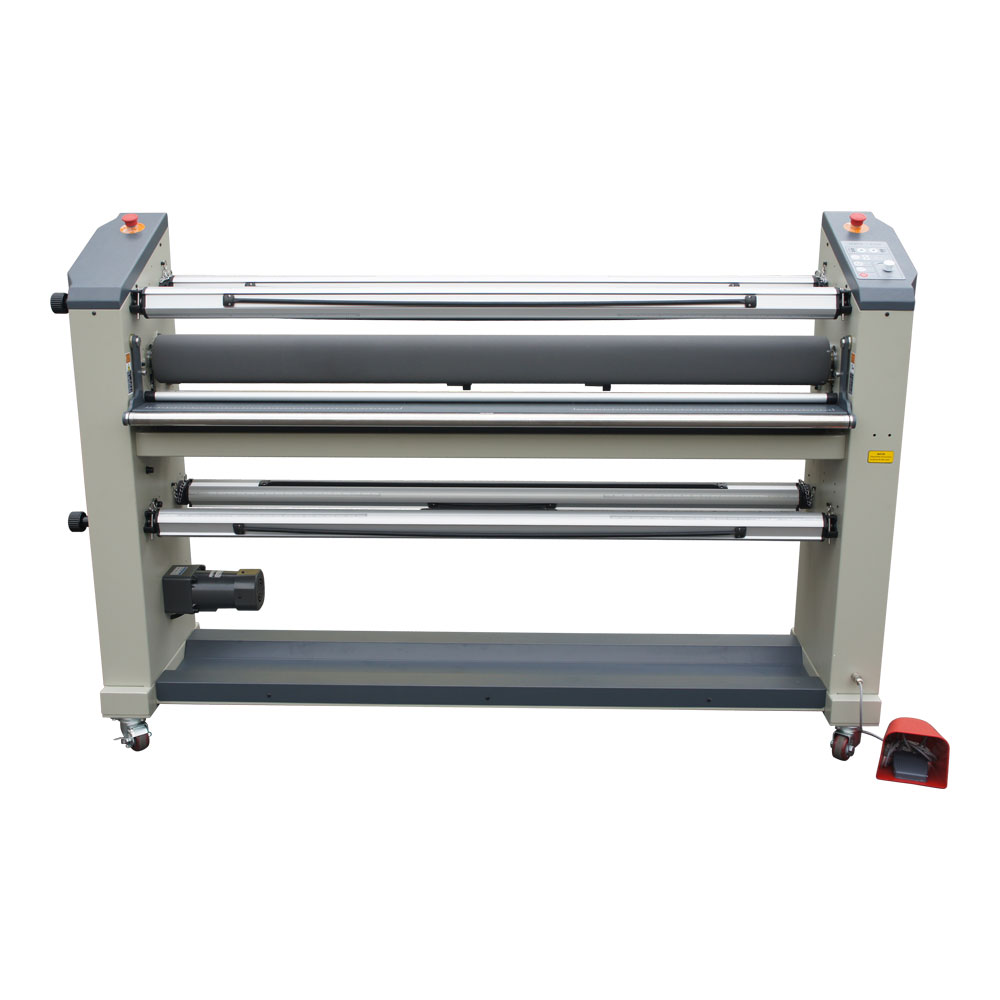

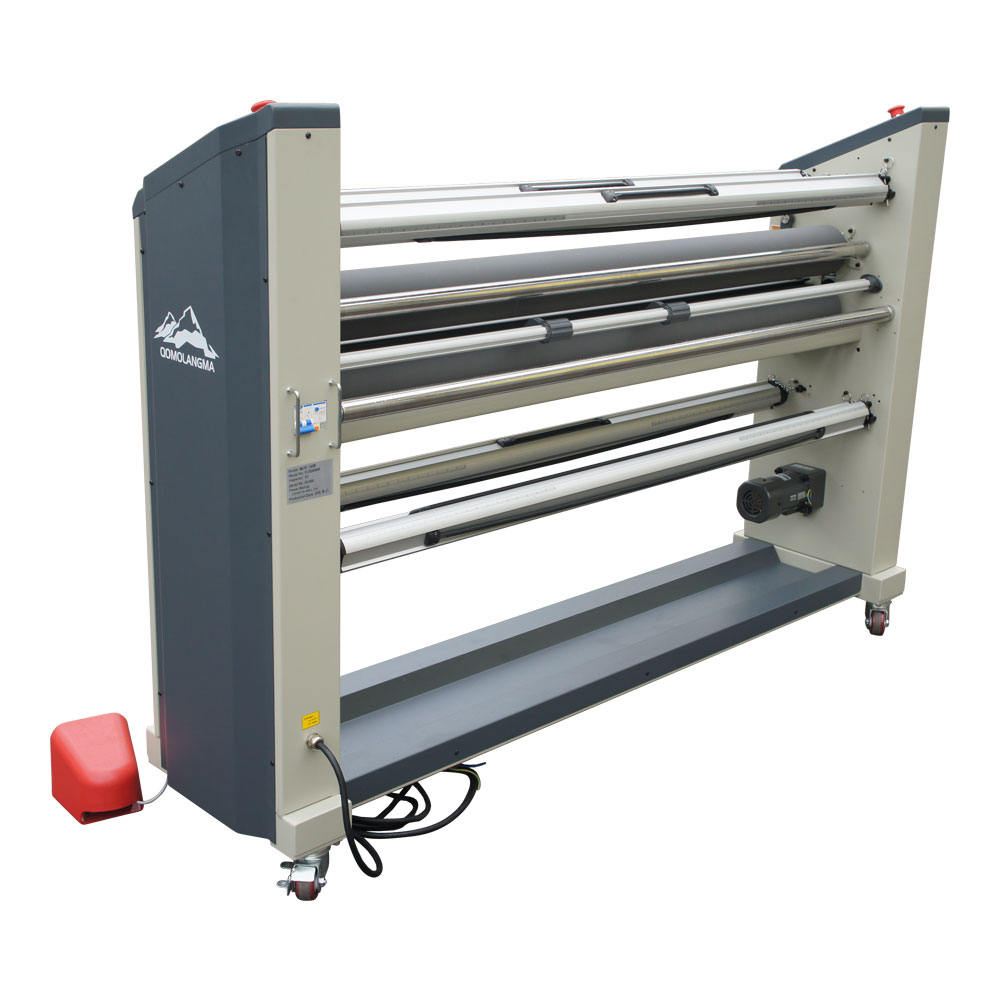

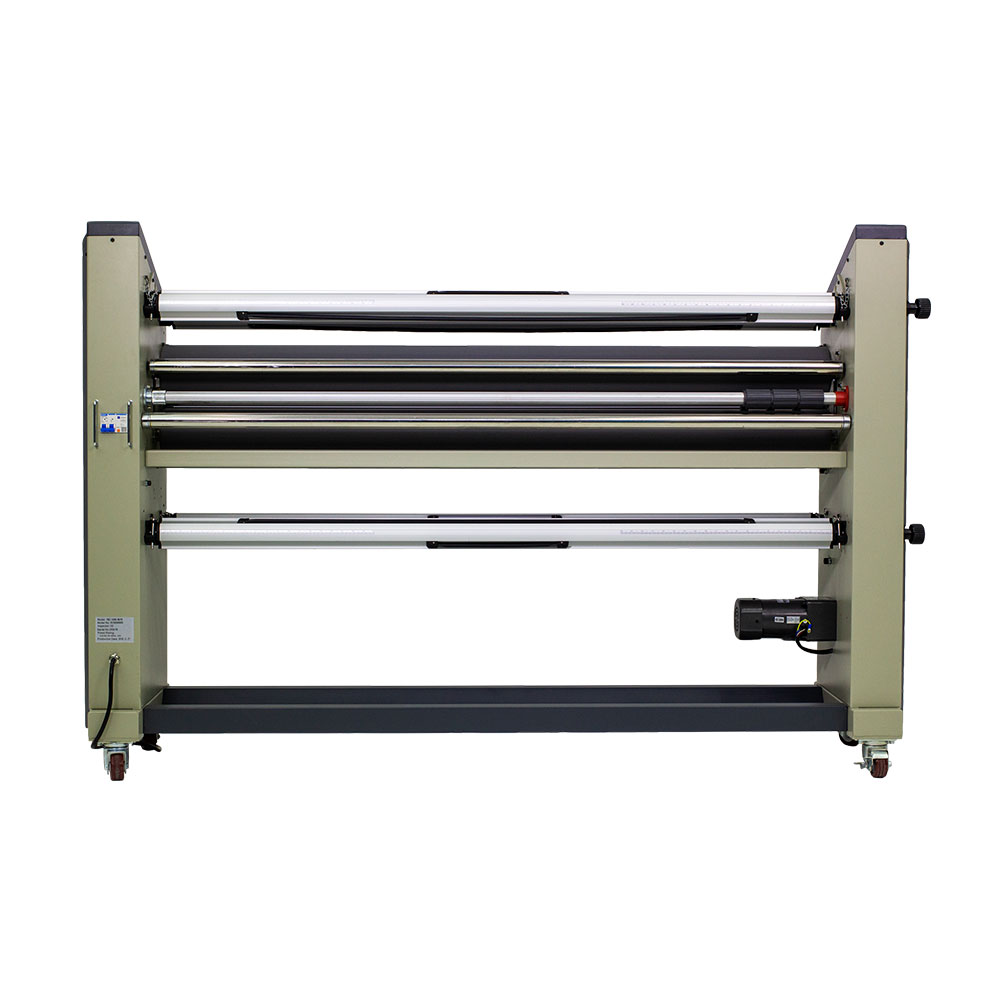

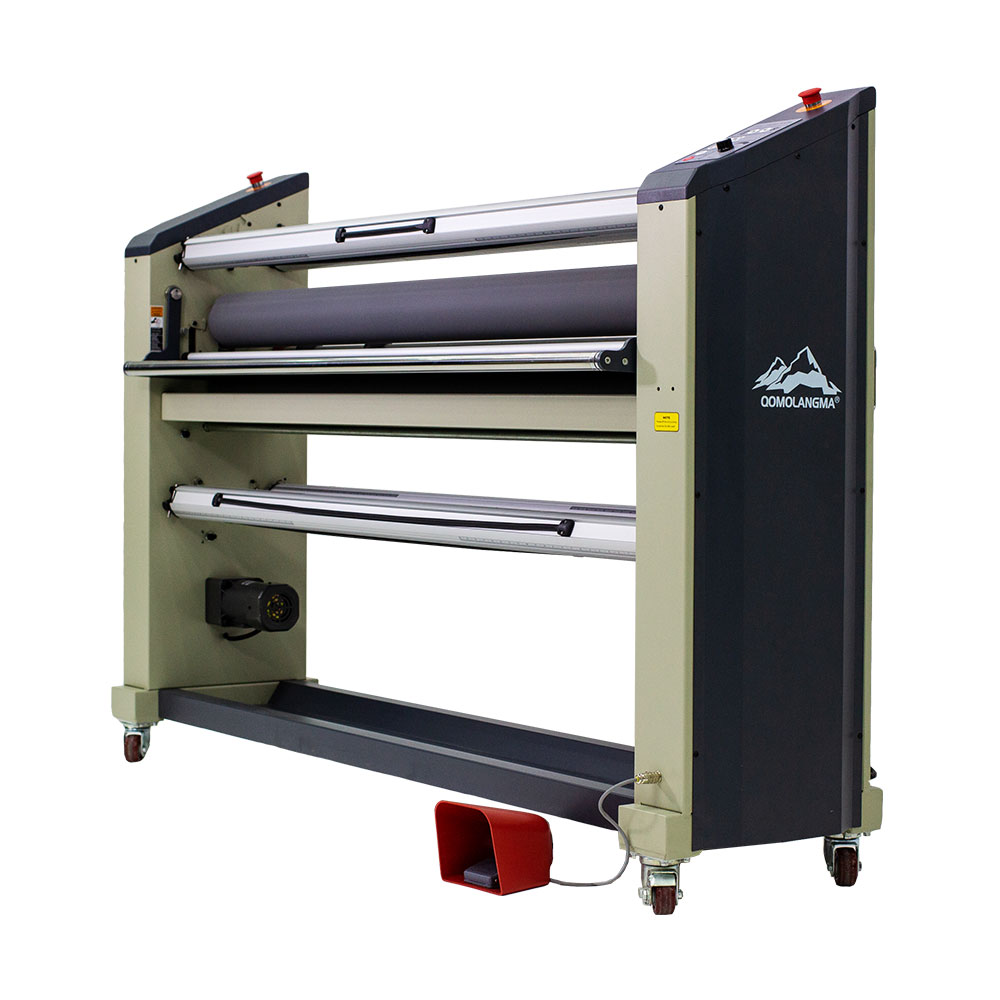

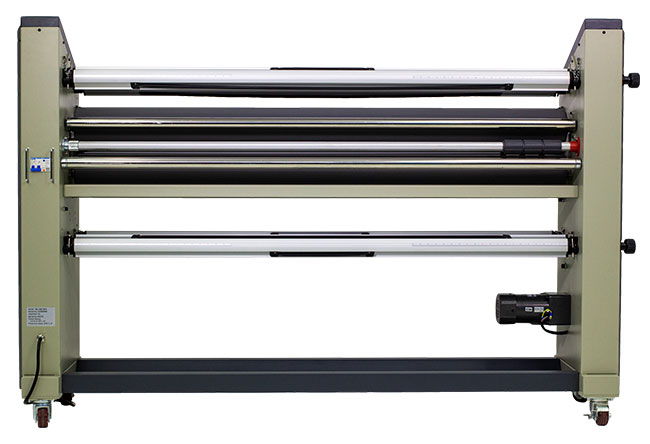

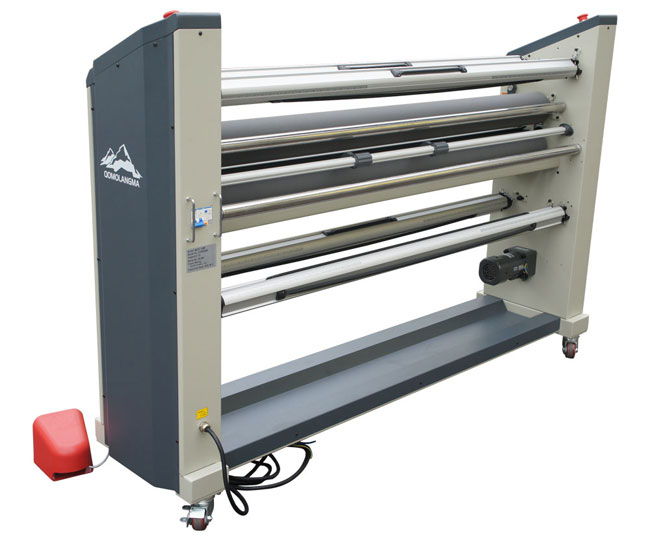

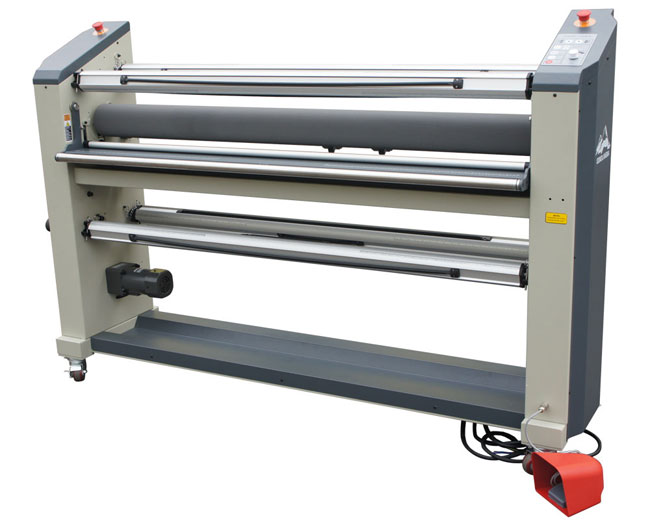

Qomolangma Precision Engineered 63in Wide Format Top Heat Assist Laminator
With functions of single sided cold laminating, low temperature heat assistant cold laminating, mounting.
This laminating machine is capable of running a wider range of media and can generate higher process speeds, which make this range of machines ideal for business that are looking to build in extra capacity and more versatility.
A perfect fit for owners of lower-end laminators, looking to upgrade to a professional production machine.

This Mate series laminator is heavy duty full-auto roll-to-roll high-end lamination machine; its entire drop down metal structure makes it much stronger. The accurate CNC metal cutting program secure align laminating and quality finishing; Ideal for wide format laminating or mounting application use.
This 63inches Full - auto Wide Format Roll Heat Assisted Laminator with Stand can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on. The warm laminator is used to after printing. Available for photographic, Ad. Shop and copy shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.

Purchasing this cold hot laminator, it is recommended to buy the cold laminating film together.
1. 54" x 50yd Roll Glossy Cold Laminating Film (Monomeric 3.15 mil, Paper Adhesive Glue)
2. 54" x 50yd Roll Satin Cold Laminating Film (Monomeric 3.15 mil, Paper Adhesive Glue)
3. 60" x 50yd Roll Glossy Cold Laminating Film (Monomeric 3.15 mil, Paper Adhesive Glue)
4. 60" x 50yd Roll Satin Cold Laminating Film (Monomeric 3.15 mil, Paper Adhesive Glue)
5. 36" (0.914m) Matte Floor Laminating Film 3" Core Anti-slip Pressure Sensitive Lamination Film, UL410

Features:
• Full electric driven lift up system

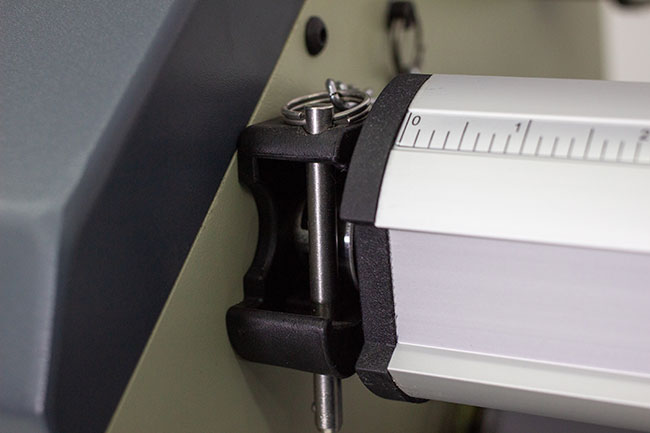

• Drop in type interchangeable 3inches aluminum shaft
• Pivot up feeding table

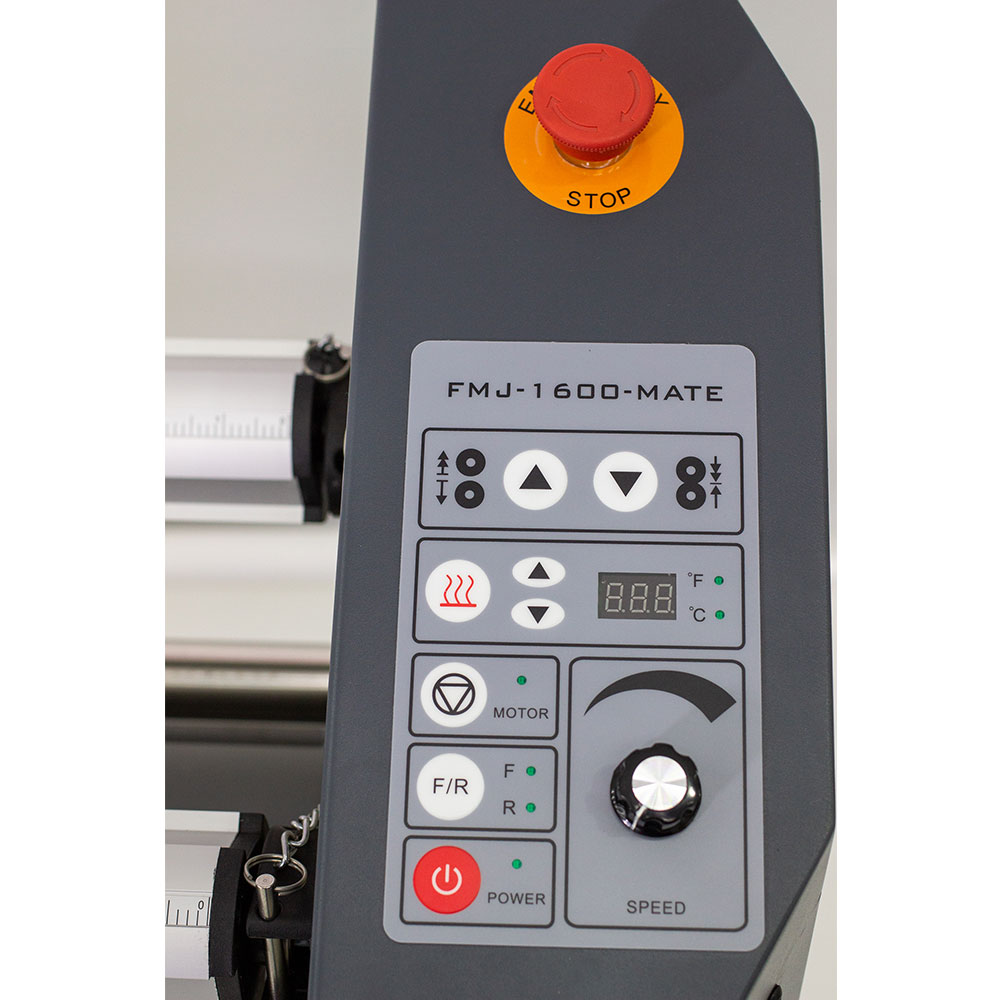

• Membrane control panel, Simple and easy to use control panel, easy load film supply shafts.
• Forward and reverse direction control
• E-stop and photocell installed for safety
• Both auto and foot pedal switch mode
• Thermal cut off switch in case over heat
• Removable pressure plate
• Heavy duty castor with brake
• Equipped with side cutter
• Cabinet frame, all - metal casing shell, more stable working performance.
• 4.72 inches bigger rollers for best quality laminating control.
• High quality silicon rubber rollers, mounting up to 35mm (1.38 inches) in thickness.
• Maximum laminating width -1600mm (63 inches).
• Heated top lamination roller to 40℃ (104F).
• Foot switch controls for hands free operation.
• Variable laminating speed up to 49ft / minute.
• Fuse - less design with internal breaker box.

SPECIFICATION

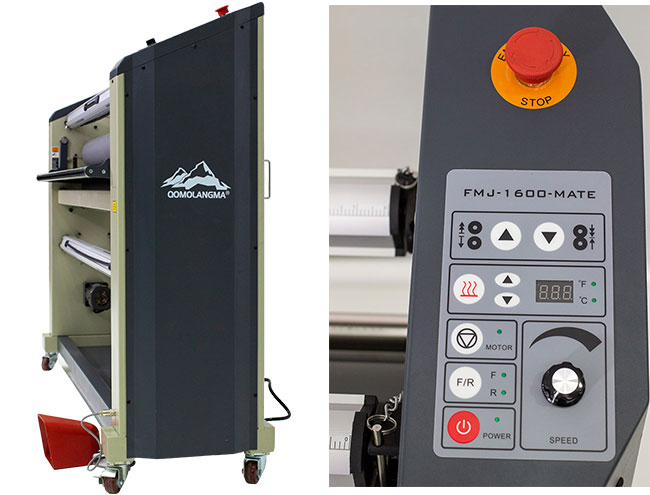

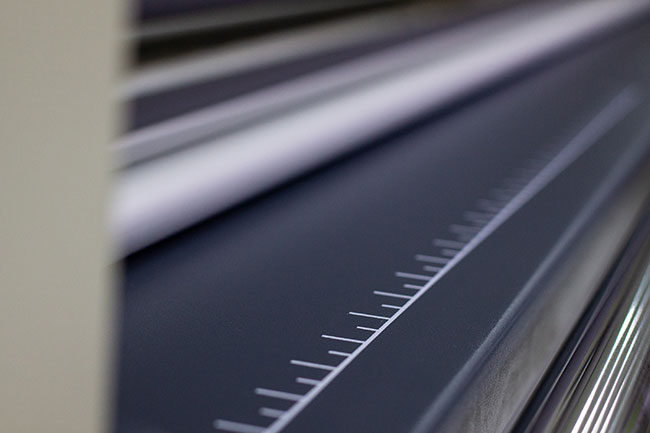

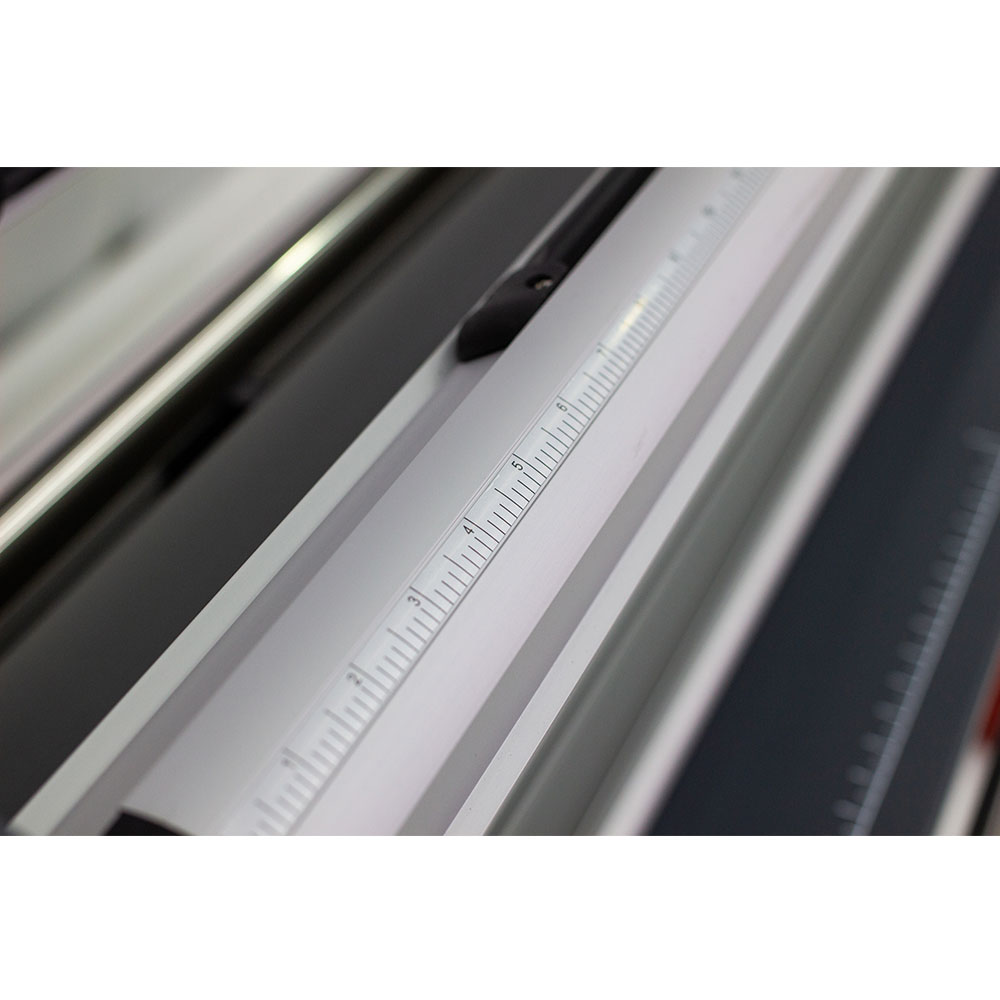

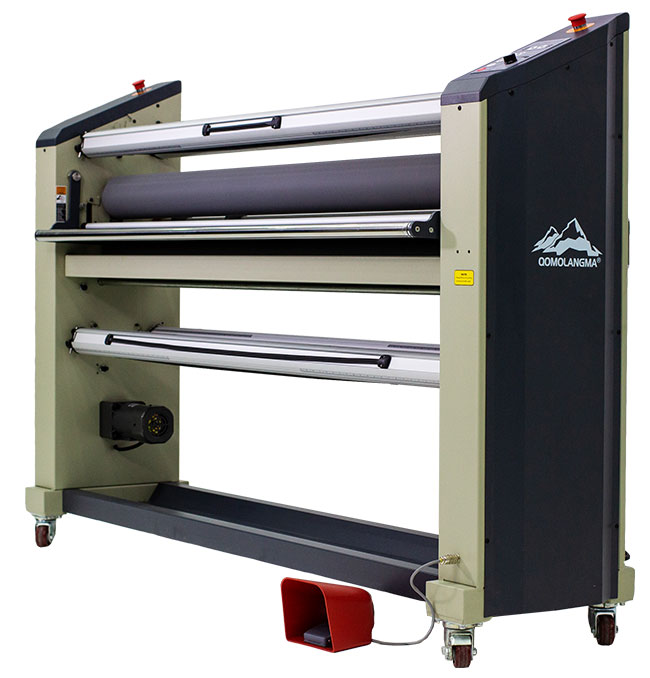

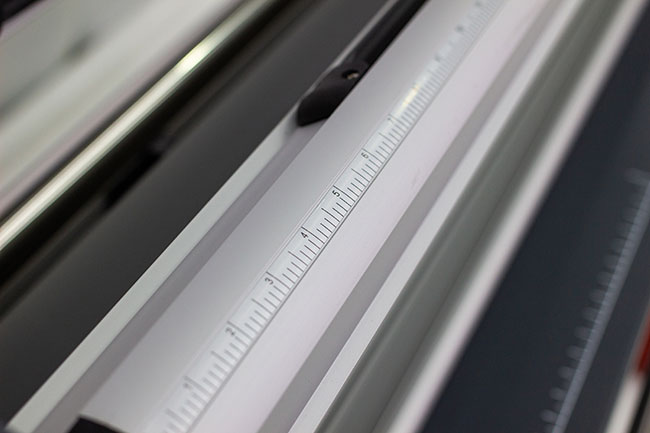

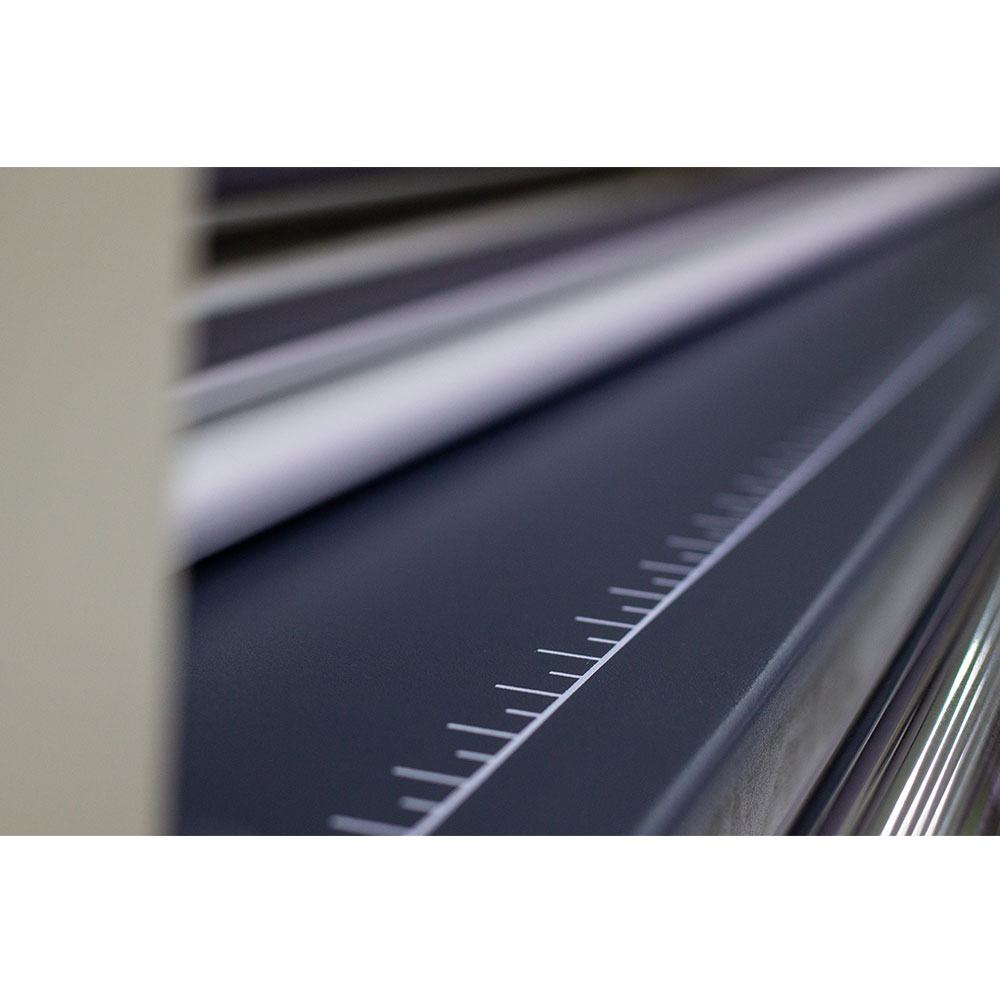

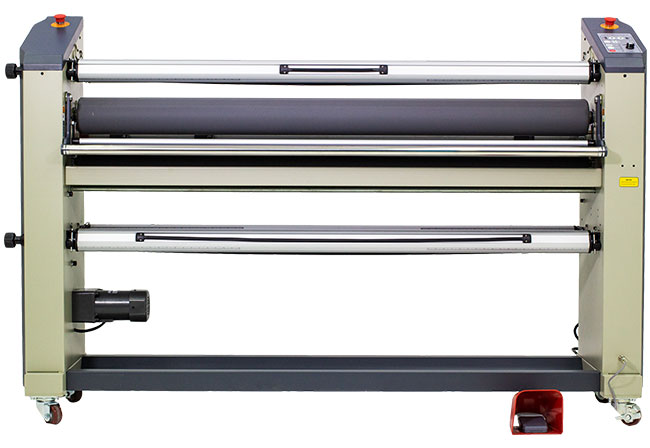

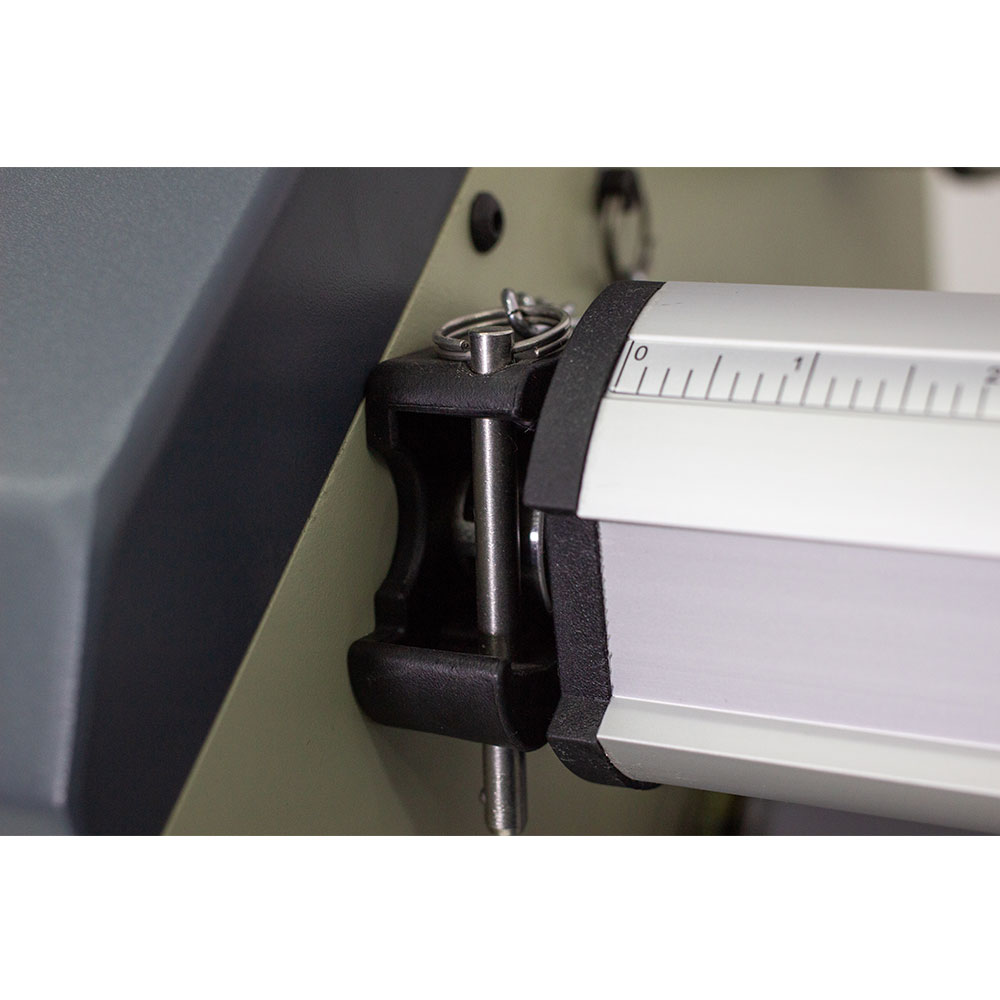

Detail Pictures:

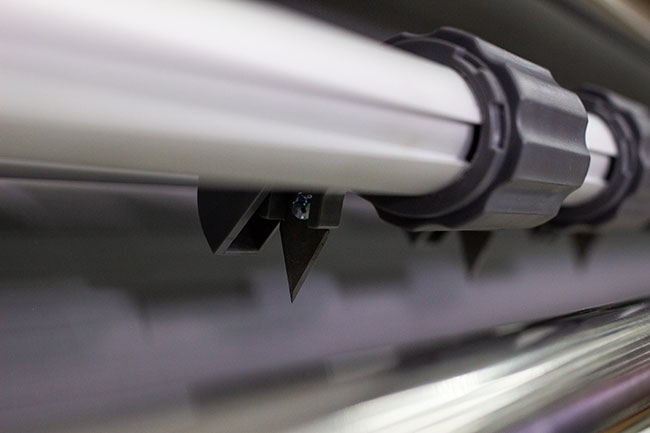

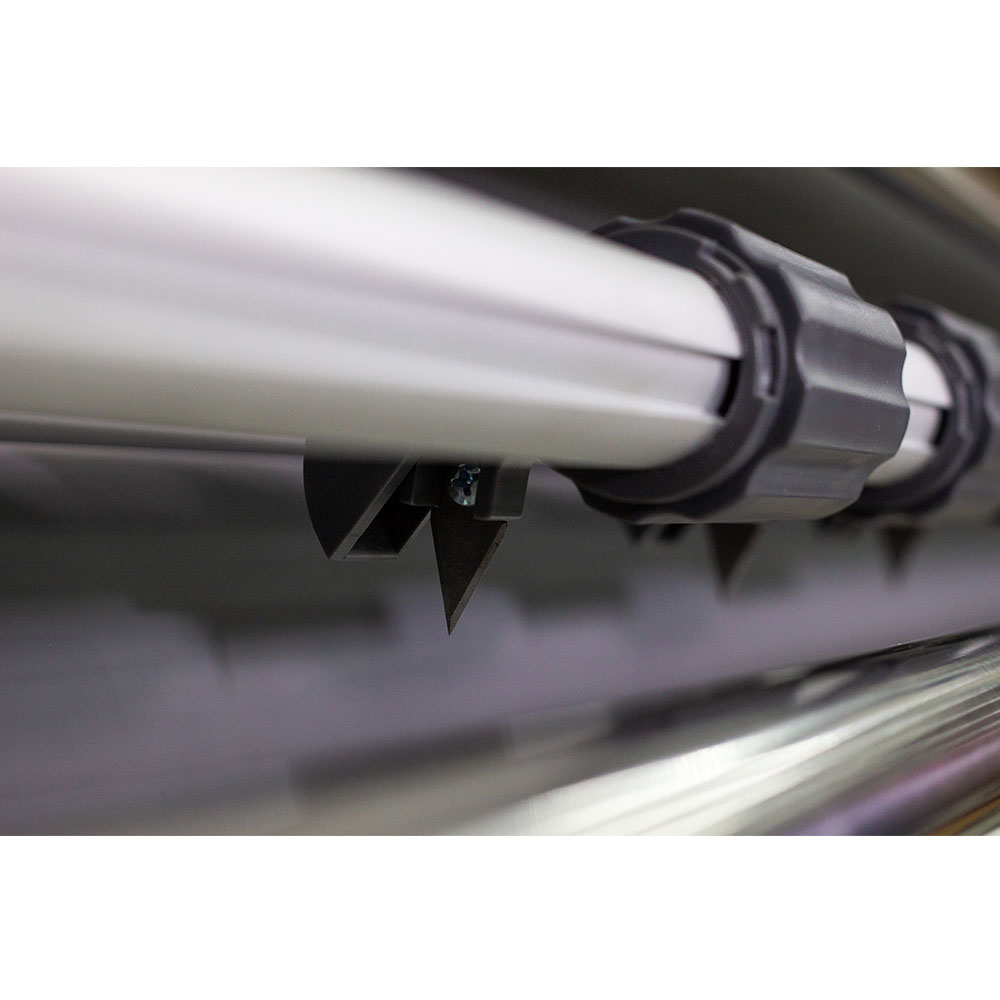

Equipped with side cutter

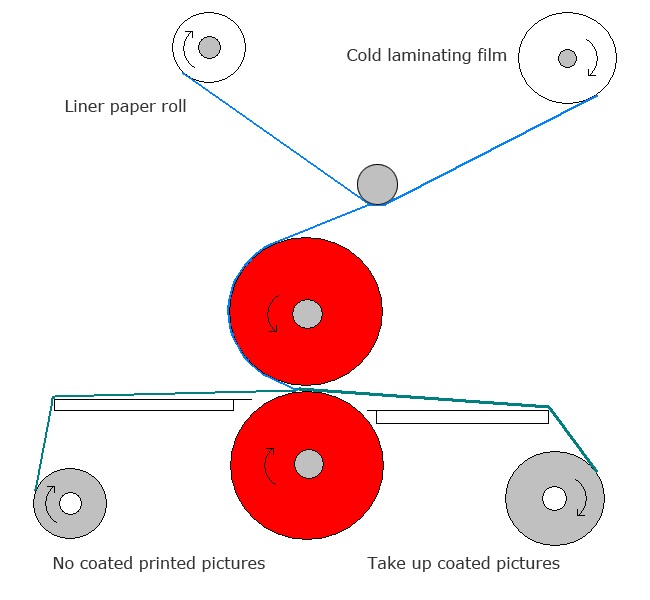

 Usage:

Tips for laminating:
• When working on the first picture, please have someone held the edge of the material to avoid it slipping through the bottom roller.
• To avoid tilted laminating, please ensure a right tangle between the picture and the work panel.
• Two methods should be taken to adjust the tilted laminating if operating properly:
(1) Reduce the pressure of one side of tilted roller (please refer to Adjusting the Pressure of the Rollers on User Manual).
(2) Increase the pressure to press the tilted picture during the laminating.
• This hot cold laminator is very important to keep the proper friction for the supporting-roller, collecting cover paper roller, supporting picture roller and the roller for collecting picture.
• Keep the proper friction for the roller to avoid wrinkling.
• The main rollers are the crucial parts of the machine. They directly relates to the output quality of lamination. Please make maintenance regularly.
• Lift the top roller after lamination to avoid long-time pressing of the rollers to improve their lifetime.
• Clean the rollers regularly to prevent a build-up of adhesive residue. They may affect the lamination quality.
• Remove the adhesive residue by a piece of flannelette with alcohol or special adhesive remover. Gasoline is prohibited from applying.
• When cutting the images, make sure the knife will not scratch the rollers.

QOMOLANGMA BRAND STORY:
Qomolangma Laminator's Advantages:
Hand crank and electric lifting: compared with pneumatic lifting structure, the roll parallel setting is more stable, meet the needs of high end customers with high laminating quality request, and there are fewer after-sales problems;
Rubber roller: the original raw rubber roller has good elasticity and durability compared with the recycled rubber;
Mechanical installation: the sheet metal is cut by laser to ensure the correct installation of the mounting hole, so as to ensure that the unwind/rewind shaft is parallel and finishing lamination is without wrinkle and air-bubble;
Electric wiring: the design of electrical structure is humanized and easy to operate.

Application:
Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.
