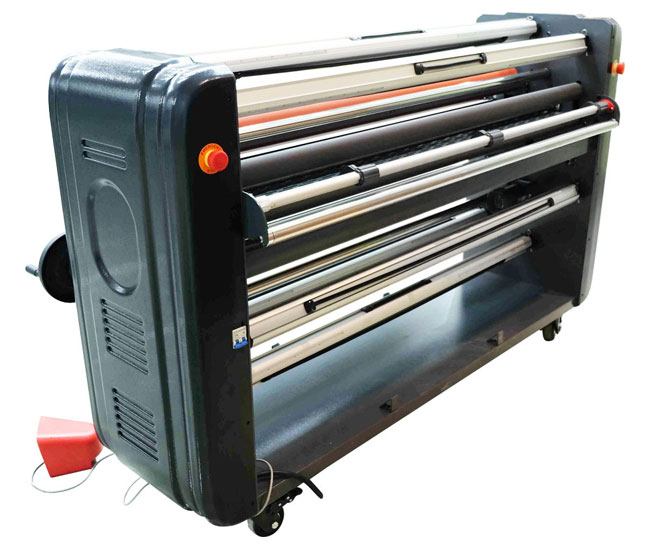

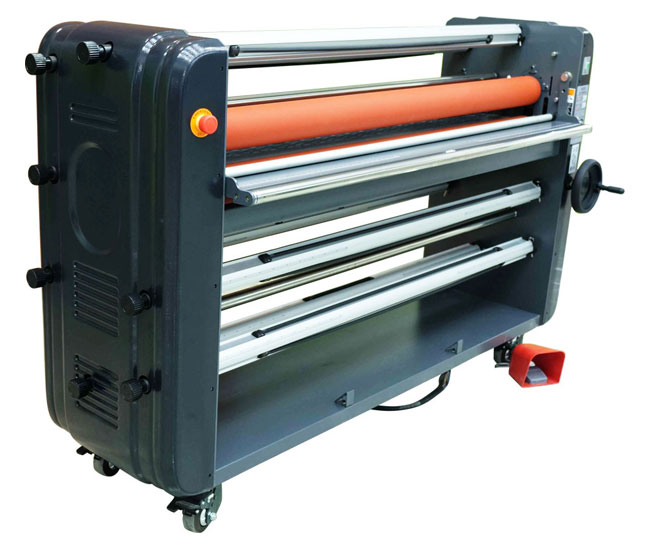

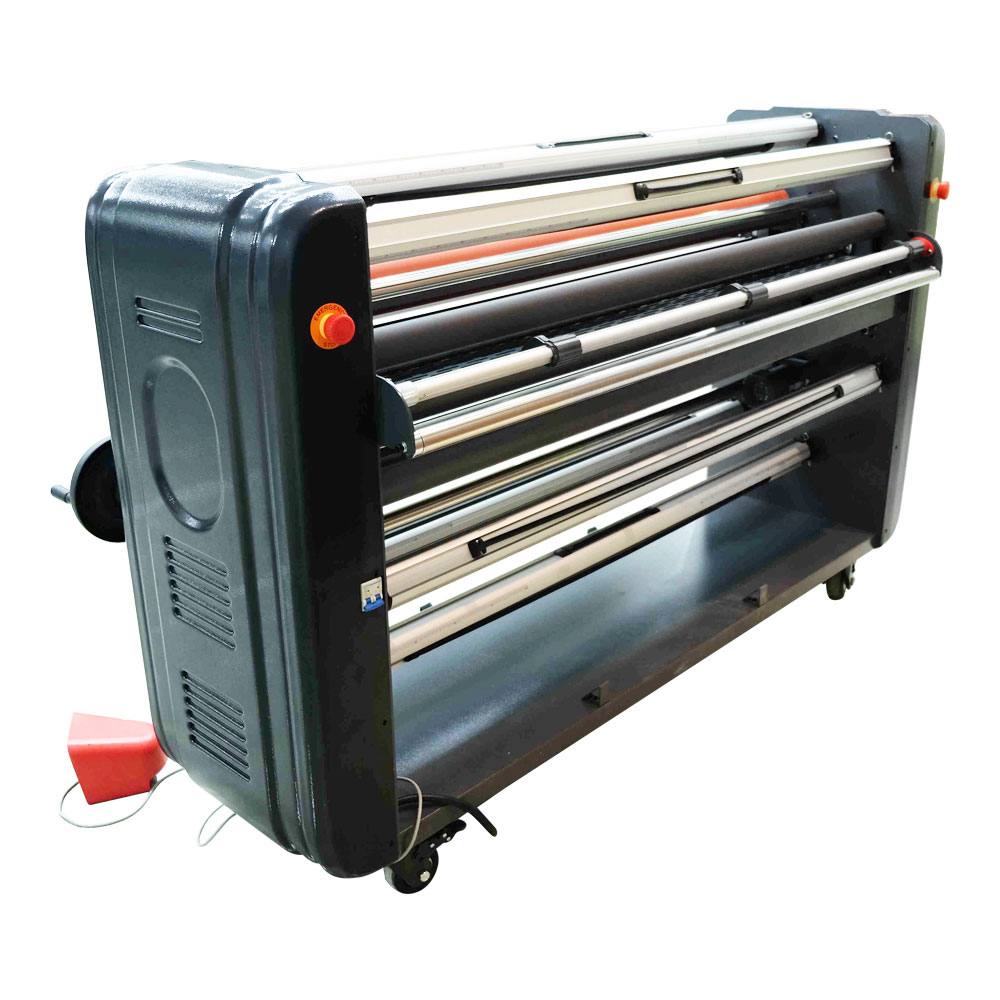

63inches Hot and Cold double sided laminator, Full-auto roll to roll, with Entire ABS Tooling Cover
Hurricane H Warm/ H Hot series is heavy duty Full-auto roll to roll Top-end model with ABS tooling side cover construction; Available for much pressure loaded on roller for special material application use; its entire drop down metal structure makes it much stronger. The accurate CNC metal cutting program secure align laminating and quality finishing.
The 63in wide mounting laminator and encapsulator offering industrial performance at exceptional value. With fully adjustable dual temperature, speed and pressure settings, this hot laminator is ideal for dual heat application use.

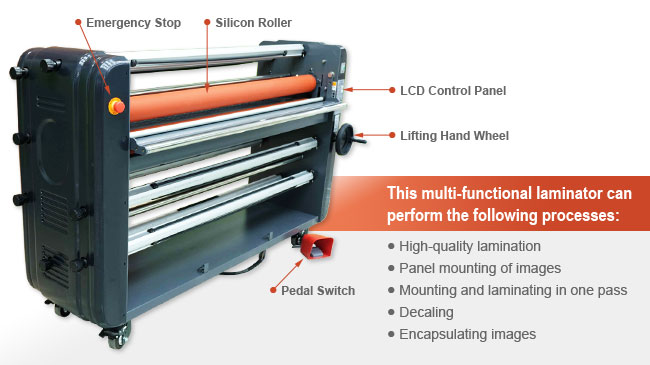

The machine is a multi-functional machine that can perform the following processes:
• High-quality lamination
• Panel mounting of images
• Mounting and laminating in one pass
• Encapsulating images.
Specification:
Max. Working Width: 1600mm (63in)
Variable Working Speed: 0-9m/min
Max. Nip Opening: 35mm (1.378in)
Working Temp.: 0-120℃
Alarm Temp.: 150℃
Roller Diameter: 120mm (4.72in)
Top Roller Material: Silicone rubber
Bottom Roller Material: Silicone rubber
Drive Motor: AC110V 230V/120W
Power Consumption: 2380W
Power Requirement: AC110V/50-60Hz. AC230V/50-60Hz
Machine Size: 2020mm x 630mm x 1260mm (79.5in x 24.8in x 49.6in)
Packing Size: 2050mm x 770mm x 1450mm (80.7in x 30.3in x 57in)
Neight Weight: 312KG (686.4lbs)
Gross Weight: 400KG (880lbs)
Details:
Features:
Variable speed control
Forward and reverse direction control
E-stop and photocell installed for safety
Both auto and foot pedal switch mode
Thermal cut off switch in case over heat
Pivot up feeding table
Removable pressure plate
Heavy-duty castor with brake
CE certified
Dual heated rollers make most applications, including encapsulation, easy while superior roller technology delivers better processing of soft substrates.
Laminates graphics up to 63in wide.
Capable of laminating at speeds up to 29.5 feet/minute.
35mm (1.378in) manual nip adjustment allows for precise operation and accommodate most substrates.
One side hand crank lift up system
Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps.
14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination
Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces.
Drop in type interchangeable 3inches aluminum shaft equipped with 3inches unwind liner paper shaft Membrane control panel.
Auto-grip upper take-up shaft for winding release liners, Gap and pressure indicator
Exclusive ‘stay-put’ swing up feed table keeps table up, making media handling and set-up a snap and flip up pull rollers for no hassle loading
Comprehensive safety system with emergency stops and self-checking safety eyes
Foot switch for hands free operation
Ergonomic touch pad control panel
Optional easy-in feed table and slitter to make laminating a snap while the optional fan banks cools the machine down when both rolls are heated.
| Specification | |
| Max. Working Width | 1600mm(63") |
| Variable Working Speed | 0-9m/min |
| Max. Nip Opening | 35mm |
| Working Temp | 0-120°C |
| Alarm Temp | 150°C |
| Roller Diameter | 120mm |
| Top Roller Material | Silicone rubber |
| Bottom Roller Material | Silicone rubber |
| Drive Motor | AC110V 230V/120W |
| Power Consumption | 2380W |
| Power Requirement | AC110V/50-60Hz. AC230V/50-60Hz |
| Option | Side Slitter Kits (available at additional cost) |
| Machine Dimension | 2020x630x1260mm(79.5x24.8x49.6in) |
| Machine Weight | 312Kg(687.8lb) |
| Package | Wooden box |
| Shipping Dimensions | 2050*770*1450mm(80.7x30.3x57.1in) |
| Gross Weight | 400Kg(881.8lb) |
