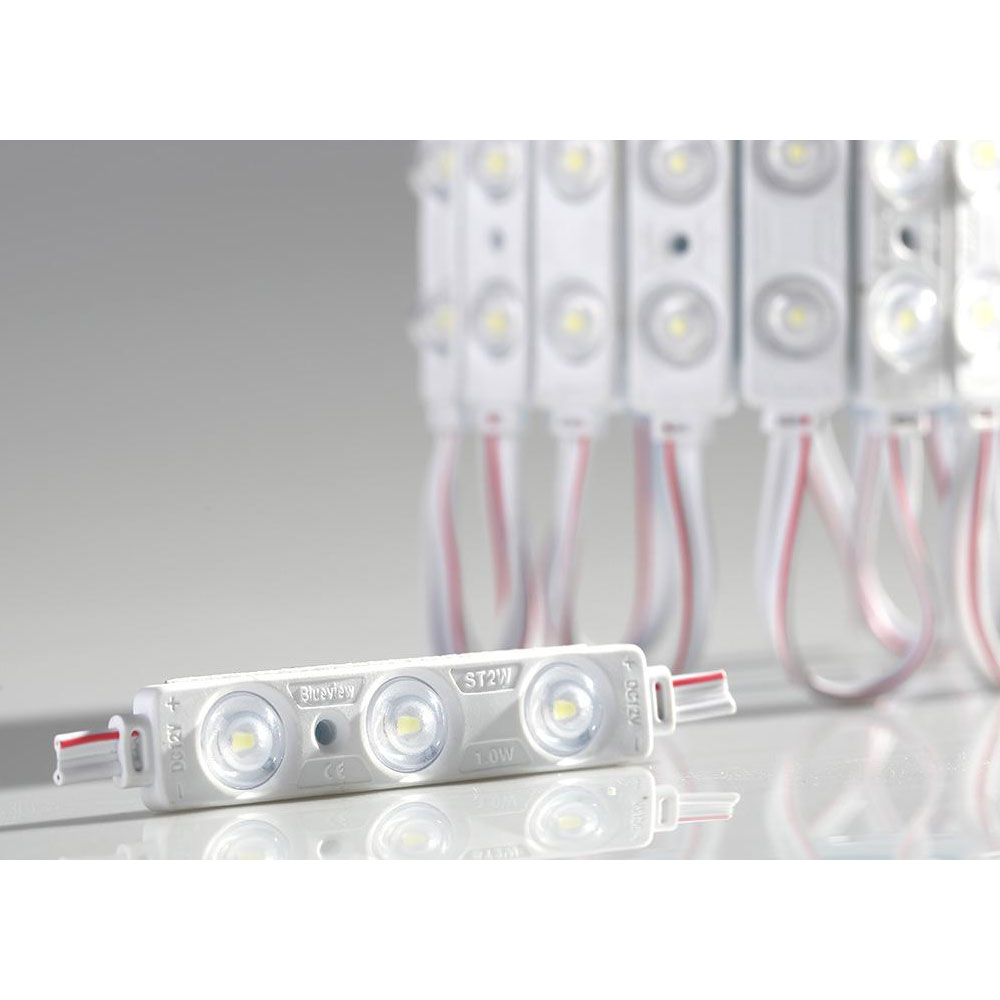

200pcs/pack SMD 116ft 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, DC12V)

Arrival in 2-4 Business Day.

Item Code: LEDM-JS-ST2W-3-200-US

Unit Price: $45.99/pack
Sale Price:
$41.39/pack
You Save :
$4.60/pack (10%)

Apply to See Distributor Price

Get Coupon: $5Order ≥ $100 $15Order ≥ $300 $25Order ≥ $500 $50Order ≥ $1000

  Free shipping on orders over $800 (Except for AK, HI, PR, APO/FPO, Canada and Mexico.)

Quantity:
pack(s) Total Cost:  $41.39
Buy It Now Add to Cart Ask A Question

Buyer Protection

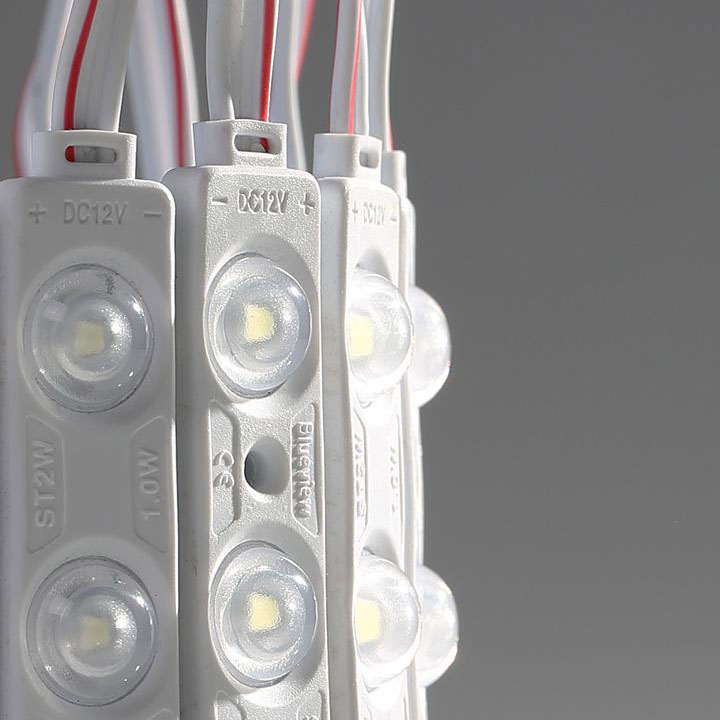

200pcs/pack SMD 116ft 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, DC12V)
Buy It Now


200pcs/pack SMD 116ft 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, DC12V)

Features:

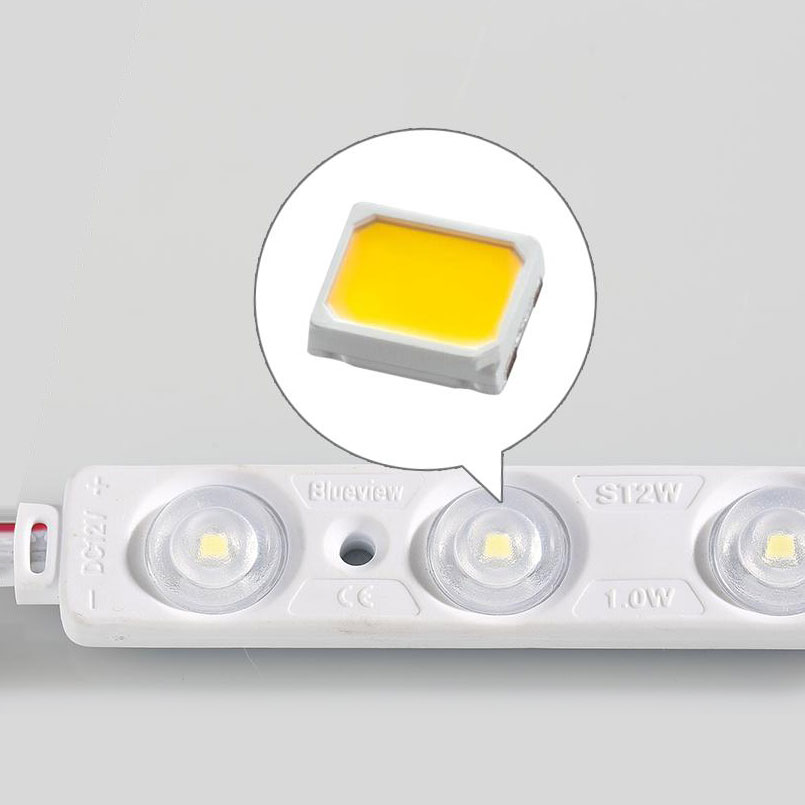

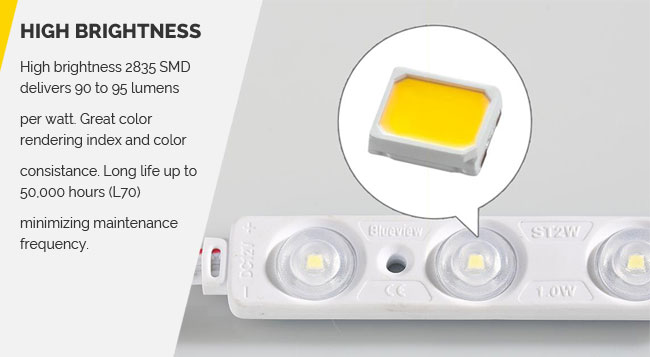

1. High quality 2835 LEDs
2. Aluminum PCB injection for better outline

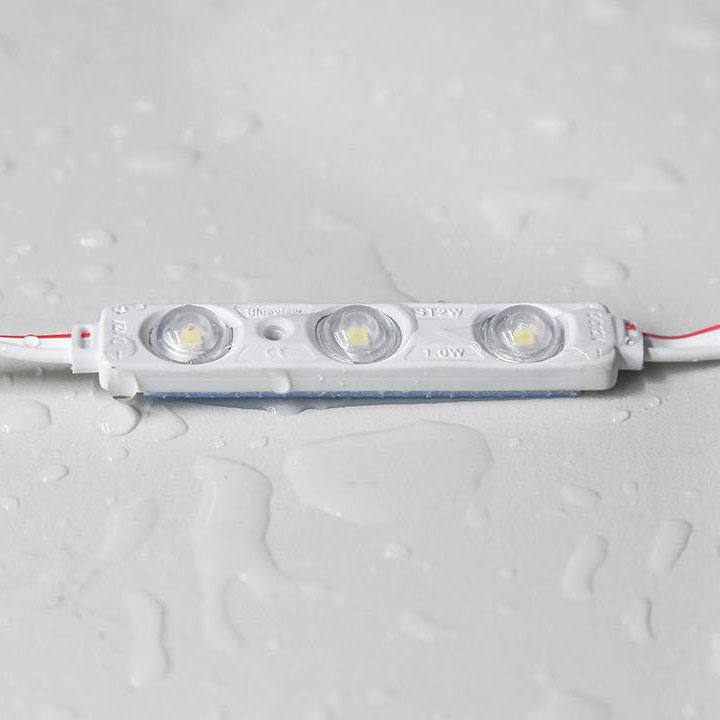

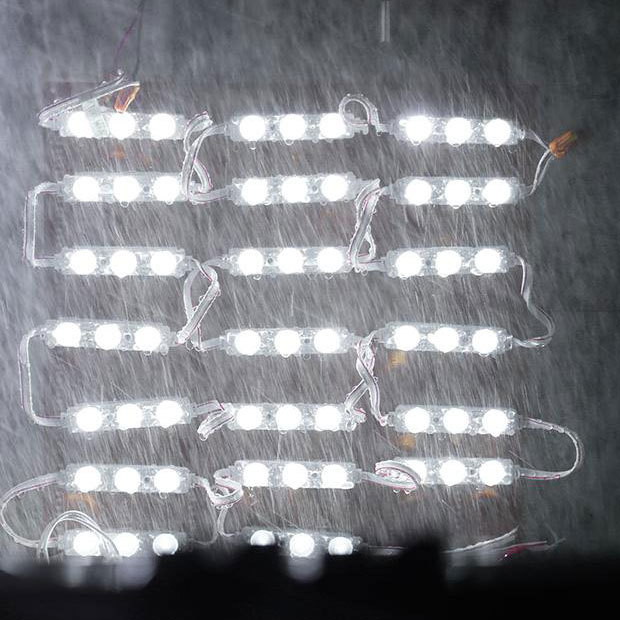

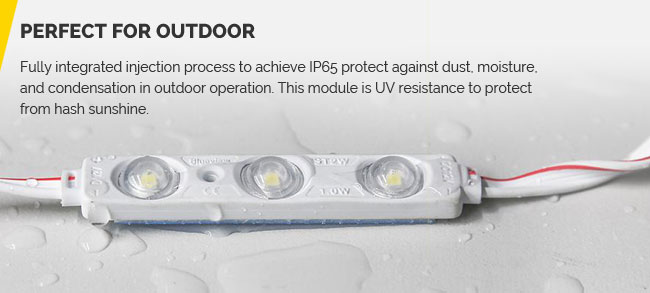

3. IP65 perfect for indoor and outdoor
4. Input voltage: DC12V

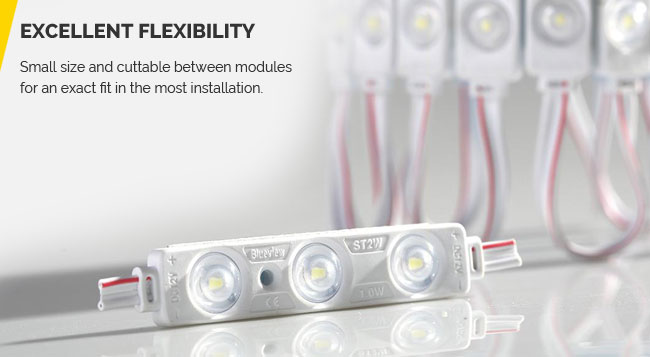

5. Single module cuttable

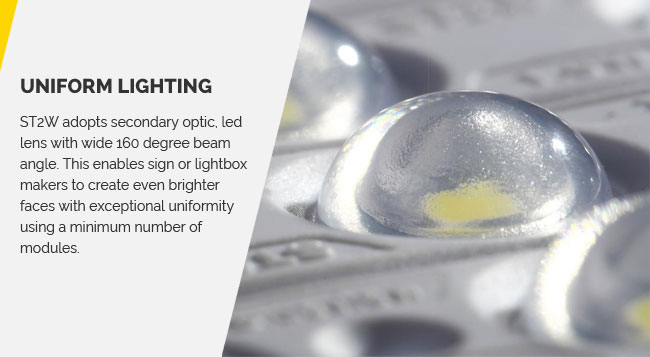

6. 160° wide beam angle for uniform lighting

Application:

Back-lit lightbox with thickness of 6-18cm (0.236in - 70.86in), luminous letter, LOGO etc.

Typical Clients Case:



Nike House of Innovation

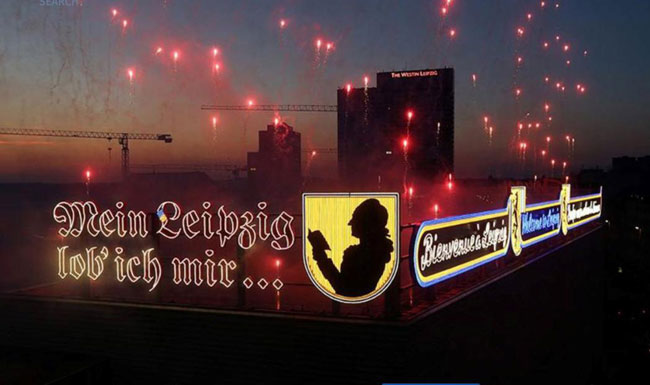

A landmark in leipzig, Germany

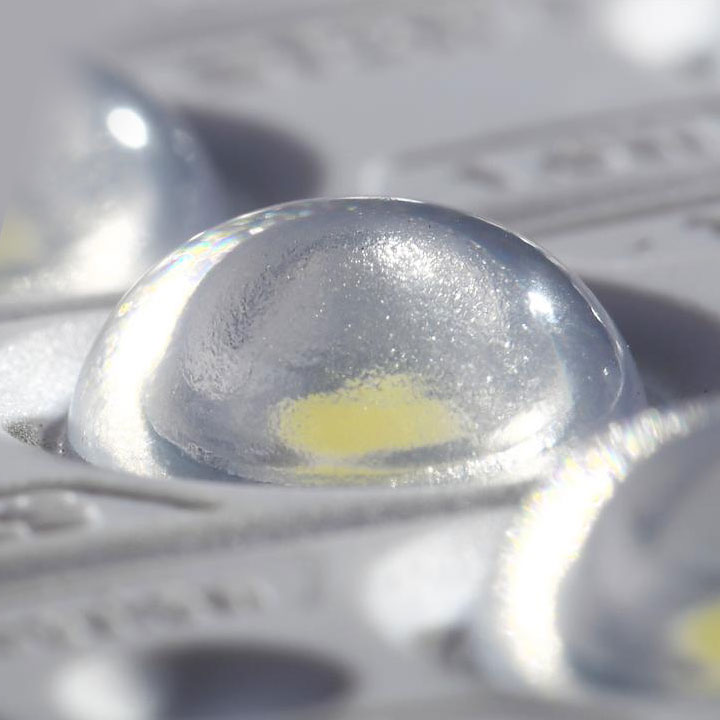

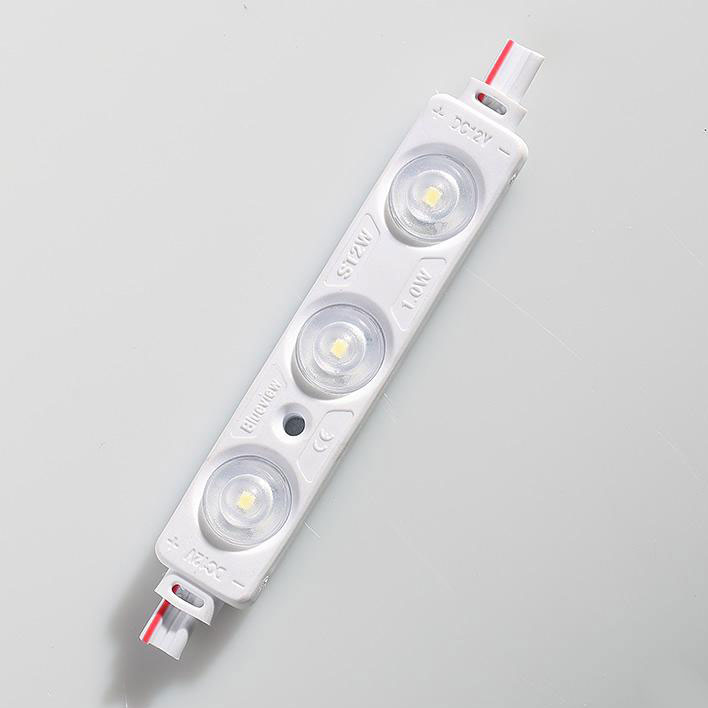

Details:

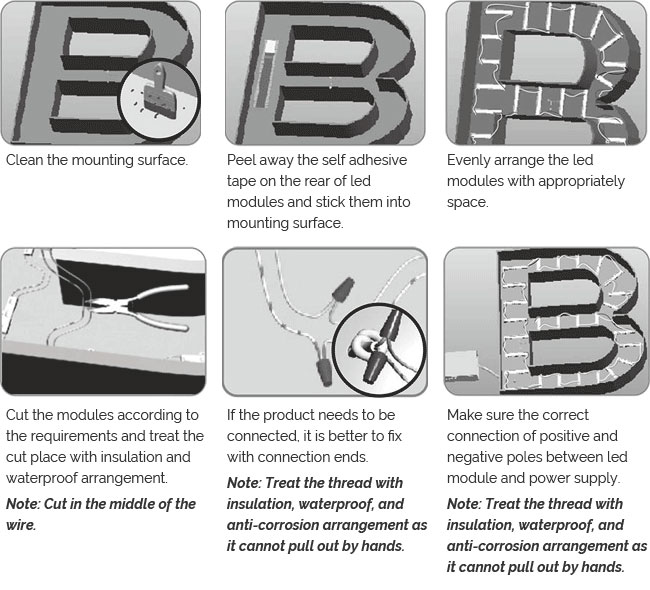

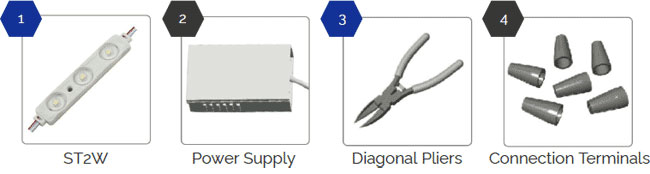

Installation:

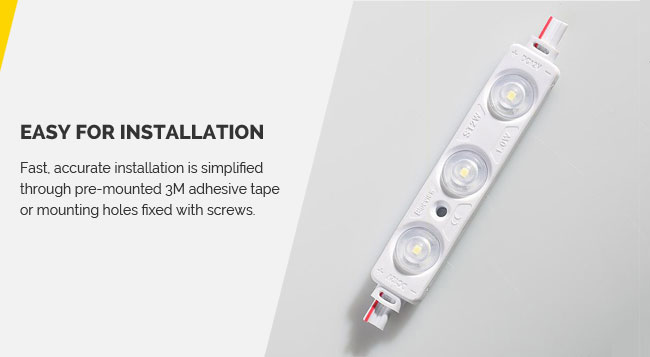

Fix by self adhesive tape or screw.

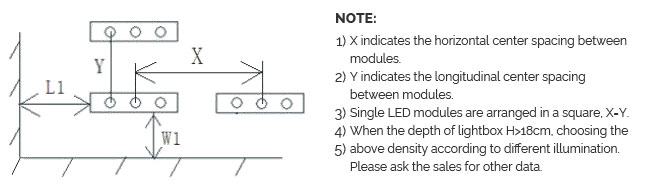

Installation Reference
Bottom Color of Lightbox Surface Material

Depth

Illumination (lux) Density pcs / sqm Spacing (X x Y) cm Visual Effects
White

White
Soft Film

6cm(2.36in) 7980-8950 10 x 12 10 x 8 OK
8cm(3.15in) 6340-6700 10 x 10 10 x 10
10cm(3.94in) 3430-3700 7 x 7 14 x 14
12cm(4.72in) 2290-2570 6 x 6 16 x 16
15cm(5.9in) 1820-2080 5 x 5 18 x 18
18cm(7.09in) 1750-1930 5 x 5 18 x 18




Attentions before installation:
• Before installation, check that the product parameters are consistent with the requirements (Seeing product specificationsor product labels)
• Load voltage, current, power and power supply should be matched with the product.

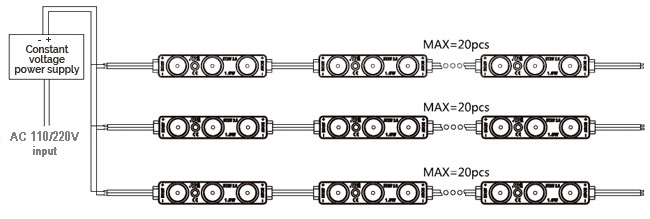

• Follow the instructions of wiring diagram (first connect the load and then the power supply) to avoid short circuit.
• Make sure the correct connection of positive and negative poles between products and power supply. Otherwise, the light will not be on.
• Make sure the power cord firmly screwed into the terminal and it should not be pulled out by hands.
• The terminal should have insulation,waterproof and anti-corrosive treatment.

Statements and Recycling:

Statements:
Repair should be operated by a qualified technician, if the external circuit or main line of this product is damaged. The parameters given in this manual are typical values and for reference only.
All illustrations and drawings in this manual are for reference.
This product is subject to change without notice.

Recycling:
LED lighting products belongs to electronic products, please do recycling treatment according to the relevant WEEE directives.

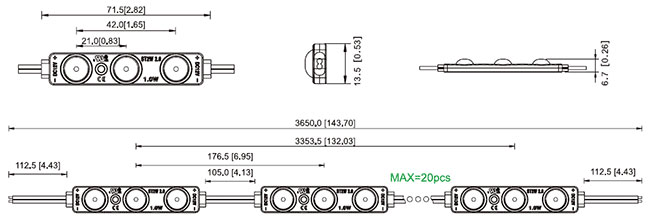

Profile Drawings:

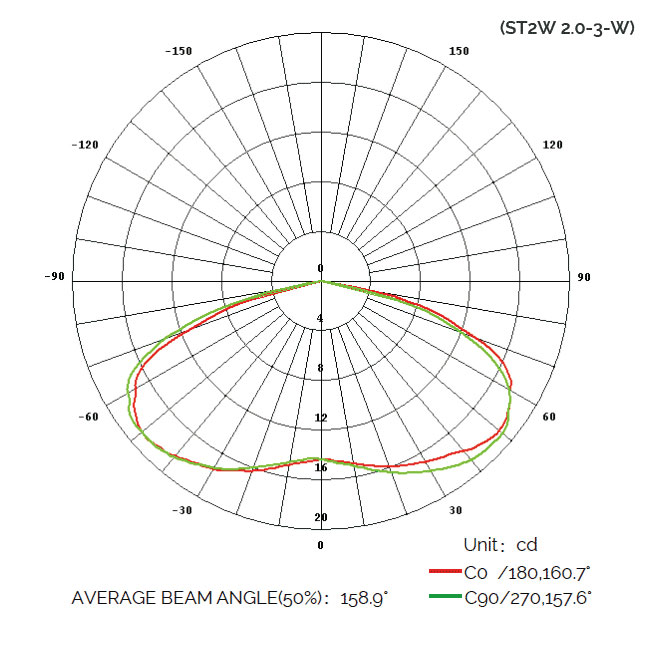

Luminous Intensity Distribution Diagram:

Average Illumination:

Certificates

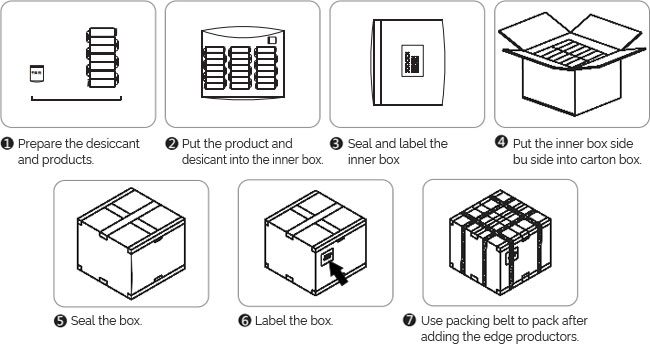

Packing:

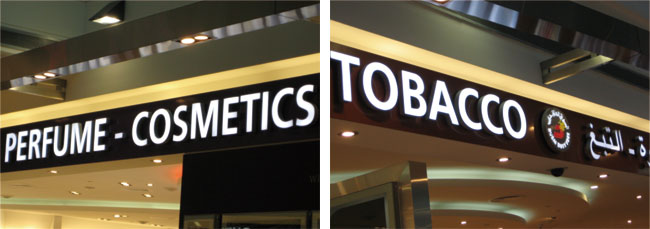

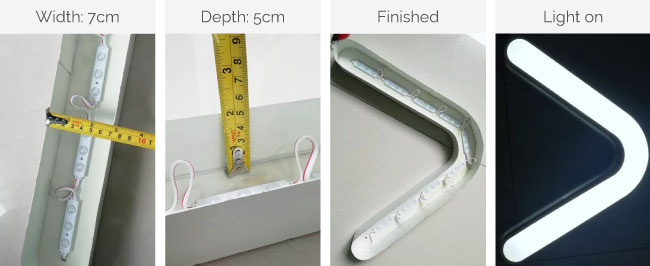

Examples:

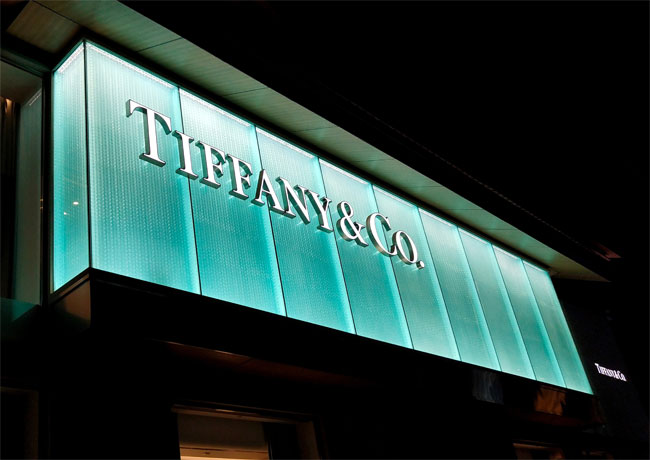

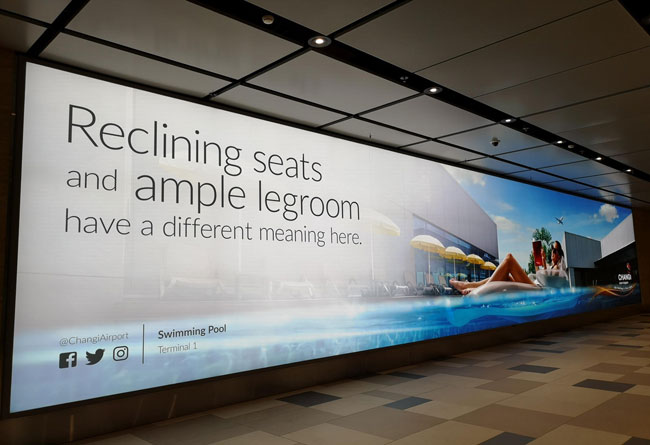

Light Box

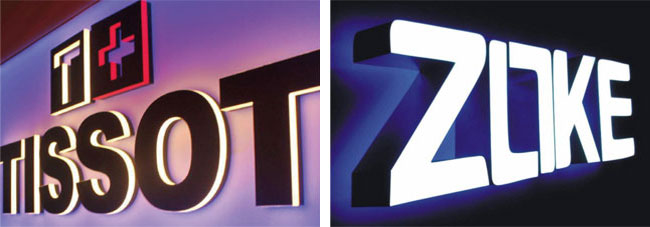

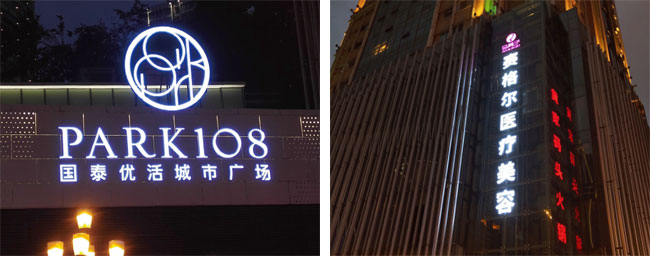

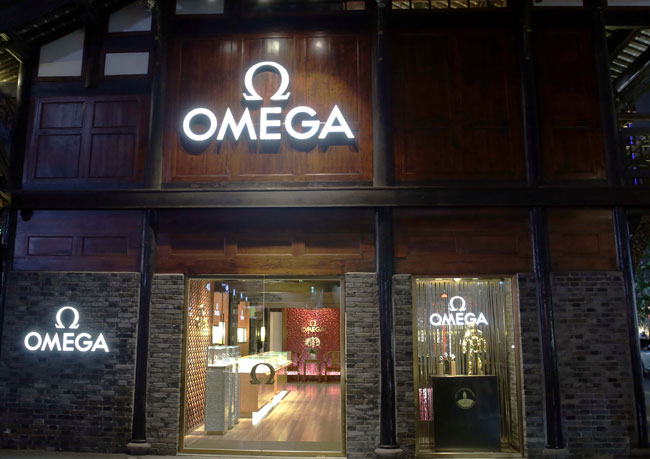

Channel Letter

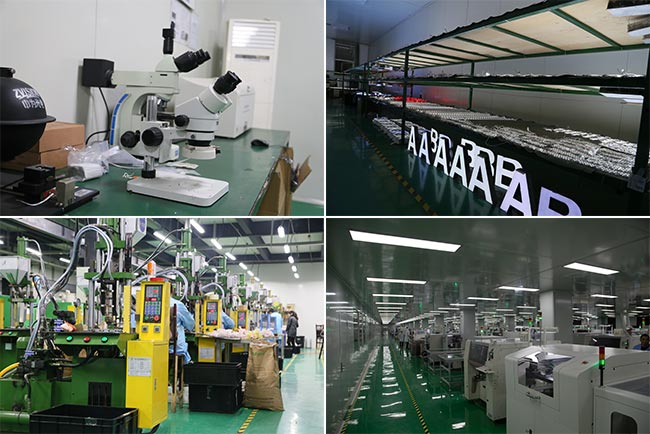

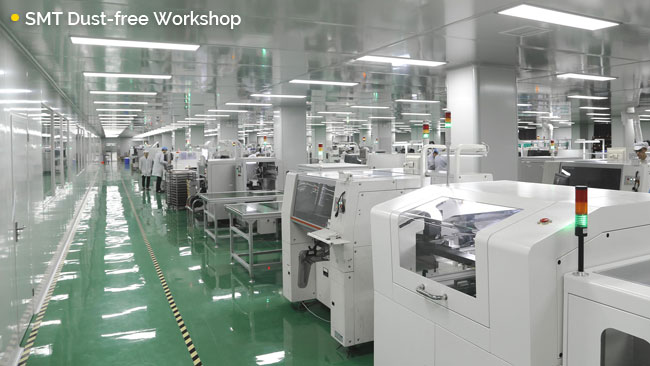

Process:

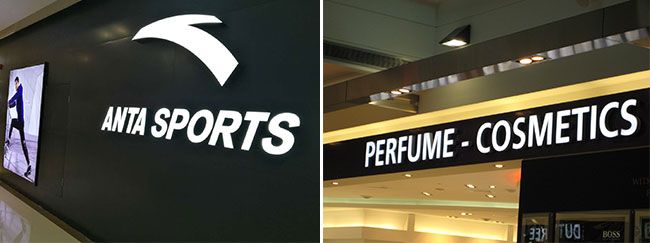

Application:

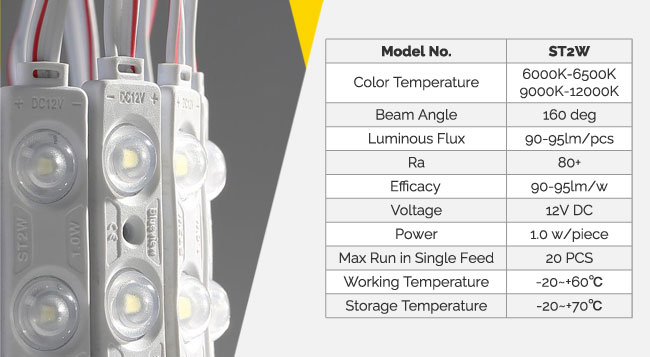

Specification
Model No. LEDM-JS-ST2W-3-200-US
Color Temperature(K) Natural White: 6000-7000K
Beam Angle 160°
Luminous Flux (lm/pcs) 90
Ra 80+
Efficacy (lm/W) 95
Voltage (V DC) 12
Power (W/pcs) 1.0
Standard Packing Quantity(pcs) 20
Max Run in Single Feed(pcs) 20
Working Temperature -20~+60℃
Storage Temperature -20~+70℃



Installation Reference
Model No Bottom Color of Lightbox Surface Material Depth(cm) Illumination (lux) Density pcs/ ㎡ Spacing (X*Y)cm Visual Effects
LEDM-JS-ST2W-2 White White Soft Film 8 5670-6290 12*12 8*8 OK
10 3680-3960 10*10 10*10
12 2640-2970 8*8 12*12
15 2110-2380 7*8 13.5*12
18 1770-1930 7*7 13.5*14

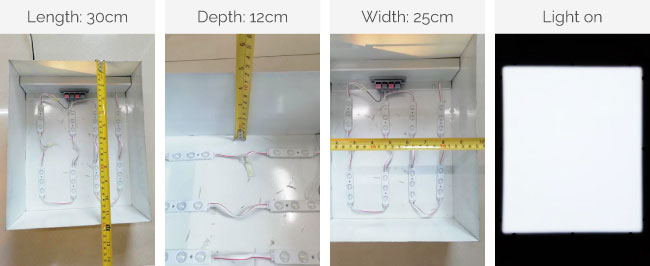

Light Box Specification
