F-Theta Scan Lens is widely applied for taking advantage of galvanometer scanning. ND: YAG, Green ray and U-YAG scan system. It is widely used in drilling and marking area.

Details:

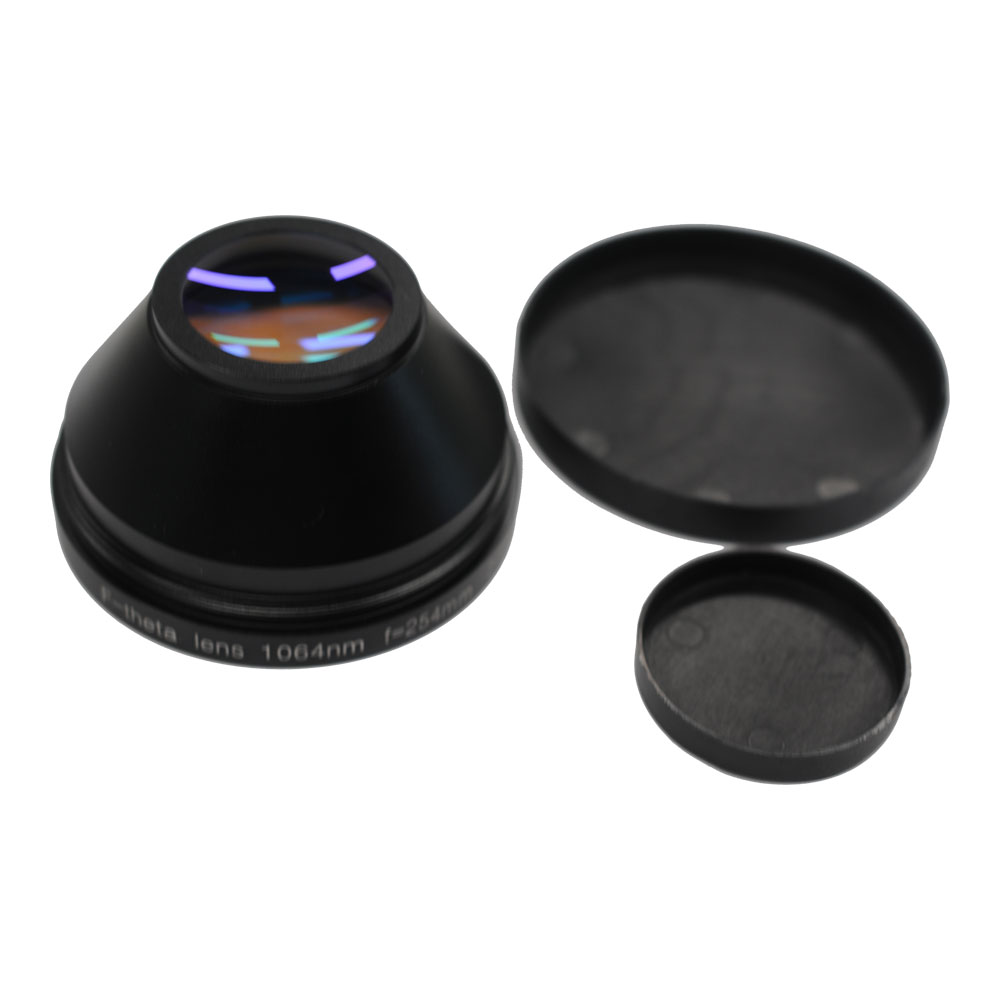

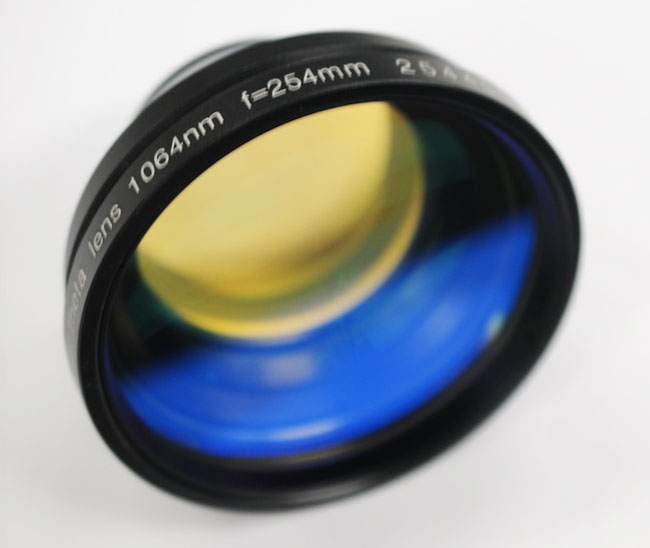

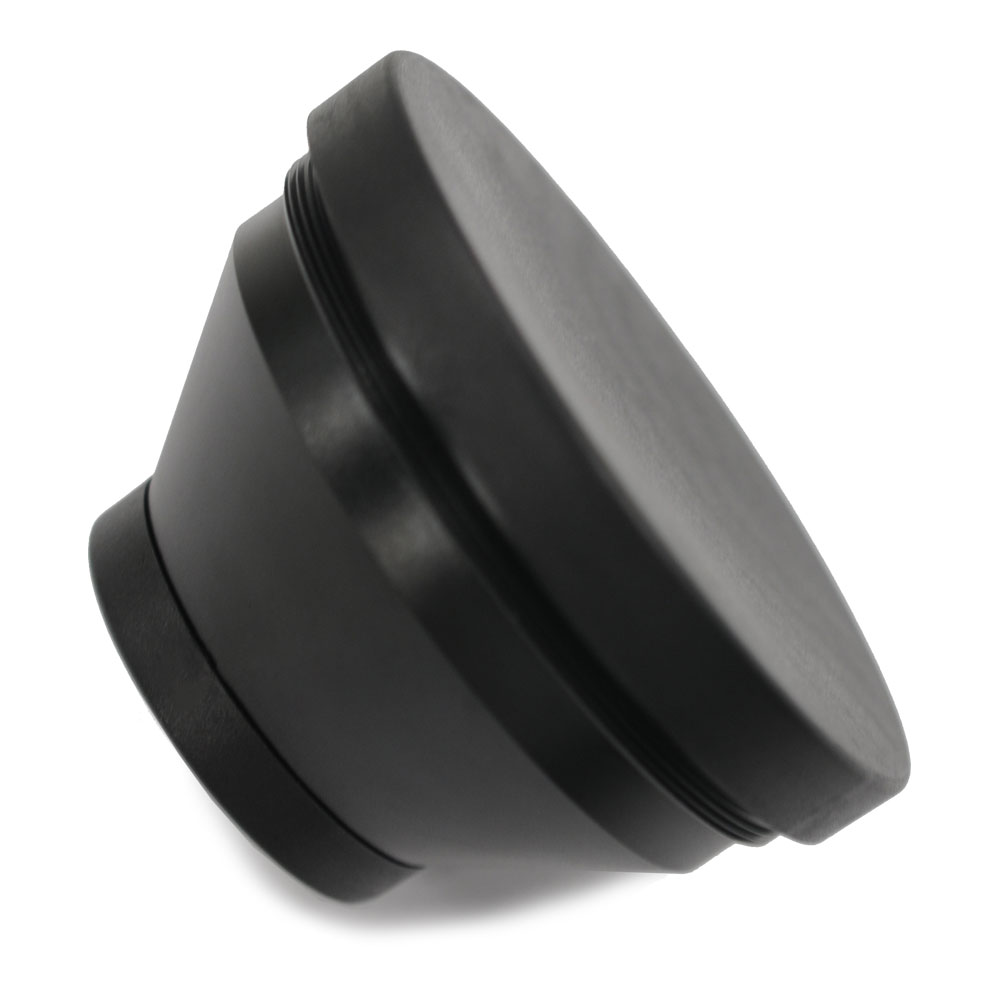

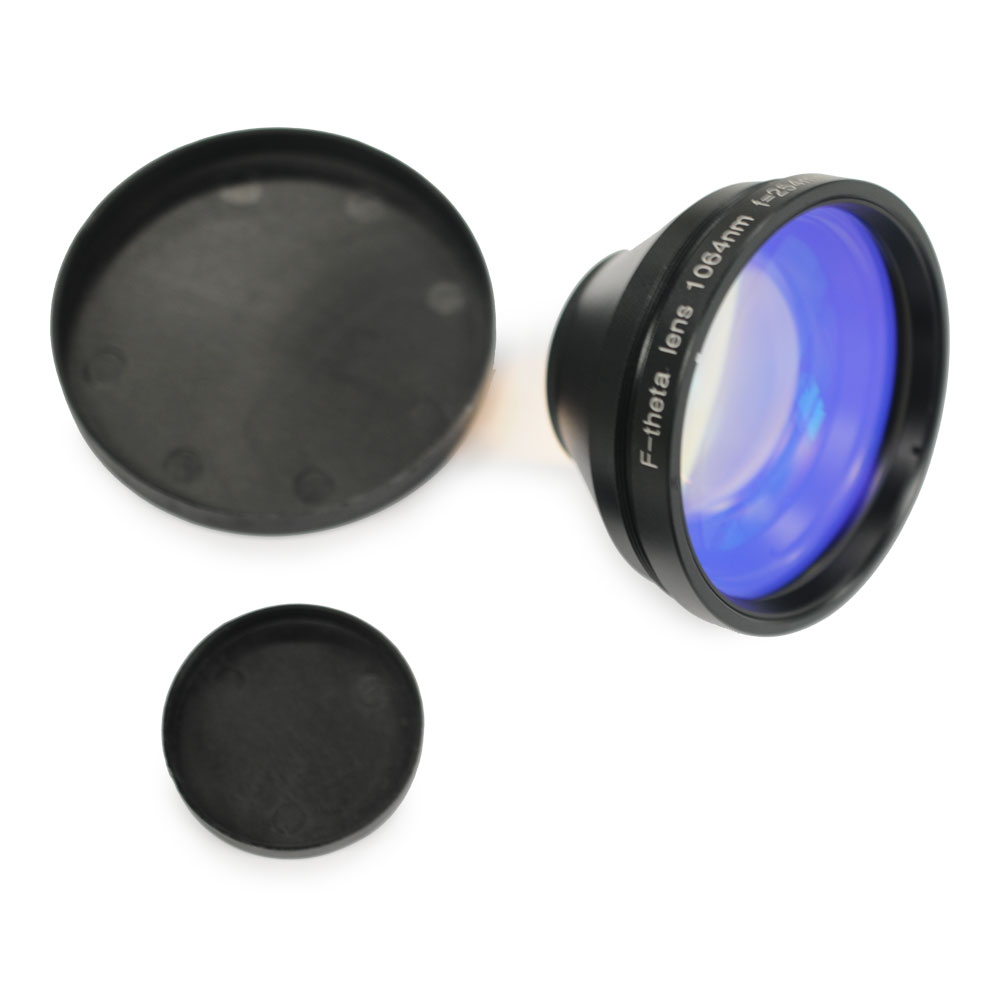

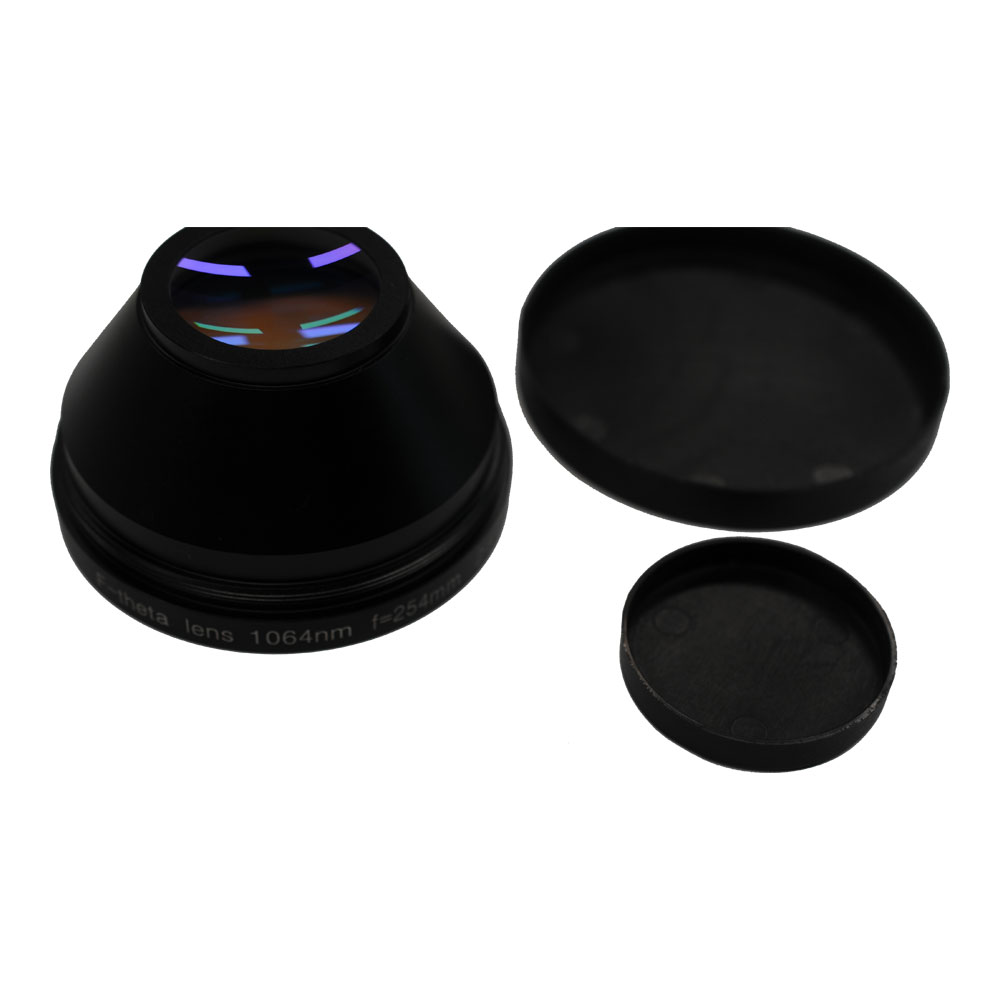

Product name: F-Theta lens
Application: Laser Marking
Laser type: Fiber Laser etc.
Wavelength: 1064nm
Scan field: 70 x 70mm(2.76" x 2.76") / 110 x 110mm(4.3" x 4.3") / 150 x 150mm(5.9" x 5.9") / 175 x 175mm(6.9" x 6.9") / 220 x 220mm(8.7" x 8.7")

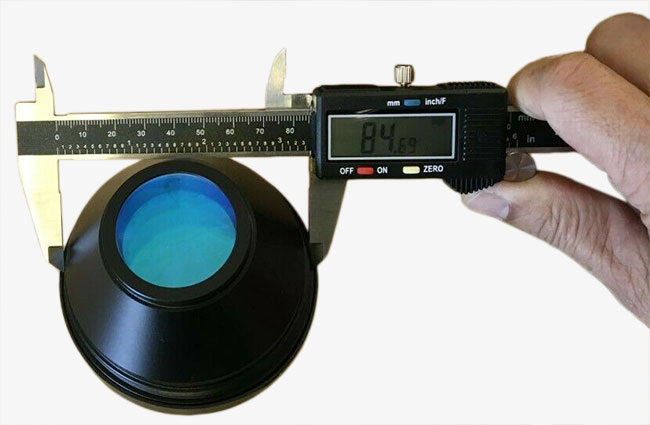

Thread: M85
Color: Black
Warranty: 1 Year
Packaging: 1 pc / carton for F-Theta lens
CS-LENS-1064 |
Scan field(mm) |
Wave Length(mm) |
Focal Length(mm) |
Working Distance (mm) |
Thread(mm) |
70 x 70 |
1064 |
100 |
98.8 |
M85 |
110 x 110 |
1064 |
163 |
184.9 |
M85 |
150 x 150 |
1064 |
210 |
238.4 |
M85 |
175 x 175 |
1064 |
254 |
288.9 |
M85 |
220 x 220 |
1064 |
330 |
385.0 |
M85 |
