The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be WIN7 WIN10 32-bit/64-bit with PCI slot, But win7 is better

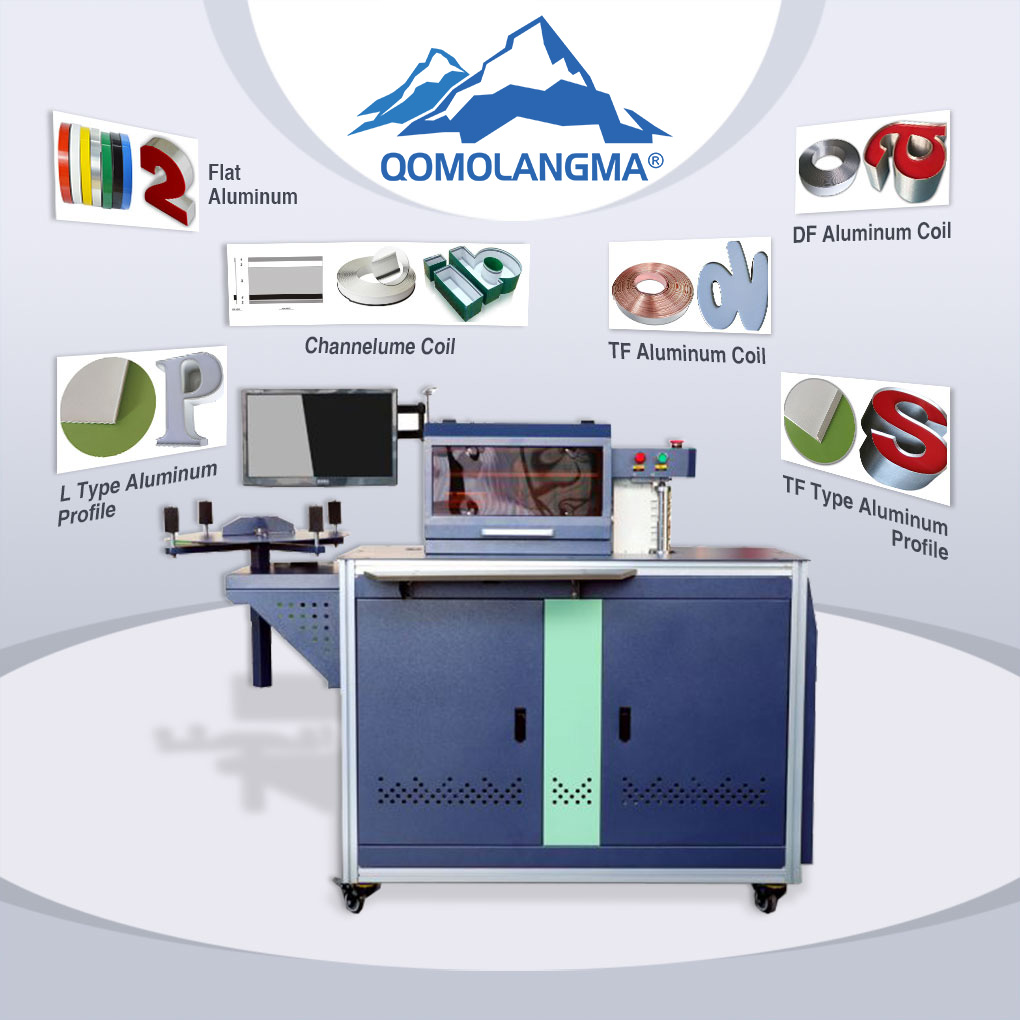

QOMOLANGMA Automatic Channel Letter Bending Machine
Designed for professional sign-making applications, the QOMOLANGMA Automatic Channel Letter Bending Machine automates key steps in aluminum channel letter fabrication. With computer-controlled feeding, slotting, bending, and cutting-depth adjustment, it helps sign manufacturers improve production efficiency, maintain consistent quality, and reduce manual labor.
Compatible with multiple aluminum coil and channel letter materials, the machine features intelligent software control and supports AI, DXF, and PLT file formats for integration with CNC router workflows.
Key Features
1. Automated Channel Letter Fabrication
Automates material feeding, slotting, bending, and cutting-depth adjustment to streamline the channel letter production process.
2. Computer-Controlled Operation
Simply load the design file, configure the settings, and start the process. The machine coordinates multiple processing steps through its control software.
3. High-Speed Production
Automated processing helps increase throughput and reduce production time for sign-making businesses.
4. Precise and Consistent Bending
Designed to produce accurate channel letter returns that fit closely with CNC-routed letter faces and backs, helping achieve a clean, professional finish.
5. Reduced Labor Requirements
Automates repetitive fabrication tasks, reducing reliance on manual labor and helping improve overall production efficiency.
6. Energy-Efficient Operation
Designed for efficient operation to help control energy consumption during production.
7. Multi-Material Compatibility
Supports multiple specifications of aluminum coils and channel letter materials for different sign-making requirements.
8. Intelligent Cutting-Depth Control
Automatically adjusts cutting depth through the software to accommodate different material requirements.
9. CE Compliance
CE documentation and certification are available where applicable. Please refer to the product's actual conformity documentation for details.
Technical Advantages
1. Encoder-Controlled Material Feeding
An encoder monitors material feed length, while automatic compensation helps correct feeding deviations caused by slippage for improved accuracy.
2. Automatic Cutting-Depth Adjustment
Software-controlled cutting-depth adjustment helps maintain consistent processing results across different material specifications.
3. Software-Based Machine Settings
Key processing parameters can be configured through the software, minimizing the need for manual adjustments to mechanical components during routine material changes.
4. Flexible Parameter Configuration
The software allows operators to configure processing settings for different materials and fabrication requirements, helping simplify machine setup and operation.
5. Heavy-Duty Steel Bending Head
The bending head features a steel structure designed to provide rigidity and stability during operation, supporting consistent bending performance.
6. High-Performance Motion Control
A high-performance CPU in the motion-control system supports responsive machine control and precise execution of processing commands.
7. Advanced Fabrication Software
The software supports compensation adjustments for straight lines, arcs, inner contours, outer contours, and start/end positions, helping improve fabrication accuracy and consistency.
8. CNC Router Compatibility
Designed to work alongside CNC routers, the machine helps produce channel letter returns that fit CNC-cut letter faces and backs, supporting a more integrated sign-making workflow.
9. Multiple File Format Support
Compatible with AI, DXF, and PLT design files, providing flexibility for common sign-design and production workflows.
Machine Details & Key Components:
Explore the key components of the QOMOLANGMA Automatic Channel Letter Bending Machine, engineered to support accurate material feeding, precise slotting, smooth bending, and convenient cutting-depth adjustment.

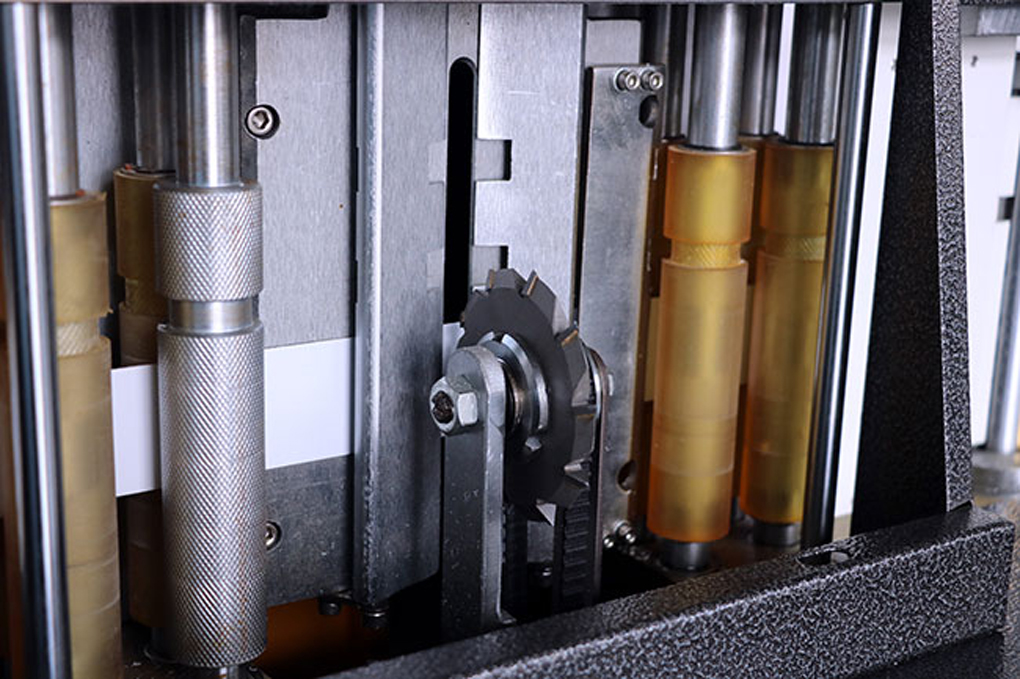

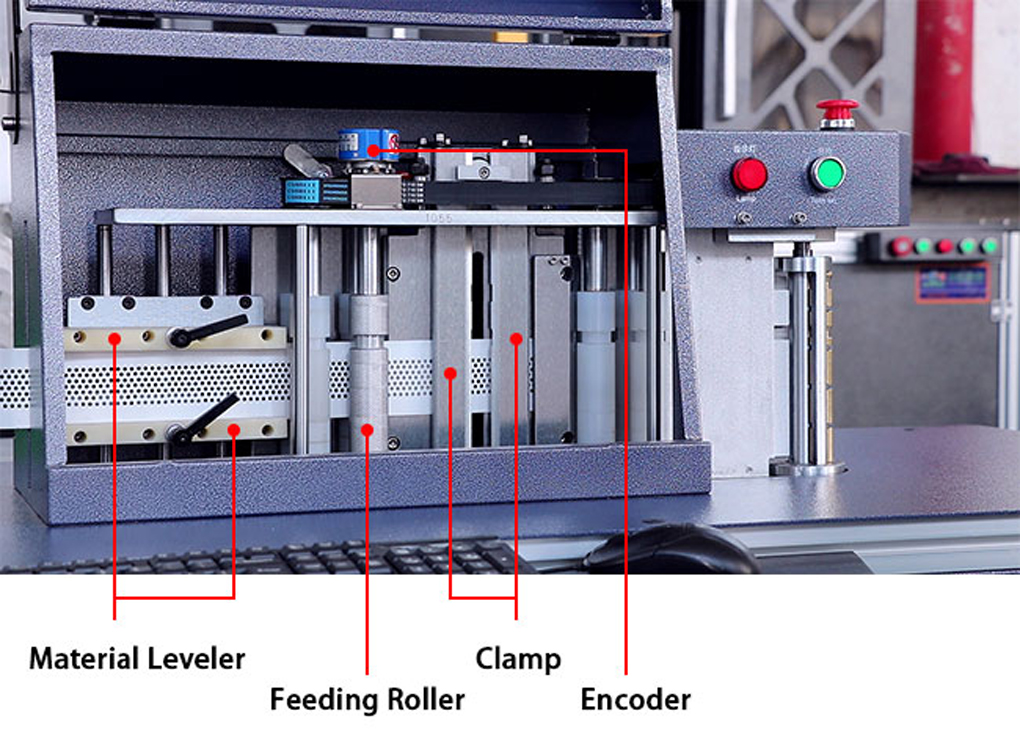

1. Material Feeding System
The feeding system integrates a material leveler, feeding rollers, an encoder, and a material clamp to ensure stable material handling and accurate feeding throughout the production process.
Material Leveler: Aligns and straightens the aluminum coil as it enters the machine, helping maintain a consistent feeding position.
Powered Feeding Rollers: Feed the material smoothly and steadily through the machine, supporting reliable operation.
Encoder-Based Length Control: Monitors the feeding length and automatically compensates for material slippage to help maintain feeding accuracy.
Material Clamp: Helps hold the material securely during processing.
2. Precision Cutting & Slotting System
The cutting and slotting system features double-sided cutting and multi-angle slotting to help create accurate bends at different angles.
Double-Sided Cutting: Cuts both sides of the material to make bending easier and support the formation of channel letters with different shapes and angles.
Multi-Angle Slotting: Supports cutting angles from 45° to 135°, helping create the corner geometries required for a wide range of channel letter designs.
Flexible Design Compatibility: Accommodates different corner angles and letter contours, providing greater flexibility for custom sign fabrication.

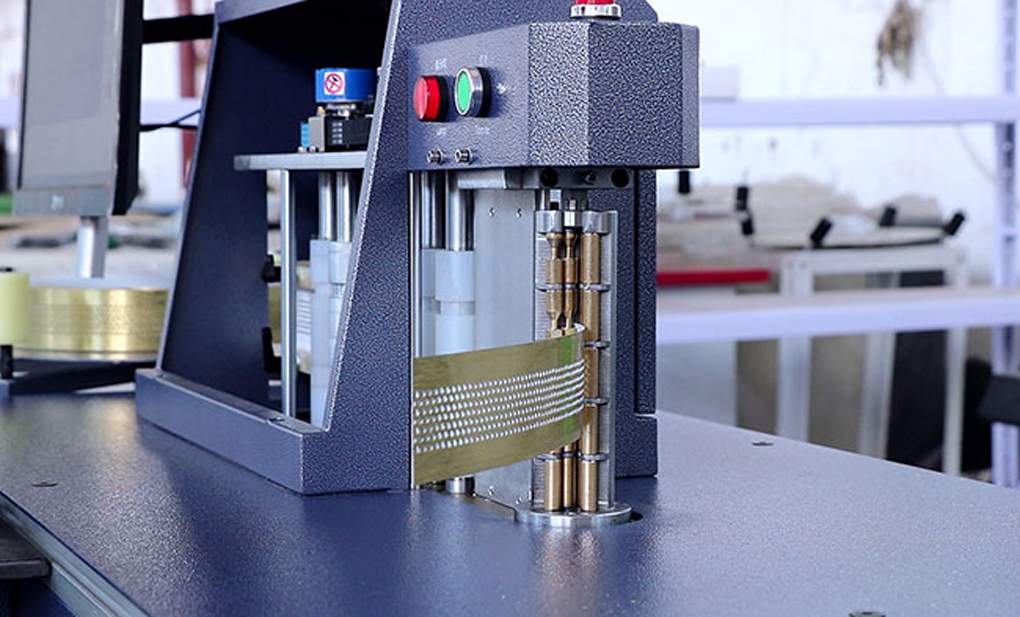

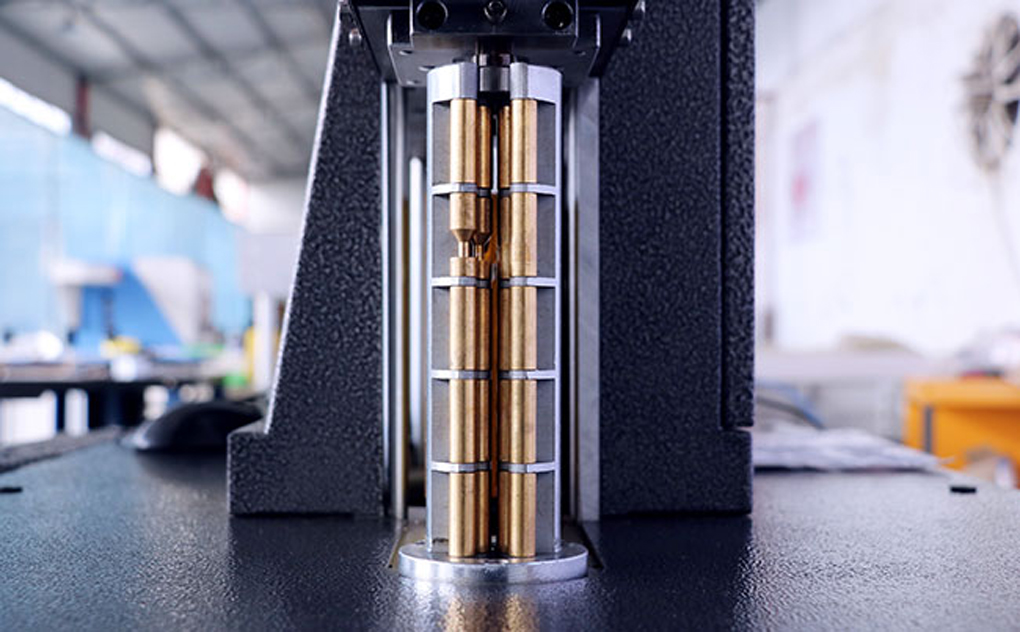

3. Smooth Bending System
Designed for controlled, consistent bending, the bending system helps form smooth curves and channel letter returns while minimizing visible scratching on the aluminum surface.
Smooth Curve Forming: Helps produce clean, even curves for curved and contoured channel letters.
Surface Protection: Designed to minimize scratches and visible marks during bending, helping preserve the appearance of the aluminum material.
Consistent Forming: Supports repeatable bending results for professional sign-making applications.

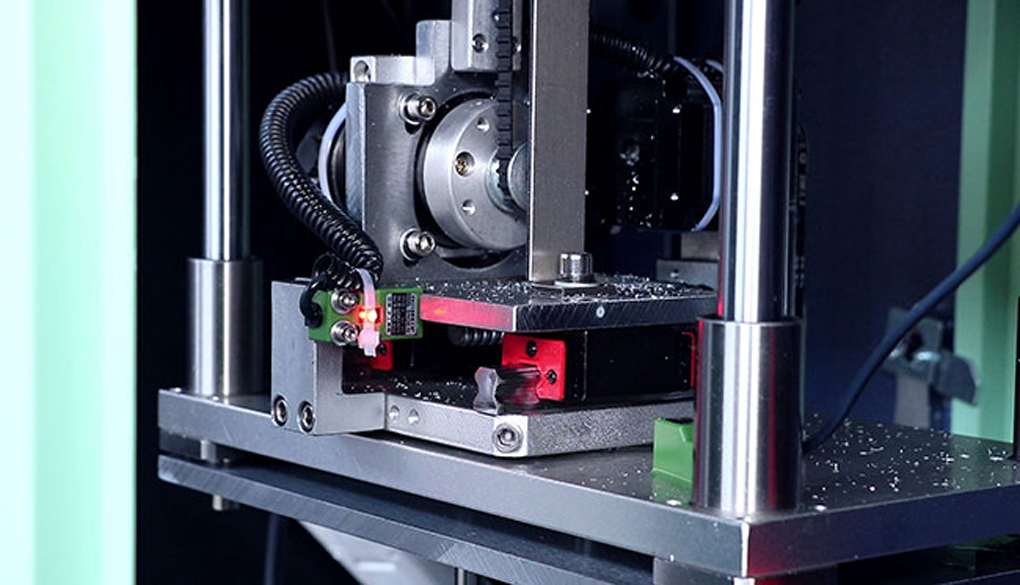

4. Automatic Cutting-Depth Adjustment
The machine features software-controlled automatic cutting-depth adjustment, simplifying setup and reducing the need for manual mechanical adjustments.
Automatic Software Control: Adjusts the cutting depth through the machine's control software to suit processing requirements.
Simplified Setup: Reduces the need to manually adjust multiple push-pull screws when changing cutting-depth settings.
Improved Operating Convenience: Helps streamline machine setup and reduce adjustment time.
Adaptable Processing: Allows cutting-depth settings to be configured for different material specifications and fabrication requirements.

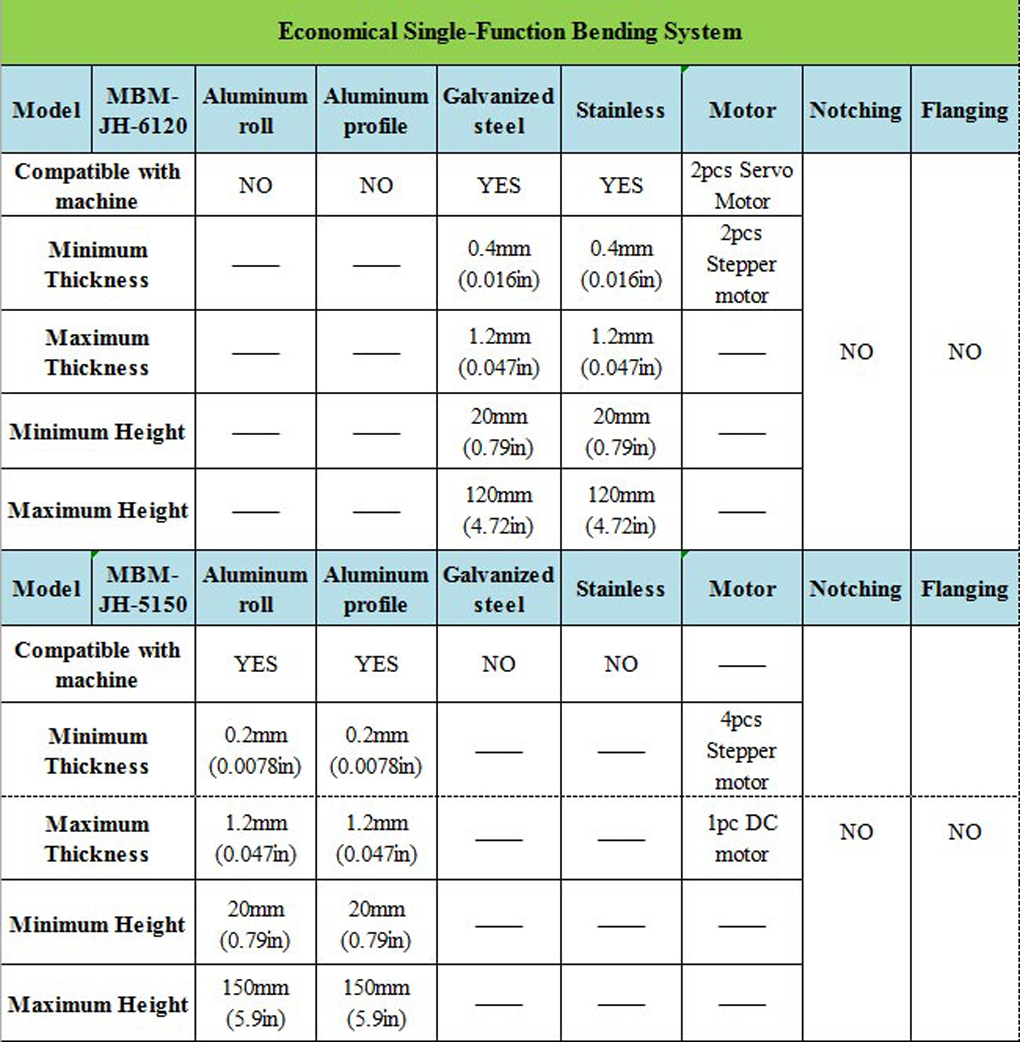

TECHNICAL SPECIFICATIONS:

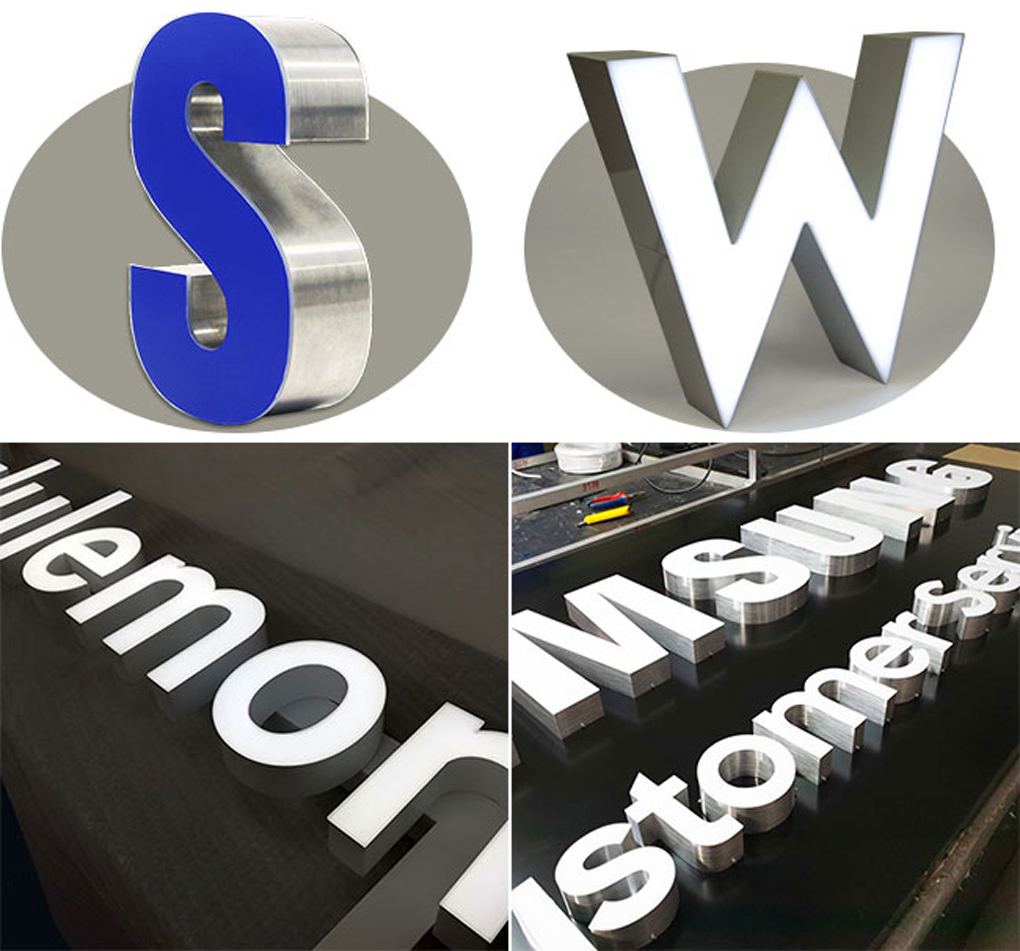

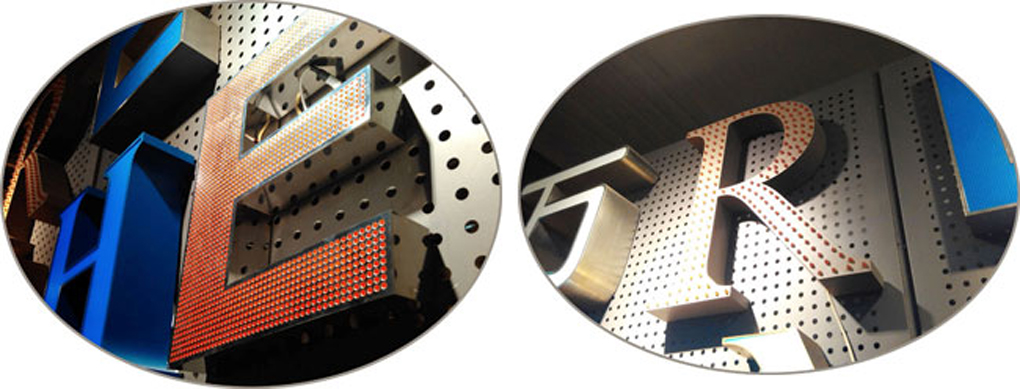

Sample Letters:

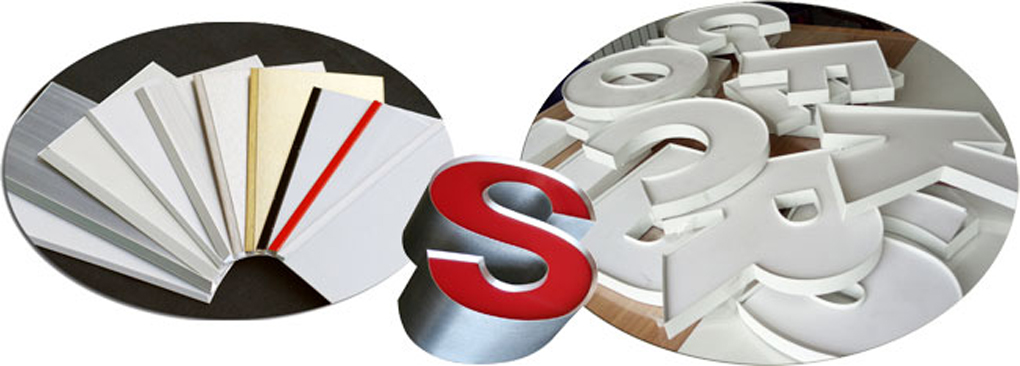

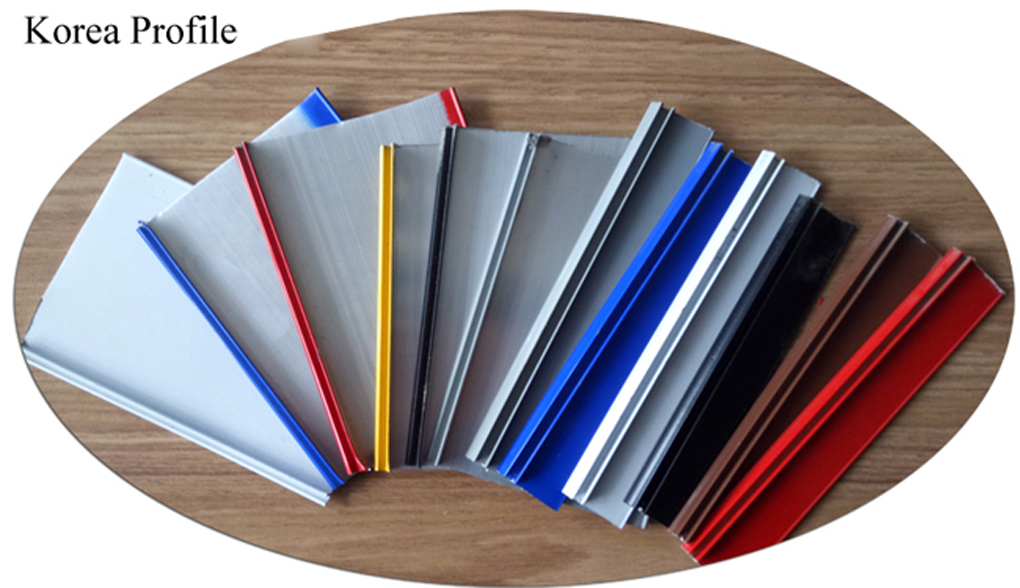

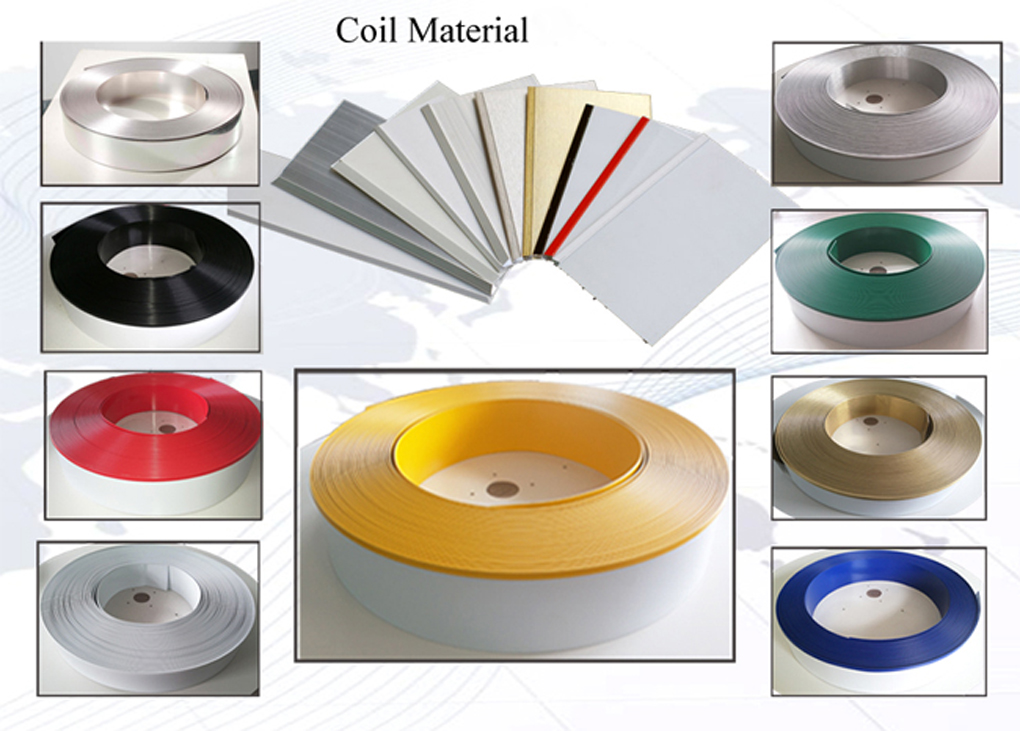

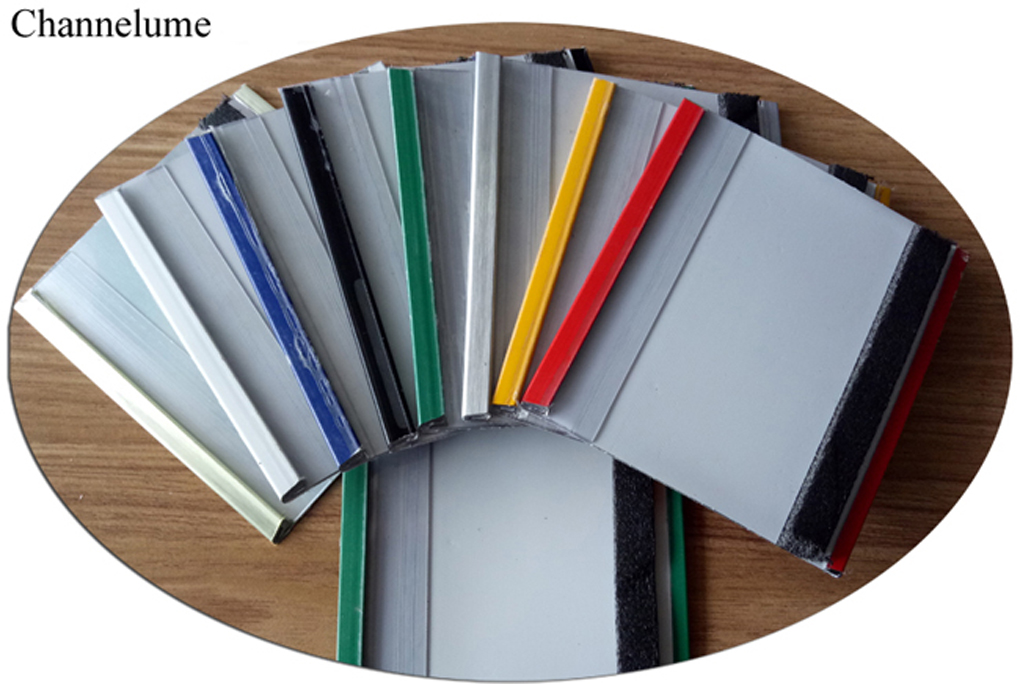

Available Material:
| Model | MBM-JH-5150 |
| Working Principle | Auto feed, Auto Slot(Cut), Auto Bend/Auto Adjust Cutting Depth By Software(Brand-New Technology owned by Dahe Company) |
| Processing Material | Aluminum, Channelume and other custom alu Profile |
| Material Height | 0.79-5.9in (20-150mm) |
| Material Thickness | 0.008-0.047in (0.2-1.2mm) |
| Slot Degree | 45-135 Degree |
| Speed | 600-1000 Meters/8 Hour |
| Min Bending Diameter | ≧0.47in (12mm) |
| Voltage | Single phase AC 220V |
| Power | ≤1800W |
| Max Bending Angle | 360 degree |
| Max Approach Speed (in/sec) | 4 |
| Max Bending Speed (in/sec) | 40 |
| File Format | AI,Dxf,plt |
| Air Compressor | 0.6 Mpa |
| Warranty | 1 Year(not including blade and belt) |
| Machine Size | 53.1*27.6*51.2in (1350*700*1300mm) |
| Machine Weight | 485lb (220KG) |
| Packing Size | 59.4*31.9*55.1in (1510*810*1400mm) |
| Gross Weight | 573lb (260KG) |
