CALCA 51in x 35in 150W CO2 Laser Cutter FDA Certificate, with Auto - focus Function
Buy It Now

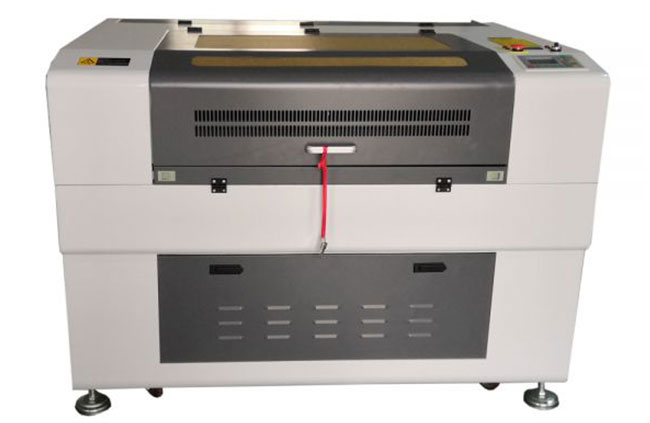

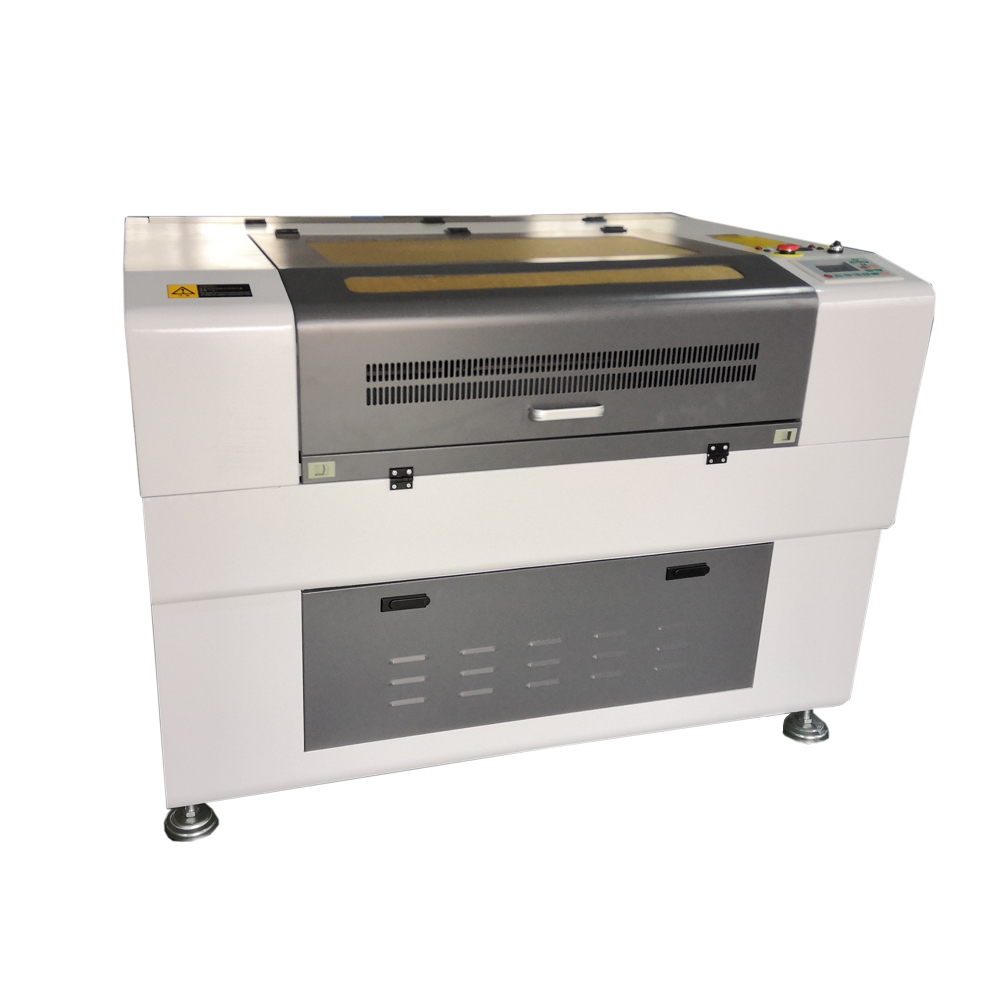

CALCA 51" x 35" 150W 1390 format CO2 Laser Cutting Machine, with USB Port and Electric Lifting Worktable, Auto - focus System, FDA Certificate

The machine is a laser engraver and cutter equipped with 150W CO2 Laser Tube. It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

This machine is equipped with DSP Control System for RD draw directly, also supports Core Draw and Auto CAD and other advance software.
This machine is widely applicable in many Industries, including advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

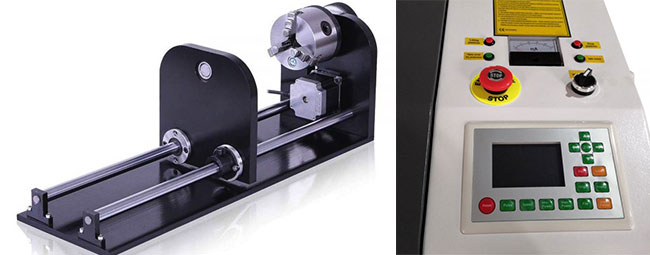

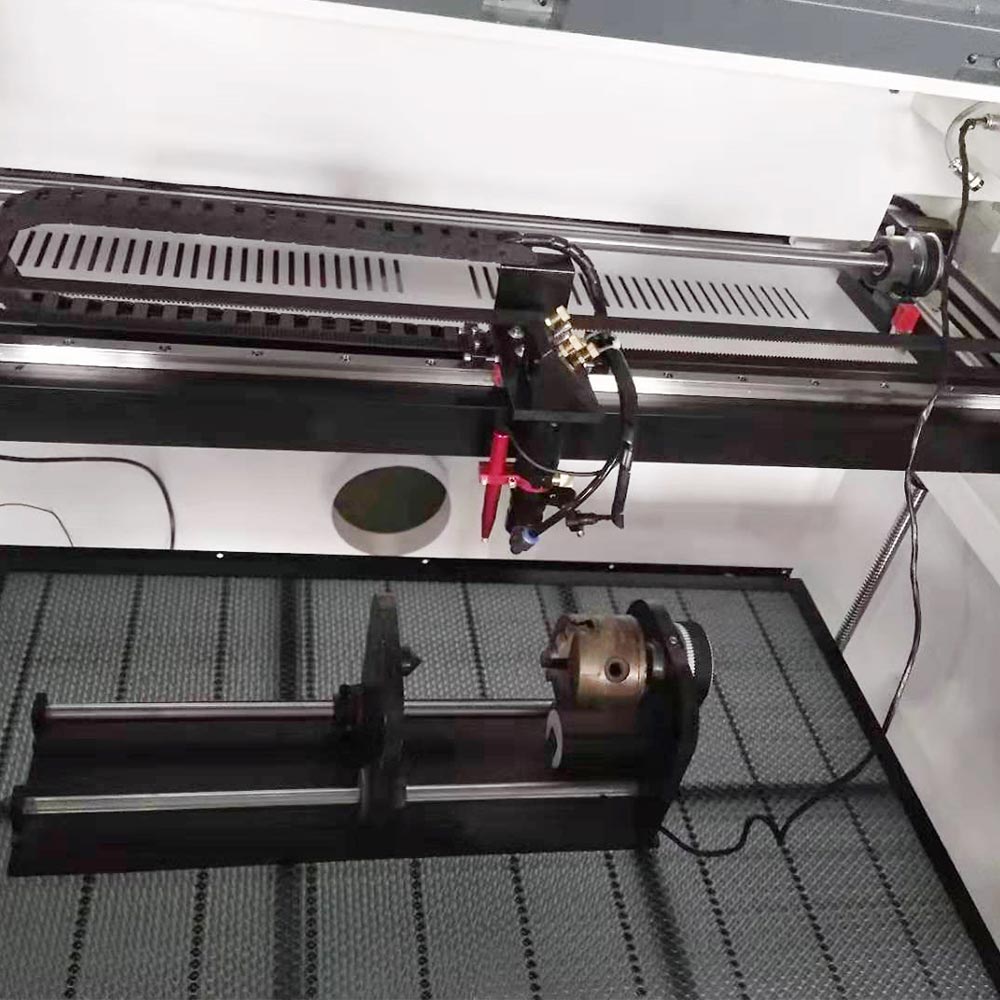

Our laser equipment is RECI laser tube W8 150W, and the machine is equipped with a Rotary Axis.  The machine with the RECI laser tube has two workstations, Honey Comb Table and Blade Table.

Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified

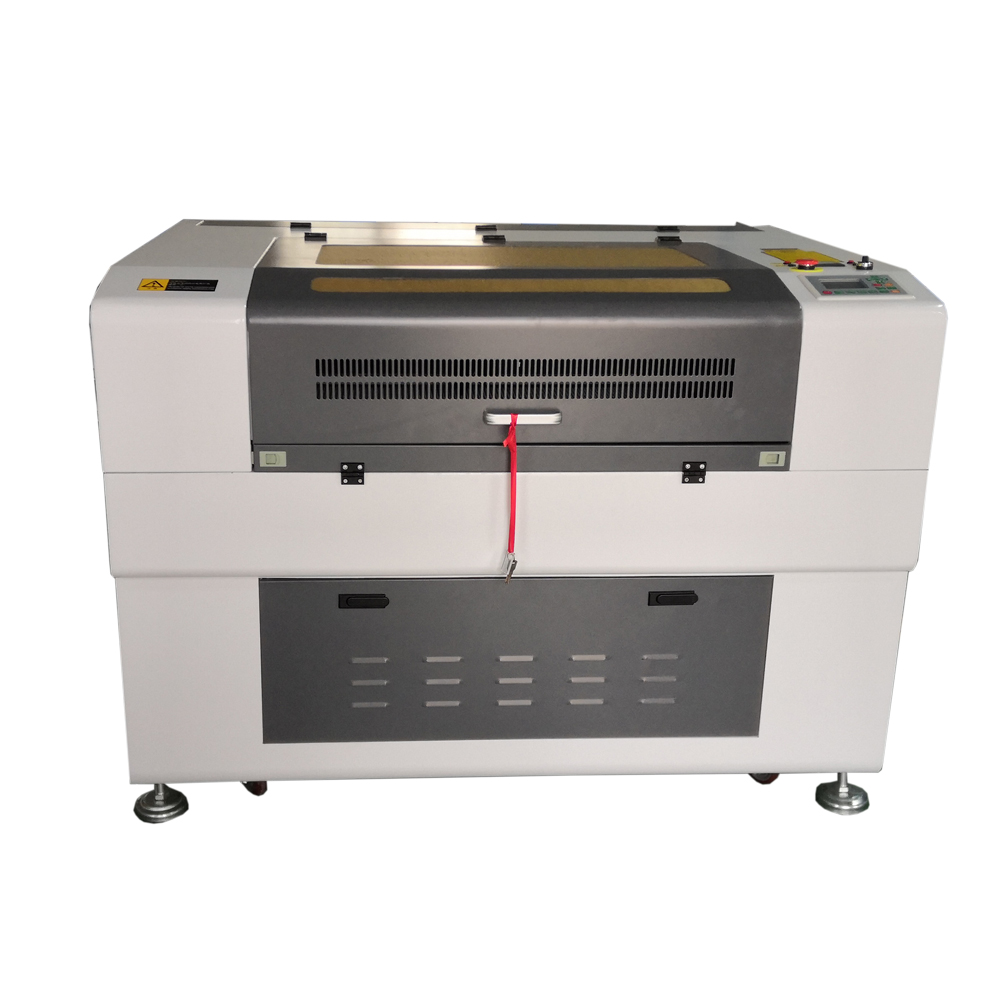

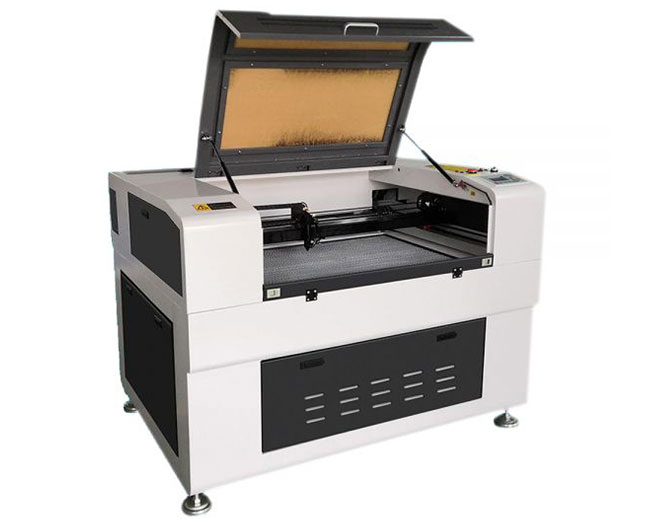

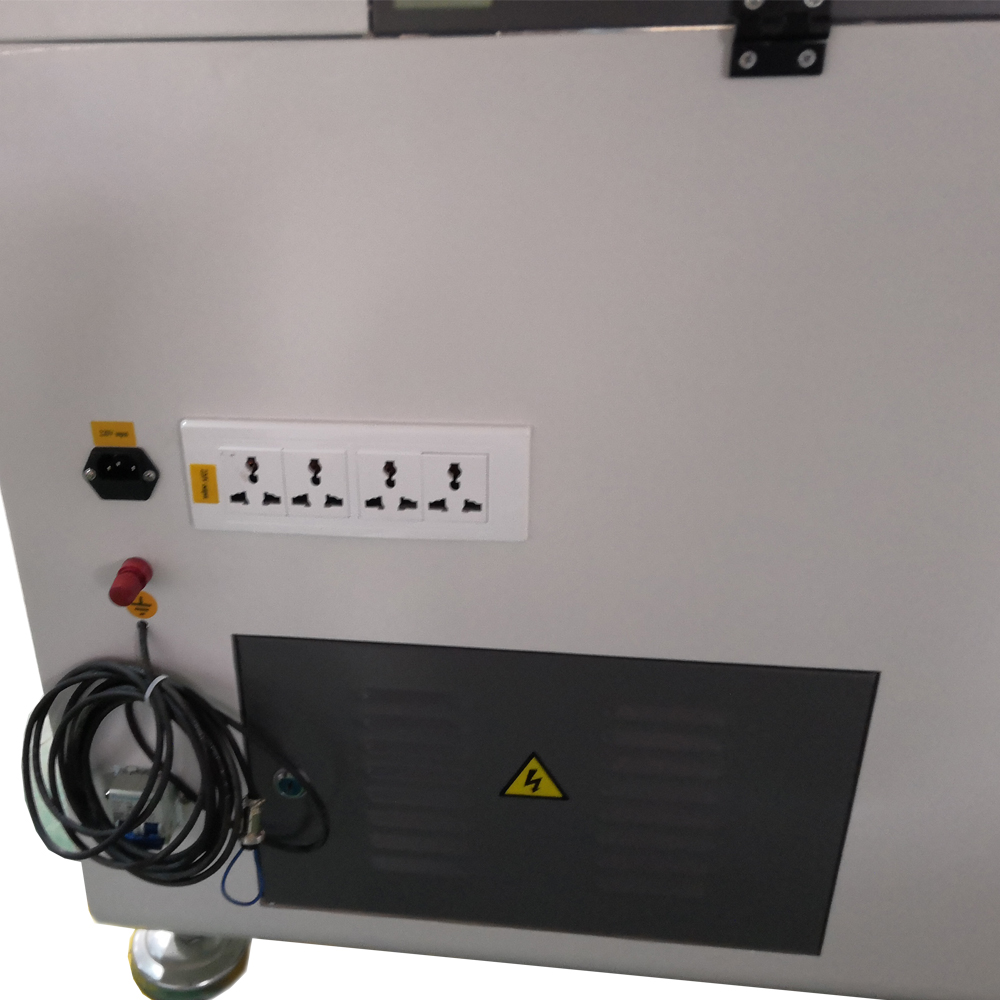

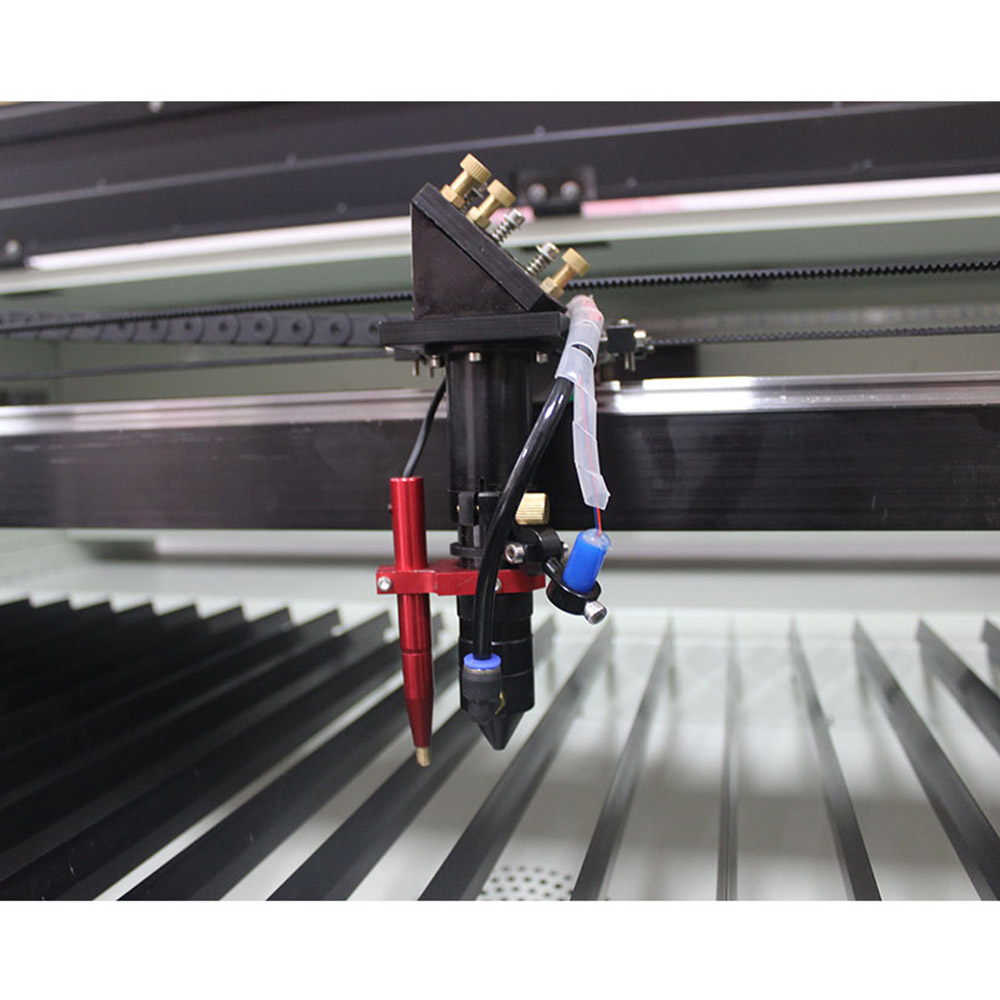

Details:

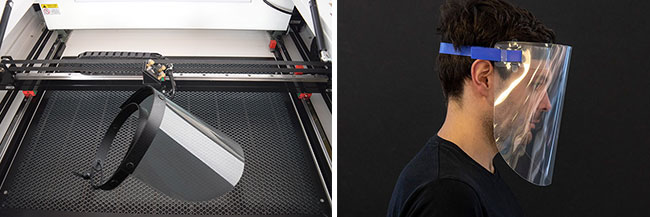

Sample:

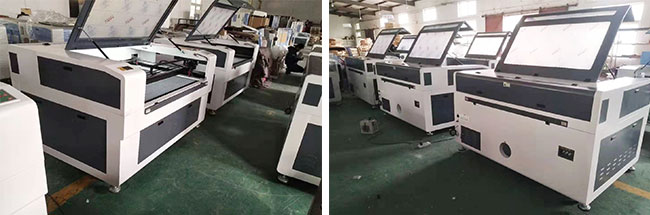

Exhibition Gallery

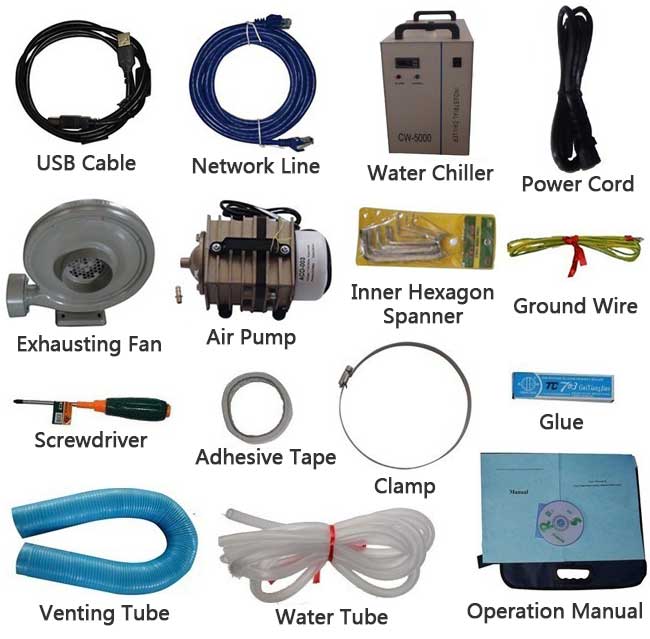

Package Included:

1 x Air Pump
1 x Water Chiller
1 x Set of Inner Hexagon Spanner
2 x Venting Tube
1 x Water Tube
1 x Screwdriver
1 x Power Cord
3 x Clamp
1 x Operation Manual
1 x USB Cable
1 x Ground Wire
1 x Screwdriver
1 x Glue
1 x Adhesive Tape
1 x Network Line
1 x Exhausting Fan
1 x Rotary Axis

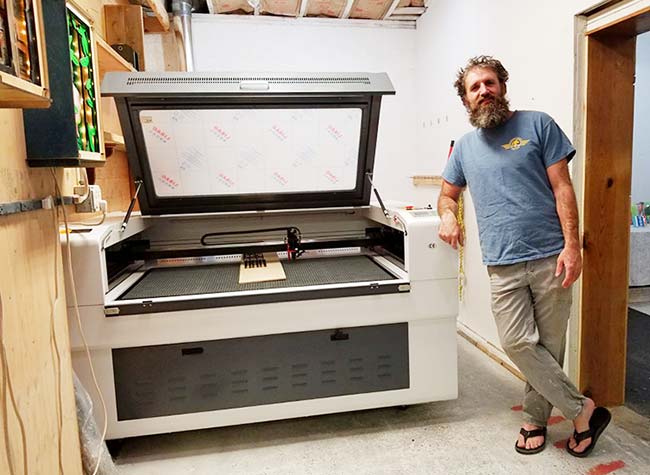

Customer's Case:
After doing lots of research, we choose sign in Global, because they can ship us within 24hours after payment, and they also accept paypal payment, which can guarantee our transaction is protected by paypal. We received the machine within 5 days after payment, they gave us professional and patient service, I really love their machine and their service, will recommend friend to buy from them.

I do not know how to express my great thanks to Sign-in-China.com, because they help me save lots of money and time during the last two years. I used to buy laser tube, lens, LED modules from this website. They always gave me reliable service. There are many kinds of promotion ways attracted me deeply.
Last year, I bought one 51" x 35" 1390 CO2 Laser Cutter from Sign-in-China.com. It works very perfectly. Look my fantastic jobs. I used three month for this month. This year, I plan to buy one automatic bending machine. Of course, I will choose Sign-in-China.com. It’s such a good website.


Specification
Laser Power  150W
Voltage AC110V±10%, 60HZ, 15A
Laser Type CO2 Sealed Glass 10.64 um
Working Area 1300 mm × 900 mm (54-1/4" × 35-1/2")
Worktable ± 20" Electric Up & Down Aluminum Platform
Worktable Honey Comb Table
Max. Engraving Speed 300 mm/s (11-3/4"/s)
Max. Cutting Speed 400 mm/s (15-3/4"/s)
Engraving Thickness 0 - 10 mm (0 - 3/8") depends on material
Cutting Thickness 0 - 10 mm (0 - 3/8") depends on material
Locating Precision ± 0.01mm
Resolution Ratio ≤ 1,000 dpi
Min. Character Size 1 mm × 1 mm
Min. Character Letter 2 mm × 2 mm
Operating Temperature 41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface USB 2.0
System Environment Windows XP/2000/7/8/10
Graphic Format Supported Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation Up To 256 Colors
Cooling Type Circulating Water Cooling and Protection System

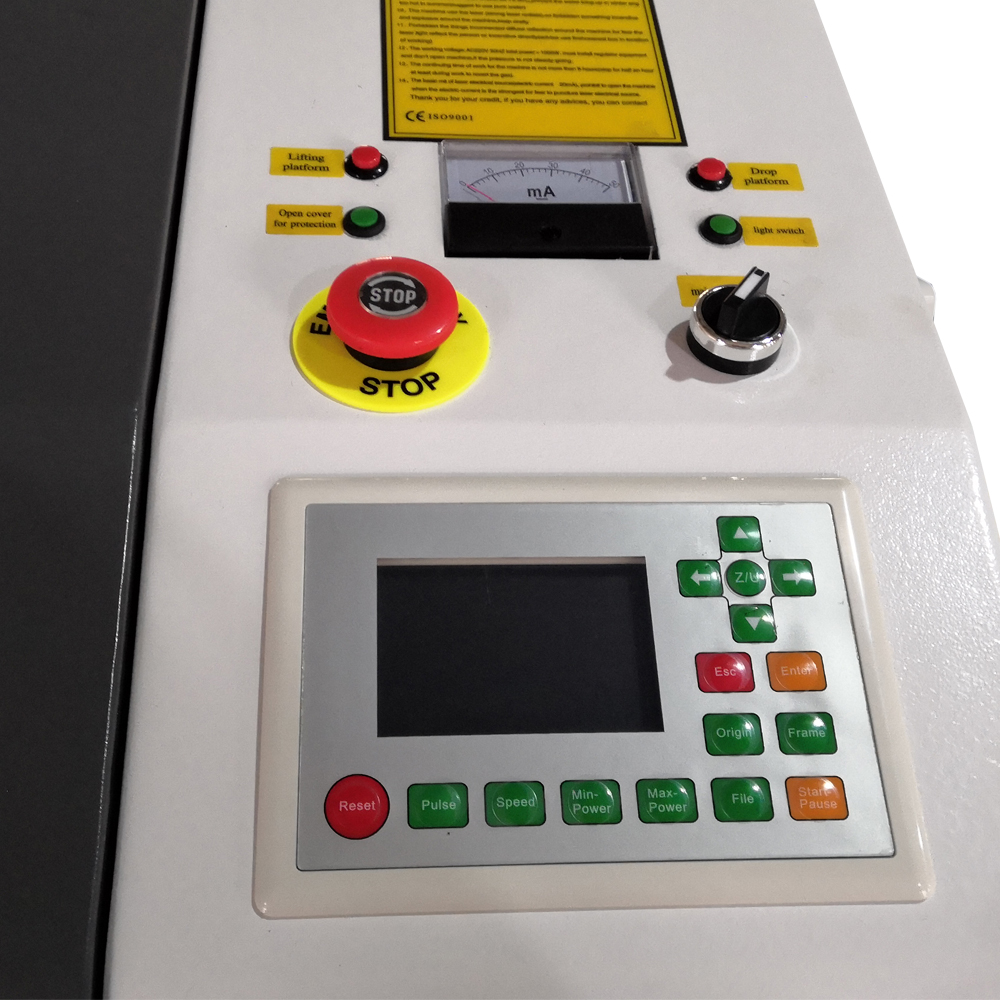

Control System RuiDa
Rotary Device Yes
Auto-focus Yes



Machine Dimension 1840mm x 1325mm x 1070mm(72.4in x 52.2in x 42.1in)
Shipping Dimensions 2100mm x 1435mm x 1290mm (82.7in x 56.5in x 50.8in)
Gross Weight 445Kg(981Ib)
Package Wooden Crate

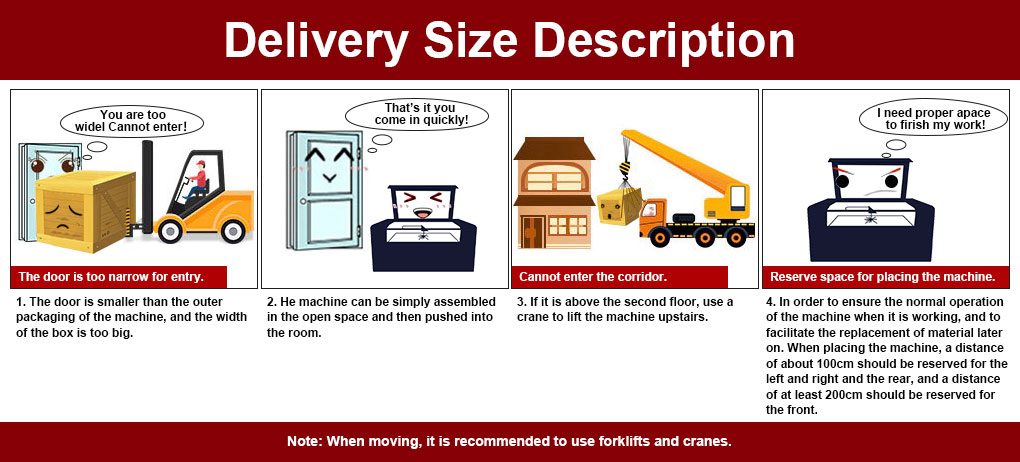

Installation of 1390 CO2 Laser Cutter
