2400W 6 Layers Floor Type Screen Printing Drying Cabinet Max Exposure size 23.6 x 35 in Screen Press Warming Machine
Application:
This machine is mainly used for (1) drying screen plate after screen degreasing; (2) drying screen plate after coating photosensitive emulsion; (3) drying the finished screen plate; (4) short-term storage in the dark after coating photosensitive emulsion; (5) it is suitable for drying and curing products at 50-70 ℃.
Features:
1.The machine can place 6 screen frames at the same time with the outside diameter of the frame 35.4"" /900 mm long,24"" /600 mm wide ; Each layer height: 2.4""/60 mm; Basically meet the needs of various materials and thickness screen plate; 5 stainless steel tubes with diameter of 16mm are used for each partition; Each with a spacing of 4.5""/115mm; Can be suitable for each layer of small screen plate placed drying.

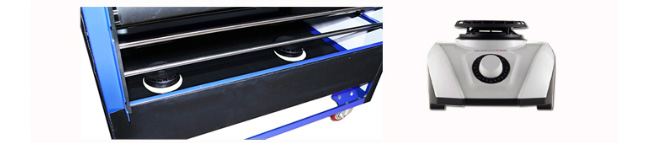

2. The heater uses two 1200W heat fans; The heat fan adopts PTC heating body and strong fan to turn the heat energy,high chemical efficiency; It has the function of timing and long opening.
After testing the machine; The ambient temperature is 0 ℃; After turning on for 5 minutes, the top temperature in the box is 60 ℃; Ambient temperature: 20 ℃; After starting for 5 minutes, the top temperature in the box is 75 ℃; Basically adhere to the mesh adhesive does not degum, photosensitive emulsion drying and polyester silk mesh suitable drying temperature.
Overheated summer can be used as needed only turn on a heater.

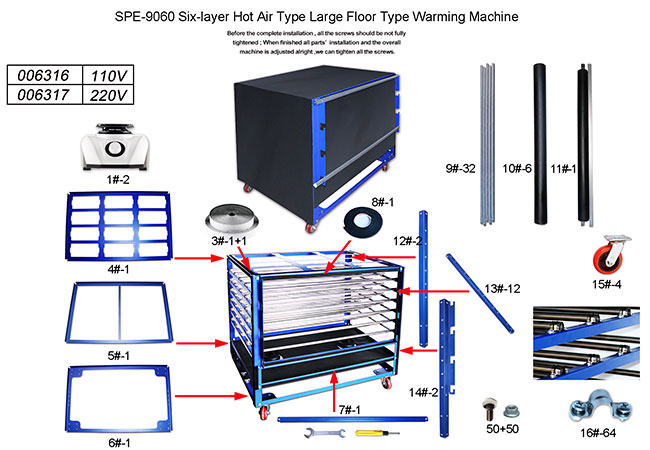

3. The whole machine adopts high temperature resistant full shading layer cloth, and adhesive nylon hook and loop fasteners is used to stick directly to the main frame . When it leaves the factory, hook and loop fasteners has been affixed to the main frame. During installation, stick hook and loop fasteners on the four sides of the layer cloth according to the label of each face in the instructions, and then buckle it directly with the hook and loop fasteners on the main frame.
4.The door curtain adopts the newly designed adjustable upper and lower type; take out the screen plate, the bar can be placed at any one of the four card slots according to the need. It can minimize the need to switch the curtain to avoid light.
5.The overall height of the machine is 36""/92cm (including casters of 4""/10cm);It can be placed on the ground for use; Users can also remove the lower caster to place on the table.
6.The overall height of the machine is 90cm (including casters of 10cm); It can be placed on the ground for use; Users can also remove the lower caster to place on the table.
Parameters:
Voltage: 220V/110V
Power: 2400W
Max frame size: 35" x 24" /90 x 60 cm
Max. amount of drying plate: 6 pieces
Highest temperature: 167℉(75℃)

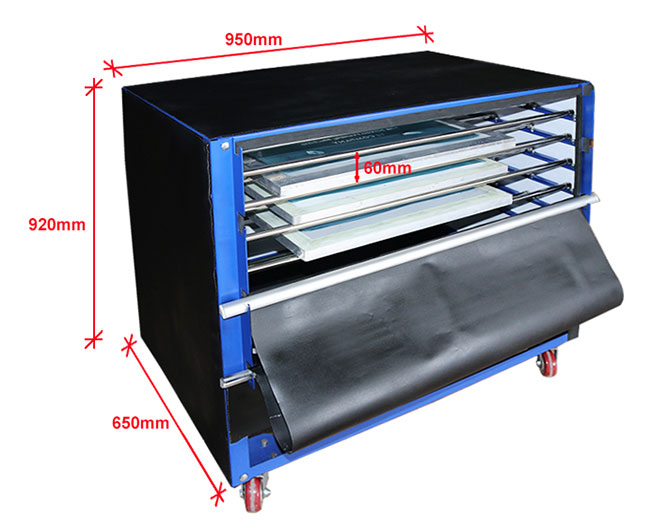

The machine size: 37.4"L x 25.6"W x 36"H /95 L x 65 Wx 92 H cm
Package:
Gross weight: 88 lb /40 kg
Packing size: 42.5 x 29 x 5.5 inch/108 x 74 x 14 cm
