CALCA 50W Split Fiber Laser Marking Machine for Laser Engraving Tumbler, JPT Laser + Rotation Axis, FDA
Buy It Now


CALCA 50W Split Fiber Laser Marking Machine for Laser Engraving Tumbler, JPT Laser + Rotation Axis
Product Details:

Rotary Fixture
Can clamp the part and support the circle surface marking, cylindrical objects with diameter of 2-10cm. such as the popular stainless steel travel cup marking.Goggles
It can protect the eye from 1064nm laser waves, making the operation safer.
Accessories list:

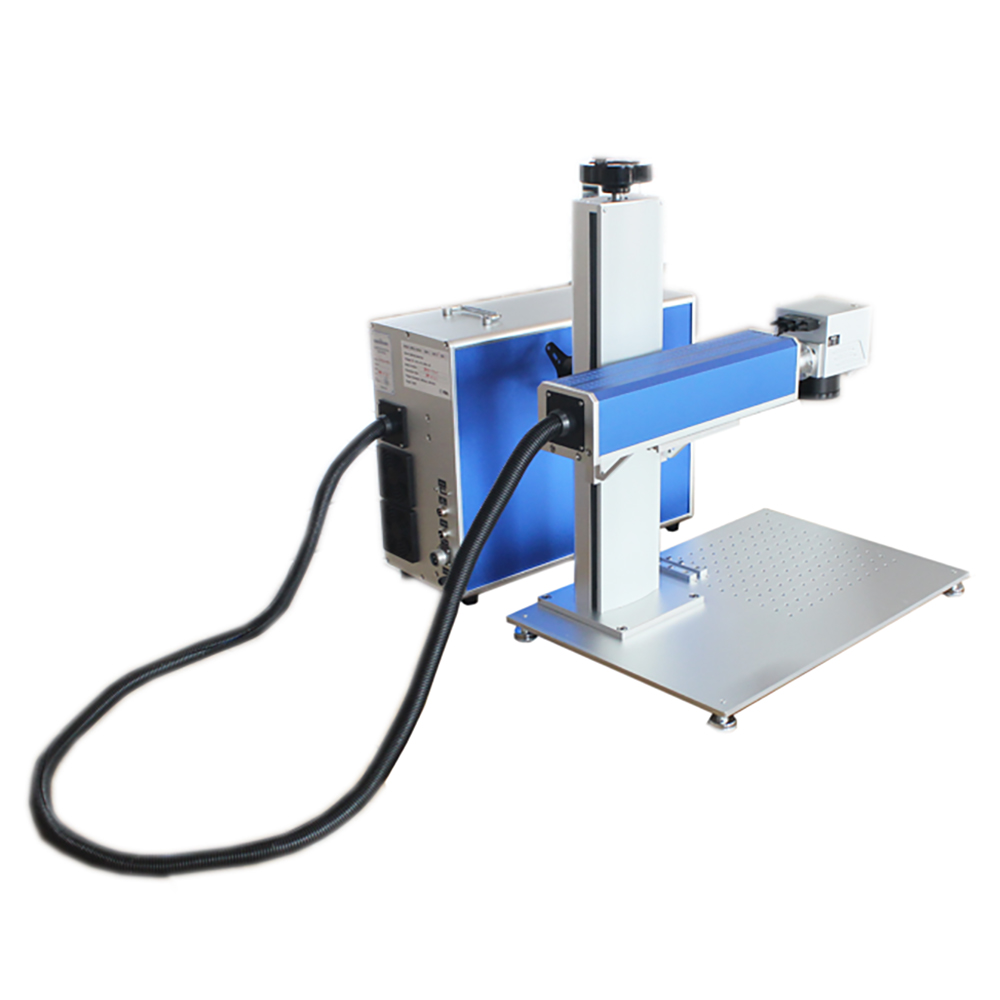

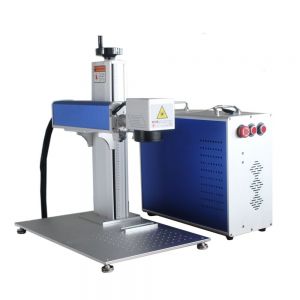

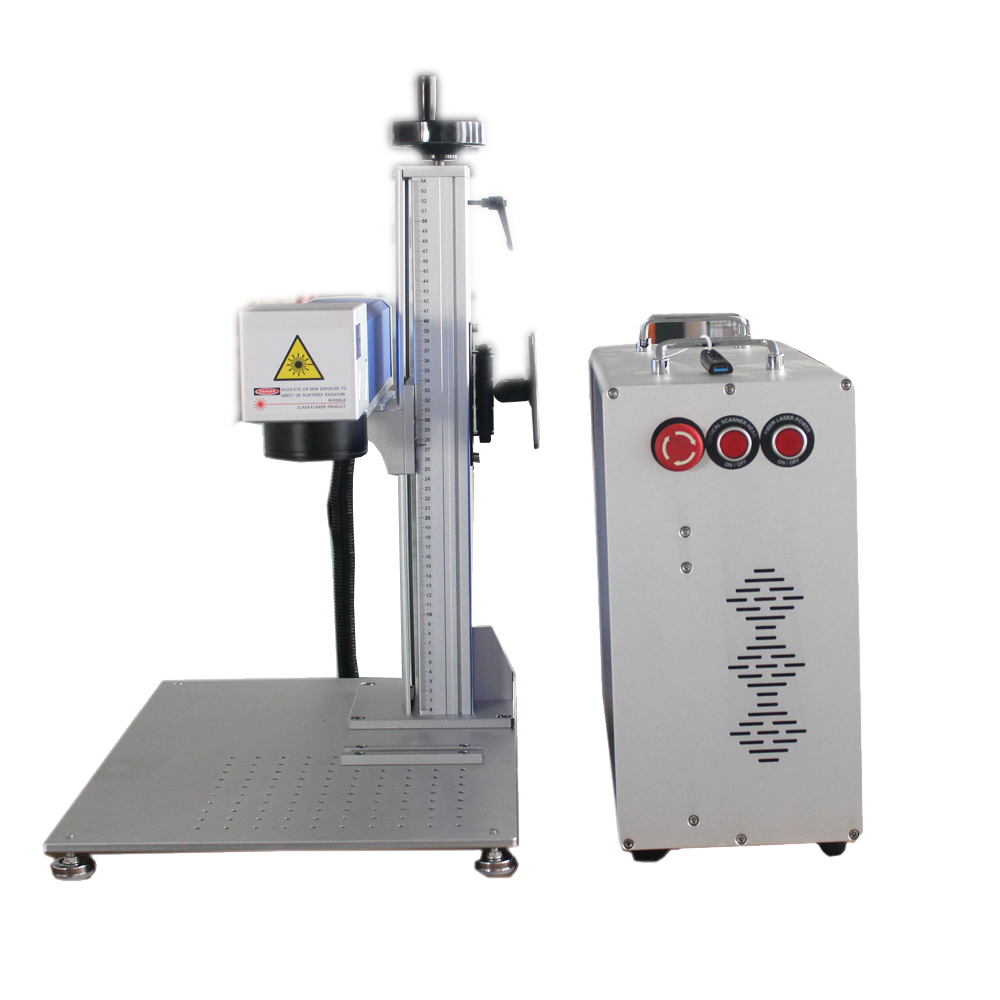

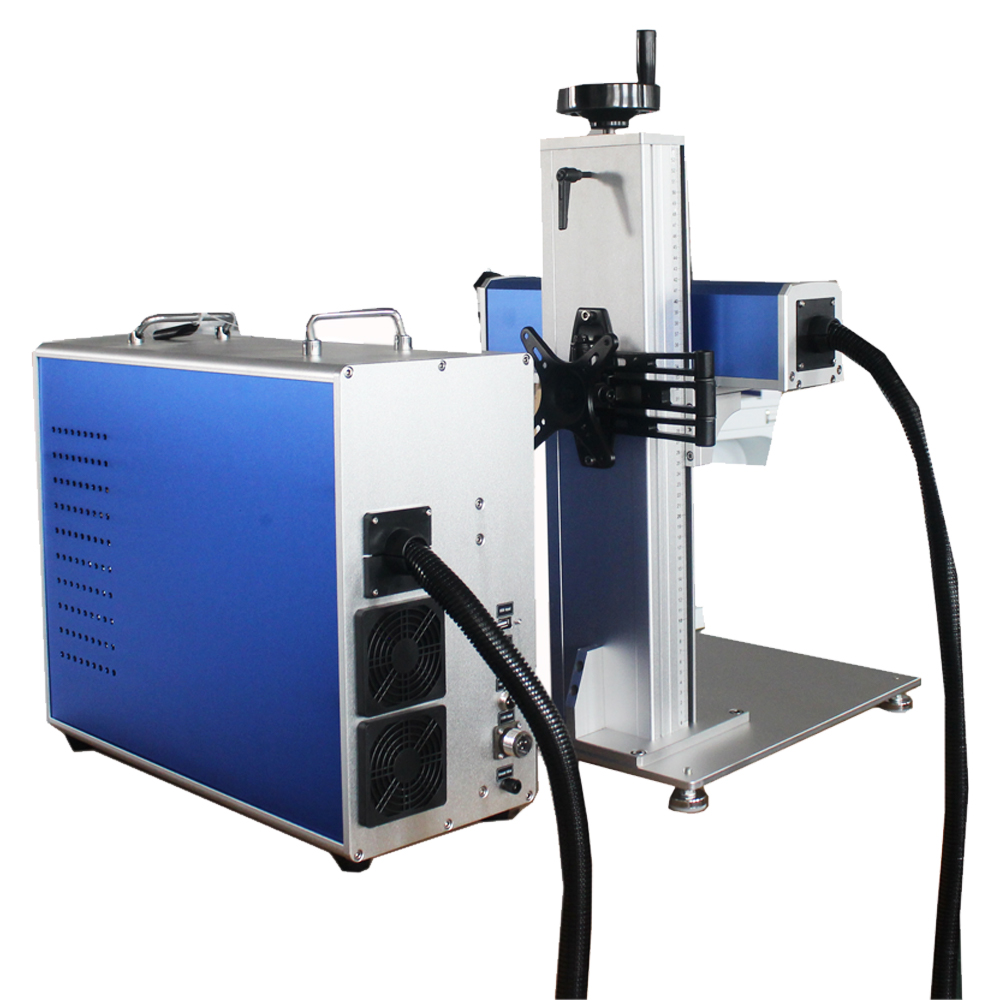

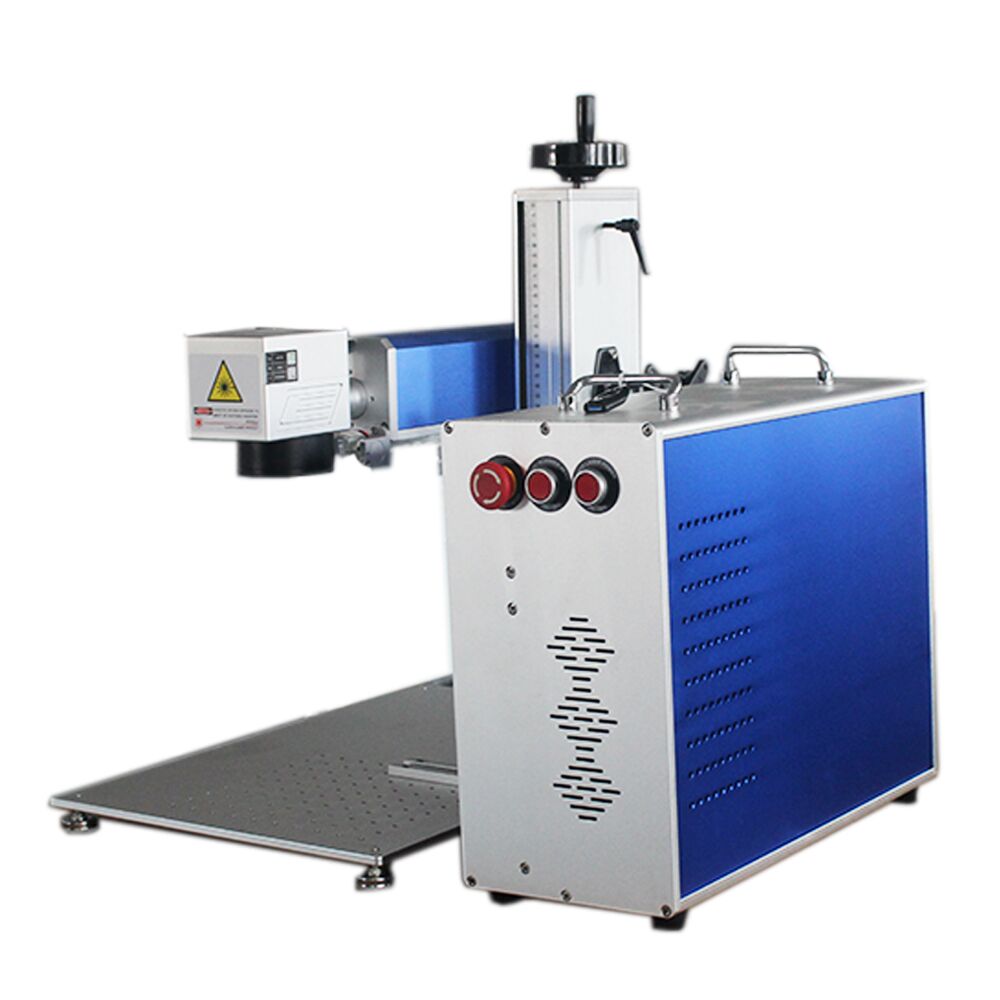

Fiber Laser Marking Machine mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable.

Name Origin (brand) Remarks
Optical Laser JPT Long service life, high reliability, fine beam quality
Galvo mirror Galvo-tech (digital) Fine marking, more quick and high reliability

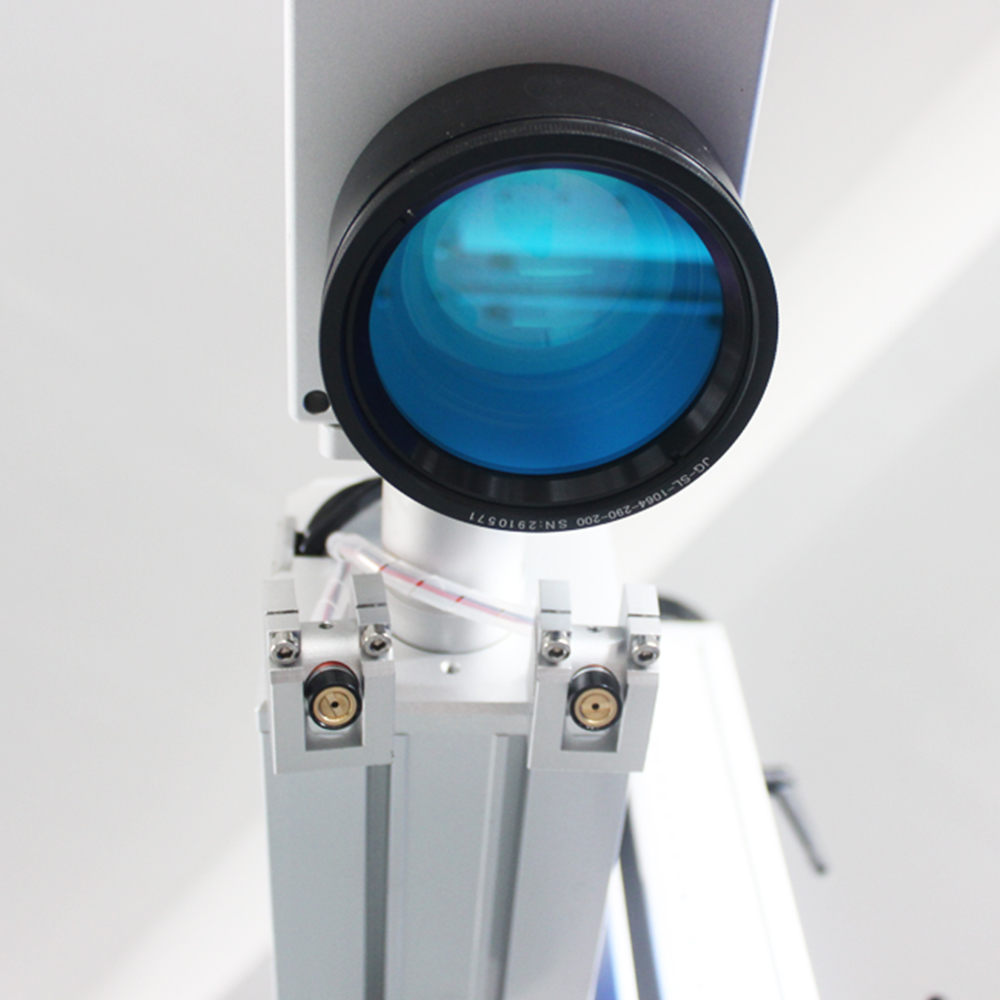

F-θ lens Wavelength High quality optical device
Board bjjcz 2.12.0 version
Marking software Ezcad software Powerful, simple and convenient operation, Auto-cad, CorelDraw, AI8.0, Photoshop software compatible form
Control cabinet China Optical fiber special cabinet, all the mold production, high seal

Feature:
1. Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
2. Life of the laser can be up to 100000 hours.
3. Compact, lightweight, simple interface, flexible and adjustable processing direction.

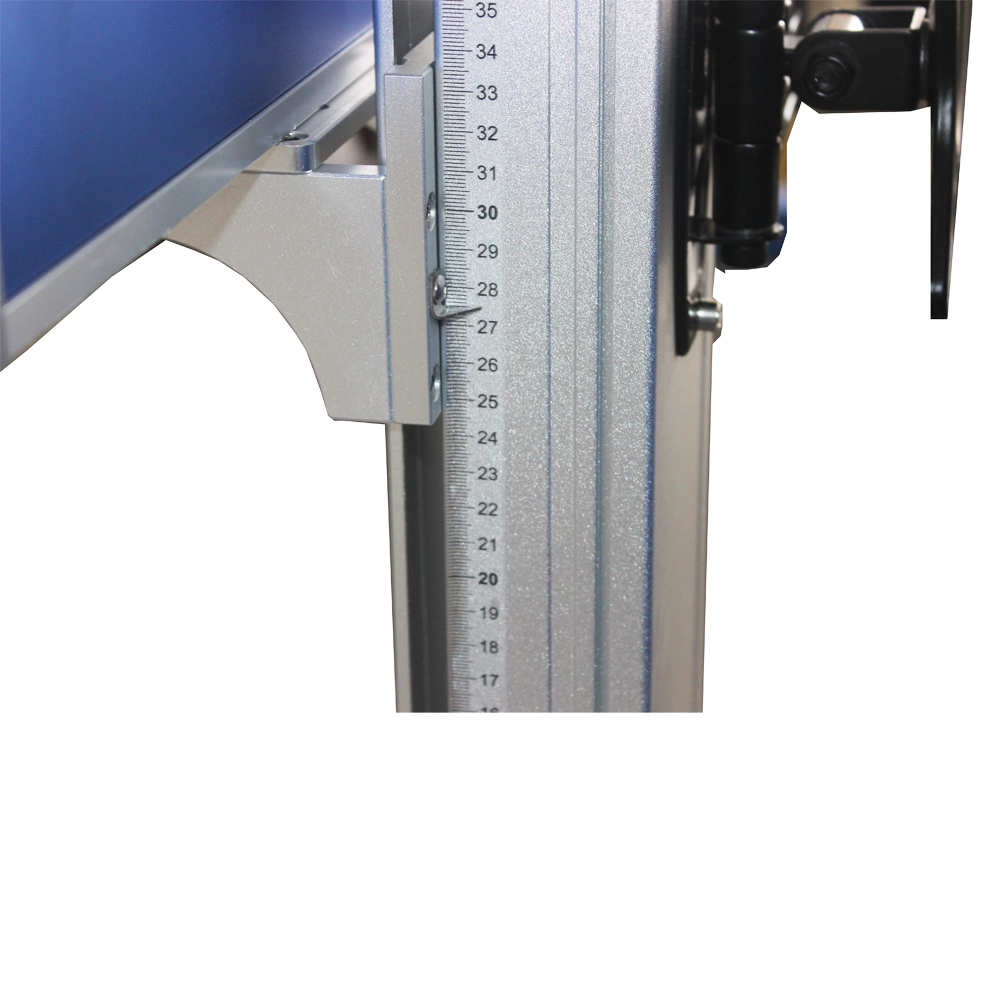

4. High precision scale
5. Runs without consumable spare parts, no need maintenance, great for continuous working.
6. Computer System Requirements: Win7, Win8, Win10
7. Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
8.Rotary axis is included, you can mark on regular cylinder or inside / outside ring.

Customer's Case:
Application Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Fiber Laser Machine Applied Materials
Metal Non-metal
Aluminum Makrolon Polycarbonate
Stainless Steel Black / White ABS
Copper Nylon
Silicon Steel Polysulphone
Yellow Chromate Aluminum Rynite PET
Brass Santoprene
Nickel Plated Brass / Gold / Kovar / Steel Sillicon Carbide
Nickel Plated 1215 Mild Steel Glass Filled PTFE Coated Fiberglass
Hard Coat Anodized Aluminum White PEEK
Machine Tool Steel Glass Filled PEEK
Metal Plated Ceramics Silicon Wafers
Magnesium Carbon Nanotube
Molybdenum Colored Delrin
Carbon Fiber / Carbon Nano tube GE Plastics Polycarbonate Resin 121-R
Clear coat anodized aluminum Polybutylene Terephthalate
Cobalt Chrome Steel
Compacted Powder Iron / Iron Phosphate Coating

1. Aluminum
Aluminum is one of the most commonly marked substrates, and we use it in many industries. Typically, with lighter marking intensity, aluminum will turn white. anodized aluminum looks good , but white marking is not ideal for bare and cast aluminum. More intense laser settings provide a dark grey or charcoal color. Each DLM fiber laser engraving machine is capable for aluminum marking. The ideal system for your application depends on your laser marking requirements. Ablation is the most common marking technique for anodized aluminum, but some people call for etching or engraving.
2. Brass and copper
Brass and copper have high thermal conductivity and thermal transfer properties. So we use it for wiring, printed circuit boards and pressurized flow meters. Their thermal properties are ideal for laser marking systems for metal because the heat is quickly dissipated. This reduces the impact the laser can have on the structural integrity of the material. Every DLM fiber laser engraving machine is capable of marking on brass and copper and the ideal system for your application depends on your marking requirements. The best marking technique depends on the finish of the brass or copper. Smooth surfaces can offer a soft polished marking affect, but also can do annealed, etched, or engraved. Etching or engraving is best in order to provide readability by humans and machines. In some cases a dark anneal can work, but surface irregularities can cause reduced readability.
3. Tungsten and Carbide
Tungsten and Carbide are two of the hardest metals on earth and are widely used in tooling and cutting applications. Another popular segment for these substrates is wedding bands for men. Tungsten and carbide are receptive laser marking metals and laser engraving metals. Each and every DLM Laser series is capable of marking on tungsten and carbide and the ideal system for your application depends on your marking requirements. For carbide, because of the darker color it naturally has, getting a contrasting mark is rather easy with even light laser intensity. A white color is most common when polishing or annealing carbide and the contrast is extremely good.
4. Chrome
Chrome plating provides a stylish and sophisticated finish, and usually requires minimal laser intensity to remove or get through the plating. we need take ensure the marking happens on the surface only, with no impact to the chrome plating.

Specification Form

Model

LMM-F-50W-JPT

Fiber Laser Source

JPT

Output Power

50W

Laser Wavelength

1064nm

Modulation Frequency Range

1-600kHz

 Pulse Duration

200ns

Speed

0-8000mm/s

Precision

0.001mm

Minimum Line Width

0.01mm

Minimum Height of Characters

0.05mm

Cooling Way

Air cooling

Marking Range

200x200mm (7.9inch x 7.9inch)

Laser Power Supply

0.5KW, 110V / 60HZ

Software

Auto-cad, CorelDraw, AI8.0, Photoshop software compatible

Graphic Format Supported

AI / BMP / DST / DWG / PLT

Rotary Device

Yes

Weight 35kg (77lbs)

Computer System Requirements

Win7, Win8, Win10
Machine Dimension  70 x 20 x 50cm (27.9 x 7.9 x 19.7in)
Machine Weight  35kg (77.16lb)
Packing Size  85cm x 52cm x 85cm (33.5in x 20.5in x 33.5in)
Packing Weight  59kg (130lb)
Package  Wooden box
Accessories List  Power line, USB wire, software and manual
