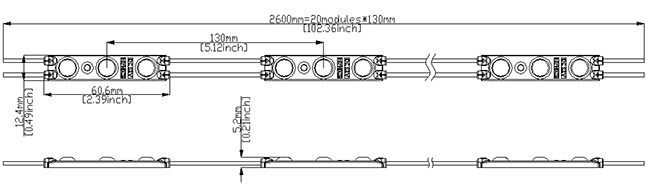

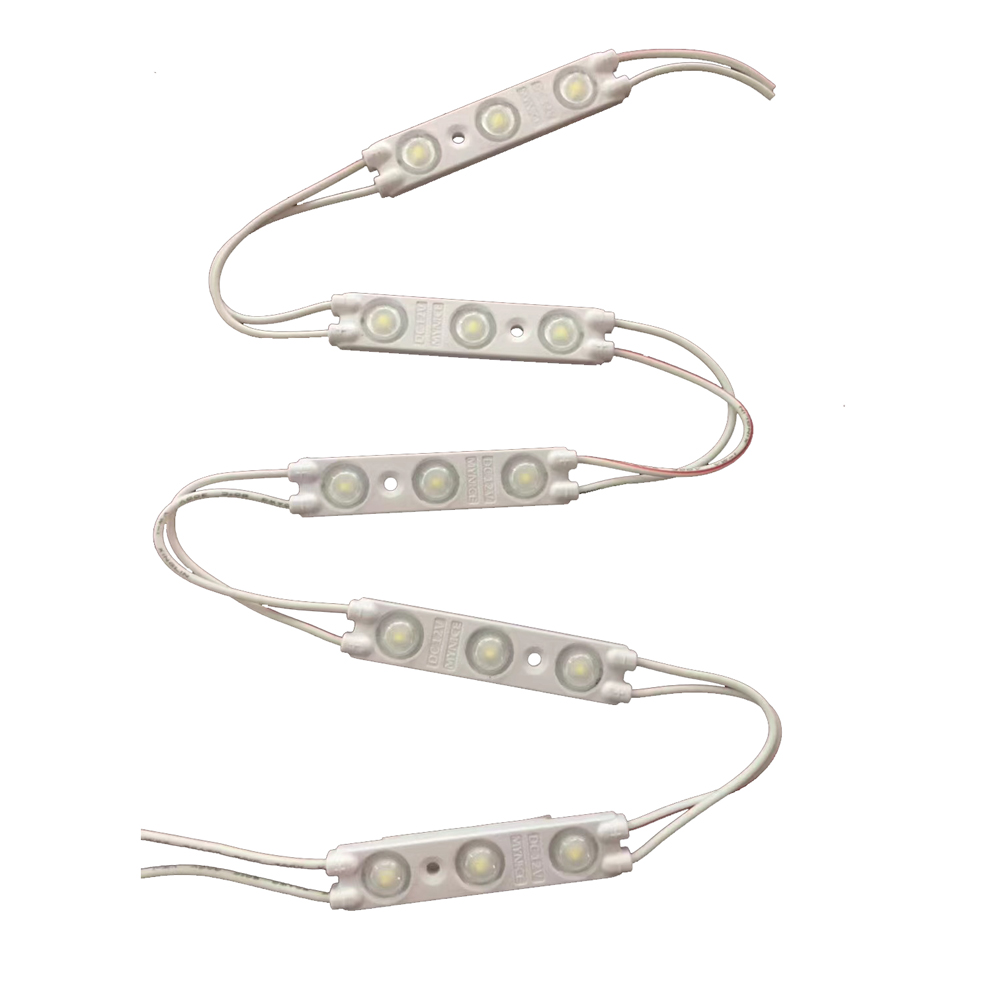

200pcs/pack UL SMD 2835 Waterproof LED Module (3 LED High Power Chips with Optical Lens, White Light, 1.2W, L60.6 x W12.4x H5.2mm) Designed for Internal Illumination of Signs

10%
OFF

  • 200pcs/pack UL SMD 2835 Waterproof LED Module (3 LED High Power Chips with Optical Lens, White Light, 1.2W, L60.6 x W12.4x H5.2mm) Designed for Internal Illumination of Signs
  • 200pcs/pack UL SMD 2835 Waterproof LED Module (3 LED High Power Chips with Optical Lens, White Light, 1.2W, L60.6 x W12.4x H5.2mm) Designed for Internal Illumination of Signs

See larger image and other views (with zoom)

200pcs/pack UL SMD 2835 Waterproof LED Module (3 LED High Power Chips with Optical Lens, White Light, 1.2W, L60.6 x W12.4x H5.2mm) Designed for Internal Illumination of Signs

Arrival in 1-2 weeks.

   |   17 Transactions

Item Code:LEDM-MNS-M23GW28A-200-US

  • Unit Price : $46.00/pack

  • Sale Price : $41.40/pack You Save : $4.60/pack (10%)

  • Please choose
    LA Warehouse
  • Quantity: pack(s) Total Cost: USD $41.40
  • Expedited Shipping: About 3-5 business days to Houston.

  • Ship out within 24 hours(Working time: Monday to Friday)  Ship out within 24 hours(Working time: Monday to Friday).

  •   Free shipping on orders over $800 (Except for AK, HI, PR, APO/FPO, Canada and Mexico.)

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

Features

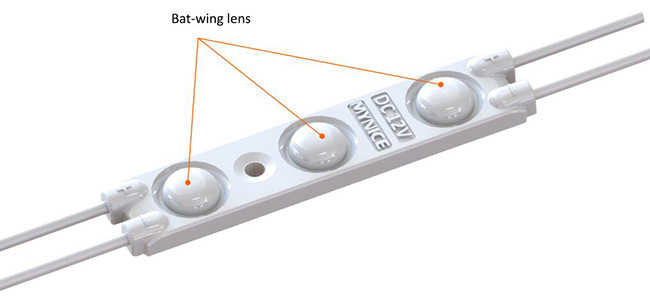

1. Good optics (bat-wing lens) design to achieve good optical performance
2. 3 years warranty
3. 12VDC
4. 95 lm/W

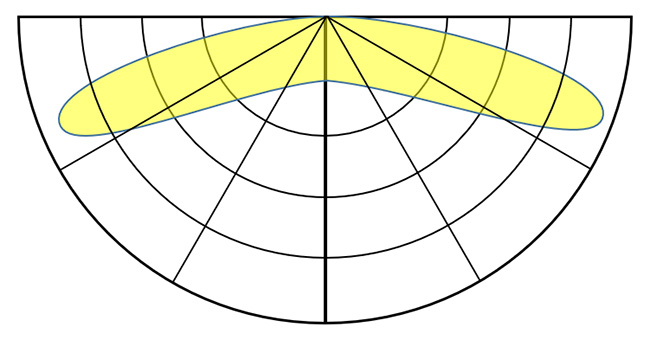

5. Beam angle 155°
6. CE marked and UL listed
7.Color temperature:6000-7000K

Areas of application

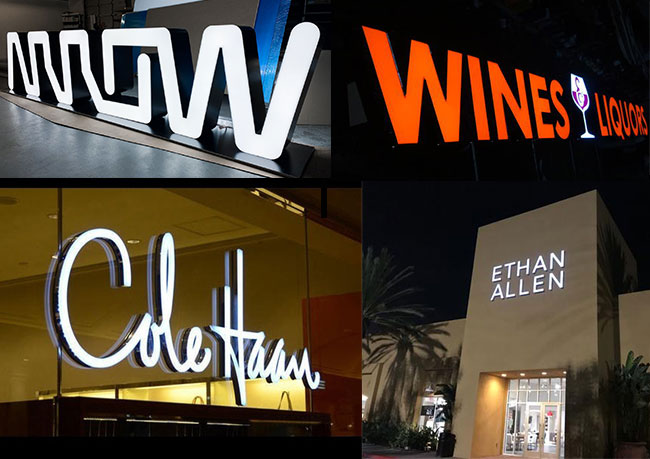

1. Signage and illuminated advertising
2. Backlighting of channel letters and light box
3. best for 50mm to 250mm depth (2inch to 10inch)

Additional product information

1. Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.
2. Installation by qualified electrician only.

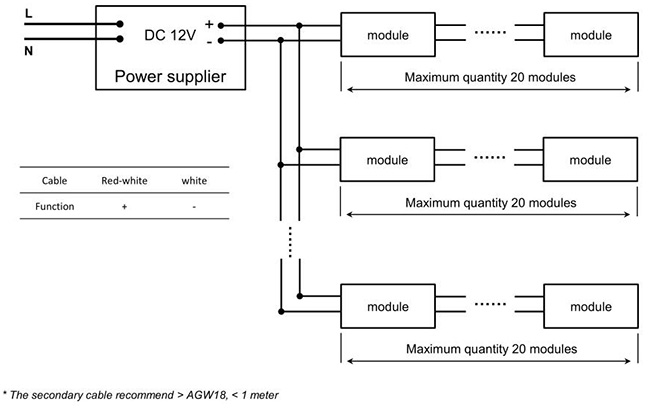

3. Parallel connection is mandatory for safe electrical operation. Serial connection of LED modules is discouraged. Unbalanced
voltage drop in serial connection can cause hazardous overload
4. Electrical contact is achieved with the contact cables or the terminals of the module. Please refer to the technical data for
maximum number of LED modules that can be operated on one control gear.
5. To avoid mechanical damage, the LED modules have to be attached securely to the intended mounting surface. It is
recommended to avoid heavy vibration.
6. LED modules are dimmable by means of PWM (pulse width modulation).
