Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the accessories box before running the chiller.

Warm Tips:
The water chiller is delivered without a power plug, connection to the electrical power source shall be done by a licensed electrician. The electrician can either install a suitable amperage, phase and voltage rated plug for whatever country the unit is being installed.
Description:

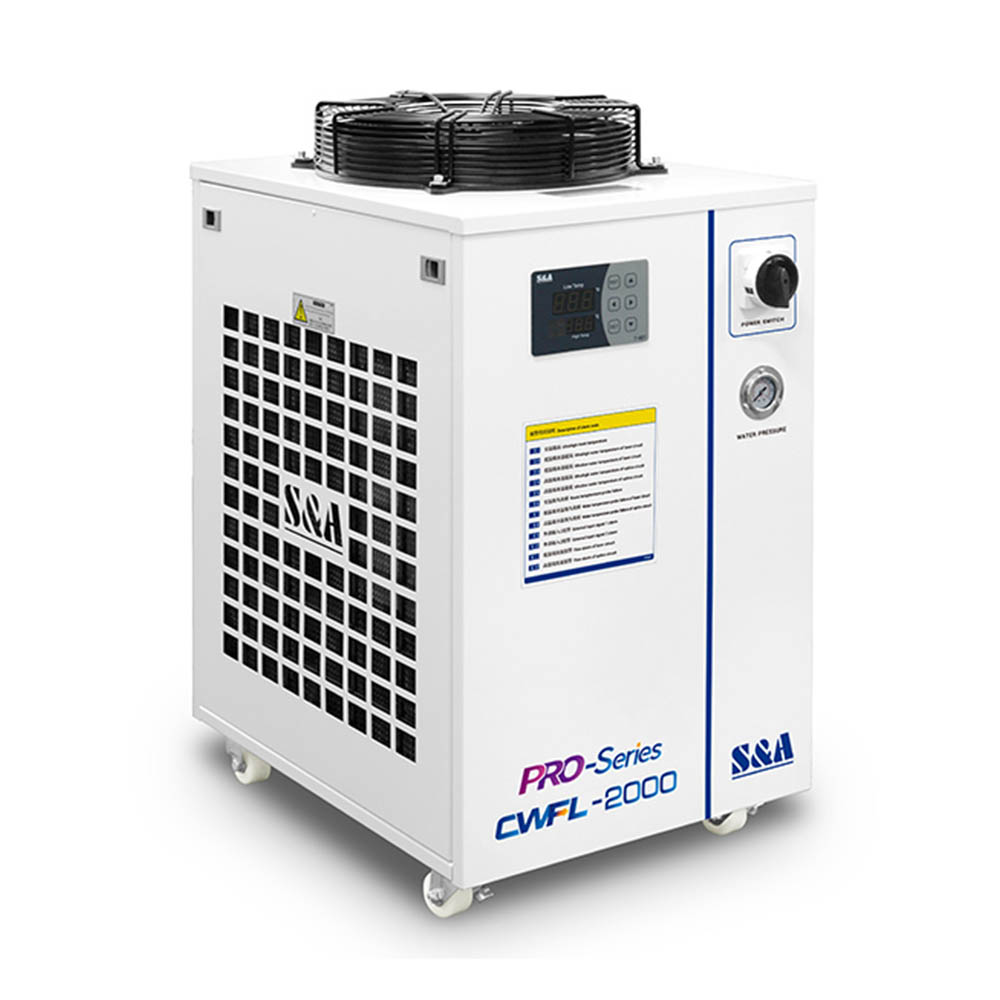

S&A compressor refrigeration industrial water chiller CWFL-2000 with dual temp control function is produced by Guangzhou Teyu Electromechanical Co., Ltd. Our brands"S&A" and "TEYU" have gained approval and trust from thousands of manufacturer at home and abroad which enables our product export rate maintained at over 60% in long-term.
S&A CWFL series chiller is special for cooling Raycus, IPG, Max, nLIGHT, trumpf, Rofin and SPI fiber laser.
CWFL-2000 chiller is special applied for cooling 2000W fiber laser which is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features:
1. 6500W cooling capacity; optional environmental refrigerant;
2. ±0.5°C precisely temperature control; The temperature range of S&A chiller is 5°C to 35°C, the controllable lowest water temperature depends on the heat load of cooled machine and cooling capacity of chiller. However, S&A suggest the best running temp is 20°C to 30°C for the chiller;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE, RoHS and REACH approval;
8. The chiller supports the Modbus-485 communication protocol, which can realize the communication between the laser system and multiple chillers. It can mainly realize two functions: to monitor the working state of the chiller and modify the parameters of the chiller;
9. Long working life and simple operation; Optional heater and water filter.
SPECIFICATION
Model |
CW-FL-2000BNPTY |
Voltage |
AC 1P 220~240V |
Frequency |
60Hz |
Current |
3.9~19.9A |
Power consumption |
3.84kW |
Heater power |
550W+600W |
Precision |
±0.5℃ |
Reducer |
Capillary |
Pump power |
0.75 KW |
Tank capacity |
14L |
Inlet and outlet |
Rp1/2"+Rp1/2" |
Max. Pump pressure |
5.3bar |
Max. pump flow |
2L/min+>20L/min |
N.W |
69Kgs (152lb) |
G.W |
81Kgs (178.6lb) |
Dimension |
70cm x 47cm x 89cm(27.6" x 18.5" x 35") |
Package dimension |
730mm x 570mm x 1050mm(29" x 22.4" x 41") |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
PRODUCT INTRODUCTION

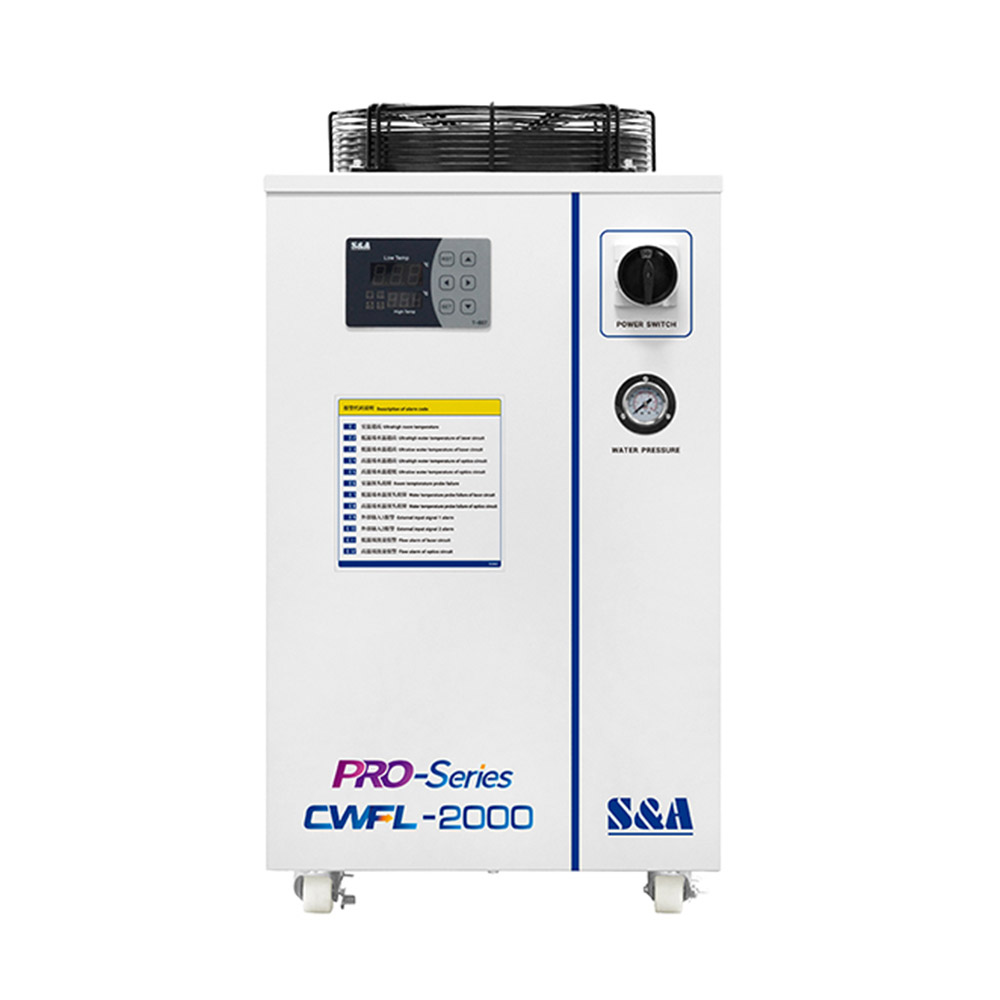

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

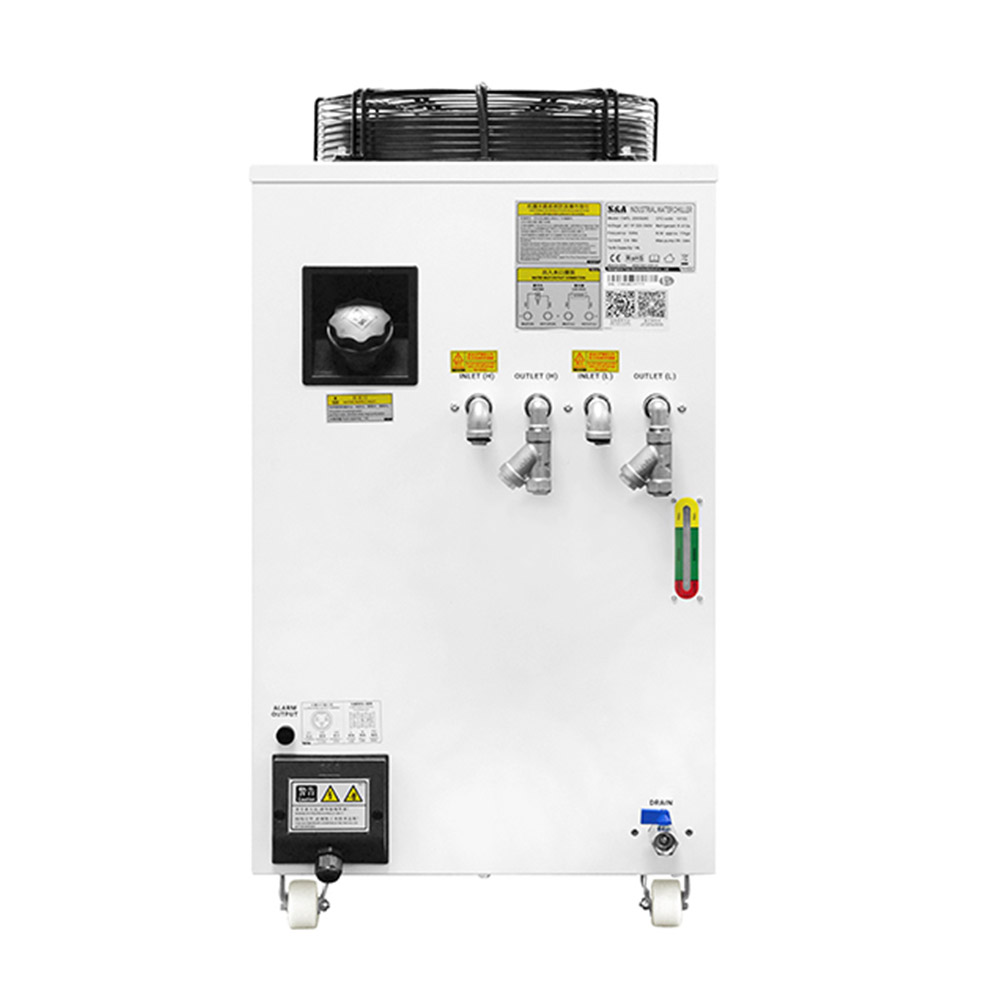

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
