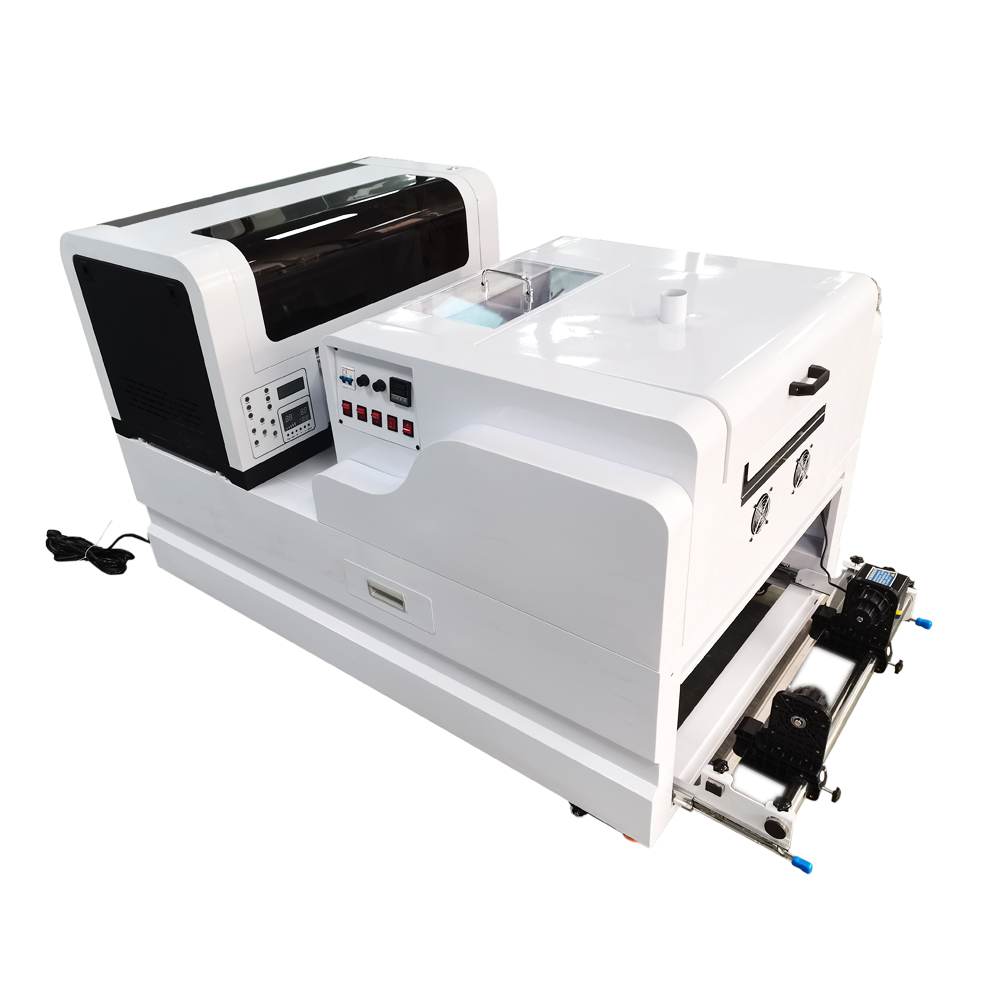

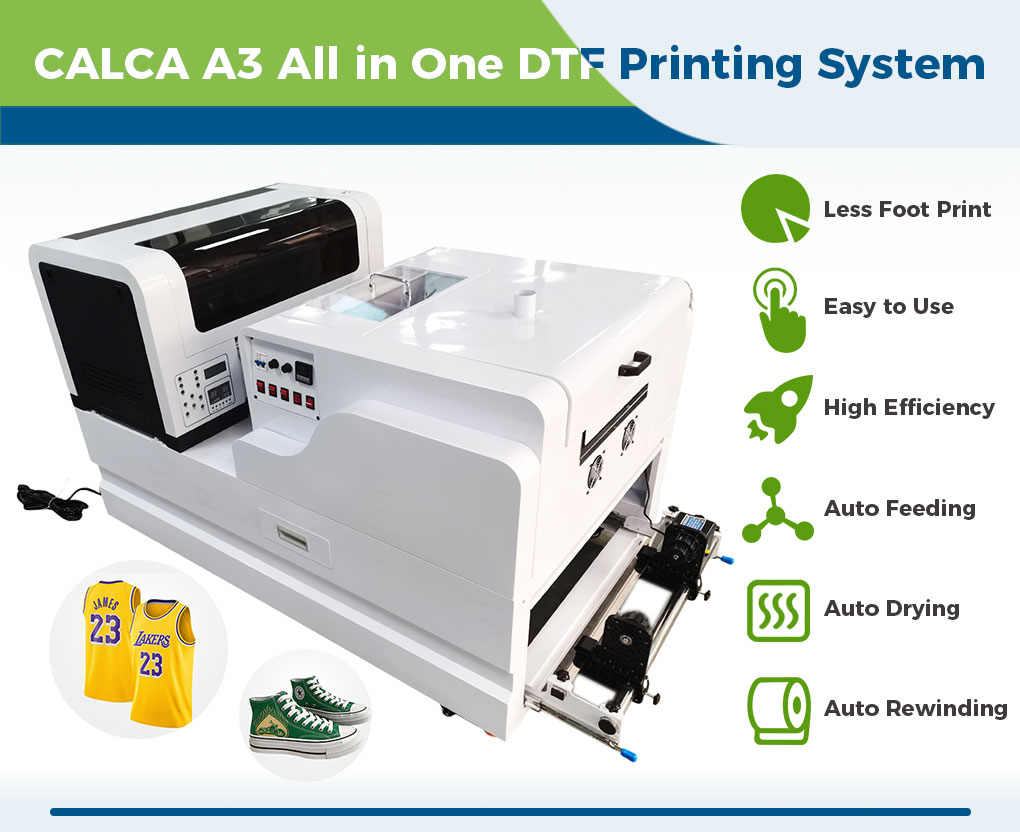

CALCA Legend A3 All in One DTF Printing System with High Speed DTF Printer (Dual Epson I3200-A1 Printheads), Powder Shaker and Dryer
CALCA DTF printing system is an automated print, powder and curing machine used to create direct to film transfers.
Equipped with 2 Epson i3200-A1 heads, more heads equal more speed.
These transfers can be heat applied to many items including shirts, hats, shoes, bags, leather, wood, denim, canvas and much more.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
Technical Specs:
Maximum print width: 11.8in (300mm)
Maximum media width: 13.4in (340mm)
2pcs Epson I3200-A1 Printheads (CMYK - WWWW)
4 Pass 6 Pass and 8 Pass Print Resolution
Speed: 4 pass: 9m²/ h; 6 pass: 6m²/ h; 8 pass: 4m²/ h
500ML per color ink bottle capacity
Printing Software: Flexi PhotoPrint Rip
Printing Resolution: 360 x 1800dpi; 360 x 2400dpi; 360 x 3600dpi
Print Head Cleaning: Automatic
Printer Size: 38.6 x 25.6 x 20.9in (98cm x 65cm x 53cm), 198lbs (90kg)
Shaker Size: 62.9 x 38.6 x 37.8 in (160cm x 98cm x 96 cm), 220lbs (100kg)
Packing Size: 65in x 41in x 43in (166cm x 104cm x 110cm)
Gross Weight: 572lbs (260kg)
Requirements:
A/C 110v 36amps. 2 Dedicated circuits (1 for printer and 1 for dryer), total 4000W.
Climate control set to 70-75 degrees and 40 - 60% humidity.
Typical learning time is 6 - 20 hours over a period of 1 week.
Vent to the outside. You’d better equip one fume extractor filter.
Remarks:
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.
Features:
·DTF Printer: Adjustable suction platform, LED lighting, white ink supply system with alarm and circulation function, one button automatic cleaning function, integrated lifting type ink lamp. LCD + multi-function button panel.
· Cold air cooling, automatic winding.
· Perfect print effect, wide applications.
· Sharp vibrant images, eye-popping print effect.
· Pattern will be washable, soft to the touch, and stretch without cracking.
· Any fabric textile cloth material, any color, any part printing.
· This serial of CALCA dtf printing system is with a productivity output 200% of DTG systems. With robust and reliable Epson I3200 engine and professionally assembled and enhanced, it produces durable and intense color prints. This next-gen printhead technology offers 20-30% improved printhead accuracy and lifespan as compared to previous versions.
The DTF Process:
Applications:
Samples:







Total DTF Solutions:



Specification |
A3 Plus DTF Printer |
Maximum print width |
11.8in (300mm) |
Maximum media width |
13.4in (340mm) |
Print head |
2 Epson i3200-A1 heads (CMYK WWWW) |
Software |
Photoprint RIP Software |
Media roll core diameter |
3in |
Suitable media |
DTF PET film |
Heating and drying function |
Front guide plate heating, solidified upper drying, and cold air cooling function |
Printing speed |
4pass: 10m²/h |
6pass: 6m²/h |
8pass: 4m²/h |
Printing accuracy |
360 x 2400dpi, 360 x 3600dpi, 720 x 2400dpi (4Pass, 6Pass, 8Pass) |
Print head cleaning |
Automatic |
Heating method |
Front guide plate heating (30~65°C) |
Platform suction adjustment |
Yes |
Working environment |
Temperature 20~35°C; Humidity: 35%RH-65%RH |
Relative humidity |
40-60% |
Software |
Photoprint RIP Software |
Operating system |
XP/ Win7/ Win10 |
Rewinding function |
Automatic Induction Rewinding |
Rated power |
1200W |
Rated current |
10A |
Rated voltage |
AC 110V, 50/60HZ |
Printer size(L x W x H) |
38.6 x 25.6 x 20.9in (980 x 650 x 530mm) |
Net weight |
198lbs (90kg) |
Powder Shaker and Dryer |
Maximum media width |
13.4in (340mm) |
Applicable medium |
Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Dving Suit, PVC, EVA, etc. |
Function item |
Shake Powder Control, Dusting Control, PID Setting of Curing Temperature |
Heating and drying function |
Far Infrared Carbon Fiber Heating Tube Heating |
Rewinding function |
Automatic Induction Rewinding |
Rated voltage |
AC 110V, 50/60HZ |
Rated current |
26A |
Rated power |
2800W |
Machine size (L x W x H) |
62.9 x 38.6 x 37.8 in(160 x 98 x 96 cm) |
Net weight |
220lbs (100kg) |
6 Month Warranty
CALCA DTF printing system includes a 6 month warranty which applies to replacement of faulty materials during the first six months from the date of purchase of the machine (except for damage caused or other that does not depend on manufacturing defects). Consumable parts are excluded from the warranty, such as: print heads, dampers, inks (such consumable parts are available as spare parts if needed.)

Manual for A3 Shaking and Drying All-in-One Machine
Warranty
> Lifetime Technical Support
> Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
