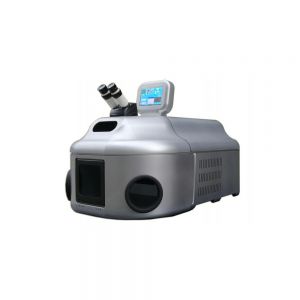

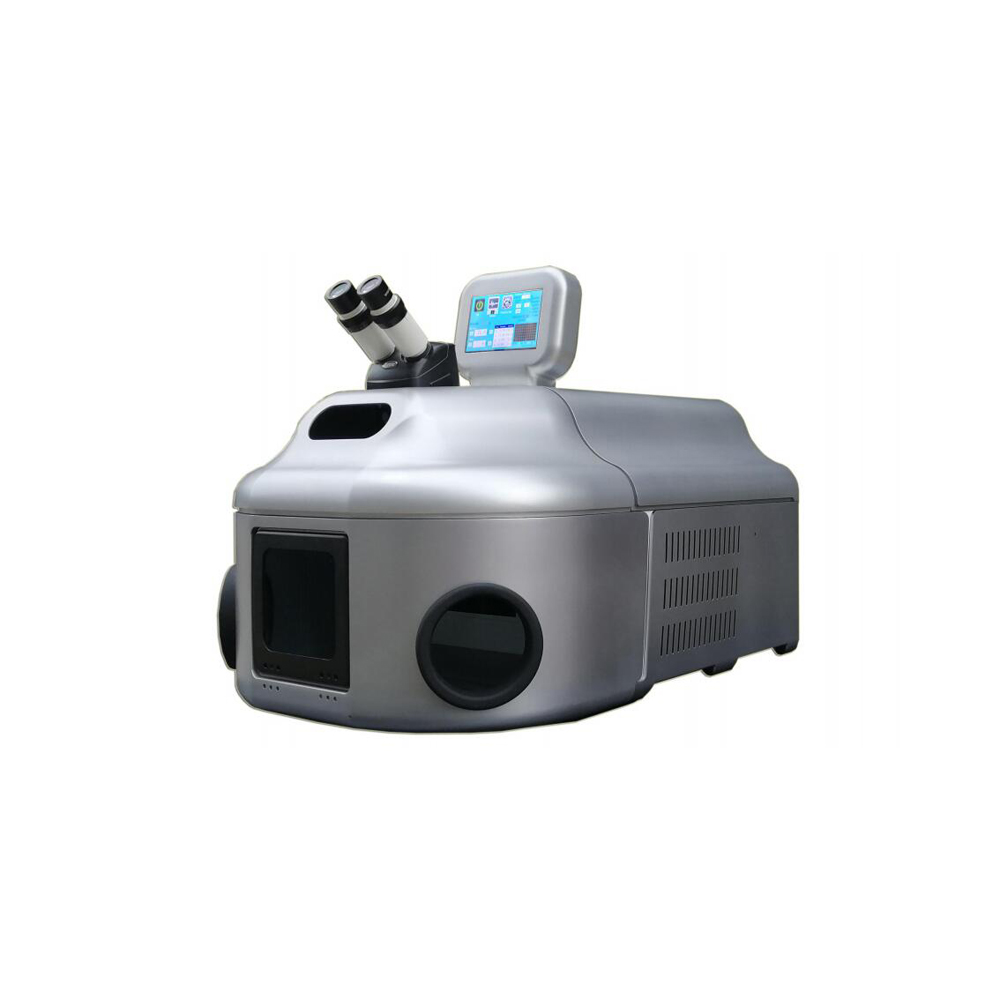

150W Desktop Laser Spot Welding Machine for Jewelry
  • 150W Desktop Laser Spot Welding Machine for Jewelry

See larger image and other views (with zoom)

150W Desktop Laser Spot Welding Machine for Jewelry

Arrival in 4-6 weeks

   |   1 Transactions

Item Code:LWM-CY-W150-US

  • Unit Price : $6,890.00/set   (Discount Notice)

  • Please choose
    LA Warehouse
  • Quantity: set(s) Total Cost: USD $6,890.00
  • freightFreight

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

Introduction
This model is a product specially designed for metal laser welding. Laser spot welding is one of the important aspects of the application of laser material processing technology. The spot welding process is a heat conduction type, that is, the surface of the workpiece is heated by laser radiation, and the surface heat is diffused to the interior through heat conduction. , By controlling parameters such as the width, energy, peak power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool. Due to its unique advantages, it has been successfully used in gold and silver jewelry processing and welding of micro and small parts.
Laser spot welding machine is mainly used for filling holes and spot welding blisters in gold and silver jewelry. It can also be used for cold-worked high-alloy steel, hot-forged high-alloy steel, nickel-containing tool steel, high-grade steel, copper alloy, beryllium copper, and high-toughness aluminum. Spot welding of metal materials such as alloys, gold and silver.

Control system
Parameters adjusted by Manual jigstick

Feature
1) Laser power supply: a new inverter resonant power supply is adopted. The power supply is mainly composed of main circuit, trigger circuit, pre combustion circuit, control circuit and protection circuit. It has overcurrent, overvoltage and flow protection devices. Its current, pulse width and frequency can be adjusted. It is especially suitable for laser sealing welding and spot welding.
2) Laser: the equipment uses high-quality YAG crystal as the laser working material. The specially designed laser resonator is equipped with advanced gold-plated condensing cavity and optical system. The output laser mode is good, the output energy is stable, and the single pulse energy reaches 40J
3) Laser indication and positioning system: the red semiconductor laser is used as the indication light source, which is used as the adjustment reference of the optical system and the indication and positioning of the working point. It has long service life and good stability.
4) The light guide focusing blowing system adopts a special laser welding joint with side shaft blowing protective gas nozzle to ensure smooth, neat and reliable welding joints.
5) The laser adopts built-in water cooling mode, and the cooling medium is deionized water. The damage of water pollution to the concentrating cavity is avoided, so as to ensure the cleanness of water quality and the stability of laser power; The magnetic pump with high lift and large flow ensures the large flow of cooling water; Stainless steel plate heat exchanger improves heat exchange efficiency. Moreover, it has the functions of under flow, under water pressure, over water temperature protection and audible and visual alarm to ensure the safe operation of the laser.

Equipment working environment
Single phase AC: 220,50/60 HZ 20A
Environment temperature:15-35℃
Relative humidity: ≤80%
Oil&fog:Less than15mg/m³

Equipment configuration list:

No. Subsystem name Component name Spec. Qty Manufacturer
1 Laser source Laser cavity Ceramic Cavity 1 Domainlaser
YAG bar 7*145 1 OET
2 Laser power supply Laser welding power supply 150W 1 Customized
3 Cooling chiller Built-in chiller Customized 1 Domainlaser
4  Monitor system Microscope 10X 1
