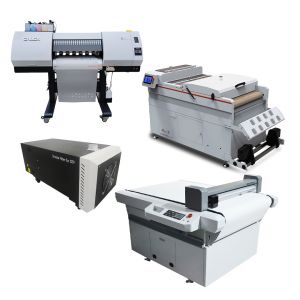

CALCA Ultra PRO II 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads
CALCA Ultra series DTF printer is built for production workshops & factories.
This DTF printer leads the development of technology and durable products in the DTF markets, drive performance and efficiency in DTF products.
√ CALCA control system, the leading brand from independent R&D team.
√ Self-developed control system and RIP software.
√ Touch screen control panel makes everything easier.
√ Ultra-high stability, from unified development, not patchwork.
√ Processional, Obtain the Adobe PDF Print Engine certificate, maximum efficiency performance, control, automate and optimize full-gamut rendering.
√ Perfect combination of RIP and printing management in same software.
√ Durable housing, high efficiency output.
√ Dual-head technology, designed for high volume production.
A dual print-head system prints colors in perfect sequence to achieve maximum life and vibrancy. The first print head lays down a mix of CMYK colors, while the second print head prints a perfect white underbase on top of the colors, ensuring you don’t see any white ink.
24in (620mm) maximum print width
Dual Epson I3200-A1 Printheads (CMYK - WWWW)
1.8 Liter per color ink bottle capacity
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 12m²/ h; 6 pass: 8m²/ h; 8 pass: 6m²/ h
Printing Resolution: 720 x 1200dpi; 7200 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Printing Software: DTF Fairy RIP Software
Control System: CALCA Control System
Print Head Cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 69.5in x 27.6in x 53.3in (1765mm x 700mm x 1355mm)
Printer Weight: 396lbs (180kg)
Packing Size: 73.6in x 39.4in x 28.7in (1870mm x 1000mm x 730mm)
Gross Weight: 440.9lbs (200kg)
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 11A, 1200W
• Operating System: XP / Win7 / Win10
• Interface: Gigabit Ethernet
• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity
CALCA PLUS 24in automatic DTF powder shaker and dryer with vacuum absorption conveying platform and touch screen display, suitable for 2 heads high speed DTF printers.
With a touch screen display controller, simple to use.
Infrared drying and heating improves and protects color reproduction.
With a absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.
CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 9 fan air cooling (2 row)
Machine Size: 76.9in x 39.5in x 43in (1953mm x 1002mm x 1092mm)
Power Shaker and Dryer Weight: 528lbs (240kg)
Packaging Size: 70.5in x 44.1in x 44.5in (1790mm x 1120mm x 1136mm)
Gross Weight: 638lbs (290kg)
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
Current: 45.5A, 5000W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.
· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
· Infrared drying and heating improves and protects color reproduction.
· Customized powder recycling drawer, increases effectiveness.
· Shake powder control, dusting control, PID setting of curing temperature.
· Automatic powder feeding, evenly spreading powder.
· The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
Custom Apparel Startups and Success! CALCA’s Customers Are Awesome!
Understand their true stories and get inspired. If they can do it, so can you!
CALCA Brand New Electrolytic Universal Fume Extractor Filter 330m³/h for DTF Powder Shakers and Sublimation Heater
CALCA Electrolytic smoke lampblack filter is designed for the machine need smoke discharge like dtf shaker or sublimation color system. It can be matched with various powder shakers and sublimation color fixing machines to complete the extraction and filtration of oil fume.
Effectively eliminate and filter the oil fume in the drying process, improve the quality of processed products, and provide a clean and smoke-free working environment.
Rated Voltage: AC220V ± 5%
Rated Current: 1A
Rated Power: 215W
Max air amount: 330m³/h
Negative Pressure: 350pa
Internal Air Inlet and Outlet Diameter: Φ59mm
Filter Effect: Up to 0.5μm 99.9%
Noise: ≤ 64db
Machine Size: 32.7in x 17.5in x 16.5in (830mm x 445mm x 420mm)
Machine Weight: 70.5lbs (32kg)
Package Size: 35in x 18.5in x 17.3in (890mm x 470mm x 440mm)
Gross Weight: 72.8lbs (33kg)
Warranty: 2-year warranty on this Fume Extractor.
• Electrolytic filtration technology: No consumables, no cost, worry-free after sales.
• Brushless motor
• No change in suction power for several years of continuous use
CALCA 24" x 35" Auto Fed Flatbed Digital Cutter Roll Cutter For DTF Printing Film (6090G)
Flatbed cutter with conveyor feeding, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
Super easy installation, one-key operation and high efficiency make CALCA 6090G a right-hand man for DTF, Heat transfer apparel industries.
Spare Part Package includes:
1set x User manual
2pcs x Blade holder
6pcs x Blade
1set x Allen wrench
1pcs x Power Cable
1pcs x USB Cable
1pcs x U Disk
1pcs x SignWorkPro
1pcs x Fan with silencer
Used for fraffic signs industry, vehicle decoration, automotive aftermarket, sign makers, packaging, apparel
signing, shoes designing, bags designing, composite industry, offset printing, samples making , POP displays, and more.
It is an efficient solution of perforation cutting, half cutting, creasing, marking, etc.
Reflective sheeting, PPF, Window Tint, PPE, PET, PVC, Vinyl Sticker, etc.
The device has a CCD camera and does not have barcode scanning function. The yellow button is the standby button. If you need to scan the barcode, please contact customer service.
The DTF Process:
DTF Printing Advantages:
Fabrics that work with this DTF printer:
