Qomolangma Semi-Automatic Banner Welder Hemming System, Alternative to Sewing and Taping for Vinyl and Fabric
Welding is a popular finishing technique for wide format graphics production. An alternative to sewing, welding is ideal for finishing applications composed of materials like vinyl and fabric.
Description

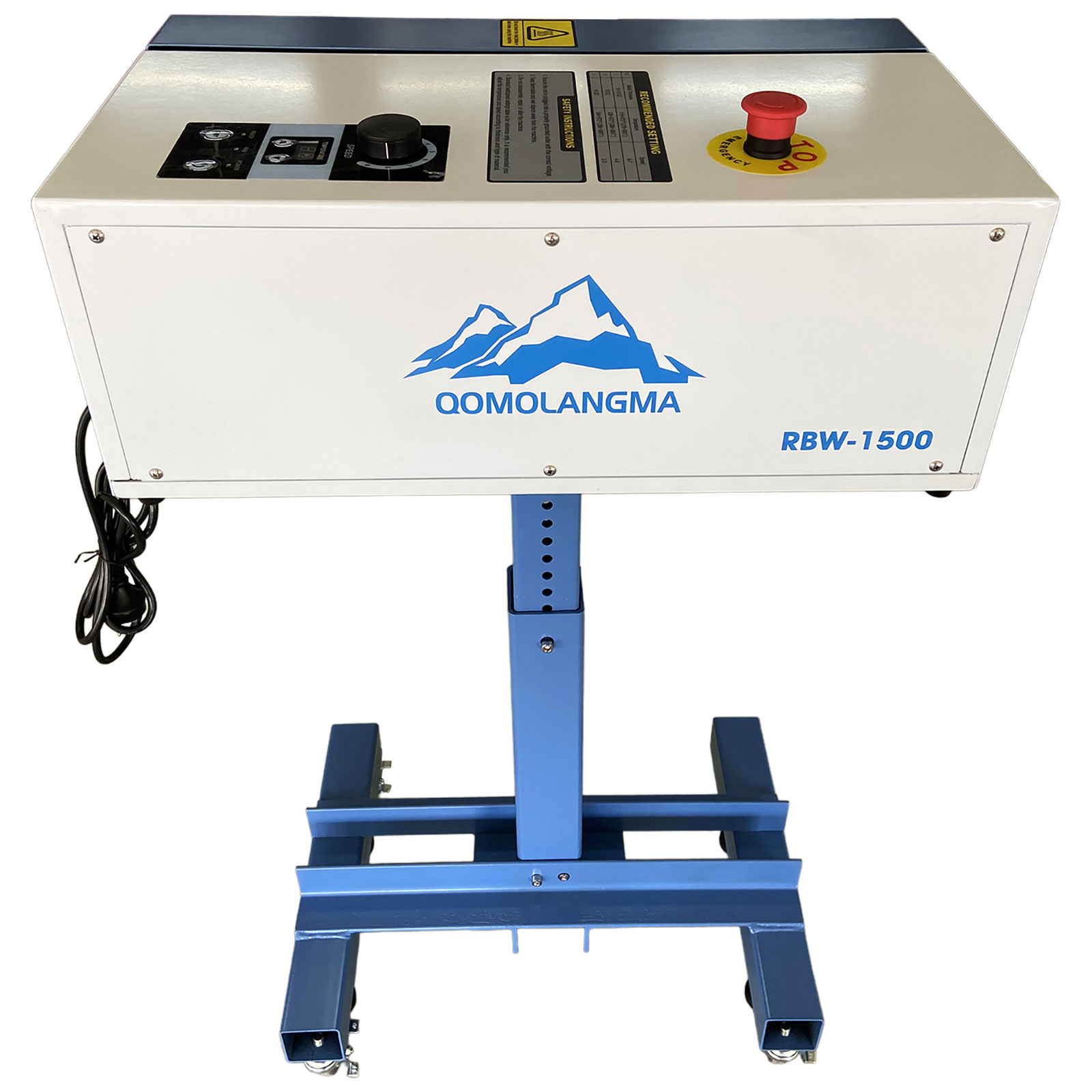

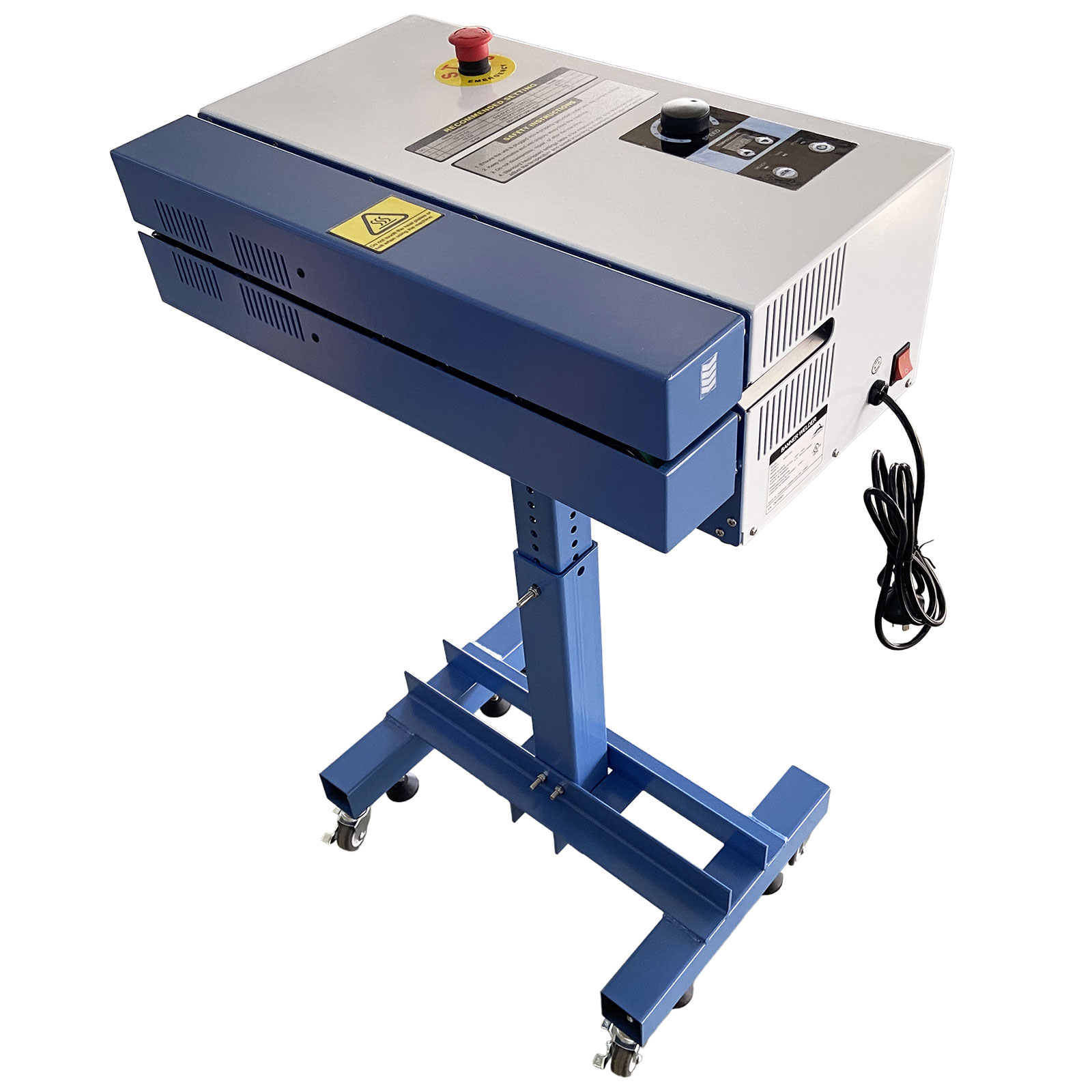

RBW-1500 Banner Welder is a high quality, affordable thermal welding machine specifically engineered for users to easily and professionally weld vinyl banner material of various weights currently available in the market place. It allows one person to create thermal welds on large and small banners, providing a clean finished edge. Rope pockets and up to 6" pole pockets can be easily produced in any length needed.
Features
1. Sturdy and durable frame construction, easy to assemble and maintain.
2. Adjustable speed up to 16 feet per minute, weld any length.
3. The stand is height-adjustable and has casters for easy movement.
4. Stand by mode and auto power off to save energy.
5. Emergency Stop for Safety.
6. Digital display for temperature
Specification
Model |
QLM-RBW-1500 |
Input Voltage |
110V, 60Hz |
Power Consumption |
800W |
Welding Width |
0.6" (13~15mm) |
Stock Thickness |
0.03" (0.2mm-0.8mm) |
Max. Pocket Width |
6" (150mm) |
Welding Speed |
16 ft./min. (0-5m/min) |
Max. Heating Temperature |
662°F (350°C) |
Adjustable Stand |
29"-42" (735~1055mm) |
Cooling Method |
Fan |
Digital display |
LED |
Certification |
UL |
Product Dimension |
24" x 15" x 44"(610mm x 381mm x 1118mm) |
Product Weight |
106lbs(48kg) |
Package Dimension |
38" x 23" x 17"(965mm x 584mm x 432mm) |
Package Weight |
140lbs(63.5kg) |
Detail

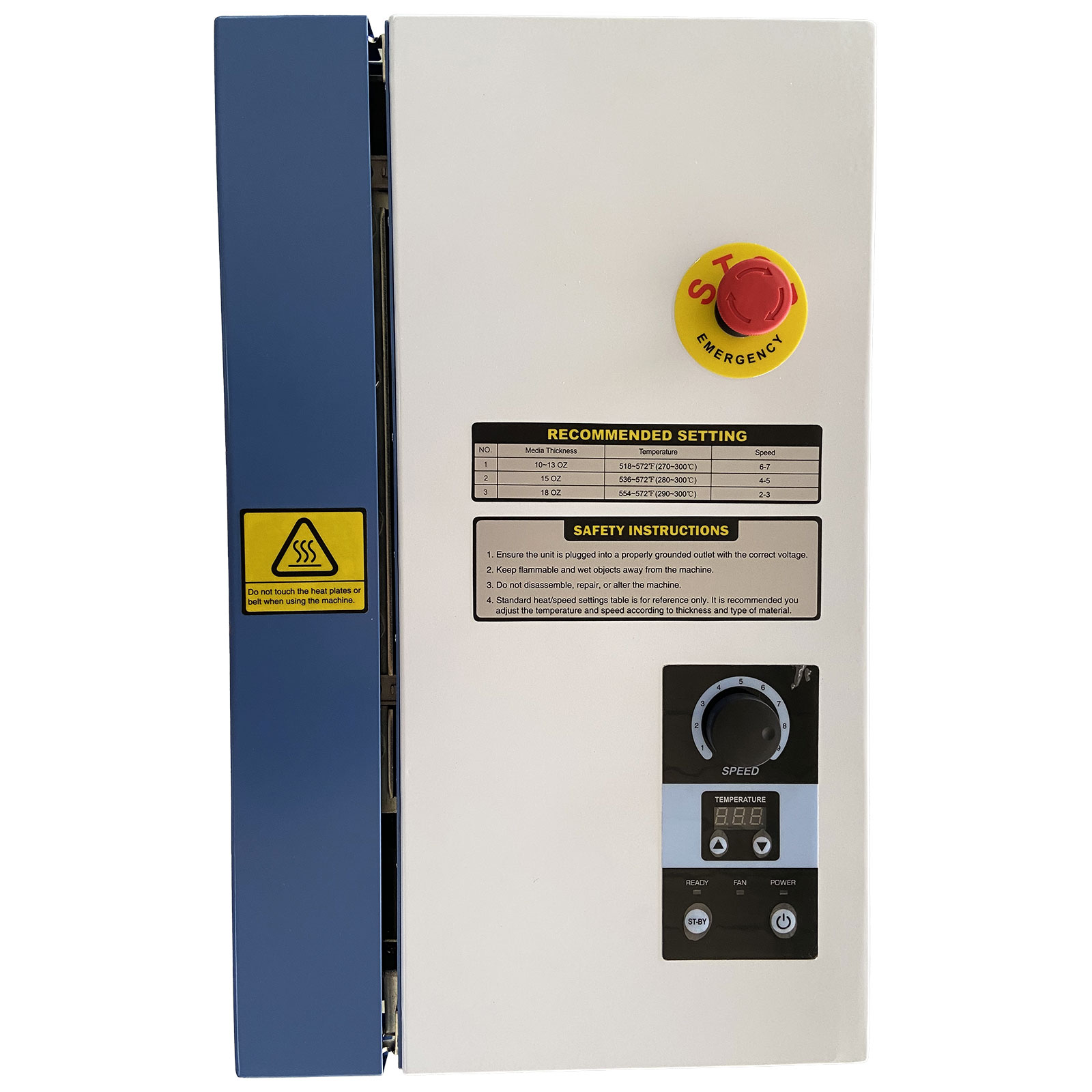

Digital temperature control ensures the best welding result
Adjustable speed up to 16 feet per minute

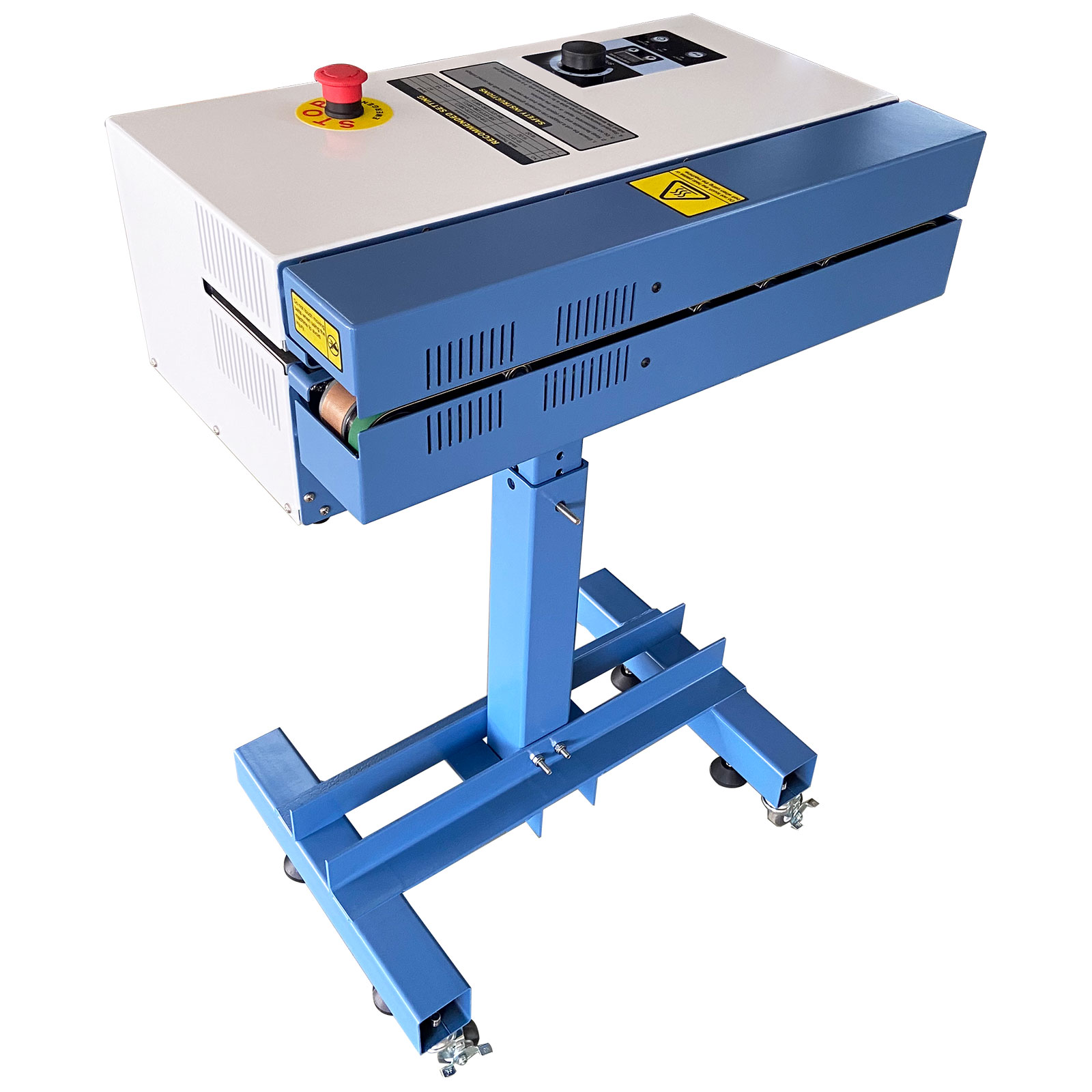

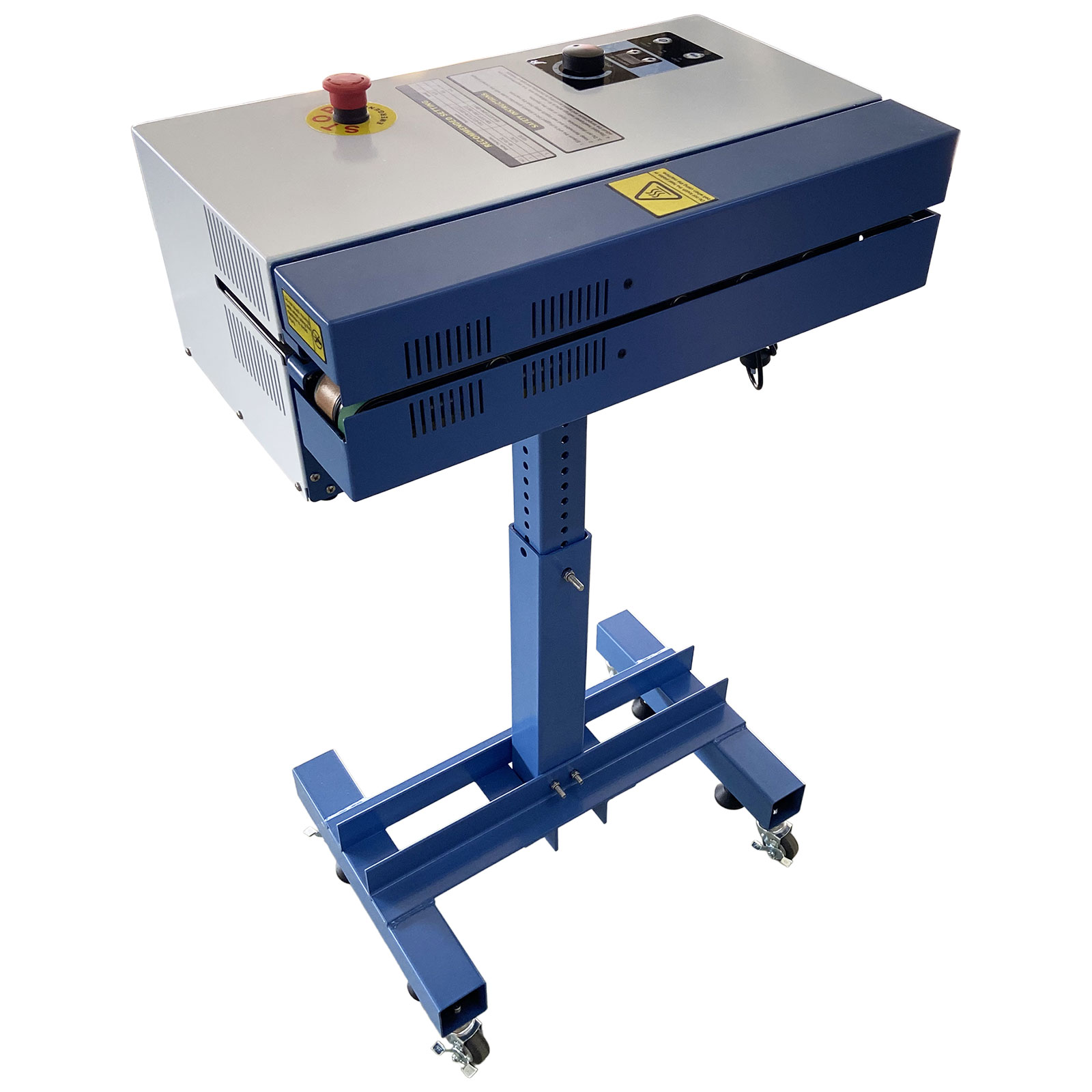

Emergency Stop for Safety.

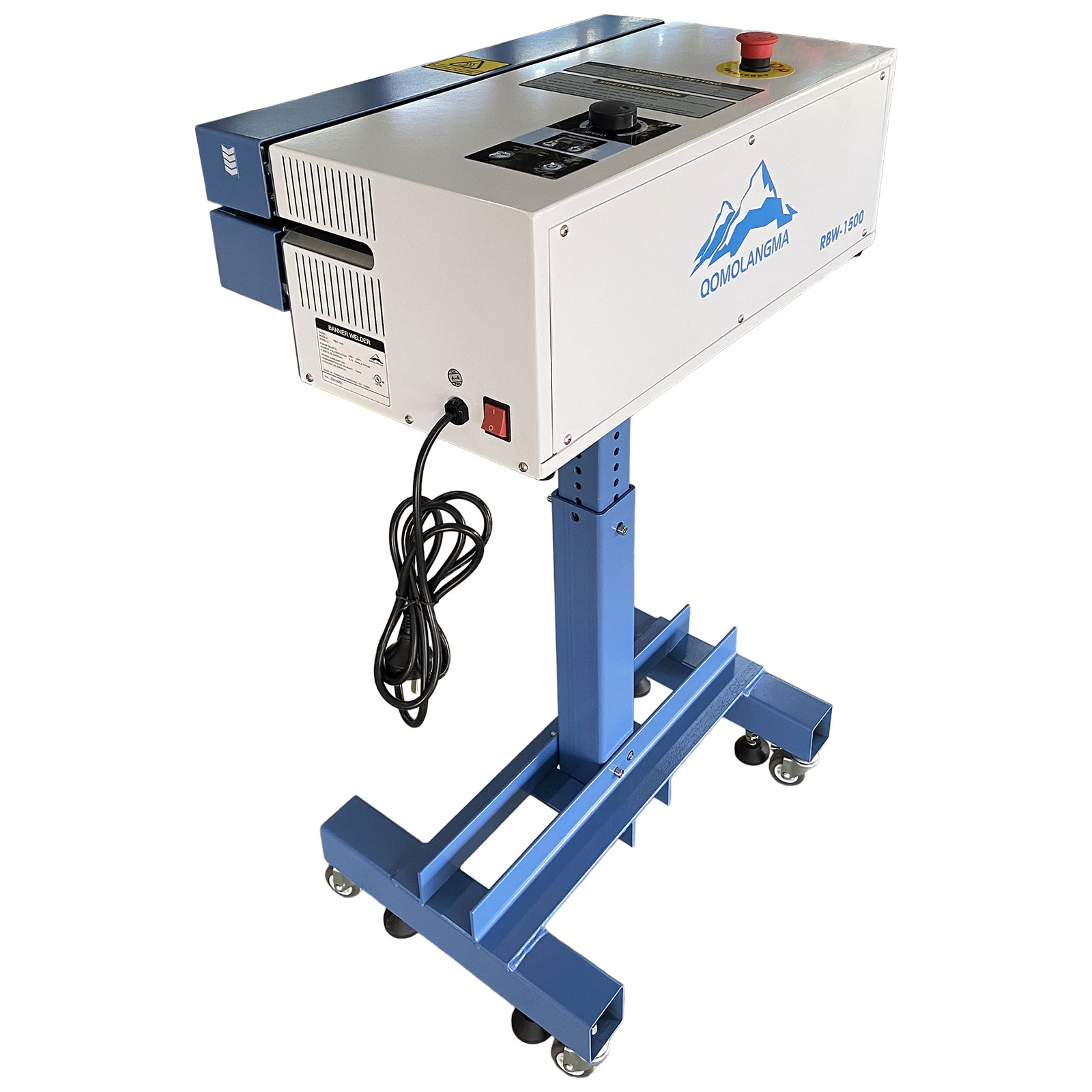

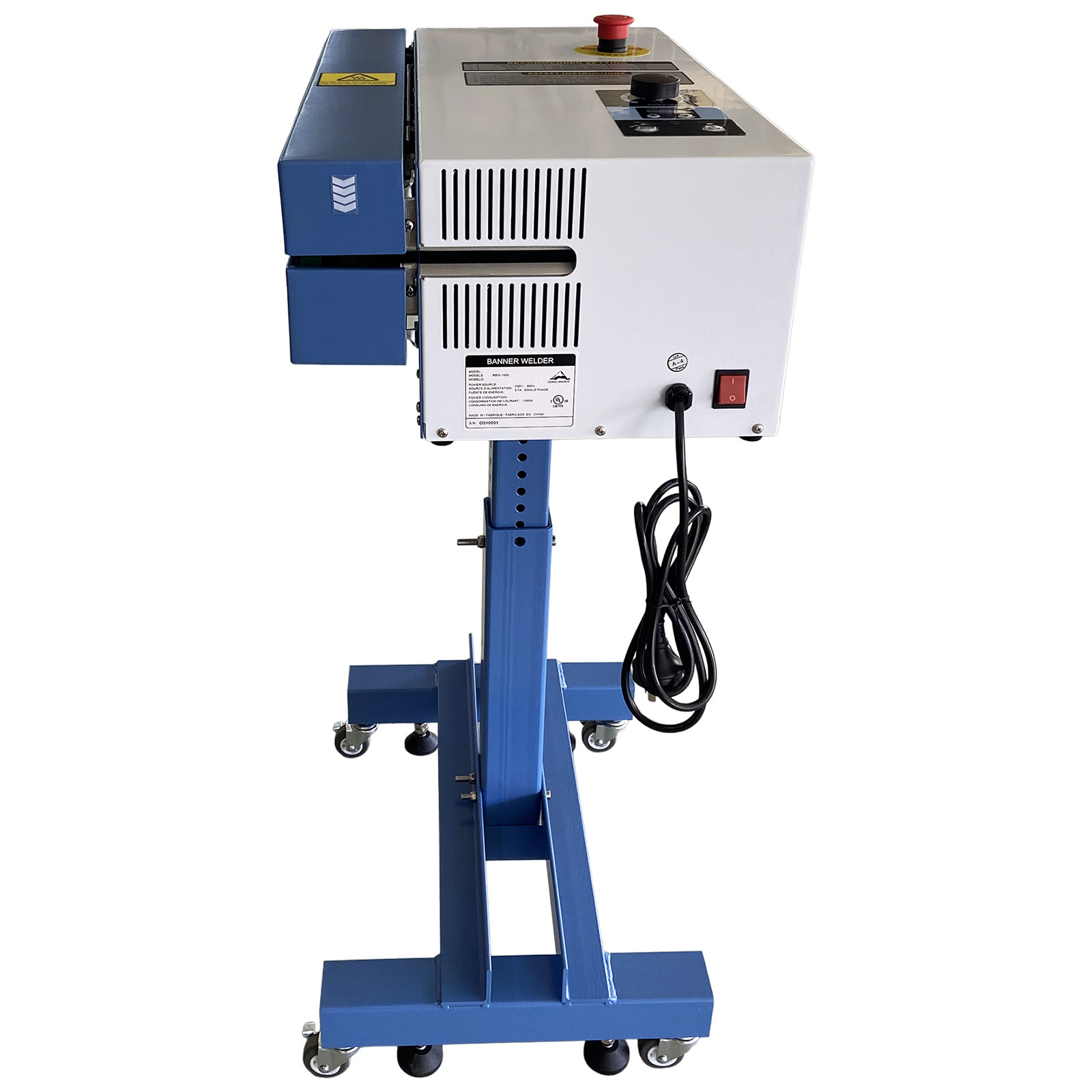

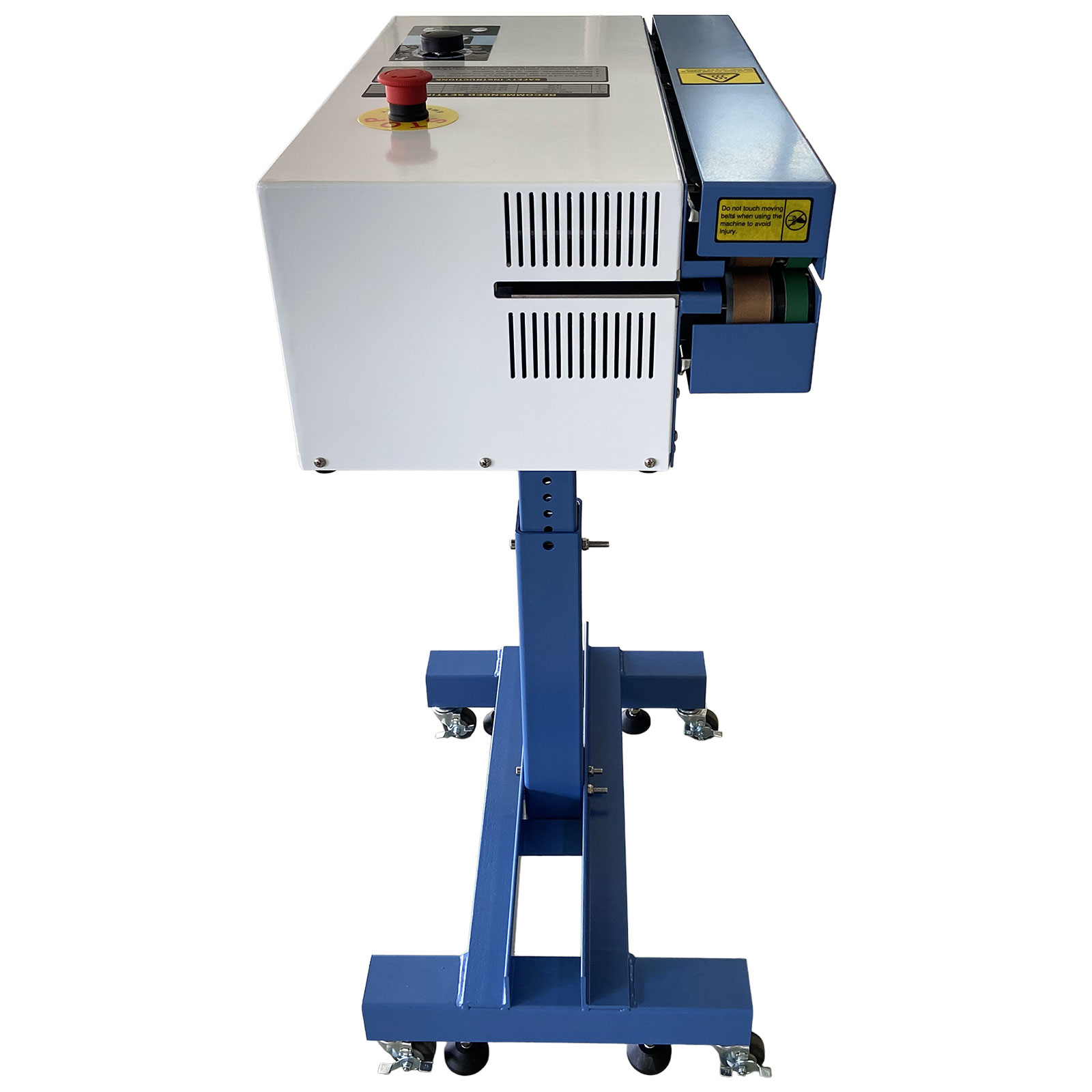

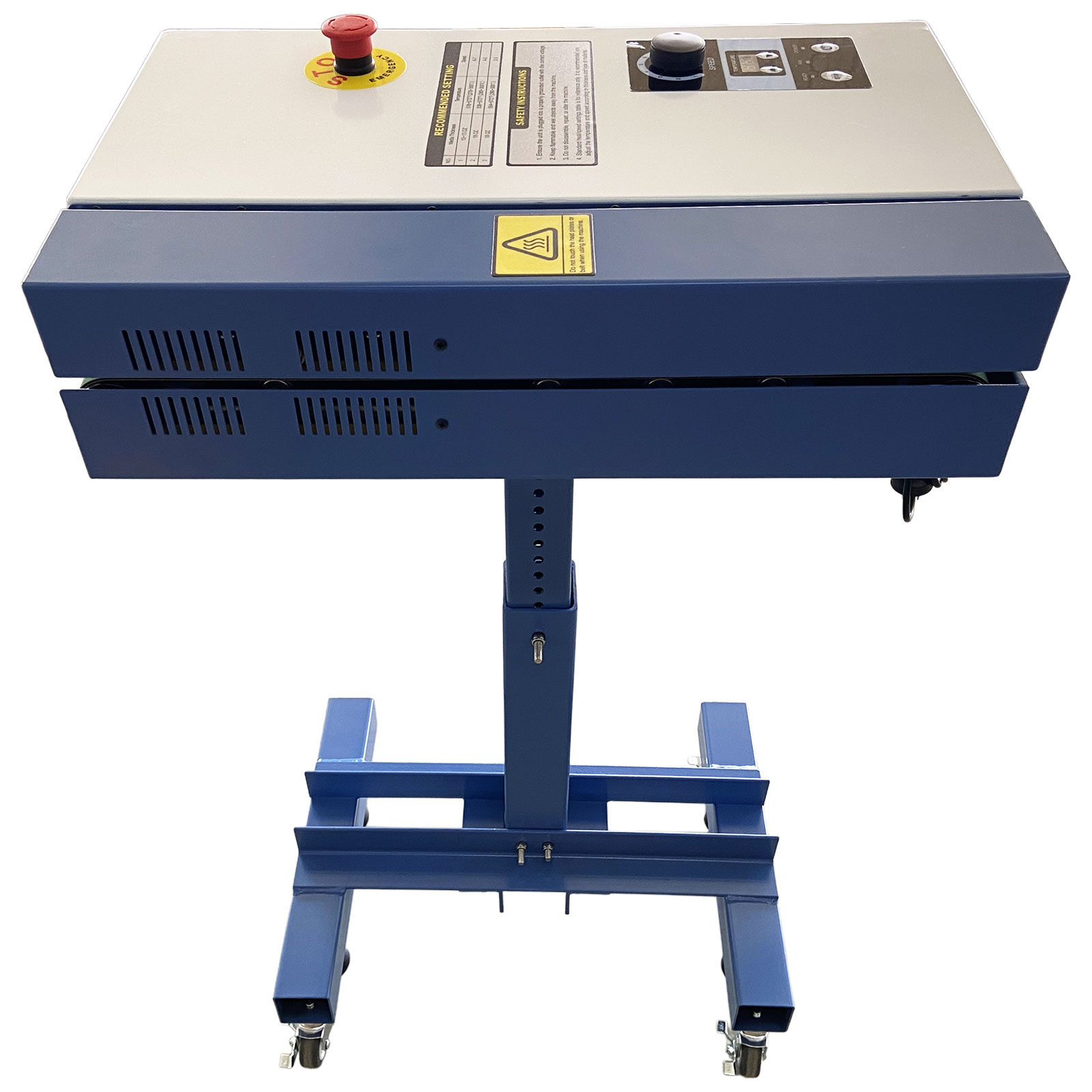

The included adjustable height stand with castors makes it easy to move around the workshop.
Application
This professional vinyl welding machine is the fast and easy solution for creating vinyl banners. It supports numerous finishing functions including hemming, pole pockets, and pocket sign fabrication.
