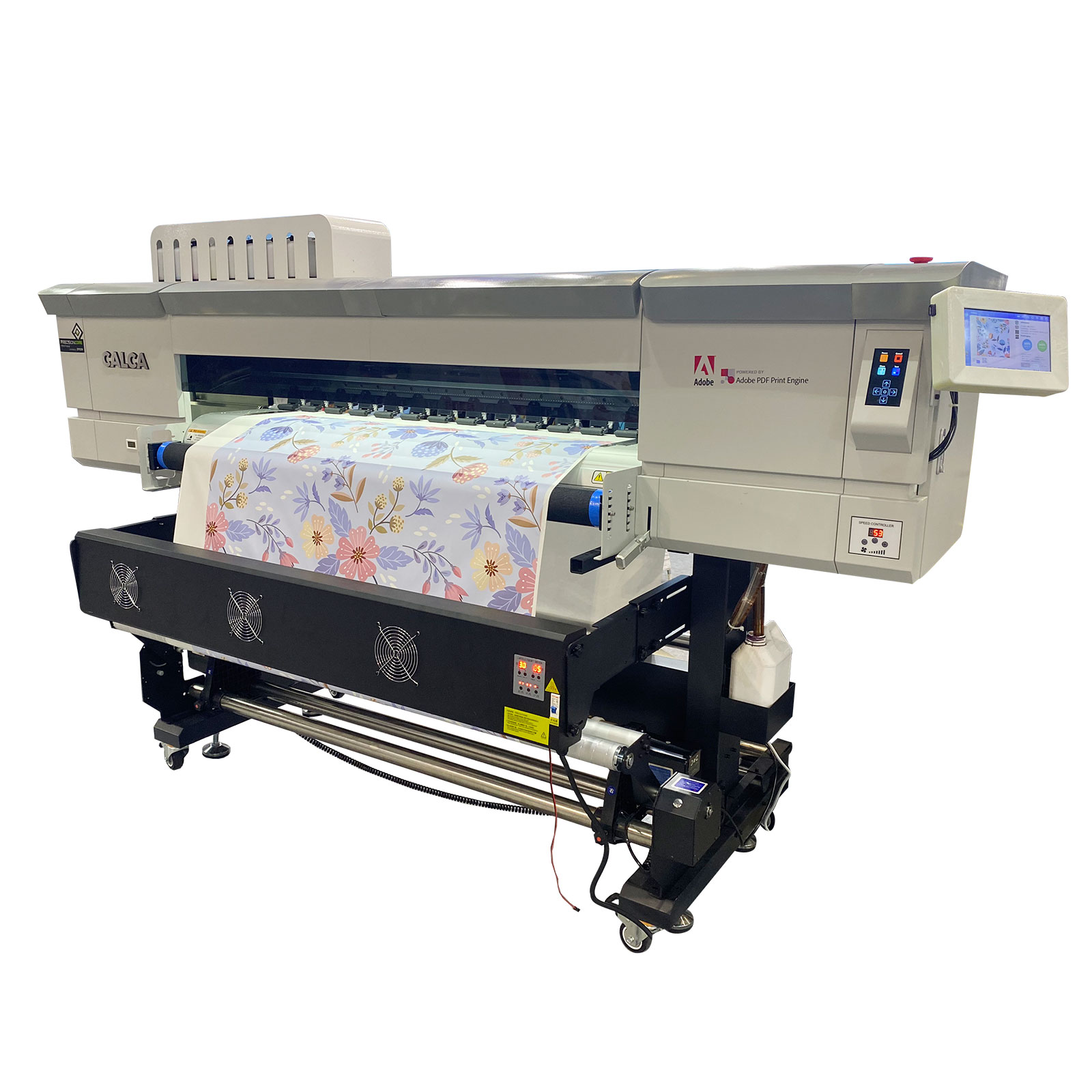

CALCA 52inch (1320mm) Dye-Sublimation Printer, maximize productivity for your business with the high-performance digital printer.
APPLICATION
Can sublimating on Nylon, chemical fiber, cotton, leather, swimwear, wetsuit, PVC, EVA, etc.

SPECIFICATION
Model |
CALCA-SUBP-TT500-US |
Printhead |
Epson I3200-A1 x 2 / Epson I3200-A1 x 4 (optional) |
Print Resolution/speed |
2 Printhead——4 pass: 35㎡ / hour; 6 pass: 25㎡ / hour; 8 pass: 16㎡ / hour
4 Printhead——4 pass: 65㎡ / hour; 6 pass: 54㎡ / hour; 8 pass: 48㎡ / hour |
Ink Type |
dye sublimation ink CMYK LC LM LK LLK |
Ink Capacity |
1800ml / color |
Media Maximum Width |
1320mm (52in) |
Media Thickness |
1.5mm to 100mm adjustable (0.06in - 3.9in) |
Max. Roll Weight |
20kg (44lbs) |
High Printing Quality |
Three intelligent eclosion print function: VSD technology |
Interface |
Ethernet, USB 2.0 and USB 3.0 |
Rip Software |
CALCA Textile Fairy RIP (PROFESSIONAL) |
Powerr |
Printer 1500W, Dryer 2500W |
Working Power Supply |
AC220V ± 10%, 50HZ / 60HZ, 1 phase. |
Current |
18A (220V), total 4000W |
Operation Environments |
Temperature: 59°F-86°F (15-30°C); Humidity: 35 - 65% |
Machine Size |
2485mm x 955mm x 1573mm (98in x 38in x 62in) |
Machine Weight |
270kg (594lbs) |
Packing Size |
2800mm x 1030mm x 760mm (100in x 41in x 30in) |
Gross Weight |
300kg (660lbs) |
FEATURES
• With dual Epson original I3200 enterprise PrintHeads, high precision, speed, stability and efficiency.
• Head Strike Sensor: Prevents any head strikes.
• Print Width: 52in roll media.
• Tension release paper and automatic winding system reel in neatly.
