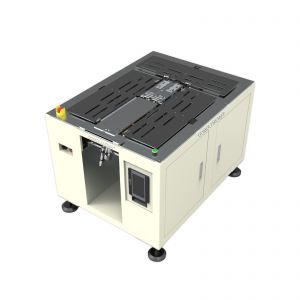

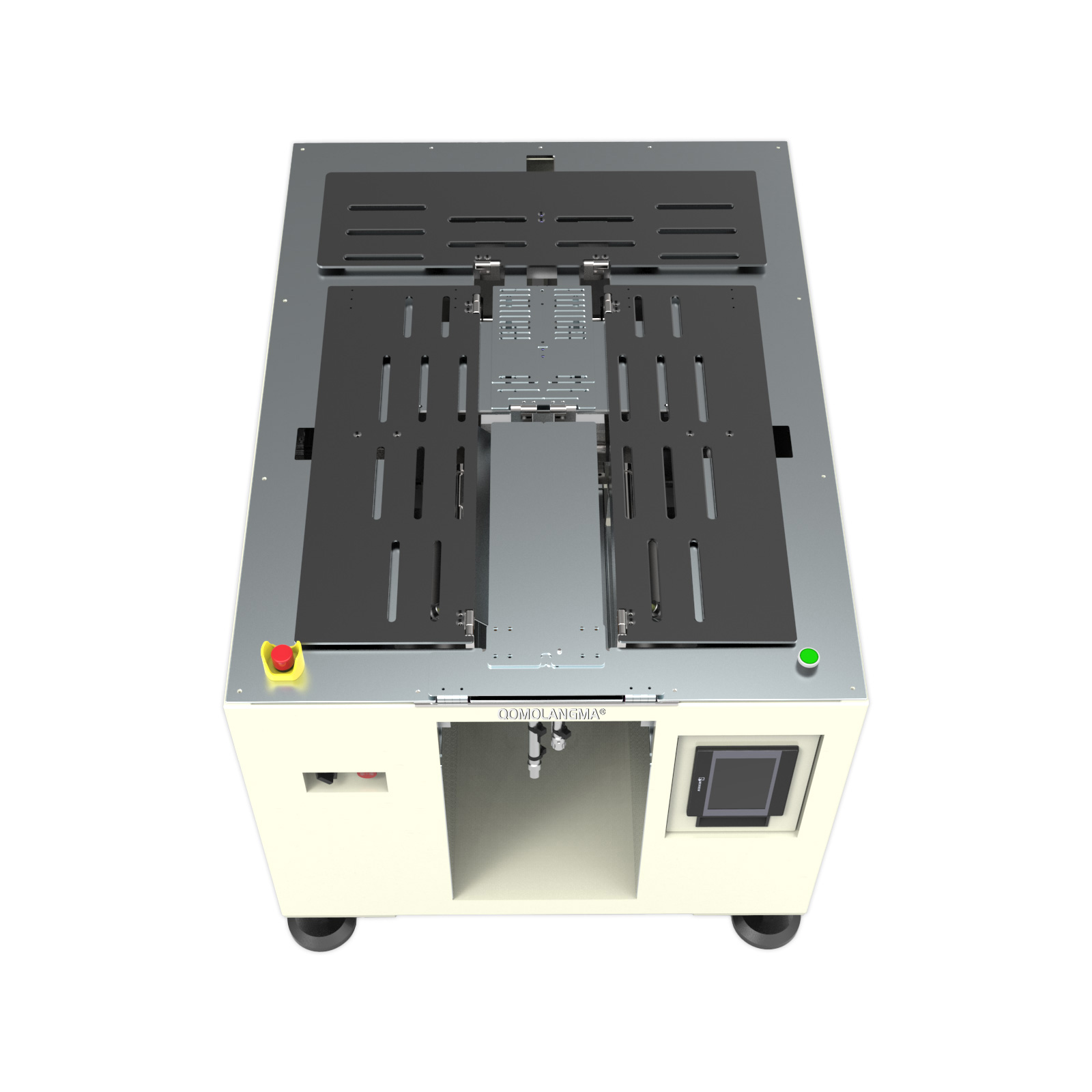

Semi-Automatic Folding and Packaging Machine Clothes Folding and Stacking / Bagging Machine
The automatic folding machine 51A folds clothes quickly, silently and with precision, It functions independently and requires 1 operator. It is designed to fold t-shirts, sweatshirts, sweaters, undershirts, etc. It can be very easily adjusted for the various sizes and types of clothes so that the best-desired folding is achieved.
The 51A, apart from the automatic folding, offers two important options after the garment has been folded:
The first option is a program for stacking and easy gathering of the folded clothes.
The second option is a program for easy packaging of the garment in a bag.
Specification
Name |
Automatic Clothes Folding Machine-51A |
Input voltge |
AC110V, 60Hz |
Power |
200W, 1.8A |
Use air pressure Mpa |
0.5-0.7 |
Air source displacement |
150L/min |
Length range before folding |
400-950mm (15.8" - 37.4") |
Width range before folding |
320-850mm (12.6" - 33.5") |
Folded length range |
200-370mm (7.9" - 14.6") |
Width after folding |
220-320mm (8.7" - 12.6") |
Dimensions |
1160 x 880 x 800mm(44.7" x 34.7" x 31.5") |
Net weight |
257KG(566.6lb) |
Packaging Size |
1270 x 980 x 980mm (50" x 38.6" x 38.6") |
Gross Weight |
326KG(718.7lb) |
Features:
- This equipment can be packaged T-shirt,sport swear,work clothes,etc.
- This equipmcnt is uscd to fold clothes while accumulat ingquantity.
- Place paper card or molsture-proof papcr manually.
- The equipment has its own clothes storage bin.
