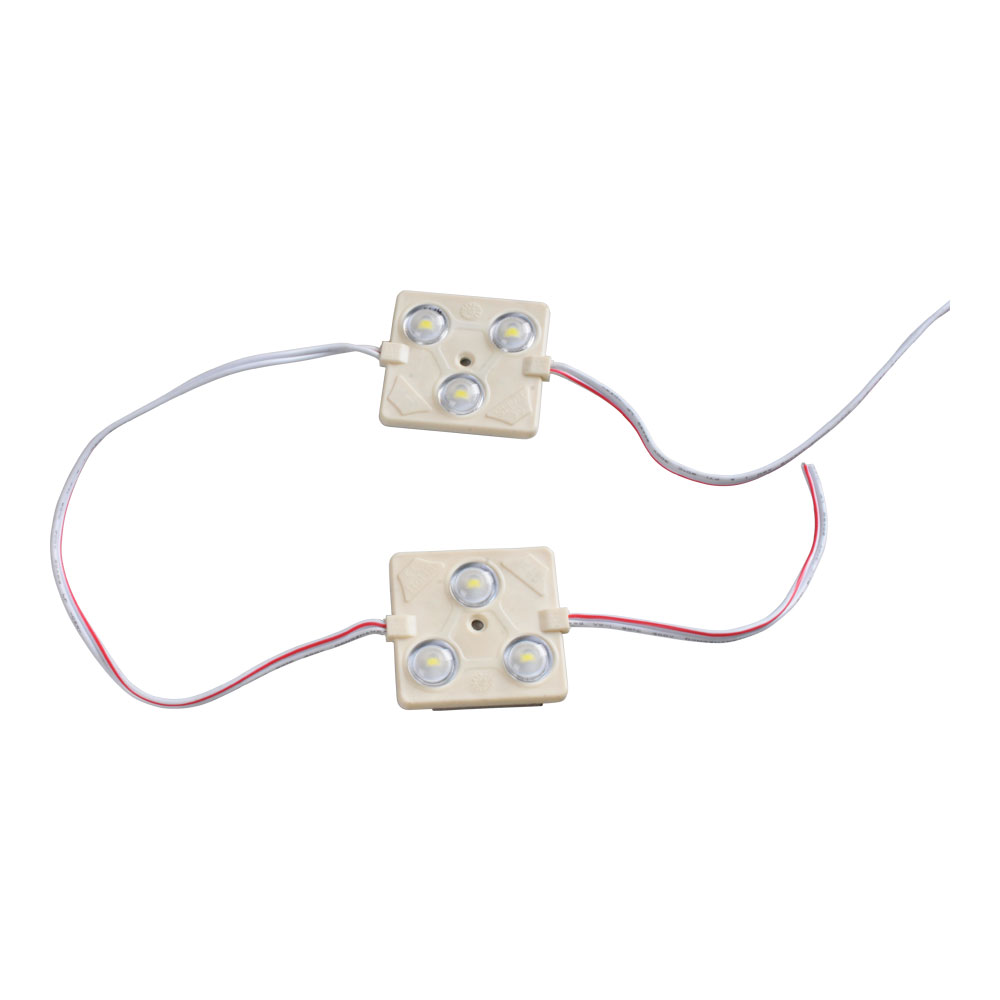

SMD 5730 High Power Waterproof LED Module (3 LEDs, White Light, 1.44W, L44 x W43mm) for Lightbox

Item Code: LEDMODULE-CM-IEW340B

Availability:

  • Cool white
  • Natural White
Unit Price: $2.12/pc

Apply to See Distributor Price

Quantity:
pc(s) Total Cost:  $212.00
Inquire Now

Buyer Protection

Related products
SMD 5730 High Power Waterproof LED Module (3 LEDs, White Light, 1.44W, L44 x W43mm) for Lightbox
Buy It Now



Description:

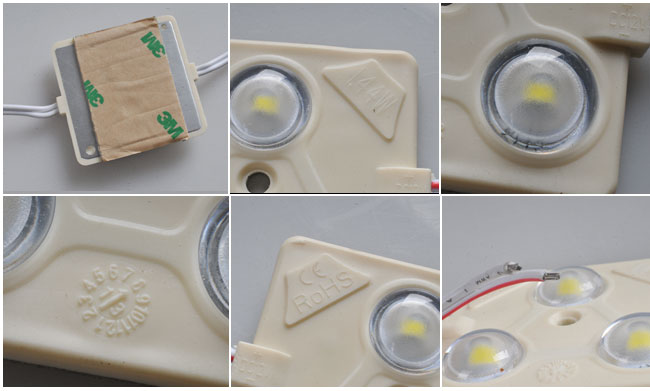

This LED module has 1 mounting screw holes. The waterproof LED module strings are 7.5 inch wires between each module. Each module has 3 wide viewing angle with 160°degree 1.44w 5730 SMD LED. More than a 3-year product warranty without RF interference and 12V DC Operation.
Specification
LED Type          SMD 5730
Color                natural white/cool white
Beam Angle(θ)     160°
Luminous flux
         Natural white           120 lm
         Cool white           120 lm
color (nm/K)
       Natural white       5,500-6,500K
Cool white     8,000-11,000K
LED Quantity 3 LEDs
Life-span 50,000 hours
Electronic specifications
Working input voltage(V)  DC12V
Max power(W) 1.44W
Driving mode Constant current driving
Basic parameters

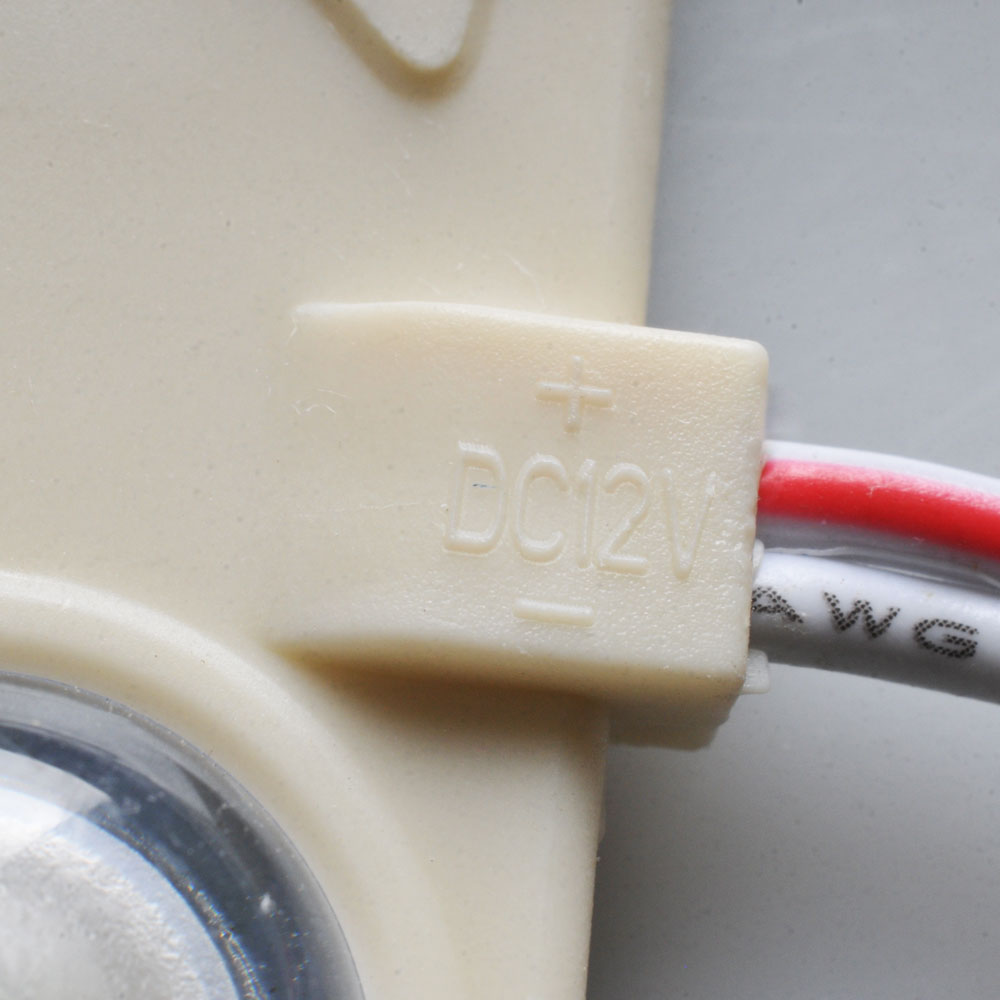

Wires 26#line red & white wires, negative wires length:60mm,red +,white -
Cluster Qty 30pcs/string
Max  ≤30pcs
Outer Parameter
Shell ABS
Color  milk yellow

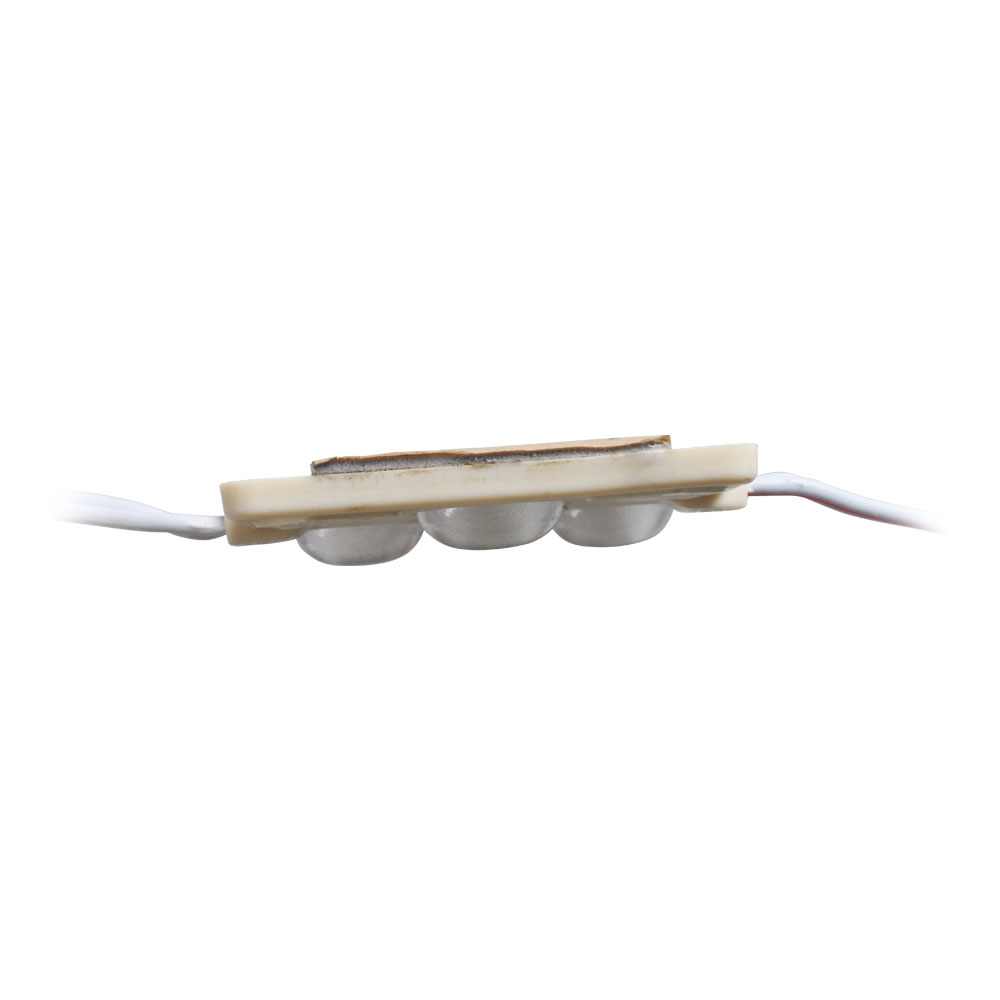

Dimension 44mm*43mm*5mm
Fixed mode

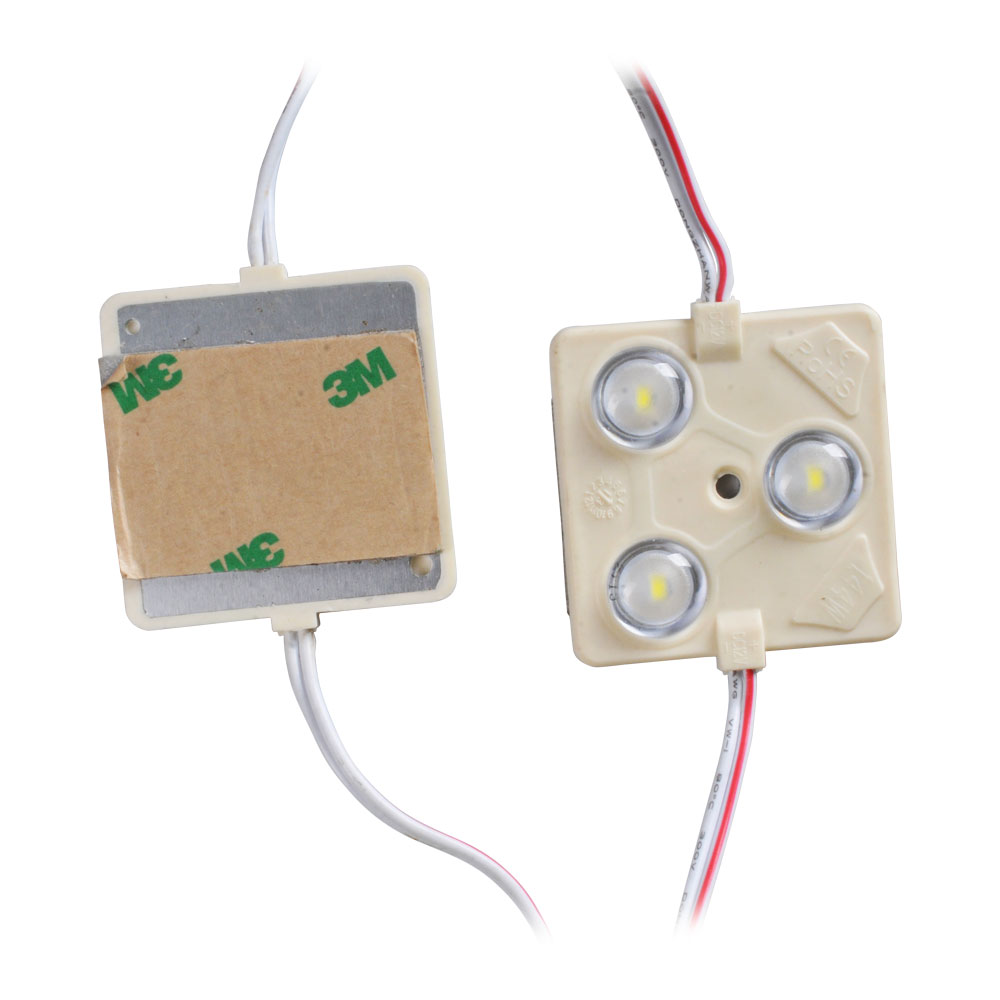

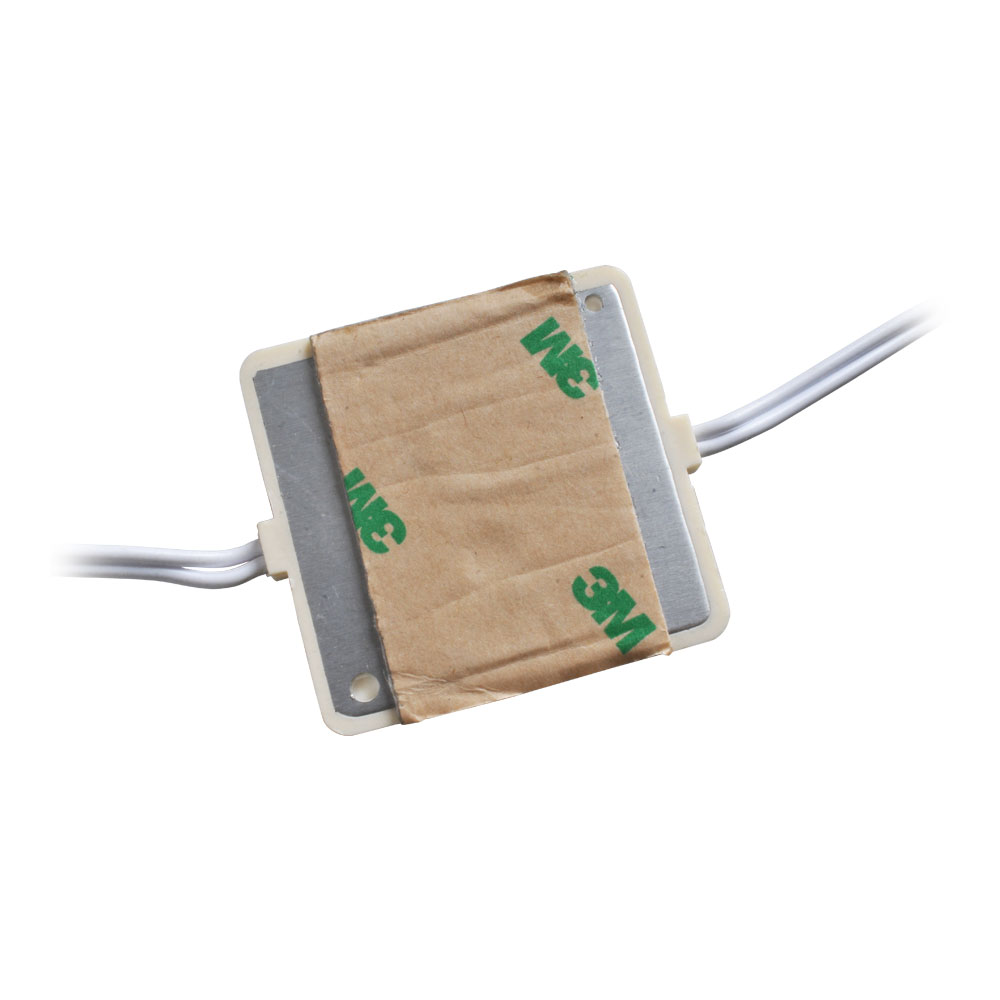

Double-sided adhesive 3M adhesive
Environment Parameter
Working temperature -40℃- +50℃
Storage temperature  -50℃- +60℃
IP grade IP67





On each square meter with less installations, save electricity & manpower as well as less possibility of troubles.

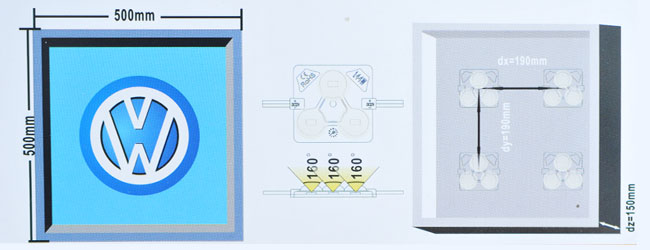

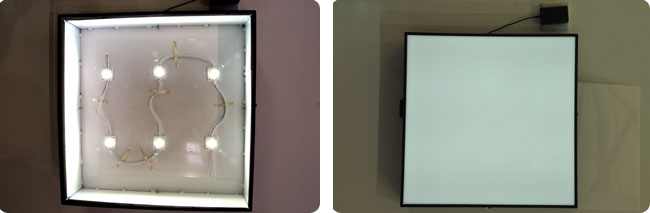

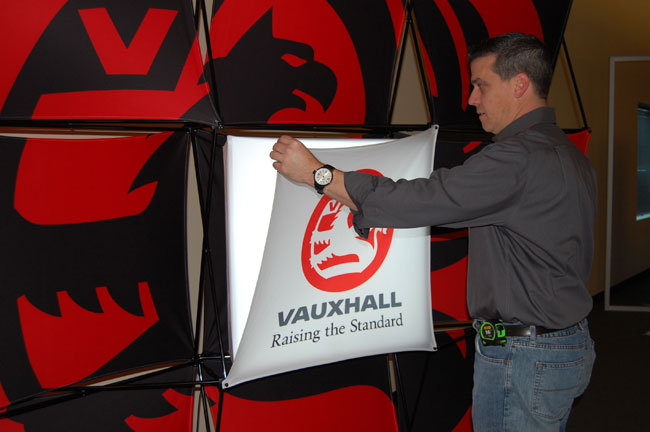

LED module used for light box:

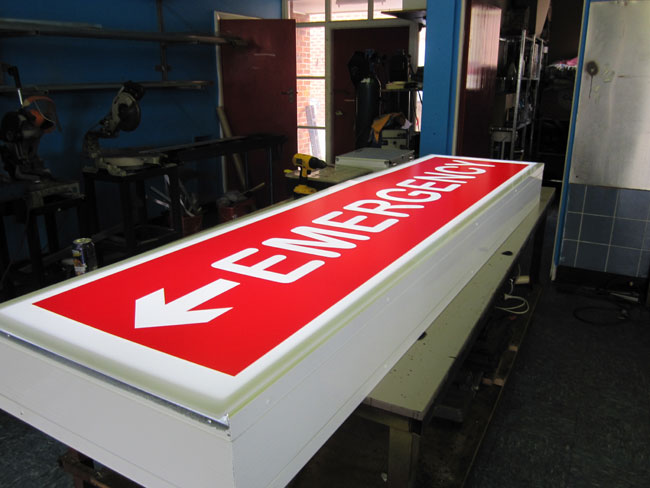

LED module used for signage:

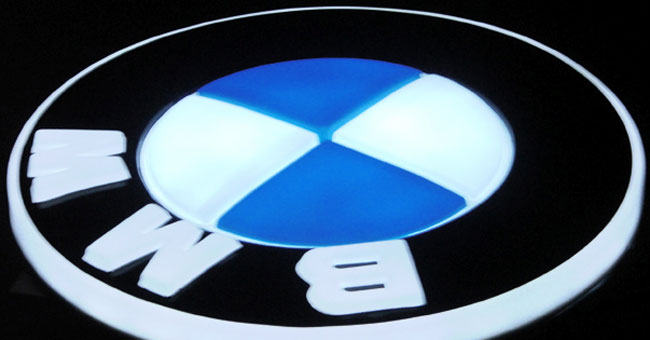

LED module used for channel letter:

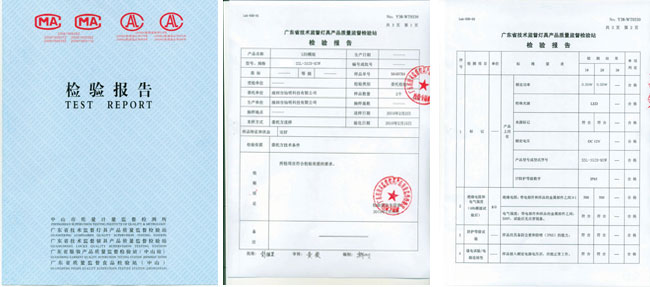

Quality report:

 We free ship only to the 48 contiguous states.
For Hawaii, Alaska, Guahan or Puerto Ricoa Customers, an extra freight is required.

Free shipping on orders over $79.
$6 shipping charge on orders under $79.

This product has no Specifications

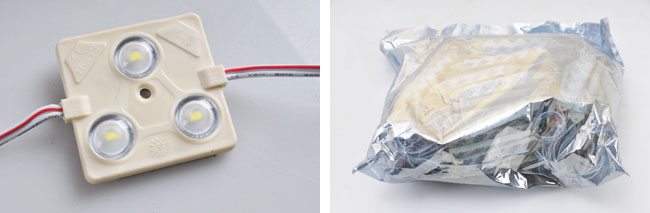

Package:

1. module CE

2. module RoHs
