Item Code:LEDM-GKL-MFW8A1D-100-US
Unit Price : $259.45/pack (Discount Notice)
limited to buy 1 pack(s)
Shipping Weight:
7.2lb (3.25kg)
Freight
Random Instant Rebate, up to $68 off when you spend $500 or more
Product Dimension | 100mm x 25mm x 8mm (4" x 1" x 0.3") |
Product Weight | 0.066lb (0.03kg) |
Packing Size | 110mm x 28mm x 8.5mm (4.3" x 1.1" x 0.33") |
Gross Weight | 0.07lb (0.0325kg) |
Package Contents:
100 x High Voltage SMD 2836 IP67 Waterproof LED Module, AC100-240V (3 LEDs, 2.5W, L110 x W28 x H8.5mm White Light)
Package:
Data sheet for AC100V LED LENS MODULE
Data Sheet for AC220V LENS MODULE
Installation Guide for AC100V High Power LED Module
Installation Guide for AC120V High Power LED Module
Installation Guide for AC220V High Power LED Module
seller assumes all responsibility for this listing
Quantity: Country:
Shipping and handling | To | Service | Delivery* |
US $75.00 | United States | Express Delivery: TNT/DHL/FEDEX/UPS | Estimated between 3-6 Days |
Handling time |
Will usually ship within 3 business days of receiving cleared payment. |
![]() |
We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china. |
![]() |
|
Payment method |
![]() |
|
Transaction History
Transactions: 101
100Pcs/Pack No Power Supply Required SMD 2836 IP67 Waterproof LED Module, AC100-240V (3 LEDs, 2.5W, L110 x W28 x H8.5mm Natural White Light,110V)
Description:
1. The application of high quality light source module, with high brightness, color uniformity, characteristics of antistatic ability etc..
2. AC100V-110V/60Hz power supply, the power factor of 0.92 or more, effectively reduce the power loss and improve the efficiency of the power grid.
3. Appearance, configuration of 155 degree lens cloth lamp using fewer lighting uniformity.
4. Circuit design comes with constant current, over temperature, short circuit protection function.
5. The module uses the fireproof material, flame retardant grade can reach U94V-0, protection grade IP67.
6. To the power module, wireless loss, no pressure drop, single lamp can be cut, easy to install fast.
7. The product through the CE, RoHS, LM80, IP67 and other certifications. Application sites: suitable for 10-35cm advertising signs, advertising light boxes, etc..
Details:
Product size(mm):
Distribution curve flux and Light spot image:
Usages:
Please download our pdf file to learn more.
Product installation and use should be noted:
1. Module single lamp can be cut, the work of AC voltage: AC100, AC110V, AC220V, 50/60HZ.
2. Power line using 2x1.5mm above empty cable (according to the load current power line selection), if the module power line had to be lengthened to choose the wires of 0.75mm above it, in order to avoid overload leads to power cord fever, lead to adverse consequences.
3. When the connection module short, first with oblique mouth clamp center cut two module of power line, decortication 30mm or so, peel wire 10mm and the corresponding color (red and white line is connected with a live wire L, the white line is connected to the zero line n) wire twisted into a stock, then the special waterproof tape insulation waterproof processing, final inspection power wiring head guide continuity and reliability, be the unarmed cannot supply line from pull the wiring head that is appropriate.
4. Module installed first module at the bottom of the gum from the paper tore affixed to or advertising light boxes mark preliminary fixed, then the 1 single ST2.5x10mm tapping screw locking reinforcement, the module both sides of glass glue fixed.
5. The end of the module is not connected to the module, the use of the special waterproof cap which we need to support.
6. The standard module cascaded 50PCS, maximal cascaded 100PCS, do not avoid excessive connection, line load current is too large and damaged products.
7. If the module is used outdoors, it is necessary to lock the nut in the terminal in the terminal interface, otherwise it will affect the waterproof effect.
8. Module can not be completely exposed in the outdoor use, touch not electrified, live working, module cut wire, thread cannot be completely naked, must do waterproofing treatment, to prevent electric shock.
Note: this product is forbidden to work at the non selected voltage and to ensure that the work is at the selected voltage 50/60HZ

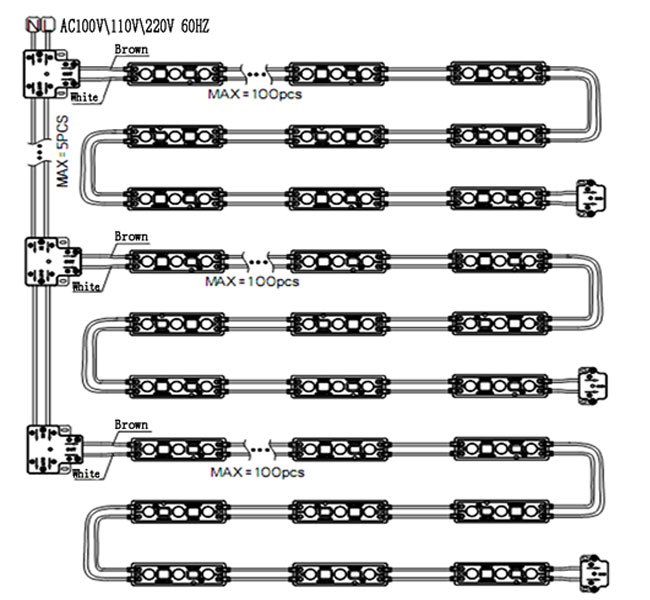

Installation diagram:
Application:
Quality Report:
Free shipping on orders over $79.
$6 shipping charge on orders under $79.
We free ship only to the 48 contiguous states.
For Hawaii, Alaska, Guahan or Puerto Ricoa Customers, an extra freight is required.
100Pcs/Pack No Power Supply Required SMD 2836 IP67 Waterproof LED Module, AC100-240V (3 LEDs, 2.5W, L110 x W28 x H8.5mm Natural White Light,110V)
Working voltage:
|
AC110V
|
Power:
|
2.5W
|
Luminous flux:
|
215lm
|
Luminous angle:
|
155°
|
Power factor:
|
>0.92
|
Number of LED:
|
3PCS
|
Color temperature:
|
6500-7000K / 8000-10000K
|
Effect of light:
|
88lm/w
|
Protection level:
|
IP67
|
Appearance size:
|
110 x 28 x 8.5mm(4.33"x 1.1"x 0.33")
|
Appearance color:
|
White ABS
|
Connecting wire material:
|
White sheathed wire
|
Weight(100PCS):
|
3250g
|
Standard cascade:
|
100PCS/String
|
Fixed screw:
|
M3 self tapping screws
|
Working temperature:
|
-20~55°C
|
Storage temperature:
|
-40~80°C
|
Warranty period:
|
5 years
|
Lamp Parameters
LED type:
|
SMD 2836
|
Luminous angle:
|
120°
|
Service life:
|
>30000H
|
Color rendering index:
|
>80
|
LED color temperature:
|
6500-7000K / 8000-10000K
|
