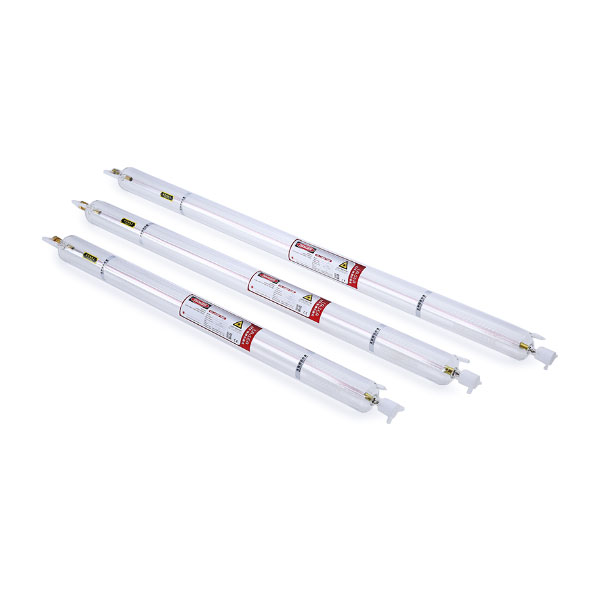

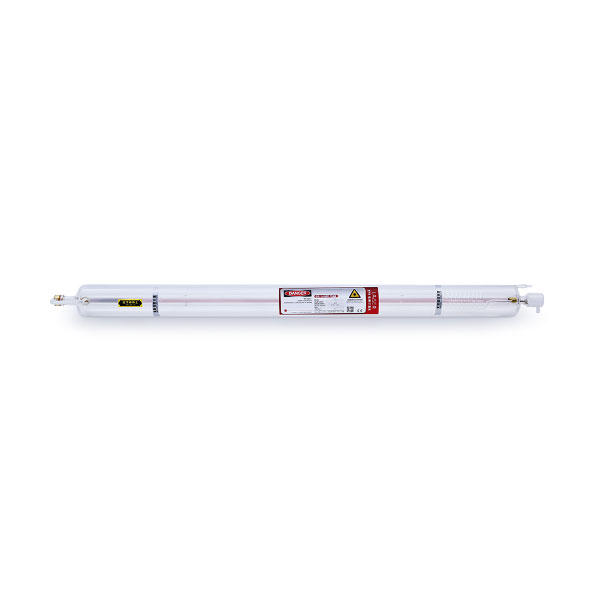

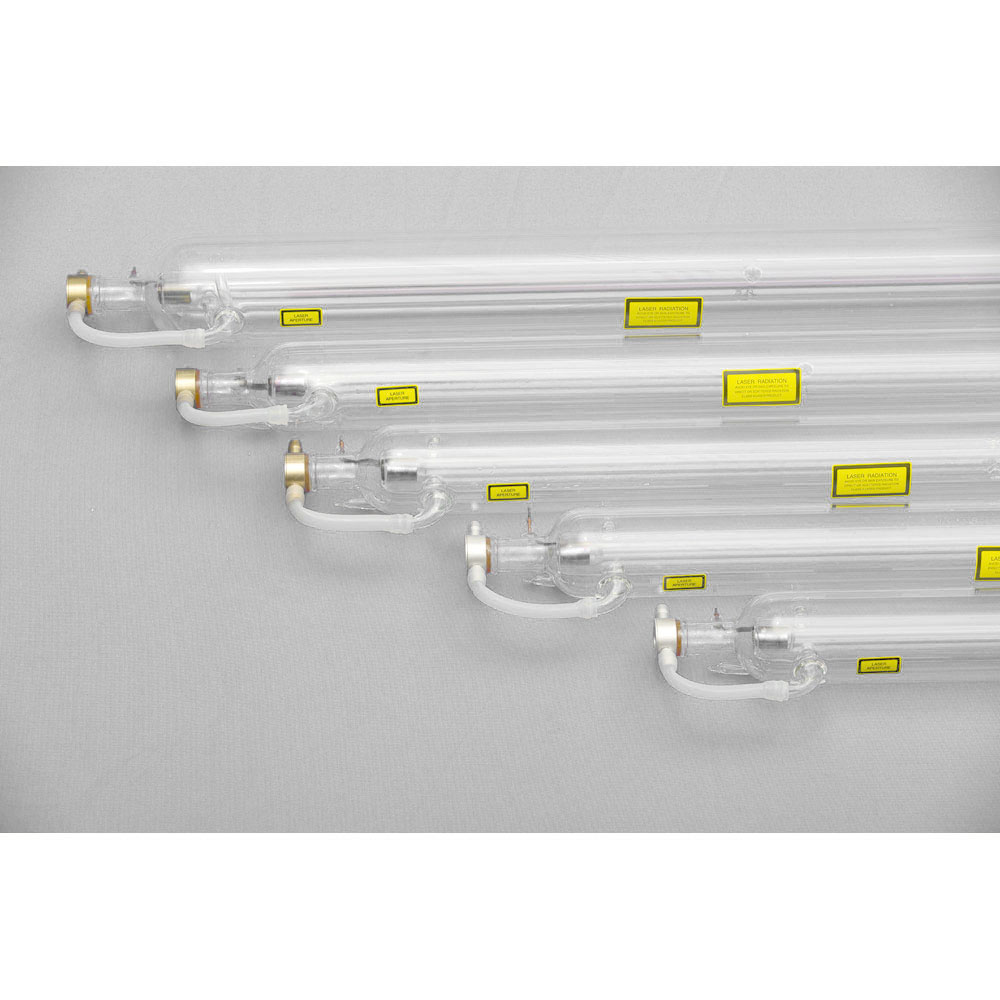

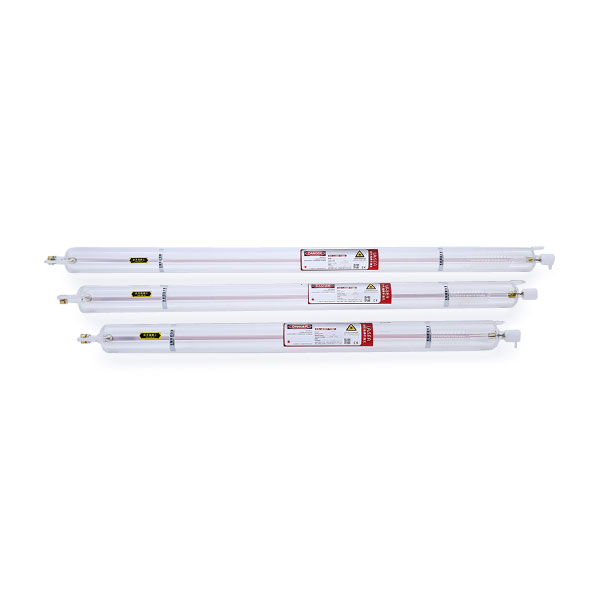

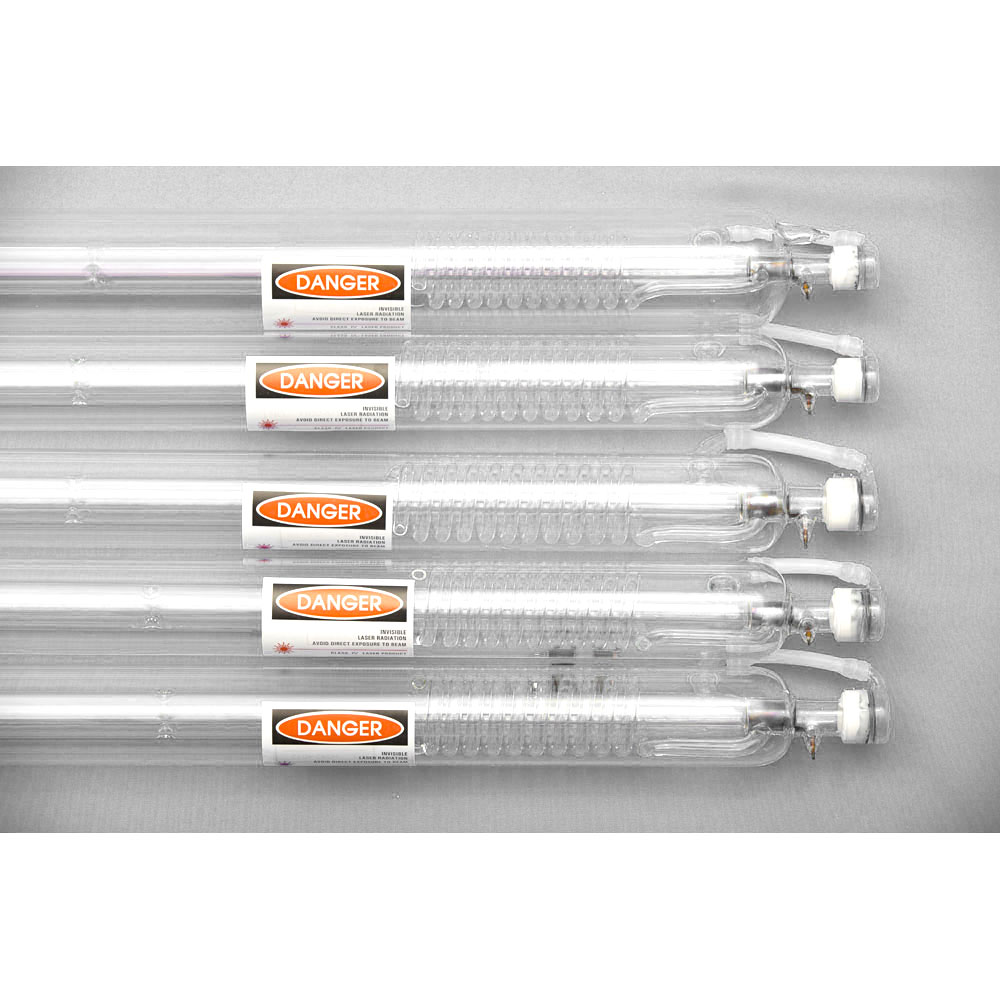

EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife
  • EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife

See larger image and other views (with zoom)

EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraving Machine, 6000hr Uselife

Free Shipping, Arrival in 3-7 Days.

   |   38 Transactions

Item Code:CS-LT-F6-130W-US

  • Unit Price : $1,137.00/pc   (Discount Notice)

  • Availability:
    Ships from LA Warehouse
  • Quantity: pc(s) Total Cost: USD $1,137.00
  • Shipping Weight: 188.6lb (85.73kg) freightFreight

  •   Free Shipping Over $79

Buyer Protection

EFR F2 80W CO2 Sealed Laser Tube 1250mmL for Laser Engraving Machine, 6000hr UselifeEFR F2 80W CO2 Sealed Laser Tube 1250mmL for Laser Engraving Machine, 6000hr Uselife
Tips:
• We will send a new one freely if the tube is broken during transit.
• Once received the laser tube, please check again at the first time. We need the damaged record from the courier as the proof before we send the new one free.

 Model

Length

(mm)

Diameter

(mm)

Output Power

(W)

Max Power   (W)

Current

(mA)

Catalyst Lifespan Warranty   Period
F6 1650±20 Ø80±2 130 150 30 Yes 6000h 300days


Feature:
F6 CO2 Laser Tube is launched in October 2011 with 3 years development, its' working life is up to 6000hours, the single tube power is up to 150W. The laser output is stable. The discharge tube is catalyst coated, the working life is much increased. Compared to similar product, the tube body length is shorter, the laser beam mode is better, the cutting speed is higher.

• Stability: The discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00. The power is table. It is competitive for industrial application.
• Power: The power is 30% higher than other laser tube with same length.
• Long Life: The catalyst coating on discharge tube with unique electrode processing makes the laser out put is more stable, avoid power weaken during long time working.

Product upgrade:
• Use USA IIVI lens and windows & Germany Schott glass tube as discharge tube, performance, reliability, consistency is higher than other similar product.

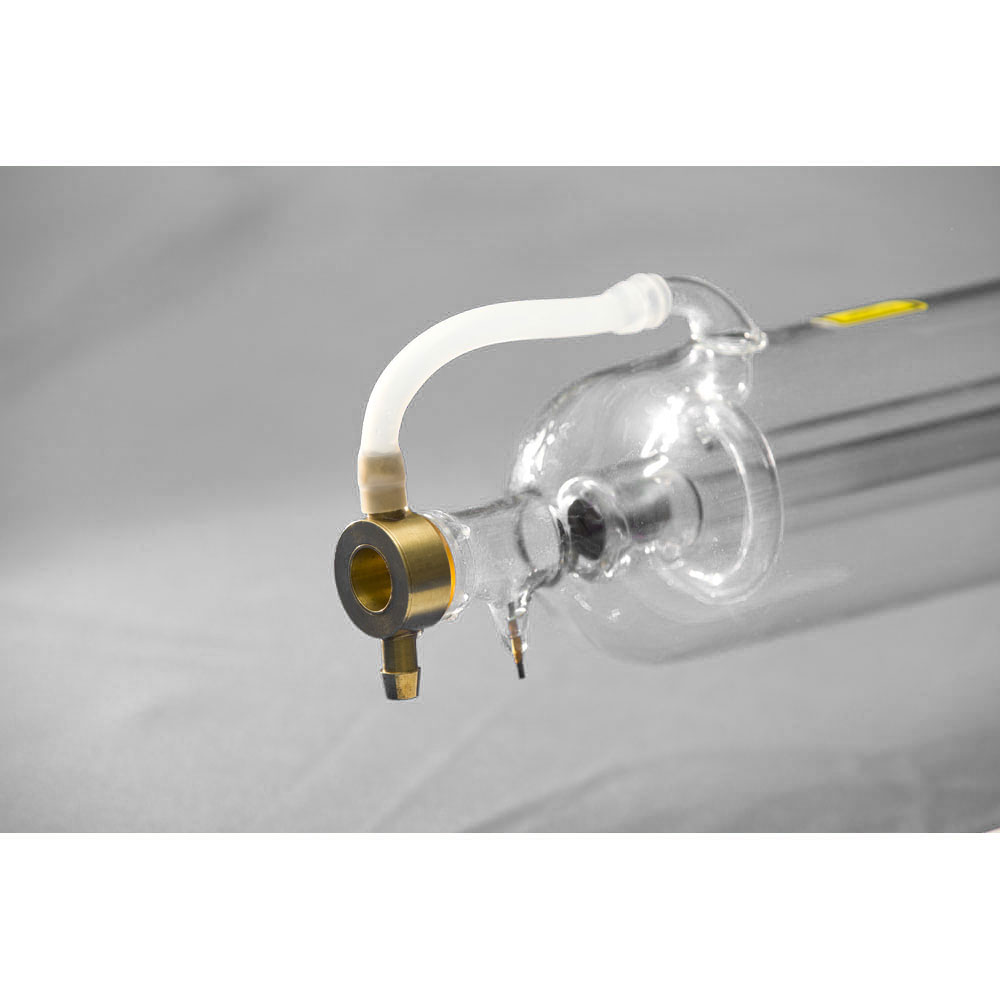

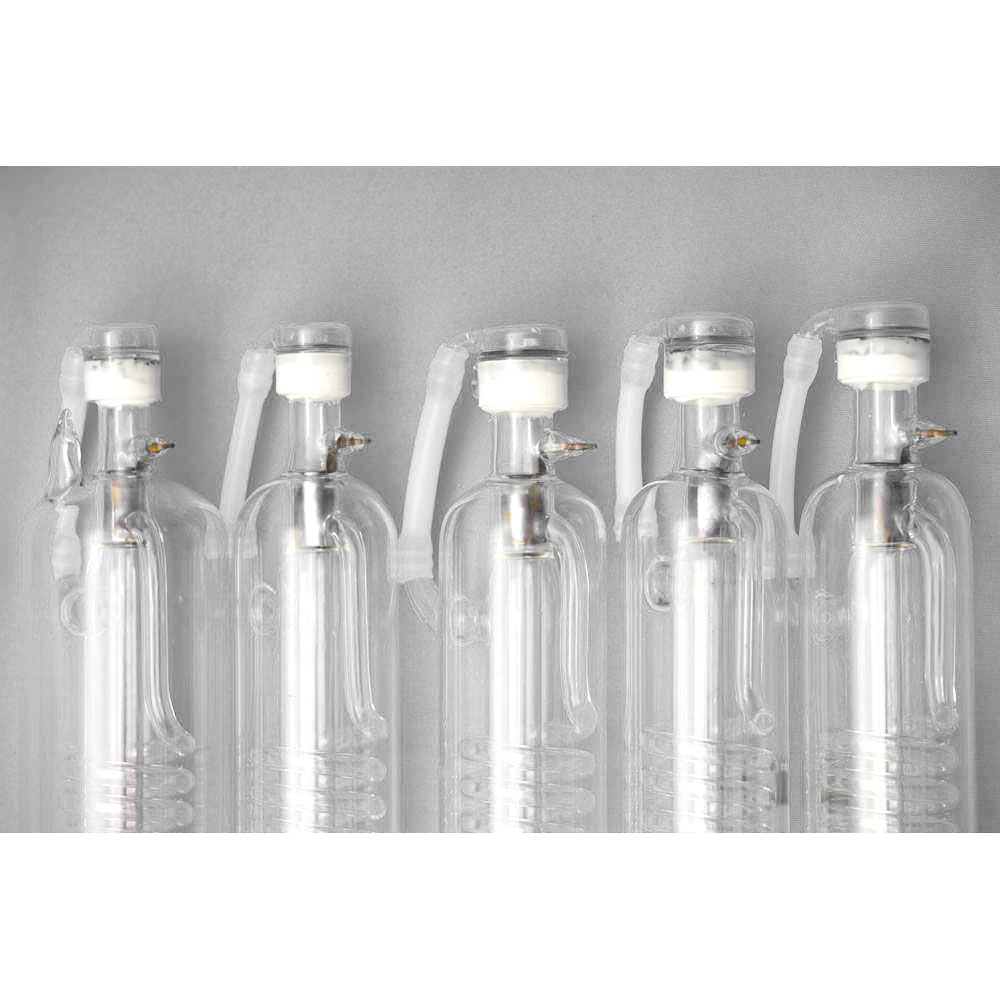

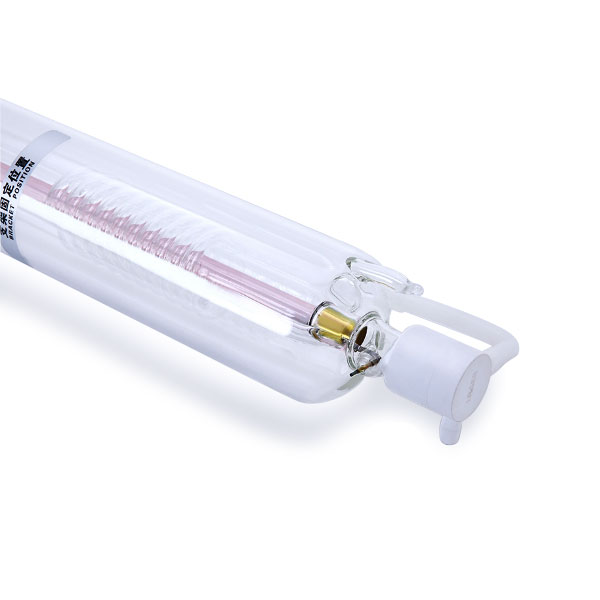

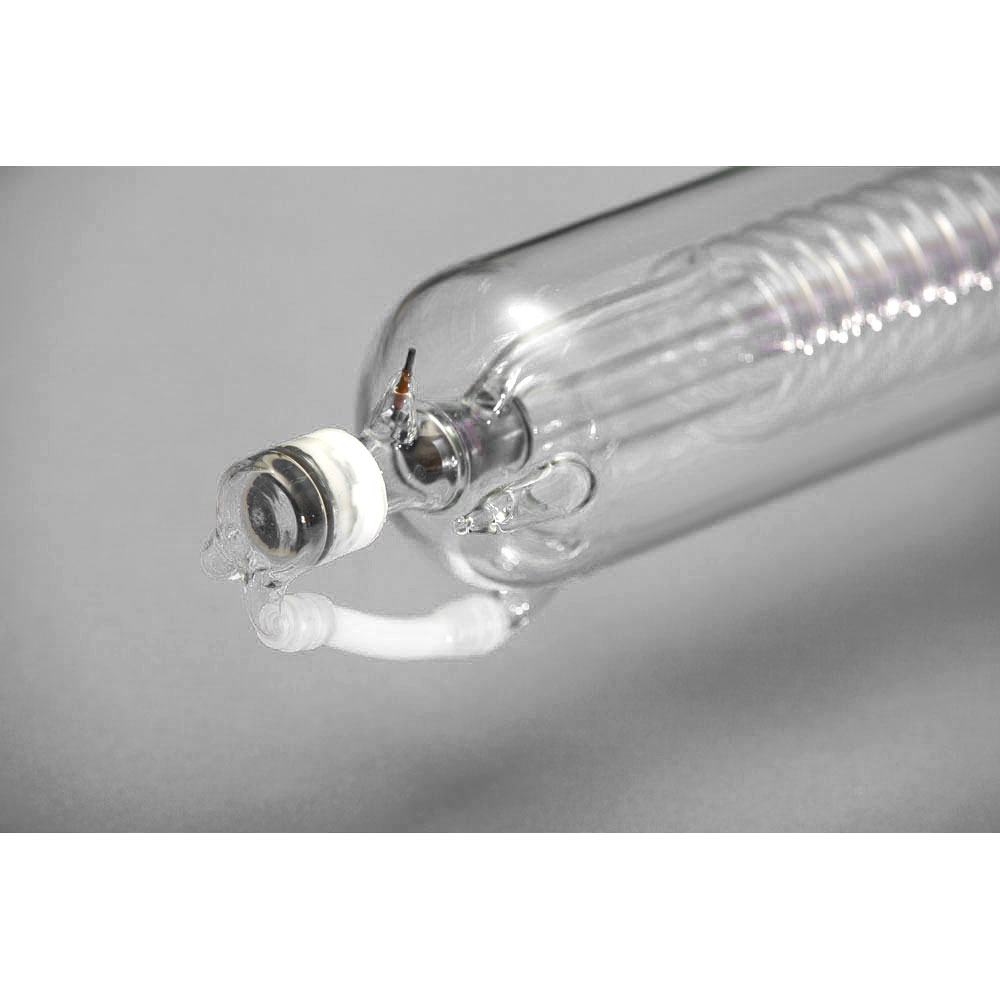

• High voltage side uses a ceramic water cooling jacket, reduce problems compared to glass cap which is made by hand.Ceramic heat dissipation better.
• The silicone pipe is once molded product, water flow more smoothly.
• Improved production processing, reduce gas leakage.
• New machining electrode makes discharge more stable.
EFR F2 80W CO2 Sealed Laser Tube 1250mmL for Laser Engraving Machine, 6000hr Uselife
Product details:
EFR F2 80W CO2 Sealed Laser Tube 1250mmL for Laser Engraving Machine, 6000hr Uselife
Application:
EFR F2 80W CO2 Sealed Laser Tube 1250mmL for Laser Engraving Machine, 6000hr Uselife
Warranty: 300 Days
• Within 90 days from exit work date, if the user operates same as our manual and the output power is less than 80% of the rated power, we will provide new one instead of the defected one. The replaced laser tube has same new laser tube warranty. The single transportation freight will be afforded by buyer. When the laser tube structure is damaged changed, we will not be responsible.
• From 90 days to 300 days, if the user operates same as our manual and the output power is less than 80% of the rated power, we will repair or provide new one instead of the defected one according to fact. The single transportation freight will be afforded by buyer. When the laser tube structure is damaged changed, we will not be responsible.
