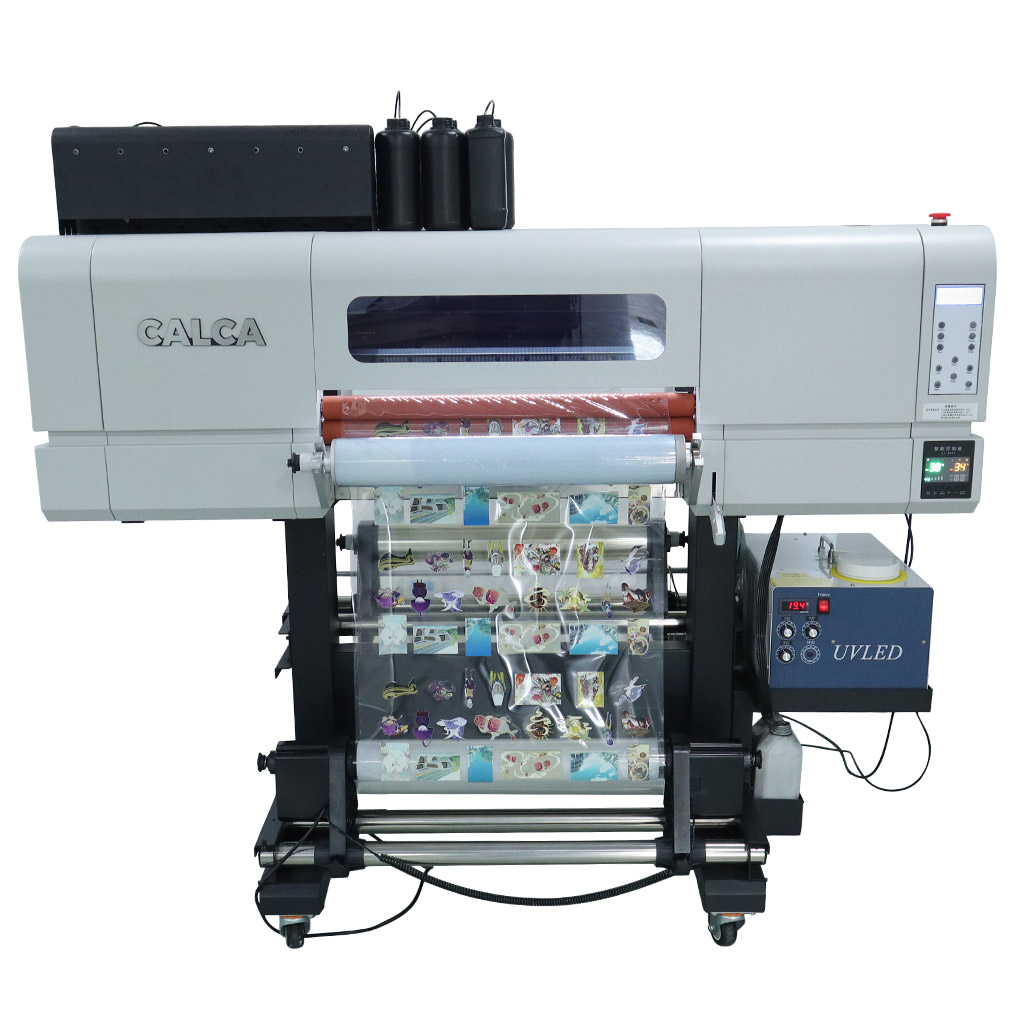

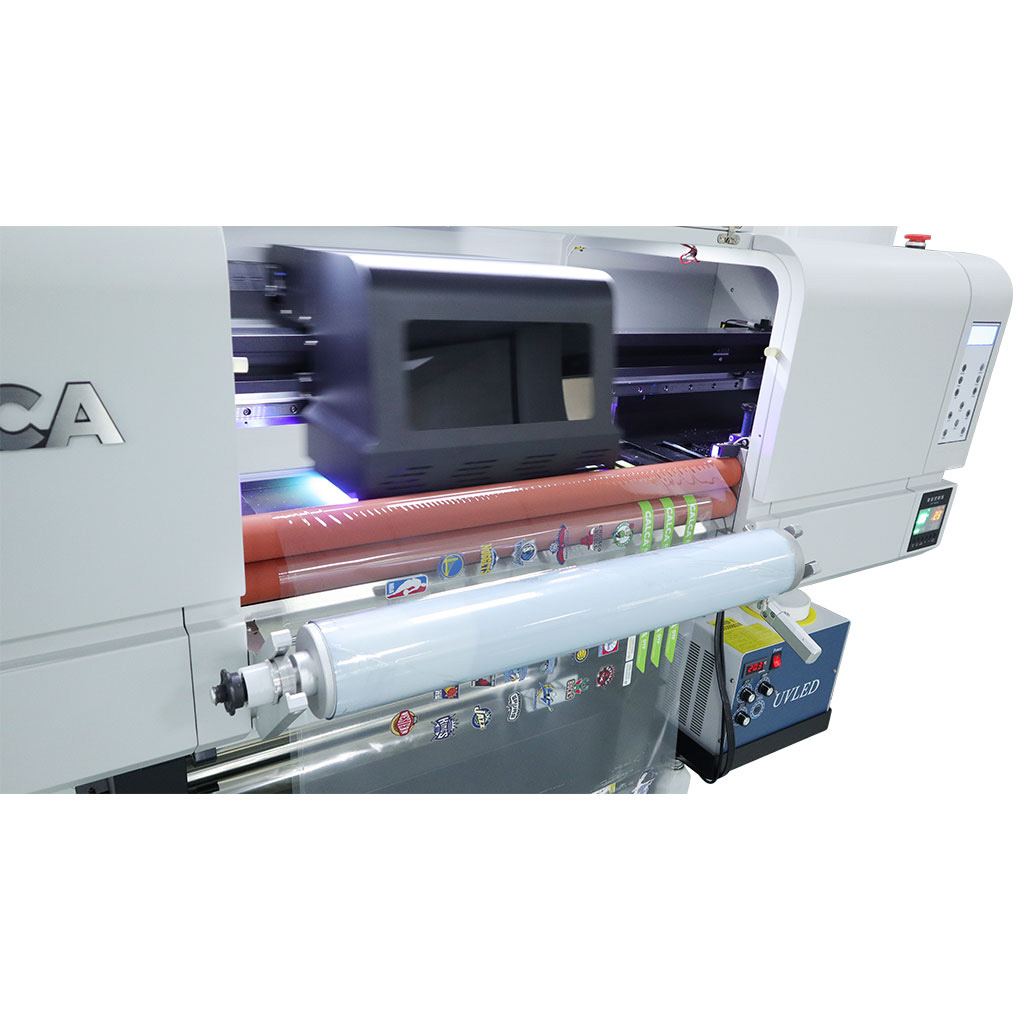

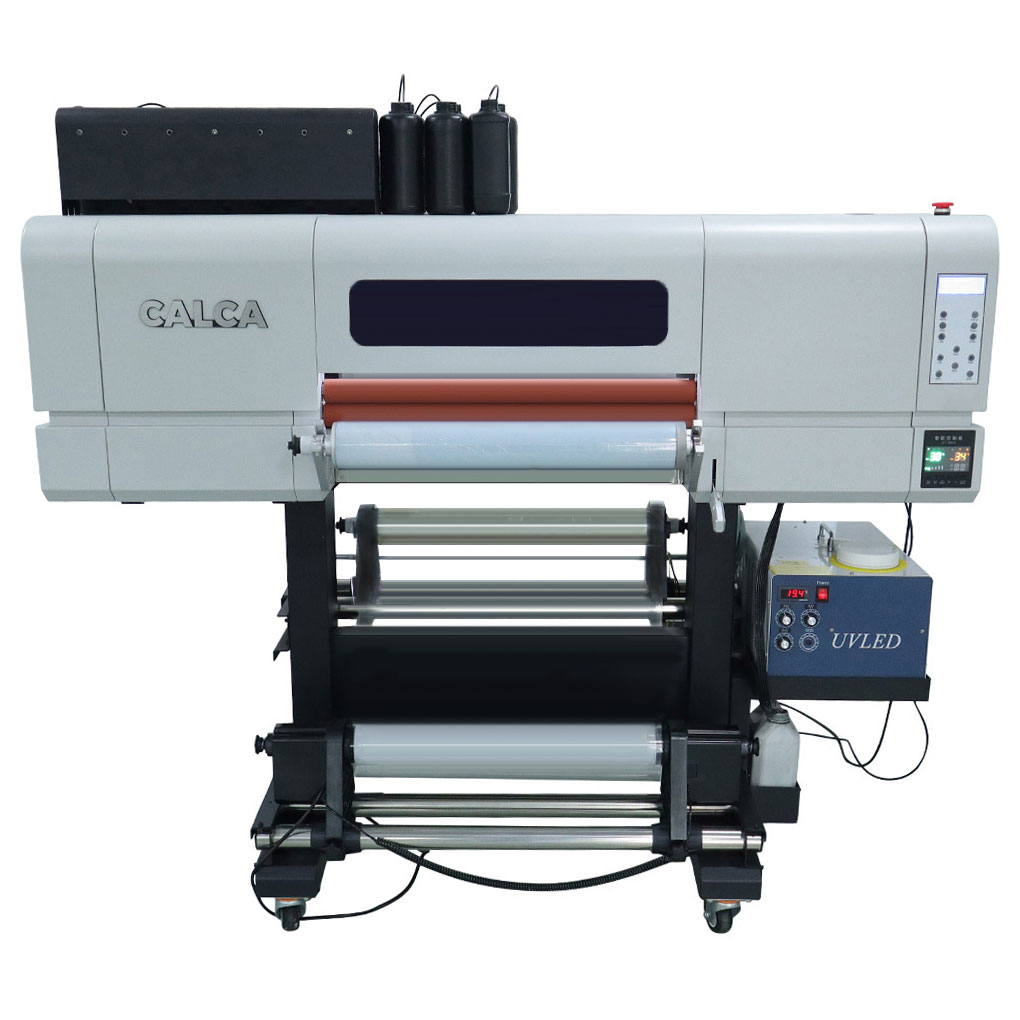

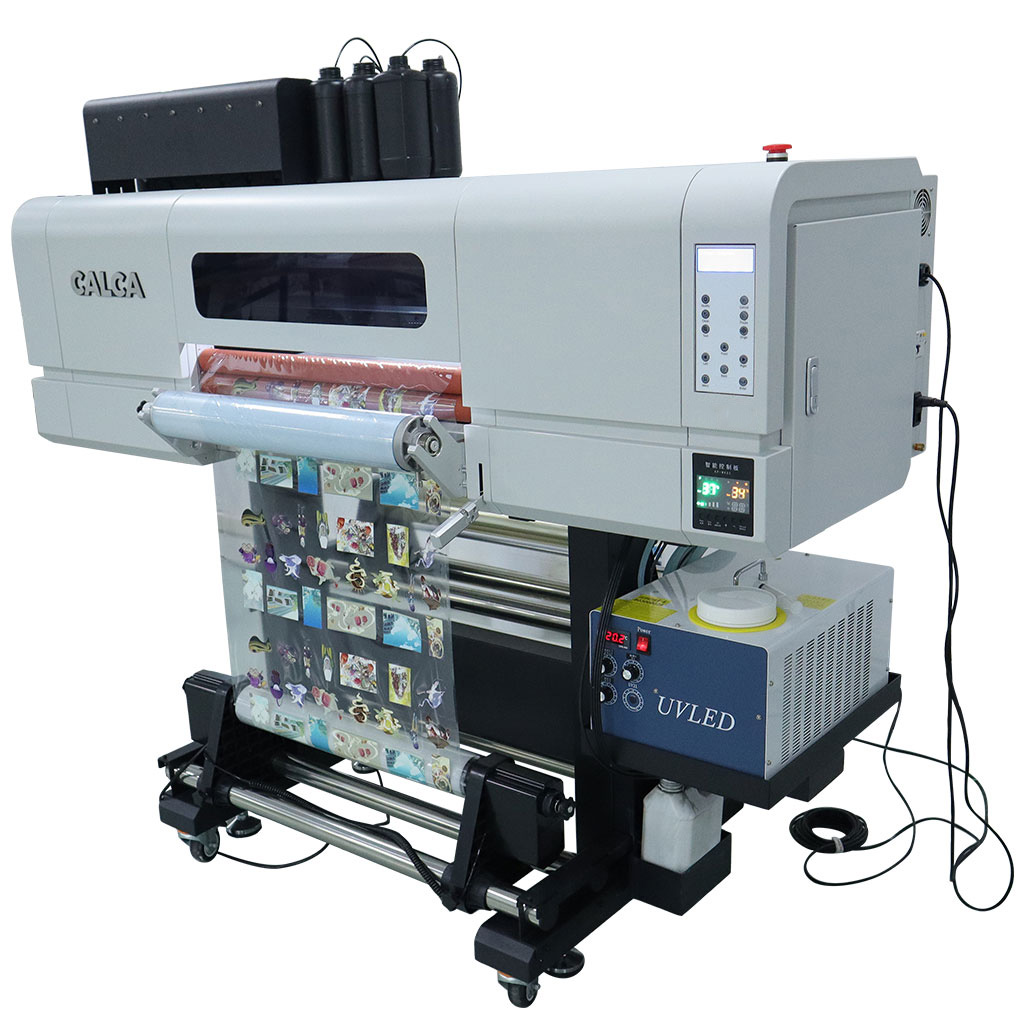

CALCA Ultra SP600 24in UV DTF Sticker Printer, 2 in 1 UV Crystal Label Printer with 3 I3200-U1 Printheads
CALCA Ultra SP600 24in UV DTF Printer breaks the limits of printing products height, shape and size for flatbed printer, almost can transfer to all material.
UV DTF Film is using a new UV printing technology. We have improved the existing UV machine so that the pattern can be printed directly on the film. You can print out the design you want and easily transfer the crystal label to various surfaces, especially uneven hard surfaces.
Features
The UV DTF Printer Package is a comprehensive solution for UV DTF (Direct-to-Film) printing.

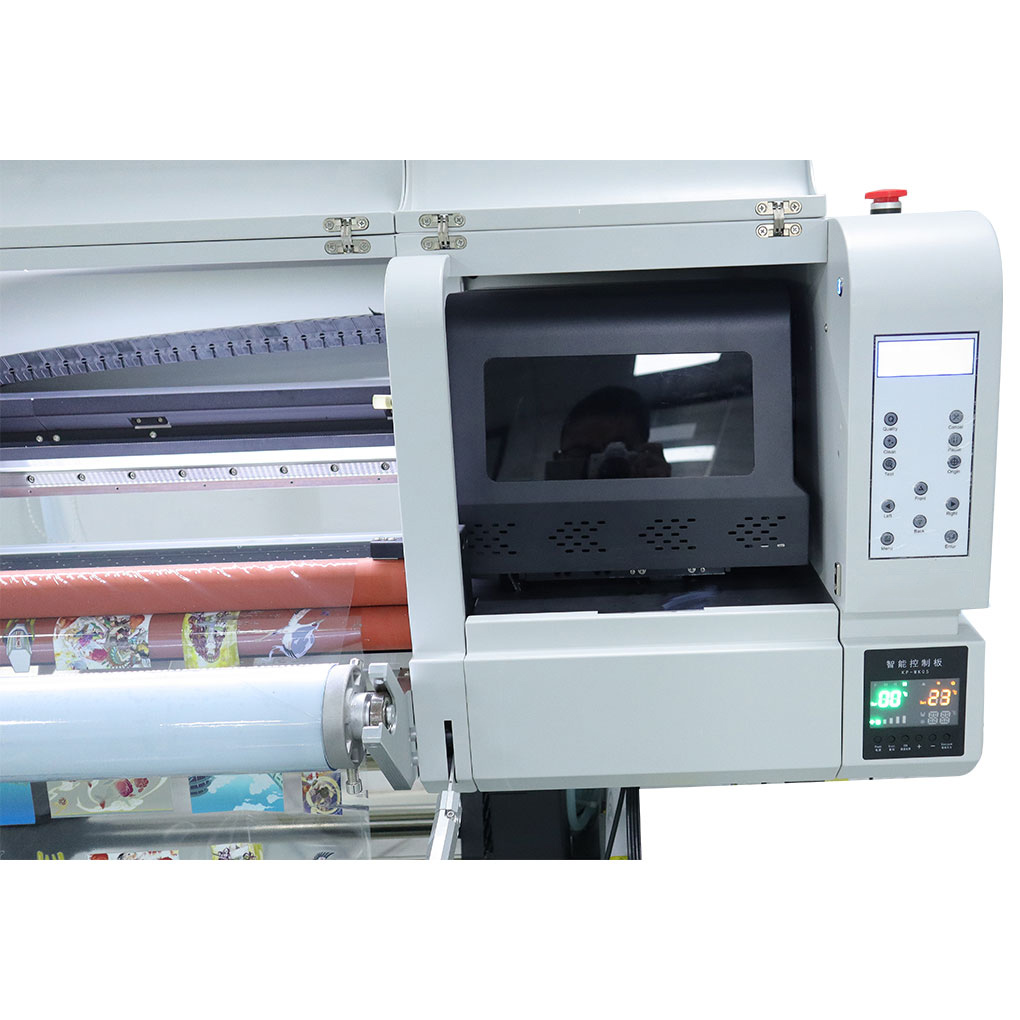

√ Touch screen control panel makes everything easier.
√ 2 in 1 functions: Combine printing and automatic laminating together on one machine, higher productivity. Support common color printing and golden foil UV DTF printing.
√ Ink circulation system: Prevents sediment causing the nozzle to be blocked. Automatic warming when lack of ink, reduce losses for empty printing.
√ Substrate: You can print out the design you want and easily transfer the crystal label to various hard surfaces, such as plastic, glass, ceramics, paper, paperboard, metal, leather, pen, notebook, phone case, mouse, vase, bottle, can, mug, packing box, purse, pad, U-disk and so on.
√ Unlimited size and shape: You can print on especially uneven hard surfaces, such as flat, cylindrical, cambered, rhomboid and other irregular shape.
√ No MOQ requirements: Print magic UV DTF ink on magic film, get ready to design and make your“Image” without the traditional molding process.

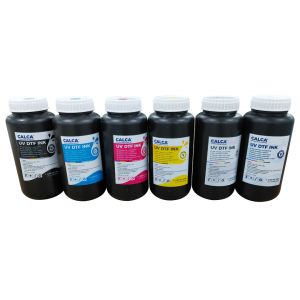

√ 4 Colors + white & varnish are more expressive
It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs.
√ 3D relief effects
Can produce 3D relief and multi-layer transparent bump effect, including amazing varnish glossy & matte finish.
Technical Specifications:
Name: UV Roll Printer for AB film/UV crystal label printer/PET Film Transfer Printing Machine
Brand: CALCA
Max. Printing Width: 24in (620mm)

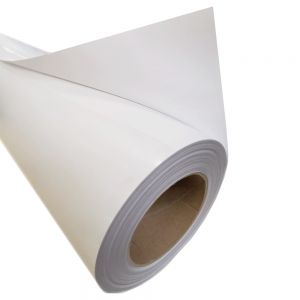

Printing Media: A PET Film (Max. Roll Weight 20kgs)
Print Head: I3200-U1 x 3 including 400 nozzles/rowx8xlinesx3, high quality up to 1800dpi
Print Configuration: White, Color(CMYK), Varnish
Print Accuracy: 1200/1800dpi
Print Speed: 12m²(161ft²)/H, 4Pass; 8m²(72ft²)/H, 6Pass; 5m²(45ft²)/H, 8Pass
Print Thickness: 1.5mm to 6mm(0.06in to 0.24in) adjustable
Printer Interface: USB 2.0
Print Technology: Three intelligent eclosion print function; VSD technology
Print Head Cleaning: Automatic

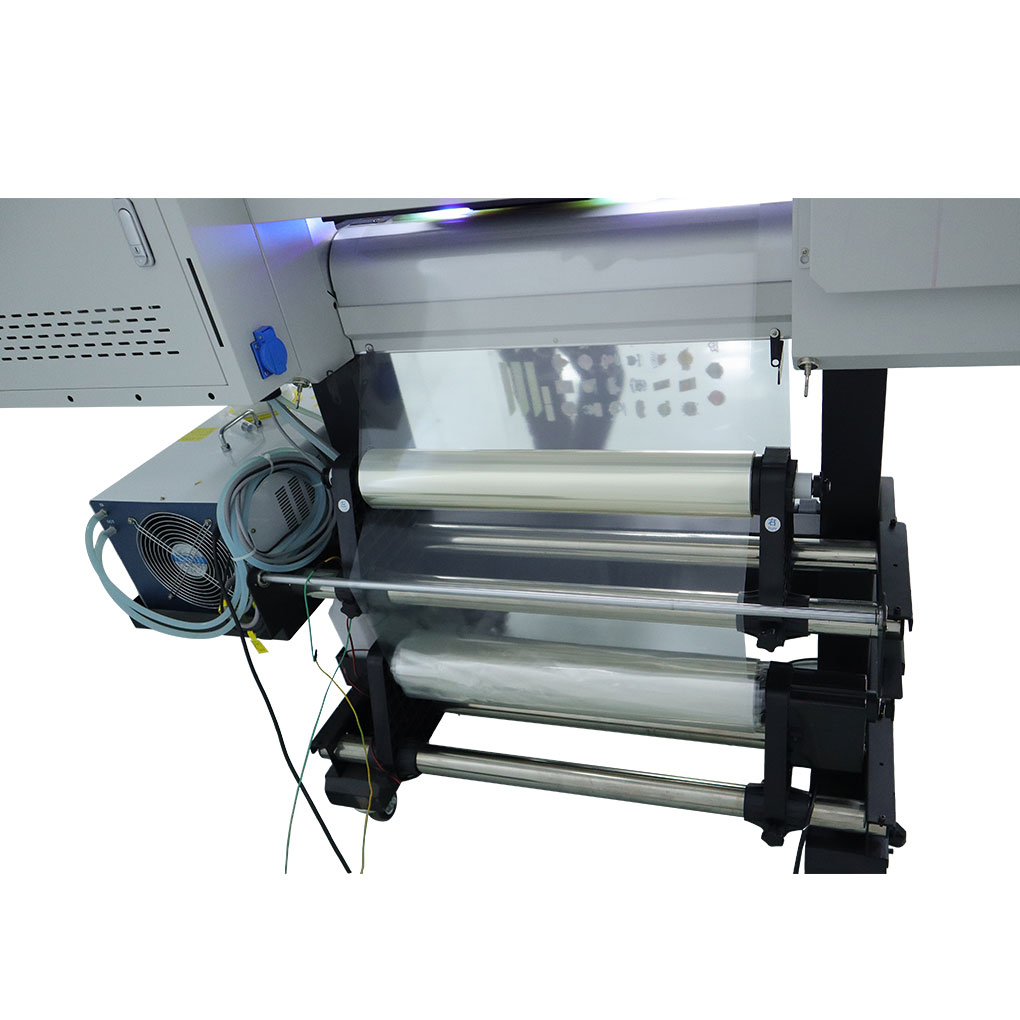

Rewinding Function: Automatic
RIP Software: Maintop6.0 / FlexiPRINT UVDTF RIP Software (Please choose when placing an order)
Machine Size: 71in x 31in x 64in (1785mm x 790mm x 1613mm)
Machine Weight: 441Ibs (200kgs)
Packing Size: 83in x 38in x 29in (2100mm x 970mm x 730mm)
Gross Weight: 486Ibs(220kgs)
Requirements:
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 32A, 3500W
• Operating System: XP / Win7 / Win10 / Win11
• Interface: Gigabit Ethernet
• Temperature control set to 20-35°C (68°F-95°F) and 35% - 65% humidity Advantages of UV DTF:
UV DTF can save time and cost, don't need batch typeset printing, produce at any time, saving time.
No quantity requirement, even 1 piece also can be customized.
Save labor & materials, reduce manufacturing cost.
No need for batch typesetting and printing, production at any time, saving production time.
Waterproof, high temperature resistance, scratch resistance.
The fastness is many times higher than that of screen printing, no glue and no waste discharge.

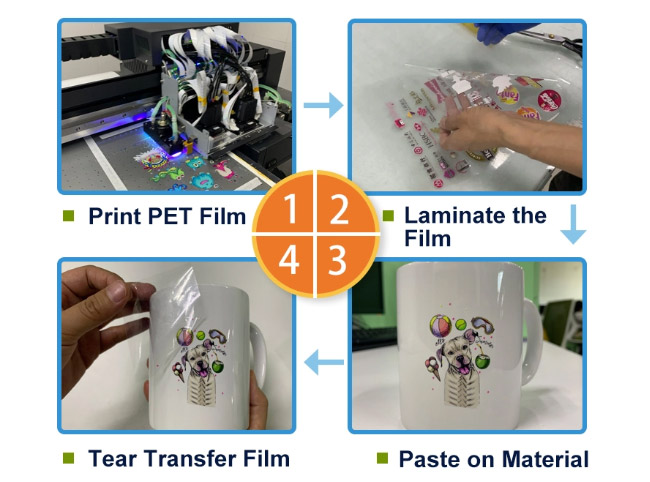

UV DTF Printing Process Flow:
Step 1. Design Pattern
Use photoshop, illustrator or other software to design your pattern.

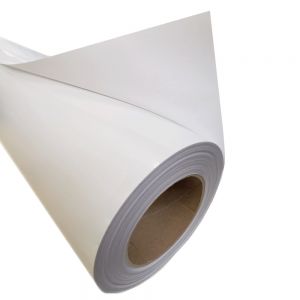

Step 2. Print pattern to A Film
Print the pattern on the direct transfer film first, and print in the order of white ink, color ink and varnish (Add a layer of varnish print for best results).

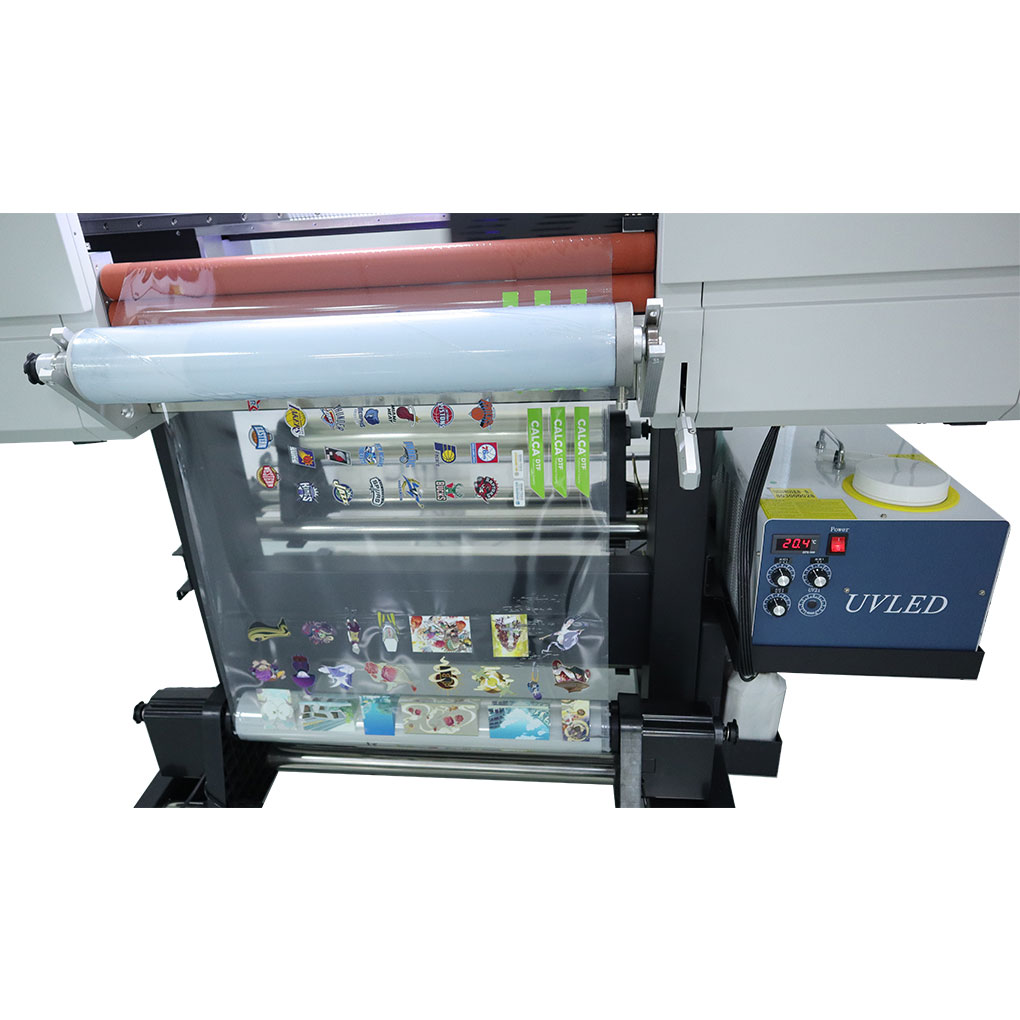

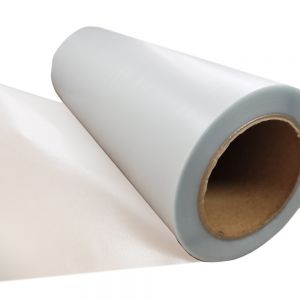

Step 3. Laminate A film to B film
After printing, B film will be automatically laminated with transfer film.
Step 4. Peel and apply
Tear off the A film and stick it directly onto your product, remove the B film, and the pattern can be easily transferred to the product.
You can get UV DTF printing equipment such as UV printers, CALCA UV inks and CALCA UV DTF film at affordable prices from us.
Applications:
UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.
UVDTF-UL-A24H3-US user manual Version1.0
Warranty
Lifetime Technical Support
Limited to 2-year warranty on non-consumable parts
Warranty on parts only for printer(s) using CALCA UVDTF inks, films, and printer(s) under proper maintenance and usage.
1 year warranty on non-consumable parts if you don't use CALCA’s ink, film products.
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user’s responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
