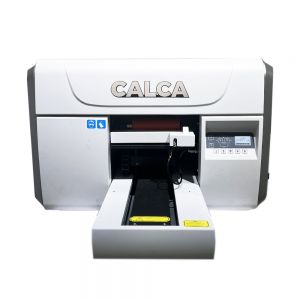

CALCA A3 11.7in x 16.5in LED UV Printer For Flat and Cylinder Printing With Epson I3200-S1HD Printhead

Arrival in 7-10 Business Days.

Item Code: UVRP-UL-A3-US

Availability:

Unit Price: $8,399.00/set

Finance as low as $233 / mo

Apply to See Distributor Price

Quantity:
set(s) Total Cost:  $8,399.00
Buy It Now Add to Cart Ask A Question

Buyer Protection

CALCA A3 11.7in x 16.5in LED UV Printer For Flat and Cylinder Printing With Epson I3200-S1HD Printhead
Buy It Now


CALCA A3 11.7in x 16.5in LED UV Printer For Flat and Cylinder Printing With Epson I3200-S1HD Printhead
Skilful and refined, what is shown is what you see.

Features:
√ The resolution can reach 1200 dpi, and it can produce up to 8-color output.
√ Compact, less foot print.
√ Humanized design operation panel, convenient and fast operation.
√ Various functions, support flat and roll printing.
√ Simultaneous output of white, color and varnish.
√ High precision lifting vacuum table - the flatness can be controlled within 0.1mm.
√ Intelligent ink supply system - with ink shortage alarm function. Fixture (optional)

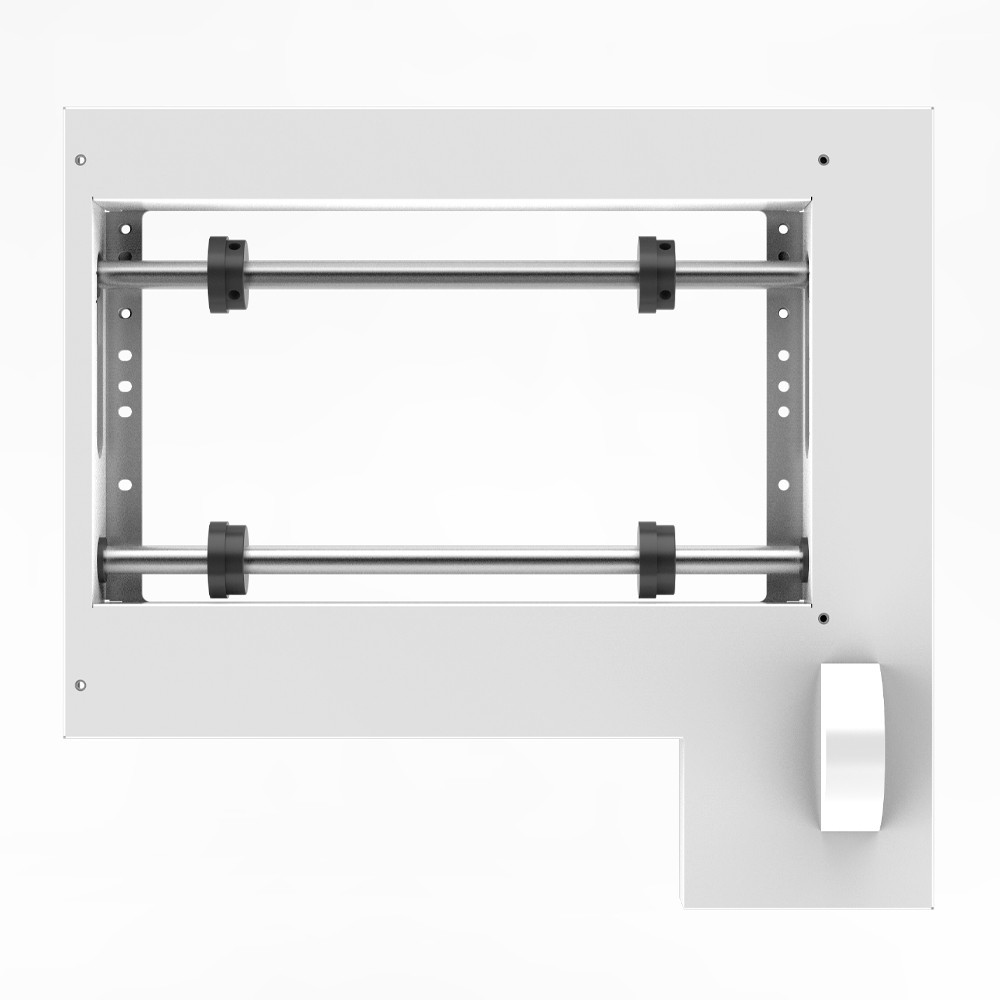

Cylindrical fixture(Standard): Suitable for blanks within 25mm (0.9842in) to 80mm (3.1496in) diameter and 20mm(0.7874in) to 210mm (8.2677in) length.
Roll fixture(Optional): Suitable for blanks within 11lbs (5kg) weight, from 30mm (1.1811in) to 250mm (9.8425in) width,inner core diameter of 3in.


Technical Specs:
Print size: 297 x 420mm(11.69in x 16.53in)
Print head: I3200-S1HD x 1pc
Nozzle spray force range: 2-3mm(0.0787in-0.0118in)
Number of nozzle: 3200 (Individual)
Distance between nozzles: 1/300inch
Numbers of nozzle rows: 8
Maximum number of supported ink colors: 8
Effective print width: 300npi/1 list, 600npi/2 list, 1200npi/4 list
Droplet ejection performance(Droplet volume and ejection frequency):
2 levels of grayscale 5 pl (43.2KHz)
3 levels of grayscale 6, 12.5 pl (21.6KHz)
4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)
Print height: 0-85mm(0-3.34in)
Ink type: Environmental UV curing ink
Print version: White and color and varnish print as same time
Print mode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK
Rip software: Future Rip
Print speed: 0.28-3sqm/h
Highest print solution: 720 x 1200dpi
Connection method: Network cable
Graphic format: Tiff, Jpg, Eps, Pdf, Png
Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)
Net Weight: 60kg (132.28lbs)
Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)
Gross Weight: 80kg (176.37lbs)
Power: AC220 / AC110V, 50-60HZ, 1 phase; 140W, 1.3A(110V) / 0.6A(220V)
Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%

Package Includes:
UV printer x 1
Future Rip x 1
Power cable x 1
Network cable x 1
Cylindrical fixture

Details:

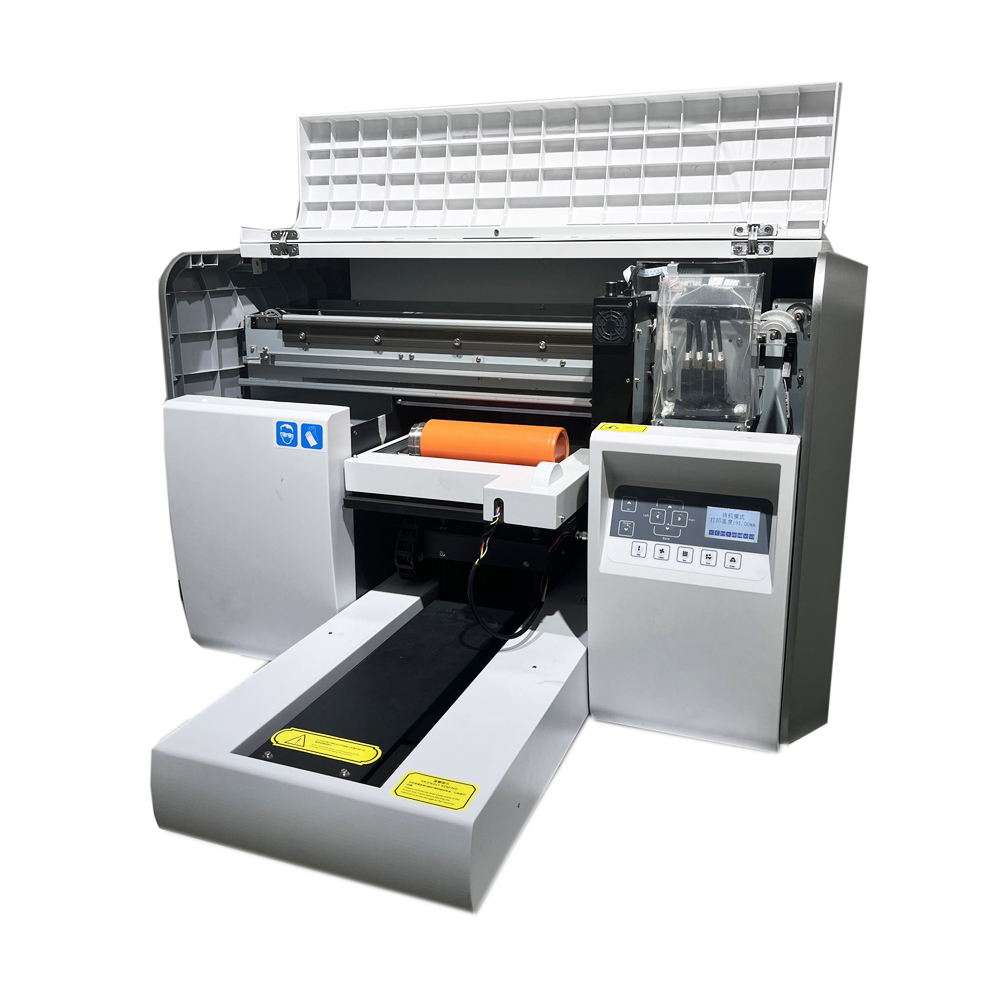

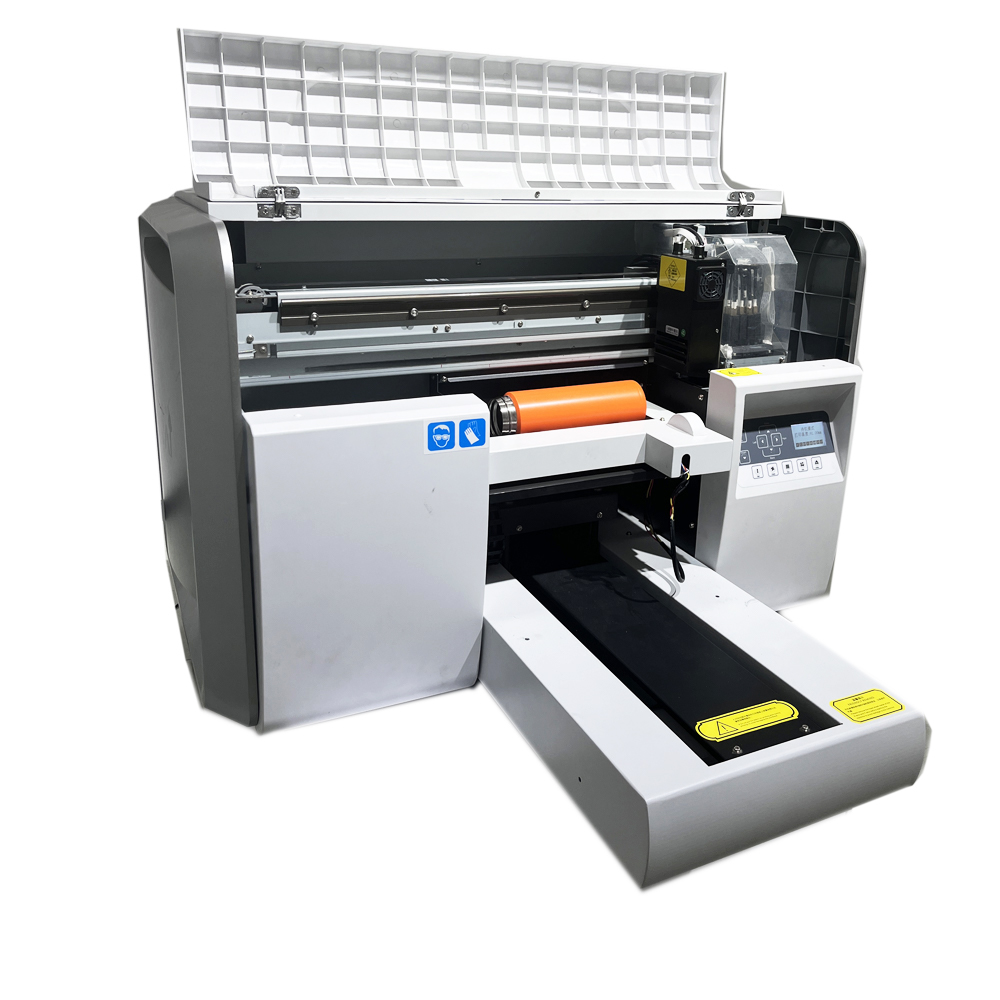

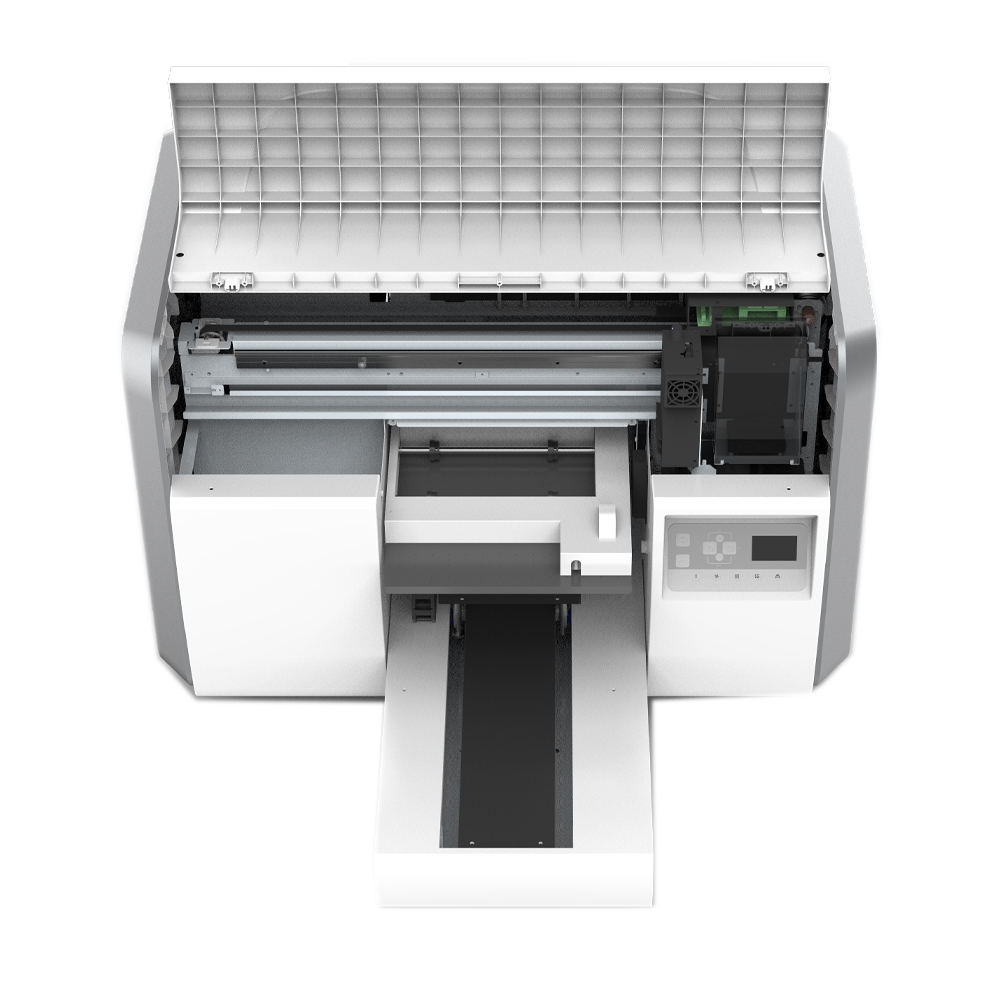

EPSON I3200-S1HD print head - 1200 dpi reaches the highest resolution in the industry, creating excellent photo quality.                                                                    Lifting vacuum table - High-precision honeycomb hard aluminum platform, the flatness it controlled within 0.1mm.


Intelligent ink supply system - New ink cartridge design, with ink automatic circulation, ink shortage alarm function. Lifting capping station design - The motor drives the capping station to rise and fall, precisely controls the position of the carriage and better protects the head.


Multifunctional control panel - Humanized design, in line with human habits, flexible and easy to operate.  Full coverage shade cover - Light-shielding, dust-proof, touch-proof.

Applications:
Handicraft industry: Earrings, bookmarks, Rubik's cube, bowling ball, fridge magnets, brooches, buttons, key-chains, pendants, small badges, small metal billboard, bottle openers, etc.

Electronics digital industry: Watches, u disk, earphones, mobile power banks, mobile phone case, tempered film, small speakers, power cords, electronic cigarettes, etc.

Stationery industry: Ballpoint pen, glass case, notebook, Pencil case, ruler, eraser, correction fluid, mouse pad, stapler, pencil, label paper, etc.

Personalized gift customization: Lithographs, art books, mobile phone case, puzzles, car accessories, stationery gift sets, gift lights, etc.

This product has no Specifications

CALCA A3 LED UV PRINTER

Warranty
> Lifetime Technical Support
> Limited to 2-year warranty on non-consumable parts.
> Warranty on parts only for printer(s) using CALCA UV inks, and printer(s) under proper maintenance and usage.
>1 year warranty on non-consumable parts if you don't use CALCA’s UV inks.

Company or person requesting warranty repair shall contact CALCA for pr-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pr-authorization for service repair and selection will result in denial of a warranty claim.

CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user’s responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
