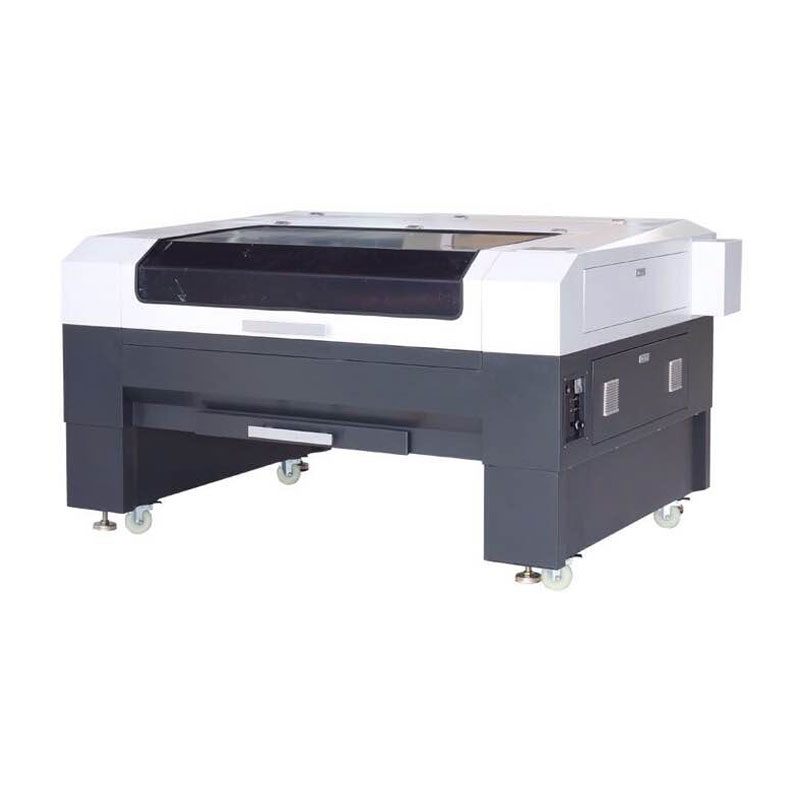

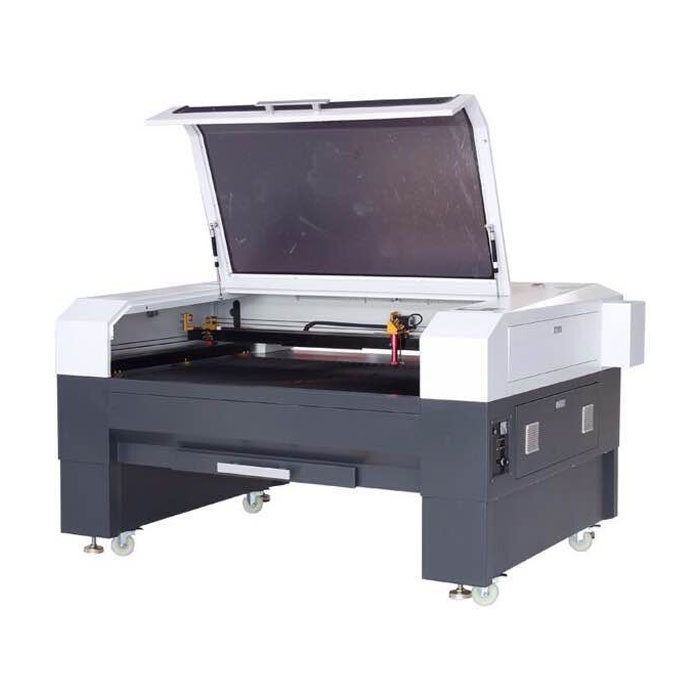

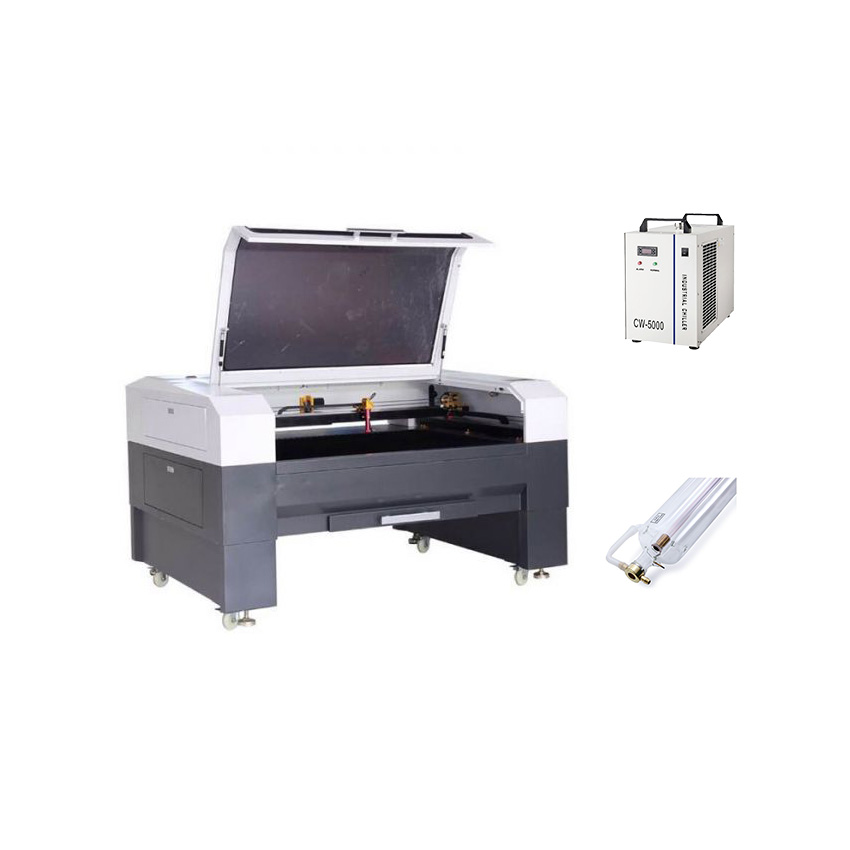

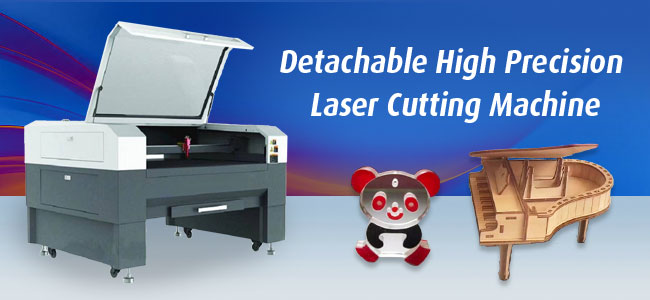

51" x 35" 1390 Luxury Laser Engraving and Cutter, with EFR F6 130W-160W Laser Tube

Arrival in 4-6 Weeks.

Item Code: LCM-BY-Z1390-150W-US

Unit Price: $9,752.00/set

Finance as low as $271 / mo

Apply to See Distributor Price

Inquire Now

Buyer Protection

51" x 35" 1390 Luxury Laser Engraving and Cutter, with EFR F6 130W-160W Laser Tube
Buy It Now



High precision equilibrium linear guide ensures the precise processing effect;
• Adopt the super fine cutting technology, which has features of extensive material processing,
smooth cutting edge and burr - free;
• Laminated Safety Glass;
• Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and
stronger cutting force;
• Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years;
• The laser cutter is equipped with aluminum strip shape platform;
• This machine uses USB port to transmit data, it is equipped with large internal memory capacity,
• Adopts high quality EFR CO2 glass laser tube made in China.

It can make delicate and complicated designs on acrylic, wood and PVC and so on;
• Avoid polishing, processing high speed, and high precision;
• Glass viewing windows creating a safe enclosure for laser processing;
• Original Singapore imported lens can greatly improve working efficiency and reduce cost;
• Exhausting, absorbing and assistant blowing systems extend the life of the laser tube;
• Aluminum strip shape platform can bear heavier materials, such as acrylic, wood and much more non – metal materials;
• Large internal memory capacity improves the working speed with greater efficiency;
• With a fine cutting effect and price advantage.

This high precision laser cutting machine can make delicate and complicated designs on acrylic, wood and PVC and so on for the advertisement, handicraft industries etc. Servo motor is optional in high - end applications.

• 51" x 35" (1300mm x 900mm) working area;
• Up to 23.6" IPS (600mm/s) high working speed;
• Pass-through front and rear doors to accommodate long work pieces;
• Three unique protection functions, i.e. anti-interference function, water - protective function and power cut - off function ensure longer working life, safety and effectiveness.

Note:

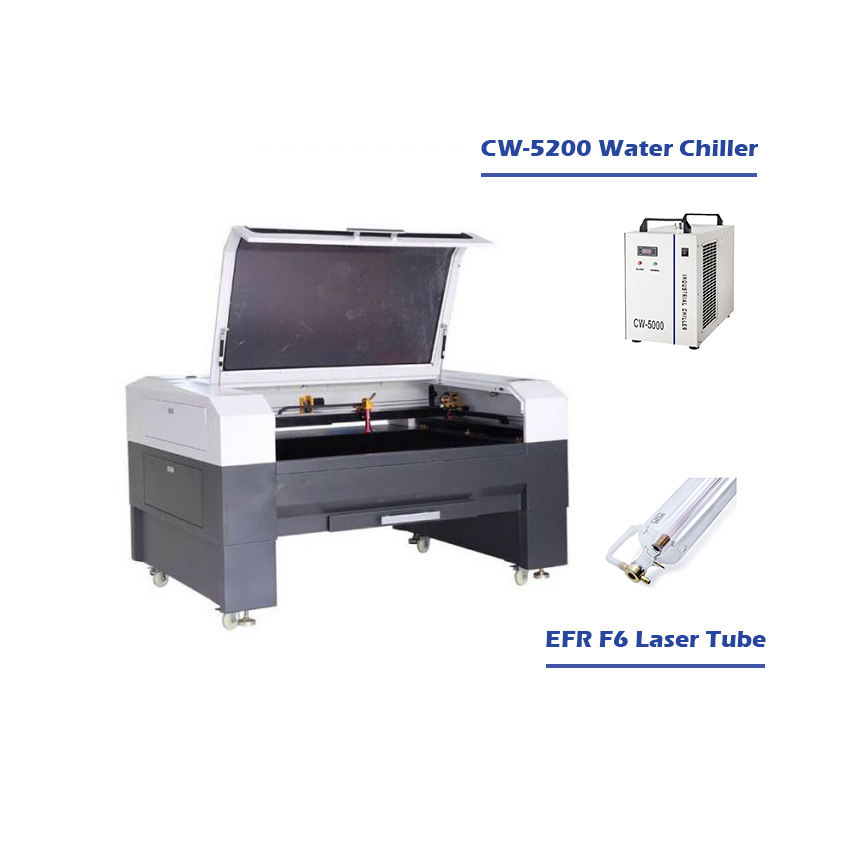

Equipped with high quality Water Chiller CW5200, which can prolong the lifespan of the laser tube and ensure a better engraving effect.

Main Configuration
Max. Working Area: 51" x 35" (1300mm x 900mm)
Max. Cutting Speed: 15.7" (400mm) / s
Max. Engraving Speed: 23.6" (600mm) / s

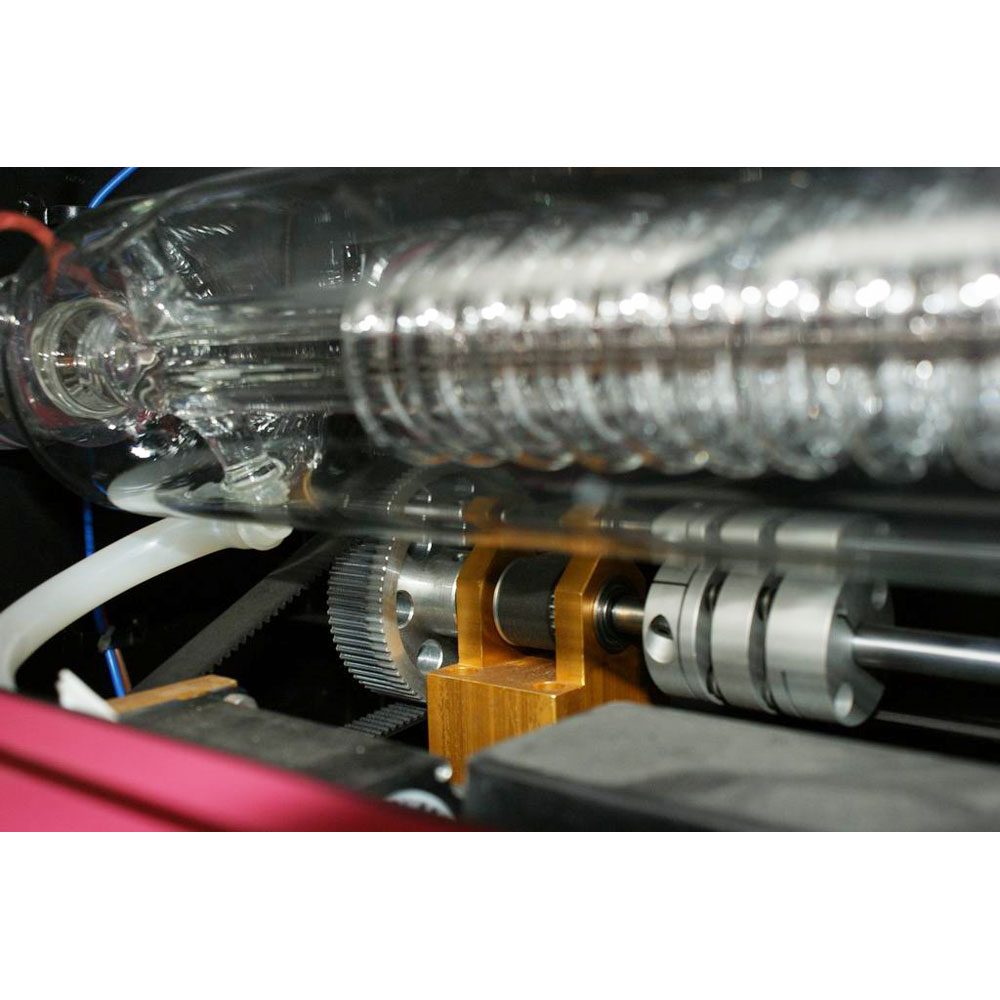

Laser Power: EFR F6 CO2 glass laser tube 130W-160W (Normal lifespan: about 10000 working hours)
Max. Cutting Thickness (Acrylic): ≤1.2" (30mm)
Resolution Ratio: 0.0064mm
Min. Shaping Character: Chinese Character: 0.1"  x  0.1" (2mm x 2mm), letter: 1mm x 1mm
Location Precision: <0.01mm

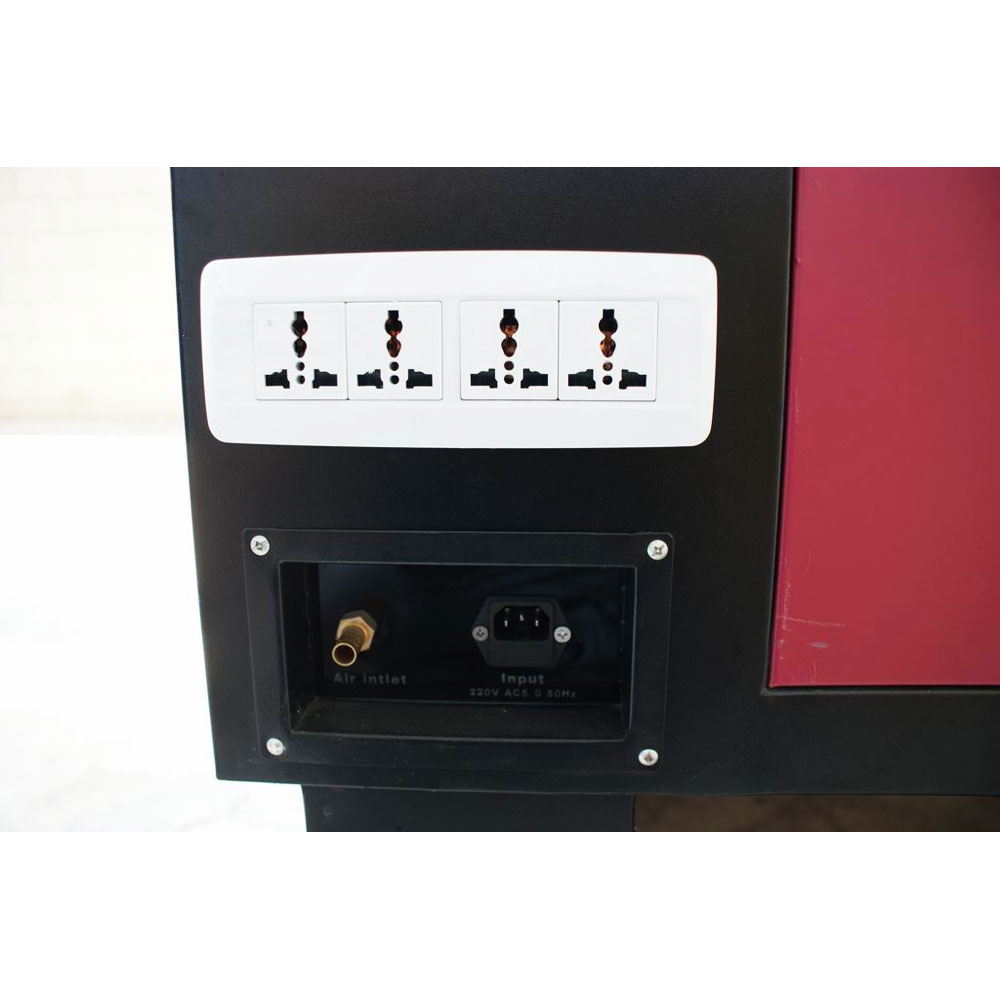

Power Supply: AC 220V±10%, 50Hz
Gross Power: <1250W

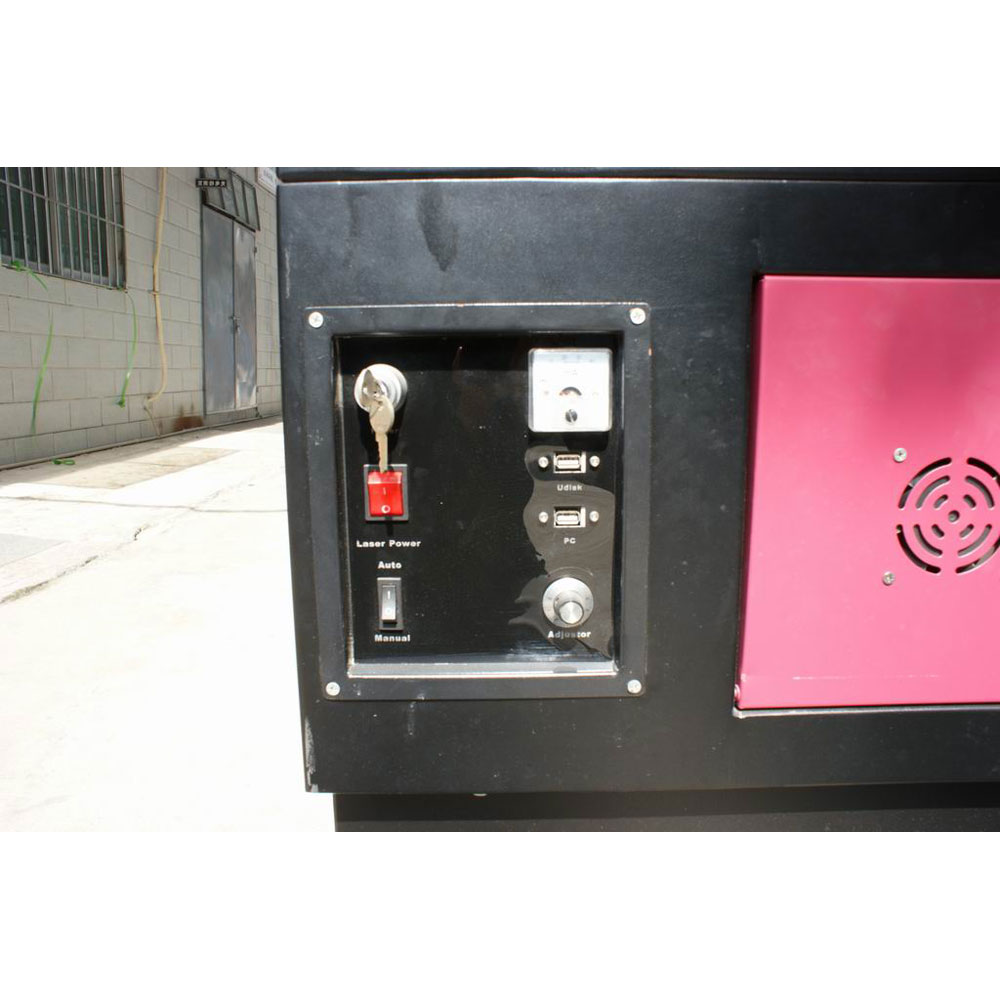

Electric Lifting Worktable(Optional) Control Panel Honey Comb Table(Optional)

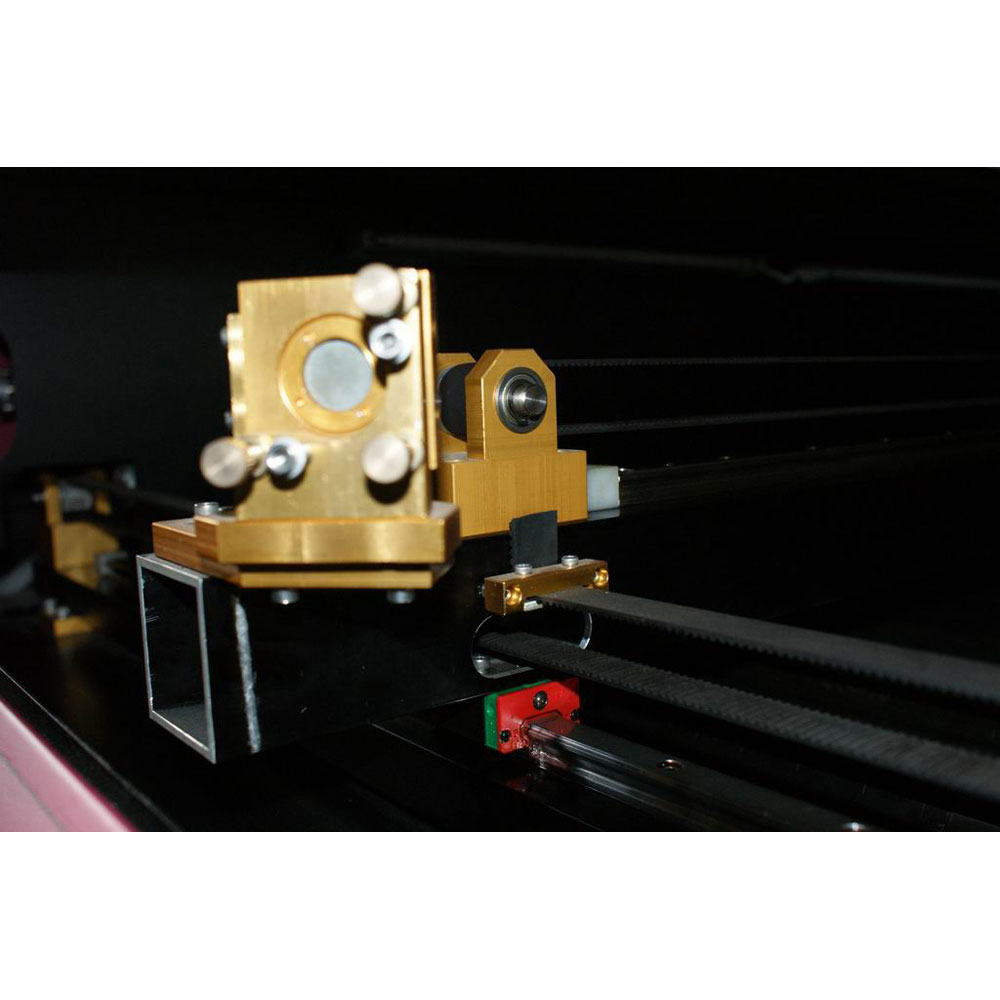

Laser Head Linear Guide Rotary Fixture(Optional)





Instructions of Laser Engraving Cutting Software
There are three kinds of RD laser cutting software. One is the direct output software based on CorelDraw (hereinafter referred to as CorelDraw_Laser); the other is based on the direct output software based on AutoCAD (hereinafter referred to as AutoCAD_Laser). In addition, there is another kind of independent software (hereinafter referred to as LaserWork), which is more simple to use in the first stage of using laser cutting machines.



Parts quality guaranteed:
The main board and power supply of laser cutting machine were put into an oven at temperature of 50 degree for an aging test, minimally 4 hours.

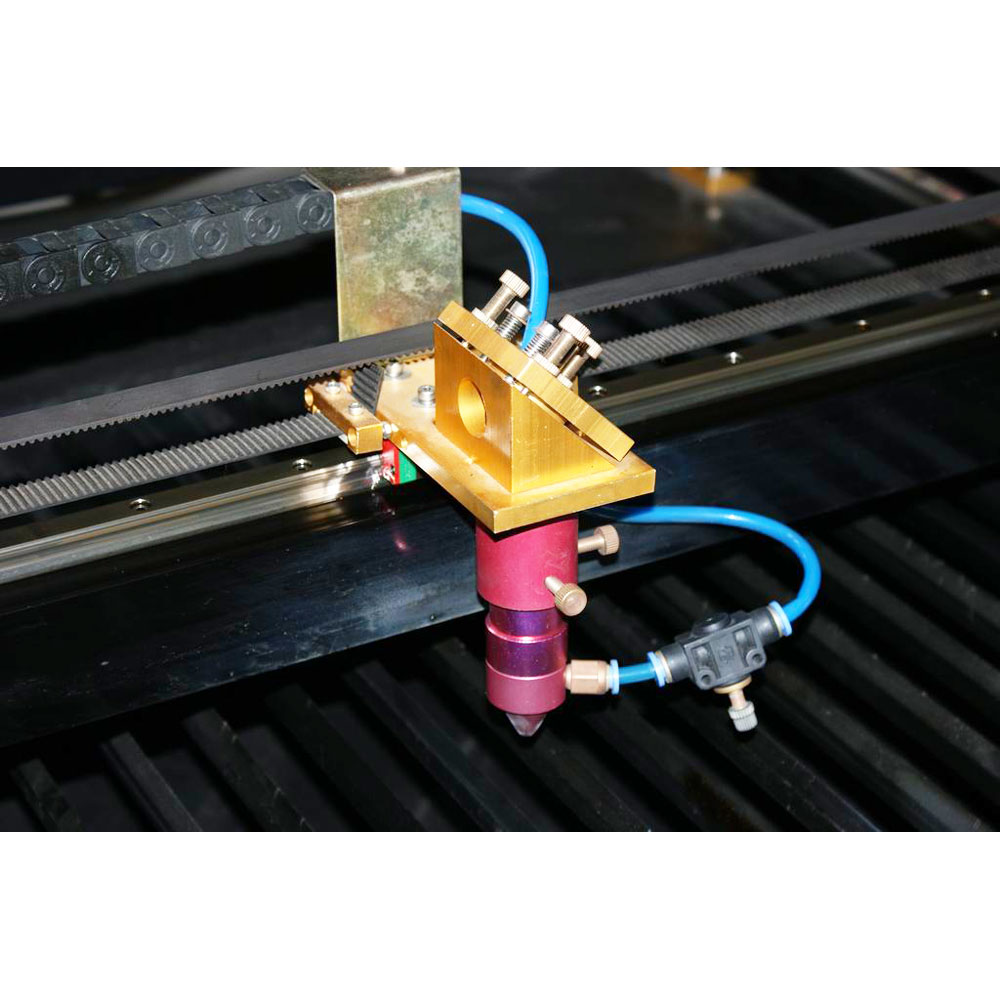

Laser head:
Enclosed, with air blowing device, which is safer than unclosed head.

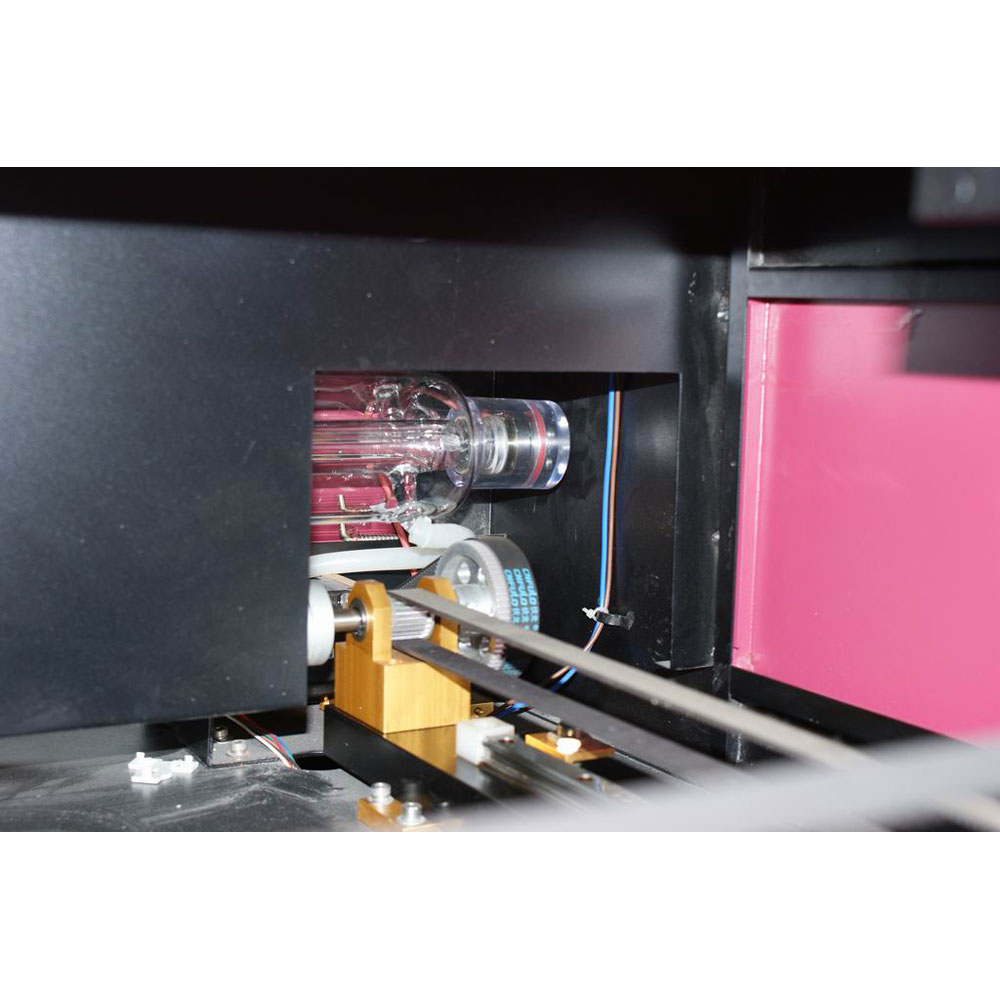

Laser Test
Each laser tube and its power source shall be tested for 8 hours on/off power test: There are strict inspection criterions for its light beam quality and laser power.

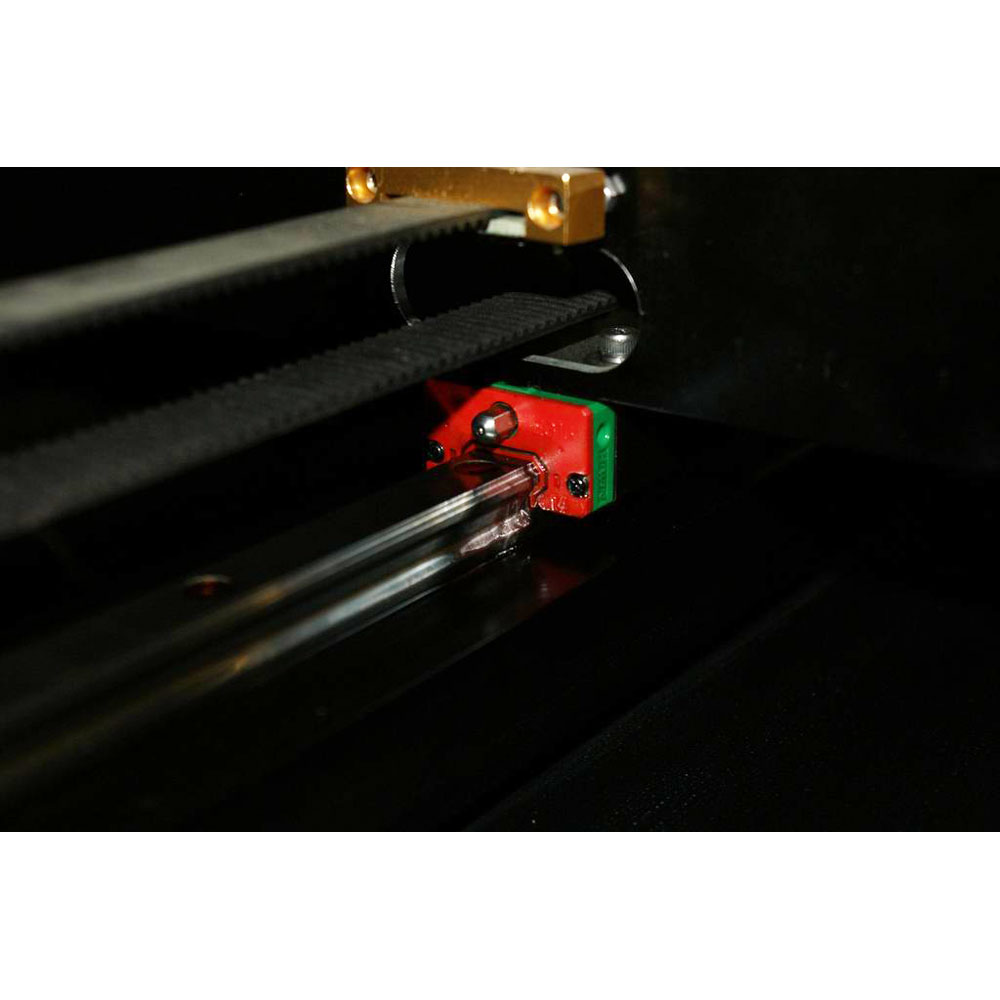

Guide rail: High precision equilibrium linear guide rail imported from Korea. Each guide rail shall be tested before installation.

100% Check of Materials
We perform 100% check to all the parts of laser cutting machine in order to avoid any disqualified parts coming into the next step of work.
Inspection Before Delivery
Any laser cutting machine before departing the factory, we will perform cutting test with the cutting precision at 0.1mm to test its verticality and dimensional deviation.

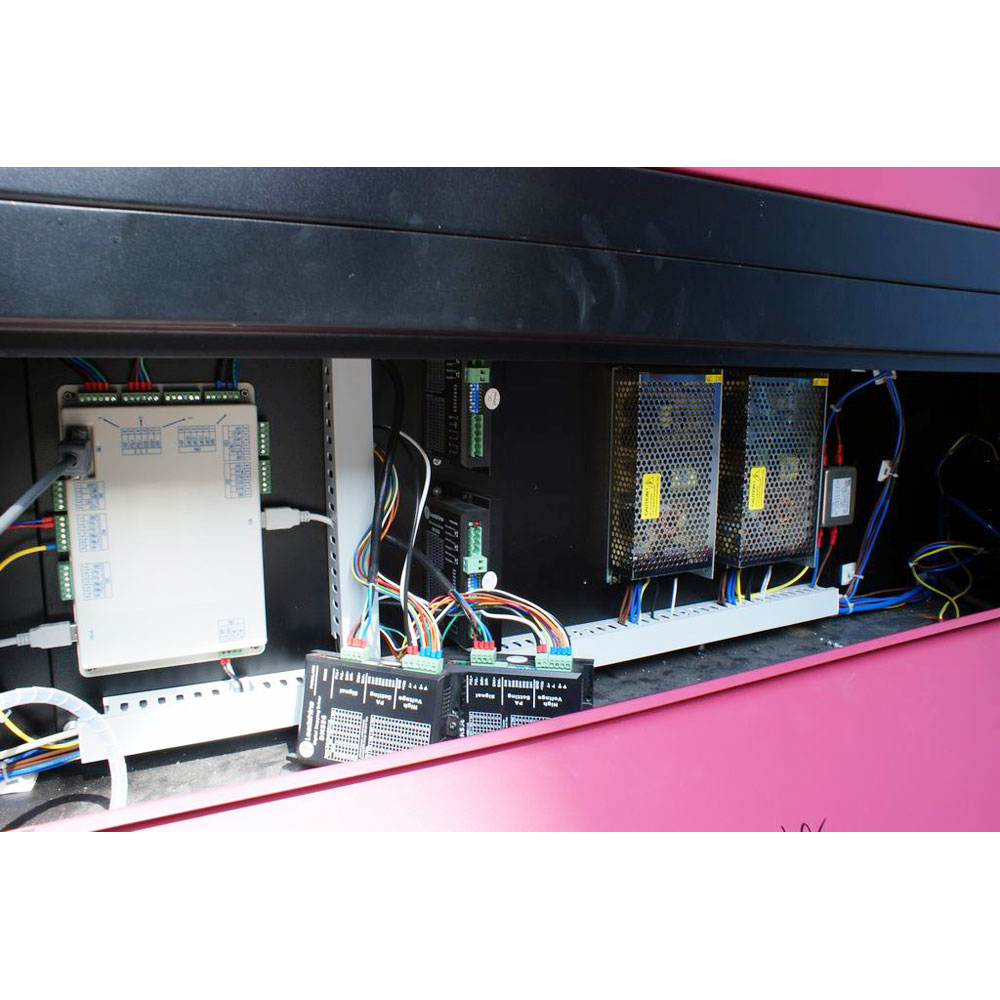

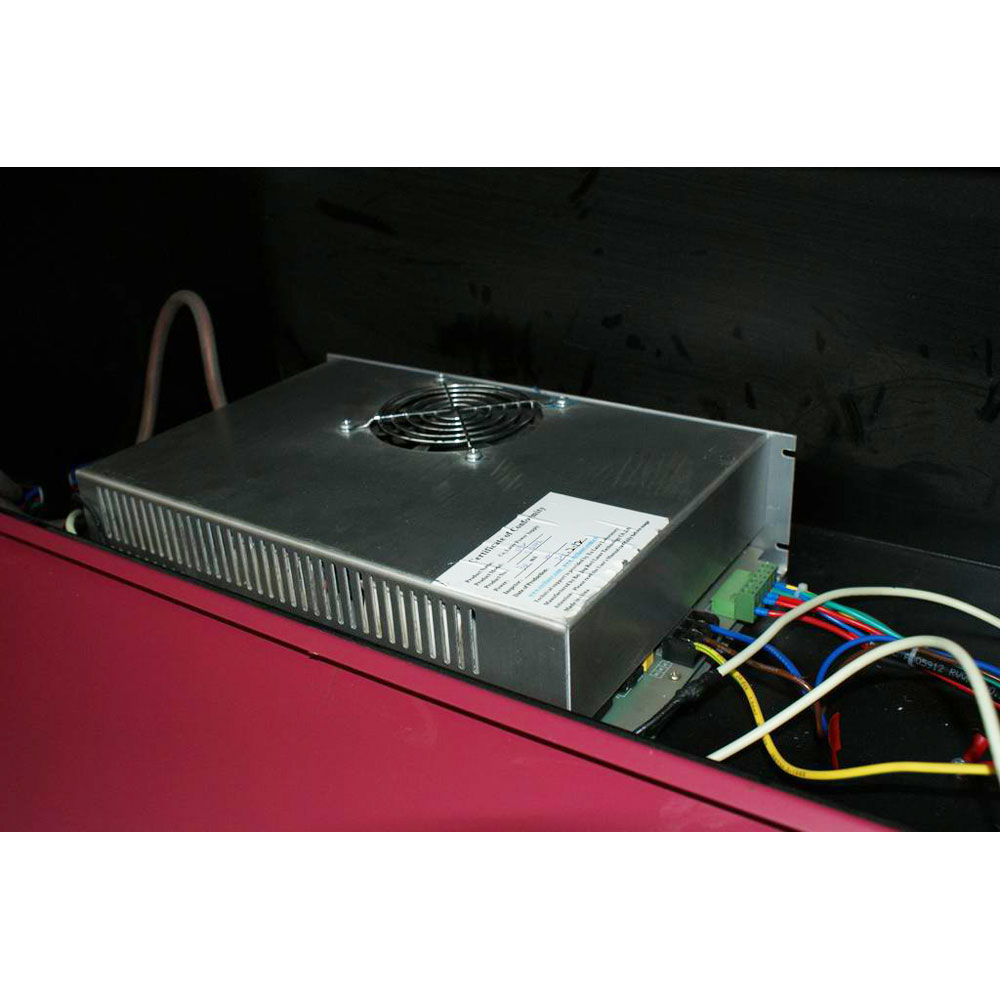

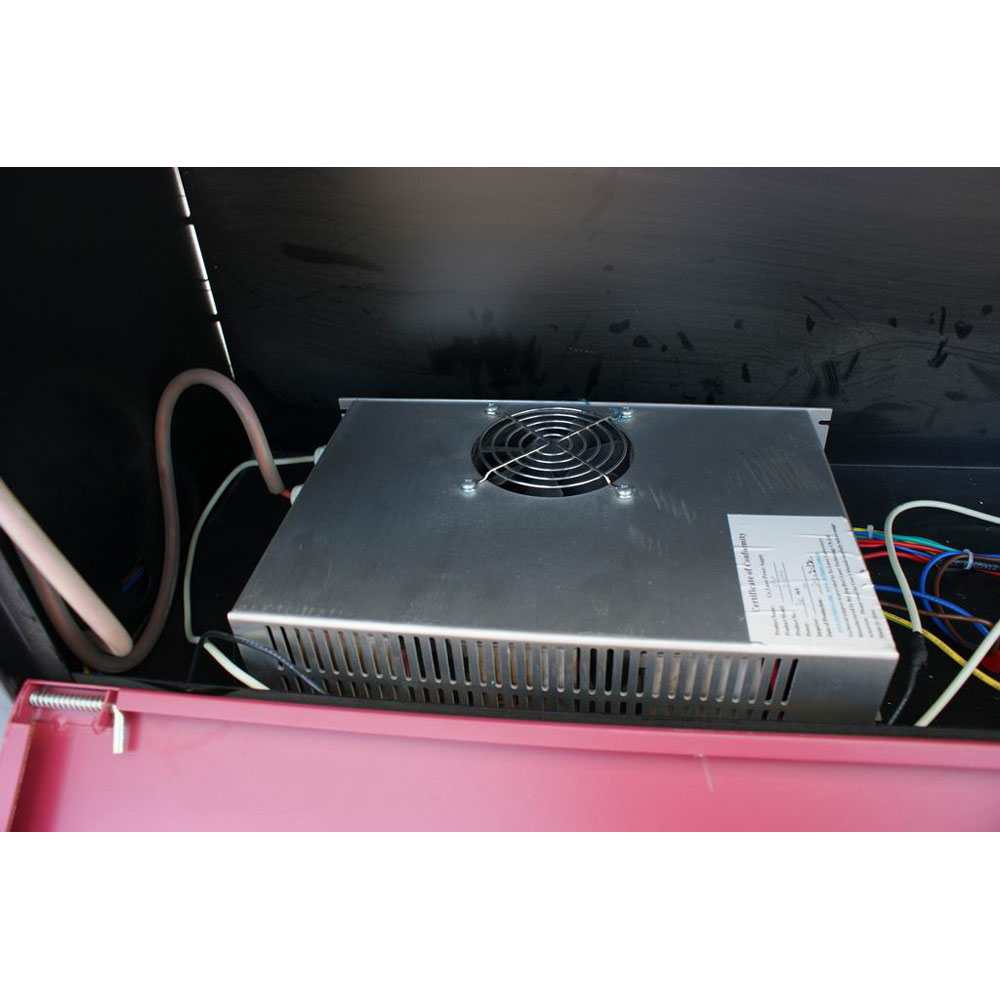

Test of Main Board & Power Supply
Put the main board and power supply of laser cutting machine into an oven at temperature of 50 degree for an aging test, minimally 4 hours.

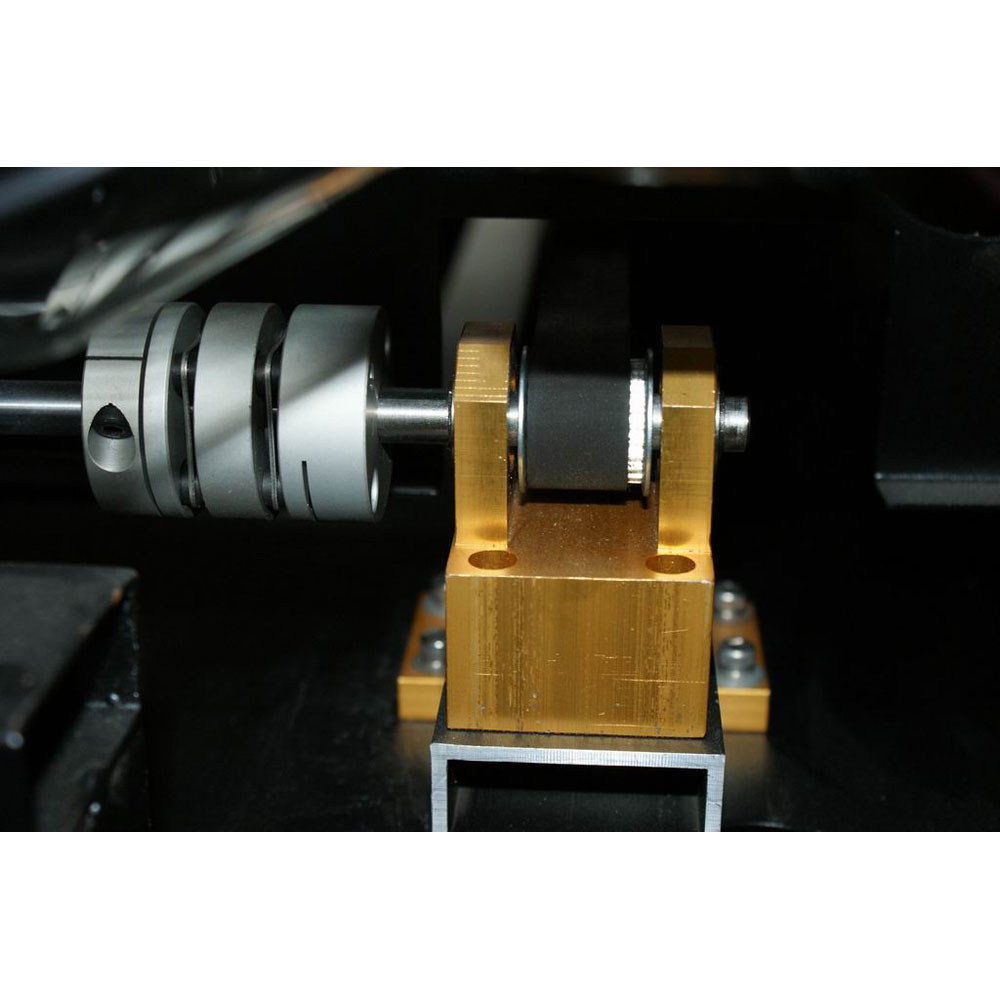

Test of Transmission Parts
Check the synchronizing wheel and bearing of the laser engraver whether are concentric and easy in rotation as well as its deviation whether is less or equal to 0.02mm.
Processing Crotrol
During the production of laser engraving machines, our quality inspector will patrol and check its installation quality. It is mainly to check the parts of mechanics and electrics, cables whether satisfy the requirements of installation blueprint. If any error or problem found, the correction treatment will be executed immediately.
Test of Guideway and Rectangular Tube
Mainly to test the flatness, linearity and torsion resistance of t the guideway and rectangular tube. Put the rectangular tube and the guideway onto a marble platform, then use dial gage calibrator to check: the tolerance bigger than 0.05mm/m is disqualified.

Stretching Force Tester for the Belt of Laser Cutting Machine
Ensure the machine platform cutting in consistency.

Collimator Test
The test method for the linearity, flatness and verticality of the laser cutting machine’s guideway is to use Auto Pricise Collimator 1401 Double-way.
Handy Power Indicator of Laser Cutting Machine
Any point of the laser cutting machine’s power test, ensure the laser cutting machine to give best cutting effect.
Electromagnetic Oscillograph of Laser Cutting Machine
To test the electromagnetic interference and ensure the running stability of laser cutting machine.


Please download the PDF file of User Manual of LCM-BY-Z Series Laser machine to learn more!
I.Machine Installation
Include: Laser tube assembly; Water chiller installation; Air pump connection; Exhaust fan installation; Grounding wire connection.

II. Software and USB driver Installation

III. Software Operation
Edit the images in the engraving software or input the color pictures into the engraving software, edit it, and then set the processing parameters, output images to our laser cutting machine, finish the work.

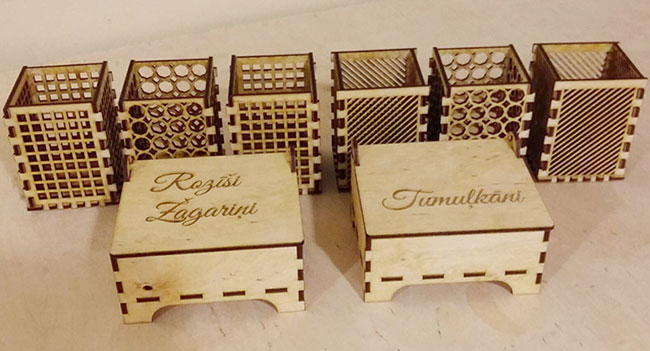

IV. Finished works!




Quality  report:

Model
LCM-BY-Z1390-150W
Maximum Cutting Area
51" x 35" (1300mm x 900mm)
Laser Power
EFR F6 CO2 glass laser tube 130W-160W (Normal lifespan: about 10000 working hours)
Cutting Speed
15.7" (400mm) / s (Adjustable)
Maximum Cutting Thickness
1.2" (30mm) (Acrylic)
Resolution Ratio
0.0064mm
Positioning Precision
0.0009 (0.025mm)
Power
1250W
Cooling Method
Water cooling and protection system
Supported Image Formats
BMP, PLT, compatible with many file formats for Windows OS, such as AI, CorelDraw, Photoshop, AutoCAD, etc.
Cutting Software
Lasercut 5.3 engraving software
Interface
U disk, enternet
Voltage
AC110V - 240V, 50Hz



Lead Time: After receiving customer's deposit, within 3 - 5 days.

Wooden Box: There is total one wooden box.

LCM-BY-Z1390-150W

Machine Dimension
70" x 71" x 43" (1765mm x 1810mm x 1100mm)
Machine Weight
750lb (340kg)
Package Wooden box
Packing Size 79" x 62" x 51" (2030mm x 1570mm x 1300mm)
Gross Weight 1056lb (480kg)

Packing List:

pictures Items Unit Quantity
Laser engraving machine set 1
Electromagnetic Air Pump set 1
Corrugate tube unit 2
CW5000 water chiller set 1
Exhaust System Motors unit 1
Focus ruler unit 1
Kit unit 1
Laser tube pc 1
Mirror and lens set Each has one
Power line piece 1
Trachea / Water set 1


Package Pictures:

Cutting Specification Setting:


Daily Maintenance:

LCM-BY-Z1390, 100W, 150W, 90W:

Maintance and Repair Manual:

User Manual of LCM-BY-Z Series Laser Machine:

Comprehensive guarantee for 2 years except the wearing parts
24 - hour technical support by email or calling
User - friendly English manual for machine using and maintaining

Spare Parts Supports
We provide all replacement parts for all machines we sold, if you have a parts that break beyond warranty period, you could order it directly from us at reasonable prices. We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.

Satisfaction Guarantee
We provide 24 months warranty after shipment. All the extra parts for equipment can be purchased from www.Sign-in-Global.us.
We offer 14 days 100% satisfaction guarantee on all our machines. If you are not satisfied after receiving an item, Sign-in-Global.us promises that, within 14 days after actual delivery of such an item, you are allowed to return the item to us and get complete refund, provided the returned item does not affect its subsequent re - selling and you also undertake the charge of returning delivery.
