110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"

10%
OFF

  • 110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"
  • 110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"
  • 110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"
  • 110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"
  • 110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"
  • 110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"

See larger image and other views (with zoom)

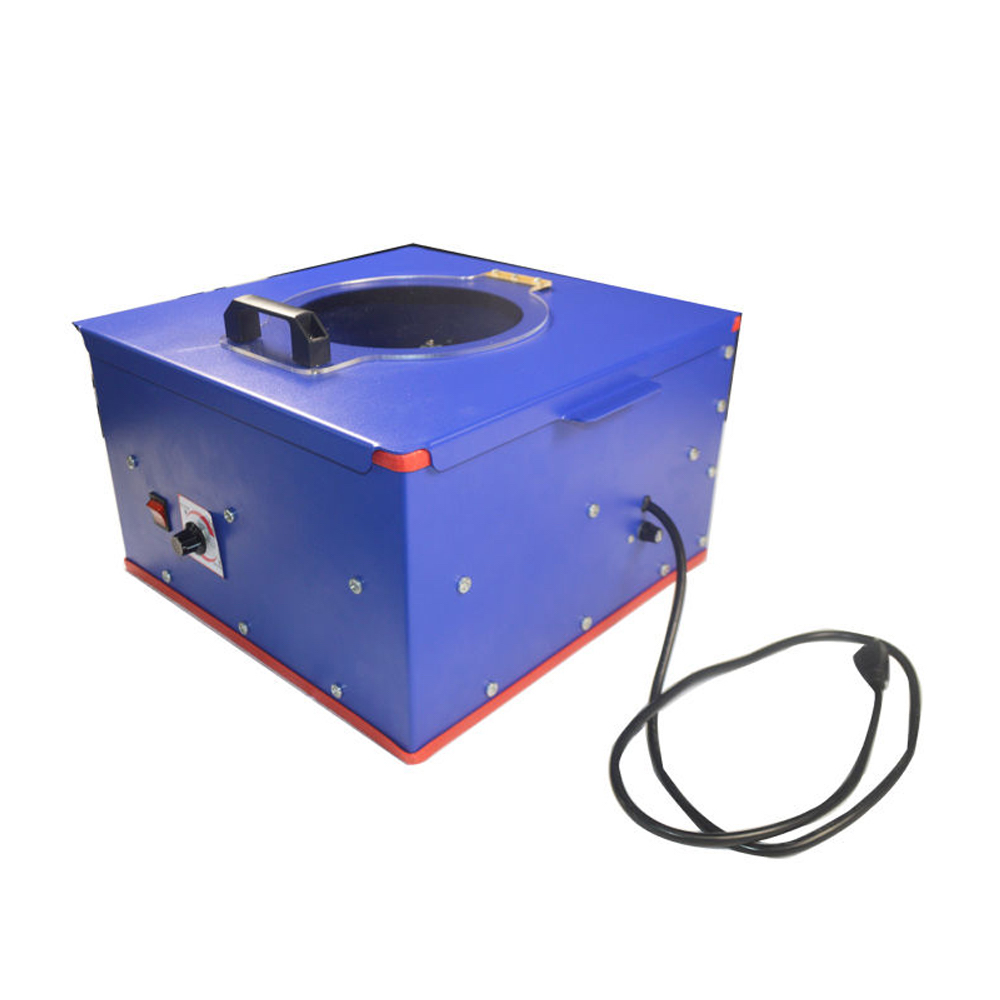

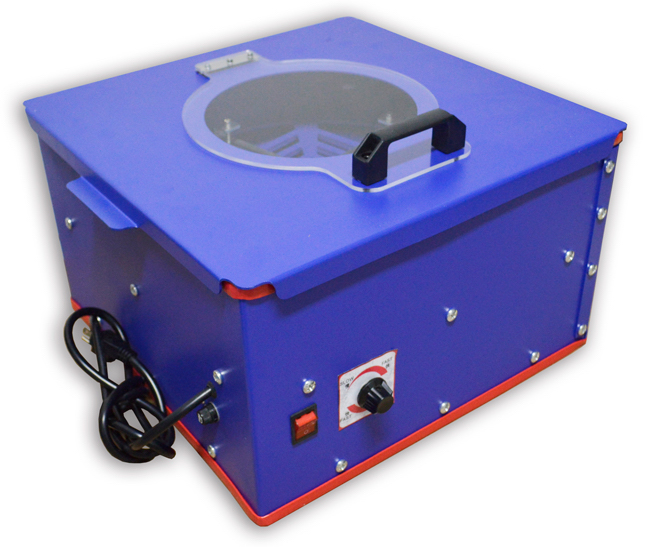

110V Pad Printing Electric Emulsion Coating Machine Suitable Steel Plate Size:3.5"-6.29"

Free Shipping, Arrival in 2-3 Business Days.



Item Code:PPM-TJ-SPE-TBJ-US

  • Unit Price : $219.00/set

  • Sale Price : $197.10/set You Save : $21.90/set (10%)

  • Availability:
    Ships from LA Warehouse
  • Quantity: set(s) Total Cost: USD $197.10
  • Shipping Weight: 63.8lb (29kg)

  •   Free Shipping Over $79

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

Pad Printing Plate Emulsion Coating Machine

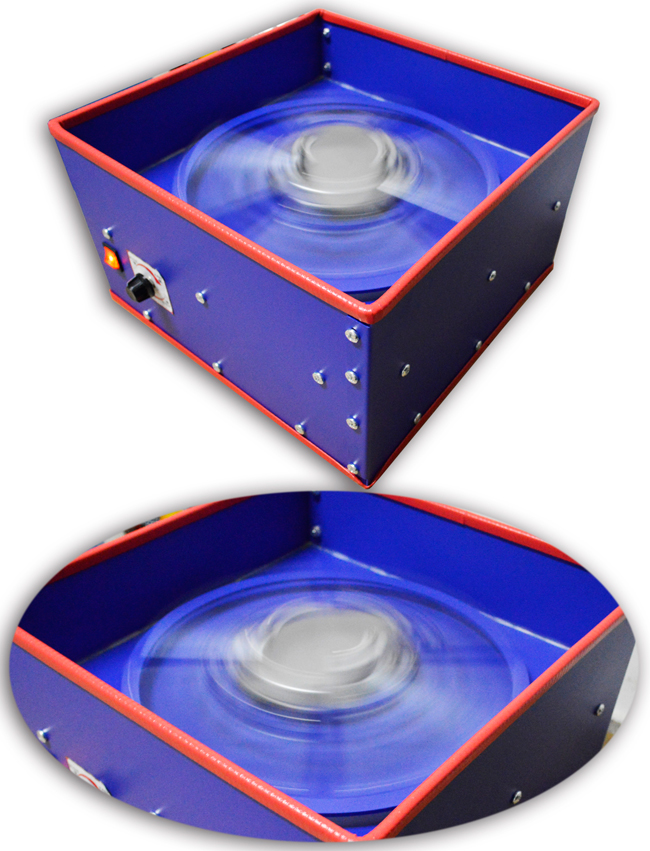

Centrifugal emulsion coating machine is one of the important tools to make high quality pad printing plate .This machine uses the centrifugal principle of scatter uniform pad printing photosensitive slurry can be hung on the pad printing steel plate or steel surface, guarantee the photosensitive slurry in the thickness of steel plate or steel surface to keep consistent, to ensure that pad printing steel plate in the process of exposure to uniform exposure and produce high quality printing plate.

Description:

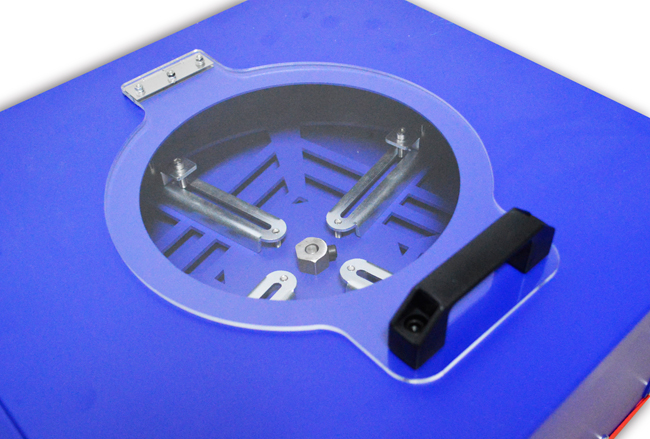

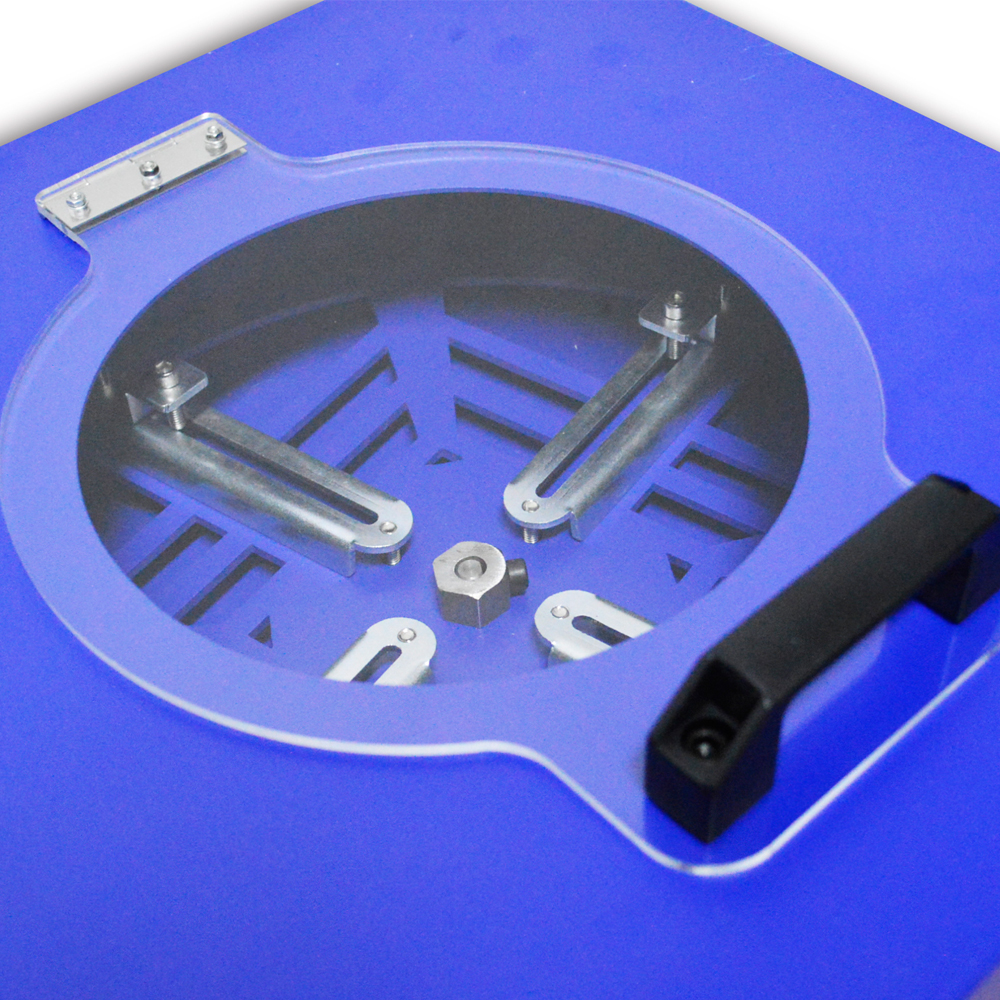

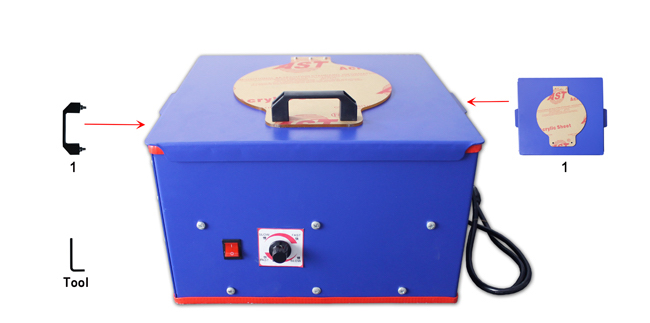

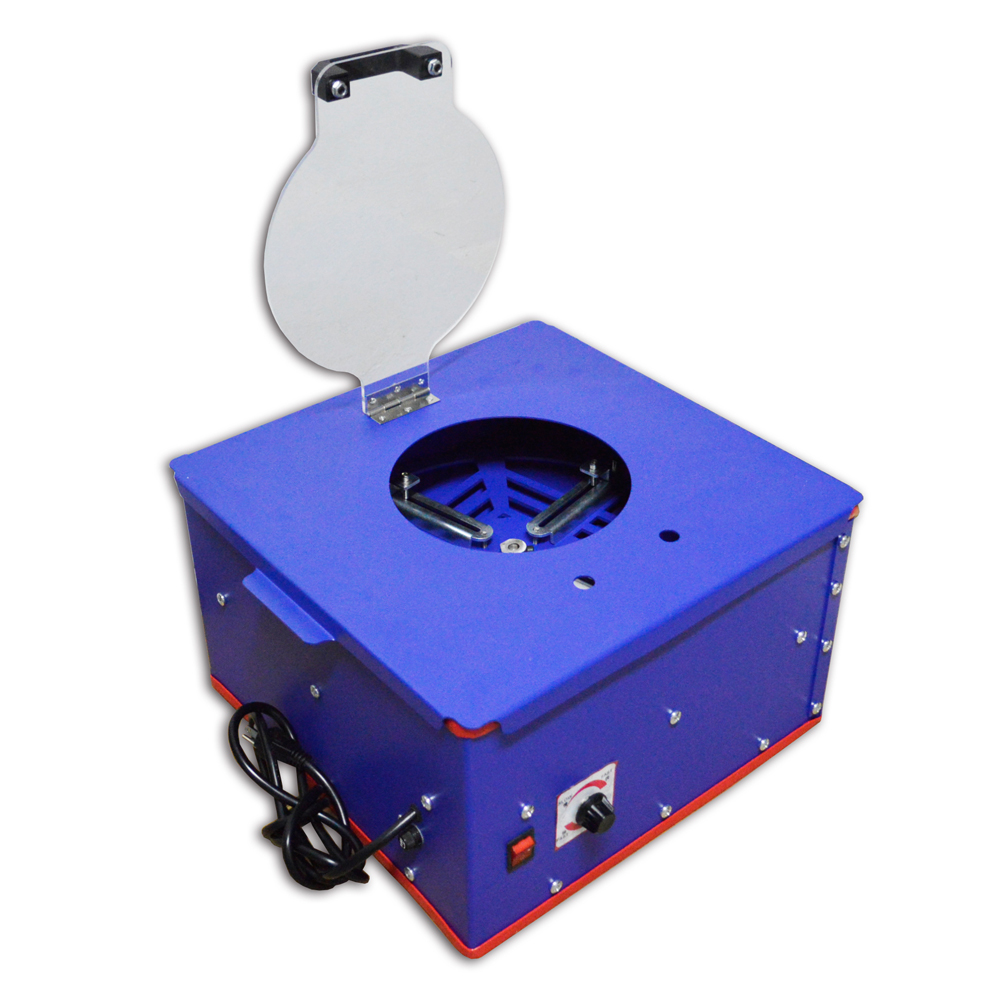

1.The machine adopts the top safety observation window design. It can ensure the safety of the work, and it is safe to observe coating process in order to meet the requirements of coating.

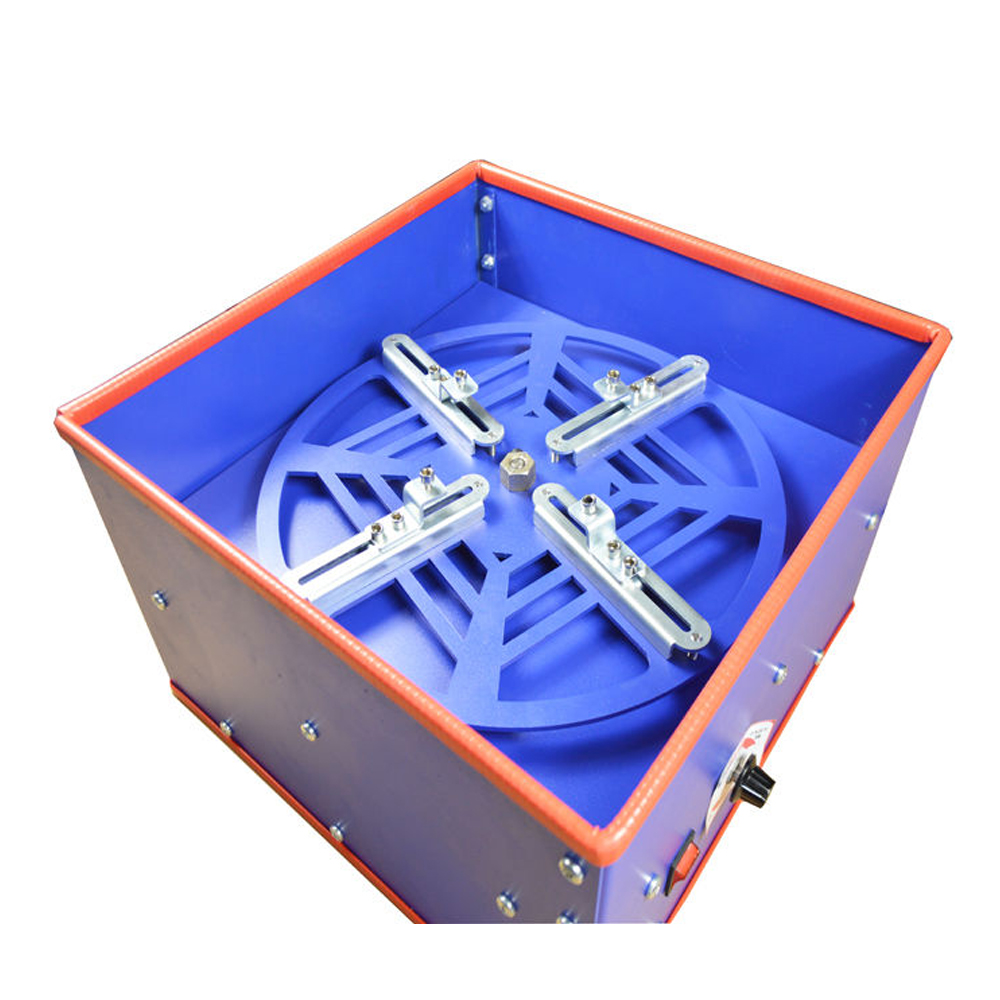

2.The machine plate fixed rotating disc adopts the standard steel frames design; Users only need to correspond to use frames corresponding to place on the steel plate and rotating plate and fixed, so as to ensure that won't happen in the process of rotating eccentric caused by the steel plate is not centered place, thus machine shaking problem occurred during operation.
3.The main machine adopts advanced electrostatic spraying; The main parts adopt galvanized and stainless steel materials; Scrub resistance, corrosion resistance, used for a long time with no rust.

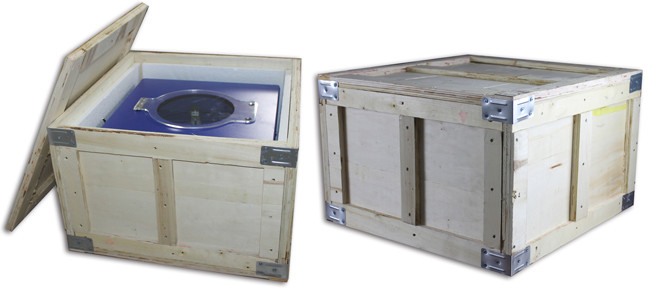

4.The machine adopts export wooden box packaging, built-in film protection machine, ensure the safety of the products in the process of transportation.

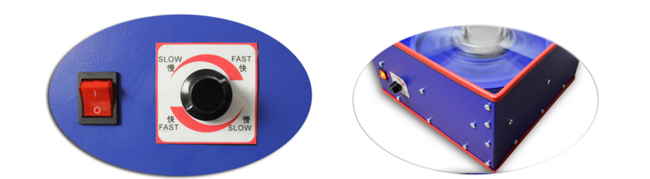

5.The machine adopts CVT machine, it can control the motor rotational speed according to need ;During the coating process,it can rotate from low speed to high speed , to ensure that the thickness of the coating is uniform.
6.Red rubber strip can reduce vibration noise, enhance the stability .

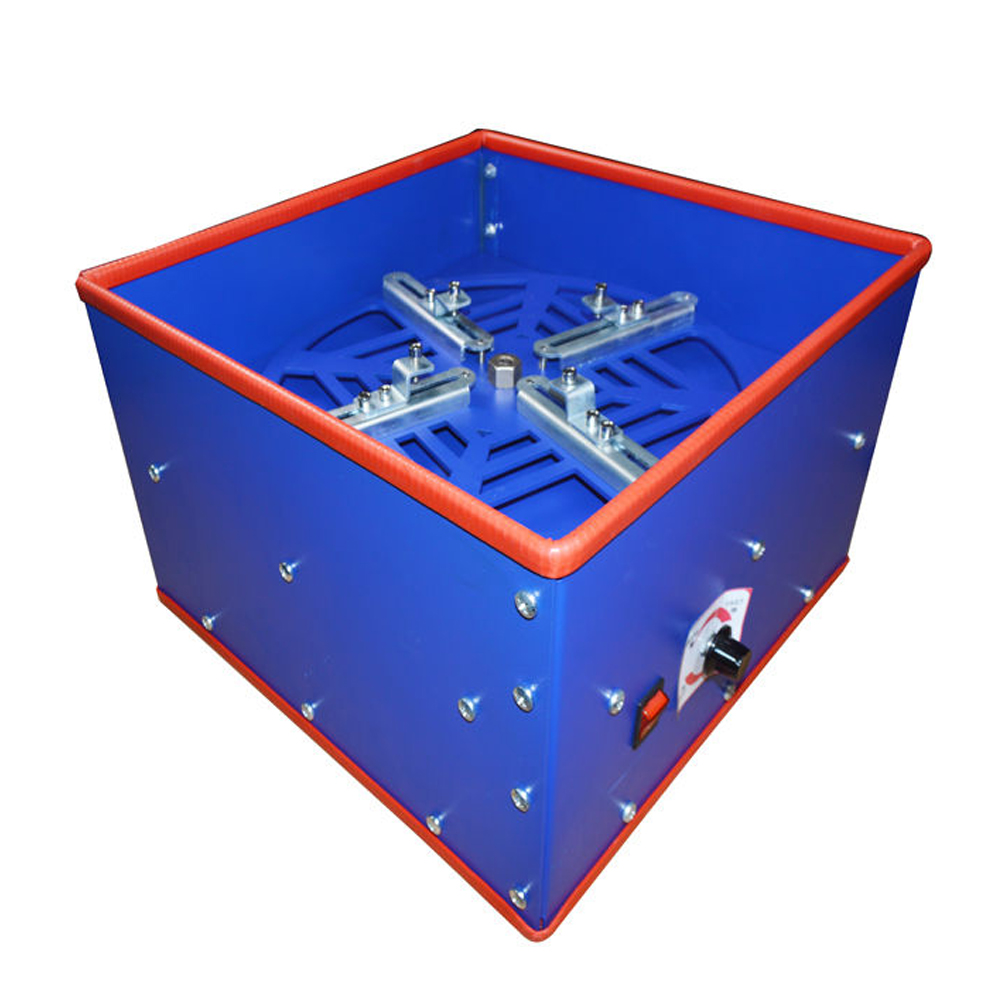

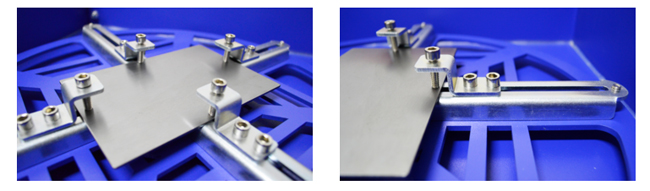

7.The machine plate or steel sheet adopts with all around screw stationary; Steel plate fixed slider according to need to move; Steel plate is placed to the right position after just put the slider screw can guarantee the stability of the steel plate fixed on the rotating disk security. Simple operation, steel plate fixed firmly, that steel will not happen out of danger.

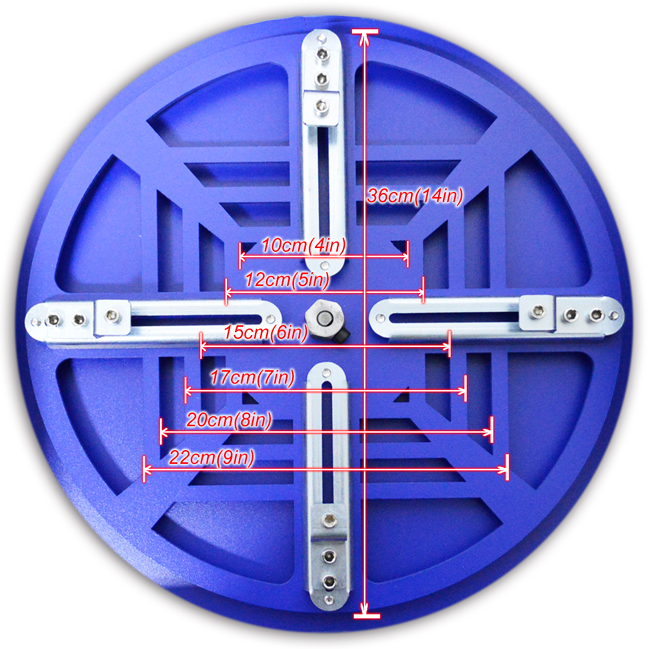

Rotating plate frames commonly used steel plate size is as follows:

100*100mm 120*120mm 150*150mm 170*170mm
100*120mm 120*150mm 150*170mm 170*200mm
100*150mm 120*170mm 150*200mm 170*220mm
100*170mm 120*200mm 150*220mm 200*200mm
100*200mm 120*220mm 200*220mm
100*220mm 220*220mm

Using method 1:
1.Place the clean up steel plate or sheet fixed and fix screws;
2.Drop a moderate amount of photosensitive slurry through a straw in the center of the steel plate or sheet steel;
3.Close the cover , open the observation window;
4.Turn on the power supply, gently rotate potential switch, from low rotation speed, rotation and through the observation window to observe the photosensitive slurry by centrifugal distribution (photosensitive slurry affected by centrifugal force from the center to evenly spread around);
5.After photosensitive slurry is full of steel plate,close the window cover, appropriate to speed up the speed, the photosensitive slurry on the surface of the steel plate to achieve the right thickness.
6.Adjust the potential switch to the lowest closing gear, and then turn the power off, users can take out the steel plate in the process of drying process.

Using method 2:
1.Place the clean up steel plate or sheet fixed and fix screws;
2.Close the cover , open the obseration window;
3. Drop a moderate amount of photosensitive slurry through a straw in the center of the steel plate or sheet steel; (users also can turn on the power first, gently rotate potential switch, in the condition of low speed spinning, will right amount photosensitive slurry drops through a straw in the center of the steel plate or sheet steel; while rotating drops of photosensitive slurry while observing)
4.Turn on the power supply, gently rotate potential switch, from low rotation speed, rotation and through the observation window to observe the photosensitive slurry by centrifugal distribution (photosensitive slurry affected by centrifugal force from the center to evenly spread around);
5.After photosensitive slurry is full of steel plate,close the window cover, appropriate to speed up the speed, the photosensitive slurry on the surface of the steel plate to achieve the right thickness.
6.Adjust the potential switch to the lowest closing gear, and then turn the power off, users can take out the steel plate in the process of drying process.
