Description:

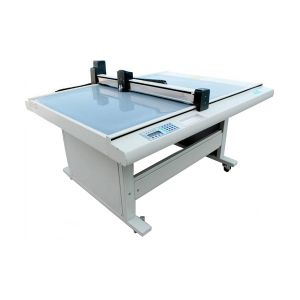

GD series costume pattern cutting plotter is the machine mainly for cutting and plotting for garment pattern, which was lauched by AOKE long time ago. It’s the first choice of the fashion designer which can cut and draw many common materials used for garment pattern, such as card paper, kraft paper, red hard paper etc. It can cut and plotting in one time with the pen and special knife come with the machine, not by changing the tools. And it compatible with any CAD software, so the CAD software can send the cutting file directly to the plotter to cut or plotting. GD series high speed cutting machine could meet the requirement for high-level cutting accuracy. It employs import steel belt for power driving, and work under high precision, high speed, stable capability, convenient to use, compatible with any CAD software. It is greatly welcomed by customers and widely applied for high accuracy cutting or plotting.
Main features:
Very stable, low failure rate
Steel belt driving, accuracy assured.
Compatible with any CAD software.
It is equipped with spring plotting pen, special cutting knife. The paper feeding system could be selected as option.
Special knife
| No. | Photo | Name | Application |
| 1 |  |
Special knife |
Used to cut materials within 2mm thick |
Pen
| No. | Photo | Name | Application |
| 1 |  |
Pen |
Drawing |
Option:

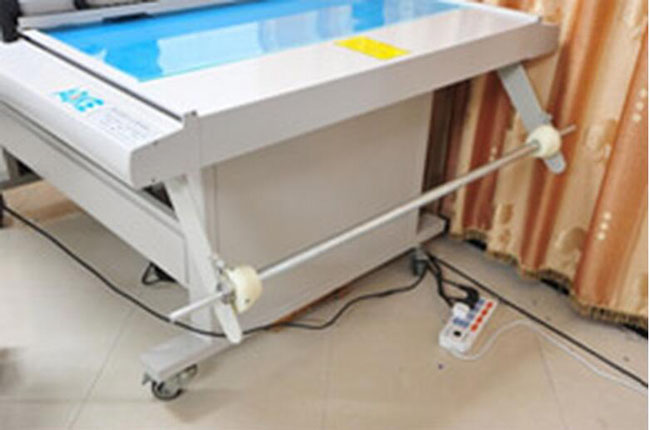

Suspended type manual sheet feeder
| No | Name | Model | Detail |
| 1 |
900 suspended type manual sheet feeder |
XG900 | practical and convenient for use, can afford 40KG sheet below, build for 1209 and 1509 machine |
| 2 |
1200 suspended type manual sheet feeder |
XG1200 |
practical and convenient for use, can afford 40KG sheet below, build for 1512 and 1812 machine |

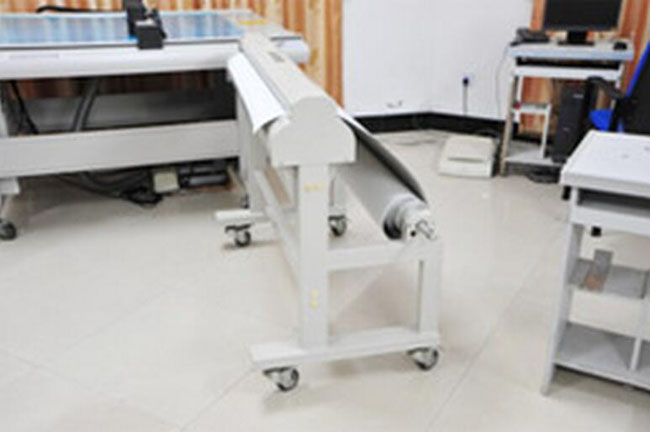

Floor model manual sheet feeder
| No | Name | Model | Function Description |
| 1 |
900 floor model manual sheet feeder |
LD900 |
Firm and well designed, can afford 100KG sheet below, build for 1209 and 1509 machine |
| 2 |
1200 floor model manual sheet feeder |
LD1200 |
Firm and well designed, can afford 100KG sheet below, build for 1512 and 1812 machine |
Automatic sheet feeder
| No | Name | Model | Function Description |
| 1 |
900 automatic sheet feeder |
ZD900 |
Automatic and convenient, can afford 100KG sheet below, build for 1209 and 1509 machine |
| 2 |
1200 automatic sheet feeder |
ZD1200 |
Automatic and convenient, can afford 100KG sheet below, build for 1512 and 1812 machine |

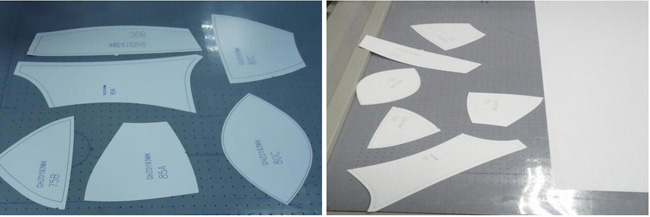

Sample:
| Specification Form | |
| Model | CS-AOKE-GD1209 |
|
Effective cutting area |
1200 x 900mm |
|
Way of fixing paper way |
Vacuum absorbing |
|
Driving material |
Import steel belt |
|
Cut materials |
Red hard paper, plastic board, white board, kraft paper |
|
Configuration |
Special knife， pen |
| Cutting thickness | 0.5-2mm |
| Cutting precision | ≤0.05mm |
|
Cutting way |
Drawing by pen, half cutting, whole cutting |
|
Max speed |
1000mm/s |
|
Working time and character |
Continuous work, operating computer and cutting at the same time, linear high-speed |
| Transmitting port | International standards: parallel port/RSC232 serial port |
| Capacity of buffer area | Buffer area of large capacity, it can finish high-speed transmission for data at a time |
|
Instruction set |
International standards: HP-GL or DXF form can be selected selected, It is compatible with all kinds of CAD software |
|
Numerical control board |
LTD, all-English operating menu |
|
Driver |
Step motor |
|
Pen type |
General signing pen, oil pen, ball pen |
|
Main structure |
Cutting platform, head, driving system, control cabinet, control micro computer,frame, vacuum pump |
| Voltage | AC 220V 50HZ |
|
Fuse standard |
5A |
| Occupy dimension | 1635 x 1365 x 1080mm |
|
Note |
Other size can be customized. |
| Package | Fumigation free package |
| Packing size | 210X144X50CM |
| Gross weight | 290kg |
