110V Industrial Automatic Color-Changing Shell Channel Letter 3D Printer

Arrival in 4-6 weeks.

Item Code: 3DP-DWZY-640-US

Unit Price: $3,441.00/set

Finance as low as $96 / mo

Apply to See Distributor Price

Inquire Now

Buyer Protection

110V Industrial Automatic Color-Changing Shell Channel Letter 3D Printer
Buy It Now

Stable Intelligent Industrial 3D Word Shell Molding Machine

3D printing is a kind of technique which using a digital technology material printer. Often used in mold manufacturing,industrial design and other fields to make models,and then gradually used in the direct manufacturing of some products. There are already parts printed using this technology.Our Industrial automatic color-changing shell 3D printer mainly used for making advertisement Channel Letter.

Software Highlights:
1. Automatic color changing without modeling.
2. Software is more efficient and easy to learn.
3. Support wentai and CDR direct 2D to 3D, and preview files.
4. Choose any color change, print the back support, steps, the grid.
5. Offline work does not need the aid of network to be faster and more stable

Introduction of Machine Highlights:
1. Swyz-640 3D industrial grade printer is atmospheric in appearance and sturdy, with printing table: 23.6" x 23.6"x 3" (60 x 60 x 8 cm).
2. Our complete machine driving motor module drives all the motors of the printer and works for 48 hours continuously do not burn, printing life up to five years. compare printers on the market with only two drives Xy axis. Other motor driven by the motherboard, printing work 12 hours will be hot, print instability fixed, whole machine works about two years.
3. The printing platform is leveled by four micrometers, which need not be adjusted again once.
4. The printing software is very simple, 2D to 3D, and the mini word is generated automatically without 3D drawing, and the steps are generated automatically into play, easy to install the floor panel.
5. Color changing function: 0.5. Contrast the color change on the market to return to the start play. It's a waste of time.
6. Nano-coating glue independently developed by the company, which can be sprayed for repeated use, free from pressure, no edge warping, no glue leakage, and low scrap rate,after the printing is completed, the adhesive is directly poured and solidified.
7. The largest seven-inch display screen in the market. During the printing process, the temperature of the sprinkler head can be adjusted, the temperature of the hot bed, and the printing Speed.
8. During the printing process, the power is cut off and the memory storage function is available. After restoration, the printing can be continued, and there is a print Finish printing will automatically power off the function, such as the whole board printing takes 7 or 8 hours. But after work turn this on.

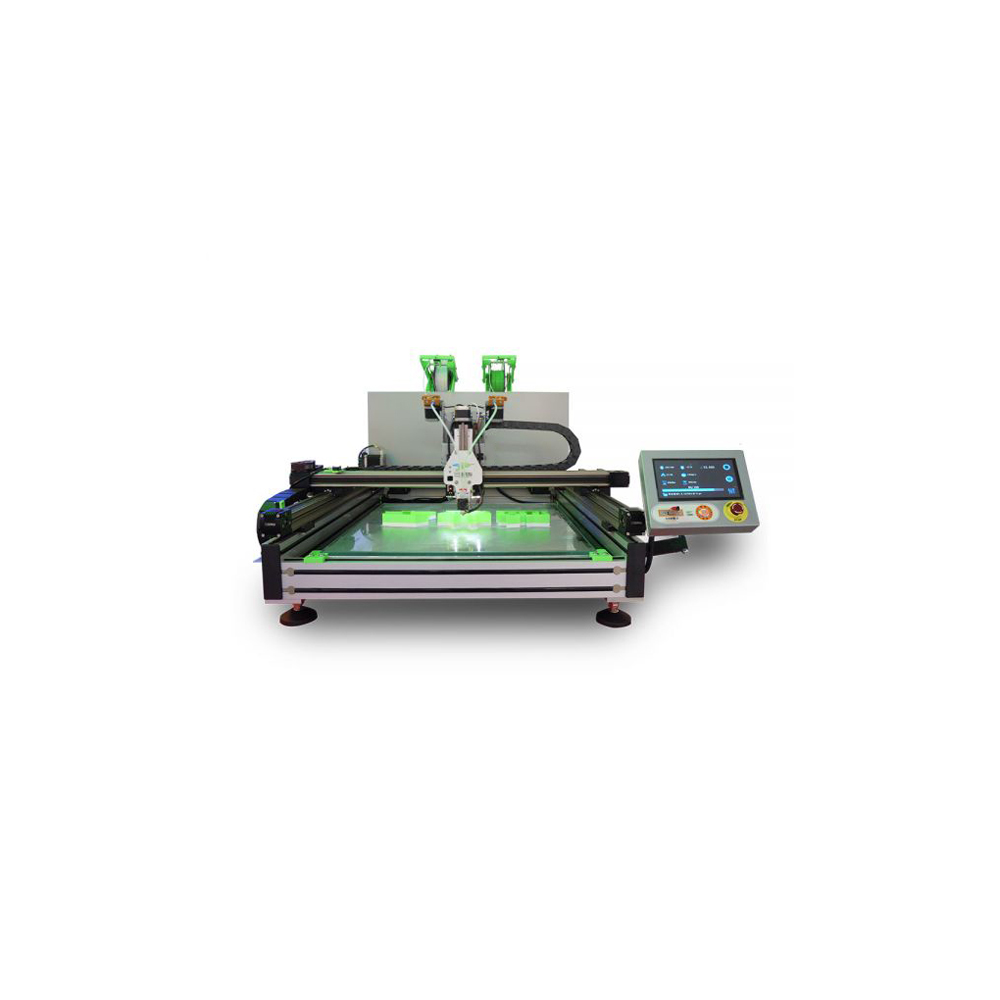

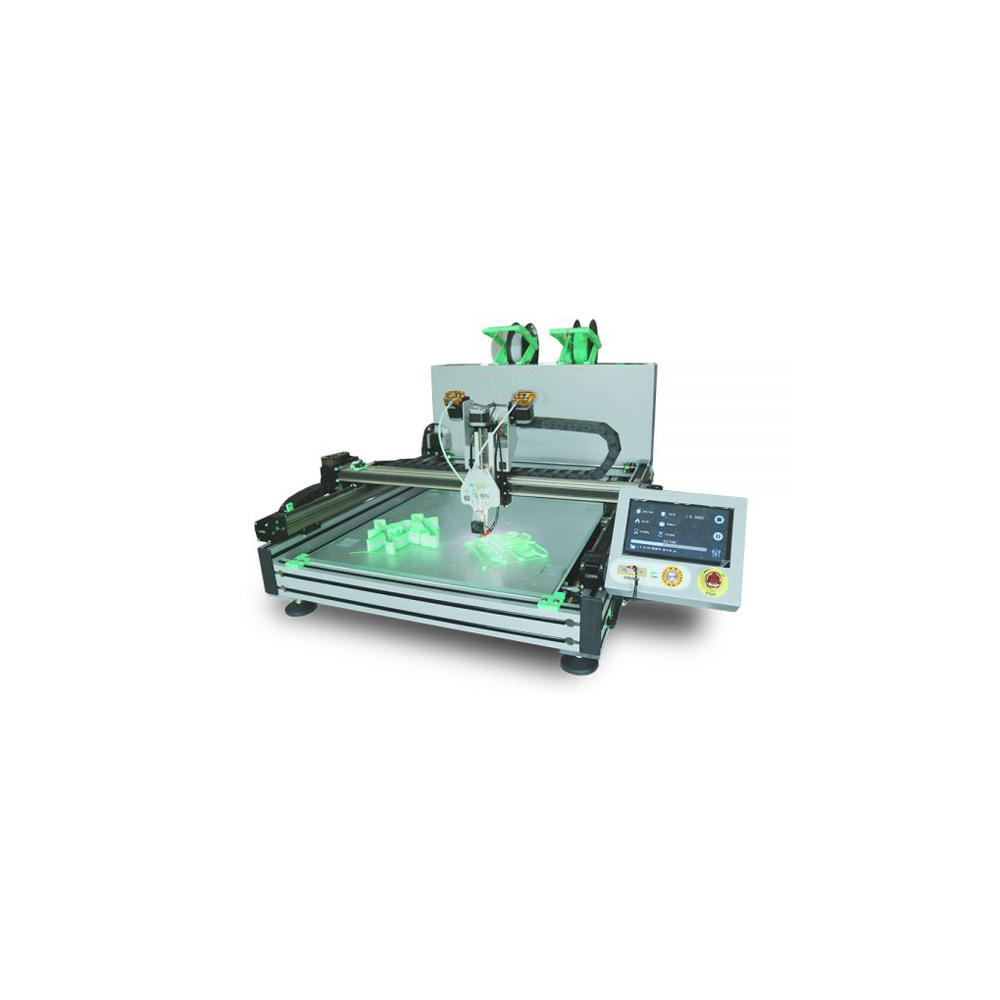

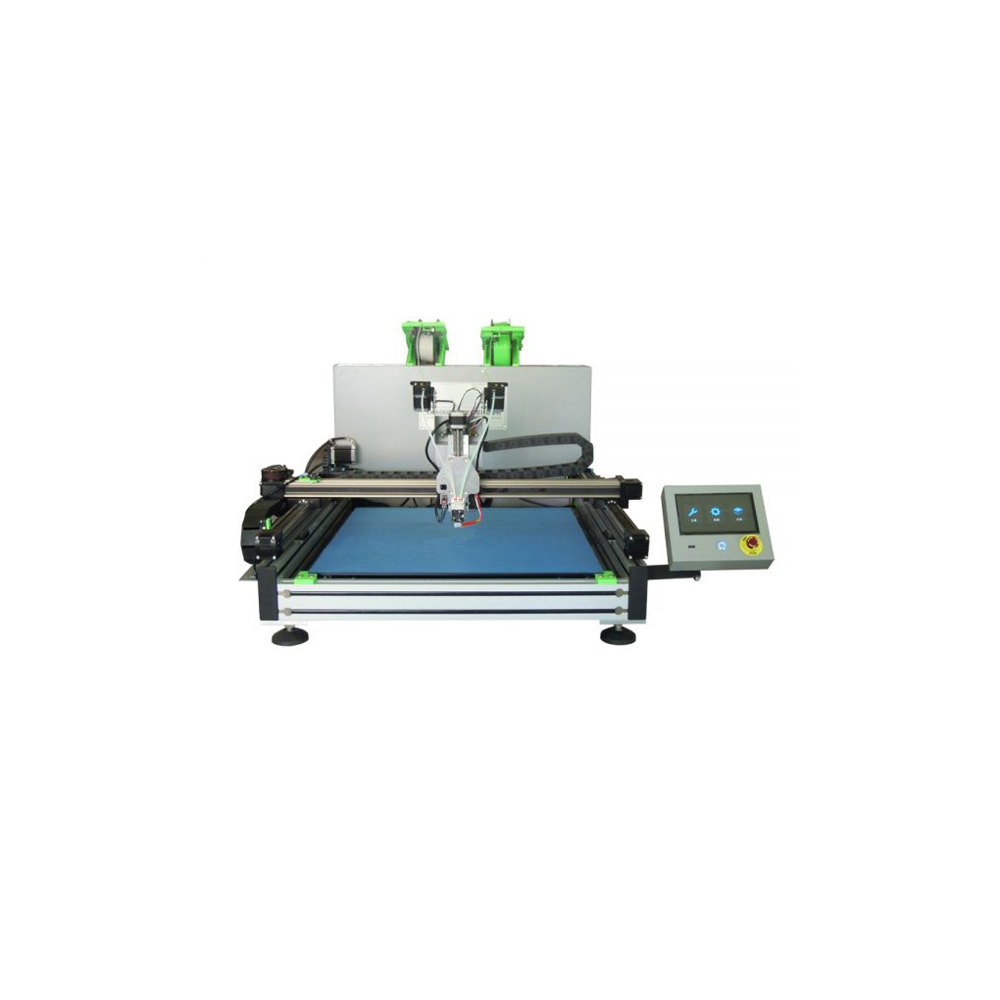

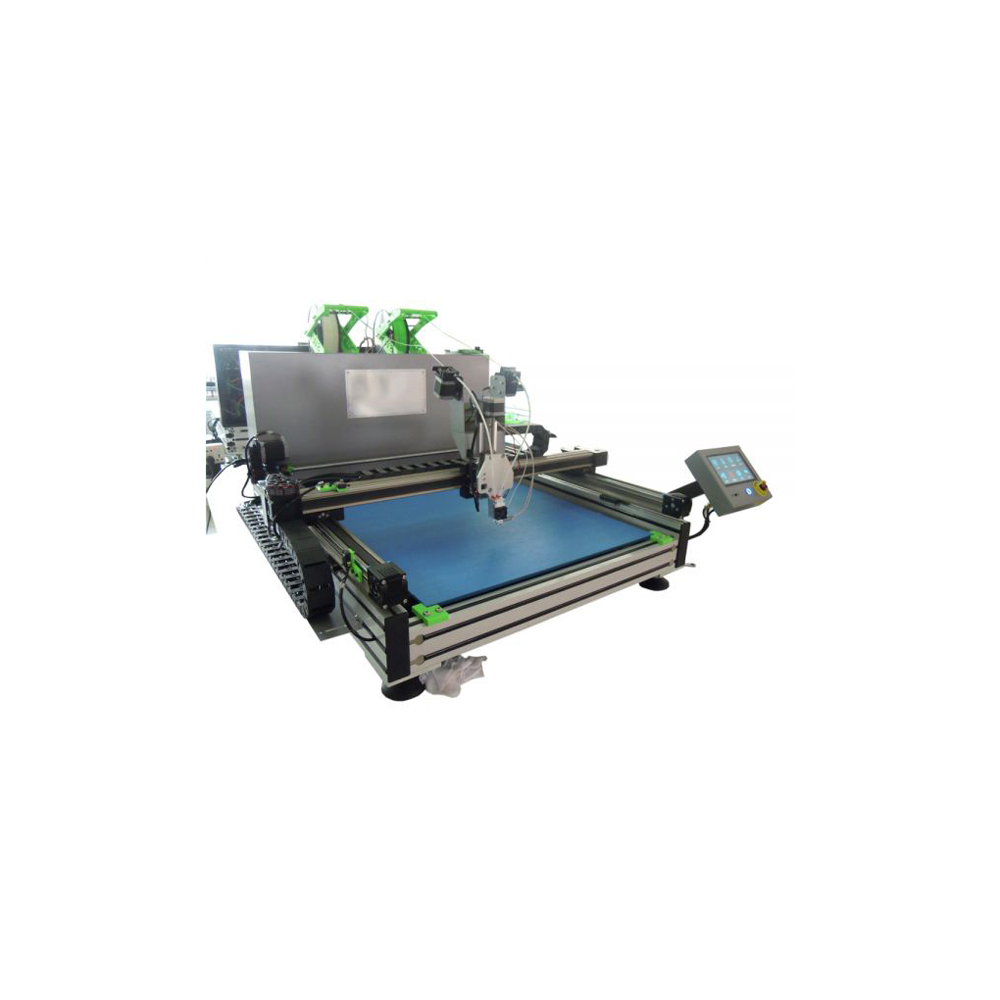

Detail:

Application:



Factory:

Package:

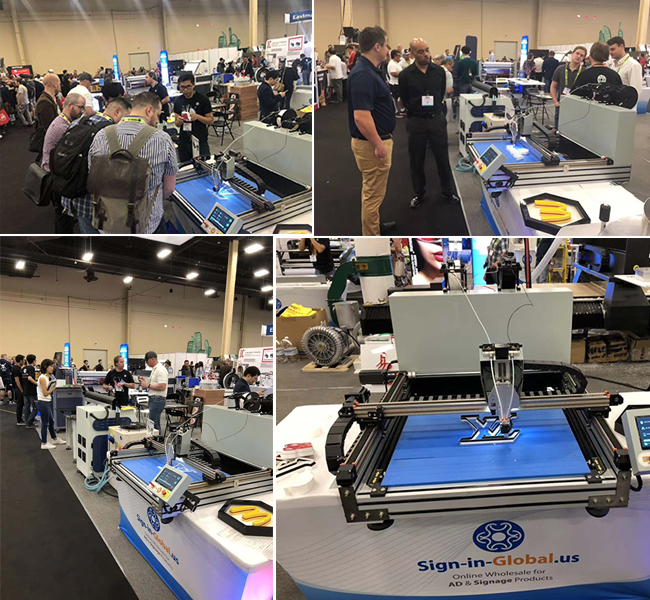

Exhibition Gallery:


Machine Type and Technical Specification
Model 3DP-DWZY-640
Structure Size Working Size 64cm(L) x 64cm(W) x 8cm(H) (25" x 25" x 3")
Packaging Size 44.5" x 44.5" x 27.5" (113 x 113 x 70 cm)
Net/Packaging Weight 165 lb / 297 lb (75kg / 135 kg)
Power Supply Supply Voltage 110V / 220V, 50-60Hz, 5.4-2.2A, 450W
Power Supply Requirement 50-60Hz, 5.4-2.2A, 450W
Forming Parameters Number of Forming Head Single nozzle one (2 colors)
Size of Forms Head (Optional Matching) 0.4 mm / 0.5mm / 0.6mm / 0.8mm
Layer Resolution Ratio 100um
Positional Accuracy Bending Torque ≤ 0.03/300mm
Straightness ≤ 0.03/300mm
Forming Material PLA, PMMA, PVC
Material Size 1.75mm
Speed 60mm-90mm/s
Software Software 3D Yizhi 1.4.7
Support System Windows (7+)
Type of Support Documents STL, CDR, ARTCUT
Human-computer Interface Large Screen 7 inch full color screen: 6.5"x3.7" (16.5cm x 9.3cm)

Warranty: 1 year manufacture hardware limited

Industrial Automatic Color-Changing Shell Channel Letter 3D Printer Demo
