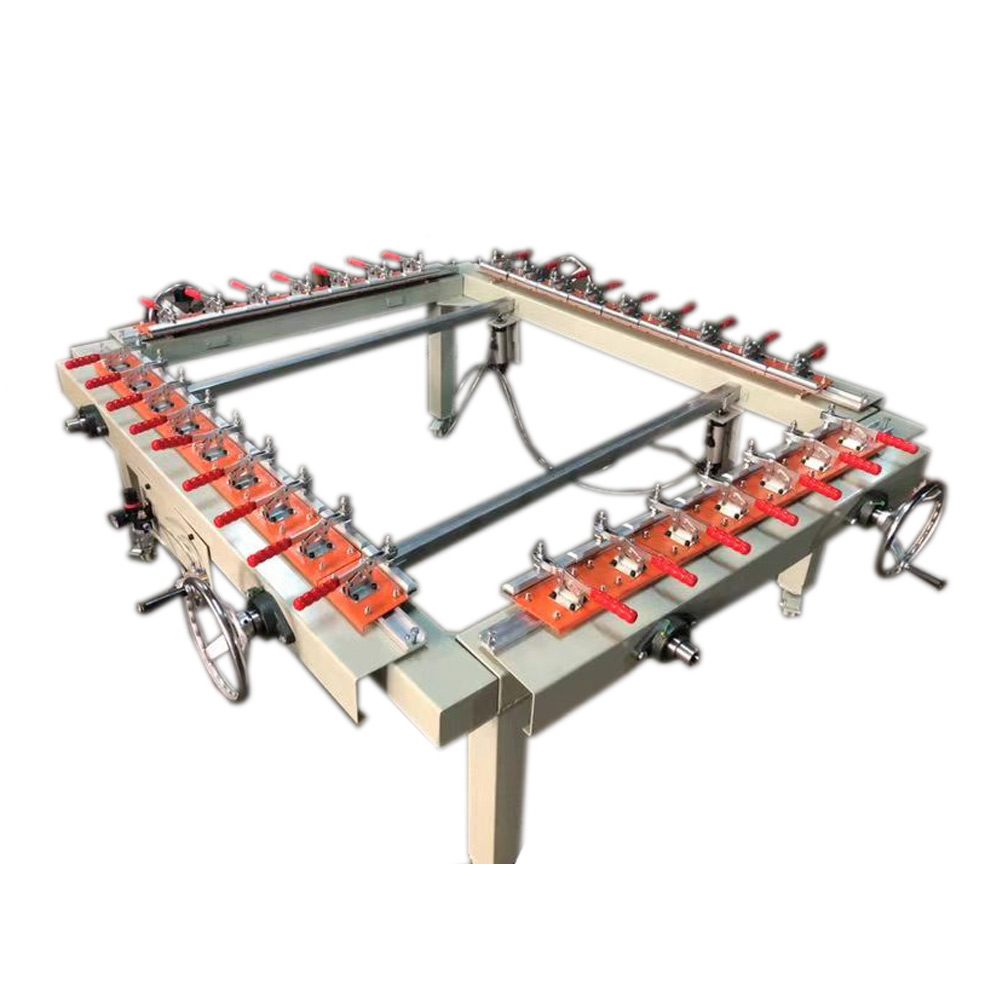

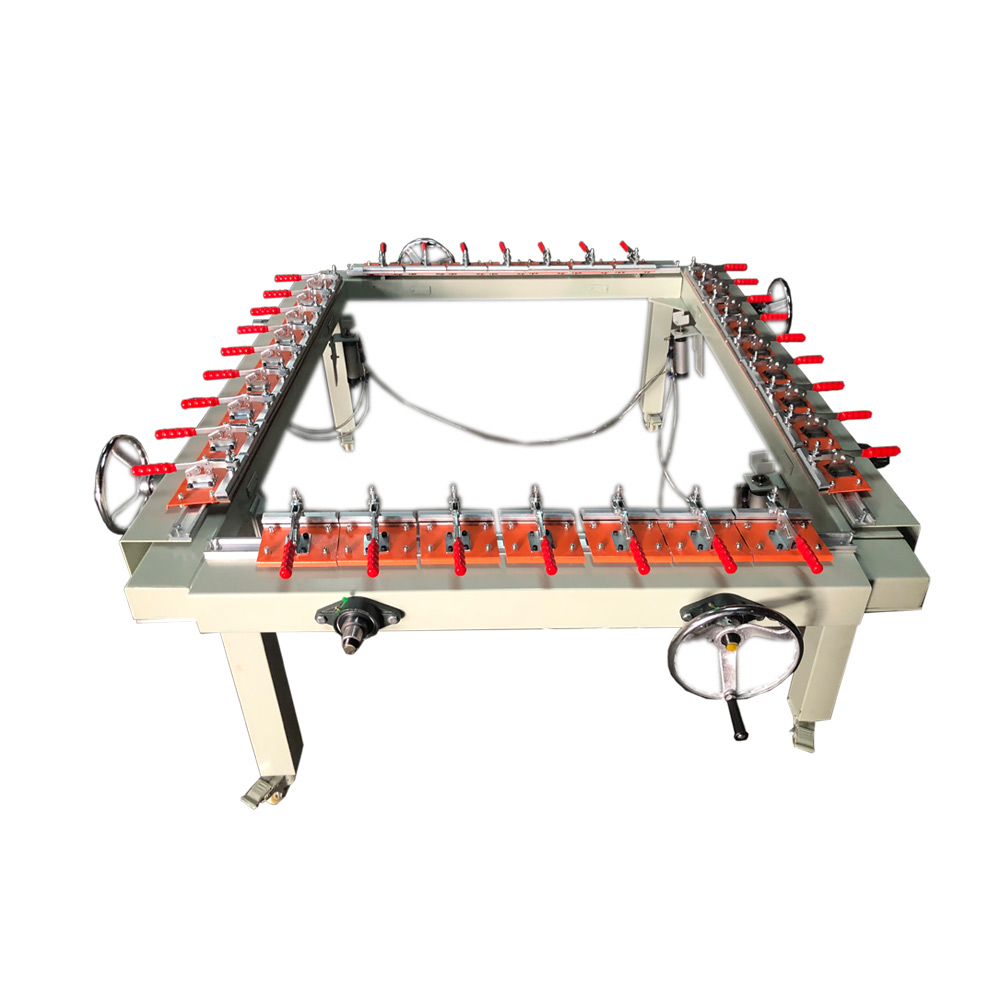

High Precise 59"x 67" Pneumatic Screen Stretcher, Screen Printing Equipment

High Precise 59"x 67" Pneumatic Screen Stretcher, Screen Printing Equipment

Parameter:
The Stretcher size: 74.8 x 82.7 x 31.5 inch (190 x 210 x 80 cm)
Max working area: 59 x 67 inch (150 x 170 cm)
Mini working area: 31.5 x 35.4 inch (80 x 90 cm)
Maximum tension: 25 N
Warm Tips:
1.You need to prepare one air compressor. And the suggested specification is that power greater than 750 W, capacity about 30L, pressure more than 0.7MPa.

2.If you stretch several screen frames at the same time, you need to add another wood or glass board under the frame.

Description:
This screen stretcher is more versatile than any other stretch counterparts . It features easy operation. reliability and high power to stretch any fabric both in warp and weft directions. New push-down lock handle and rubber-coated clamps hold the fabric screen in tough way but make the fabric release and load a breeze. Each cylinders have two tiny knobs to deliver independent rods speed control back and forth. good touch in this sanative knobs bringing your pull tension more precision. Multiple leveling bolts in the threaded hole located in the bottom of the stretch clamps and frame holders can finely adjust the frame height to a proper screen contact. Optional stretch area combined with a middle crossing steel line accommodate to wide range of frame size and this unique design can handle two frames stick work in one time.

With gauge equipped main air pressure regulator. color-coded air line and tough manifold connectors. the screen stretch set-up and tension control may be quite easy and minimize operators fatigue a lot. All the requirements like add or subtract clamps. change bars widths and even change air lines colors can always be available. In short. this is customized to be your perfect target fabric stretcher ever.

Features:
1. The multiple leveling bolts built in the bottom of clamps and frame holders apply to adjust the frame height.
2. Push-down lock handle and rubber coated clamps hold the screen in right position free of slipping.
3. Tune the tiny knobs in each cylinders to let the rods move front and back for more accuracy
4. Unique-designed additional accrossing steel line allows operator to do two frame stick work in one time.

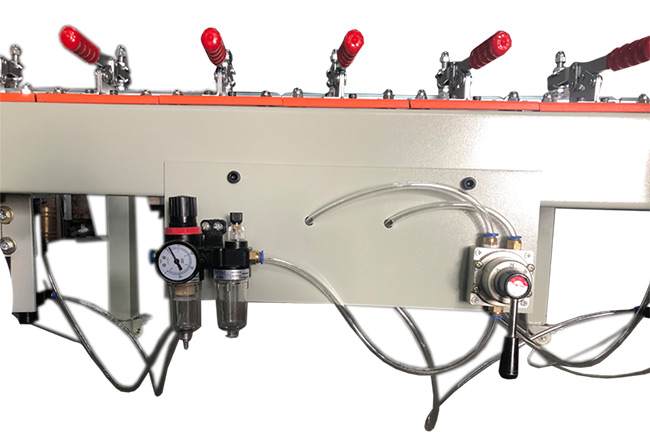

5. Main air pressure regulator with gauge supplied delivers a visual guide for pressure adjustment
6. Color-coded air lines and tough manifolds connectors
7. Pull the fabric to the proper tension in both warp and weft directions with no tearing happened
8. Rugged construction assures years of satisfied service

Details:

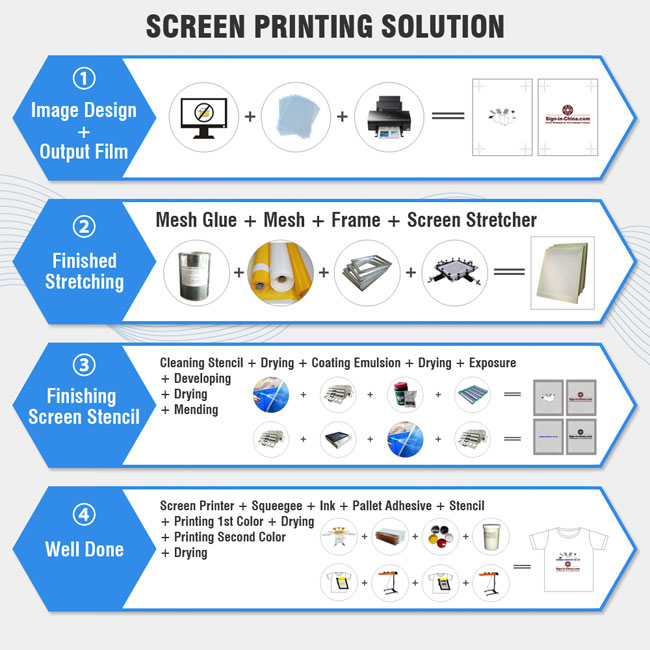

Screen Printing Solution:

Stretching Process:
1. Evenly clamp one end (length direction) of the net cloth, then straighten and tighten both sides, and then fold the rest parts. In order to ensure the quality of the tension network, the layout is required to be as smooth as possible.
2. After the mesh cloth is clamped, turn the hand wheel on the grid rack clockwise. At this time, the hand wheel (screw rod) drives the turbine, gear and rack drive and moves outward. When stretching the net, the four sides can be pulled at the same time, but also can be pulled gradually, the length direction because of the different ratio of elongation, relatively longer than the two sides.
3. When the tension reaches the required requirements, then shake the manual valve of the cylinder operating board to the left, making the entire supporting plate parallel rise, making the net frame close to the net cloth, which can be coated with the net glue. After staining the mesh cloth and so on glue dry can take down the screen. The manual valve is then swung in the opposite direction, and the entire plate is lowered into position.

Storage:
1. The gear, chain and other transmission parts shall be lubricated and lubricated regularly.
2. Exercise parts should be checked frequently to prevent loose.

Package:
Packing size: 80.7" x 31.5" x 21.7" (205 x 80 x 55 cm)
Gross Weight: 250kg
