10pcs/pack Indoor LED Display P2.5 Medium 64x64 RGB LED Matrix Panel (6.29" x 6.29" x 0.5")

10%
OFF

  • 10pcs/pack Indoor LED Display P2.5 Medium 64x64 RGB LED Matrix Panel (6.29" x 6.29" x 0.5")
  • 10pcs/pack Indoor LED Display P2.5 Medium 64x64 RGB LED Matrix Panel (6.29" x 6.29" x 0.5")
  • 10pcs/pack Indoor LED Display P2.5 Medium 64x64 RGB LED Matrix Panel (6.29" x 6.29" x 0.5")
  • 10pcs/pack Indoor LED Display P2.5 Medium 64x64 RGB LED Matrix Panel (6.29" x 6.29" x 0.5")

See larger image and other views (with zoom)

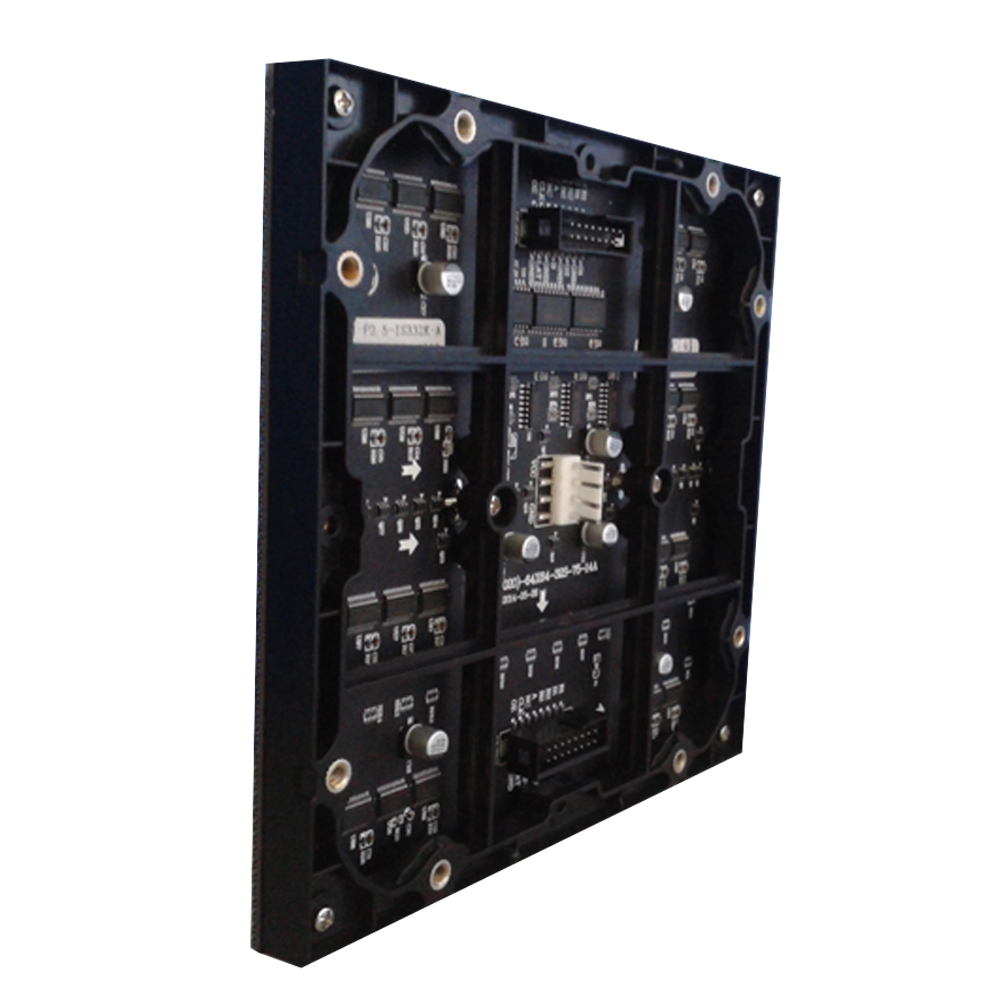

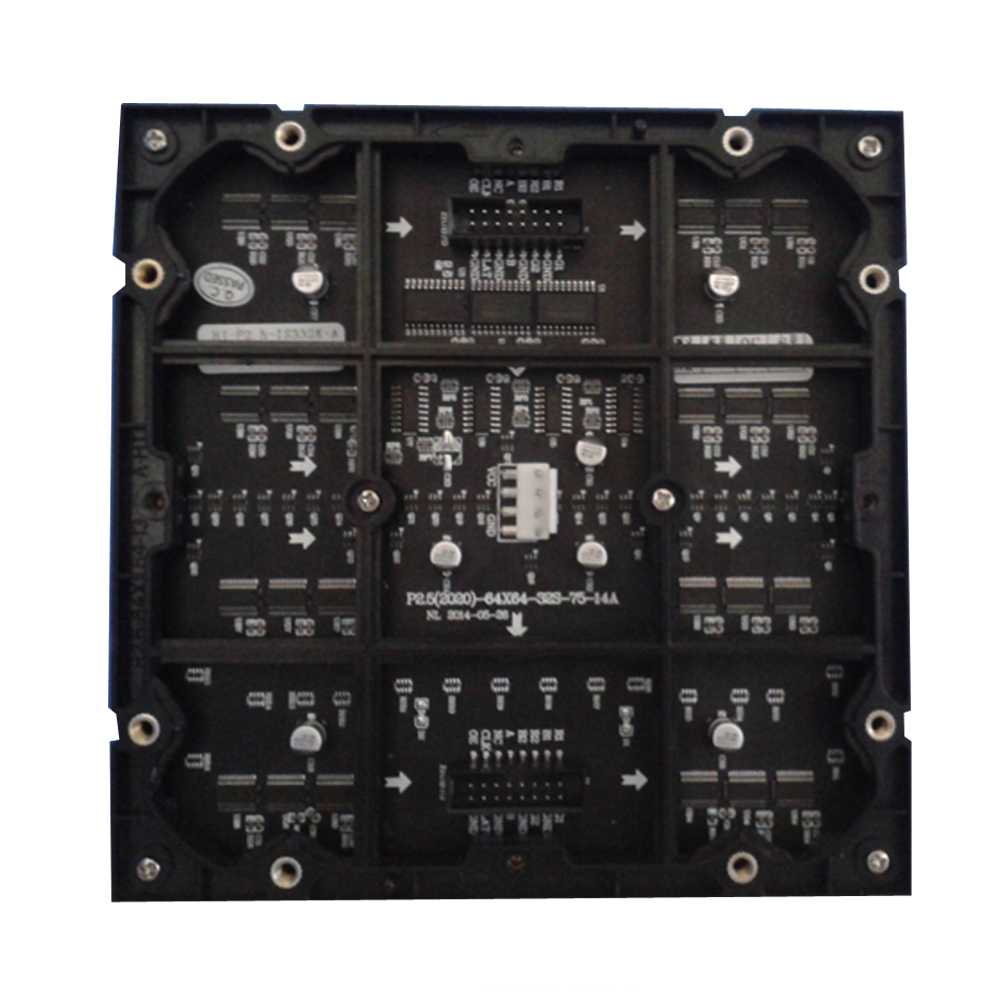

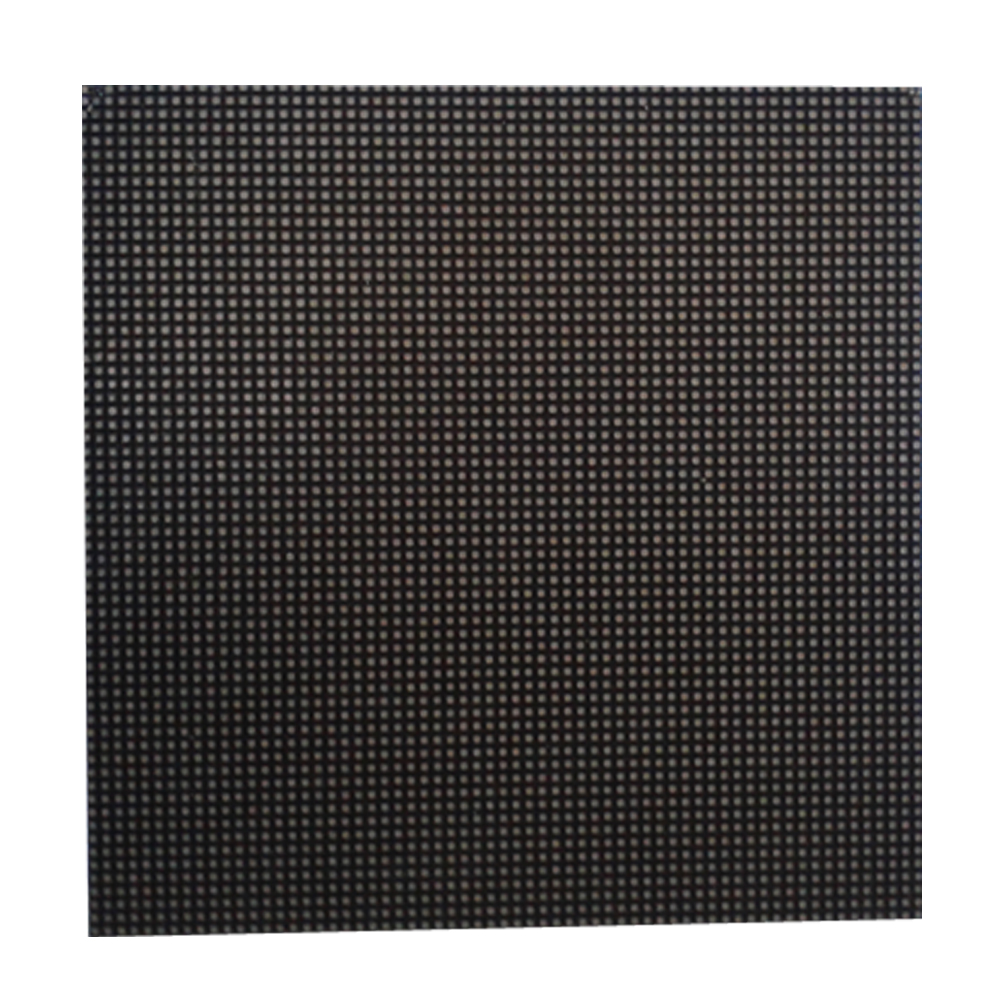

10pcs/pack Indoor LED Display P2.5 Medium 64x64 RGB LED Matrix Panel (6.29" x 6.29" x 0.5")

Free Shipping, Arrival in 2-4 Business Days.



Item Code:LED-DYB-HJY-P25-10-US

  • Unit Price : $387.00/pack

  • Sale Price : $348.00/pack You Save : $39.00/pack (10%)

  • Quantity: pack(s) Total Cost: USD $348.00
  • Shipping Weight: 4.8lb (2.2kg) freightFreight

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

Product advantage:
1. Super bright LED and plastic quality
2. High contrast can achieve good results
3. Weight is easy to install and remove.
4. Single point, single light maintenance, low cost
5. Constant current mode is used to drive LED, even light, low power consumption.
6. Beads glue dispersing agent (DP), surface spray. The point light source into surface light source, to ensure consistency of better visual effect, more plump, soft.
7. 100% new material support rubber shell (PPA), seal

LED parameter

Color LED Package Brightness Wave Voltage Test condition
R 3IN1

SMD

2121
190-247 619-623nm 1.8-2.4V 25°C 20mA
G 375-450 523-527nm 3.0-3.6V 25°C 20mA
B 80-104 464-468nm 3.0-3.6V 25°C 20mA


Screen parameters

Type P2.5
Pixel pitch (mm) 2.5
Pixel density (dots /m2) 160000
Pixel structure 3 IN 1
LED Package SMD2121
Module Size (mm) 160×160
Module Resolution (dots) 64×64
Number of modules
per square meter (PCS)
39.06
Minimum viewing
distance(m)
≥2.5
Brightness (cd/m2) ≥1200
Angle of view (degree) ≤120°
Scanning mode 1/32 Scan constant current drive
Module interface HUB75
Input voltage (DC) 4.8-5.5V
Maximum power (w/m2) 1500
Average power (w/m2) 450-750
Maximum current (A) 7.68
Module weight (g) 209
Gray level Recommended level 16384
Control mode Computer control, video synchronization, real-time display
Effective communication
distance without relay
Non shielded twisted pair transmission distance of 100 meters,
  the maximum transmission of up to 130 meters
Frame changing frequency ≥ 60 rames/ second
Pixel out of control rate <0.0001 (LED Industry standard: less than 3/10000)
Display color number 64G color (4096 gray levels under the condition of the number of colors)
Module brightness
uniformity
>95%
Color temperature RGB color brightness through the software of 100
adjustable color temperature can be regulated according to the needs
Contrast ratio Software 100 adjustable
MTBF MTDLF ≥10000Hours
Service life ≥50000Hours
Protection performance Over temperature / overload / drop / image compensation
/ various correction techniques / over current / over voltage / lightning
protection
Using ambient temperature Indoor, -20 to 50°C


Applications:





  • All
  • Item Description
  • Shipping
  • Payment
  • Other
Q
Does it come with the controller or I have buy that separate? Does have way to input HDMI video to the board. This pack is 10 pieces which means 5 feet size ?
By bbyemi from Brunei
A
The package is NOT including control panel. If you want to input by HDMI, you have to choose the right control panel. I can't find where told 5feet, can you send to my email? service@sign-in-global.us
By Sign-in-china
