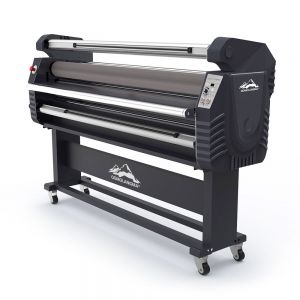

Qomolangma 67in Wide Format Full-auto Roll-to-roll Electric Type Cold Laminator, with Heat Assisted

Arrival in 4-5 Weeks.

Item Code: FMJ-LITE-170E-US

Availability:

Unit Price: $5,499.00/set

Finance as low as $153 / mo

Apply to See Distributor Price

Quantity:
set(s) Total Cost:  $5,499.00
Buy It Now Add to Cart Ask A Question

Buyer Protection

Qomolangma 67in Wide Format Full-auto Roll-to-roll Electric Type Cold Laminator, with Heat Assisted
Buy It Now

Qomolangma 67in Wide Format Full-auto Roll-to-roll Electric Type Cold Laminator, with Heat Assisted
Lite E series is new designed Full-auto roll to roll Electric type lamination machine; The accurate CNC metal cutting program secure align laminating and quality finishing; Ideal for wide format laminating or mounting application use.

Features:
1. Full electric driven lift up system
2. Drop in type interchangeable 3" aluminum shaft
3. Membrane control panel
4. Variable speed control
5.Forward and reverse direction control
6. E-stop and photocell installed for safety
7. Both auto and foot pedal switch mode
8. Thermal cut off switch in case over heat
9. Removable pressure plate
10. Heavy duty castor with brake
11. Equipped with side cutter
12. Stand assembled at customer site

Specification
Max. Working Width 1700mm(67in)
Variable Working Speed 0-20m / min (0 - 65.6ft)
Max. Nip Opening 35mm(1.38in)
Working Temp 40℃ (104℉) (Default max temp.)
Alarm Temp 60℃ (140F)
Roller Diameter 120mm(4.72in)
Top Roller Material Silicone rubber
Bottom Roller Material Silicone rubber
Drive Motor DC110V /120W
Power Consumption 2500W
Power Requirement AC110V / 50 - 60Hz 23A
lift up system Electric type
Forward / Reverse Yes
Foot Pedal Yes
Auto Rewind Liner Pickup Yes
After Laminating Pickup Yes
Emergency Stops Yes


Usage:

Tips for laminating:
• When working on the first picture, please have someone held the edge of the material to avoid it slipping through the bottom roller.
• To avoid tilted laminating, please ensure a right tangle between the picture and the work panel.
• Two methods should be taken to adjust the tilted laminating if operating properly:
(1) Reduce the pressure of one side of tilted roller (please refer to Adjusting the Pressure of the Rollers on User Manual).
(2) Increase the pressure to press the tilted picture during the laminating.
• This hot cold laminator is very important to keep the proper friction for the supporting-roller, collecting cover paper roller, supporting picture roller and the roller for collecting picture.
• Keep the proper friction for the roller to avoid wrinkling.
• The main rollers are the crucial parts of the machine. They directly relates to the output quality of lamination. Please make maintenance regularly.
• Lift the top roller after lamination to avoid long-time pressing of the rollers to improve their lifetime.
• Clean the rollers regularly to prevent a build-up of adhesive residue. They may affect the lamination quality.
• Remove the adhesive residue by a piece of flannelette with alcohol or special adhesive remover. Gasoline is prohibited from applying.
• When cutting the images, make sure the knife will not scratch the rollers.

QOMOLANGMA BRAND STORY:

Qomolangma Laminator's Advantages:
Hand crank and electric lifting: compared with pneumatic lifting structure, the roll parallel setting is more stable, meet the needs of high end customers with high laminating quality request, and there are fewer after-sales problems;
Rubber roller: the original raw rubber roller has good elasticity and durability compared with the recycled rubber;
Mechanical installation: the sheet metal is cut by laser to ensure the correct installation of the mounting hole, so as to ensure that the unwind/rewind shaft is parallel and finishing lamination is without wrinkle and air-bubble;
Electric wiring: the design of electrical structure is humanized and easy to operate.

Details:
Application:

Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.

Machine Size:
2120mm x 625mm x 1350mm(83.5in x 24.6in x 53in)
Net Weight: 240kg(529lb)
Package: Wooden box
Packing Size: 2260mm x 640mm x 900mm(89in x 25.2in x 35.4in)
Gross Weight: 295kg(650lb)

Exhibition Gallery:

Specification
Max. Working Width 1700mm(67in)
Variable Working Speed 0-20m / min (0 - 65.6ft)
Max. Nip Opening 35mm(1.38in)
Working Temp 40℃ (104℉) (Default max temp.)
Alarm Temp 60℃ (140F)
Roller Diameter 120mm(4.72in)
Top Roller Material Silicone rubber
Bottom Roller Material Silicone rubber
Drive Motor DC110V /120W
Power Consumption 2500W
Power Requirement AC110V / 60Hz, 23A
lift up system Electric type
Forward / Reverse Yes
Foot Pedal Yes
Auto Rewind Liner Pickup Yes
After Laminating Pickup Yes
Emergency Stops Yes



Machine Size 2120mm x 625mm x 1350mm(83.5in x 24.6in x 53in)
Net Weight 240kg(529lb)
Package Wooden box
Packing Size 2260mm x 640mm x 900mm(89in x 25.2in x 35.4in)
Gross Weight 295kg(650lb)

Manual for Lite Series Laminator
