Qomolangma 130" Full-auto Large Format Liquid Laminator

Free Shipping , Arrival in 4-6 Weeks.

Item Code: FMJ-3300-WL-US


Unit Price: $23,199.00/set

Finance as low as $644 / mo

Apply to See Distributor Price

set(s) Total Cost:  $23,199.00
Buy It Now Add to Cart Inquire Now

Buyer Protection

Qomolangma 130" Full-auto Large Format Liquid Laminator
Buy It Now

130" Full-auto Large Format Liquid Laminator
Support Roll To Roll Operation.
FMJ-3300-WL liquid laminating width could reach 126.0" (3200mm), mainly used for roll to roll coating of vinyl, banner, canvas etc.
Especially fit for the wide-breadth advertisement picture.

Mayer bar Taking up machine

Products Highlights:
• This liquid laminator has both drying system and cooling system, which make the coating film from `liquid` state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc.
• Easy operation panel:
Dryer, fan, motor, pump button
Various speed and temperature adjustment
Temperature indication
Emergency Stop Button
• In order to save energy, you may use right part of the heating box to reduce the power (50%) when the picture width is less than 63.0" (1600mm).
• Works simply and safely with low noise, the liquid laminator uses liquid water-soluble film, which is innocuous and flavorless, also be clean out without pollution. It is good for protecting environment very well.
• Liquid film is formed directly on the picture surface, and the film thickness is up to the size of Mayer bar. You can change the Mayer bar to increase film thickness according to requirement.
• Has both flash drying system and cooling system, which make the coating film from `liquid` state to solid state, especially for hard-to-dry inks.
• The liquid laminator is cost-effective and environmentally friendly. Coating costs range from $0.25 to $0.32 per sqm, depending on application and coating used.
• Easy to operate and clean, requires minimal operator training.
• Due to the price of liquid film is lower than cold laminating film, this make output rate is very high. Using liquid laminator can reduce the film laminating cost much more than ever before. You can get back your investment in a short time.
• The picture laminated will show more bright-color and beautiful, with the function of waterproof, sun proof, and anti-ultraviolet radiation, hence prolong its lifetime much more, of course the liquid film quality, which you select, is vital to the picture.

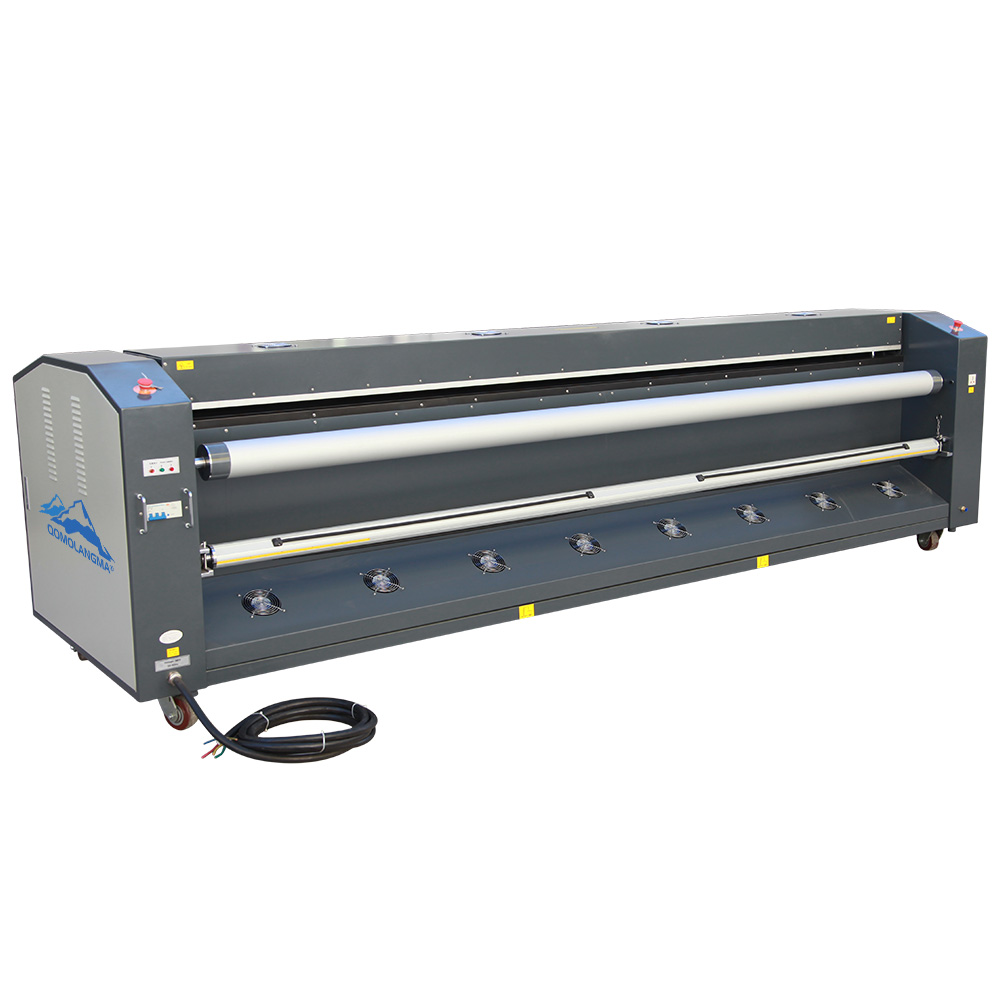

Front of 3m liquid laminator

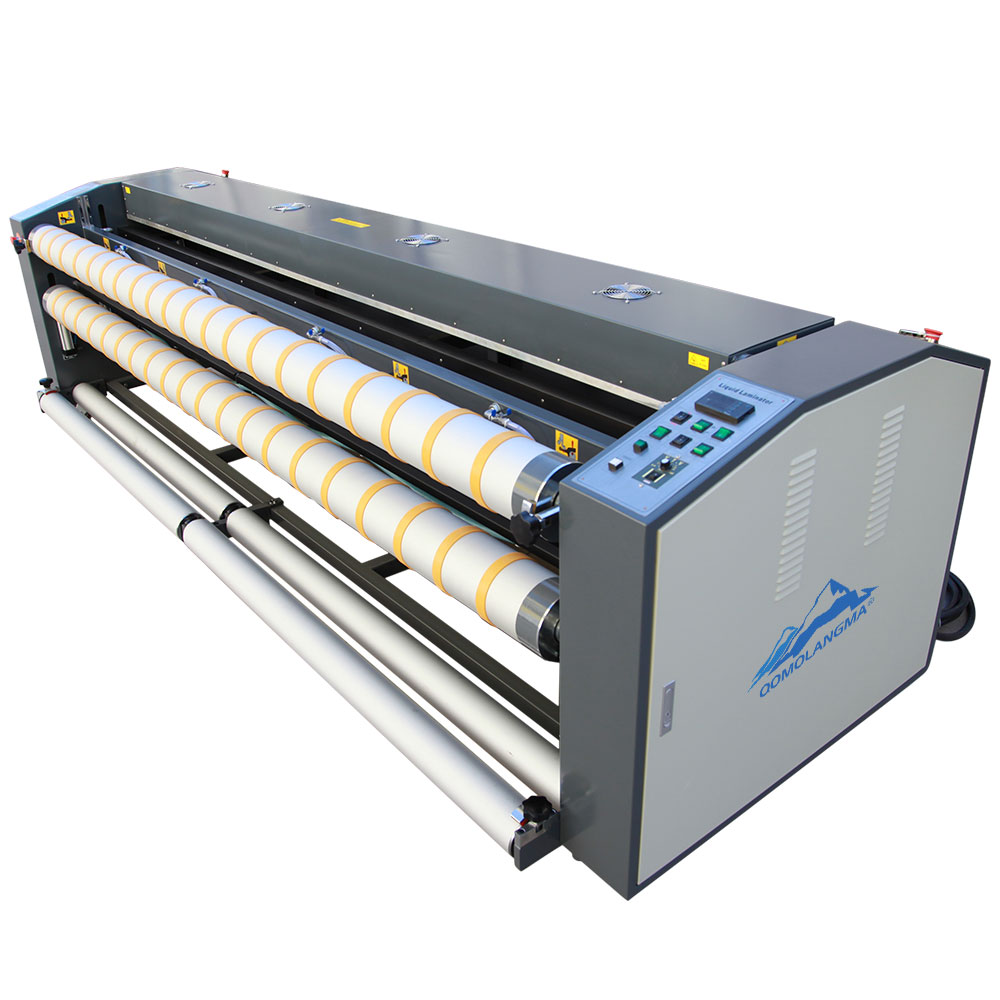

Back of 3m liquid laminator

Fumigation free package

Typical applications:


Model FMJ-3300-WL
Max. Coating Width

126.0" (3200mm)

Max. Laminating Thickness 0.007-0.01mm
Max. Laminating Speed 39.4"-59.1" (1-1.5m)/min
Laminating Temperature 100-130 degree
Max. Heating Temperature 150 degree
Forward / Reverse Yes
Emergency Stops Yes
After Laminating Pickup Yes
Heating Power 6KW+6KW
Film Supply Mode Magnetic suspension liquid pump, circulation supply
Heating Method Infrard heating lamp
Motor Power


Power Supply AC 380V; 50Hz or 60Hz
Machine Weight 1543.2lb (700kg)
Machine Dimension 150"*43.3"*42.7" (3810*1100*1084mm)
Package Fumigation free package
Packing Size 156.7"*52.4"*51.6" (3980*1330*1310mm)
Gross Weight 2116.4lb (960kg)

126in Liquid Coating Machine User Manual

Liquid Coating Machine Data Sheet
