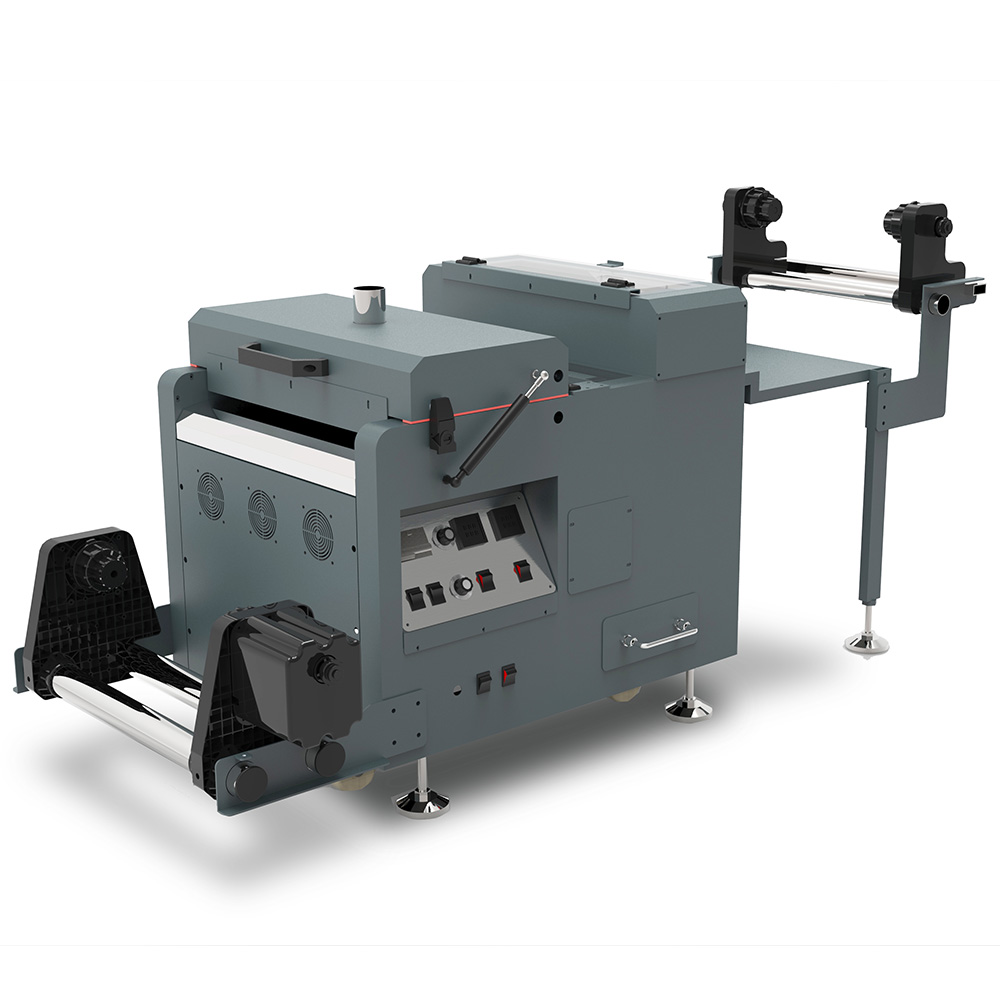

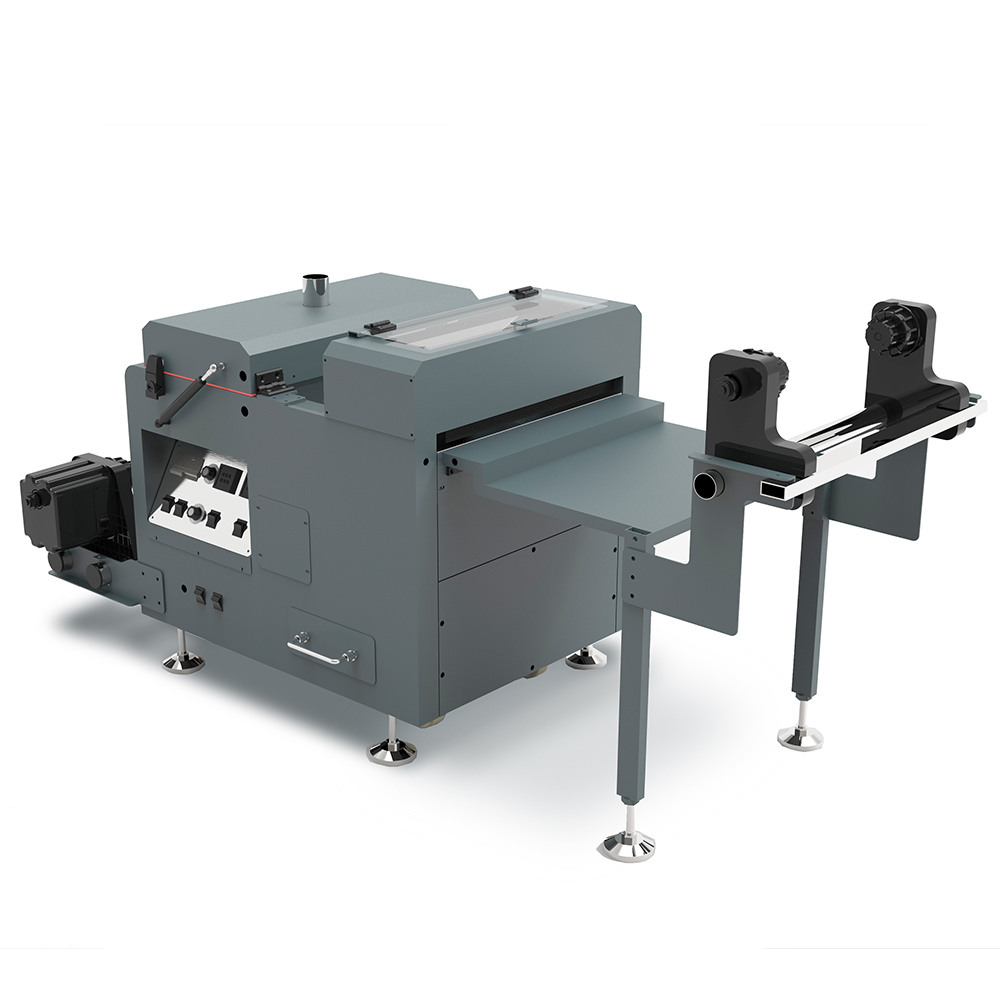

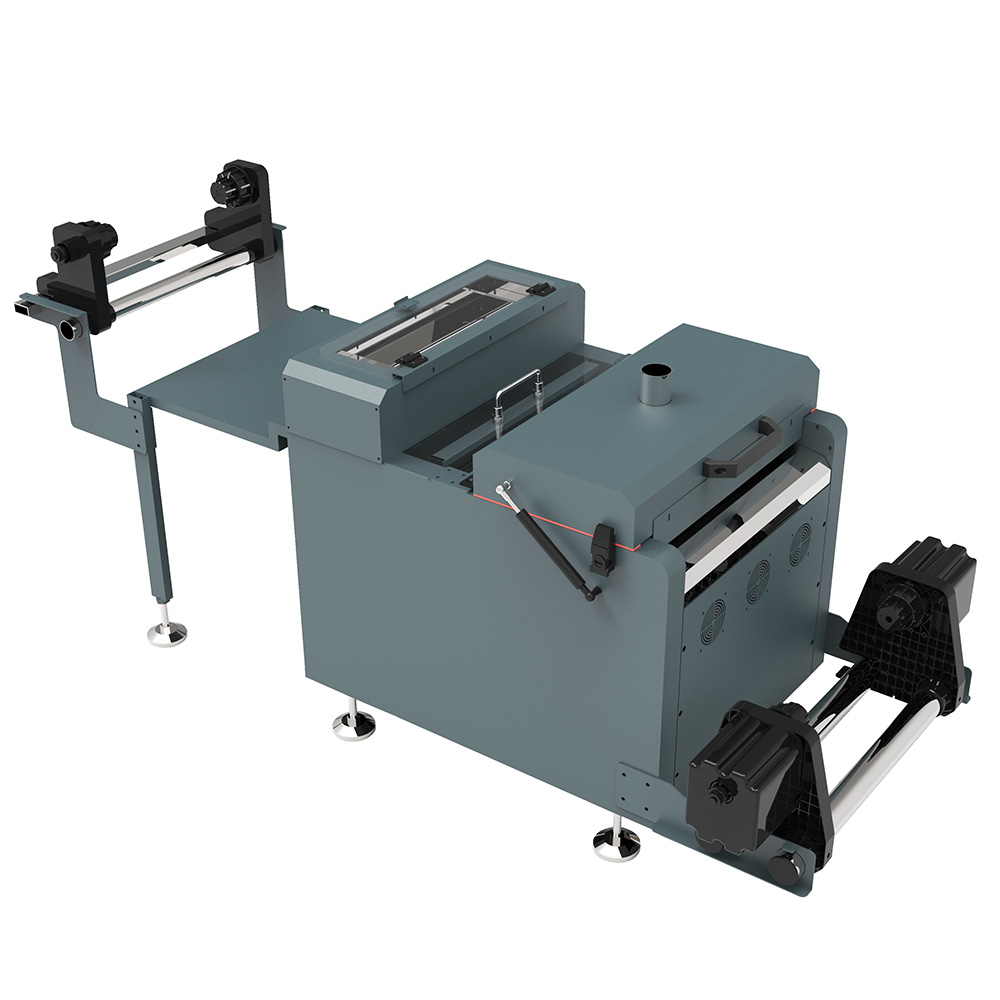

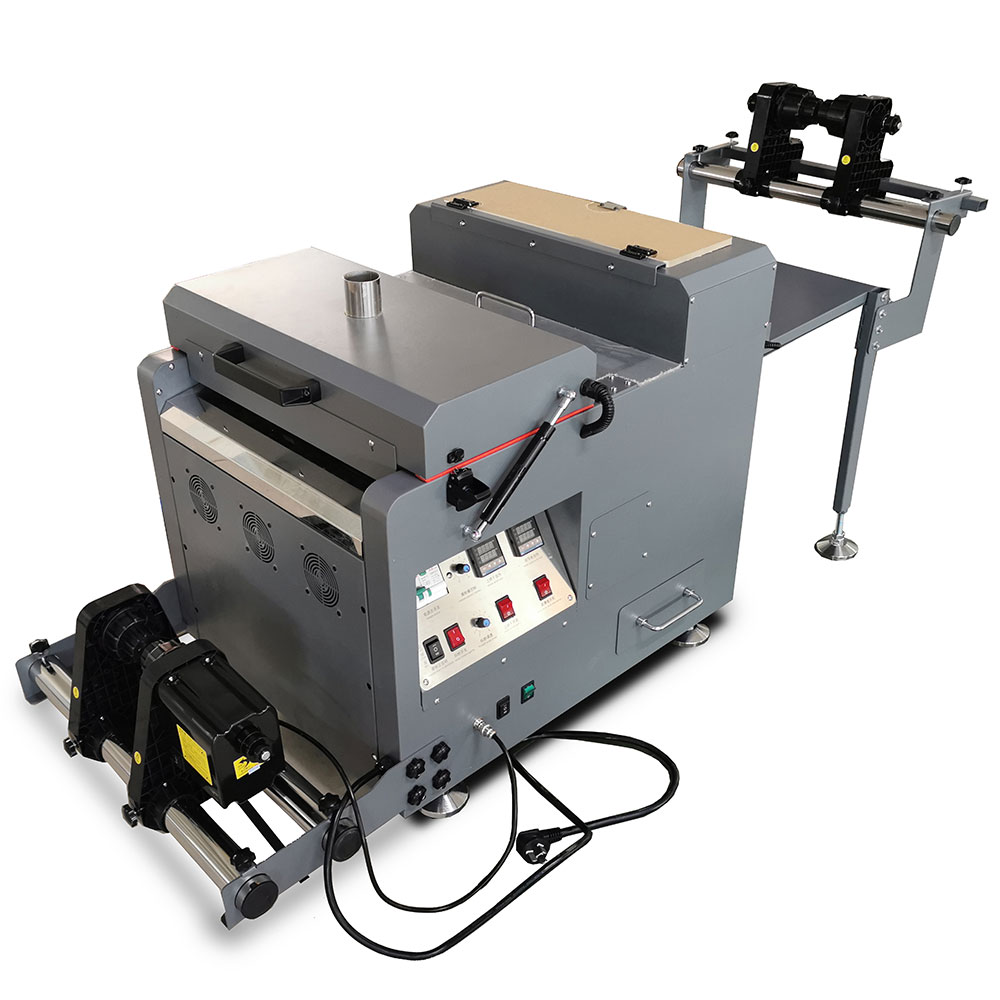

CALCA 11.8in (300mm) Automatic TPU Adhesive Powder Shaker and Dryer Unit
With printer working table, front guide plate heating, material rack, upper drying curing and air cooling function.
CALCA DTF powder shaker and dryer unit can handle up to 11.8in wide DTF film.
DTF opens the door to a wide range of choices and is capable of printing onto non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and more. It works equally well on white and dark textiles.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.
Specifications:
CALCA Brand: USA registered
Maximum Shake Powder Width: 300mm (11.8inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating and Drying Function: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating Mode: Front guide plate heating, upper drying curing, air cooling
Machine Size: 67.9in x 23.7in x 29.6in (1725mm x 602mm x 753mm)
Power Shaker and Dryer Weight: 220bs (100kg)
Packaging Size: 47.2in x 28in x 33.6in (1200mm x 714mm x 853mm,work status)
Gross Weight: 286lbs (130kg)
Requirements:
Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
Current: 21A, 2300W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Features:
· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 2 bulb tunnel dryer and roll up at the end.
· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
· Infrared drying and heating improves and protects color reproduction.
· Customized powder recycling drawer, increases effectiveness.
· Shake powder control, dusting control, PID setting of curing temperature.
· Automatic powder feeding, evenly spreading powder.
· Reasonable design, with an extended working table, you can place your DTF printer.
The DTF Process:

DTF Printing Advantages:

Applications:
Samples:







Warranty
> Lifetime Technical Support
> Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
