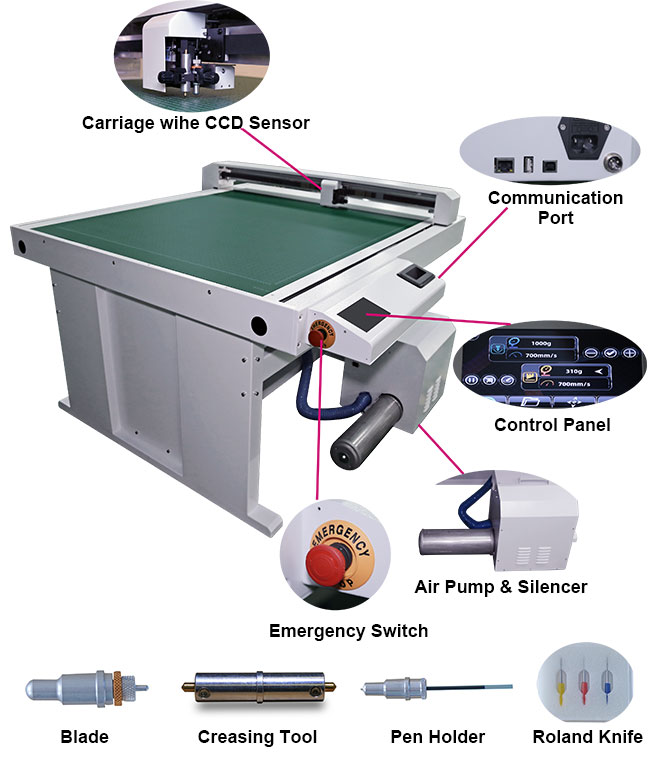

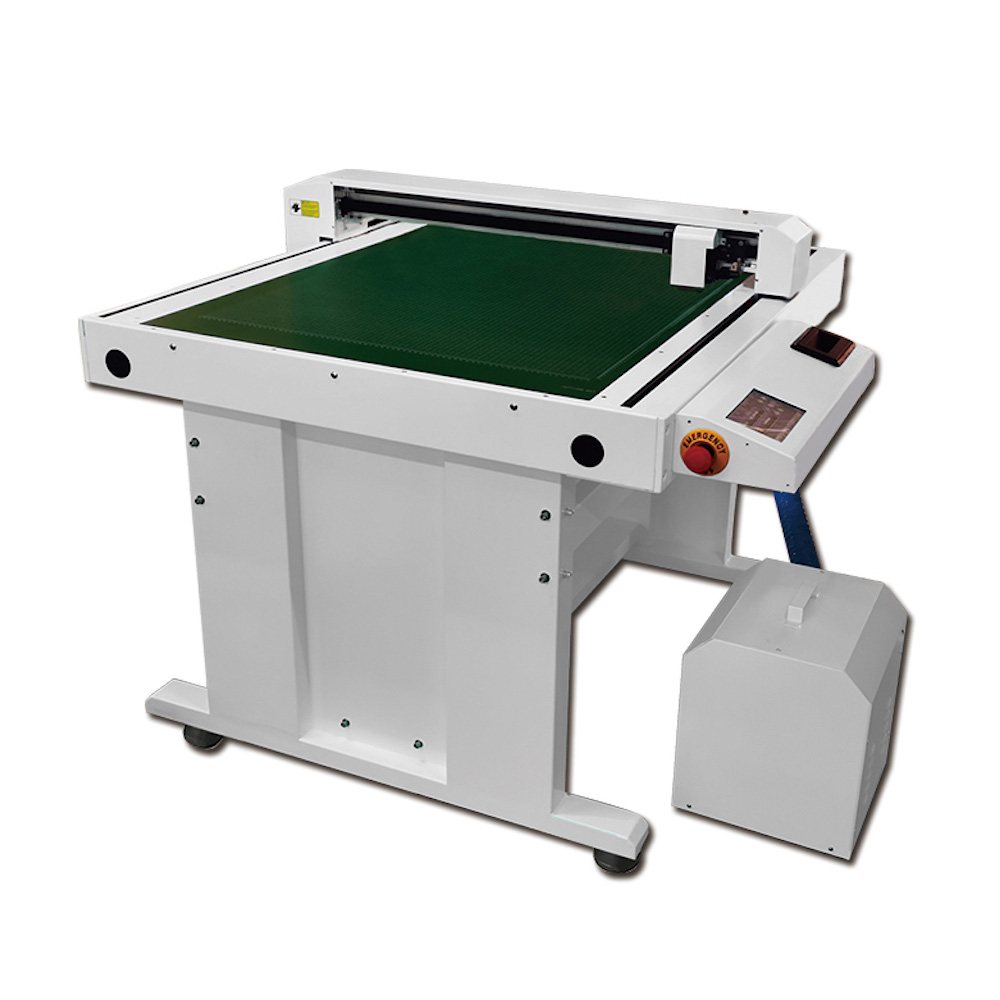

CALCA 27.6" x 40" Digital CCD Camera Flatbed Cutter For Paper crafts Packaging Labels Tags Cutter

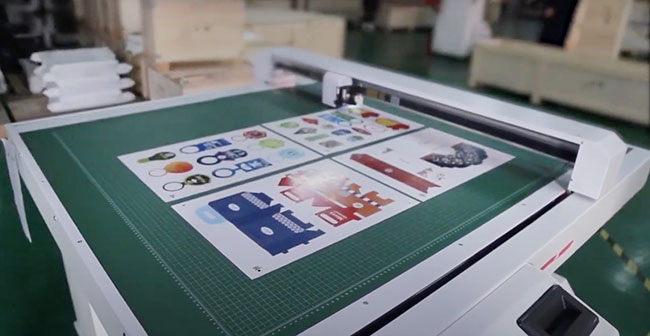

Digital Flatbed cutting machines are the perfect solution for prototyping and small production runs of rigid materials without the use of a cutting die. It eliminates the media wastes of rigid materials, USB operations also enable users of all skill levels to easily process materials.
Feature:
1. Safe warnings after booting.
2. Carriage/beam one-key to reach far-end and reset.
3. Quick media placement.
4. Real time pause intervention during cutting.
5. Upgraded cutting and creasing speed/pressure.
6. Mixed contour cutting.
7. Real time speed/pressure adjustment.
8. Intelligent control panel.
9. Bluetooth remote control.
10. Uninterrupted operation.
Details:
Application:
Cardboard, stickers, kraft paper, pvc, pet, plastic thin board, fibrous cardboard, rubber sheet, film etc,.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
| Specification | |
| Model | FC6992 |
| Cutting control system | X-High-power brushless servo motor |
| Y-High-power brushless servo motor | |
| Positioning sensor type | Digital camera (CCD) |

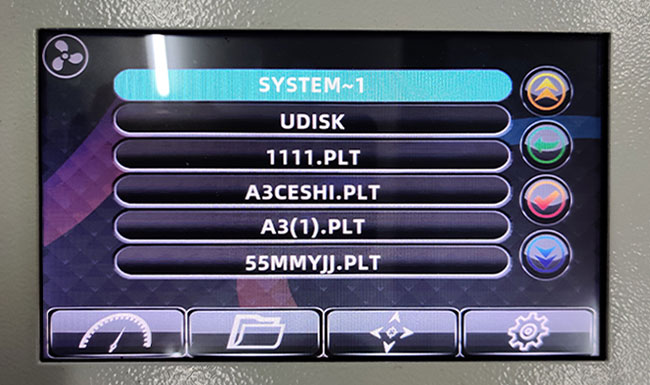

| Control panel | 7 inch graphic touch screen |

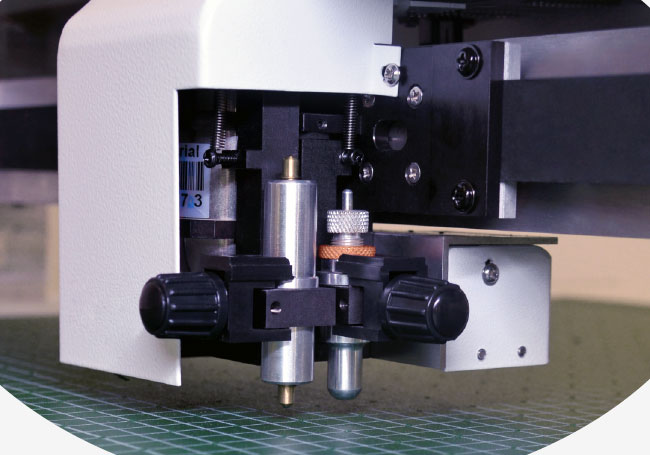

| Number of knife clips | Double knife clip |
| Blade types | Blade,creasing tool and pen |
| Media hold method | Vacuum suction |
| Positioning sensor type | Digital camera(CCD) |
| Maximum cutting size | 700mm x 990mm |
| Maximum ARMS Contour Cutting Size | 690mm x 920mm |
| Scanning speed | 5-10s |
| Maximum actual cutting speed | 10mm/s-700mm/s |
| 10mm/s Step | |
| Maximum cutting force: Creasing | 0-1500gf(10gf Step) |
| Blade:0-1000gf(10gf Step) | |
| Maximum Paper Weight | 600g |
| Mechanical resolution | 0.02mm |
| Programmable resolution | HGPL 0.025mm |
| Repeat precision | ≤0.05mm |
| Cutting media types | Kraft paper,plastic board,cardboard,etc |
| Connectvity | USB,network cable |
| Software and compatibility | Corel Draw/Illustrator Plug-in.PC only(SD interfaces) |
| Voltage and current | 100VAC-120VAC.50/60Hz, 6.8A |
| 200VAC-240VAC,50/60Hz, 3.4A | |
| Power | 350W |

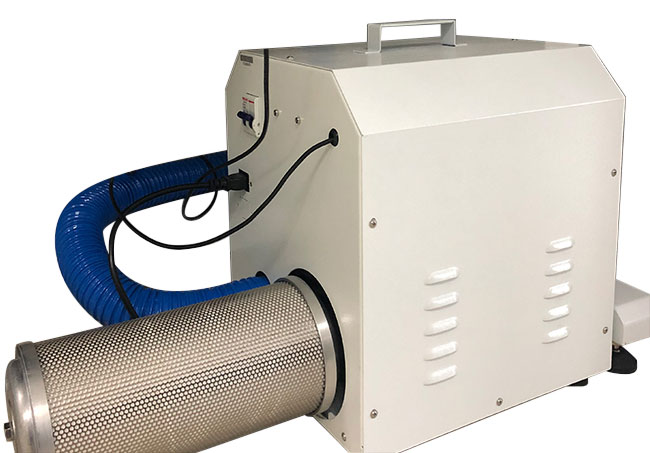

| Voltage and current(Vacuum Pump) | 110VAC, 60Hz, 17.2A |
| 220VAC, 50Hz(6.2A)/60Hz(8.6A) | |
| Power(Vacuum Pump) | 50Hz, 1.1KW, 60Hz, 1.3KW |
| Stand | Included |
| Operation environment | +5ºC to +35ºC(41℉-95℉) |
| Dimensions | 1286.5mm×1228mm×1000mm (50.6" x 48.3" x 39.4") |
| Net Weight | 98.5kg (217lb) |
| Packing Size | 1568mm×1356mm×620mm (61.7" x 53.4" x 24.4") |
| Gross weight | 151kg(333lb) |
27.6" x 40" Digital CCD Camera Flatbed Cutter for the DIY artwork
