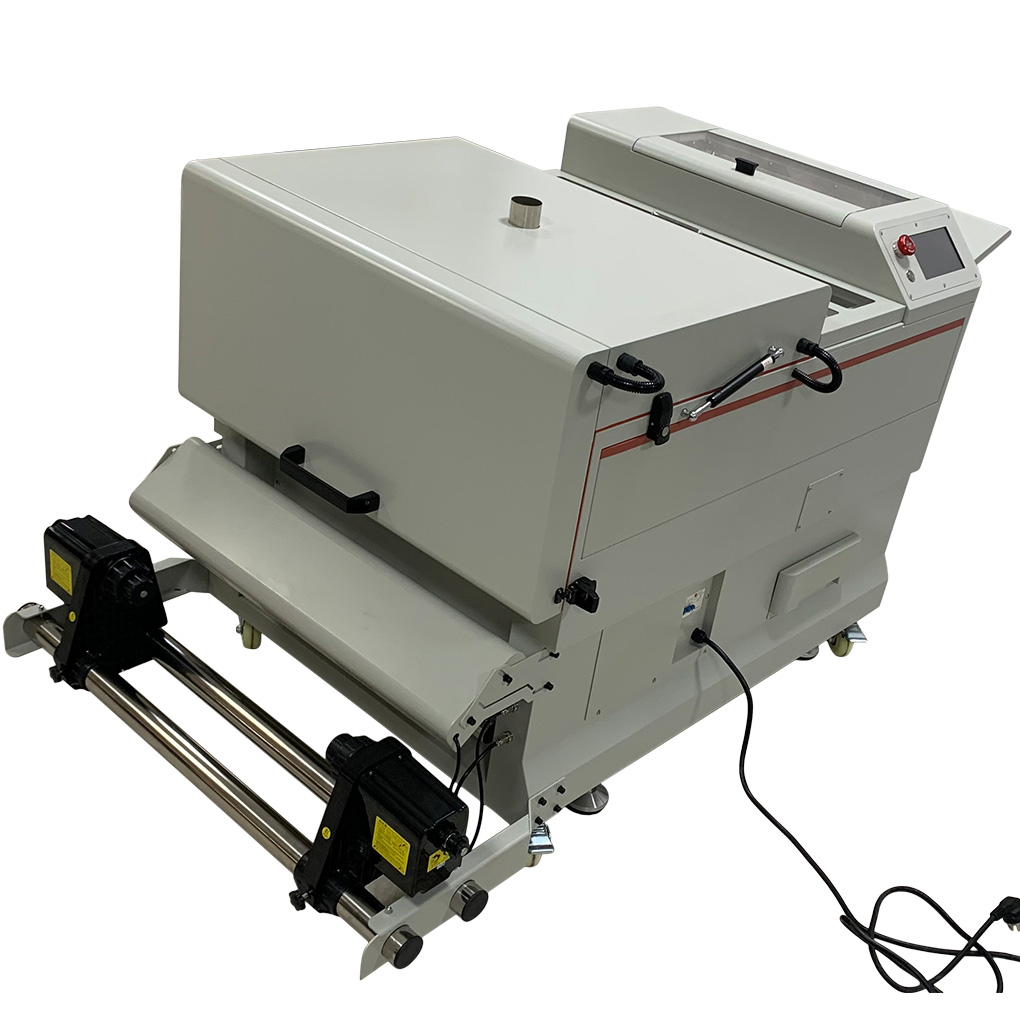

CALCA PLUS 24in automatic DTF powder shaker and dryer for 2 head high speed DTF printers.
CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.
Specifications:
CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: 5pcs Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 4 fan air cooling (Single row)
Machine Size: 63.8in x 35.8in x 39in (1620mm x 910mm x 992mm)
Powder Shaker and Dryer Weight: 396.8lbs (180kg)
Packaging Size: 55.9in x 45.3in x 44.5in (1420mm x 1150mm x 1130mm)
Gross Weight: 507lbs (230kg)
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Requirements:
Working Power Supply: AC220V, 50hz / 60hz, 1 phase.
Current: 21A, 4500W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
Remarks:
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.
Features:
√ Longer folding dryer, more energy efficient.
√ Compact size / small footprint.
√ Touch screen control panel makes everything easier.
√ Infrared drying and heating improves and protects color reproduction.
√ Absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
The DTF Process:
DTF Printing Advantages:
Applications:
Samples:
