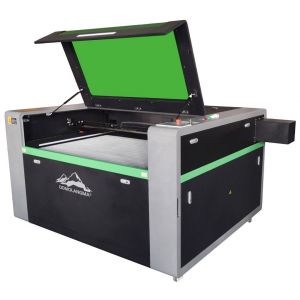

Qomolangma 51" x 35" 150W CO2 Laser Cutting Machine, with Electric Lifting Worktable and Auto - focus System, Rotation Axis, Compatible Lightburn Software
Buy It Now

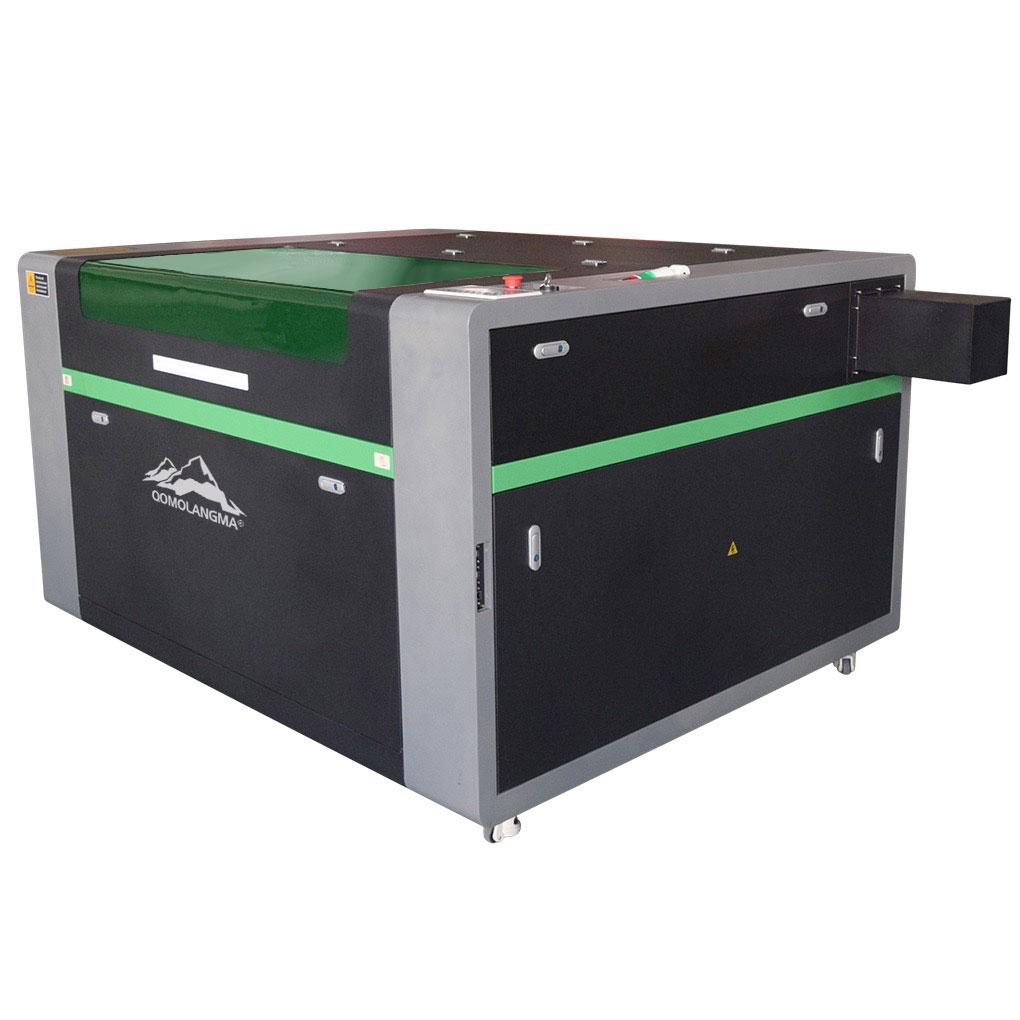

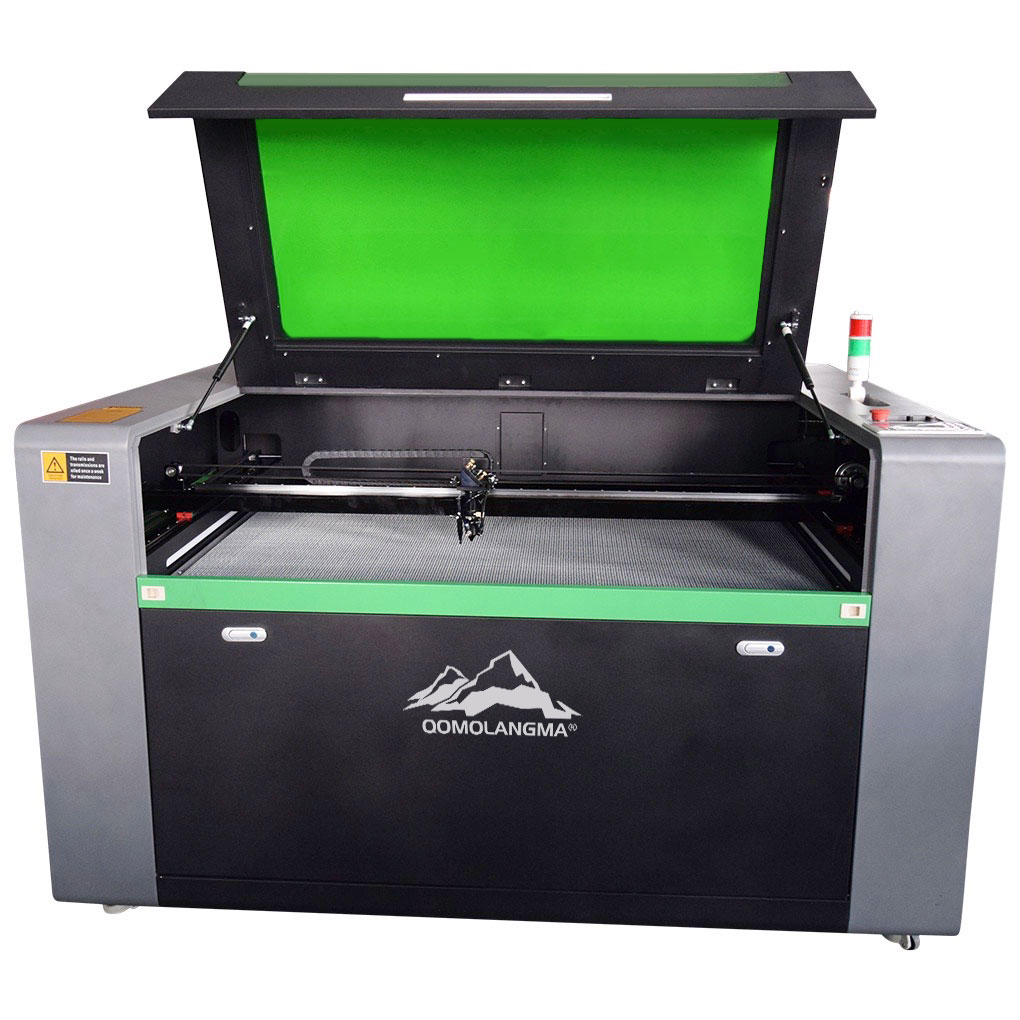

Qomolangma 51" x 35" 150W CO2 Laser Cutting Machine, with Electric Lifting Worktable and Auto - focus System, Rotation Axis, Compatible Lightburn Software
The machine is a laser engraver and cutter equipped with RECI laser tube W8 150W, DSP Control System for RD draw directly, supports Core Draw and Auto CAD and other advance software, also compatible Lightburn software.
The machine is equipped with a Rotary Axis and two workstations, Honey Comb Table and Blade Table.


SPECIFICATION

Model LCM-DR-1390-150W-K
Laser Power 150W
Voltage AC110V, 60HZ
Gross Power ≤1650W, 15A
Laser Type CO2 Sealed Glass 10.64 um
Working Area 1300mm x 900 mm (54 - 1/4" x 35-1/2")
Z table Motorized Z (15.7" vertical adjust)
Focus Lens Dia. 20mm FL2.5"
Worktable Both knife blade and honeycomb Double platforms
Cooling Type S&A 5200 Series
Driver type Stepping Motor
PC Interface USB, Ethernet connection and USB Disk
Max. Engraving Speed 300mm/s (11-3/4"/s)
Max. Cutting Speed 400mm/s (15-3/4"/s)
Engraving Thickness 0 - 10 mm (0 - 3/8") depends on material
Cutting Thickness 0 - 10 mm (0 - 3/8") depends on material
Locating Precision ± 0.01mm
Resolution Ratio ≤ 1,000 dpi
Min. Character Size 1 mm x 1 mm
Min. Character Letter 2 mm x 2 mm
Operating Temperature 41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface USB 2.0
OS Compatibility Windows 10, 8, 7 (64/32 bit)
Control System RD6445 series
Control Software RDWorks V8
Support Software LightBURN, CorelDraw, AutoCAD, Photoshop, etc.
Laser / PC Connectivity USB, Ethernet connection
Graphic Format Supported Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation Up To 256 Colors
Cooling Type Circulating Water Cooling and Protection System
Rotary Device Yes
Auto-focus Yes



DETAILS

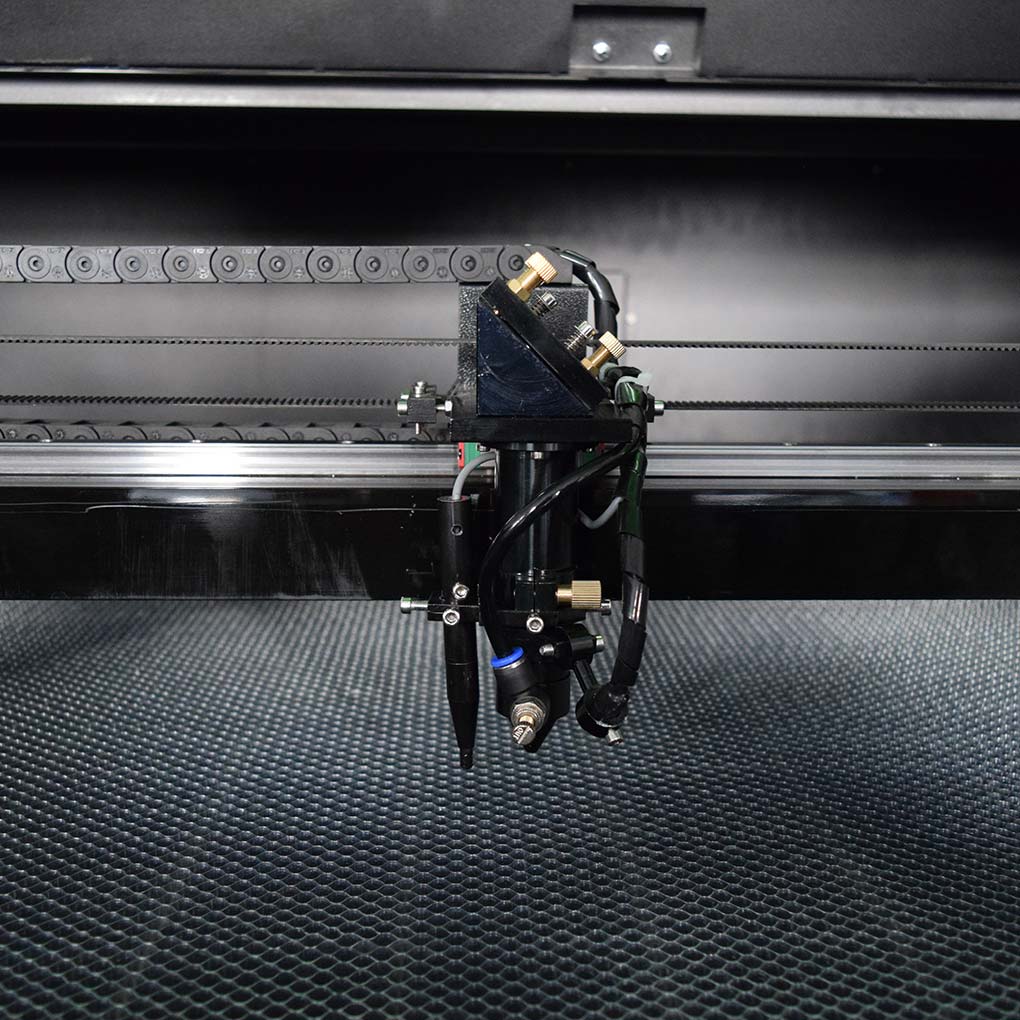

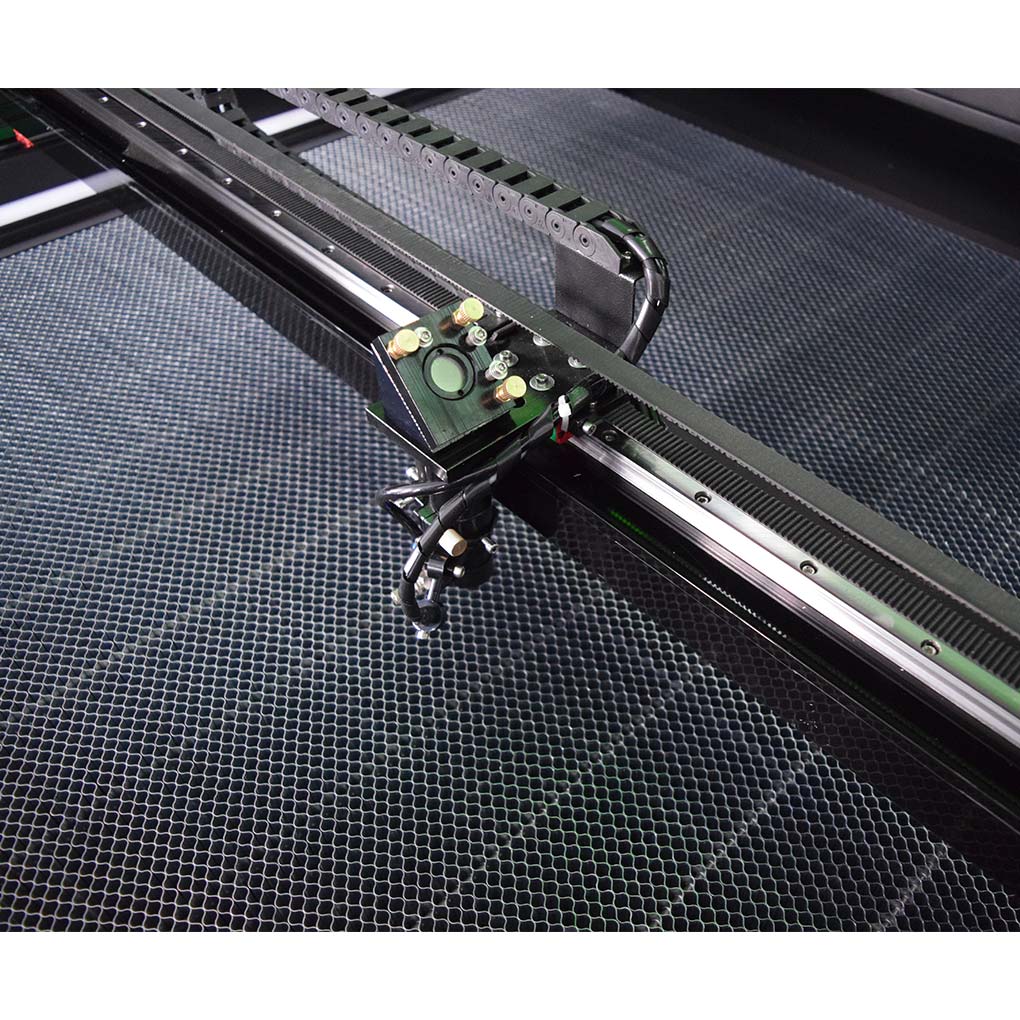

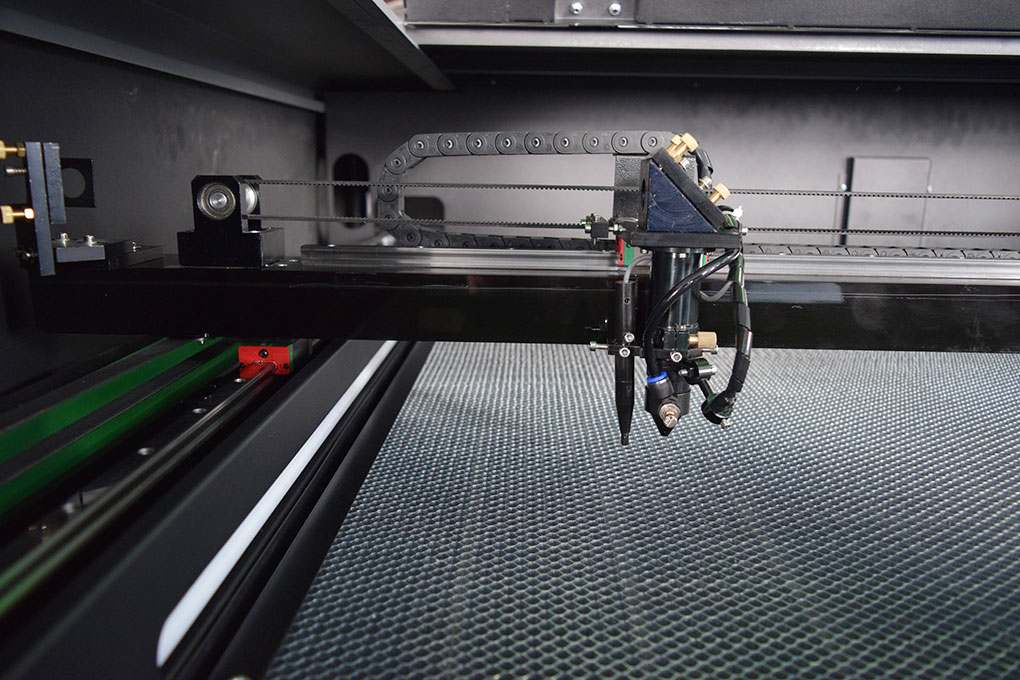

Industrial Laser Head
The laser head is equipped with automatic focusing system, and then used with the upper and lower work table. The device easily and quickly to focus according to different materials, and saving much time, more intelligent. also supports Air Assist, Blowing air to prevent the material being burned.

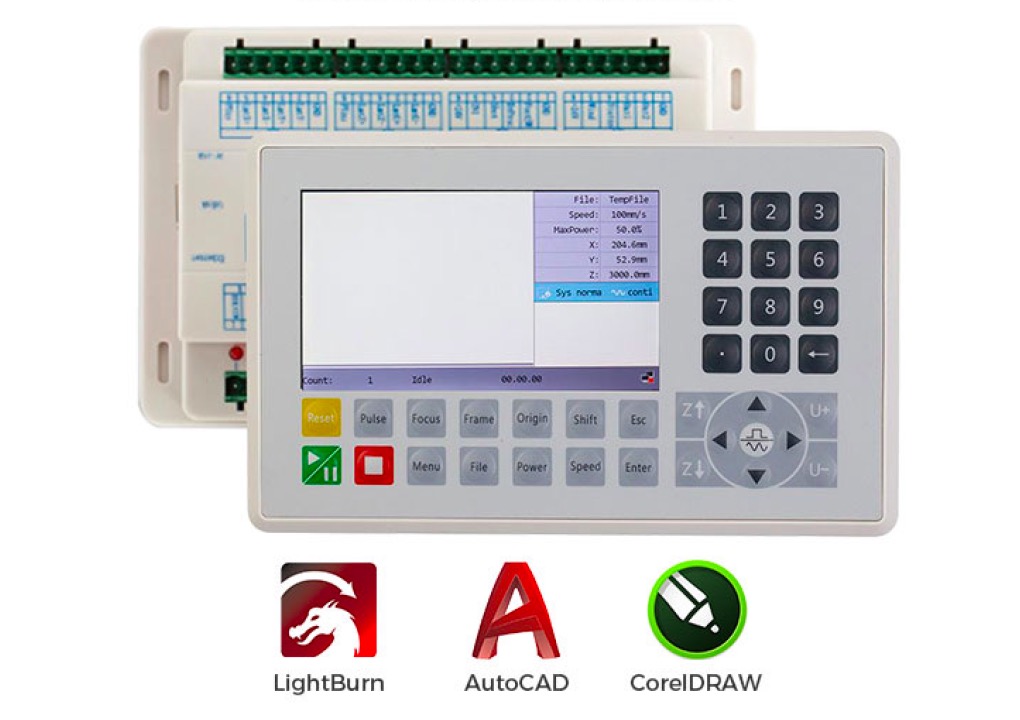

RUIDA Digital Control Panel
RUIDA 6445 controller are easy to use and offer advanced capabilities. Connect to Windows PC & USB flash drives. Compatible with third-party software like LightBURN, CorelDraw, AutoCAD, Photoshop, etc.

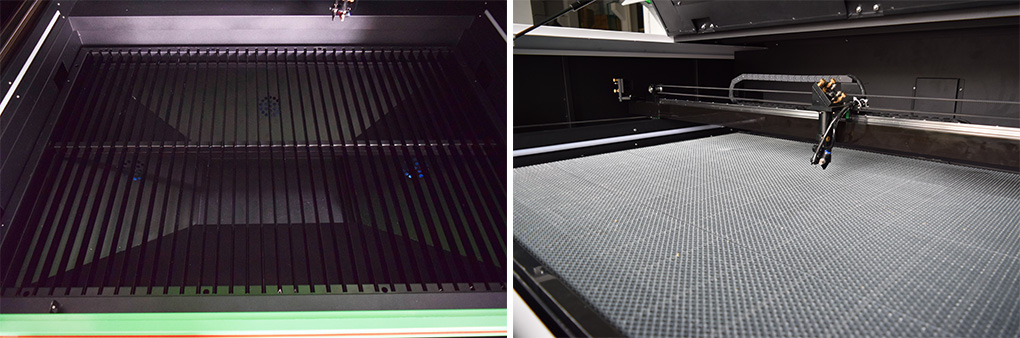

Double Platforms
Both knife blade and honeycomb platforms for cutting and engraving.

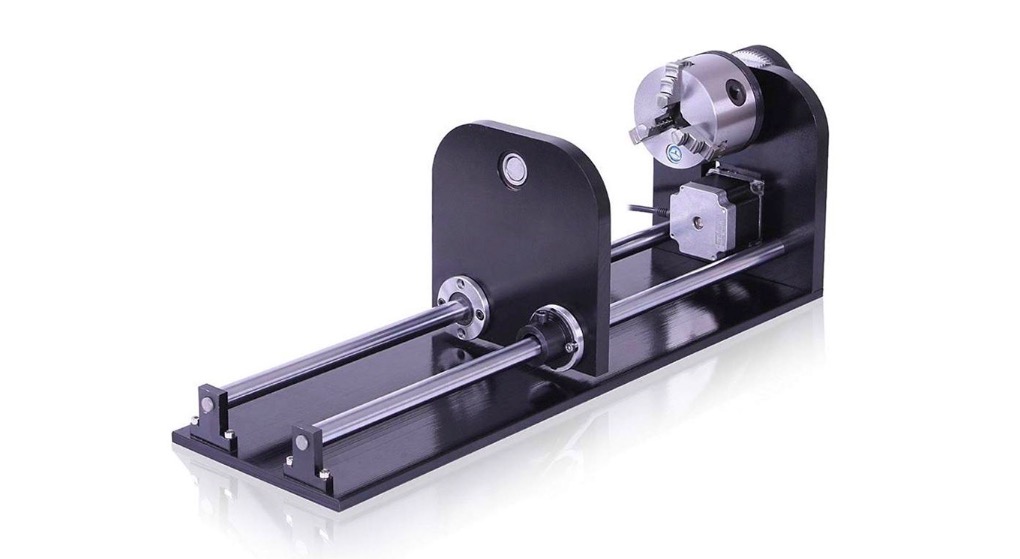

Rotation Axis
80mm 3-Jaw Scroll Chuck, 3 Phase Stepper Motor has 3 Leads. higher torque and higher speed, Reduced motor heating and more efficient.

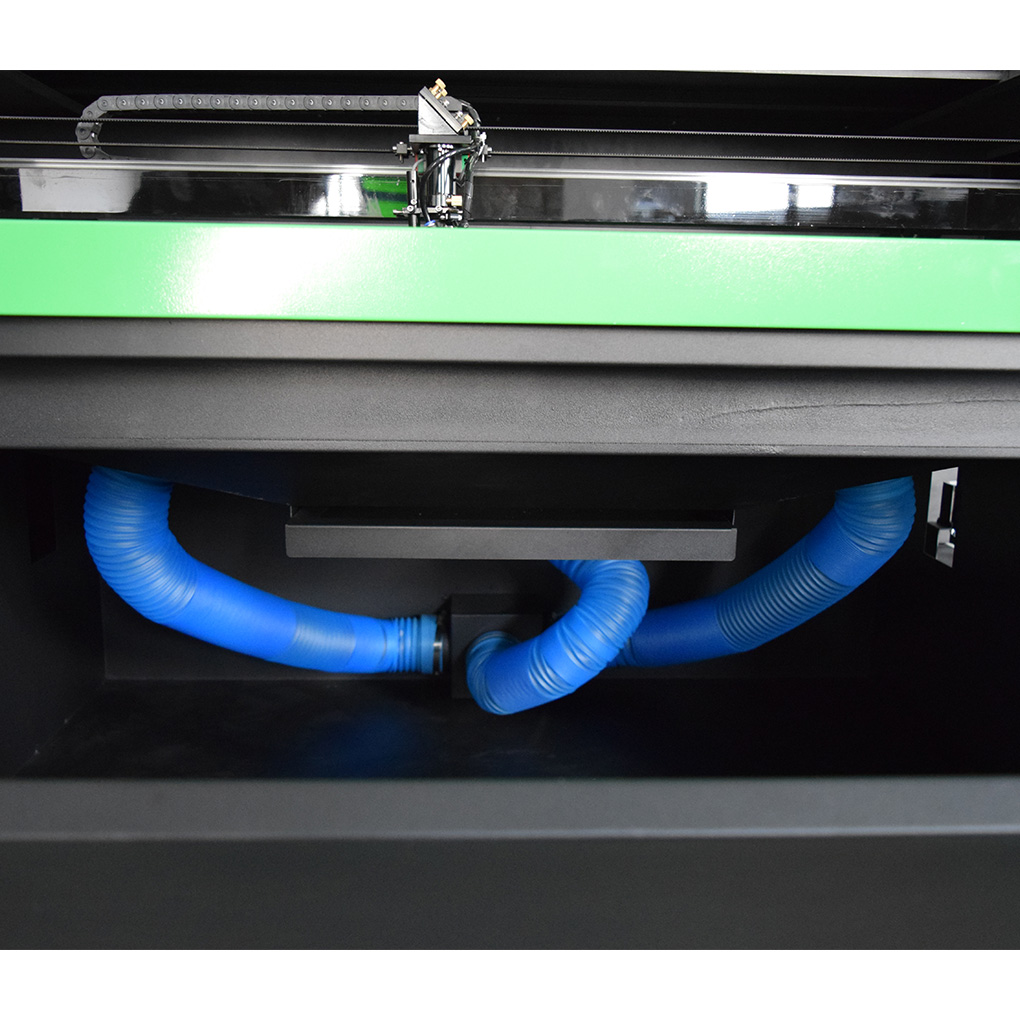

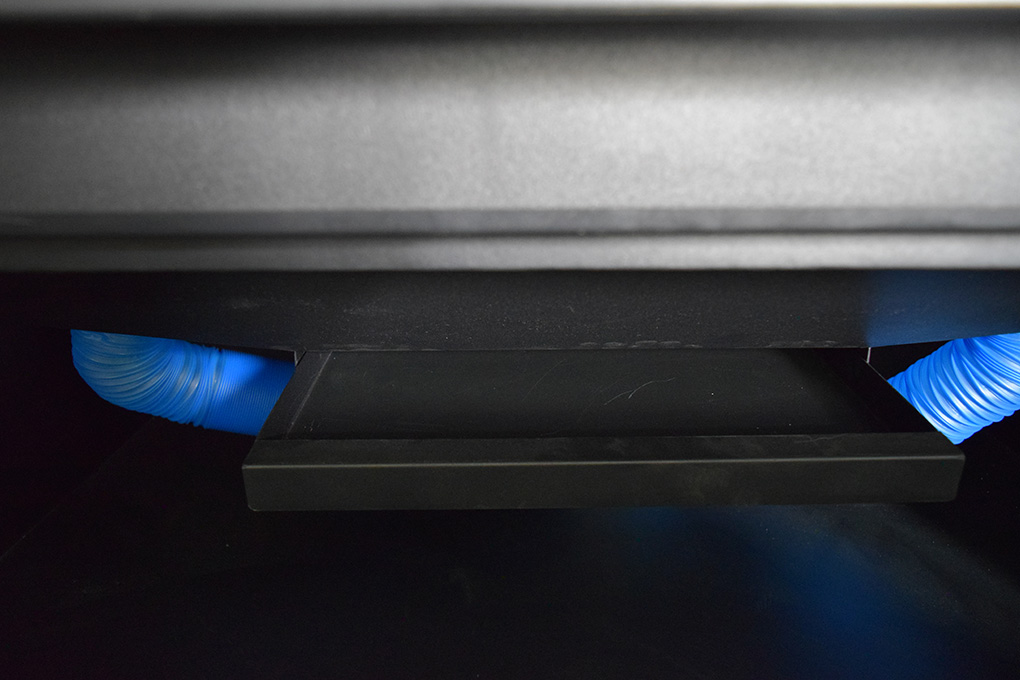

Built-in Waste Collection
Debris and dust generated during cutting and engraving automatically falls into the built-in waste hopper for easy collection and cleanup.

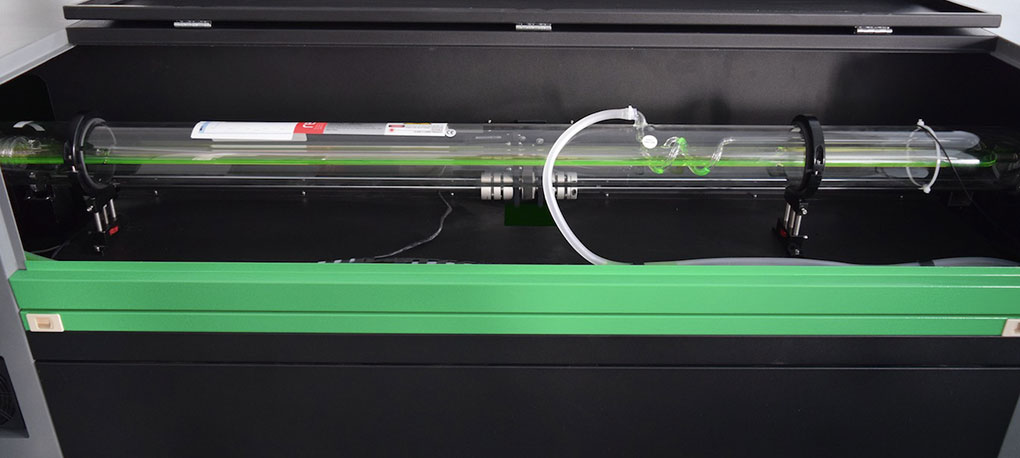

CO2 Laser Tube
We have catalyst plating in the inner wall of the laser tube. working life is up to 10000 hours. When compare to the same length tube, RECI W8 co2 laser tube is New firing technology is used to join metal parts and glass parts together directly. This new technology makes the high stability in W series laser tubes.

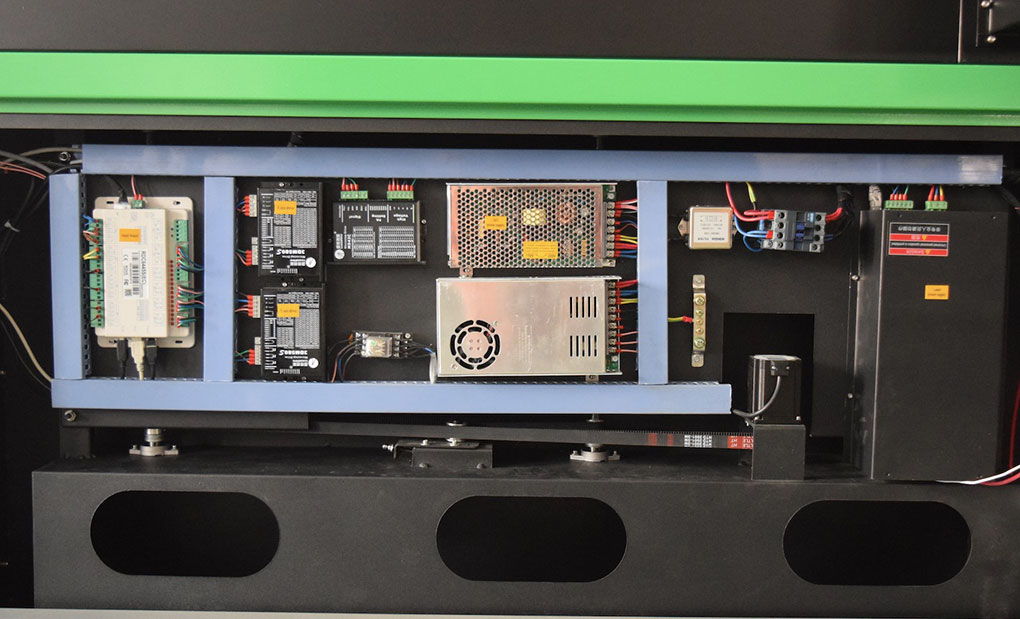

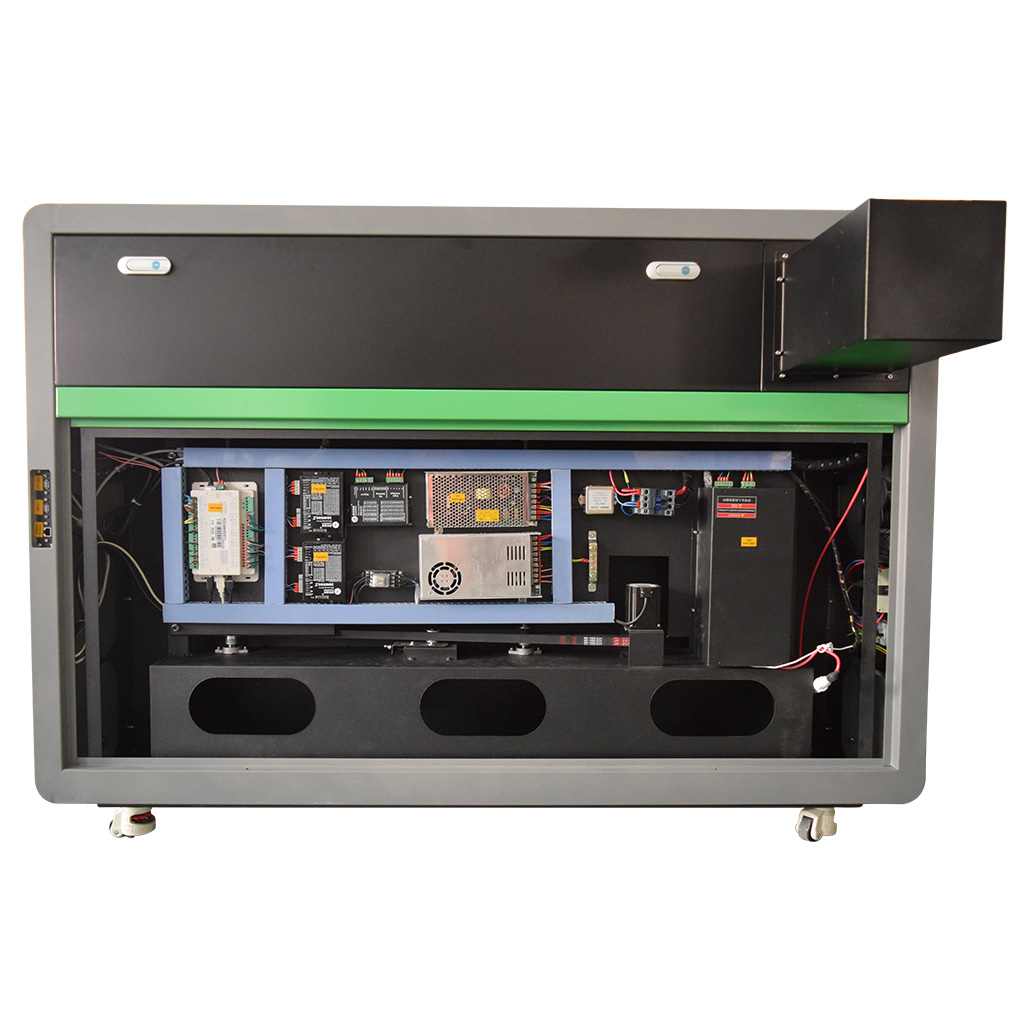

Control box
Accessories such as power supply and driver in the chassis are neatly connected, Reasonable layout with clean and efficient design, it convenient for machine repair and maintenance.

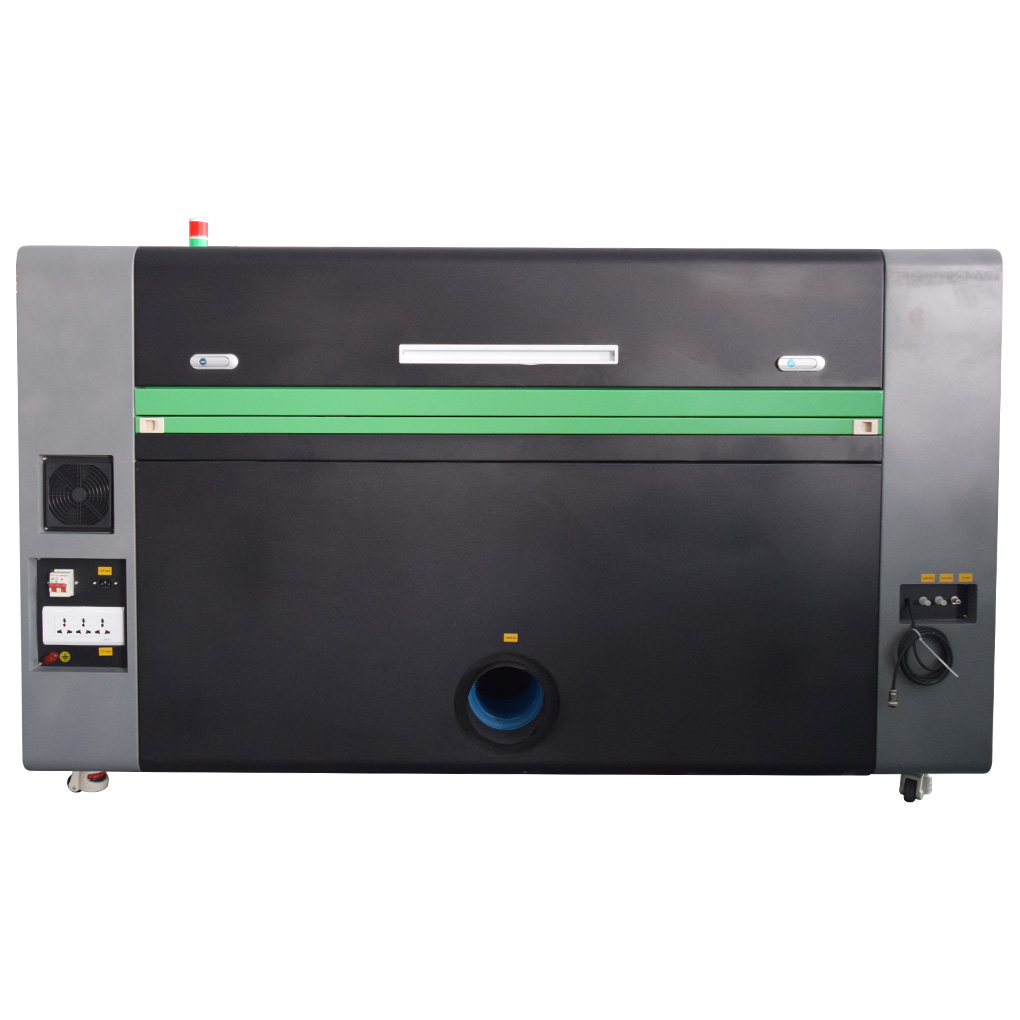

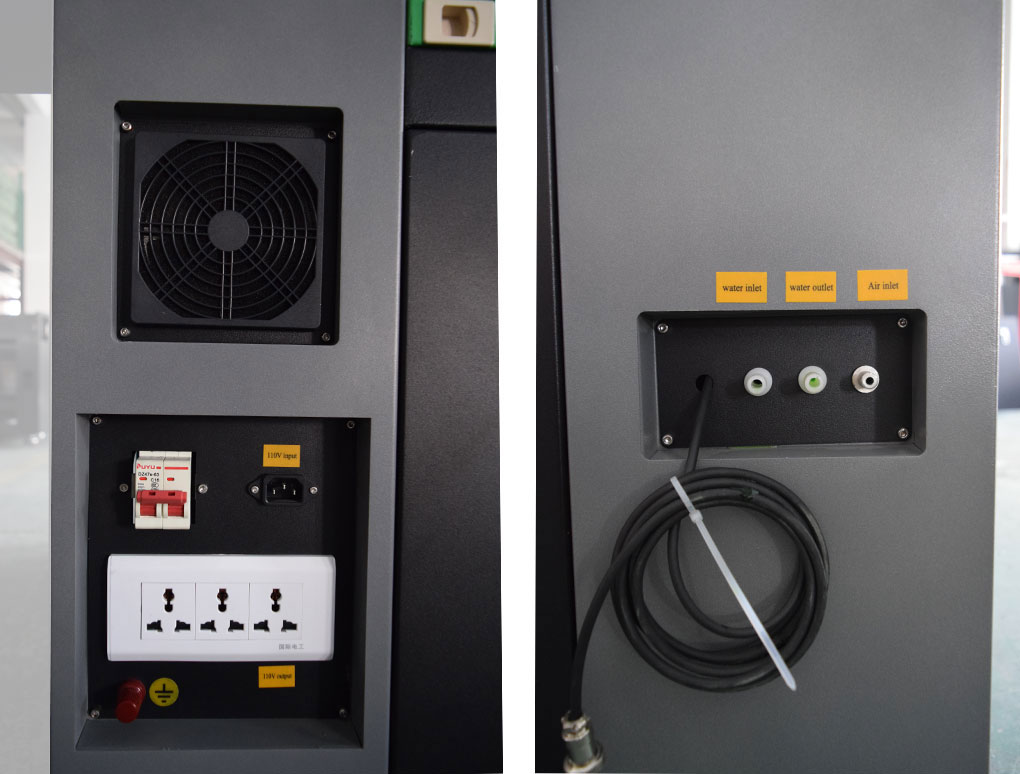

Well-Designed Details
Control switch and interface layout is reasonable, efficient design, more convenient to use. Built-in heat dissipation fan reduces the temperature of each component.

Package Included

1 x Air Pump 1 x Set of Inner Hexagon Spanner
1 x Water Tube 1 x Power Cord
1 x Operation Manual 1 x Ground Wire
1 x Glue 1 x Network Line
1 x Rotary Axis 1 x Water Chiller
2 x Venting Tube 1 x Screwdriver
3 x Clamp 1 x USB Cable
1 x Screwdriver 1 x Adhesive Tape
1 x Exhausting Fan

APPLICATION

This machine is equipped withThis machine is widely applicable in many Industries, including advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
Used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc.
For example: Countertop Sneeze Guard, Mask Storage Box, clocks, plaques, crafts, toys so on.

Model LCM-DR-1390-150W-K
Laser Power 150W
Voltage AC110V, 60HZ
Gross Power ≤1650W, 15A
Laser Type CO2 Sealed Glass 10.64 um
Working Area 1300mm x 900 mm (54 - 1/4" x 35-1/2")
Z table Motorized Z (15.7" vertical adjust)
Focus Lens Dia. 20mm FL2.5"
Worktable Both knife blade and honeycomb Double platforms
Cooling Type S&A 5200 Series
Driver type Stepping Motor
PC Interface USB, Ethernet connection and USB Disk
Max. Engraving Speed 300mm/s (11-3/4"/s)
Max. Cutting Speed 400mm/s (15-3/4"/s)
Engraving Thickness 0 - 10 mm (0 - 3/8") depends on material
Cutting Thickness 0 - 10 mm (0 - 3/8") depends on material
Locating Precision ± 0.01mm
Resolution Ratio ≤ 1,000 dpi
Min. Character Size 1 mm x 1 mm
Min. Character Letter 2 mm x 2 mm
Operating Temperature 41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface USB 2.0
OS Compatibility Windows 10, 8, 7 (64/32 bit)
Control System RD6445 series
Control Software RDWorks V8
Support Software LightBURN, CorelDraw, AutoCAD, Photoshop, etc.
Laser / PC Connectivity USB, Ethernet connection
Graphic Format Supported Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation Up To 256 Colors
Cooling Type Circulating Water Cooling and Protection System
Rotary Device Yes
Auto-focus Yes
Machine Dimension 1820x1325x1070mm(71.7" x 52.2" x 42.1")

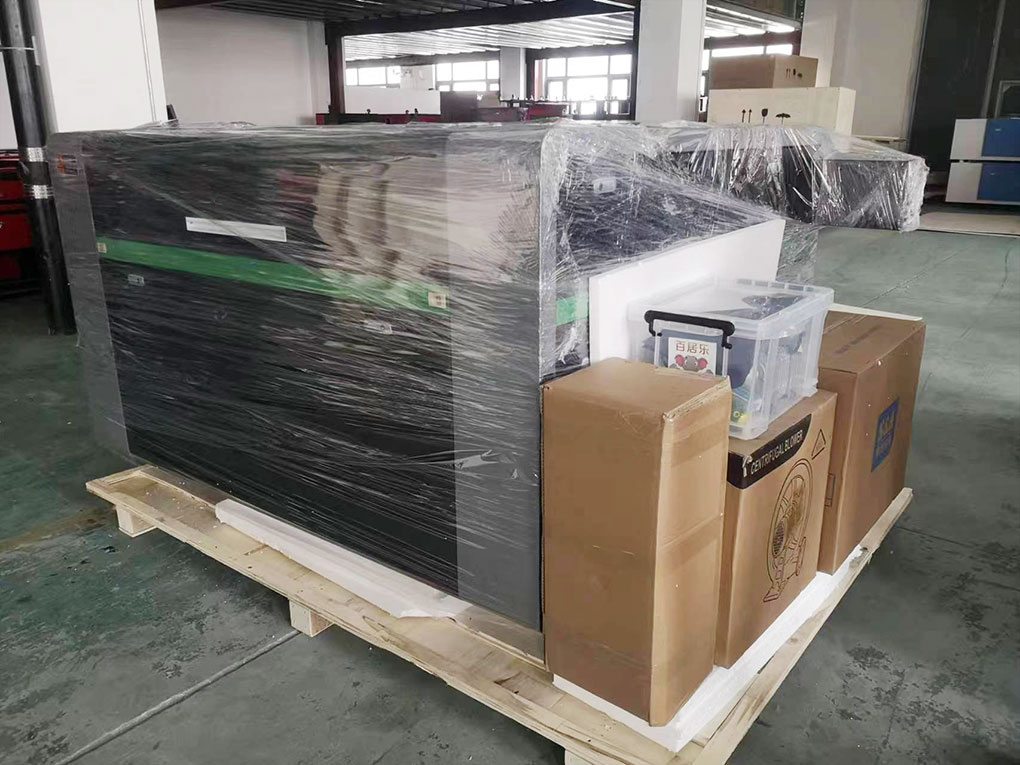

Package Wooden Crate
Shipping Dimensions 1940x1450x1300mm(76.4" x 57.1" x 51.2")
Gross Weight 445Kg(981Ib)
