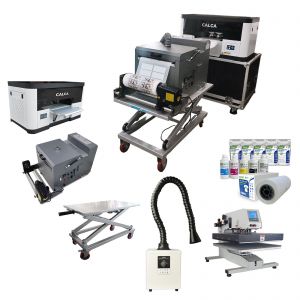

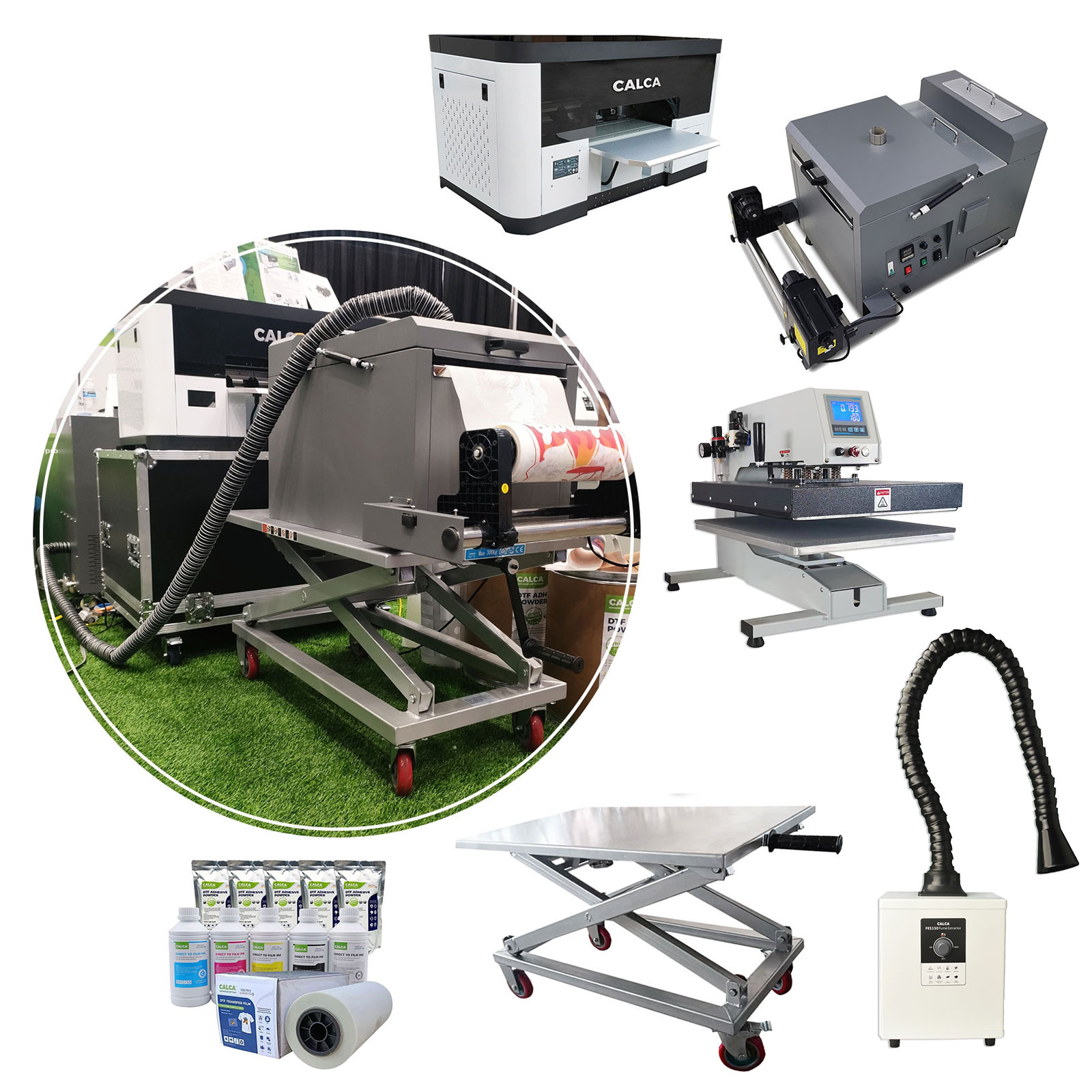

CALCA Star 13in DTF Printing Solution Starter Sets, get everything you need for a DTF printing workflow in one purchase.
What's Includes:

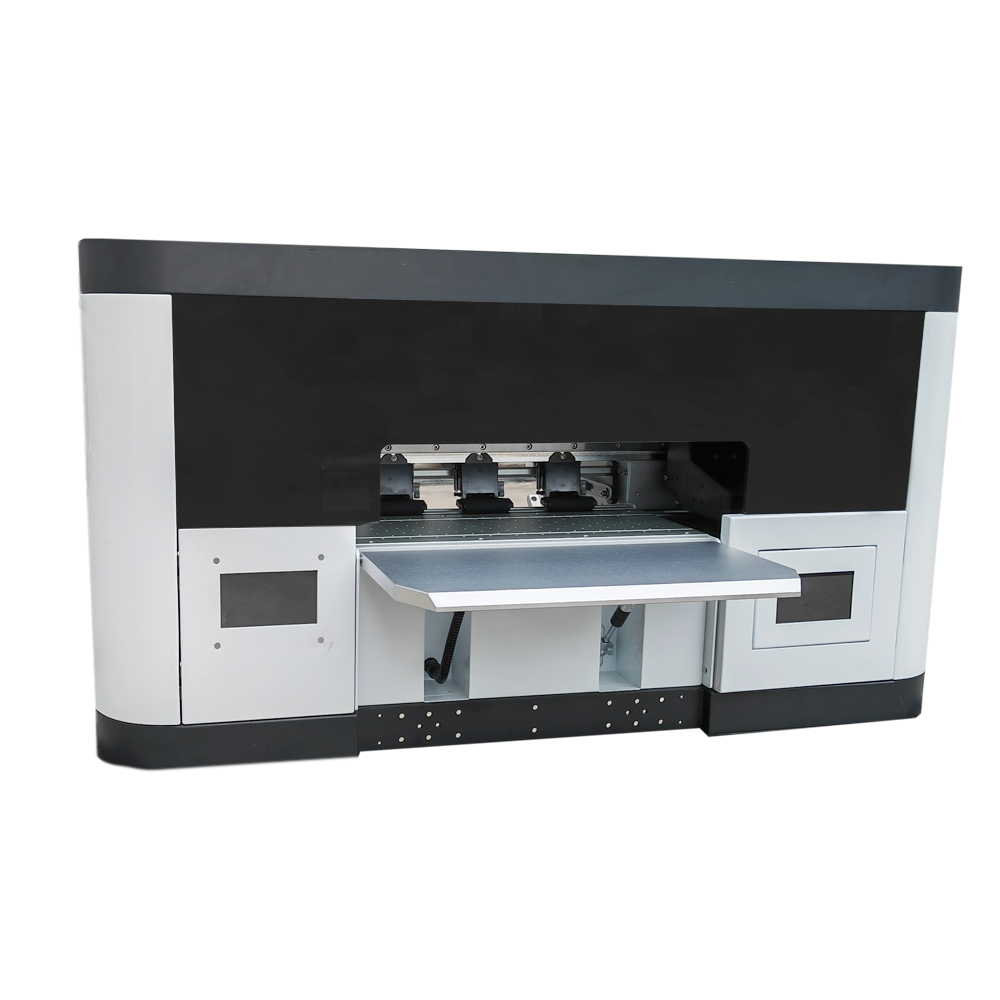

1 x CALCA Star 13in (330mm) Easy DTF Printer With Dual Epson F1080-A1 (XP-600) Printheads, flight case package (Can be used to place printers)

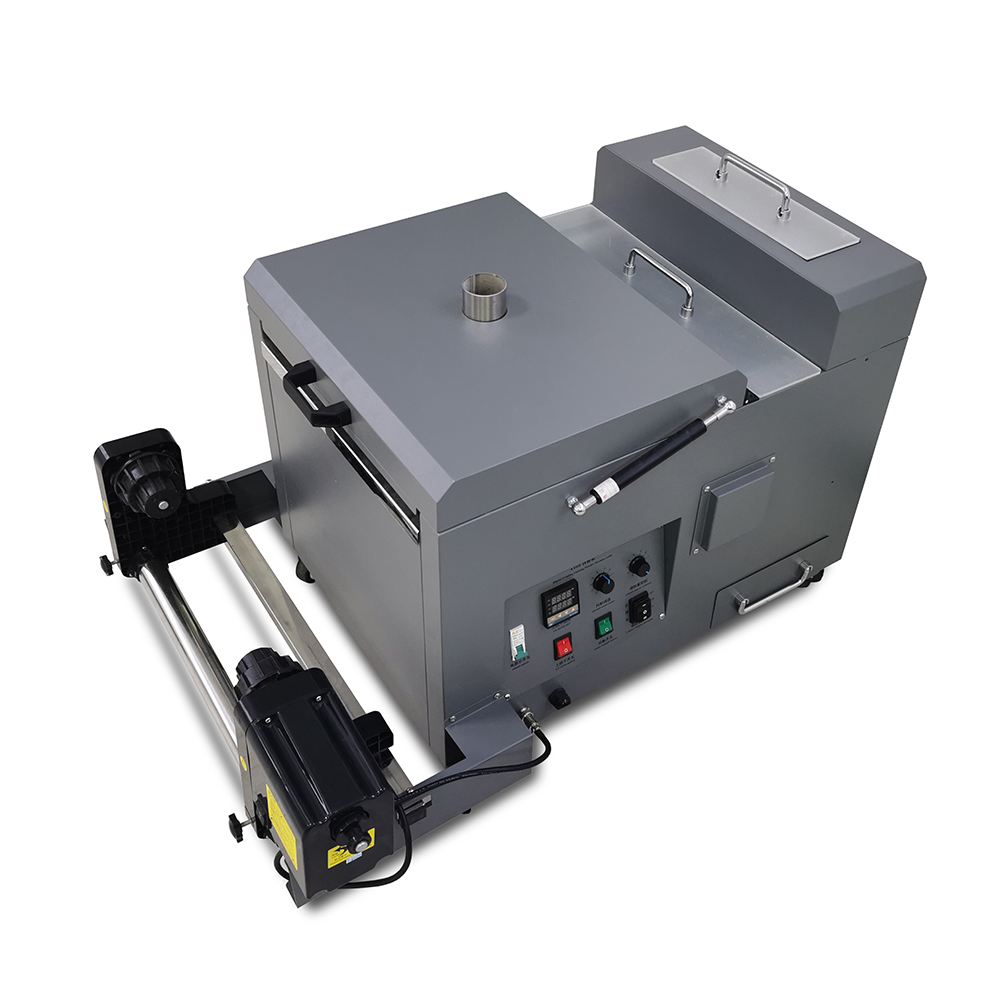

1 x CALCA 13.4in (340mm) Automatic TPU Powder Shaker and Dryer

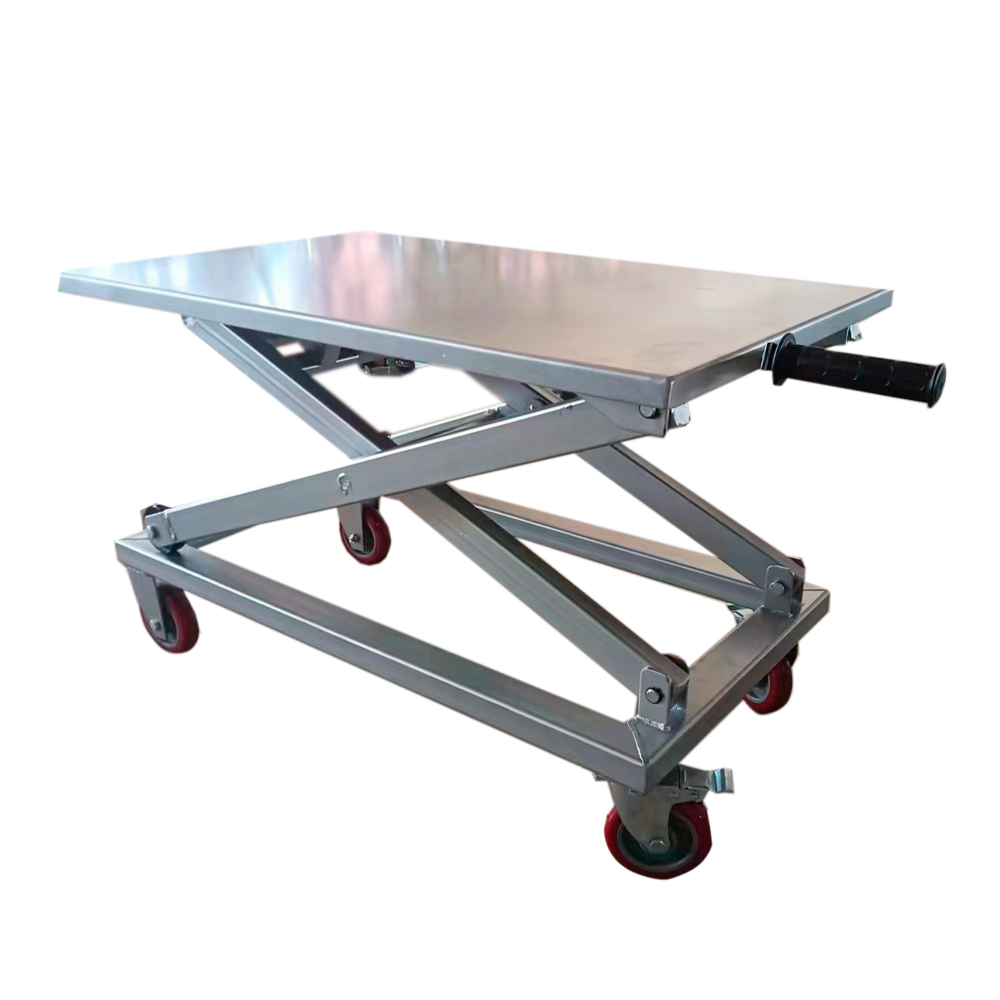

1 x CALCA 23.6in x 37.4in Height Adjustable (17in - 40in) Platform Cart, for DTF powder shaker

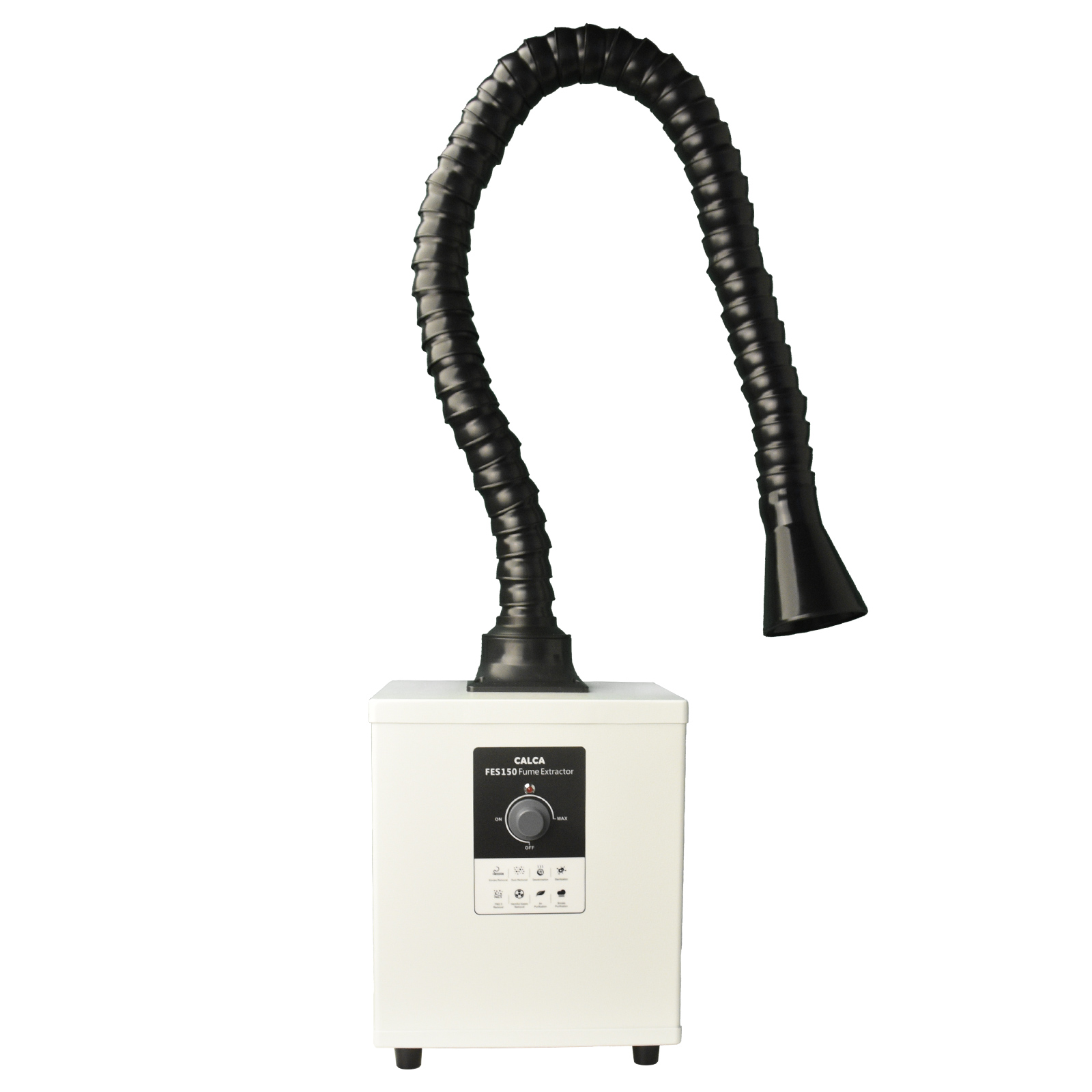

1 x CALCA 150W Fume Extractor Filter and Air Purifier with 3-Stage Filtration System

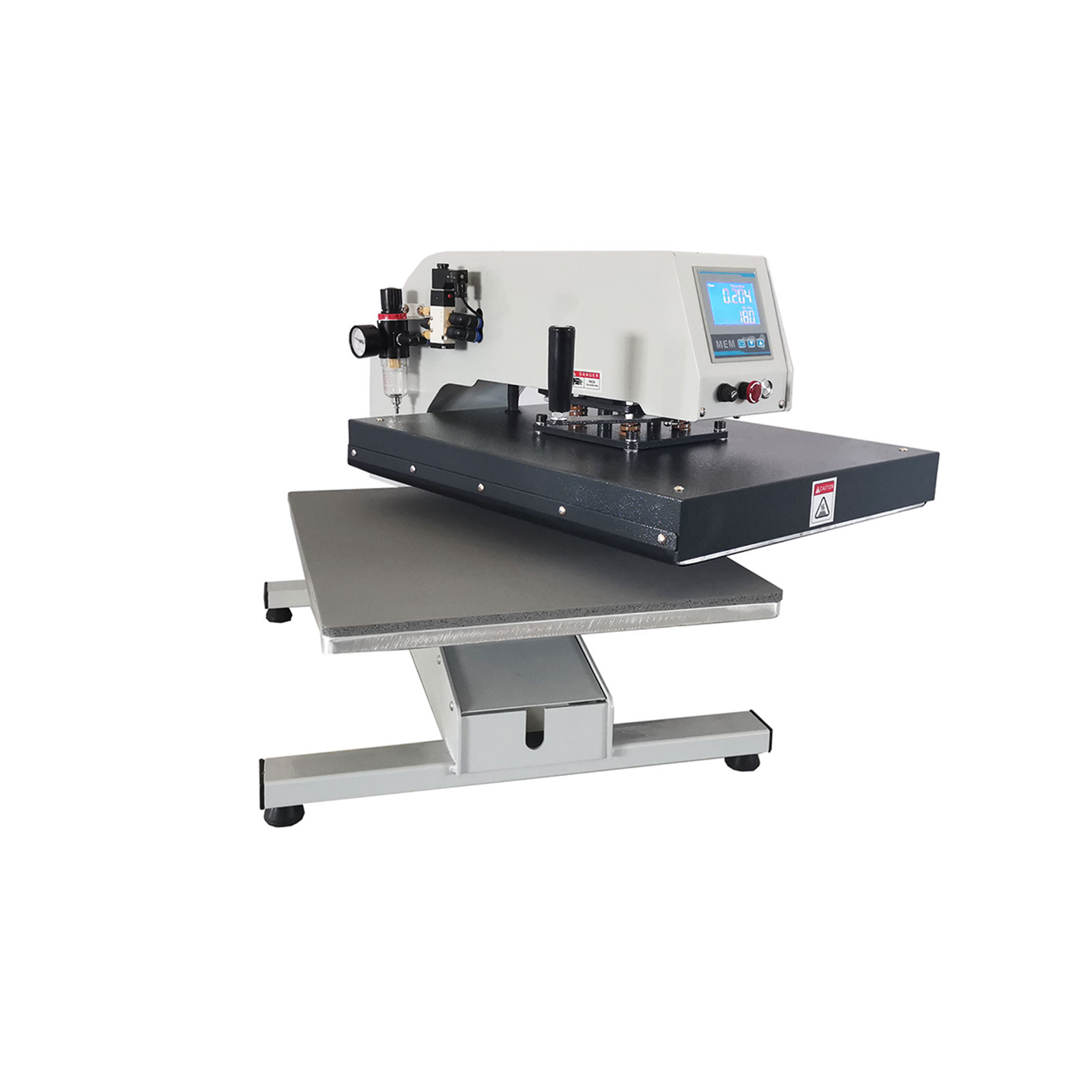

1 x MEM 16" x 20" High Quality Pneumatic Swing Away Heat Press

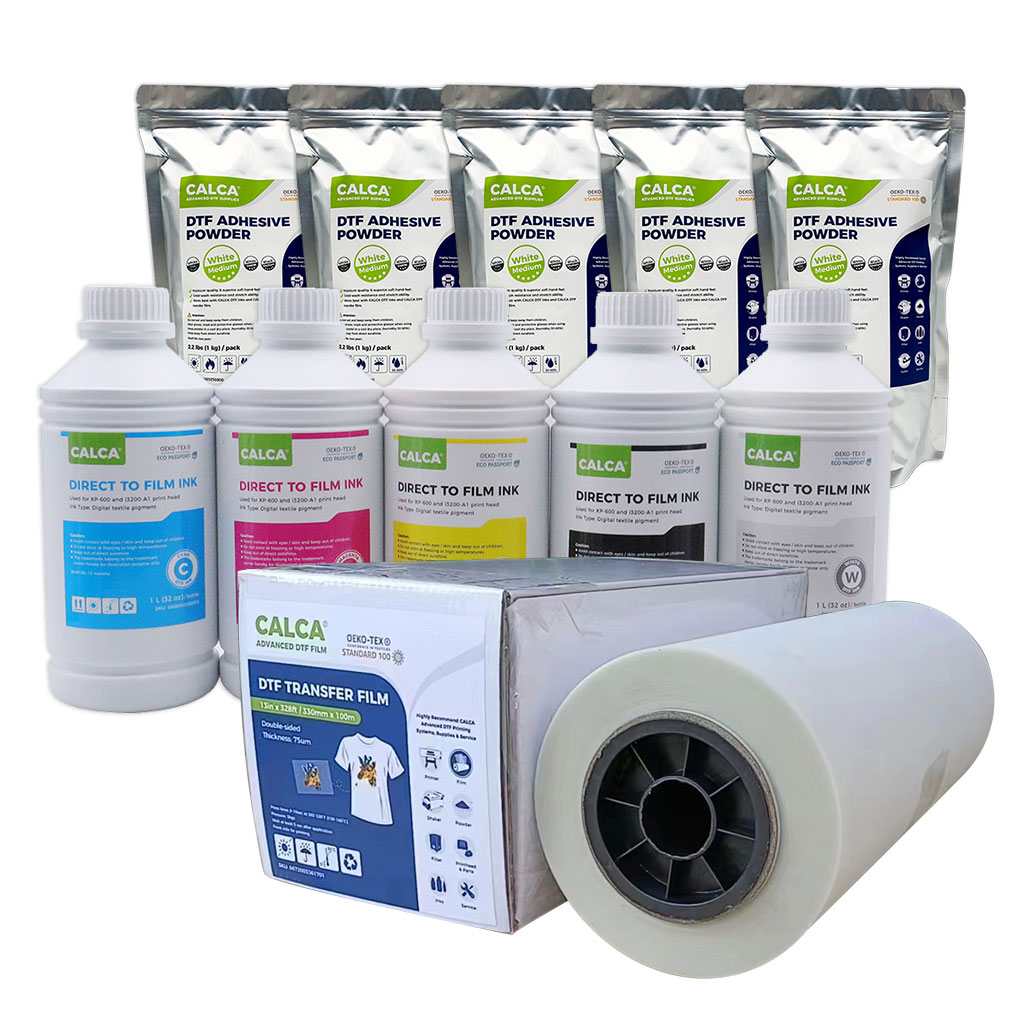

CALCA DTF Inks CMYK color, 1L/color
1L x CALCA White Ink
11lbs x CALCA Medium Adhesive Powder, White
2 Roll x CALCA 11.8in x 328FT DTF Transfer Film Hot Peel
CALCA Advanced DTF System & Supplies --- Perfect production line combination of store for the US market.
* Advanced DTF System: Self-developed CALCA® control system & DTF Fairy RIP software, united stability and efficiency. Applied for CALCA DTF printer, powder shaker and dryer, oven, film cutter and air filter.
* Advanced DTF Supplies: We researched and tested all DTF consumables to ensure the products we offer are reliable and productive. CALCA offerings for DTF printing will be inks, film and powder.
* Having an automated workflow — Even if in part—is essential to stay competitive.
CALCA’s Customers
Visit Us At Trade Show
Specifications
|
|
Ink Sort: CMYK+WW Ink System, Textile Pigment Ink, 500ml per color ink bottle capacity
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
Dual Epson F1080-A1 (XP-600) printheads
Maximum Printing Width: 13in (330mm)
Maximum Roll Weight: 396lbs (20kg)
Media Heater: Pre / Rear Heater (Can be controlled separately)
Printing Speed: 6 pass: 5m²/h; 8 pass: 3m²/h
Printing Resolution: 720X1080dpi, 720X1440dpi
Printing Software: CALCA DTF Fairy RIP Software (CADLINK is optional)
Print Head Cleaning: Automatic
Package: Custom-made tough and rugged flight case, which offers the best protection for your DTF printer.
Reusable: Display your equipment.
Machine Size: 980mm x 640mm x 520mm (38.6in x 25in x 20.5in)
Machine Weight: 90kg (198lbs)
Packing Size: 1100mm x 850mm x 670mm (43.3in x 33.4in x 26.4in)
Gross Weight: 120kg (265lbs)
Requirements:
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 11A, 1200W
• Operating System: Win7 / Win10
• Temperature control set to 20-35°C (68°F-95°F) and 35 - 65% humidity
• Relative Humidity: 40-60%
|
|
Maximum Shake Powder Width: 340mm (13.4inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating and Drying Function: 4pcs Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating Mode: Upper drying heating
Machine Size: 35.7in x 21.3in x 22.6in (907mm x 542mm x 574mm)
Powder Shaker and Dryer Weight: 79.2lbs (36kg)
Packaging Size: 29.5in x 23.4in x 23.2in (750mm x 595mm x 590mm)
Gross Weight: 110lbs (50kg)
Requirements:
Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
Current: 15A, 1650W
|
|
Rated Voltage: AC110V ± 5%
Rated Current: 1.6A
Rated Power: 180W
Filtration efficiency: 0.3um, 95%
Max air amount: 278m³/h
Port: Φ75mm Flange
Noise: ≤ 55dB
Machine Size: 11in x 9.4in x 12.4in (280mm x 240mm x 315mm)
Machine Weight: 26.5lbs (12kg)
Package Size: 21.7in x 13.4in x 14.2in (550mm x 340mm x 360mm)
Gross Weight: 28.2lbs (12.8kg)
|
|
Platform Size:23.6in x 37.4in
Load Capacity: 660lbs / 300kg
Min. Height: 17in / 44cm
Max. Height: 40in / 100cm
Packing Size: 39.4in x 24.4in x 17.7in / 100cm x 62cm x 45cm
Net Weight: 132 lbs / 60kg
Gross Weight: 154lbs / 70kg
|
|
Voltage and power :220V/2700W/13A or 110V /1800W/17A
Check voltage at back side of the head
Time Range: 0-999sec.
Max. Temp. 500°F /260°C
Cylinder distance:2in/5cm
Heat plate size: 16"x 20"(40cm x 50cm)
Dimensions(LxWxH): 30"x17"x21"( 77cm x 42cm x 54cm )
Shipping Dimensions(LxWxH): 33"x22"x22" (84cm x 55cm x 56cm)
Shipping Weight:165lbs(75kg)
Max. press thickness: 2in(5cm)
|
|
CALCA DTF Inks CMYK color, 1L each color; 1L x CALCA White Ink
11lbs x CALCA Medium Adhesive Powder, White
2 Roll x CALCA 11.8in x 328FT DTF Transfer Film Hot Peel
|
Welcome to visit CALCA's showroom!
This product has no Specifications
Warranty:
√ Lifetime Technical Support
√ Limited to 2-year warranty on non-consumable parts (1 year warranty on non-consumable parts if you don't use CALCA’s ink, film and powder products.)
√ Warranty on parts only for equipment using CALCA DTF inks, films, powders and equipment under proper maintenance and usage.
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user’s responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
