Specifications |

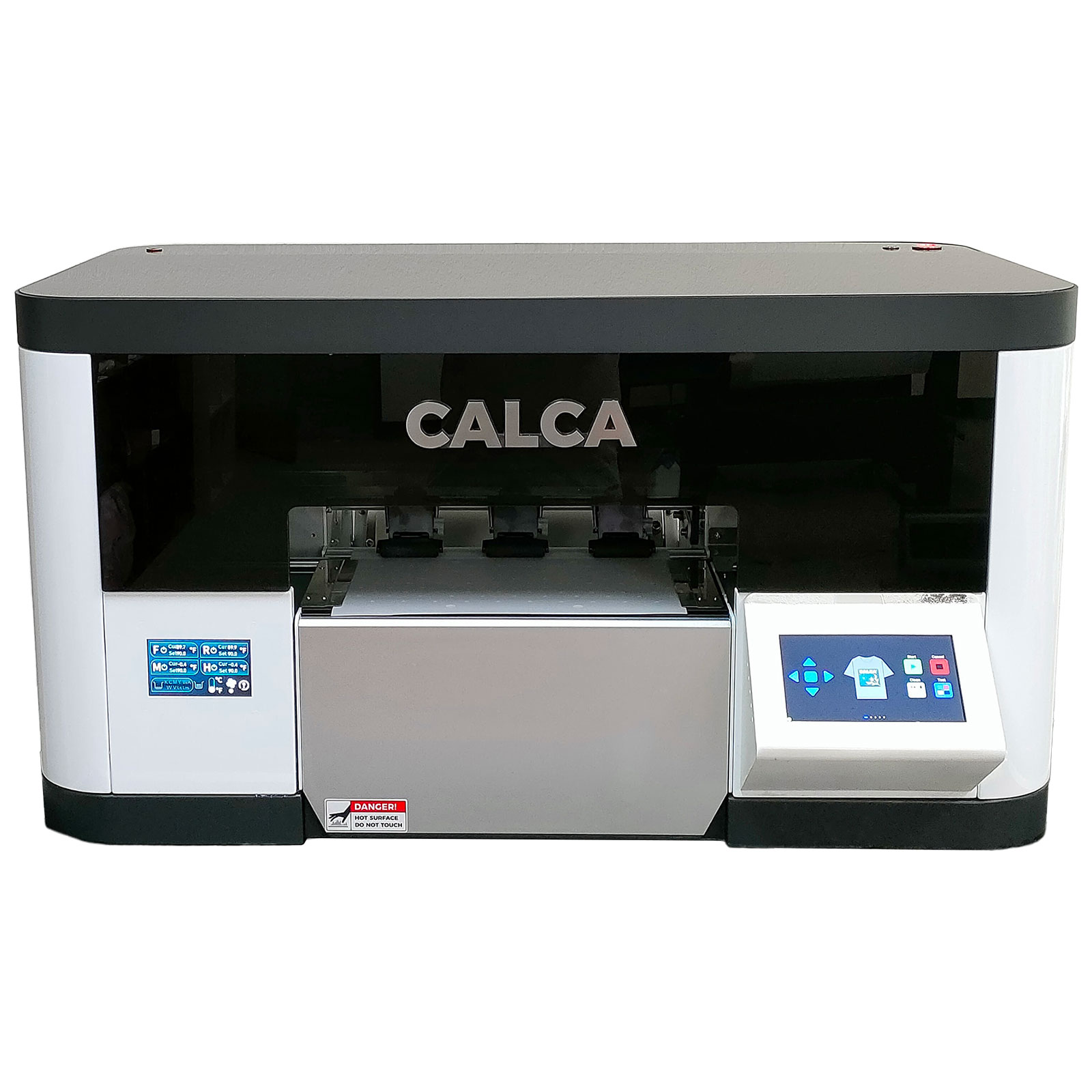

CALCA-DTF-TT13WF-US |
Ink Sort: Textile Pigment Ink, 500ml per color ink bottle capacity |
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable |
Maximum Roll Weight: 44lbs (20kg) |
Media Heater: Pre / Rear Heater (Can be controlled separately) |
Printing Speed: 6 pass: 5m²/h; 8 pass: 3m²/h |
Printing Resolution: 720X1080dpi, 720X1440dpi |
Printing Software: CALCA DTF Fairy RIP Software |
Print Head Cleaning: Automatic |
Package: Custom-made tough and rugged flight case, which offers the best protection for your DTF printer. |
Reusable: Display your equipment. |
Machine Size: 980mm x 640mm x 520mm (38.6in x 25in x 20.5in) |
Machine Weight: 90kg (198lbs) |
Packing Size: 1100mm x 850mm x 670mm (43.3in x 33.4in x 26.4in) |
Gross Weight: 120kg (265lbs) |
Requirements: |
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase. |
• Current: 11A, 1200W |
• Operating System: Win7 / Win10 |
• Temperature control set to 20-35°C (68°F-95°F) and 35 - 65% humidity |
• Relative Humidity: 40-60% |

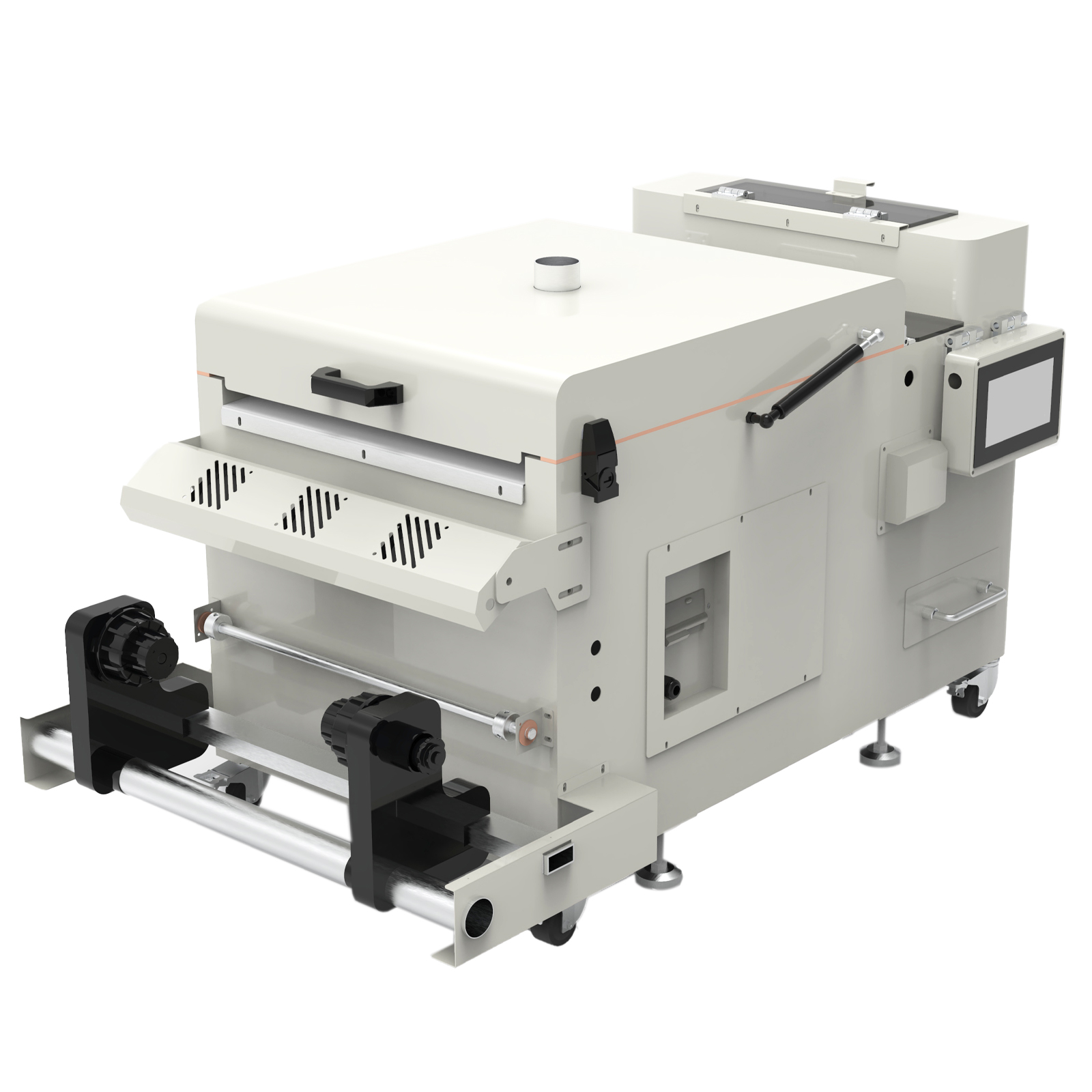

DTF-PSM-D400-US |
Maximum Shake Powder Width: 380mm (15inches) |
Functions: Shake powder control, dusting control, PID setting of curing temperature |
Heating and Drying Function: 6pcs Quartz infrared heat drying tube |
Rewinding Function: Automatic induction rewinding |
Heating Mode: Upper drying heating |
Cooling Mode: 3 fan air cooling (Single row) |
Machine Size: 46.7in x 26in x 25.2in (1185mm x 660mm x 641mm) |
Powder Shaker and Dryer Weight: 110.2lbs (50kg) |
Packaging Size: 45.3in x 27.6in x 27.6in (1150mm x 700mm x 700mm) |
Gross Weight: 180.8lbs (82kg) |

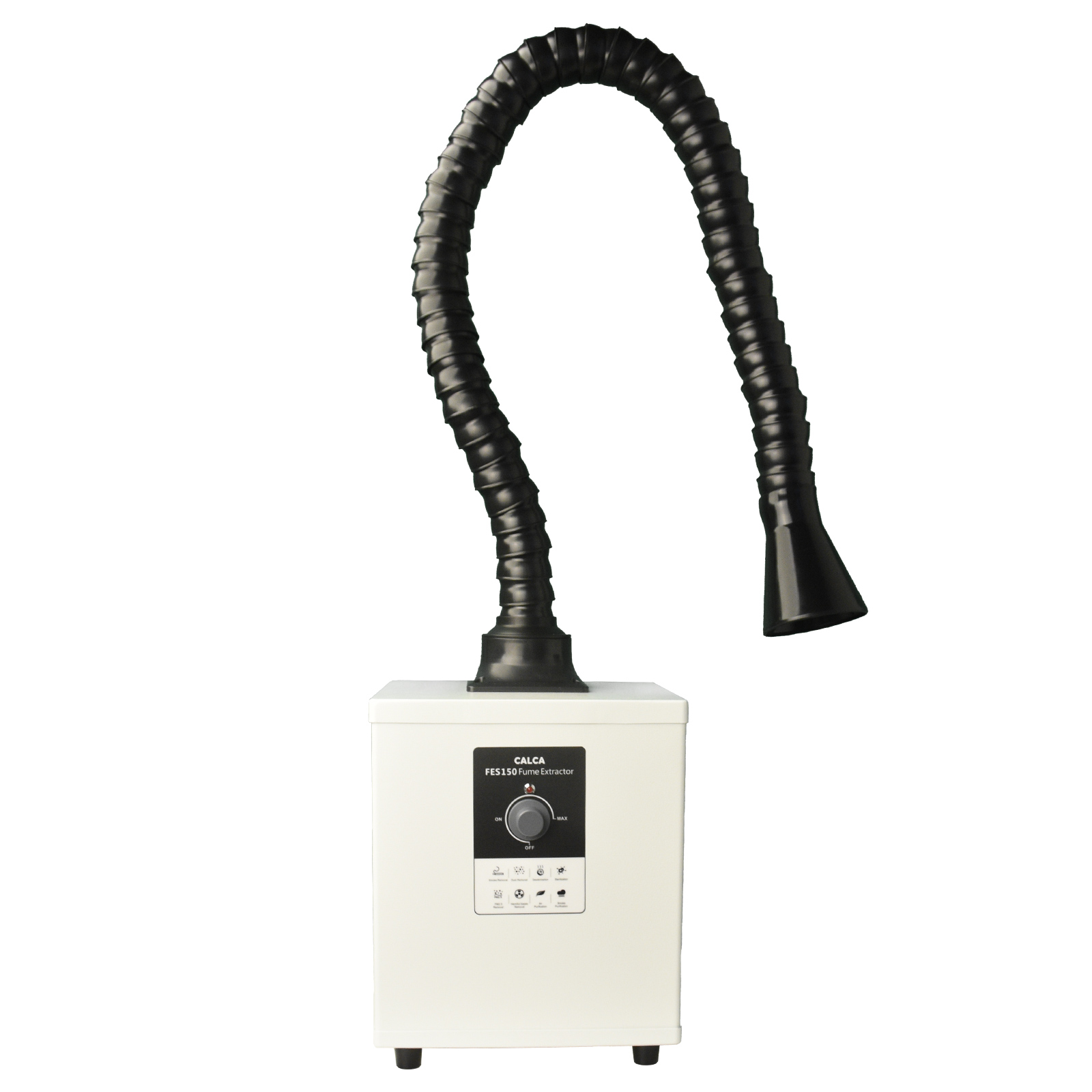

CS-FEF-CC150-US |
Rated Voltage: AC110V ± 5% |
Rated Current: 1.6A |
Rated Power: 180W |
Filtration efficiency: 0.3um, 95% |
Max air amount: 278m³/h |
Port: Φ75mm Flange |
Noise: ≤ 55dB |
Machine Size: 11in x 9.4in x 12.4in (280mm x 240mm x 315mm) |
Machine Weight: 26.5lbs (12kg) |
Package Size: 21.7in x 13.4in x 14.2in (550mm x 340mm x 360mm) |
Gross Weight: 28.2lbs (12.8kg) |

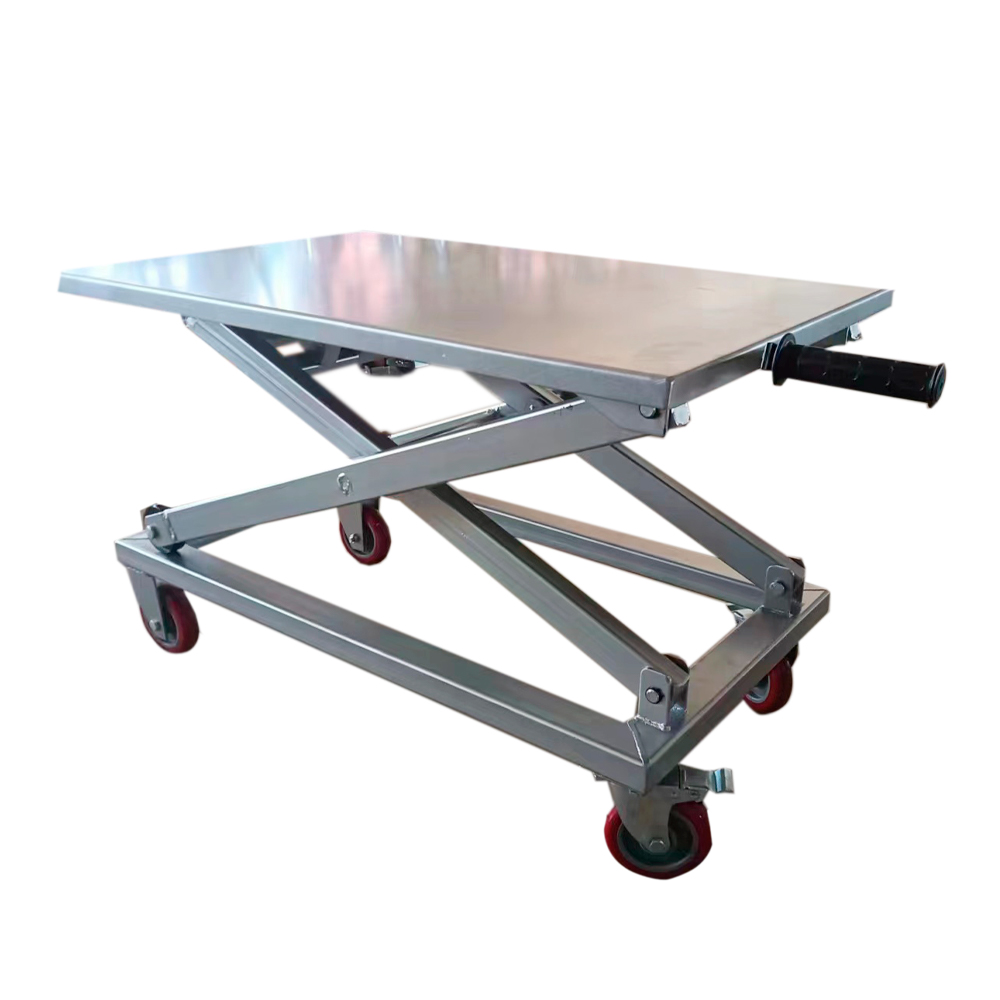

HTM-SG300-6095-US |
Platform Size:23.6in x 37.4in |
Load Capacity: 660lbs / 300kg |
Min. Height: 17in / 44cm |
Max. Height: 40in / 100cm |
Packing Size: 39.4in x 24.4in x 17.7in / 100cm x 62cm x 45cm |
Net Weight: 132 lbs / 60kg |
Gross Weight: 154lbs / 70kg |

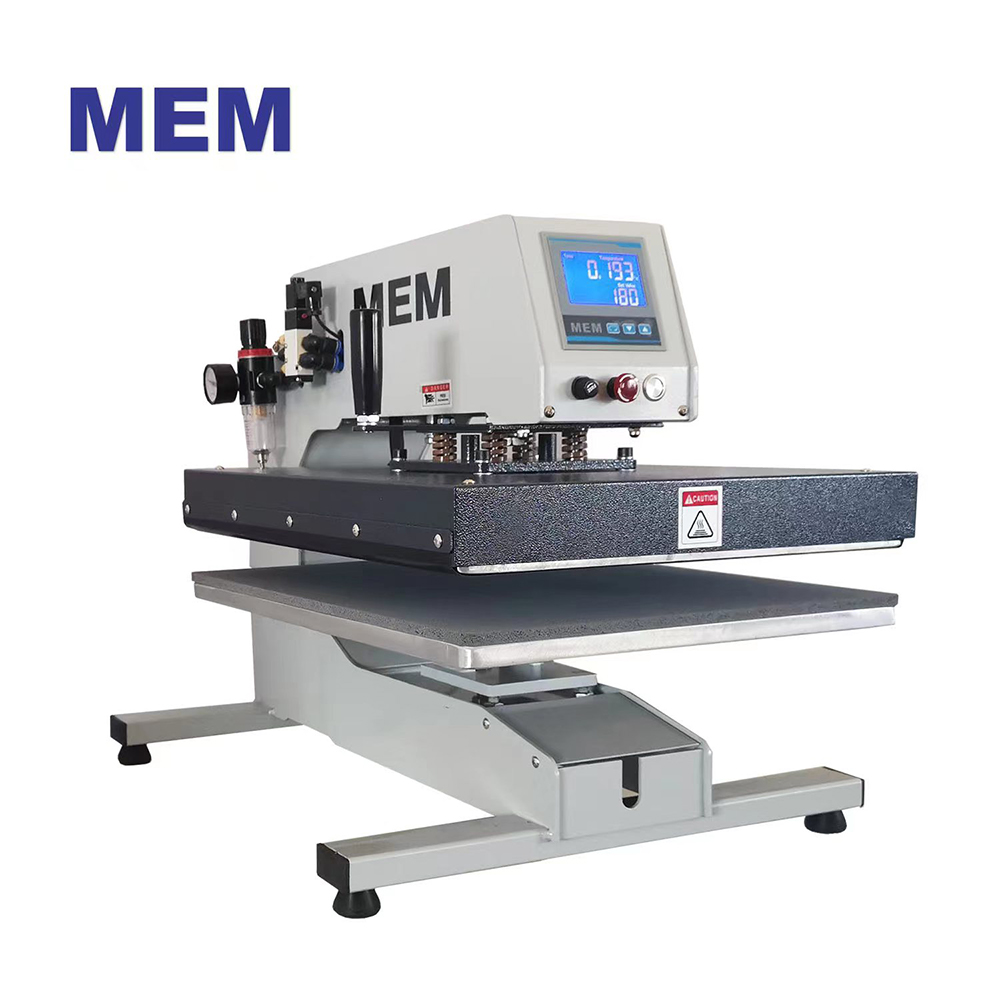

HTM-MEM-TQ1-4050-US |
Voltage and power :220V/2700W/13A or 110V /1800W/17A |
Check voltage at back side of the head |
Time Range: 0-999sec. |
Max. Temp. 500°F /260°C |
Cylinder distance:2in/5cm |
Heat plate size: 16"x 20"(40cm x 50cm) |
Dimensions(LxWxH): 30"x17"x21"( 77cm x 42cm x 54cm ) |
Shipping Dimensions(LxWxH): 33"x22"x22" (84cm x 55cm x 56cm) |
Shipping Weight:165lbs(75kg) |
Max. press thickness: 2in(5cm) |

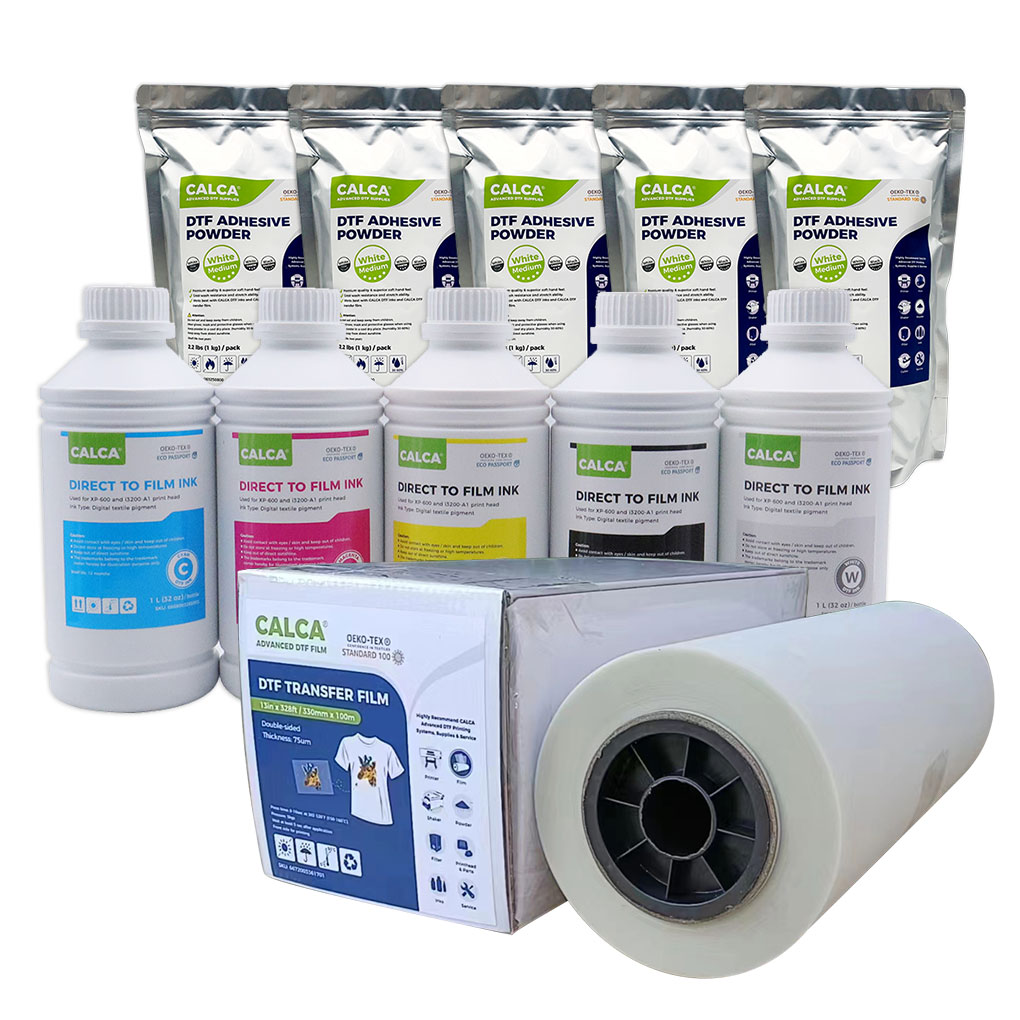

DTF-KIT-01-US |
CALCA DTF Inks CMYK color, 1L each color; 1L x CALCA White Ink |
11lbs x CALCA Medium Adhesive Powder, White |
2 Roll x CALCA 11.8in x 328FT DTF Transfer Film Hot Peel |
